Building process - The loudspeaker 1

one more quick sketch.
i would divide the huge front panel vertically to make it less "impressive".
i would handle the rectangular front as a graphic design.
the "polygons" in my sketch could be very very slight bevels, but visible due to different reflection of light. and of course the grille, as the main graphic element...
i would furthermore not stick to a strict symmetrical design, following the asymmetrical driver layout.
just my two architect's pennies.


Thanks STV for the input! the asymmetrical design looks really cool!

]

I've seen one custom 24 with the same kind of striped wood but a black to white burst ( like the traditional 'sunburst' but from black on the exterior to white transparent in the center with just enough transparency to see the wood stripe all over) which was just incredible as not this dark overall!
r's]


I saw something similar in the living voice design. But seems like so much work.. I think it is above me

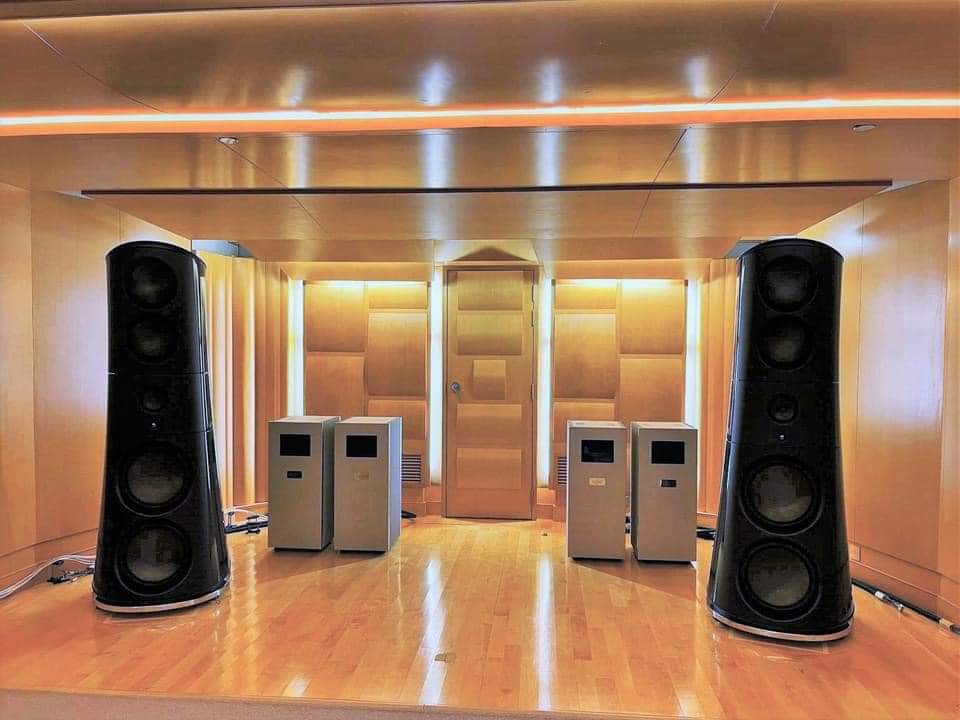

Whatever I do, no matter the esthetic I choose, it won't be as intimidating and overwhelming/threatening like this pair of the new Magico M9. They look like huge black Knight of some sort, way too intimidating


Attachments

  • 255734195_431737921658475_2427350237080143241_n.jpg
    58.8 KB · Views: 401
Just for the record: Walnut, with a dark stain preferably.


Wesayso, you are on to something. Walnut looks very imperial and impressive. some of my older German costumer would love it! Also for the front, as you said, those drivers needs covering. So, a simple rounded grill will do the trick. looks very elegant yet mighty... Problem solved. Just how to do a curved grill... will tackle it when will get there 😀

Ho ****, I forgot! I still have the supertweeters thingy on top...


Attachments

  • TL1 ver4Nussdunkel1 (2).png
    TL1 ver4Nussdunkel1 (2).png
    378.2 KB · Views: 264
  • TL1 ver4nussdunkel3 (2).png
    TL1 ver4nussdunkel3 (2).png
    443.1 KB · Views: 266
  • TL1 ver4nussdunkel4 (2).png
    TL1 ver4nussdunkel4 (2).png
    367.6 KB · Views: 258
Last edited:
That's starting to look like money! 😀
I like it, with that rounded grille.
A nice brass stand for the supertweeters?

P.S. Half of the money would be in a cool name. Got to love Living Voice Vox Olympian.
The only cooler name in my mind was the Altec Lansing's: "Voice of the Theater" slogan.

Last edited:
Wesayso, you are on to something. Walnut looks very imperial and impressive. some of my older German costumer would love it! Also for the front, as you said, those drivers needs covering.

From what I remember, English wood-workers get that fabulous stain AND finish result with beeswax (..usually a stained variety).

Though they are talking about restoration here, they use it for new finishes as well:

Beeswax Furniture Polish - How to get the best results. - YouTube

-the more buffing and layering, the greater the shine (..so lightly buffed wouldn't have any shine at all, or very little shine.)

Last edited:
If it were me I'd choose the III iteration, which doesn't require them. 😉

(..plus, good horn/wavguide designs that tend to fire a bit "upward", as with the III, almost always sound better.)

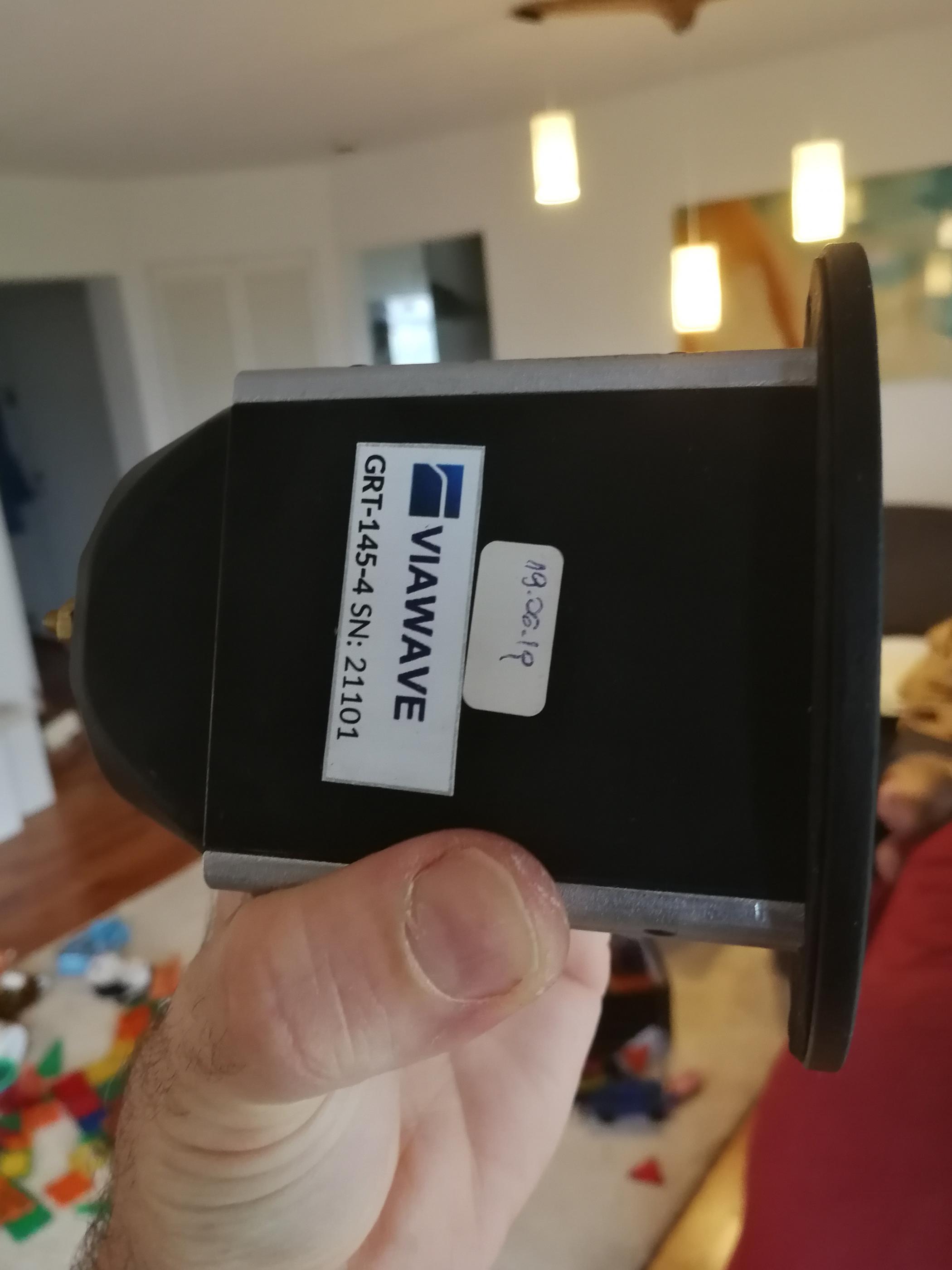

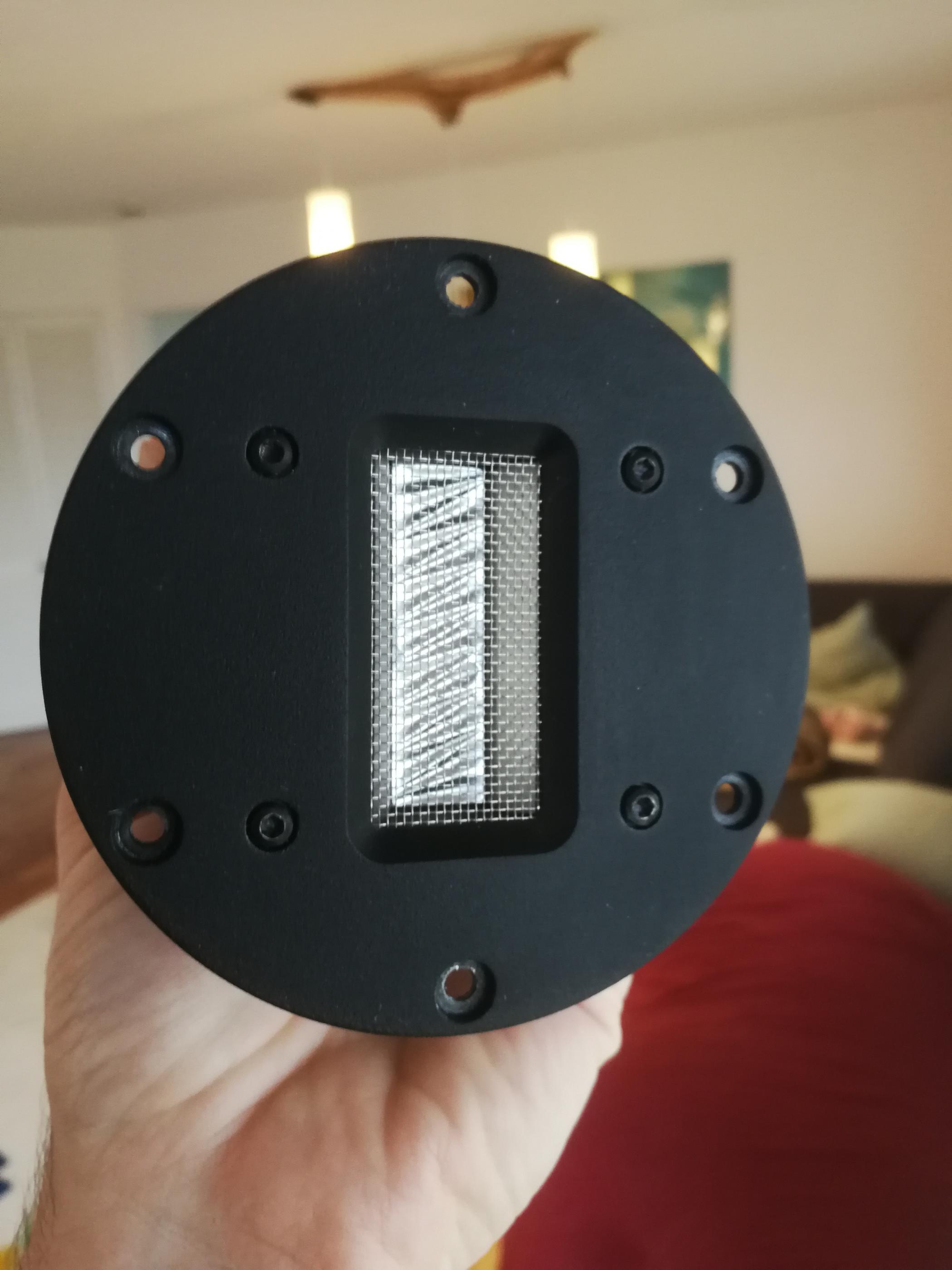

Just received the Viawave I'll put on top (so, too late for the 3ver), those are quite heavy and for my eyes pretty... seems to be of very high quality.


Attachments

  • IMG_20211111_105024.jpg
    277.1 KB · Views: 430
  • IMG_20211111_105032.jpg
    234 KB · Views: 438

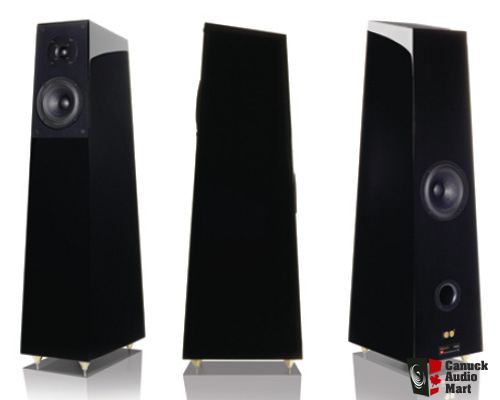

What I'd really like to see (design-wise) is the III with the added ribbon tweeter on the rear out-of-phase and mounted horizontally. Additionally, NOT a stepped baffle but rather a slanted-back front baffle (and an even more slanted back rear panel). Maybe even trapezoidal with the bottom wider & deeper than the top. Maybe like the Verity Audio Finn but with a slightly more aggressive rear slant (from a deeper bottom panel):


Attachments

  • 926987-f56cf4ee-verity-audio-finn.jpg
    13.1 KB · Views: 374
Last edited:
What I'd really like to see (design-wise) is the III with the added ribbon tweeter on the rear out-of-phase and mounted horizontally. Additionally, NOT a stepped baffle but rather a slanted-back front baffle (and an even more slanted back rear panel). Maybe even trapezoidal with the bottom wider & deeper than the top. Maybe like the Verity Audio Finn but with a slightly more aggressive rear slant (from a deeper bottom panel):

I'll take those Verity Audio speakers, fantastic speakers 😉

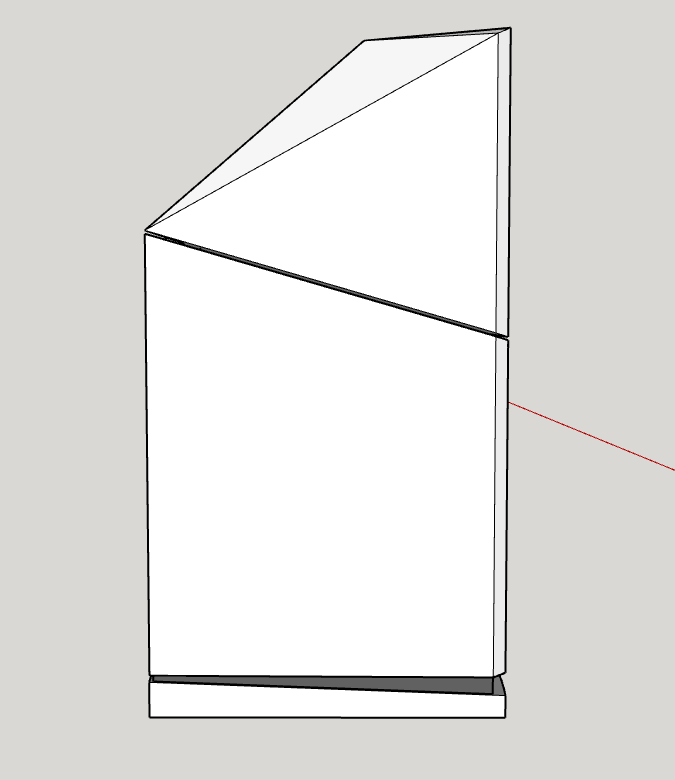

So, I've left the fancy desing behind and will persue this more modern TL2 I've sketched. What do you think? Wilson audio killer?
