ADAM Active Studio Monitor schematic diagrams help

[carl1988]

ADAM S3XH Service Manual

.. was submitted thanks to a forum user.
6 MB exceed the attachment limit, so ask by pm ..

Hello, would you please send it to me. I can't send PM...



[yamahapower]

Gentlemen, again, whoever needs a manual has to send me a private message.
This should contain his e-address in the first place.

Repair success with errors unknown before should be reported here, thanks.

@as_audio

Hi, I can't send PM. Could you please send me Adam P33 schematic or service manual? Someone did a terrible job, I need to fix it. Thanks.



[ajmlopez]

Hello,

I have a problem with one of my P11 box. it show very quickly the over red light and sounds a little bit saturated at low volume too. I take measures in main power supply capacitors and they show 39-40v each and don't go down if I up the volume. any help??

thanks in advance,
Antonio.



[as_audio]

Do you own the P11 schematic, is it useful for your needs ?



[ajmlopez]

No, sorry. Please can you send me the schematics? my email is: [Redacted by moderation]

thanks



[AllenB]

@ajmlopez your email address has been hidden for your online safety. @as_audio may wish to private message you instead.



[AlexVyverman]

I have a pair of original S3-A's, where one of the two speakers outputs a really loud buzzing sound (max volume, and you can see the woofers retracting!) when activating them. This doesn't happen every time when powering on, but only periodically.
By quickly power cycling the speaker, I can get past this buzz. And once they are powered on without the buzz, they stay that way until powered off.
Any ideas where to look to solve this?

Many thanks!



[as_audio]

Are you able to check the electronics yourself ?



[AlexVyverman]

Are you able to check the electronics yourself ?

Depends on the difficulty level, but I should be able to yes.



[as_audio]

Please send a picture of the amp inside, I am not sure about it at the moment.



[AlexVyverman]

Please send a picture of the amp inside, I am not sure about it at the moment.

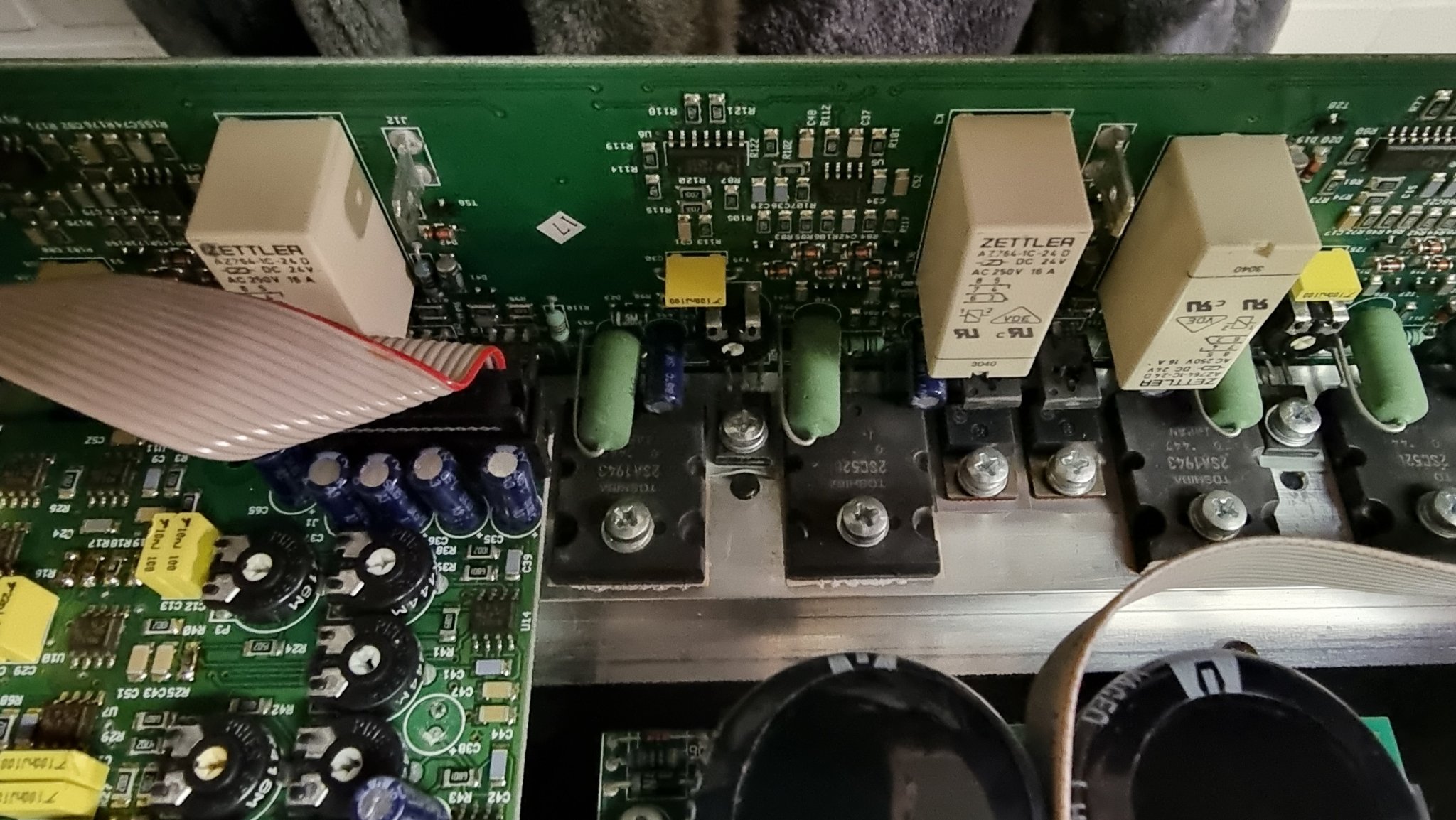

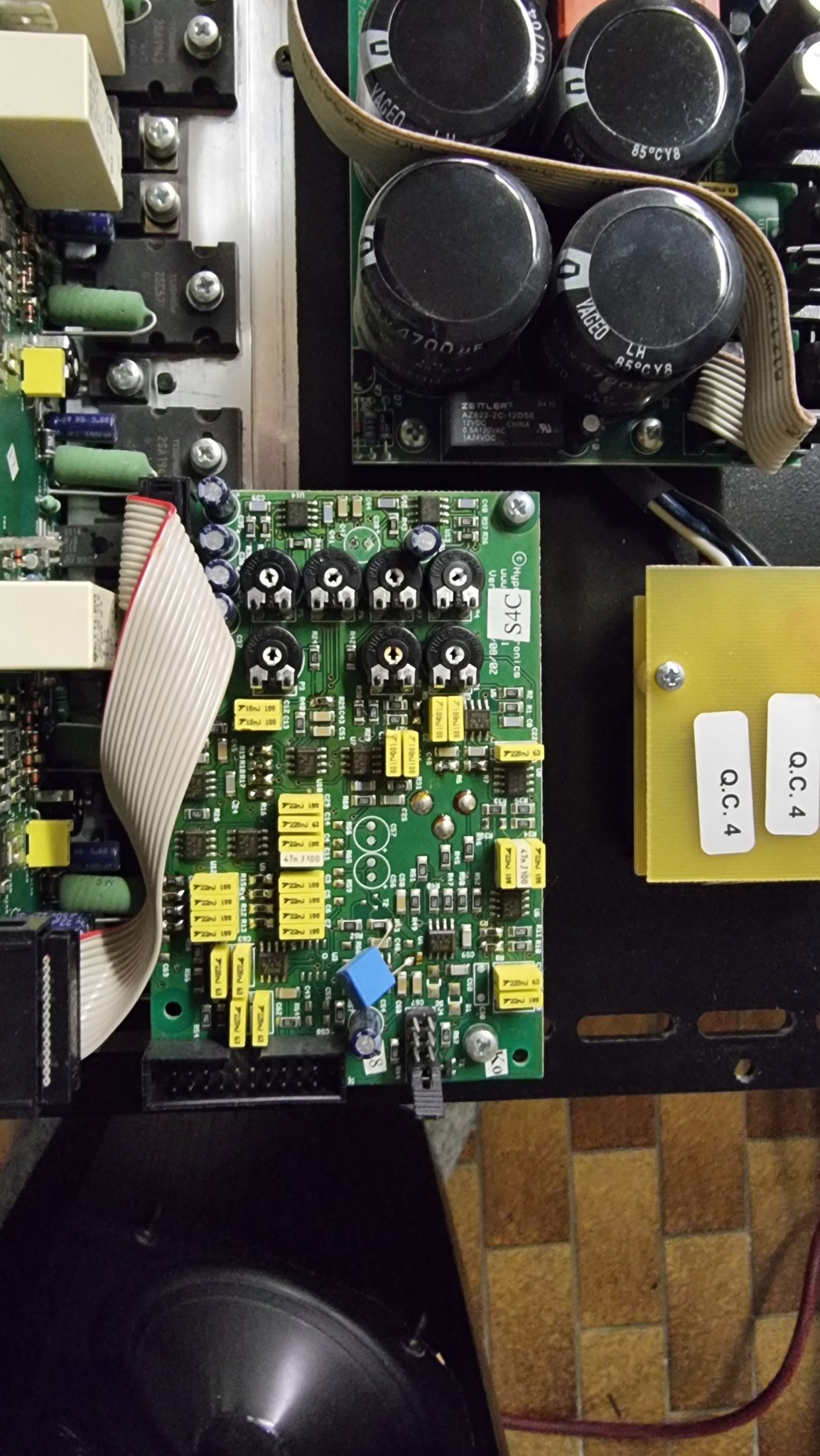

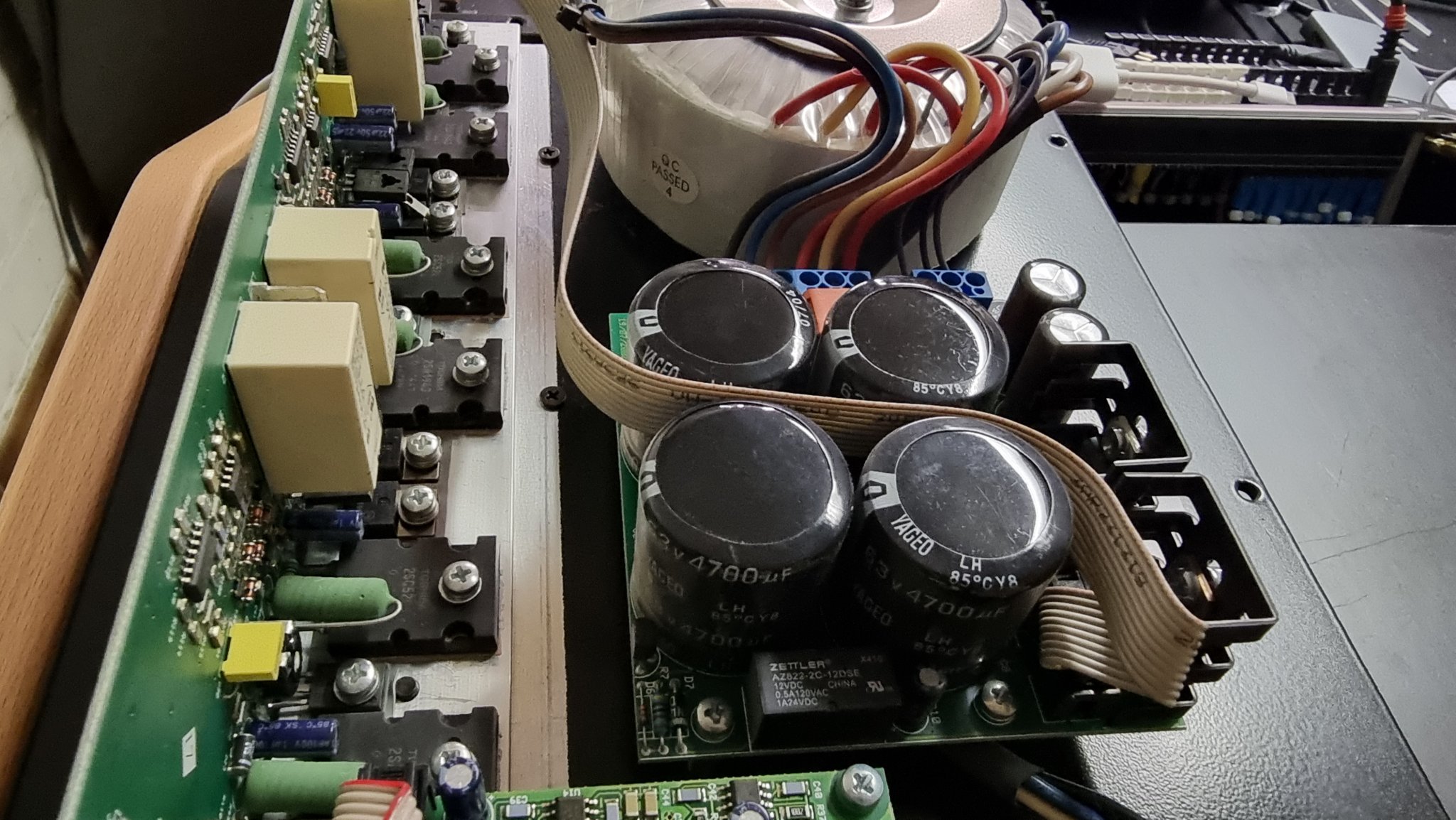

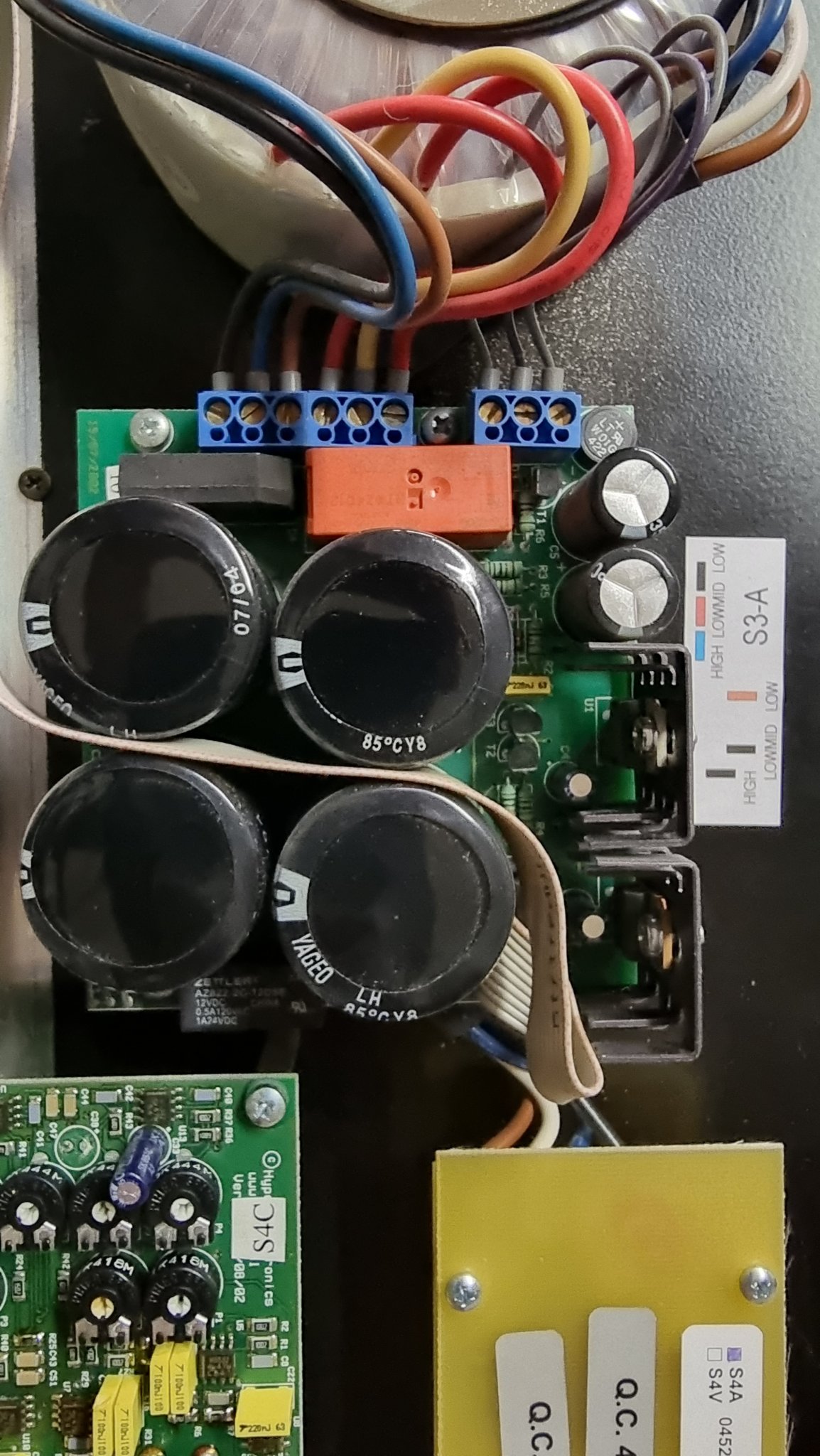

Here are a couple of pictures of the amp.
Do you need a close up of anything in particular?
Many thanks for your help!



[as_audio]

No, I see I am not familiar with this model.
If you are at it have a look at transformer mounting precautions elsewhere in this thread.



[audio_fan]

Hello, I have a pair of Adams P11 and one of them is not working. I would like to get the schematic diagrams to send it to a technician that might solve the problem. Is it possible for someone to send the schematics to me? Thanks in advance!



[as_audio]

See post 1 and 16.



[audio_fan]

Thank you, I already have seen both posts and I just asked for the schematics on the forum because as I am a new member, I can't start new conversations with other members. I am sorry if that is not the right way to do it.



[modularfreak]

Hello "as_audio",

I have issues with my ADAM P11A and would be very grateful to get the service manual/schematics.

Unfortunately I have the same problem as the former poster:
as I am a new member, I can't start new conversations with other members like you

Best regards

Frank



[audio_fan]

My Adam p11 monitor finally got back to me this week with a new transformer.
Thank you very much as_audio for the monitor schematics.



[as_audio]

Where did you get the transformer ?
Thanks



[audio_fan]

The local technician got a replacement from someone he knows and that already had replaced the transformer in my other monitor one year ago.



[as_audio]

I have issues with my ADAM P11A and would be very grateful to get the service manual/schematics.
I can't start new conversations with other members like you

I can not help if you do not reply to the message.
