It is very hard to "imagine" what you "mean" if you don't explain that yourself. 🙂Chdsl.
I'm not going down this road again, use your imagination.
Steve.
What is "colouration" for one person, might not at all be a "colouration" to another. It depends on the state of one's hearing.
Ondesx.
And there was me thinking , all I want is my speakers ,whatever they are, is to sound real.
As if the musicians and their instruments are in the room with me.
I didn't realise I'd have to make them sound bad to do it ?
I'm Sorry it sounds like I cannot help you.
Steve.
And there was me thinking , all I want is my speakers ,whatever they are, is to sound real.
As if the musicians and their instruments are in the room with me.
I didn't realise I'd have to make them sound bad to do it ?
I'm Sorry it sounds like I cannot help you.
Steve.
What you hear from your speakers, whatever they are, is what the sound directors mixed and created on their mixing tables. So, you won't find the musicians and their instruments in your room though your speakers. The sound directors decide what you hear. 🙂And there was me thinking , all I want is my speakers ,whatever they are, is to sound real.
As if the musicians and their instruments are in the room with me.
Hopefully.Chdsl.
And hopefully your sound system should ply it back to you faithfully.
Steve.
Everything we hear from any speaker system, TV, radio or any other sound reproduction medium is what the sound engineers/directors had decided, the music, songs, speech, background sounds and whatnot. Even at the live concerts, they decide what we hear.
Might be the first patent on distributed mode.
-----------------------------------------
Abstract
A panel-form loudspeaker has a resonant multi-mode radiator panel which is excited at frequencies above the fundamental frequency and the coincidence frequency of the panel to provide high radiation efficiency through multi-modal motions within the panel, in contrast to the pistonic motions required of conventional loudspeakers. The radiator panel is a skinned composite with a honeycomb or similar core and must be such that it has a ratio of bending stiffness to the third power of panel mass per unit area (in mks units) of at least 10 and preferably at least 100. An aluminium skinned, aluminium honeycomb cored composite can meet this more severe criterion easily.-----------------------------------------
Thank you for the math Eric. The art of patenting?Steve,
As I read it, the claim is that anywhere along the line EB is good, but the X spot, where EB/EX=1.62 is "best".
Funny thing is, they claim this is substantially different from the NXT patents, but if you do the geometry, it turns out that their best (X) spot is at (0.38, 0.41) which is pretty darn close to the NXT position of (5/13, 3/7), i.e, (0.38, 0.43).
That said, I'm pretty convinced that the idea that there even exists a good simple general rule for exciter positioning is incorrect. The best evidence is in this article:
https://www.researchgate.net/public...iated_Sound_Power_of_a_Flat_Panel_Loudspeaker
It's all based on modelling, not actual measurements, but they find that the "best" position depends strongly on the size of the panel, even for a fixed aspect ratio (1.25 in the case of the paper). I think it's reasonable to suspect that the ideal position also depends just as much or more on the aspect ratio of the panel, anisotropy of the panel, and boundary conditions of the panel.
If you don't want to make any effort, the 2/5 is rarely a bad place, I suspect, but this or any other simple rule is likely to be the best place, I think.
Eric
Fully agree also with the driving point approach you have summarized.
Good thing also to have posted again the link to M Zenker's paper. Page 2 there is an approximation of the natural frequencies of a clamped plate. I just used it as a comparison for an FDM script, the mean error between this formula and the script output for a 600x400mm plate simulated with a 10mm mesh is 3.5% (min 0%, max 6%) over the 25 first modes. Good point for the script...
The way to change the mode aspect to show possible driving points seems also possible way with a Python script!
Christian
All this means is you are used to hearing and prefer a certain presentation of sound. Point source speakers are far from perfect and absolutely not like live music. You cannot be absolutist about this as all current methods of sound reproduction include distortion mechanisms. Just the simple fact you are replaying a recorded sound many involves layers of interactions and energy transfers that the original event does not include. By all means state a preference, that is perfectly reasonable thing to do.No, I'm sorry Steve, it's been in the garbage for a long time now, especially since I moved from a big house to an apartment 3 years ago!
The issue here is that everyone relies on their own judgment to evaluate what they hear... Unfortunately, the human ear is not very... reliable! It is even sometimes favorably impressed by certain distortions... The only thing you can say is that "you prefer the sound of the panels and their image". So you belong to the second population of audiophiles, those who want to enjoy listening to reproduced sounds but aren't concerned about fidelity of this reproduction.
The only thing you can do to really "compare" panels and monitors would be to record voices and instruments with subjects you know well in different acoustics and then, with a very few processing of these recordings, listen to them on the different transducers: you will very quickly understand what I am trying to explain about the soundstage and the "coloring" of panels. But even after that comparison, you may still prefer one to the other !
Anyway, I'll say it again, building transducers, here DMLs, and liking the sound they deliver is perfectly understandable. But, if these transducers are not widely used by professionals, who "make" the music that everyone listens to, there are reasons, and these reasons are the ones I explained.
Burnt
To the contrary, you just need better source material.What you hear from your speakers, whatever they are, is what the sound directors mixed and created on their mixing tables. So, you won't find the musicians and their instruments in your room though your speakers. The sound directors decide what you hear. 🙂
I have a friend who has spent much of the past 30 years making high quality direct (unadulterated) recordings of live jazz performances from the audience. He makes these recording for his own use and will sometimes share them with friends.
I've never heard any recordings as realistic to the performance, the space, or the precise location in the space.
I have used these recording to evaluate changes in my audio system - new electronics, new drivers, new cross over points.
I use them the demonstrate changes to friends (a number of them DIYers ;-) who come to listen.
Nothing could have prepared me for the experience of listening to a recording of John McLaughlin playing with Chick Corea during Chick's 70th birthday celebration at the Blue Note, in New York on my first pair of DMLs (during Covid).
I described the experience among my earliest posts on this thread.
I sat across the table from my friend, while he recorded this - center stage, less than 8 feet from McLaughlin.
Listening through the DMLs put me at that table. They recreated the lived remembered experience more profoundly than anything I had previously experienced from recorded music anywhere.
At one point, someone pushed back their chair and I immediately and instinctively turned fully expecting to see them.
These rare and wonderful recordings stand as my standard of what recorded music can achieve.
DML's rise to the occasion.
"He makes these recording for his own use and will sometimes share them with friends." says all. 🙂 A marginal case. How many mikes, did he use to record that jazz? One? Ten?To the contrary, you just need better source material.
I have a friend who has spent much of the past 30 years making high quality direct (unadulterated) recordings of live jazz performances from the audience. He makes these recording for his own use and will sometimes share them with friends.
The rest of the music production in the world does that for the customers, worldwide. You buy them is shops, stream them and so on. All live concerts have sound engineers. Everything is planned, mixed and adjusted by them. A multi-billion dollar industry can't act like a beach party. There's a multitude of microphones everywhere in any symphonic orchestra next to the players. You live in NY, so why not check that at New York Philharmonic? You can buy CDs there. They are all mastered. I can imagine your friend sitting in the 1st or 2nd row and recording at the Philharmonic...🙂
Last edited:
Ah, you found one of my all time favorites! This is the one I was referring to recently as being the "precursor" to the NXT patents, and in which the significance of low density is emphasized. It also recognizes the significance of the shear stiffness for the upper frequency limit, and of panel area for lower frequency limit.Might be the first patent on distributed mode.
Abstract
A panel-form loudspeaker has a resonant multi-mode radiator panel which is excited at frequencies above the fundamental frequency and the coincidence frequency of the panel to provide high radiation efficiency through multi-modal motions within the panel, in contrast to the pistonic motions required of conventional loudspeakers. The radiator panel is a skinned composite with a honeycomb or similar core and must be such that it has a ratio of bending stiffness to the third power of panel mass per unit area (in mks units) of at least 10 and preferably at least 100. An aluminium skinned, aluminium honeycomb cored composite can meet this more severe criterion easily.
-----------------------------------------
But did you notice the panel details! It's a monster 40 mm thick aluminum honeycomb. It's about 1000 times stiffer than any modern DML panel as far as I know!
He thought it needed to be so thick and stiff that the coincidence frequency (fc) would be below the operating range of the panel. Later, Azima and NXT came along and realized that fc could (or even should) be much higher, perhaps even above (not below) the operating range of the panel.
So a lot has changed since Heron, but in my mind he is one of the grandfathers of the DML.
Eric

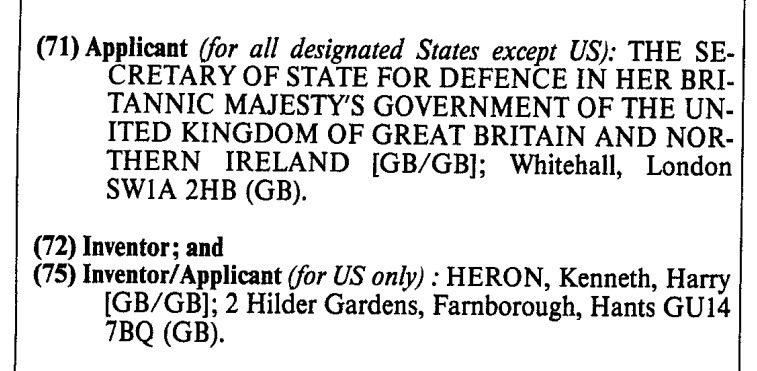

Not sure, if Heron was the inventor, or was just for the US patent. He might've been the head of the group, the manager/director.Ah, you found one of my all time favorites! This is the one I was referring to recently as being the "precursor" to the NXT patents, and in which the significance of low density is emphasized. It also recognizes the significance of the shear stiffness for the upper frequency limit, and of panel area for lower frequency limit.
But did you notice the panel details! It's a monster 40 mm thick aluminum honeycomb. It's about 1000 times stiffer than any modern DML panel as far as I know!
He thought it needed to be so thick and stiff that the coincidence frequency (fc) would be below the operating range of the panel. Later, Azima and NXT came along and realized that fc could (or even should) be much higher, perhaps even above (not below) the operating range of the panel.
So a lot has changed since Heron, but in my mind he is one of the grandfathers of the DML.
Eric
I didn't read it that thoroughly, maybe tomorrow. Verity Group had bought the license from DERA. NXT was a company of Verity Group. Azima must've been either an employee of NXT or connected to it on contract.
By the way, can you give links to your DML builds in this thread, Eric? I'd like to read your experiences. Thanks!
Last edited:
Hallo Eric
https://www.spsc.tugraz.at
The text inserted is a work on the Manger-MSW converter.
NXT, Germann Physiks, is also briefly discussed. Page 112 seems important to me.
ondesx criticism of the DML principle, I can only agree
If you were to make a panel that stiff, and that thick, the wavelength at hf would be smaller than the panel thickness. Thin plate theory does not hold even approximately I think under those conditions, so who knows what you would get out of it. And it would be very difficult to drive. I think coincidence freq may be a bit of a red herring for DML.Ah, you found one of my all time favorites! This is the one I was referring to recently as being the "precursor" to the NXT patents, and in which the significance of low density is emphasized. It also recognizes the significance of the shear stiffness for the upper frequency limit, and of panel area for lower frequency limit.
But did you notice the panel details! It's a monster 40 mm thick aluminum honeycomb. It's about 1000 times stiffer than any modern DML panel as far as I know!
He thought it needed to be so thick and stiff that the coincidence frequency (fc) would be below the operating range of the panel. Later, Azima and NXT came along and realized that fc could (or even should) be much higher, perhaps even above (not below) the operating range of the panel.
So a lot has changed since Heron, but in my mind he is one of the grandfathers of the DML.
Eric
Paul,If you were to make a panel that stiff, and that thick, the wavelength at hf would be smaller than the panel thickness. Thin plate theory does not hold even approximately I think under those conditions, so who knows what you would get out of it. And it would be very difficult to drive. I think coincidence freq may be a bit of a red herring for DML.
So true. It's a "thin" plate at the fundamental frequency, possibly. But not at any higher frequency.
It's still one of my favorite of the patents, as it lays out some good fundamentals of plate "figures of merit".
You may be right about the coincidence frequency, at least for our purposes. I know there is a real and significant effect when you are trying to use plates to block sound. But for our purposes, I'm not so sure it matters as much as one might expect. Still I do want to "observe" it experimentally, if only to help me decide if I should care about it or not!!
Eric
Can you provide the full address of the work? I have not found it looking at the publications.
Can someone identify that clear, soft and flexible, transparent stuff that is sometimes used on packaging to stick plastic together temporarily. Its goopy, very stretchy and sticks well but can be removed by pulling or rubbing. Some sort of modified silicone? Can you buy it? Could be useful for damping & mounting.
The use of a tweeter, ribbon in my case solves the problem of a defused stereo image, that I also find is a week point of DML panels.Hello Steve,
I built countless panels with an incredible number of different materials and composites, but I always came across the same problems with each new attempt: the stereo image and the soundstage wasn't precise, and, above all, each type of material "colored" the sound in a particular way. The type of exciter, its position on the panel, the way it was connected to its support, the size of these panels… All parameters had a consequence on the resulting sound !
As I said in a previous post, I have done a lot of recording and mastering, so I had the voices and the sound of the "live” instruments in my ears and my head, by the way I had a "real" reference to judge the quality of reproduction, not by using commercial recordings for which we are neither at the origin of the recording, nor in the studio for its mastering, and thus without any reference as to the original sound…
Not a single panel reached the level of "high fidelity” of the several studio (i. e. professional) monitors I had the chance to work with. So, I tried to understand the reasons for these differences, and I discover that the physical characteristics and in particular the radiation pattern of these transducers isn’t adapted to deliver the awaited soundstage.
When it comes to music reproduction, there are two large populations that will never agree on anything, one simply seeks to reproduce the recorded sound as faithfully as possible (remember the QUAD adage: "For the closest approach to the original sound!"...), this is the raison d'être of HiFi, the other seeks to please itself by constantly "improving" its system without worrying about whether or not the sound reproduced is the one that was recorded… There is no "good" team, each one like one or the other approach, and there isn't any truth ! Reproducing sounds is feasible by a very large number of means, but not all of them lead to High Fidelity.
But, as suggested by some workers in that field, DSPs could perhaps be of some help to improve the reproduction of DMLs, since it remains any hope, I still keep an eye on this present thread...
