cyrus2 and psx spares

Posted 16th November 2009 at 01:50 PM by cyrusnut

i dont know if i am doing this right, but i need a potentiometer for a cyrus2 amp, and any metal casings for the toggle on/off switch variety including the psx.cyrus do not supply spares, having tried on numerous occasions, and getting nowhere. please help, there must be one out there somewhere. my email is scotchb@fsmail.net. awaiting reply in ernest. cheers.
diyAudio Member
Posted in Uncategorized
Views 1391 Comments 2 cyrusnut is offline
Old

3 way post #9 - tweeter distortion measurements

Posted 16th November 2009 at 02:50 AM by relder (Rob's active 3way with transconductance chipamps build blog)

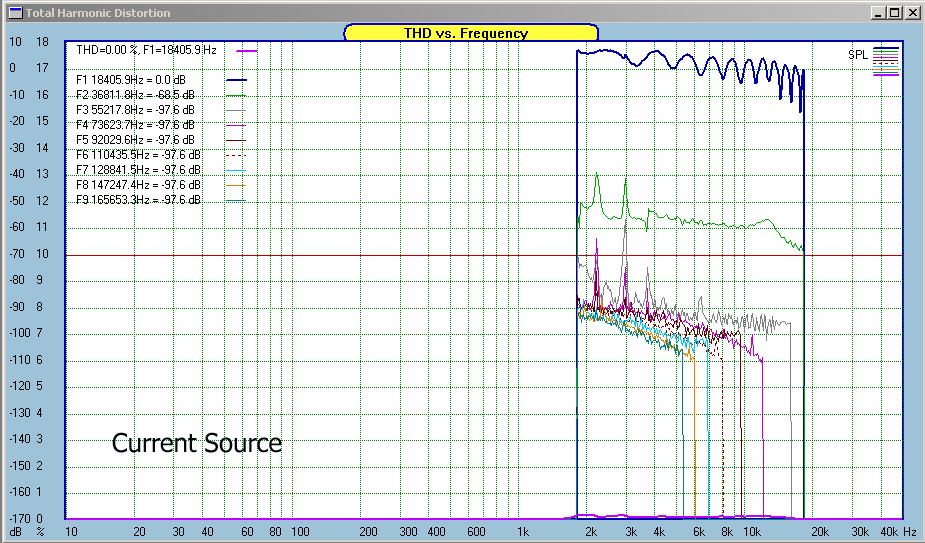

Unlike the mid and woofer - the tweeter doesn't seem to show any gains under current drive.
Attached Thumbnails
Click image for larger version

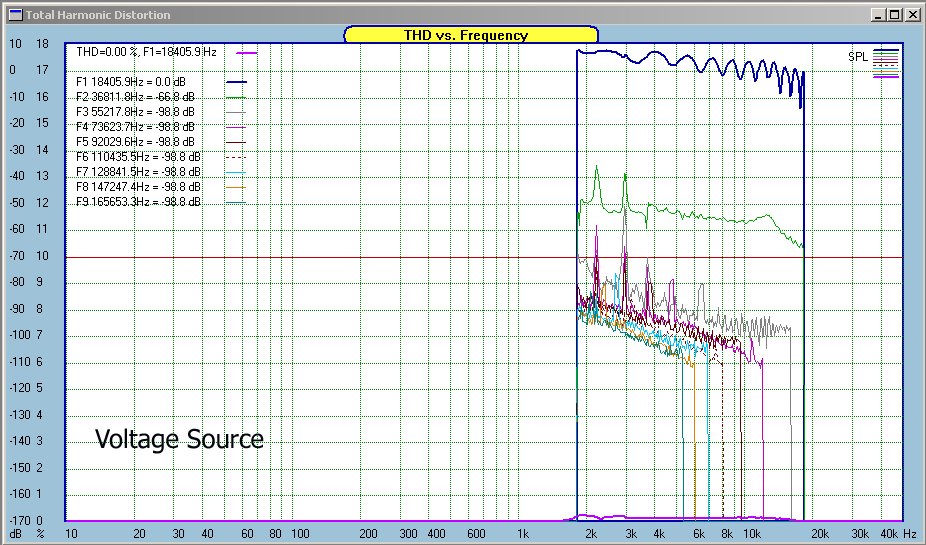

Name:	SE-fountek-nearfield-distortion-VS.gif
Views:	822
Size:	32.6 KB
ID:	45   Click image for larger version

Name:	SE-fountek-nearfield-distortion-CS.gif
Views:	561
Size:	31.6 KB
ID:	46
relder's Avatar
diyAudio Member
Posted in 3 Way
Views 1315 Comments 2 relder is offline
Old

3 way post #8 - mid distortion measurements

Posted 16th November 2009 at 02:45 AM by relder (Rob's active 3way with transconductance chipamps build blog)

Some decent reductions in 3rd harmonic.
Attached Thumbnails
Click image for larger version

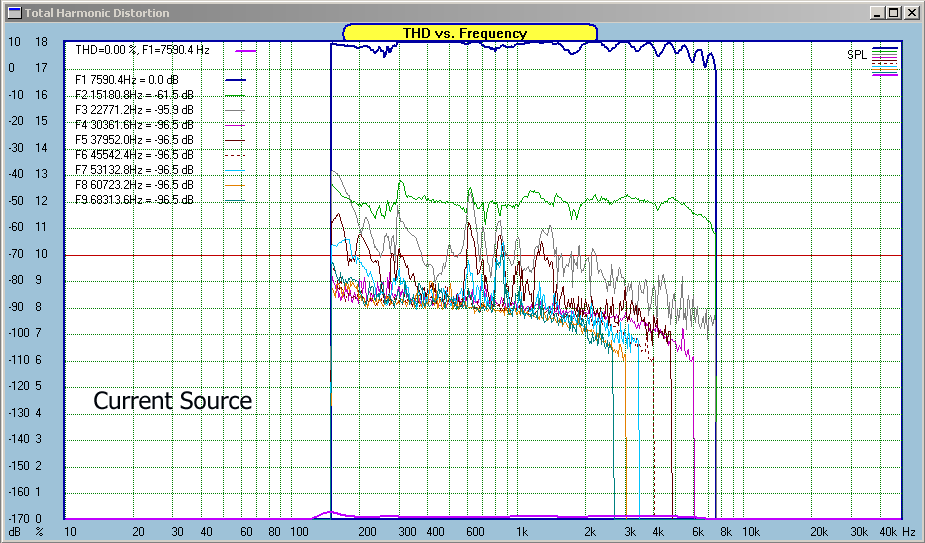

Name:	SE-tangband-nearfield-distortion-VS.gif
Views:	397
Size:	35.8 KB
ID:	43   Click image for larger version

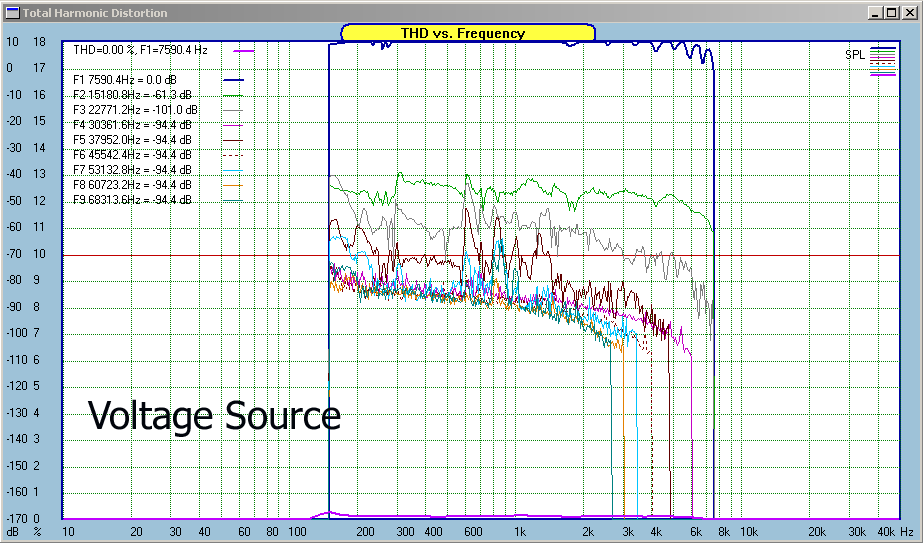

Name:	SE-tangband-nearfield-distortion-CS.gif
Views:	424
Size:	35.7 KB
ID:	44
relder's Avatar
diyAudio Member
Posted in 3 Way
Views 633 Comments 0 relder is offline
Old

3 way post #7 - woofer distortion measurements

Posted 15th November 2009 at 08:36 PM by relder (Rob's active 3way with transconductance chipamps build blog)

So - I setup Soundeasy to take some distortion measurements. I don't claim to be a wizard at taking these measurements and balancing the various factors (overloading the mic, etc.) so take 'em with some grains of salt but they are interesting.

Taken with a Behringer ECM8000 mic (uncalibrated) via a UB802 to a M-audio 410 PCI card.

You can pretty clearly see my noise floor. Taken in a living room with computers/fridges turned off, noisy computer in another room.

Mic was nearfield.

There's some clear differences between the plots when driven with current vs. voltage. Ignore the nasty bits around resonance for the current driven one - I clipped the soundcard input with the resonance peak.
Attached Thumbnails
Click image for larger version

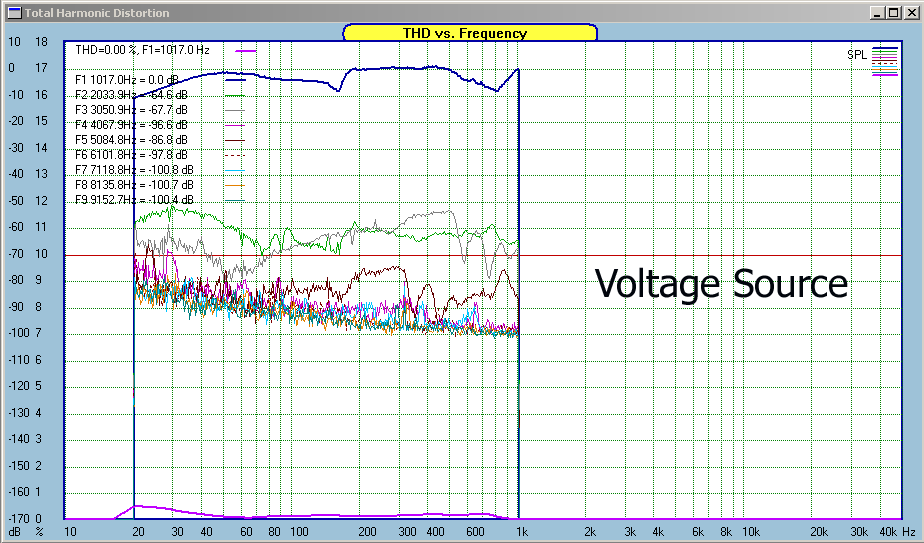

Name:	SE-peerless-nearfield-distortion-VS.gif
Views:	461
Size:	33.0 KB
ID:	40   Click image for larger version

Name:	SE-peerless-nearfield-distortion-MidS.gif
Views:	383
Size:	33.7 KB
ID:	41   Click image for larger version

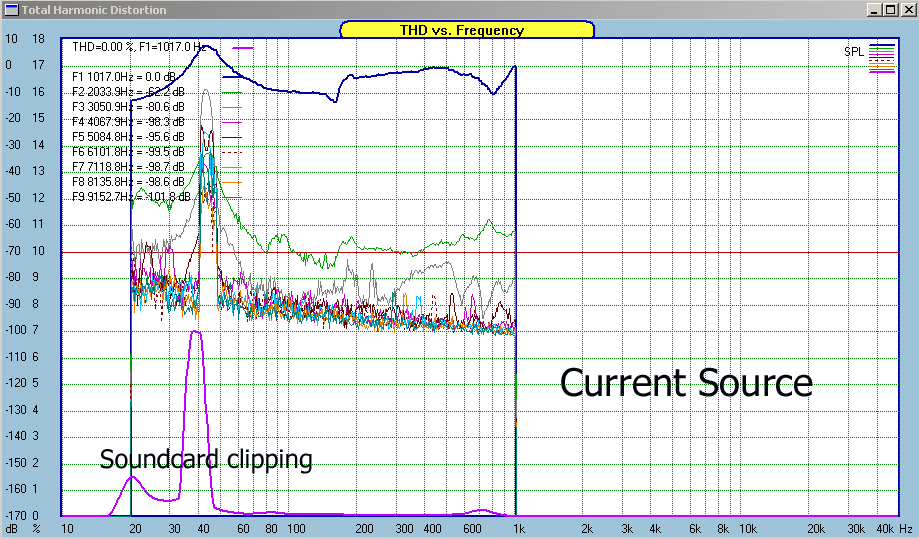

Name:	SE-peerless-nearfield-distortion-CS.gif
Views:	361
Size:	36.5 KB
ID:	42
relder's Avatar
diyAudio Member
Posted in 3 Way
Views 627 Comments 0 relder is offline
Old

hello, world!

Posted 15th November 2009 at 08:10 AM by davygrvy

OMG, I'm now a blogger!
davygrvy's Avatar
diyAudio Member
Posted in Uncategorized
Views 1648 Comments 1 davygrvy is offline
Old

iPods 'n Things

Posted 15th November 2009 at 12:23 AM by kevinkr
Updated 15th November 2009 at 12:28 AM by kevinkr

Went to the gym this afternoon with my iPod (Classic 160GB) as usual - about 15 minutes into a torturous session on the elliptical the left channel just died. PANIC.. I had a further 45 minutes of time to reflect on the meaning of music in my life - in this case it really helps me to get through what I find to be an exceedingly tedious activity. Sonic wall paper to my life outside of my house??

Got home and quickly checked with another set of headphones and determined that my iPod was just fine.The aftermarket JVC folding headphones I purchased a couple of years ago just before this iPod apparently have an open connection somewhere. They never entirely pleased me so I am not too sad to see them go.

Have ordered a set of the folding PX100 made by Sennheiser to replace them - should be a lot better sounding than the failed JVC headphones.

It does rather make me realize just how important a role music plays in my daily life.

As an aside...
kevinkr's Avatar
diyAudio Moderator
Posted in Uncategorized
Views 2133 Comments 2 kevinkr is offline
Old

Output tubes's CCS's (bias blocks) completed.

Posted 15th November 2009 at 12:14 AM by Bas Horneman (Bas Horneman's diyAudio.com blog)

sans bypass cap.

Measure 380mV accross a 10R resistors. Therefore the CCS is set to 38mA.
Attached Thumbnails
Click image for larger version

Name:	ccs38mA.jpg
Views:	448
Size:	121.1 KB
ID:	35   Click image for larger version

Name:	2ccs.jpg
Views:	813
Size:	97.9 KB
ID:	38   Click image for larger version

Name:	ccs_output.jpg
Views:	691
Size:	24.9 KB
ID:	39
Bas Horneman's Avatar
diyAudio Moderator Emeritus
Posted in Building
Views 802 Comments 0 Bas Horneman is offline
Old

3 way post #6 - the cabinet

Posted 14th November 2009 at 06:35 PM by relder (Rob's active 3way with transconductance chipamps build blog)

A Wilson type setup - the mid/tweet box is separate from the woofer box. The upper box is open front and back - replaceable baffles on both sides in case I care to change something, either drivers or sealed vs. open back.

The bottom cab is MDF. I had some of that concrete board left over from an outdoor kitchen project and figred I'd laminate it to the front baffle under the woofer. I don't think it was worth the effort. A knuckle rap test on the sides vs. front showed no huge difference.

The top cab is MDF laminated with baltic birch.
Attached Thumbnails
Click image for larger version

Name:	open_cab.jpg
Views:	515
Size:	91.9 KB
ID:	36   Click image for larger version

Name:	full-cab.jpg
Views:	625
Size:	89.1 KB
ID:	37
relder's Avatar
diyAudio Member
Posted in 3 Way
Views 611 Comments 0 relder is offline
Old

Phono Stage Shoot Out and Conclusions

Posted 14th November 2009 at 06:26 PM by kevinkr

For some time I've had the feeling that there was something not quite right about the sound I was getting out of my most recent phono stage. The phono stage in question had never been compared to anything else, so it was difficult to understand what was going on. To add to the complications I use a Grado Reference Platinum cartridge that has a reputation for being rather laid back - so I was not really sure if the often boring sound was due to the cartridge or a problem with my phono stage design.

The design is a two stage with Lipshitz based passive eq., high transconductance type tubes, and gyrator loads. The tube complement is triode connected D3A in the front end, fixed biased 5842 output stage and gyrator loads based on the 5687.

The problem seemed to center around my choice of cathode bias in the first stage with the D3A. This resulted in a 60 ohm resistor and a 1000uF electrolytic cap shunted by a variety of other caps, after a long succession of problems...
kevinkr's Avatar
diyAudio Moderator
Posted in Uncategorized
Views 3097 Comments 1 kevinkr is offline
Old

The problem with wanting to get the best performance

Posted 14th November 2009 at 10:28 AM by wintermute (Wintermutes Rantings)
Updated 25th November 2009 at 12:15 PM by wintermute (added o category misc)

Well for me anyway I think I must be borderline obsessive compulsive! It happens every time I start a project (or even before I start it). I spend hours and hours and hours deliberating on whether this would be better or that would be better. Honestly in some ways I wish I'd never become "aware" of alternatives to the kits that were available from the local electronics shops Dick Smith and Jaycar

I got the jfets for my B1 a few weeks ago. I finally started matching them earlier this week, I hadn't started because I was obsessing over the fact I needed a 100 ohm precision resistor and a transistor socket. I hadn't got those because I wanted to order all the other bits as well and only pay for one lot of shipping. But do you think I could make a decision on what parts to get?

First off I obsessed over the resistors (yeah I know).. wanted vishay RN60D's but local sources are 5 - 10 times the price of mouser, problem with mouser is unless...
wintermute's Avatar
diyAudio Moderator
Posted in misc
Views 1534 Comments 2 wintermute is offline
