A few pcb's more...

Posted 7th December 2009 at 09:40 PM by Bas Horneman (Bas Horneman's diyAudio.com blog)
Updated 7th December 2009 at 09:58 PM by Bas Horneman

With a dayjob and other "stuff" in my life. I don't always feel like conquering the cold and messy shed to go do some drilling. But I usually have other projects running parallel that I can do something on. Pictured here is the Pass B1 and the lightspeed pcb's. Stuffed...primarily because..... that way I won't loose parts in my messy hobby room.
Click the image to open in full size.

The Kendeill caps were too big for the B1 board. So I soldered the neg terminal to the neg hole in the pcb and wired the plus to the positive rail.

The wires of the 10uF cap I bent to go beneath the pcb and almost touch. I did this on purpose because I have some 0,22uF smd caps that will act as bypass for the Audyn polyprops. They will go between them wires there.
Click the image to open in full size....
Attached Thumbnails
Click image for larger version

Name:	b1lspcbs.jpg
Views:	21722
Size:	127.0 KB
ID:	77   Click image for larger version

Name:	b1err.jpg
Views:	21498
Size:	92.9 KB
ID:	78   Click image for larger version

Name:	thin.jpg
Views:	1722
Size:	88.6 KB
ID:	79
Bas Horneman's Avatar
diyAudio Moderator Emeritus
Views 1576 Comments 0 Bas Horneman is offline
Old

More iPods N' Things

Posted 3rd December 2009 at 01:22 AM by kevinkr

Well those PX100 headphones came a couple of weeks ago, have to say acoustic sounds was quick on the shipping..

To say they are an upgrade over my old JVC folding phones would be just a bit of an understatement. They're just clearly better in every not so subtle way. Much more extension at both extremes, and much improved clarity - a surprising amount of resolution IMHO for $69..
They're not circum-aural, and have open backs, but surprisingly ambient noise does not seem to be much of an issue. And they're reasonably comfortable.

On a slightly different note I have a fairly large number of songs on my iPod that I downloaded from iTunes. Recently I swapped a not so well liked Pixies album for BT Emotional Technology on Swaptree. I have listened to it a few times and realized that the songs I actually like best are none of the ones I purchased on iTunes! I ripped it to the iPod last night using Apple Lossless and removed the original AAC encoded copies....
kevinkr's Avatar
diyAudio Moderator
Posted in Uncategorized
Views 2264 Comments 2 kevinkr is offline
Old

A few holes more...

Posted 1st December 2009 at 10:28 PM by Bas Horneman (Bas Horneman's diyAudio.com blog)

It's funny but one does not realize how much time goes into a project like this. In my case anyway.
Taking the time to find the correct spacing etc.
And after you've drilled the hole you realize that it is just not big enough. Out comes the metal file and you have to use some elbow grease to enlarge it just enough so it will fit. Then you can't find the other cap. Thus the decision is made to pull the ASC's from an old project. Etc. Etc. And all I have to show for this is one little picture.
Attached Thumbnails
Click image for larger version

Name:	summore.jpg
Views:	574
Size:	158.0 KB
ID:	74
Bas Horneman's Avatar
diyAudio Moderator Emeritus
Posted in Uncategorized
Views 2040 Comments 1 Bas Horneman is offline
Old

Other channel...

Posted 30th November 2009 at 10:53 PM by Bas Horneman (Bas Horneman's diyAudio.com blog)
Updated 30th November 2009 at 10:59 PM by Bas Horneman

starting to look like it...

Actually wanted to continue on the Baby Huey but it was late. And did not want to keep everyone awake while drilling.
Attached Thumbnails
Click image for larger version

Name:	insidefins.jpg
Views:	3866
Size:	100.8 KB
ID:	70   Click image for larger version

Name:	fins.jpg
Views:	3820
Size:	131.6 KB
ID:	71   Click image for larger version

Name:	fins2.jpg
Views:	3870
Size:	56.3 KB
ID:	72
Bas Horneman's Avatar
diyAudio Moderator Emeritus
Posted in Building, Gainclones
Views 1322 Comments 0 Bas Horneman is offline
Old

Some more parts arrived for the BH

Posted 26th November 2009 at 10:10 PM by Bas Horneman (Bas Horneman's diyAudio.com blog)
Updated 27th November 2009 at 09:40 AM by Bas Horneman

specifically I wanted to show the deflex washers that I'm planning on using.

Click the image to open in full size.

The deflex washers will probably look ugly. But I'm planning on putting them on top of the aluminium top plate. And having a bolt with separate brass washer "hang" on them. This bolt will then pass through a larger hole in the alu chassis plate to the wooden sub chassis that houses the tubes.

Also got the 470uF/100V caps for the bias blocks.
Attached Thumbnails
Click image for larger version

Name:	deflex.jpg
Views:	21290
Size:	88.3 KB
ID:	66   Click image for larger version

Name:	bpcss.jpg
Views:	505
Size:	164.9 KB
ID:	67
Bas Horneman's Avatar
diyAudio Moderator Emeritus
Posted in Building, Buying
Views 1333 Comments 0 Bas Horneman is offline
Old

It'll take a while to build the gainclone ;). And I'm going

Posted 25th November 2009 at 09:02 PM by Bas Horneman (Bas Horneman's diyAudio.com blog)
Updated 26th November 2009 at 03:13 PM by Bas Horneman

to need an attenuator as well. Because the Gainclone will be set up as a power amplifier only. I put together a makeshift attenuator of parts I have. And of parts I want to use in a full blown tube preamp.

That way I can ...dare I say it...burn-in the transformer. Even if burn-in does not exist...it won't hurt.

Click the image to open in full size.

Click the image to open in full size.

Also some mock up shots of the GC. "Enclosure" is some Ikea DVD storage system that was on a sale. Something like 2 euro's or so.

Click the image to open in full size.
Attached Thumbnails
Click image for larger version

Name:	att_top.jpg
Views:	1228
Size:	82.3 KB
ID:	61   Click image for larger version

Name:	att_bottom.jpg
Views:	24223
Size:	141.7 KB
ID:	62   Click image for larger version

Name:	ikeagcmu.jpg
Views:	444
Size:	37.6 KB
ID:	63   Click image for larger version

Name:	ikeycgmu2.jpg
Views:	24372
Size:	167.9 KB
ID:	64   Click image for larger version

Name:	attenuator.jpg
Views:	21802
Size:	62.1 KB
ID:	65

Bas Horneman's Avatar
diyAudio Moderator Emeritus
Posted in Building
Views 2907 Comments 0 Bas Horneman is offline
Old

Another baby step with the LM3886...

Posted 24th November 2009 at 08:14 PM by Bas Horneman (Bas Horneman's diyAudio.com blog)

Click the image to open in full size....
Attached Thumbnails
Click image for larger version

Name:	ikeagainclone.jpg
Views:	2979
Size:	101.3 KB
ID:	58   Click image for larger version

Name:	wiring1.jpg
Views:	14415
Size:	162.9 KB
ID:	59
Bas Horneman's Avatar
diyAudio Moderator Emeritus
Posted in Gainclones
Views 5467 Comments 2 Bas Horneman is offline
Old

It will take a while before the Baby Huey is done...

Posted 23rd November 2009 at 10:52 PM by Bas Horneman (Bas Horneman's diyAudio.com blog)
Updated 24th November 2009 at 05:01 PM by Bas Horneman

therefore in between I'll be posting progress on my LM3886 "gainclone"

I soldered the boards a long looong time ago. So no pictures. And I don't think anyone would want to see these boards soldered part by part. pcb's are boring in that way.

The build will be quick and dirty. But still something I could "live" with. Hopefully.
Attached Thumbnails
Click image for larger version

Name:	one.jpg
Views:	724
Size:	105.9 KB
ID:	57
Bas Horneman's Avatar
diyAudio Moderator Emeritus
Posted in Gainclones
Views 1867 Comments 3 Bas Horneman is offline
Old

ECL86 SE-Amp, the easy way...

Posted 23rd November 2009 at 08:09 PM by joys (Joys' World of Retronix)
Updated 23rd November 2009 at 08:13 PM by joys

I'll start today and let's see how long it'll take me to finish this article, about an easy to build and cheap amplifier, with ECL86 or with a few tweaks an ECL82 can be used. This is actually not my totally own design. It's taken from the 'Muller' Tube Manual, but I added a input stage with tone control 2 or 3-ways, depending on your flavour. And a loudness-control...
What you need accept the passive components are;
(double up all parts for a stereo-amp.)
One EF86 - high-mu signal-pentode, for the tone-ctrl and gain-stage.
One ECL82/86 driver and power pentode for our SE-AMP.
One output transformer, Z = 7k - 10k(if you want to build a stereo, make sure you use the same brand and model, the core and turn-ratio is critical, if you desire the same sound from each channel!)
One power-transformer(mains), 230 - 250V@100ma(or 160 ma for stereo) and 6V3@2-4A(4A for stereo).

I've based my design on this article, from a magazine, printed in...
diyAudio Member
Posted in Uncategorized
Views 3254 Comments 1 joys is offline
Old

Measurements Measurements Measurements

Posted 23rd November 2009 at 07:33 PM by relder (Rob's active 3way with transconductance chipamps build blog)

Adding yet another variable (current vs. voltage driven) sure makes for a lot more measurements.

I survived figuring out Soundeasy's quirks once again with minimal bursts of cursing.

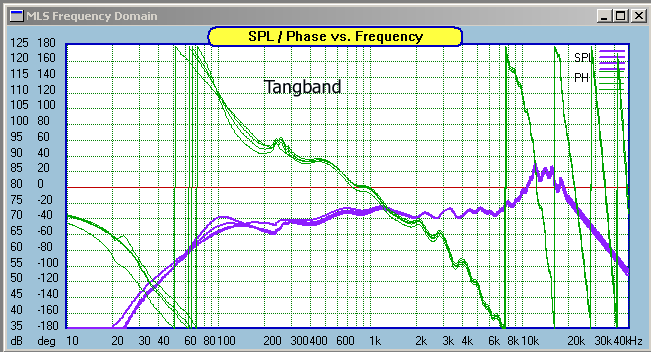

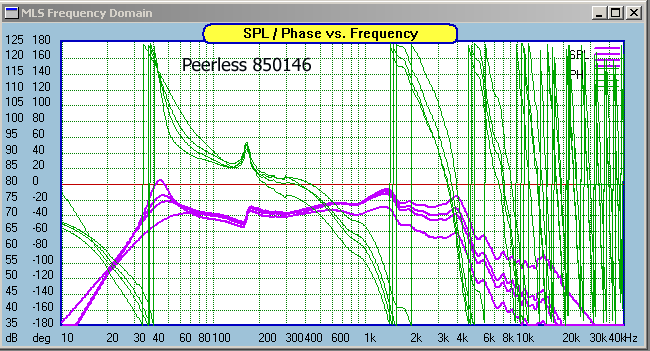

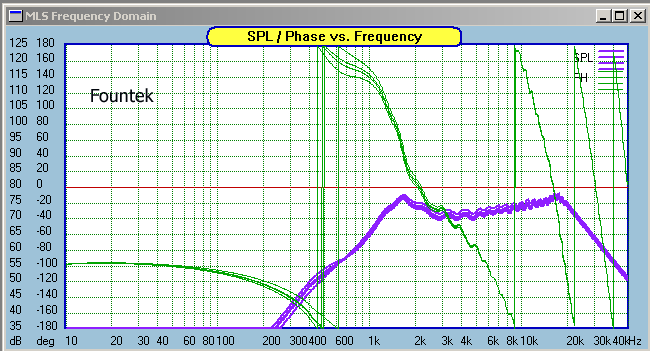

The following are the 3 driver's frequency response at varying levels of current drive vs. voltage.

For the woofer I'll clearly have to limit myself to more voltage drive given the peak at resonance, but for the mid tweet I can go current drive easily.

I'm not sure where I got the idea that current drive altered phase. The phase for the mid and tweet are identical for current vs. voltage and the woofer is close enough to measurement error.
Attached Thumbnails
Click image for larger version

Name:	Peerless-FR.gif
Views:	658
Size:	26.6 KB
ID:	54   Click image for larger version

Name:	Tangband-FR.gif
Views:	612
Size:	20.6 KB
ID:	55   Click image for larger version

Name:	Fountek-FR.gif
Views:	616
Size:	18.9 KB
ID:	56
relder's Avatar
diyAudio Member
Posted in 3 Way
Views 837 Comments 0 relder is offline
