So I have been thinking of a desktop headphone amp project that would be a bit different and more value added (in addition to being SE Class A).
I am thinking along the lines of an all-discrete minimalist components single-ended input (usual RCA or 3.5mm jacks) to a SE Class A zero global feedback balanced drive output for balanced headphones. I think component count would increase by two transistors to perform the conversion from single ended to balanced and two x two transistor power stages per headphone channel. So that's 6 transistors per channel. The cool thing is that because both phases are fed from same power supply, there is a constantly perfectly divided load such that the PSU current is be definition, constant. Thus, large values of R can be used in the CRC filter for a very quiet power supply.
Balanced drive provides double the slew rate, +12dB mode dynamic range, more power delivered, an apparently higher sensitivity.
I am thinking along the lines of an all-discrete minimalist components single-ended input (usual RCA or 3.5mm jacks) to a SE Class A zero global feedback balanced drive output for balanced headphones. I think component count would increase by two transistors to perform the conversion from single ended to balanced and two x two transistor power stages per headphone channel. So that's 6 transistors per channel. The cool thing is that because both phases are fed from same power supply, there is a constantly perfectly divided load such that the PSU current is be definition, constant. Thus, large values of R can be used in the CRC filter for a very quiet power supply.
Balanced drive provides double the slew rate, +12dB mode dynamic range, more power delivered, an apparently higher sensitivity.
I have a noob question. So is it that an amp that is not balanced drive output then it's just single ended? Or there are something else that I am not aware of?
Yes, most amps are single-ended output. Not to be confused with Single Ended (SE) Class A which is different, as that is amp topology. Balanced lines are often used with pro audio for long cable runs. Balanced drive headphones generally have to be custom modified via a cable mod or swap. They typically don't sell balanced headphones.

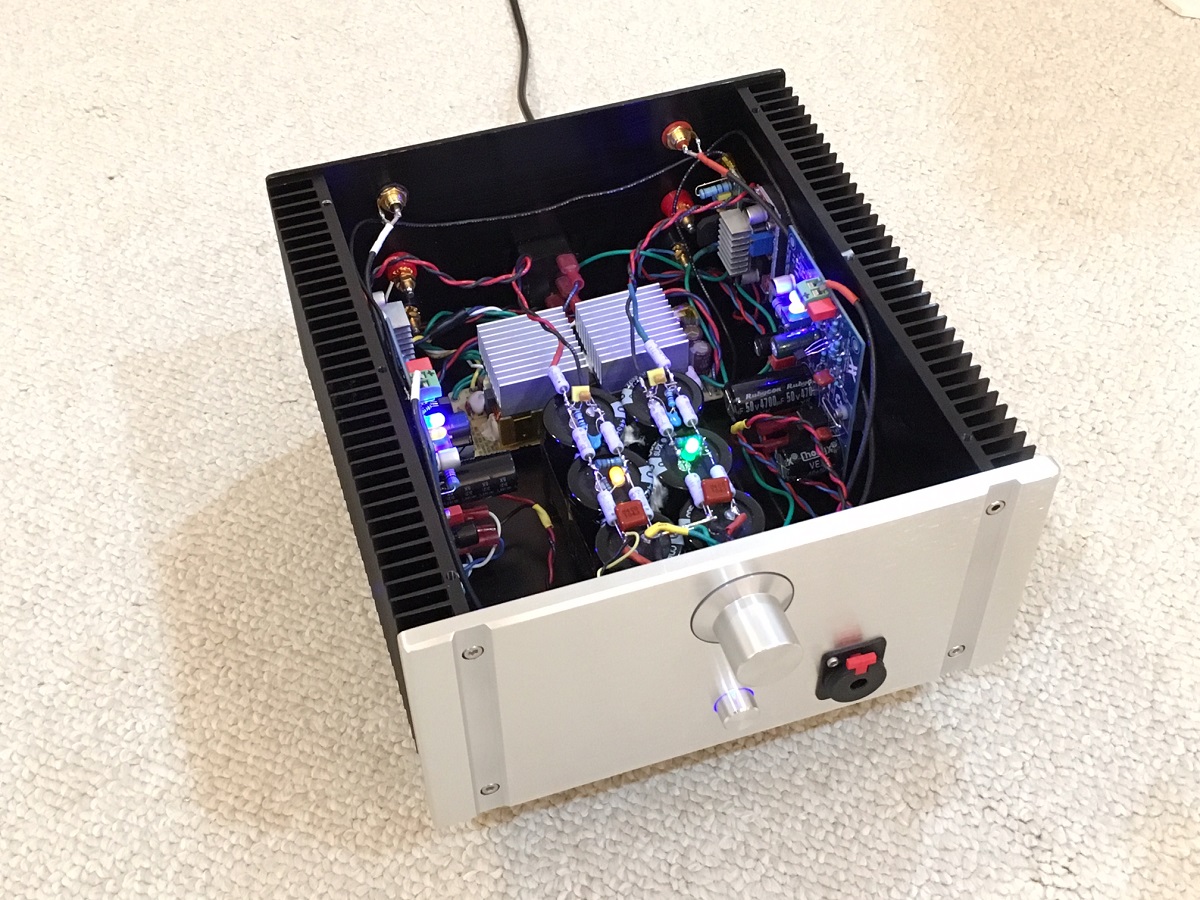

Send me a PM for PCBs if you are interested. There is an advantage with higher voltage as it increases bias current and max power. However above 18v heat is an issue with the resistors and MOSFETs existing PCB based heat sink. You can clamp the SMT side down with a silicone heatsink gasket and let a larger heatsink handle removal. Note that BF862 is limited to 20v max.

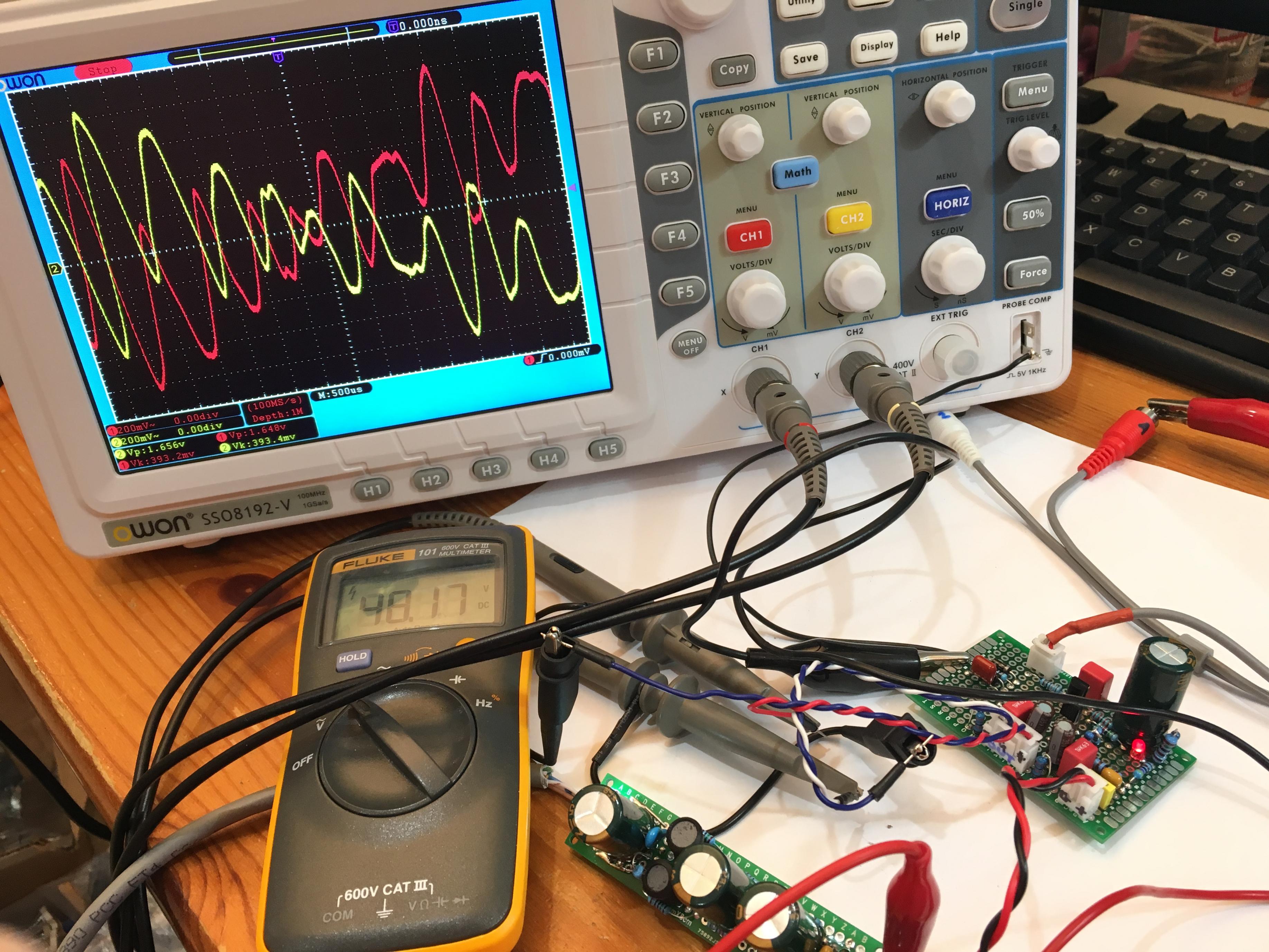

Making progress on an eventual balanced drive desktop amp. Under development here is a single ended to balanced drive phase splitter designed by Aksa that provides positive and negative phases to drive two power amp stages in opposition which then powers the headphone. The beauty of this circuit is its simplicity (two transistors) and it operates in SE Class A. It can drive 1.4v (0dBu) into 27ohm loads with only 0.0027% THD - and has headroom to drive 10v p-p if needed. Here is test with actual music you can see opposite phases on oscope.
Attachments
After a long journey had me a nice package today : )

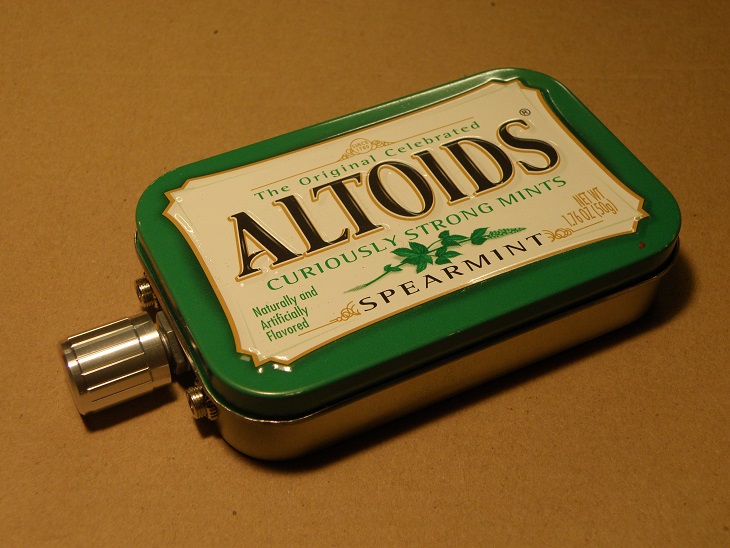

Ab fabric xrk971 configured it 66mA bias current, Elna Silmic II on input plus output and 1000uF oscon on output, both in and out is bypassed with Wima films, and design is green tin / white LED.
Will need to solder some neutrik gold plugs for this nice amp and get back tomorrow about listening experience.

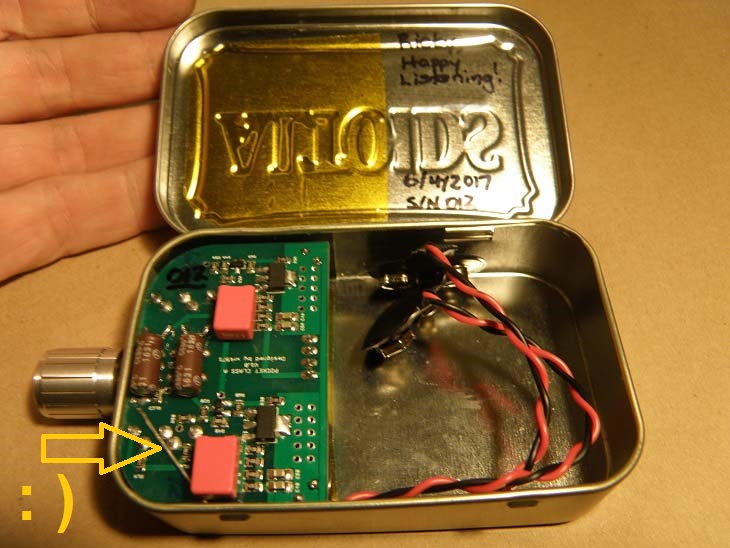

Into second picture think it looks got me a free via lead from another clipped component that sneaked itself into tin before it was closed
Ab fabric xrk971 configured it 66mA bias current, Elna Silmic II on input plus output and 1000uF oscon on output, both in and out is bypassed with Wima films, and design is green tin / white LED.
Will need to solder some neutrik gold plugs for this nice amp and get back tomorrow about listening experience.
Into second picture think it looks got me a free via lead from another clipped component that sneaked itself into tin before it was closed
