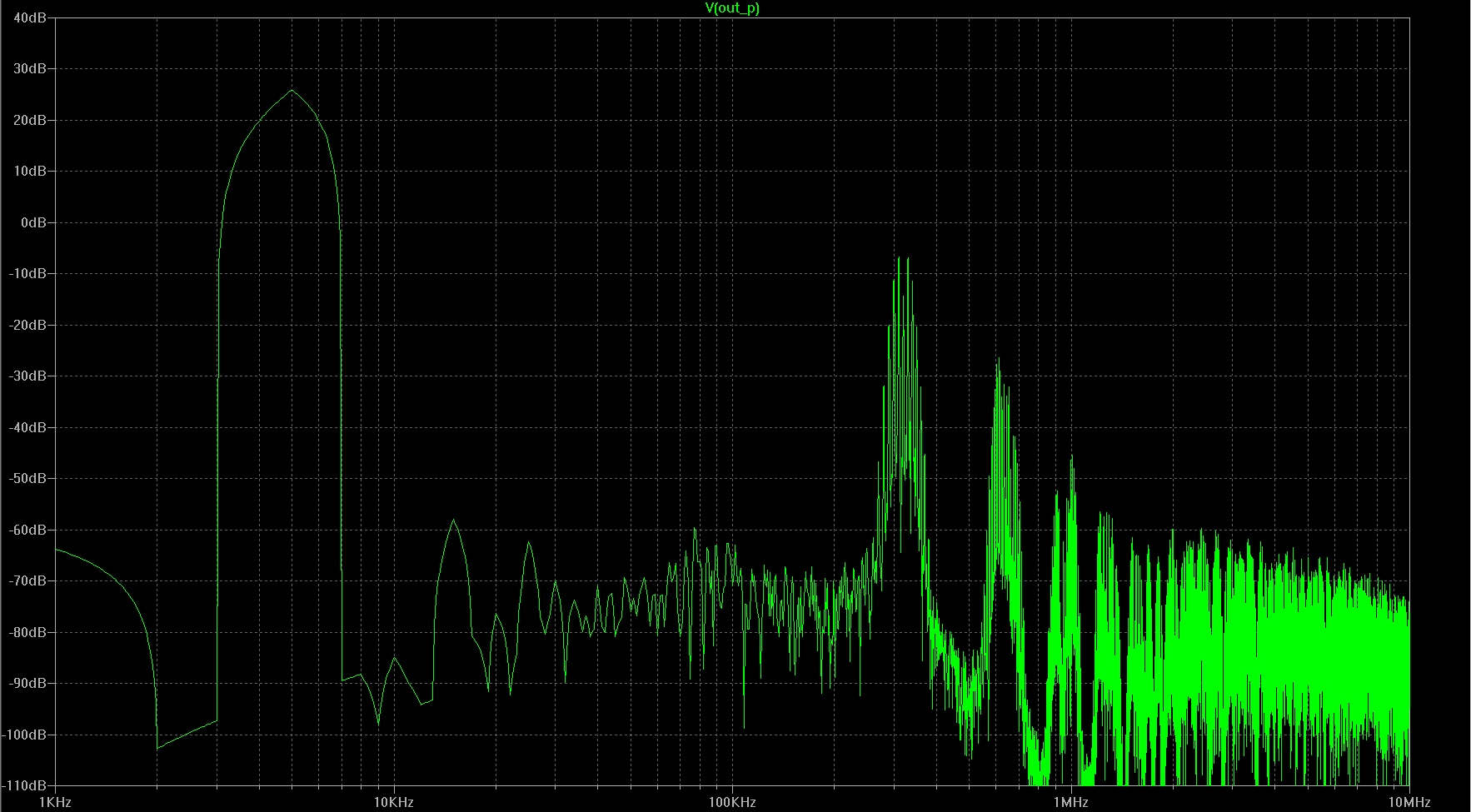

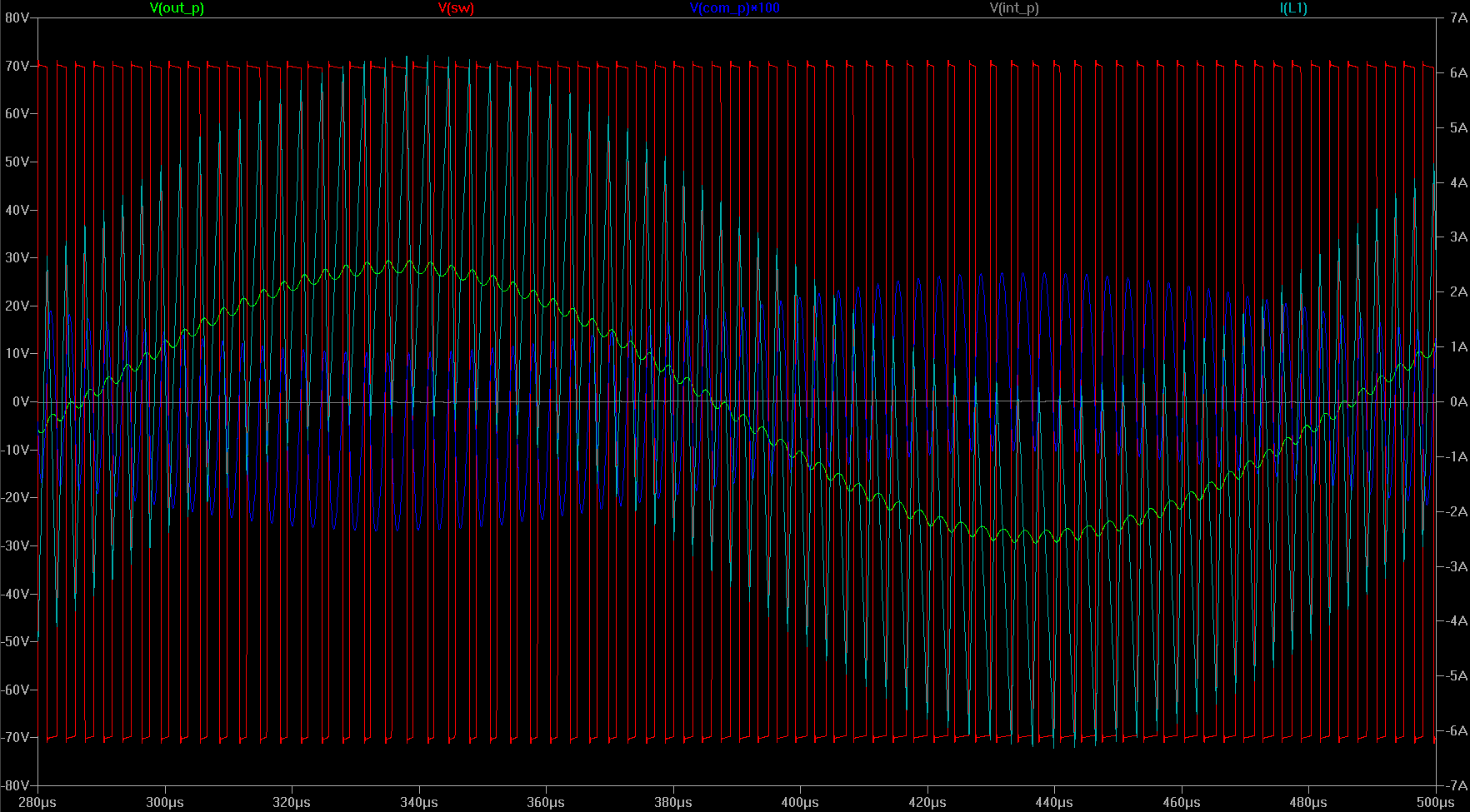

Here is a sim of the voltage and current measured at the output of an amp with voltage feedback applied. I used the woofer part of the Loudspeaker Equivalent Circuit from ESP to simulate a speaker driver like might be found in an active system.
Attachments
Last edited:
it's about the transfer function of the integrator and where you would like to put the gain.
I guess Eva understood my post.😉
I'm of course talking about the open loop transfer function and gain.
All the best.
Reodor
