I am trying to start on learning to build speakers and have chosen VituixCAD.

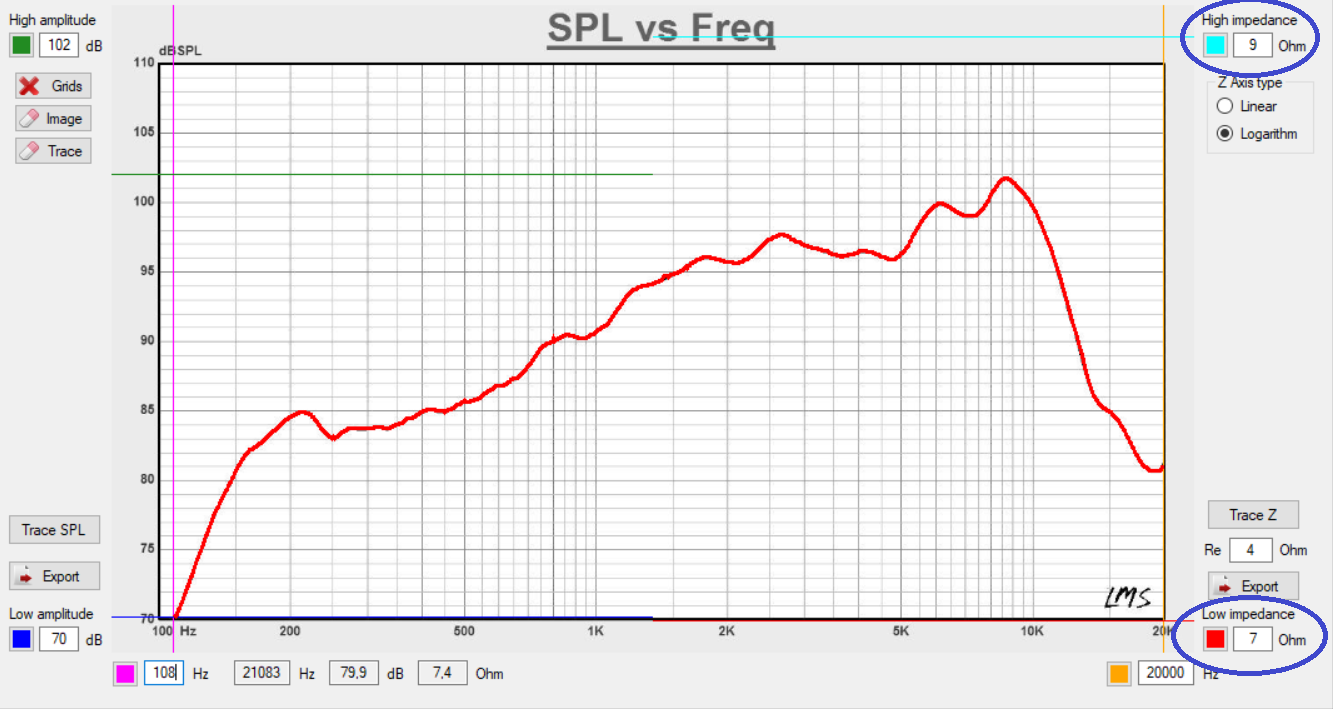

It ask me to fill out the drivers high and low impedance, what does that mean?

#### Attachments

• Udklip2.PNG
294.3 KB · Views: 88

#### rayma

Look for the driver's impedance curve in the mfr data, not the frequency response curve.

#### FriedMule

Look for the driver's impedance curve in the mfr data, not the frequency response curve.
Thanks! All I have is this:

EDIT: I am assuming that RE impedance is the value you normally give a speaker, like 4 Ohm 8 Ohm and that kind?

#### Attachments

• Udklip3.PNG
70.6 KB · Views: 107
Last edited:

#### rayma

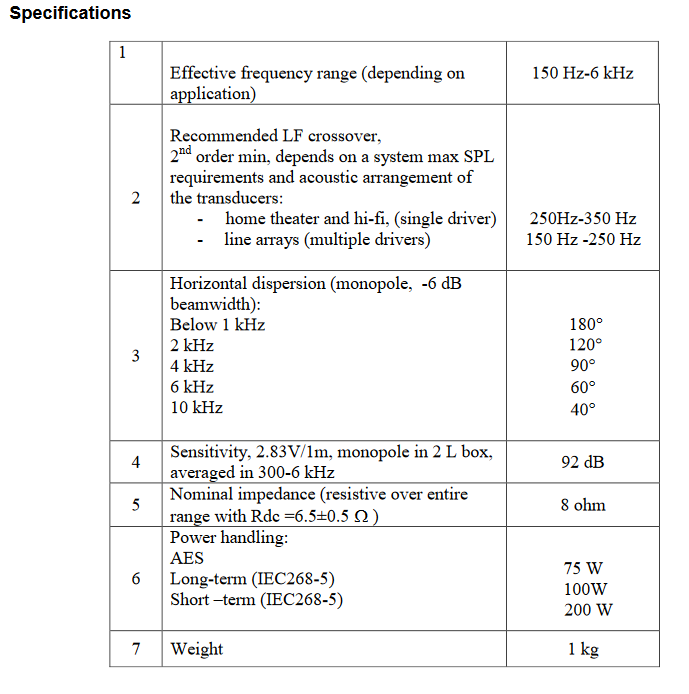

What is the driver brand and model number? This says you can model it as a 6.5 ohm resistor,
so do that. High impedance = low impedance = 6.5 ohms.

Last edited:

Ok, good luck.

#### FriedMule

Ok, good luck.
Thank you
But I can understand that if I find a mfr graph, I do get the missing values for the low and high impedance?

#### rayma

I do get the missing values for the low and high impedance?

See post #4.

#### FriedMule

See post #4.
Thanks a lot and I am sorry for not seeing that reply!
I just found this graph, but with no explanation:

#### rayma

I just found this graph, but with no explanation

That's the magnitude of the impedance (bottom red curve, left scale),
and the phase of the impedance (top green curve, right scale).

Last edited:

#### FriedMule

That's the magnitude of the impedance (bottom red curve, left scale),
and the phase of the impedance (top green curve, right scale).
Thanks a lot!!
But do I read the impedance right, it looks like 8-10 Ohm but as you correctly stated, it says 6.5 +-5 on the text?

#### rayma

Thanks a lot!!
But do I read the impedance right, it looks like 8-10 Ohm but as you correctly stated, it says 6.5 +-5 on the text?

Each scale division is 0.5 ohm, so it actually is 6.5 ohms.

#### bogdan_borko

For what purpose you're going to use the driver with such a bad freq. response?

#### FriedMule

Each scale division is 0.5 ohm, so it is 6.5 ohms.
Many thanks!!
I do know that i may not show it, but your help do mean a lot to me, I am so grateful, thanks for all your help. I also know that I may seem like I don't read half of it, but I try, it's just that English is self thought and electronic is a new wonderful universe where I do know nearly nothing!

#### rayma

For what purpose you're going to use the driver with such a bad freq. response?

It fills in the LF on a baffle, that's the free air response. It's less than 5" wide,
so the free air response drops off below 2kHz.

Last edited:

#### FriedMule

It fills in the LF on a baffle. That's the free air response.
I heard them on some speakers a long time ago and PS audio has just build some amazing sounding one and as I understand are they farly easy to mount in a cabinet, demands nearly nothing. On top of that did I just chose them to play with on the speaker simulator.

Last edited:

#### FriedMule

What's your native language? English takes kids here years to learn, but we grow up with it.
Can you find electronics books in your native language? Here's a good one in English.
https://www.pearl-hifi.com/06_Lit_A...pers/Horowitz-Hill/The_Art_of_Electronics.pdf
I am so lucky that I do understand English speak fairly good but I takes some more to read it. And my grammar is so bad I wonder how anyone do understand what I am writing.
There are book in Danish but to be fair, I do not think you can find much newer then 1980 and since YouTube, Fora, Datasheets and so on is in English, do I try to learn it all in English.
Thanks for the link! I do often let the computer read out loud if I want to learn from longer texts!

#### rayma

I do often let the computer read out loud if I want to learn from longer texts!

Good luck, I imagine learning English using technical material is about the hardest way to do it.

#### FriedMule

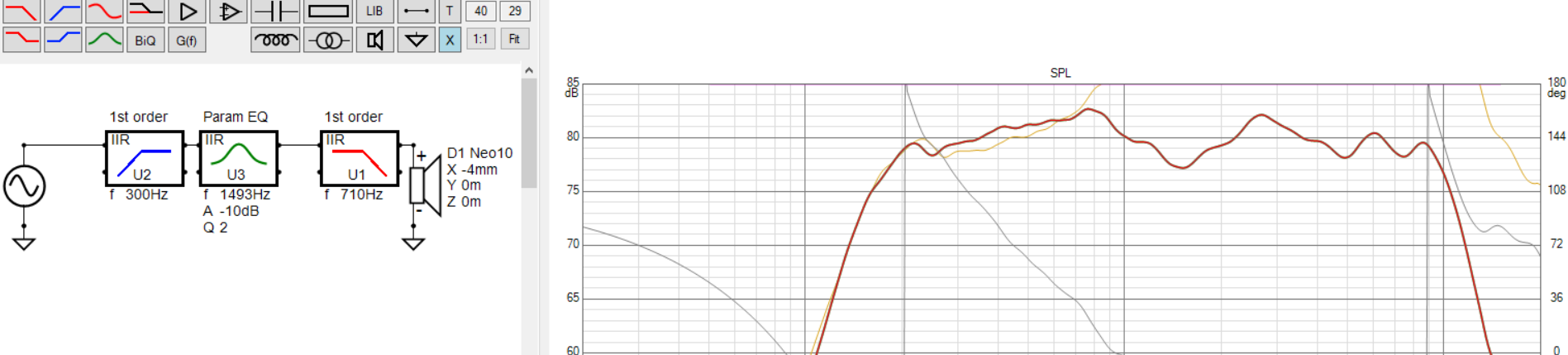

Here is my first try on "taming" the driver

#### Attachments

• Udklip.PNG
137.3 KB · Views: 75
