Hi Patrick,
You could use 6.3VW electros; this position only sees -1.62V across it; not much, and it starts out at 0V so no chance it will be destroyed UNLESS the output device(s) gives up.
Try a 2N5401. Not as much gain, but still very linear and Vceo of 150V.
Cheers,
Hugh
You could use 6.3VW electros; this position only sees -1.62V across it; not much, and it starts out at 0V so no chance it will be destroyed UNLESS the output device(s) gives up.
Try a 2N5401. Not as much gain, but still very linear and Vceo of 150V.
Cheers,
Hugh
Meanman,
If you are having difficulty locating 2200uF / 6V3 as Hugh suggests, then feel free to substitute a 1000uF cap. Your ears won't know the difference (I've tried both) - the only difference is visible on a scope trace with square waves.
Regards
Christian
If you are having difficulty locating 2200uF / 6V3 as Hugh suggests, then feel free to substitute a 1000uF cap. Your ears won't know the difference (I've tried both) - the only difference is visible on a scope trace with square waves.
Regards
Christian
I've all the caps exept two 2200µF/16V but i do have the 6V3 version and also doesn't have the KSA992 transistors
Yes,i've used this KSA97O instead of KSA992 many times in Slewmaster IPS

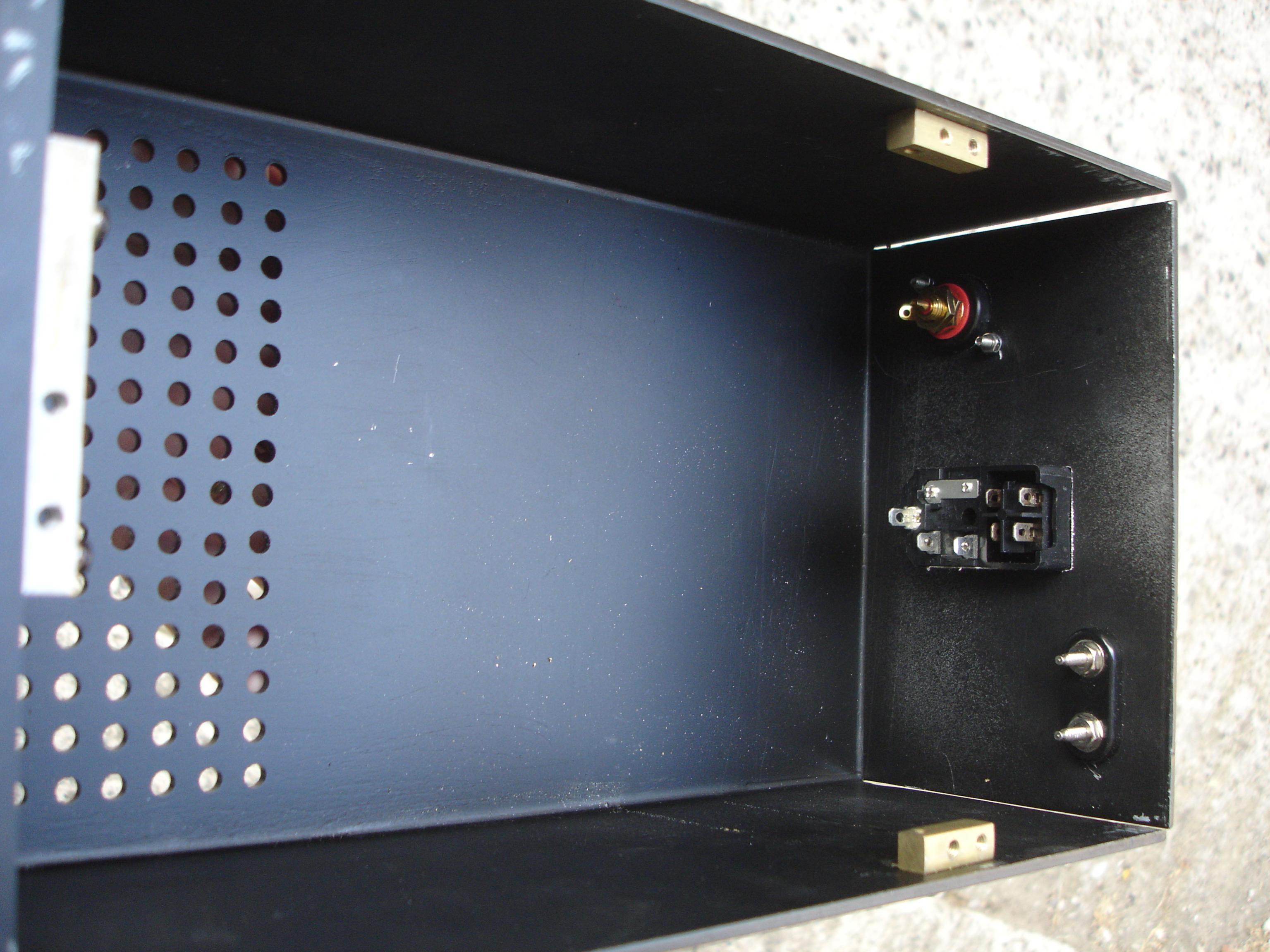

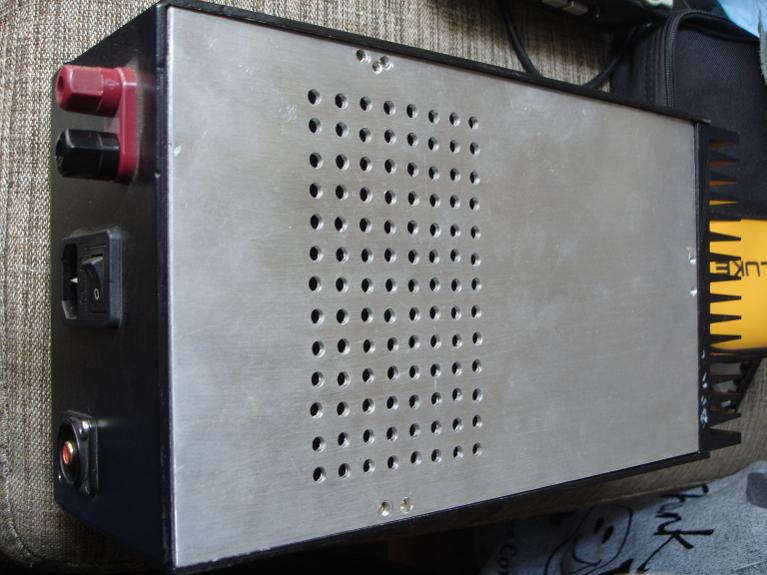

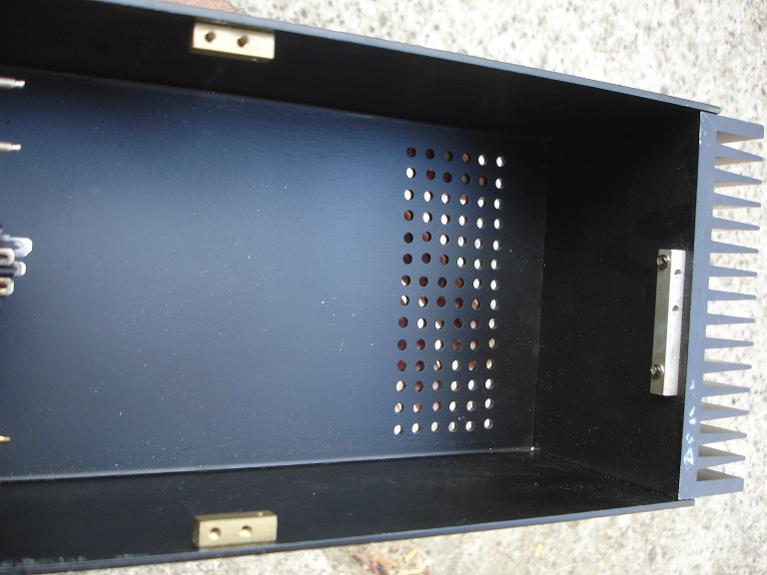

Some progress in metal work.
Attachments
Last edited:
Patrick,
It is 1am here and when I check the forum in six hours I expect your report on this amazing amplifier!
Hugh
It is 1am here and when I check the forum in six hours I expect your report on this amazing amplifier!
Hugh
One blue led or two red led in series for Vbe multip.
Two 6v zener in series for G protection.😉
Last edited:
M&M,
Thimios is spot on - you could even use a green led and two small diodes all in series!
Hugh
Thimios is spot on - you could even use a green led and two small diodes all in series!
Hugh
Yes but it will make the quiescent very touchy; the bias adjustment will be very fine but it will be OK
Hugh
