Vertex Amp By apexaudio

[wattaniya]

can this run in 2ohm load?



[irvynejay]

i don't go that far if you want it test it



[black]

videoclip for amplifier ?



[irvynejay]

link for pdf file legal size

Download vertex pdf.rar from Sendspace.com - send big files the easy way



[wattaniya]

which software did u used to design this?



[wattaniya]

what is the component of AKA?



[irvynejay]

[SIZE=-1]30A 200V Ultrafast Rectifier[/SIZE]



[metal]

irvynejay:

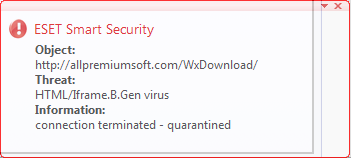

When I press the download button, I am redirected to another site, and my AV shows this message.



[irvynejay]

what link for the pdf? il send it to your mail



[wattaniya]

link for pdf file legal size

Download vertex pdf.rar from Sendspace.com - send big files the easy way

I AM SORRY TO SAY THIS,
this is not the original pdf because cant edit.
i think u converted jpeg file to pdf.
if u can pls save the file to pdf from main design software.



[irvynejay]

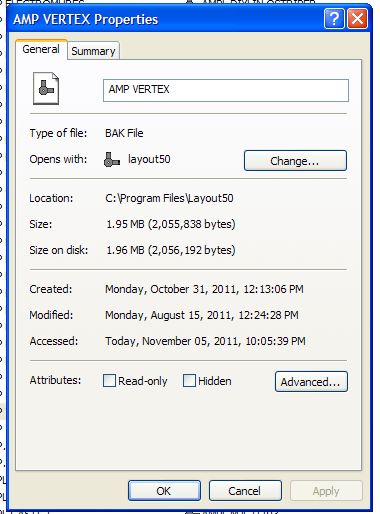

vertex lyt

Have Fun use sprint to edit



[andrewlebon]

GOOD WORK

hI Irvynejay
greetings NICE WORK and thanks for sharing TRUE DIY SPIRIT
warm regards
andrew lebon



[irvynejay]

ty as kuya Tony says
yes, that is what diy is all about....having fun.......no profit motive in mind



[wattaniya]

Have Fun use sprint to edit

thanks irvynejay for sharing the lyt file.



[khalsa]

very good layout



[apexaudio]

i already get more than 1500w on 60/120vdc using 2cs5200/1943
using MJL4281/4302 and 75/145 we can achieve 2500w in 4 r
with good psu and filters
offset .3mv .,, voltage across .22 5w resistors 10mv idle
1.2vac 50hz sine wave on input and output 85vac reading ,,clip at 85vac 4r 1000w speaker load
@ Sir Mile i hope you have good limiter and protect circuit for this amp

I will post limiter schematic with LM13600.
Regards



[alex mm]

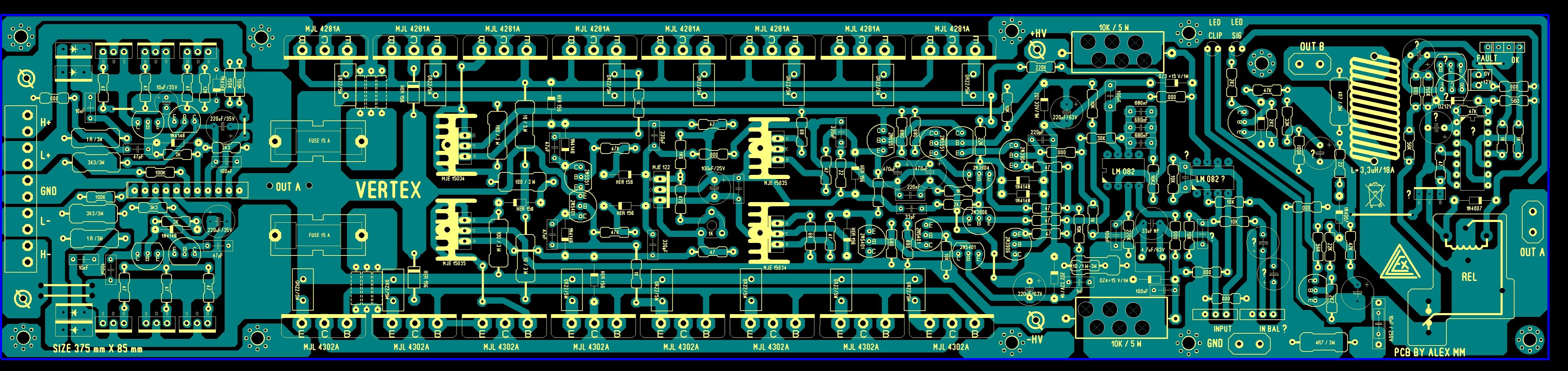

...... Hmmm very close to my PCB or vice versa 😱



[irvynejay]

Ty alex you are my mentor



[andrewlebon]

vertex

hi

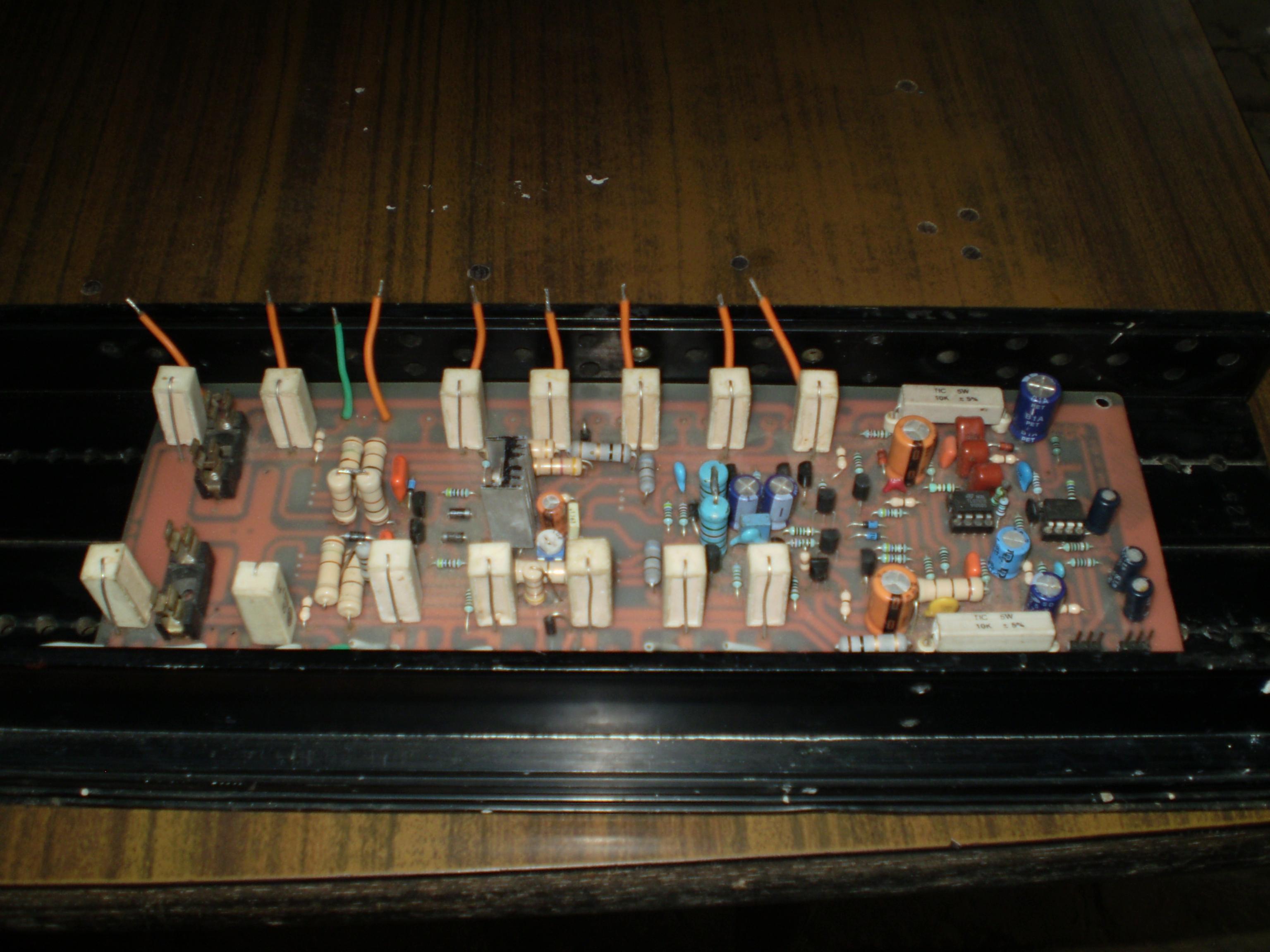

greetings jay is heat sink ok 1.8 kg
warm regards
andrew lebon



[irvynejay]

nice work andrew any test of that amp?
