Re: Another PCB for DHR-DX amplifier
Hi Alex mm
I cannot say I found anything "wrong" with this revised layout, but I (for several reasons) tend to favor the one you posted previously here.
Cheers!
alex mm said:...Hi to all,

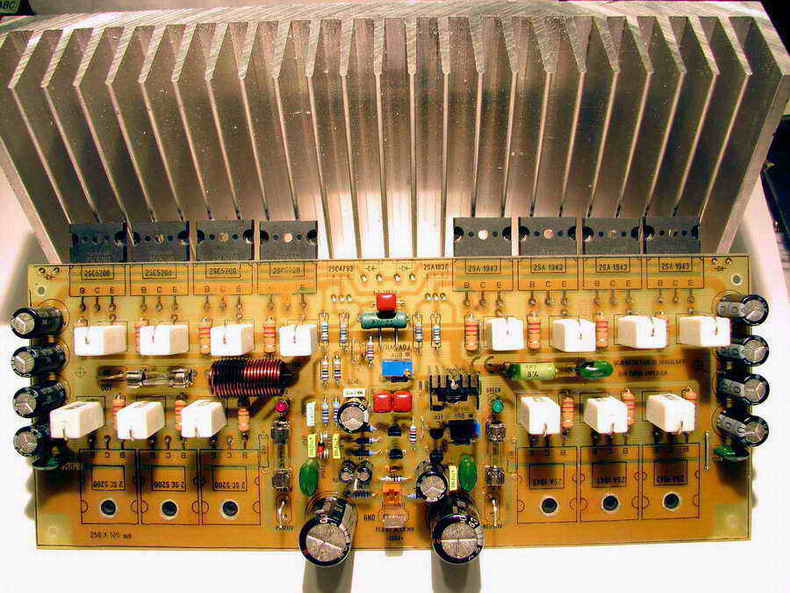

I'm happy to present another variant for PCBhttp://i35.tinypic.com/actum9.jpg ,
Hi Alex mm
I cannot say I found anything "wrong" with this revised layout, but I (for several reasons) tend to favor the one you posted previously here.
Cheers!
both of the pcb s
presented by alex mm should be cosnsidered as a product of a lot of work ....pcb like that is not made in 5 minutes ......
i will agree with carlos that both of the pcb will require testing from many points of view .....
for sure though this version here http://www.diyaudio.com/forums/showthread.php?postid=1554773#post1554773 looks simple and symetric but traces are not thick enough for an amp of this power....also the way drive board is away from power board cannot provide any guarantee on how the average user will make the wiring ( thats a very big risk ) if wiring is done wrong like for example far away from main board ...then feedbacks and grounds are going to be too sensitive ........
then on the other hand the newest is too messy and badly aranged ....it doesnt look good ...it might be working perfectly but it doesnt look good .....
hei alex !!!! have you considered a "piggy board " ???????

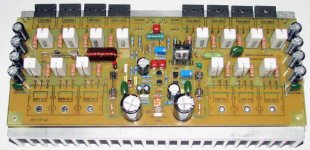

please look attached foto of one pcb that is designed by me for the CHAMELEON AMPLIFIER and actually is made by two boards lower board is the power board with the power transitors and zobel and decouling and with one 3mm spacer and a three pin connector you have a piggy board exactly on the top of the power board that includes ( in my case ) the ic that provides the drive and also the seperated connectors for 15+15 volts .....
we all know that uncle charly doesnt like ic but this idea could be easilly adopted for your big amplifier and provide a lot of flexibility since also drive unit is going to be far away enough from all the big currents that flow in the power board .... and also the both pcb will end up to something very small, safe and functional ....
please take a look and private mail me with your opinion ....
thanks
presented by alex mm should be cosnsidered as a product of a lot of work ....pcb like that is not made in 5 minutes ......
i will agree with carlos that both of the pcb will require testing from many points of view .....
for sure though this version here http://www.diyaudio.com/forums/showthread.php?postid=1554773#post1554773 looks simple and symetric but traces are not thick enough for an amp of this power....also the way drive board is away from power board cannot provide any guarantee on how the average user will make the wiring ( thats a very big risk ) if wiring is done wrong like for example far away from main board ...then feedbacks and grounds are going to be too sensitive ........
then on the other hand the newest is too messy and badly aranged ....it doesnt look good ...it might be working perfectly but it doesnt look good .....
hei alex !!!! have you considered a "piggy board " ???????
please look attached foto of one pcb that is designed by me for the CHAMELEON AMPLIFIER and actually is made by two boards lower board is the power board with the power transitors and zobel and decouling and with one 3mm spacer and a three pin connector you have a piggy board exactly on the top of the power board that includes ( in my case ) the ic that provides the drive and also the seperated connectors for 15+15 volts .....
we all know that uncle charly doesnt like ic but this idea could be easilly adopted for your big amplifier and provide a lot of flexibility since also drive unit is going to be far away enough from all the big currents that flow in the power board .... and also the both pcb will end up to something very small, safe and functional ....
please take a look and private mail me with your opinion ....
thanks
An externally hosted image should be here but it was not working when we last tested it.
Yes Sakis...looks good.
Thank you to show your board to us.
There's a rule i use to apply to all friends that wants to cooperate producing boards to Dx Amplifier... the rule is:
- "Produce the complete work, produce boards, make them real and assemble them to see if they work fine"
This seems, in my language:
- "Fazer o trabalho inteiro; barba, cabelo e bigode"
To make the whole job, say... cut beard, cut hair and give a retouch into the moustache.... (please Duda, explain the meaning to them)
Why?
Because normally i have other circuits beeing done, and happened many times that several guys came with their board design and offered, gladly, to the Dx Amplifier thread.... well.... i found myself in troubles... to be sure all offers would work fine, i would have to build by myself.
I have perceive this not fair... people creating several new ideas and i would be working alike a machine..without stop... each new idea, each retouch and i would move myself to offer guarantee to the builders.
I decided to do differently.... i will give my support, will say the board is guarantee, will offer to the people to build, if tested by the board designer.
Your board is lovely Sakis.... by the way, the thread is DHR Turbo.... what about to build my amplifier Sakis?
regards,
Carlos
Thank you to show your board to us.
There's a rule i use to apply to all friends that wants to cooperate producing boards to Dx Amplifier... the rule is:
- "Produce the complete work, produce boards, make them real and assemble them to see if they work fine"
This seems, in my language:
- "Fazer o trabalho inteiro; barba, cabelo e bigode"
To make the whole job, say... cut beard, cut hair and give a retouch into the moustache.... (please Duda, explain the meaning to them)
Why?
Because normally i have other circuits beeing done, and happened many times that several guys came with their board design and offered, gladly, to the Dx Amplifier thread.... well.... i found myself in troubles... to be sure all offers would work fine, i would have to build by myself.
I have perceive this not fair... people creating several new ideas and i would be working alike a machine..without stop... each new idea, each retouch and i would move myself to offer guarantee to the builders.
I decided to do differently.... i will give my support, will say the board is guarantee, will offer to the people to build, if tested by the board designer.
Your board is lovely Sakis.... by the way, the thread is DHR Turbo.... what about to build my amplifier Sakis?
regards,
Carlos
..this PCB wil be my next build
....many thanks to all of yours comments regarding my PCB , and gest remember I'm amator not an professional man . I'ts all I can do http://freepdfhosting.com/60bdd695f5.pdf at this moment all the best alex mm . I'm almost ready to build this nice amplifier ....
....many thanks to all of yours comments regarding my PCB , and gest remember I'm amator not an professional man . I'ts all I can do http://freepdfhosting.com/60bdd695f5.pdf
at this moment all the best alex mm . I'm almost ready to build this nice amplifier ....
Do you know how to dance Alex?
I ensure you that you gonna feel so happy listening to this amplifier that you gonna start and dance with an enormous smile in your face.
Carefull if has high blood pressure or some heart disease.... strong emotions are guaranteed.
Enjoy Dx DHR Turbo, the most happy amplifier on earth!
regards,
Carlos
I ensure you that you gonna feel so happy listening to this amplifier that you gonna start and dance with an enormous smile in your face.
Carefull if has high blood pressure or some heart disease.... strong emotions are guaranteed.
Enjoy Dx DHR Turbo, the most happy amplifier on earth!
regards,
Carlos

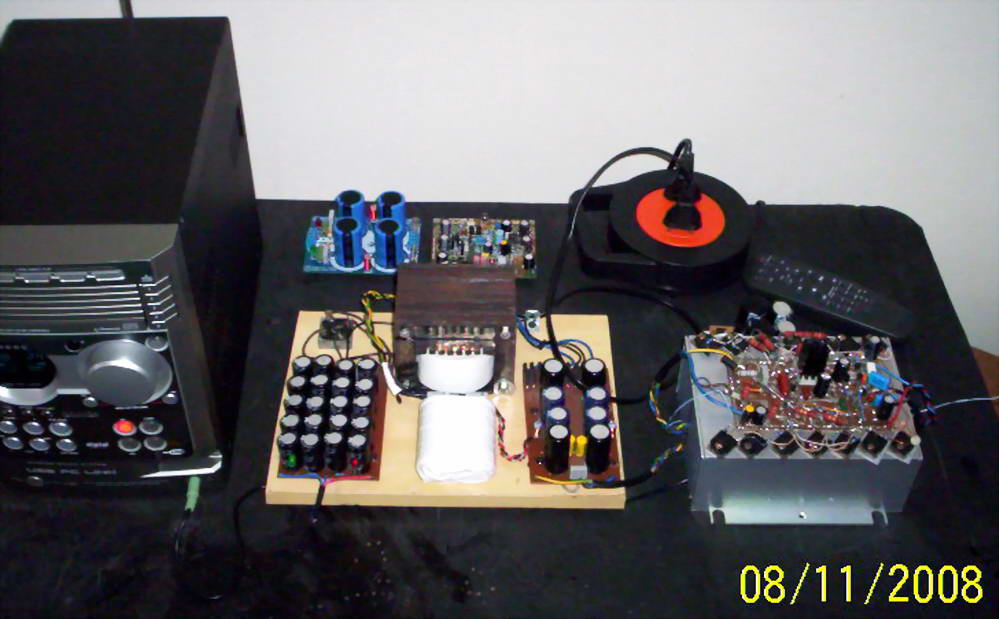

left chanel in progres.....
.....thanks uncle Carlos , but my work stil whaiting for me I waiting until mondey to buy some devices to finish ,the right chanel to http://i37.tinypic.com/xnf2ww.jpg component side and http://i37.tinypic.com/ergc9l.jpg botom side . So next weak I intend to testing DHR-DX amplifier
regards alex mm
.....thanks uncle Carlos , but my work stil whaiting for me
I waiting until mondey to buy some devices to finish ,the right chanel to http://i37.tinypic.com/xnf2ww.jpg component side and http://i37.tinypic.com/ergc9l.jpg botom side . So next weak I intend to testing DHR-DX amplifier regards alex mm

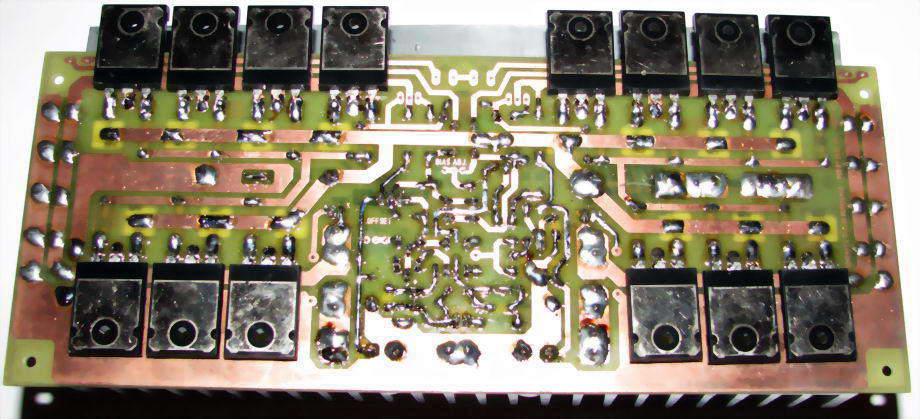

gest another picture ....
..... closer look of the amplifier here http://i34.tinypic.com/2q9me4h.jpg Regards alex mm
..... closer look of the amplifier here http://i34.tinypic.com/2q9me4h.jpg
Regards alex mm
Re: gest another picture ....
Are those boards for sale?
alex mm said:
Are those boards for sale?
I hope not, or at least Alexandru may not comment here
We cannot use follow as free advertising to sell things.
This is a free design, offered for free to all friends, to all audiophiles, to all diyaudio communitty.
If we start a business we have to first pay space into our forum to advertisement.
Of course, what forum folks make directly, using personal mail contacts are out from this control...so.... if some business starts, please go directly to E mail and do not mention values here.
If Alexandru, or any forum folks decide to open a group buy, to order board and to distribute, and this for free, without profit..then will be another story.
I see nobody has started nothing...but signs shows me that something can start and it is good to remember that we have the
"long arm from the law" around... and the best moderator is also a very good shotter too.
I feel very happy you have appreciated Alexandru work on that board Meanman...also the trust, the confidence and appreciation into my amplifier...i have to thank you very much for that.
Made my day.... great!...good!.
Sounds great, great, great and great!...it is a heavy punch into the stomach, the violine attacks your feeling and puts your arm hairs all stand up because emotions.
regards,
Carlos
We cannot use follow as free advertising to sell things.
This is a free design, offered for free to all friends, to all audiophiles, to all diyaudio communitty.
If we start a business we have to first pay space into our forum to advertisement.
Of course, what forum folks make directly, using personal mail contacts are out from this control...so.... if some business starts, please go directly to E mail and do not mention values here.
If Alexandru, or any forum folks decide to open a group buy, to order board and to distribute, and this for free, without profit..then will be another story.
I see nobody has started nothing...but signs shows me that something can start and it is good to remember that we have the
"long arm from the law" around... and the best moderator is also a very good shotter too.
I feel very happy you have appreciated Alexandru work on that board Meanman...also the trust, the confidence and appreciation into my amplifier...i have to thank you very much for that.
Made my day.... great!...good!.
Sounds great, great, great and great!...it is a heavy punch into the stomach, the violine attacks your feeling and puts your arm hairs all stand up because emotions.
regards,
Carlos
Attachments
Negative my dear, you do not have to apologize... you made nothing wrong
I had to remember folks about those things, because i was afraid we started some business here...not allowed.
But directly.. using E mail.... no problems.
Try Alexandru.... Alex mm..... who knows what he has in mind.... i think he has not the intention or free time to do those things...but give a try.
regards,
Carlos
I had to remember folks about those things, because i was afraid we started some business here...not allowed.
But directly.. using E mail.... no problems.
Try Alexandru.... Alex mm..... who knows what he has in mind.... i think he has not the intention or free time to do those things...but give a try.
regards,
Carlos
The DHR Turbo sounds so good, so loud, that drives you happy and put you to dance
You gonna lubricate your bonds guys.... to dance, so happy you will feel is a guarantee.
DHR Turbo, this one puts even dead man to dance.
- "Playing inside the best homes in this water planet, the earth!"
Also...NOW... in my home... even the mosquitos are dancing here.
Yesssssss!
Carlos
You gonna lubricate your bonds guys.... to dance, so happy you will feel is a guarantee.
DHR Turbo, this one puts even dead man to dance.
- "Playing inside the best homes in this water planet, the earth!"
Also...NOW... in my home... even the mosquitos are dancing here.
Yesssssss!
Carlos
