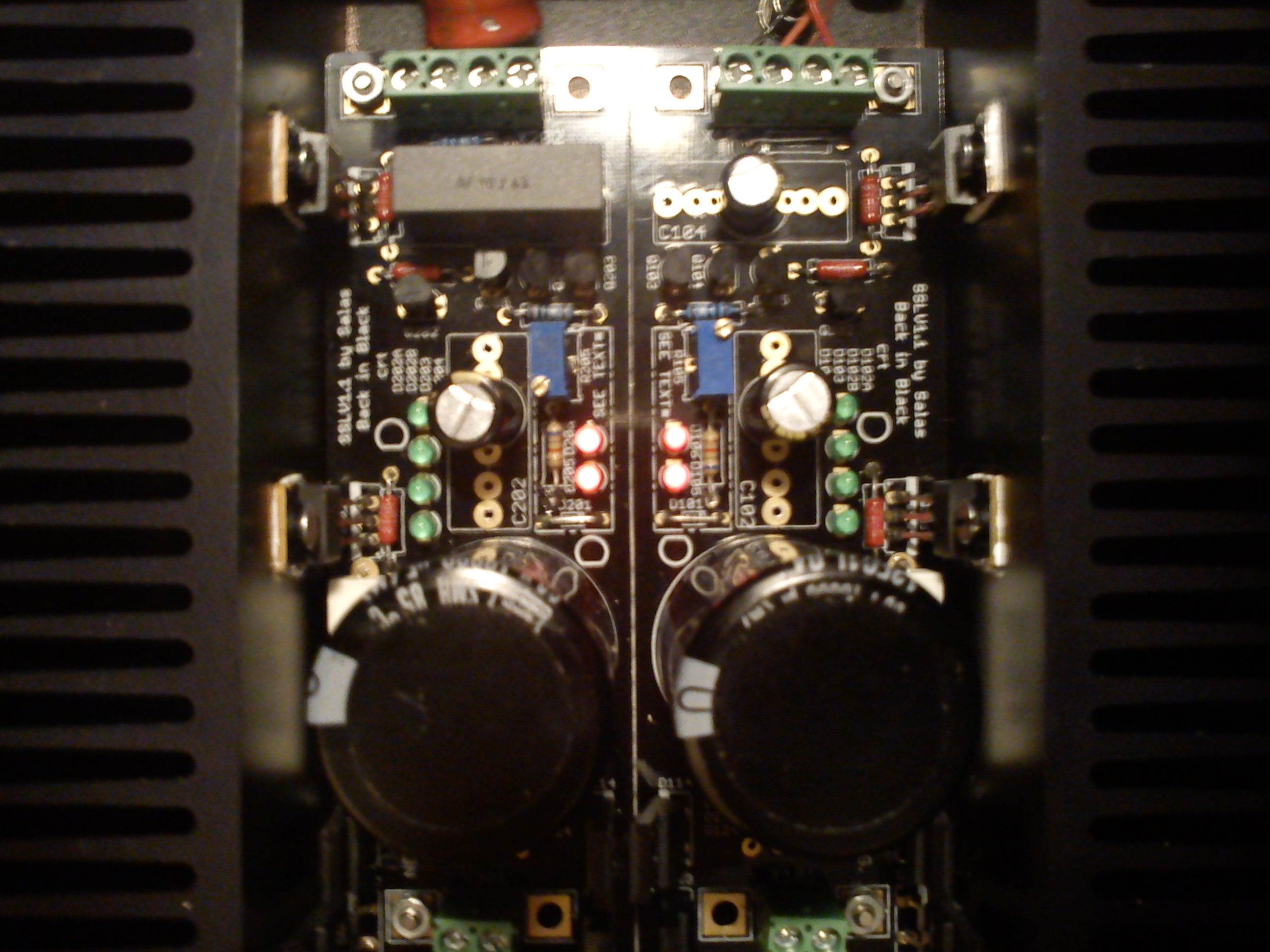

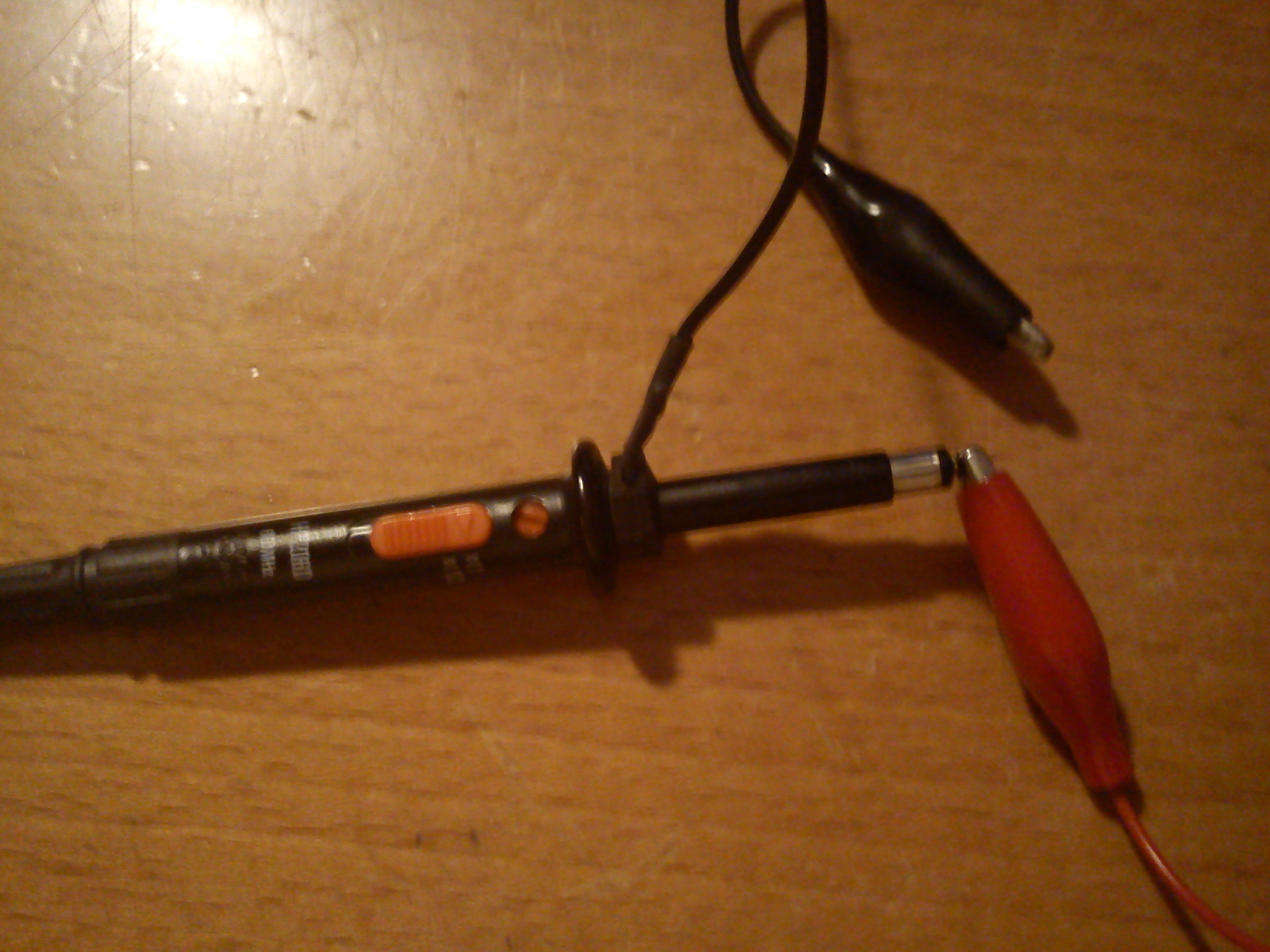

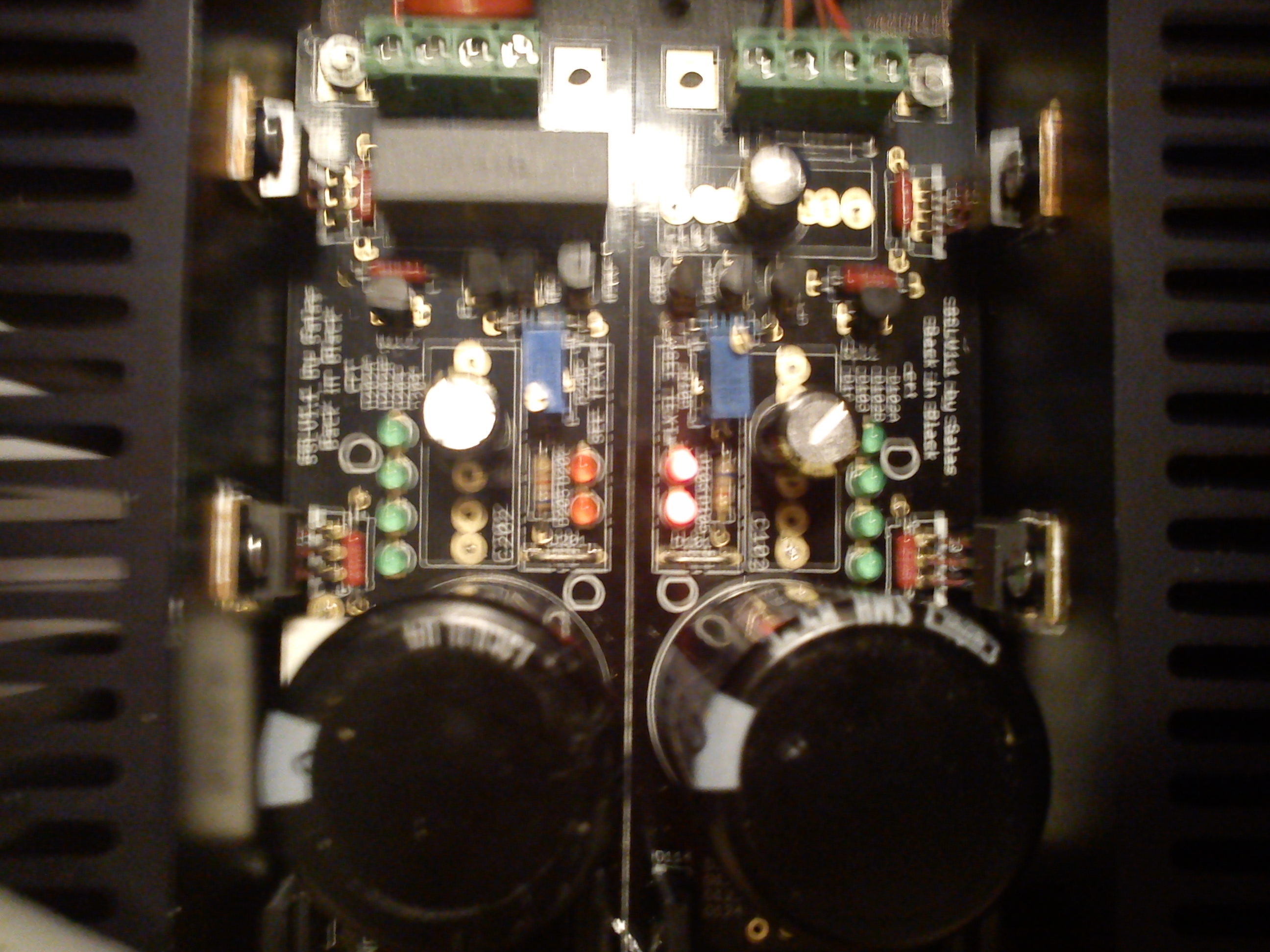

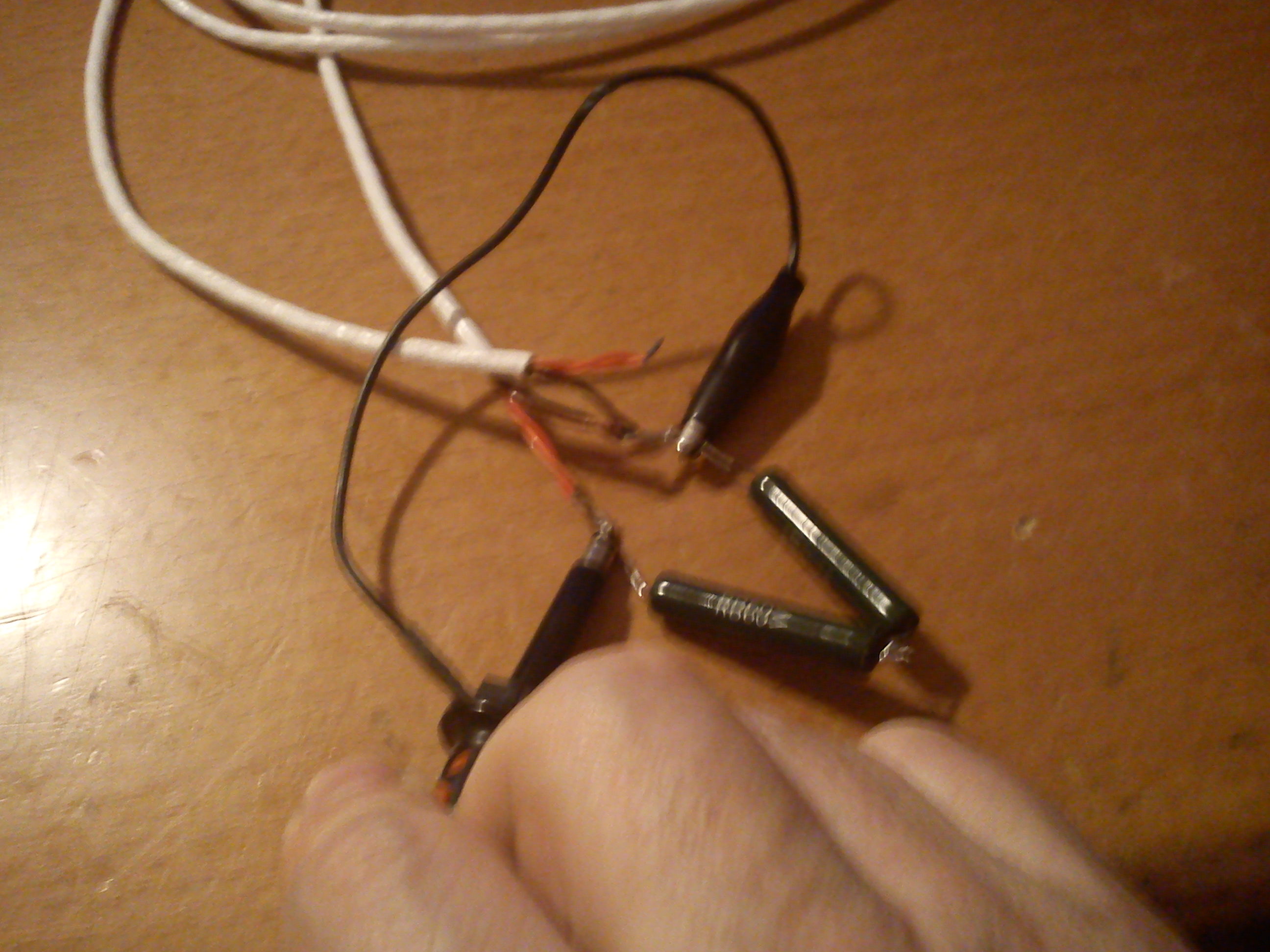

Probe pic



[Salas]

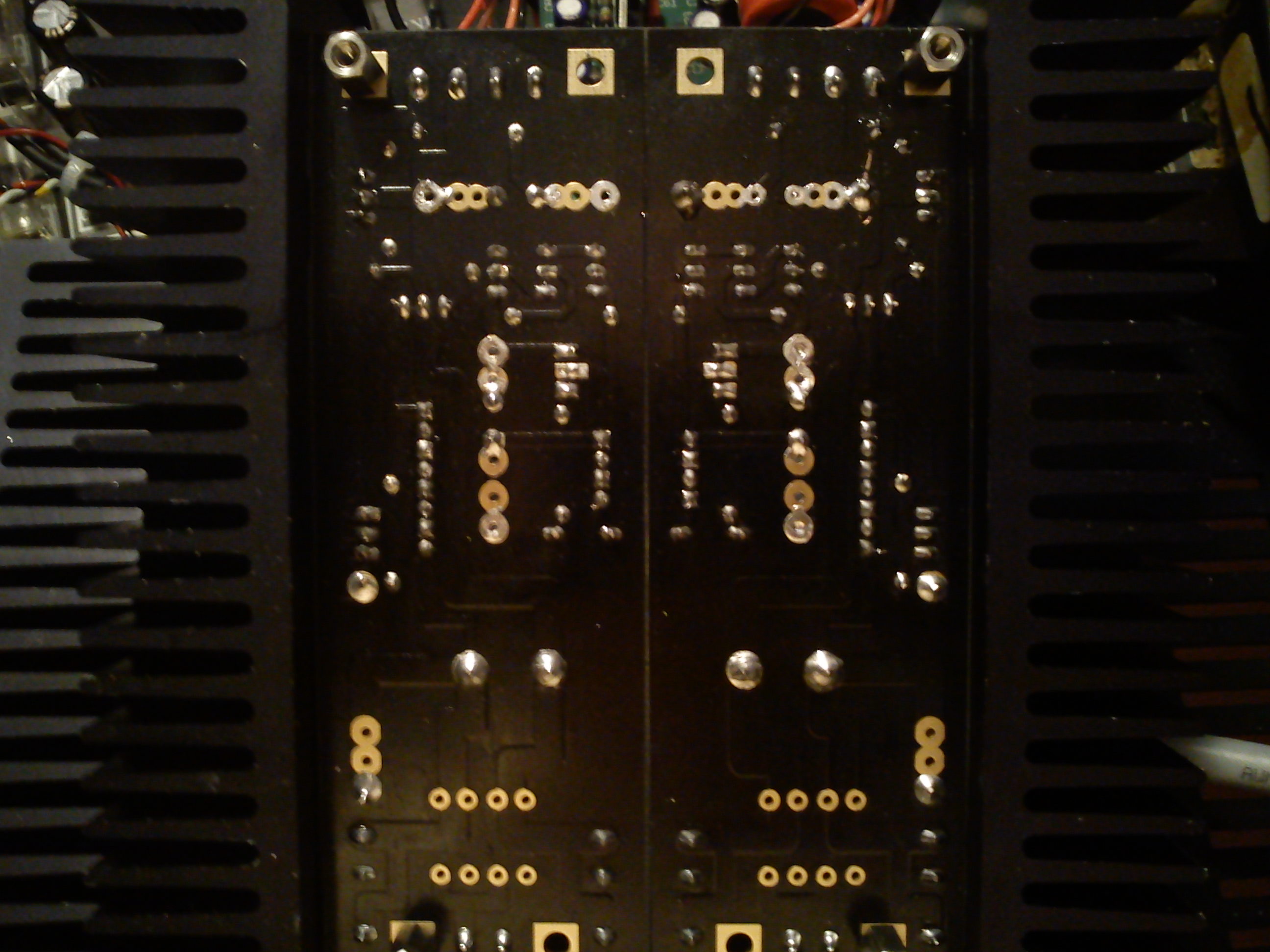

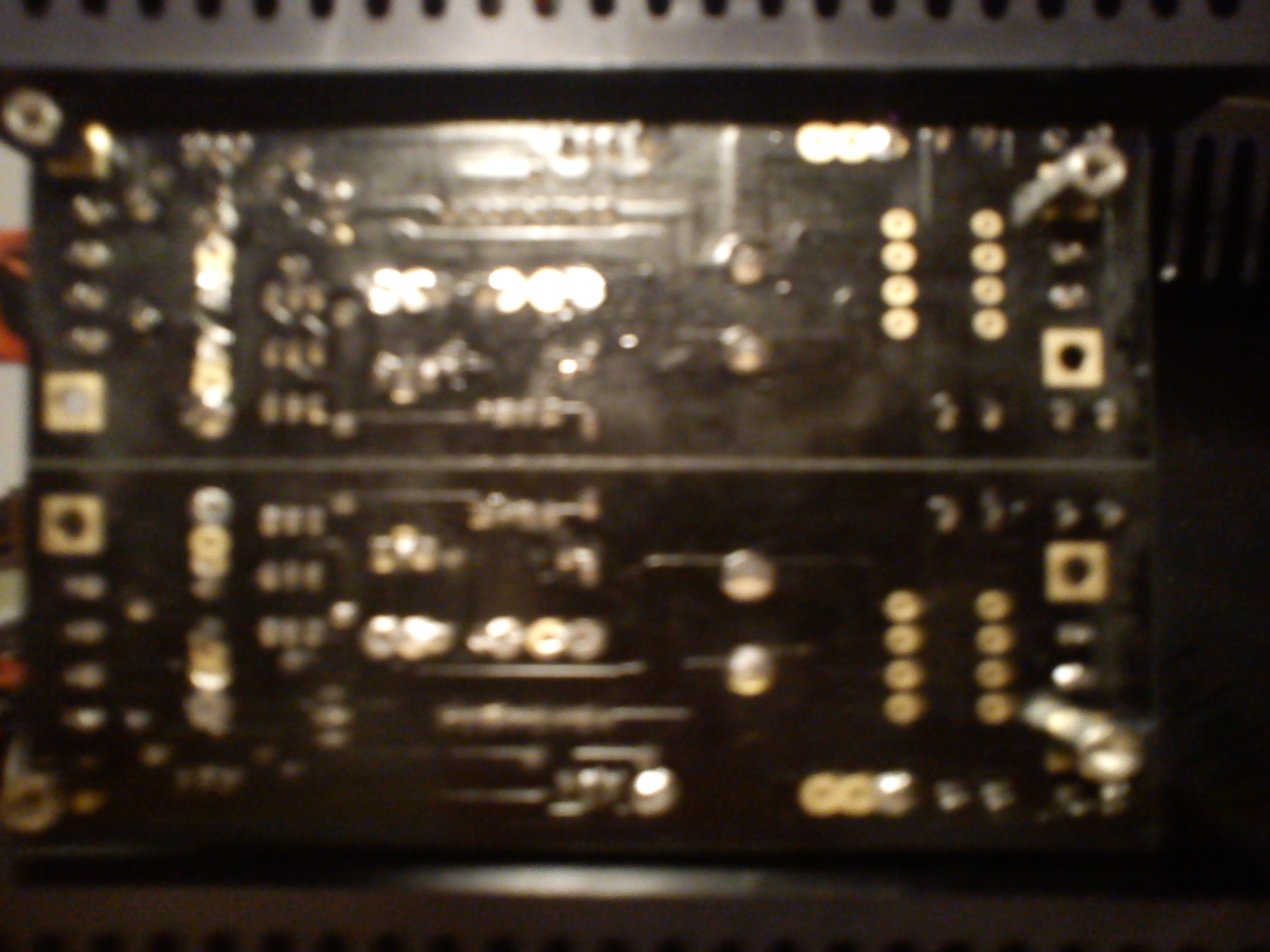

"Any clear picture full length from above and under?" pcbs?

How long are those wires? Can you try coax?



[merlin el mago]

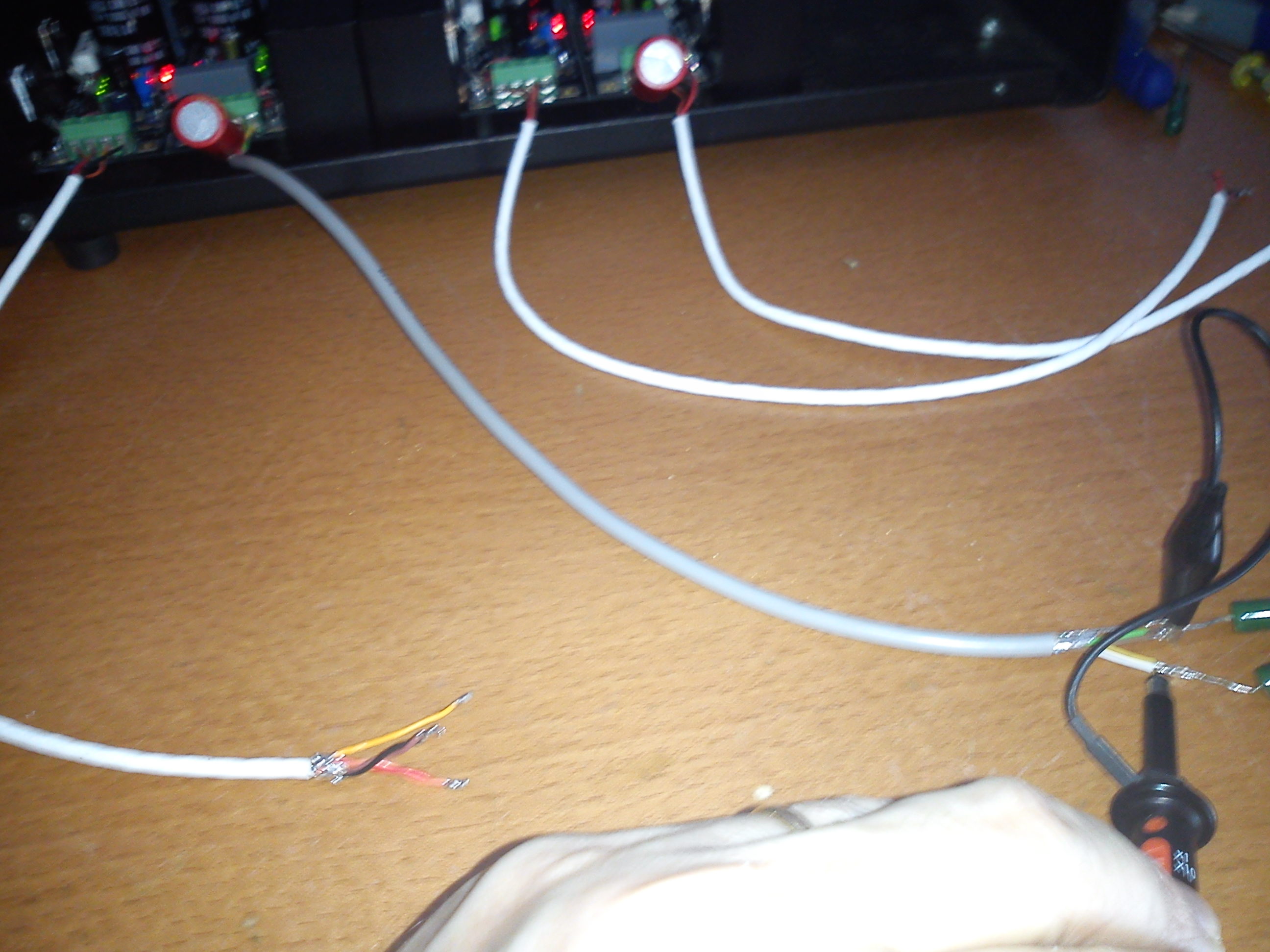

Red is 46cm long.

I have coax cable but how can try?



[Salas]

It looks like US Naval cable from ebay, is it? Each coax core on F+,S+ each coax shield on F0,S0.



[merlin el mago]

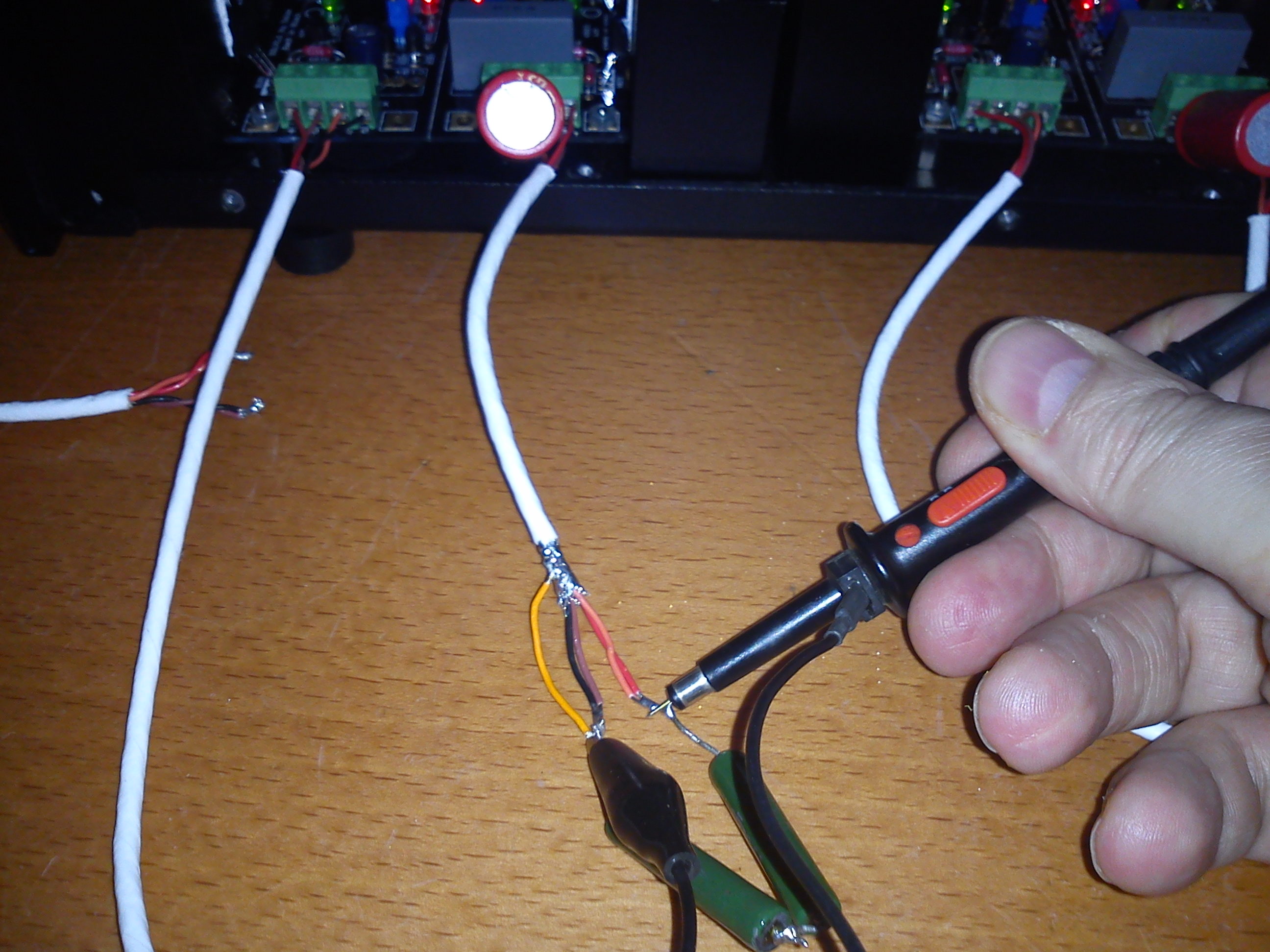

Connected directly the probe to the load same result, see attached pics



[Salas]

Why one red, orange is on air?



[merlin el mago]

Positive rail



[Salas]

Try with shorter different type only neg. We will have to see what is kicking.



[merlin el mago]

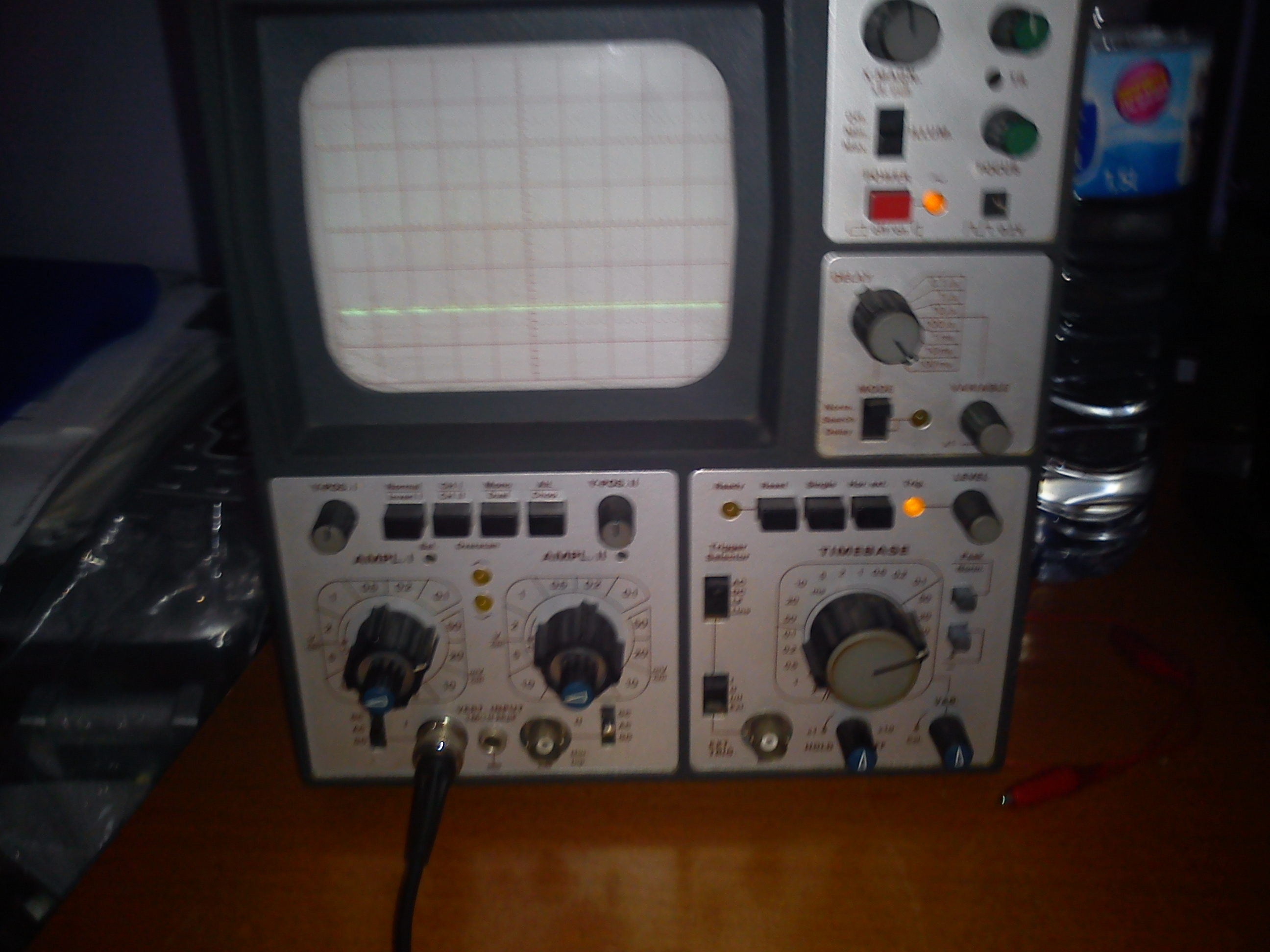

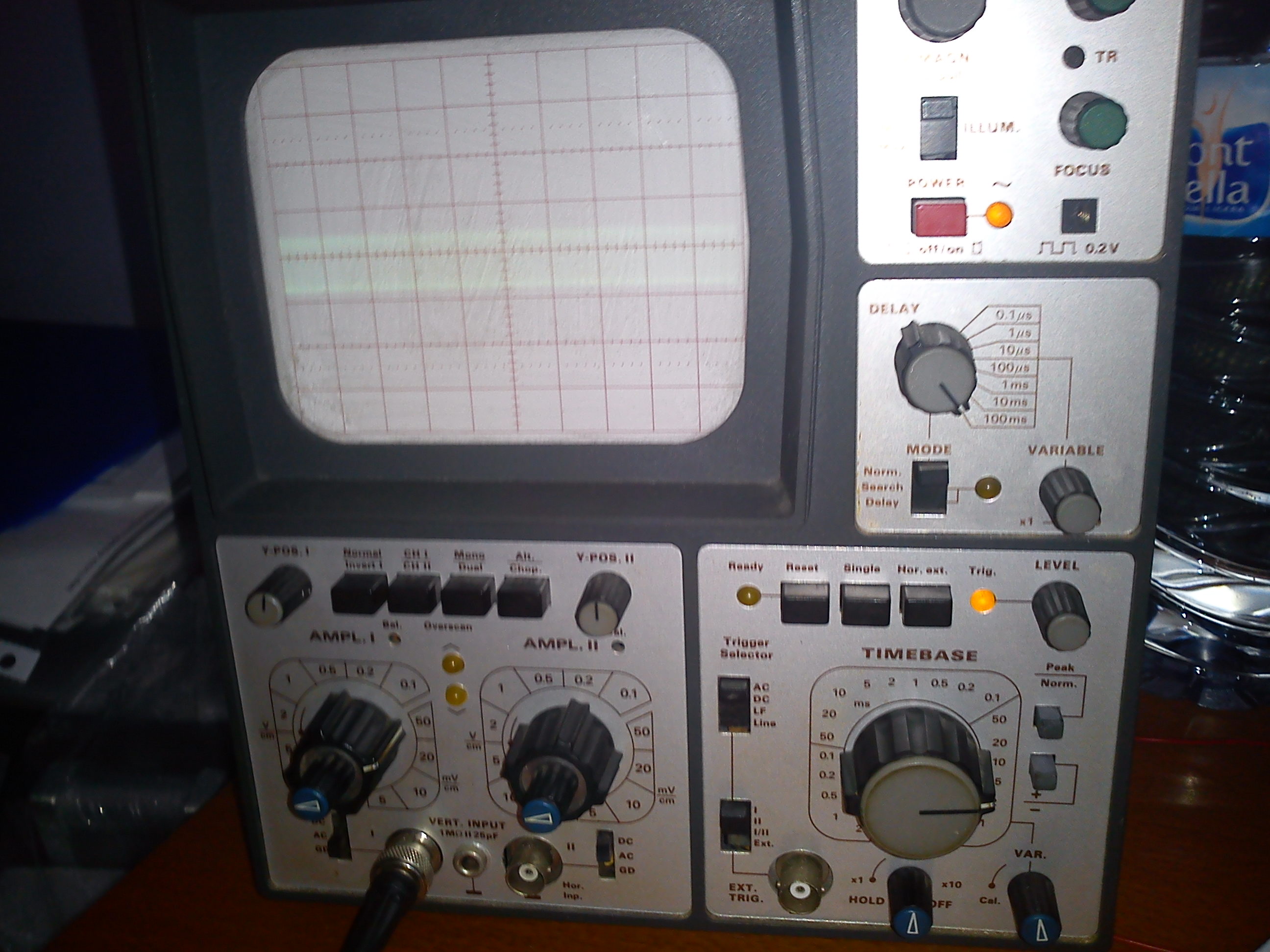

Only neg same result but rotating ampl. & time base knobs image as change see pic

Do you want that I try a sorter cable between reg and load?



[Salas]

Do experiments with cabling, it seems weird what they do. Don't forget other types. Its alarming for yours that George posts excellent dc line so easily. See everything. I hope not its a difficult to spot weird semi or cap.



[samoloko]

Salas
can we use IRF9530N / IRF530N instead of IRF9530 / IRF530
can we use 470 R for gate stoppers instead of 270 R
what Is preffered type for CCS resistor and output resistor



[merlin el mago]

Do experiments with cabling, it seems weird what they do. Don't forget other types. Its alarming for yours that George posts excellent dc line so easily. See everything. I hope not its a difficult to spot weird semi or cap.

The most extrange thing is that the oscillation occurs only in negative regs. Anyway I will buy another probe for the scope. Do you want that I measure any voltage between Mosfets legs?



[merlin el mago]

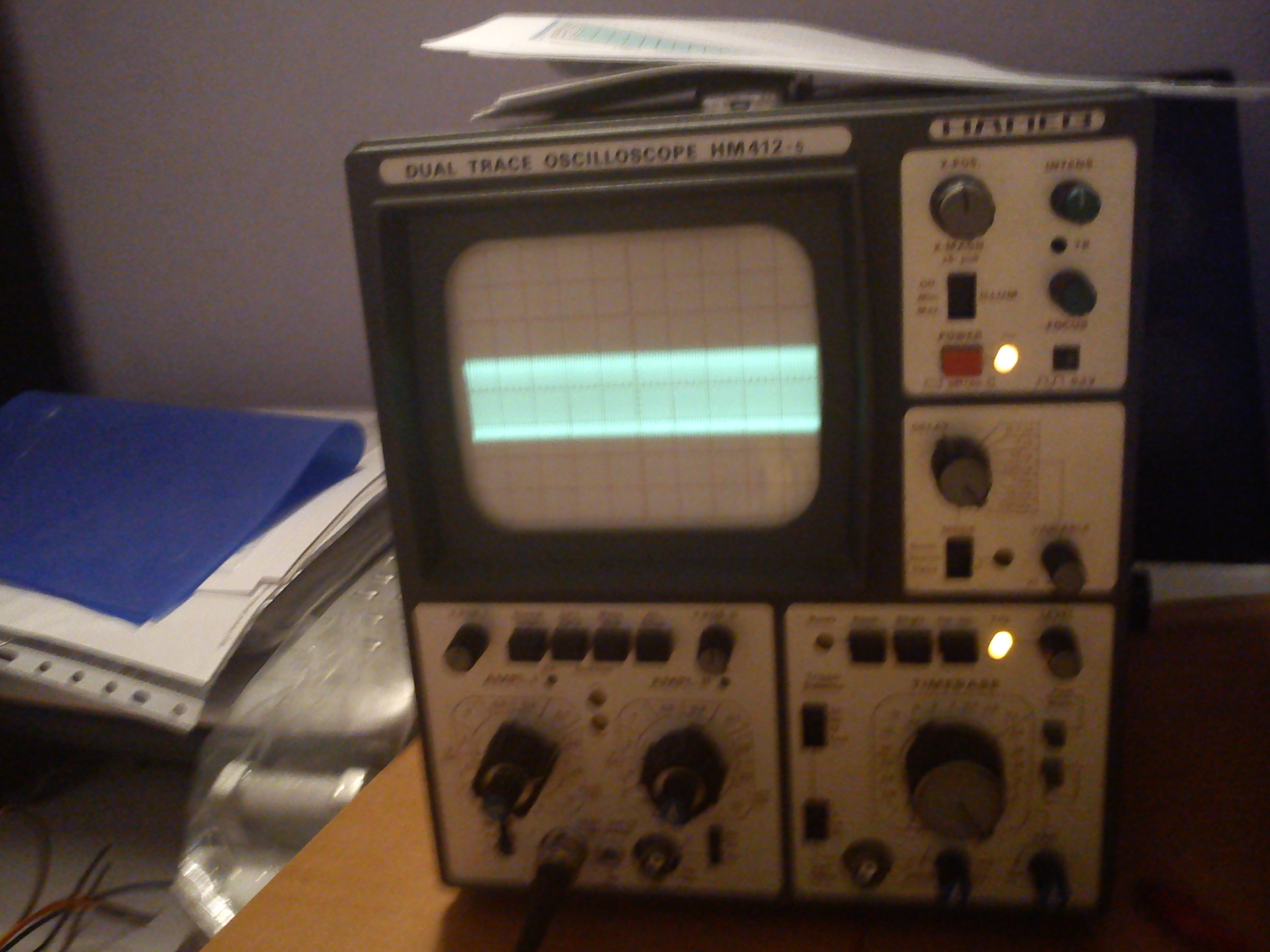

Short cable between reg & load also connected the scren shield to ground still oscillation



[merlin el mago]

With other cable shielded with foil worse oscillation😡



[merlin el mago]

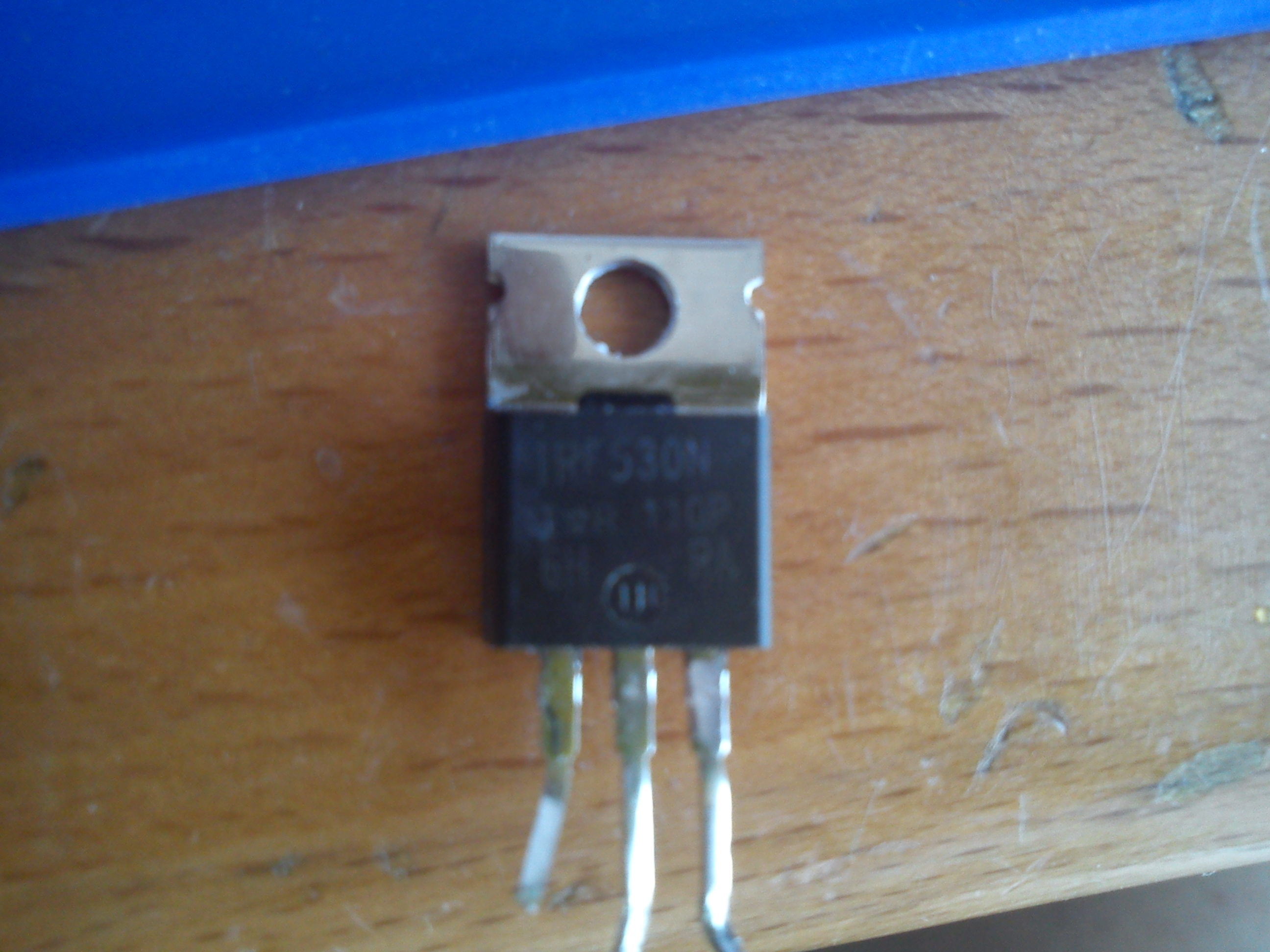

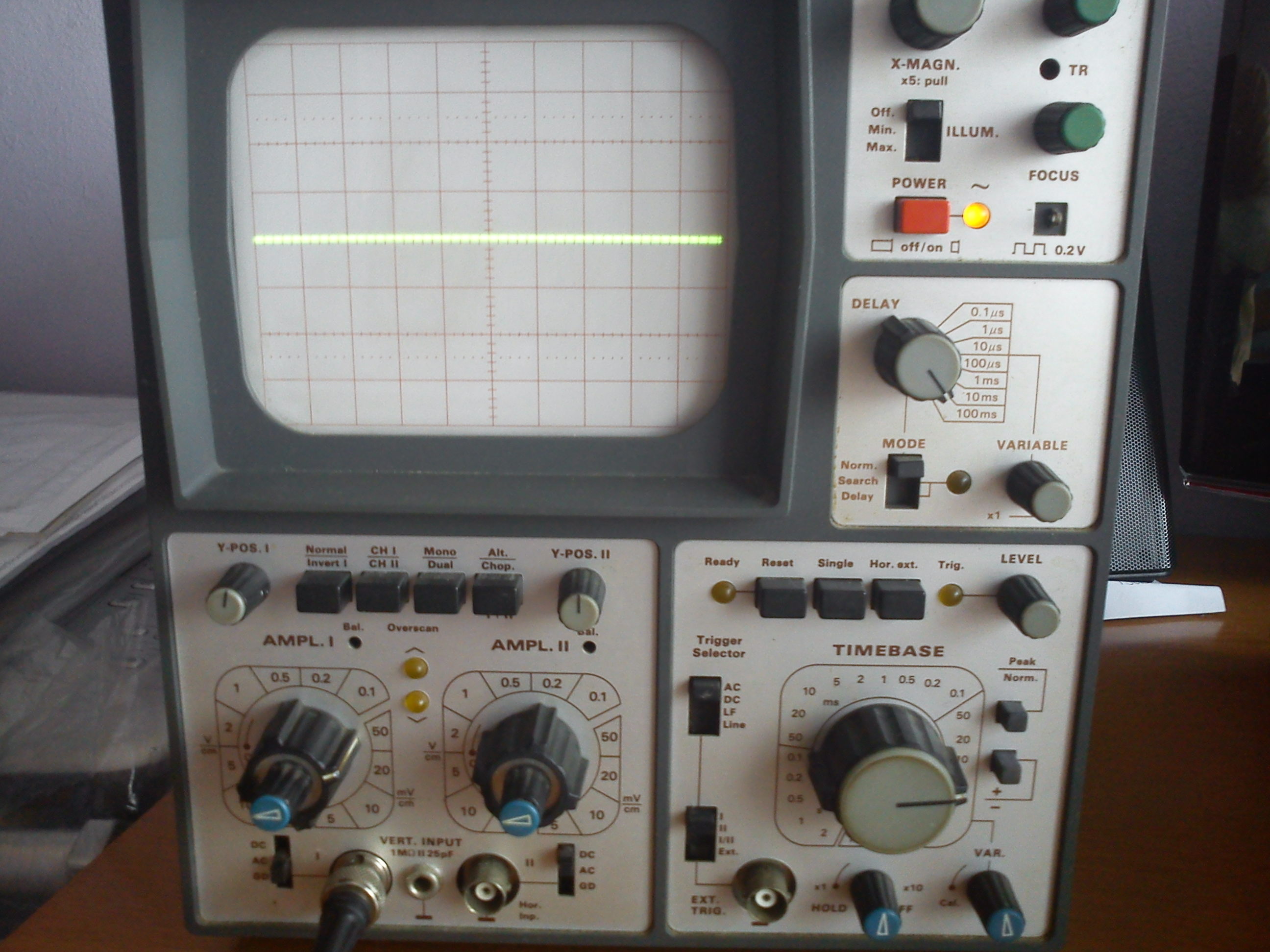

Salas Left channel changed all SK117GR, BC560 and still oscillates but changed IRF530F and....see the pic NO OSCILLATION 🙂
