Software for faceplate etching

Member
Joined 2003
Paid Member
Free software would be nice.
Ability to adjust font line thickness
Many font choices
Export the vector files

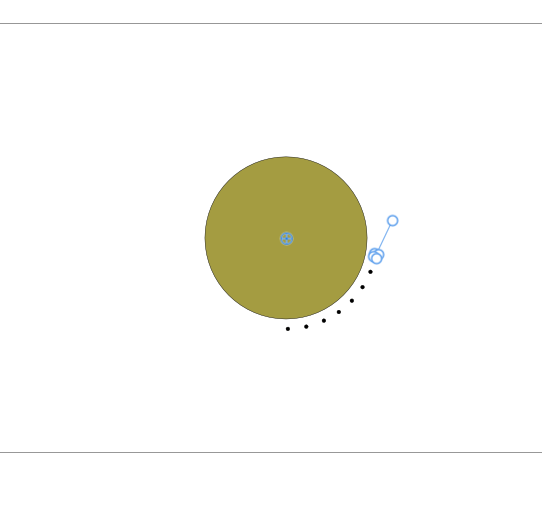

I'm using sketchup Layout for 30 day free trial but the absence of a protractor is driving me crazy


Attachments

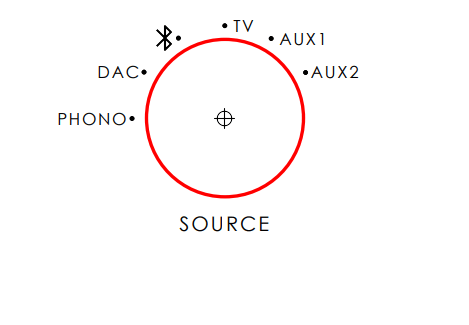

  • Capture t.PNG
    Capture t.PNG
    6 KB · Views: 77
  • Like
Reactions: 1 user
Fusion360 is free to hobbyists. You can then find a trophy shop that has a laser cutter/engraver. Or, take the file to a sheet metal shop and they can use a laser or waterjet machine.

You're not going to pay $1.99 and you're not going to do it in a short period of time. But, that's why you're Doing It Yourself.

  • Like
Reactions: 1 users
  • Like
Reactions: 2 users
I use Corel Draw since 1990 or so (started with Corel 2!!!!! :eek: )
Before that it was Technical pens on vellum paper or Letraset, or ordering typographical "proof sheets" with text which could be cut and pasted (LITERALLY!!!) on a large sheet of drawing paper (Schöller architect paper preferred) and then photographed on a fridge sized Litho camera
This one takes a 24" by 36" negative!!!!



Back to computers, search for "Frontplate designer" or something very close to that.

  • Like
Reactions: 1 users
Member
Joined 2003
Paid Member
For my labeling design and etching, it's essential that I have control over Letter spacing(kerning) and ability to download my Font into the program

I'm playing with Front Panel Designer and looks like there is no kerning and it has a prescribed font list - I'll see what I can do, maybe have to play some more

Inkscape appears to have everything I need and so much more. Makes for a steeper learning curve

  • Like
Reactions: 1 user
For my labeling design and etching, it's essential that I have control over Letter spacing(kerning) and ability to download my Font into the program

I'm playing with Front Panel Designer and looks like there is no kerning and it has a prescribed font list - I'll see what I can do, maybe have to play some more

Inkscape appears to have everything I need and so much more. Makes for a steeper learning curve
Corel Draw definitely allows that and 1000 other font enhancements, such as:

"fit text to path"


"extruding text"


and a lot more, but I suggest you start using it as if it were white paper and black ink, period, which is way more intuitive.
The rest comes bit by bit.

As of Fonts, not sure about Front Panel Designer but in principle Windows programs use whatever Fonts have been previpusly loaded into Windows Fonts directory itself.

Never used Inkscape but most Graphic Design packages include very similar features, also quite similar Menus so going from one to another is not difficult.

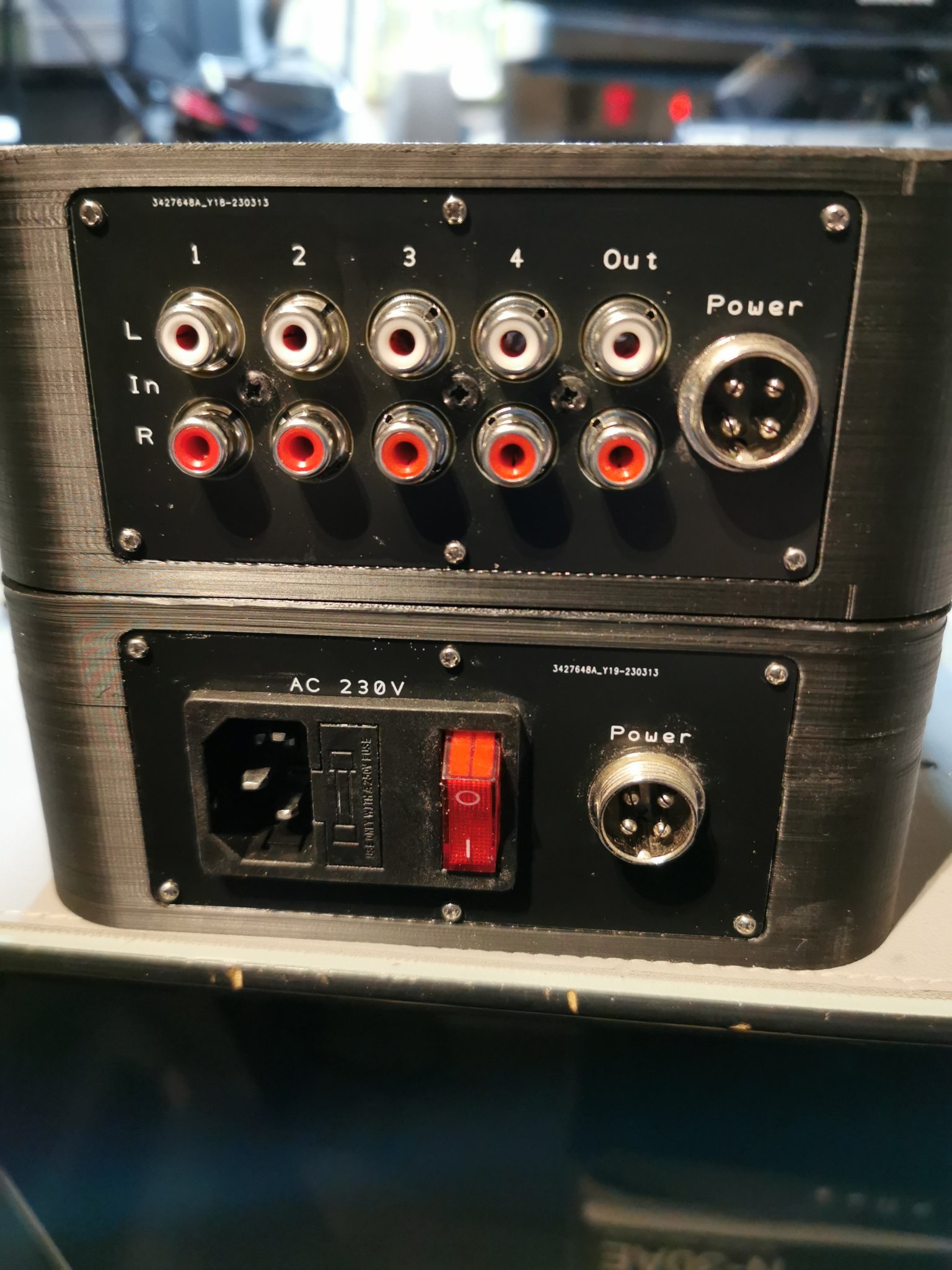

I use designspark pcb(is free) generate gerberfiles so i can order at jlcpcb. Inclusive holes. 5 pieces onnly 2 euro.
Loved it.

Sort of steampunk using modern PCBs as panels for 40s 50s look Electronics products ;)

  • Like
Reactions: 1 user
Microsoft Word, and Open Office as well, have many font choices.
And you can download font files.
Corel Draw uses vector files for storage, they take up less space, and is very good, many options.

You can do a lot of work in a CAD program, or make a print in a Word like program, and do the finals at the etching shop on their software, less issue if their software modifies files automatically.

If you like, get the face plate laser etched, looks good in my opinion.

Last edited:
Member
Joined 2003
Paid Member
Thanks for all the suggestions..

After many many hours of looking into the other software options, messing with inkscape and drawing with layout, I simply dove deeper into layout to get it done.. I have over a dozen faceplates do draw with only slight variations so this one serves as a template and the other should go much faster.

Hopefully the .dxf export will work out so my neighbor(not home until June 10) can perform the etching...
He already etched a few and they look great.. The original file was created by a friend. He couldn't find time anymore, hence, the reason I'm creating the drawings.. :)


Attachments

  • P-SOLO Front Panel w Dims.pdf
    24.3 KB · Views: 89
  • P-SOLO Front Panel wo Dims for Etching.pdf
    9.7 KB · Views: 80
  • Like
Reactions: 1 user
Thanks for sharing. The CAD model can now be used on a laser cutter/etcher to create your faceplate.

If you get tired of waiting until June 10th, you can also take the file to a sheetmetal shop that has a water jet machine, or a laser cutter.

That's what DIY is all about.

Fusion360 is free to hobbyists. You can then find a trophy shop that has a laser cutter/engraver. Or, take the file to a sheet metal shop and they can use a laser or waterjet machine.

You're not going to pay $1.99 and you're not going to do it in a short period of time. But, that's why you're Doing It Yourself.
I was under an assumption something to that but havent began a search. I need a stainless steel dash insert I cut, to be cut more to accept five circular gauges (to be specific). Besides a waterjet I'm not aware of something else that will cut this stuff cleanly and accurately. Anywhere in the gta would be great.

I was under an assumption something to that but havent began a search. I need a stainless steel dash insert I cut, to be cut more to accept five circular gauges (to be specific). Besides a waterjet I'm not aware of something else that will cut this stuff cleanly and accurately. Anywhere in the gta would be great.
"gta is Greater Toronto Area? If so, Toronto is near many auto manufacturing/parts business/machine shops/sheet metal shops.

I looked on Yelp Canada, there are dozens of sheet metal fabricators in the Toronto area. That part of the world, there shouldn't be any problem finding someone to fabricate a stainless steel dash, but as mentioned, you'll need a drawing with dimensions. On the Omax water jet cutter I used to have access to, a pencil and paper drawing can easily be drawn with the CAD software on the machine controller.

  • Like
Reactions: 1 users
Here a drawing is sometimes the proof of order, some people try to weasel out of payment, if the job was not suitable, or liked, for whatever reason.
Particularly if it is a one off job for a non regular customer.

Wire EDM can be used to cut plates, most standard machines will go through 60 mm plates, but they need a start hole.
It is a simple job for laser or wire EDM, water jet may be cheaper.
