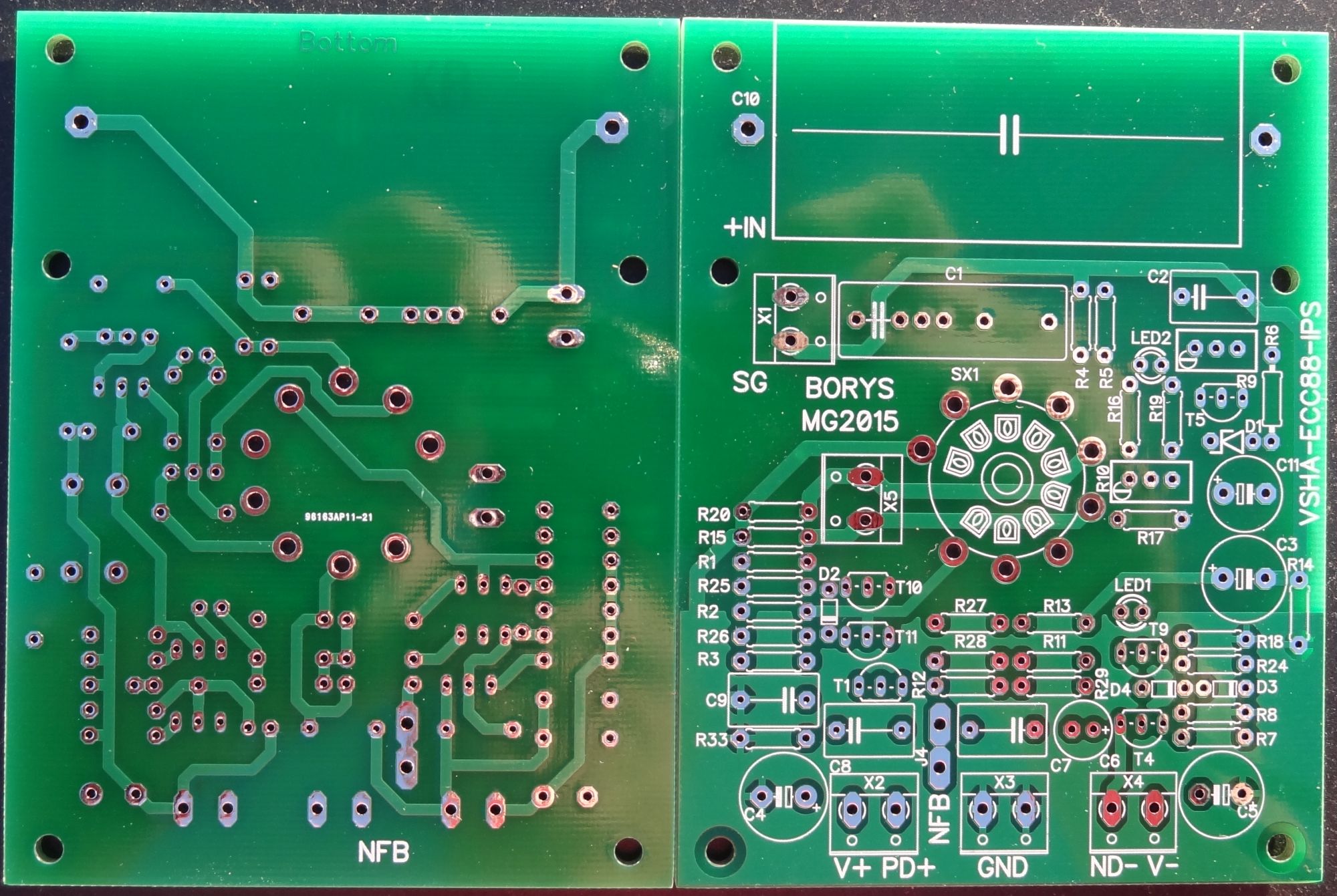

Here's a little better picture.



[bambadoo]

OPS boards arrived safe and sound after getting lost in translation. Thanks Evanc

But, my plans keep changing 🙂

Does anyone know if it is possible to get hold (buy) of a pair of "slewmaster min"/"slewbaby" OPS pcbs?



[still4given]

ECC88
Pinnocchio = 2 info received; invoiced; PAID; SHIPPED
marsupialx = 2 info received; invoiced; PAID; SHIPPED
kool lites = 4 info received; invoiced; PAID; SHIPPED
mrsavage = 4 info received; invoiced; PAID; SHIPPED
Cambe - 2 ECC88, 2 Slew mini info received; invoiced; PAID; SHIPPED
touchdown = 2 info received; invoiced; PAID; SHIPPED
gwrskien = 6 (3pairs) info received; invoiced; PAID; SHIPPED
Arthur -4 (2 pairs) info received; invoiced; PAID; SHIPPED
Carl_Huff = 4 (2 pairs) info received; invoiced; PAID; SHIPPED
Fredlock=2 info received; invoiced; PAID; SHIPPED
Quan=2 info received; invoiced; PAID; SHIPPED
presbel=4 info received; invoiced; PAID
metallicus69=2 info received; invoiced; PAID; SHIPPED
gaborbela=2 info received; invoiced; PAID; SHIPPED
Albrerta=2 info received ; invoiced; PAID; SHIPPED
Jeff Wilhelm=4 info received ; invoiced; PAID; SHIPPED
Idefixes=2 info received ; SHIPPED



[jwilhelm]

Can you post a link to a schematic for the ECC88 board? I can't find C10 on any of the schematics I've found.



[still4given]

I think Marc added C10. It replaces C1 with one of those huge "audiophile" caps some guys like to use.



[still4given]

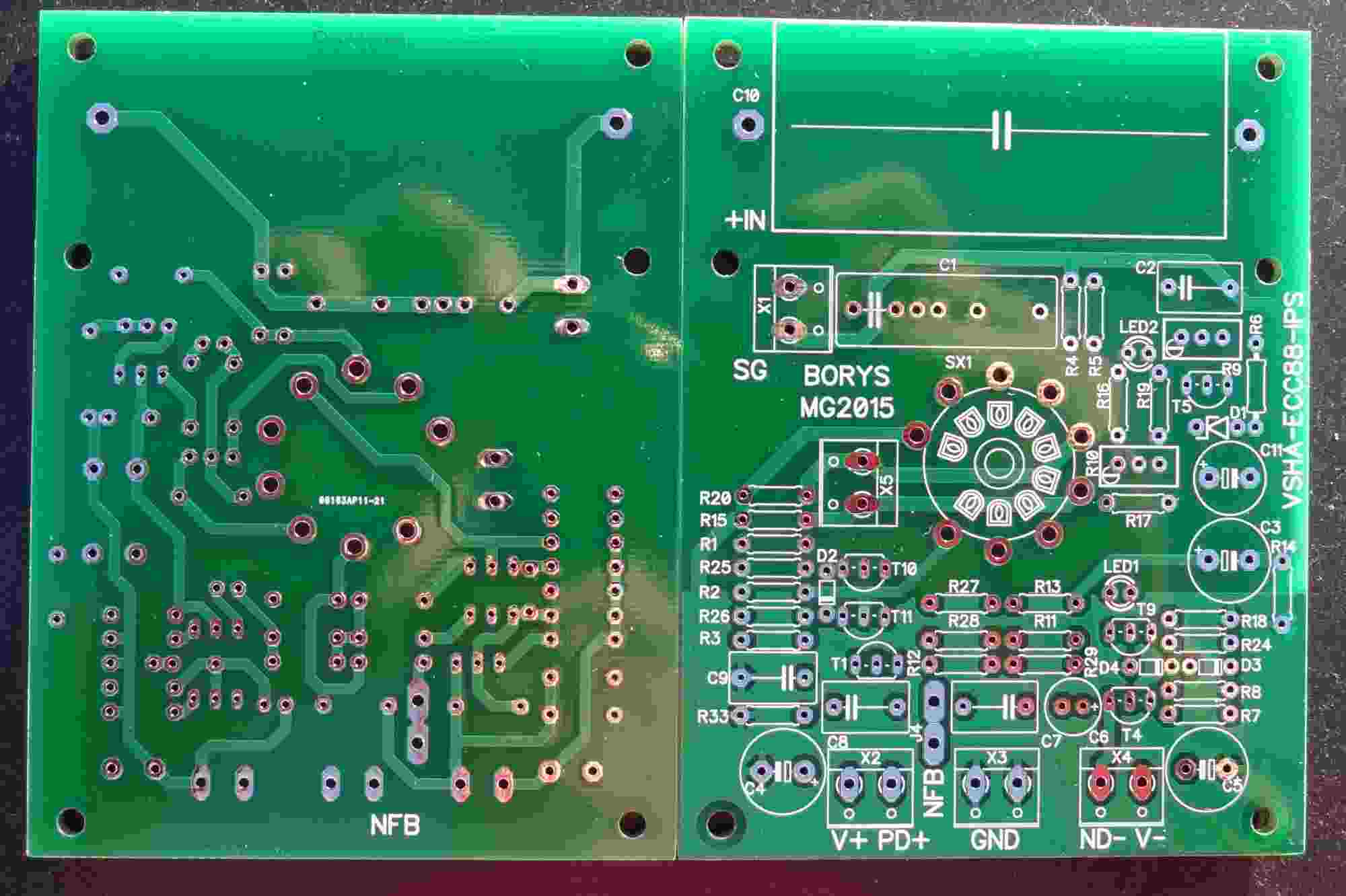

For some reason Irfanview was messed up. Here's a better pic



[Idefixes]

I think Marc added C10. It replaces C1 with one of those huge "audiophile" caps some guys like to use.

yes that is. If some one will a smaller IPS board he can just cut C10 area and use middle mounting holes.

Marc



[Idefixes]

Can you post a link to a schematic for the ECC88 board? I can't find C10 on any of the schematics I've found.

here is the schematic.

Marc



[kool lites]

This BOM is a little easier to follow.

jwilhelm,
Can you include the Schematic also?
TA
Matthew



[jwilhelm]

Here's a schematic for it.



[still4given]

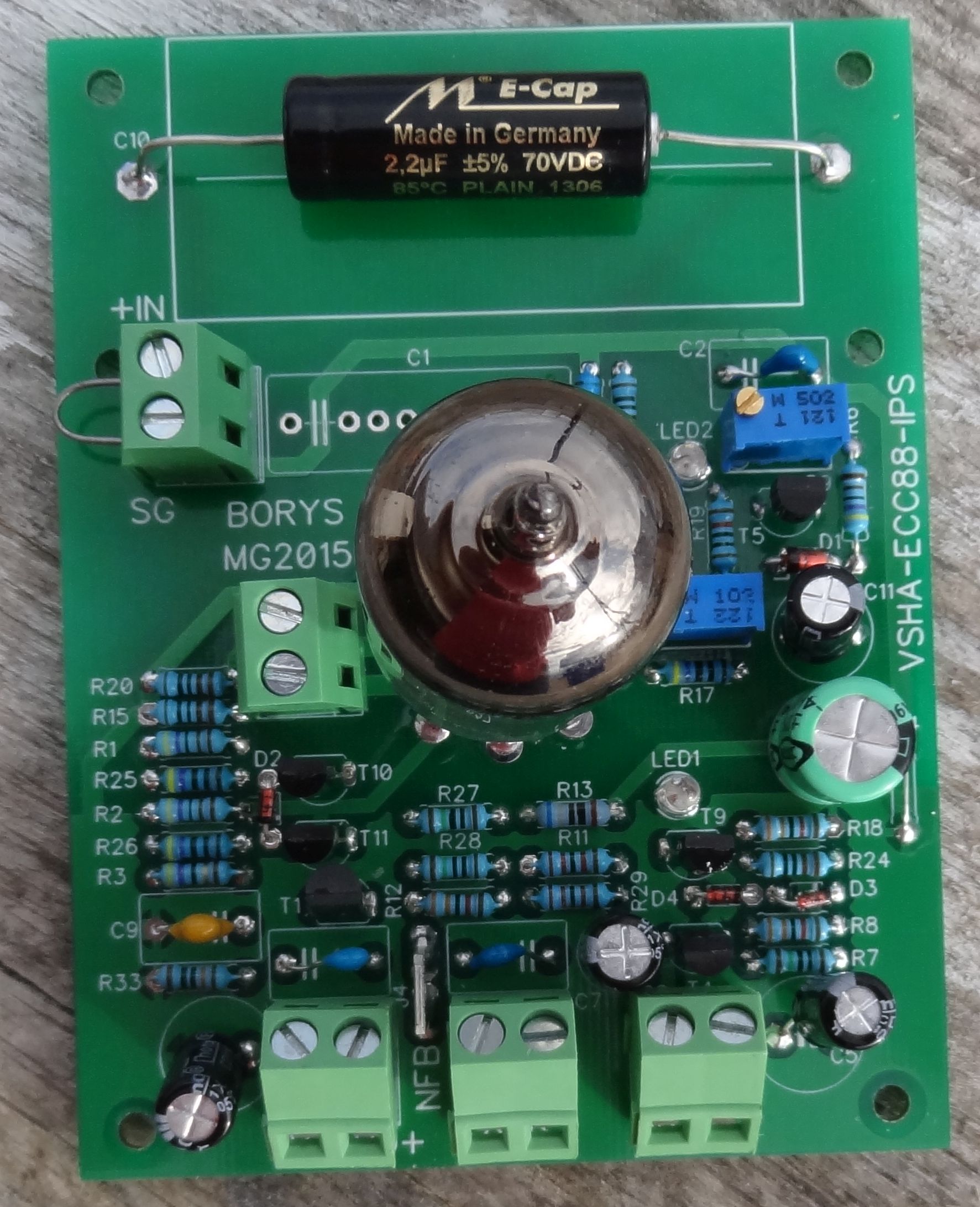

I built a pair of the ECC88 boards for 6N1P tubes. Only 3 components need to be changed. I adding the schematic and a pic of the board.

Blessings, Terry



[still4given]

Sorry, The schematic had an error. Basically, for the 6N1P starting with the ECC88 schematic, R6 becomes 4k7, R19 becomes 10k and D1 becomes a 15V zener.



[quan]

Hi Terry, got my boards. Thanks.
Quan



[gwrskien]

Hello,

the ECC88 boards arrived today..

Thank`s



[still4given]

Great news guys. Glad to hear USPS didn't take too long. Enjoy the build!



[presbel]

Hi Terry,
Got my boards today.
Thanks



[jwilhelm]

I received my boards today. Thanks Terry



[metallicus69]

Got my boards as well, Terry!

Many thanks for your service to us!



[pinnocchio]

Got my board as well Terry, thanks!!

Did you receive my last PM about NJW3281/0302 for the Slewmaster 5P OPS?

Thanks
Do



[still4given]

Hey that's great guys! Please share your builds. Funny, the guys with international mail seem to have received their boards first. Those are the ones I worry about.

This amp was named VSHA by Borys. (Very Simple Hybrid Amplifier). It really is pretty simple with few parts but it has a very big sound. Certainly worth the work.

Blessings, Terry
