resistors in RelVol3
Hi,

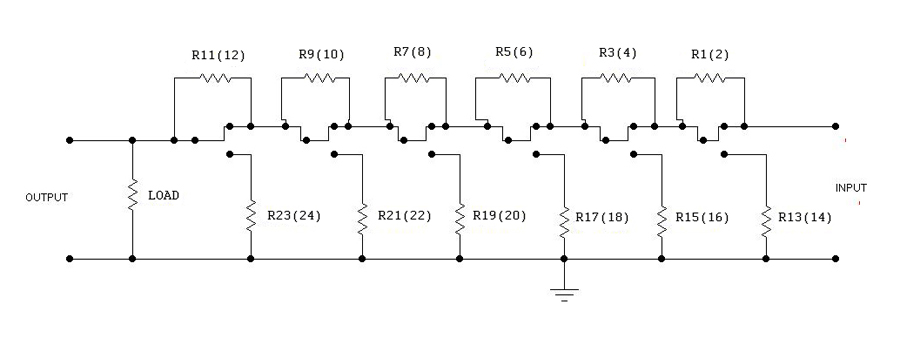

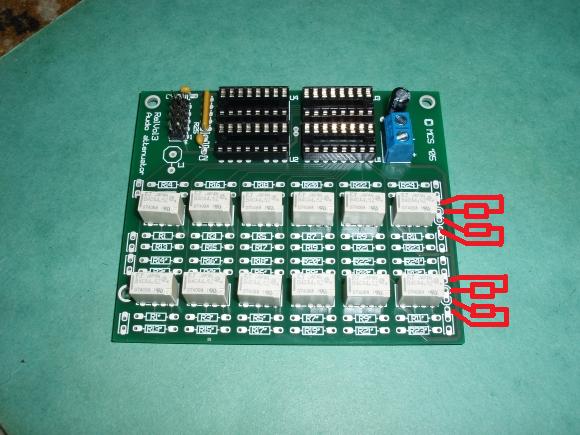

can somebody tell me how to calculate resistors in RelVol3 attenuator? And what is the best impedance for Aleph P1.7 preamp. Attenuator board will be on the output of preamp. Many thanks.
P.S. I know the formula for load resistor, but if I want 1 kohm impedance, what resistors should I use?
Hi,
can somebody tell me how to calculate resistors in RelVol3 attenuator? And what is the best impedance for Aleph P1.7 preamp. Attenuator board will be on the output of preamp. Many thanks.
P.S. I know the formula for load resistor, but if I want 1 kohm impedance, what resistors should I use?
Attachments
Very sorry about my long absence/silence.
I have been working on a rush job for the past couple of weeks, and done nothing but work, sleep and eat. I should have had a couple of months for doing it, but I just received the information needed two weeks before the deadline... 😡
Everything should be mostly back to normal now, but I still have a lot of unread e-mail waiting for "processing". You should all get replies eventually 🙂
Best regards,
Mikkel C. Simonsen
I have been working on a rush job for the past couple of weeks, and done nothing but work, sleep and eat. I should have had a couple of months for doing it, but I just received the information needed two weeks before the deadline... 😡
Everything should be mostly back to normal now, but I still have a lot of unread e-mail waiting for "processing". You should all get replies eventually 🙂
Best regards,
Mikkel C. Simonsen
Re: resistors in RelVol3
You have 2k resistors, right? If you want 1k resistors halve the values, if you want 4k double the values. It's not rocket science 😉
Most people use 1k resistors (2k total input impedance).
If you don't want exotic resistors, a complete set is only €8 with shipping 🙂
Best regards,
Mikkel C. Simonsen
felix the cat said:
You have 2k resistors, right? If you want 1k resistors halve the values, if you want 4k double the values. It's not rocket science 😉
Most people use 1k resistors (2k total input impedance).
If you don't want exotic resistors, a complete set is only €8 with shipping 🙂
Best regards,
Mikkel C. Simonsen
Motor pot support
Dear Mikkel,
While talking about the control1 board, you say that it does not support a display, hence it's probably best used with a motor pot. Going by your choice of words, does this mean that even the other control boards support motor pots, in case I don't want to use a display?
I'm a bit hung up on motor pots because I feel they are ergonomically easier to use than buttons+displays or rotary encoders, because the eye can see a notch on the control knob and we know the current volume setting at a glance. I'd like to use remote controls to drive motor pots, instead of feeding both remote control input and encoder input into the controller and use a display.
In fact, though I find your range of kits/options simply amazing, I think it would be nice if you supported a pot+ADC as manual volume input in place of a rotary encoder.
thanks for the excellent offerings,
Tarun
Dear Mikkel,
While talking about the control1 board, you say that it does not support a display, hence it's probably best used with a motor pot. Going by your choice of words, does this mean that even the other control boards support motor pots, in case I don't want to use a display?
I'm a bit hung up on motor pots because I feel they are ergonomically easier to use than buttons+displays or rotary encoders, because the eye can see a notch on the control knob and we know the current volume setting at a glance. I'd like to use remote controls to drive motor pots, instead of feeding both remote control input and encoder input into the controller and use a display.
In fact, though I find your range of kits/options simply amazing, I think it would be nice if you supported a pot+ADC as manual volume input in place of a rotary encoder.
thanks for the excellent offerings,
Tarun
Re: Motor pot support
The Remote1 and Control1/2 support motorpots. But the Control2 is not meant to be used without a display. The Control2 can support two motorpots used for volume and balance, but the volume setting is of course not shown on the display.
If you're considering the relay attenuators (RelVol1/3), they are easy to control by a pot. Just connect the 6 most significant bits of a parallel output ADC to the parallel input of the relay attenuators.
Best regards,
Mikkel C. Simonsen
tcpip said:
The Remote1 and Control1/2 support motorpots. But the Control2 is not meant to be used without a display. The Control2 can support two motorpots used for volume and balance, but the volume setting is of course not shown on the display.
If you're considering the relay attenuators (RelVol1/3), they are easy to control by a pot. Just connect the 6 most significant bits of a parallel output ADC to the parallel input of the relay attenuators.
Best regards,
Mikkel C. Simonsen
Re: Re: Motor pot support
Can you name an inexpensive 8-bit ADC off-hand which I could use for something like this?
Thanks a lot for the responses.
Does this mean that the Control2 accepts signals from the remote handset to control both volume and balance? Nowhere in the description on your Webpages are these things mentioned. I'm now wondering whether it might be a good idea for you to make the manuals of your kits available online so that we guys ask you less of the silly questions. 🙂mcs said:
Oh, is that so?? This means that your relay attenuators accept a 6-bit binary integer over their ribbon cable and set the relays accordingly? This makes all sorts of extensions/customisations so easy. Amazing.
Can you name an inexpensive 8-bit ADC off-hand which I could use for something like this?
Thanks a lot for the responses.
I think the flexibility and capabilities of your boards are not being captured by your Website. I've read through this thread from the beginning and I'm quite amazed at the different ways in which the kits can be put together.
If you find the time, can you add some text against each board, listing in detail what that board can do? Here I don't mean a readable list, but a boring reference-manual-type list of capabilities like:
If you find the time, can you add some text against each board, listing in detail what that board can do? Here I don't mean a readable list, but a boring reference-manual-type list of capabilities like:
- can drive one or two motor pots
- can read one or two rotary encoders
- rotary encoder sensitivity can be adjusted at setup time
- can drive the following attenuator boards: Vol1, Vol2, Vol4
- can drive up to four of the Vol* boards in parallel for multichannel uses
- ...
Re: Re: Re: Motor pot support
I looked for a few. TI's TLC0820 and Analog Devices AD7819 ... will they work?tcpip said:
Re: Re: Re: Motor pot support
Yes.
A lot of the features aren't mentioned in the manual (or anywhere else). Many have been added at the request of people here, and some are only in special software versions.
Some of the weird combinations are the ideas of users, not me 🙂
Not the normal ribbon cable - that's serial mode only. But there is an extra header on the RelVol1 board for parallel data. On the RelVol3 you can leave out the '595 registers and fit headers for parallel data instead.
You need a type with a parallel output and that can do constant conversions. It looks like the National ADC0803LC is an option (I just looked through a catalogue - I haven't read through the whole datasheet).
Best regards,
Mikkel C. Simonsen
tcpip said:
Yes.
A lot of the features aren't mentioned in the manual (or anywhere else). Many have been added at the request of people here, and some are only in special software versions.
Some of the weird combinations are the ideas of users, not me 🙂
Not the normal ribbon cable - that's serial mode only. But there is an extra header on the RelVol1 board for parallel data. On the RelVol3 you can leave out the '595 registers and fit headers for parallel data instead.
You need a type with a parallel output and that can do constant conversions. It looks like the National ADC0803LC is an option (I just looked through a catalogue - I haven't read through the whole datasheet).
Best regards,
Mikkel C. Simonsen
tcpip said:
There are some examples listed here: http://electronics.dantimax.dk/Info-Support/Combinations/
But not a complete list of course 😉
All the control boards can drive all the attenuator boards.
No idea what the limit is. A guy is building a system with 6 attenuator boards on a VolControl2 board currently - I guess I'll hear about it, if it doesn't work 😉
Best regards,
Mikkel C. Simonsen
Re: Re: Re: Re: Motor pot support
Not sure. The datasheets mention µprocessor interfaces, but not stand-alone operation.
But I guess I could make a small board for this purpose. If a 2051 µcontroller was used, all the attenuator boards (including ChipVol1 and RelVol2 that don't have parallel inputs) could be controlled. The A/D converter for reading the pot could be made in software then...
Best regards,
Mikkel C. Simonsen
tcpip said:
Not sure. The datasheets mention µprocessor interfaces, but not stand-alone operation.
But I guess I could make a small board for this purpose. If a 2051 µcontroller was used, all the attenuator boards (including ChipVol1 and RelVol2 that don't have parallel inputs) could be controlled. The A/D converter for reading the pot could be made in software then...
Best regards,
Mikkel C. Simonsen
I've studied those pages. They are very useful. But they are orthogonal to what I was suggesting. In some sense, those pages are case studies, and what I was suggesting was a very thorough feature list. They two complement each other, they don't replace them.mcs said:
Amazing boards. I really like your design sense. 🙂
Tarun
Folks:
While I definitely agree with tcpip's assessment of Mikkel's work, I lack the background to appreciate just how extensive the Dantimax design options are. In fact, I find myself stumped by what most people would find are easy questions. The latest one is this: where are R27 and R28 located on the RelVol3 PCB? I looked at the schematic in the manual and still cannot figure out where the load resistors go, or even if I need them (an Aleph P preamp with 1k impedence resistors at the output needs 1.1k load resistors?).
Thanks in advance for any advice.
Regards,
Scott
While I definitely agree with tcpip's assessment of Mikkel's work, I lack the background to appreciate just how extensive the Dantimax design options are. In fact, I find myself stumped by what most people would find are easy questions. The latest one is this: where are R27 and R28 located on the RelVol3 PCB? I looked at the schematic in the manual and still cannot figure out where the load resistors go, or even if I need them (an Aleph P preamp with 1k impedence resistors at the output needs 1.1k load resistors?).
Thanks in advance for any advice.
Regards,
Scott
