Post your Solid State pics here

[shaan]

Nice work shaan.

Thanks. 🙂

Which cables were used, the grey ones shaan?

1.5mm dia medical grade cables.



[kct]

Nice job Shaan. 😀
.



[claredes]

Thanks mate.

Alto working free hand with 0805 and stuff is not really fun anymore, at least for me as my sight is deteriorating and I am due for a new set of stronger glasses.

I need glasses too! at least to work with electronics. I no longer see the component codes.: p



[claredes]

Monoblocks based on the V4H, just finished.
No CNC yet. All cuts in the chassis made by hand (with the help of a wood router). Plain anodized body and teak front.

Beautiful job Shaan!
The monoblocks were perfect!



[shaan]

Thanks. 🙂



[thimios]

Monoblocks based on the V4H, just finished.
No CNC yet. All cuts in the chassis made by hand (with the help of a wood router). Plain anodized body and teak front.

Nice,very nice Shaan!
What is and where you got this beautiful heatsink?



[shaan]

Nice,very nice Shaan!
What is and where you got this beautiful heatsink?

Thanks Thimios.

I got them from akash heatsinks, local seller.



[thimios]

Thanks Thimios.

I got them from akash heatsinks, local seller.

Thanks shaan, i wish we have this opportunity in Europe!
I can't find any with long air cooler area like your's.



[sajti]

Thanks shaan, i wish we have this opportunity in Europe!
I can't find any with long air cooler area like your's.

Maybe this one:

Home - Fischerelektronik, Product: SK 656

Sajti



[thimios]

Maybe this one:

Home - Fischerelektronik, Product: SK 656

Sajti

Thanks Sajti, interesting but unavailable...
I can't see any stoked in TME not Reichelt.



[Marra]

These are similar.

Heatsinks: 1000 Series - 1630HS | BAL Group Ltd



[zman01]

Monoblocks based on the V4H, just finished.
No CNC yet. All cuts in the chassis made by hand (with the help of a wood router). Plain anodized body and teak front.

Shaan,

Excellent work, the monoblocks look really neat.

What are the chassis dimensions?



[mhouston]

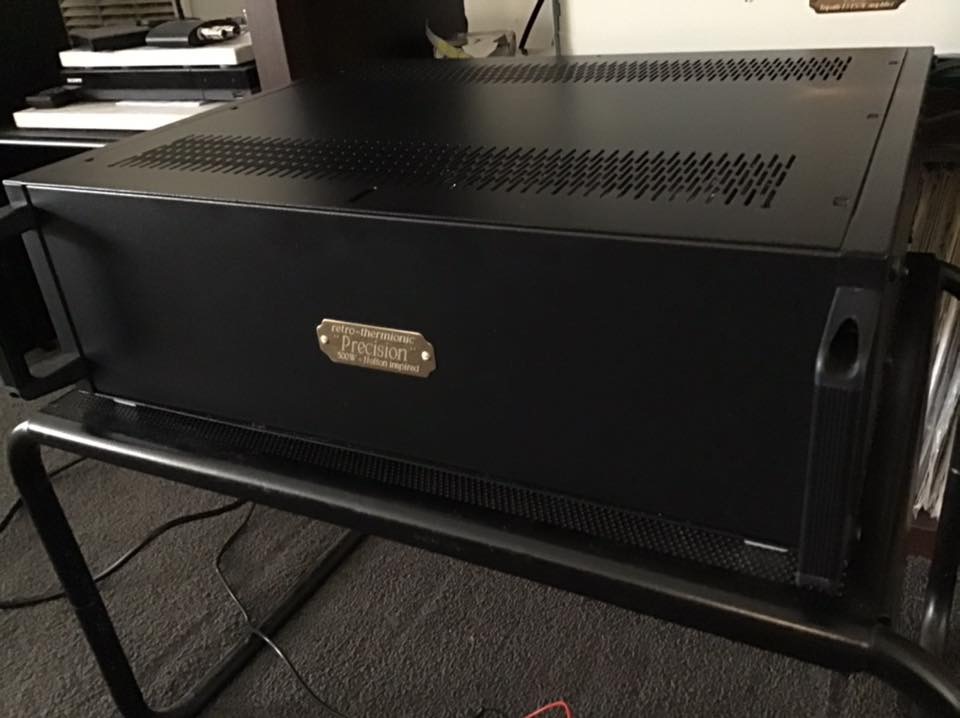

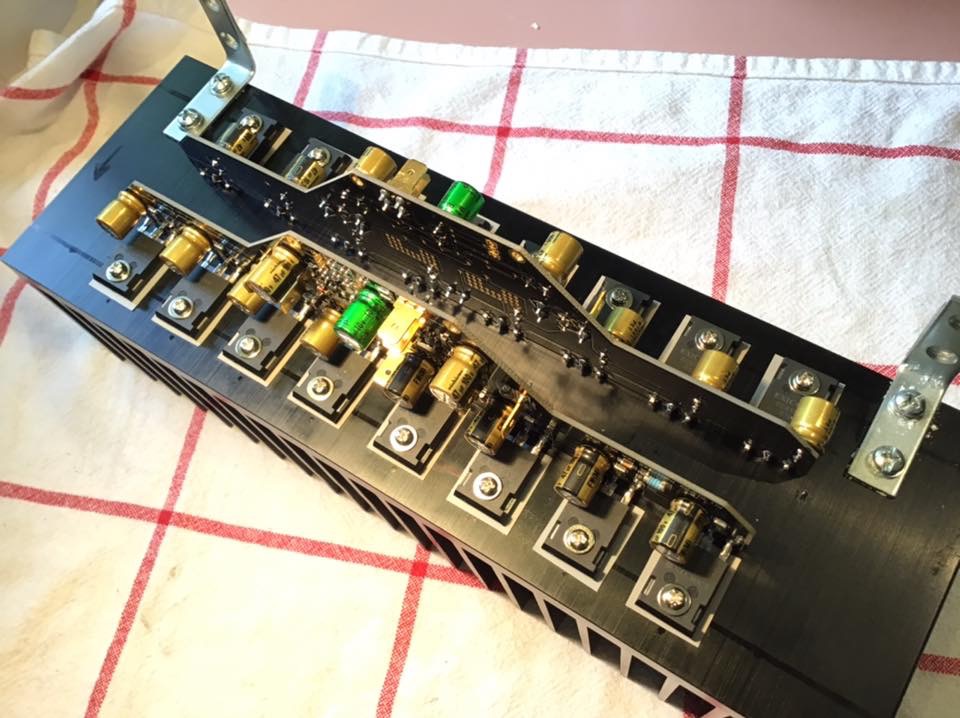

Holton Precision 300W

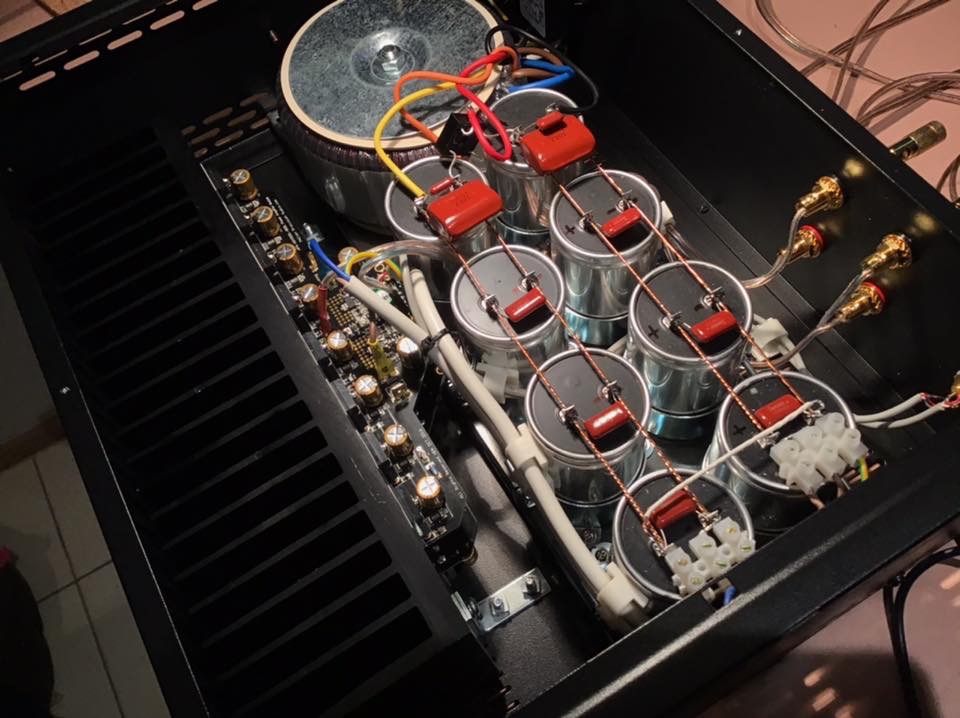

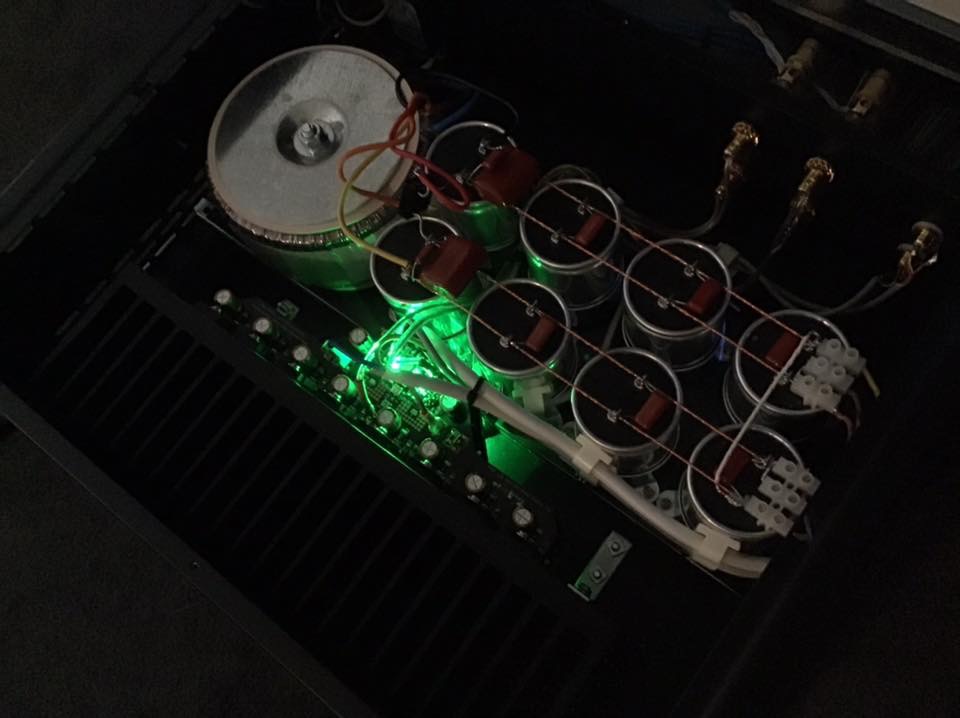

625VAC TRANNI, 80,000uf of 100V caps. 300W Class AB, 500W into 4ohms.



[smartx21]

625VAC TRANNI, 80,000uf of 100V caps. 300W Class AB, 500W into 4ohms.

It seems a dot is missing....



[shaan]

Shaan,

Excellent work, the monoblocks look really neat.

What are the chassis dimensions?

Thanks.
13"d x 11"w x 5"h



[Marra]

Thanks shaan, i wish we have this opportunity in Europe!
I can't find any with long air cooler area like your's.

Thimios these loo very similar to shaans heatsinks. I have no idea on price though.

https://www.gdrectifiers.co.uk/uploads/PS285_PS385_PS485_PS585_PS685_PS835.pdf



[mhouston]

It seems a dot is missing....

Where should the dot be?



[smartx21]

Where should the dot be?

In fact, I intended to say that I didn't understand this figure.



[diyralf]

VA <- > AC



[smartx21]

VA <- > AC

😎
