Poor Serbian Man Optical Volume Control

[peterhenk]

Nice!!

Looks very nice (for what I understand)

What do I need to do to get 2 PCB's in my hands

Cheers

Peter



[Zen Mod]

List of INVOLVED



[stoN_Cold]

Hi!

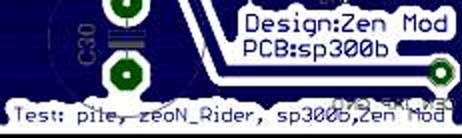

All of the logistics team on such a small part of PCB!

We are bigger in real life.

Regards zeoN_Rider



[Zen Mod]

Re: Hi!

All of the logistics team on such a small part of PCB!

We are bigger in real life.

Regards zeoN_Rider

crazy serbs



[Zen Mod]

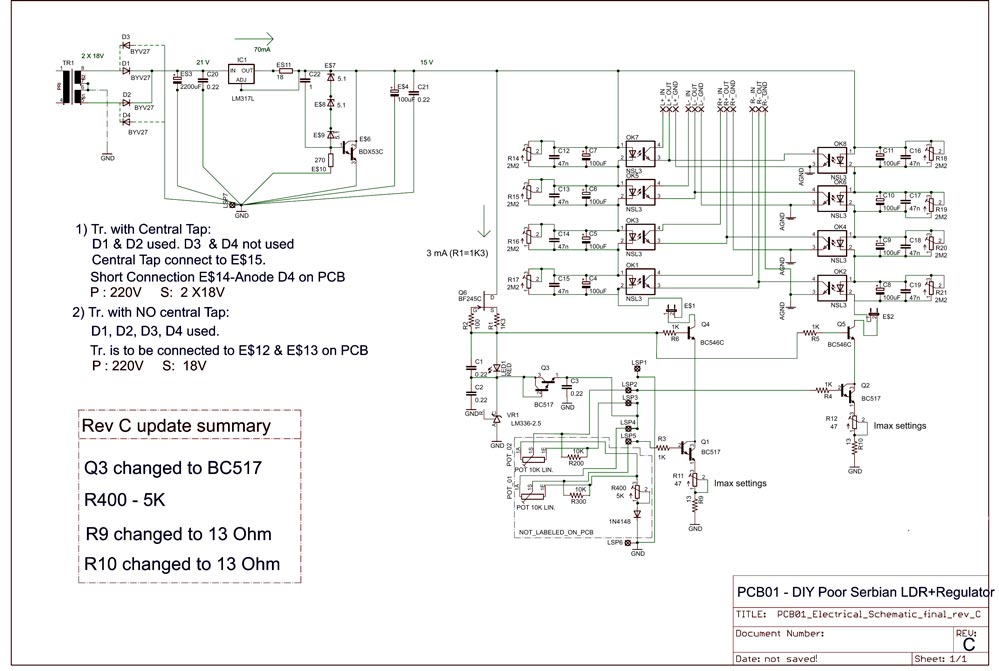

it's working , flawlessly

😉

few minor changes ;

we are more than satisfied ;
we achieved useful pot range from zero to full tilt

channel balance ?
what's that ?



[Zen Mod]

naah ...... I'm proud

even if drek is really simple 😉

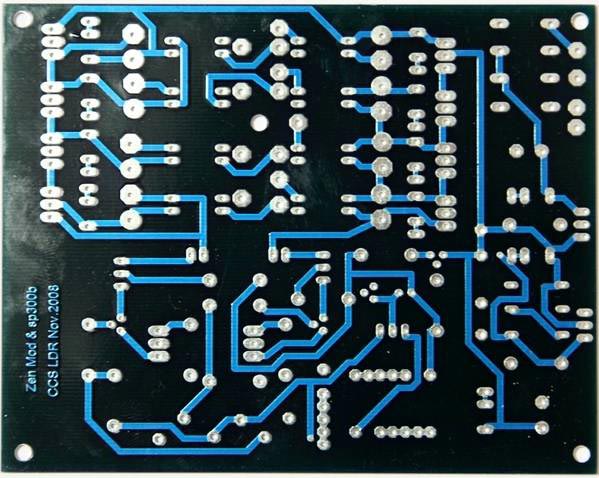

here it is - PSMLS bottom



[Zen Mod]

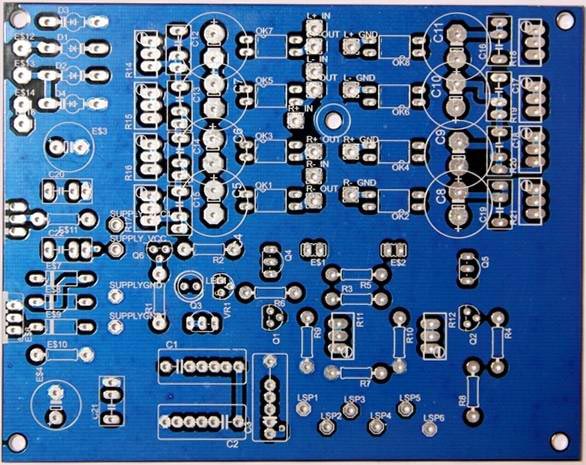

same pcb - PSMLS - top



[Zen Mod]

balanced buffer + dedicated PSU

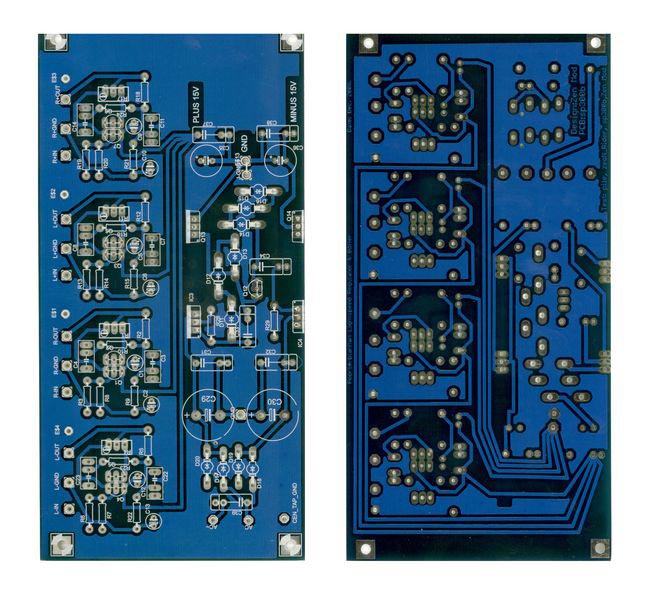

pcb -poor scan - both sides



[Zen Mod]

same pcb

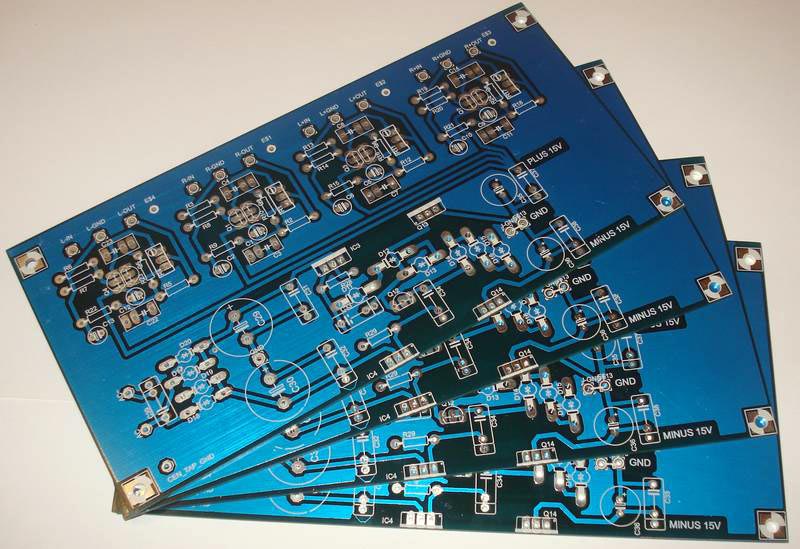

as cards



[Zen Mod]

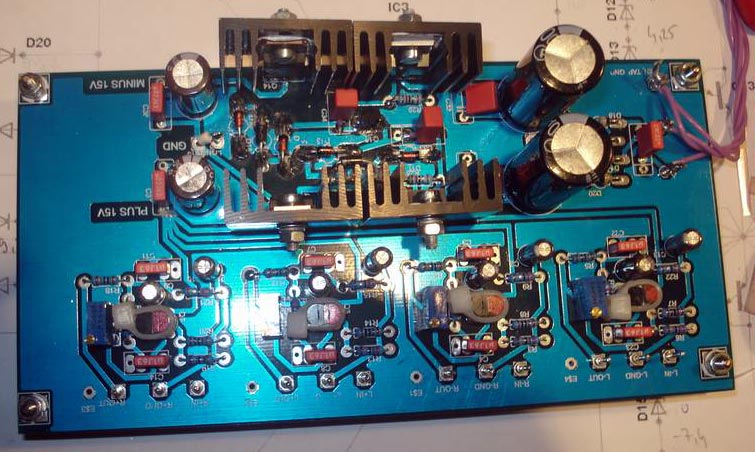

same pcb - stuffed for first and further ..... final tests



[Zen Mod]

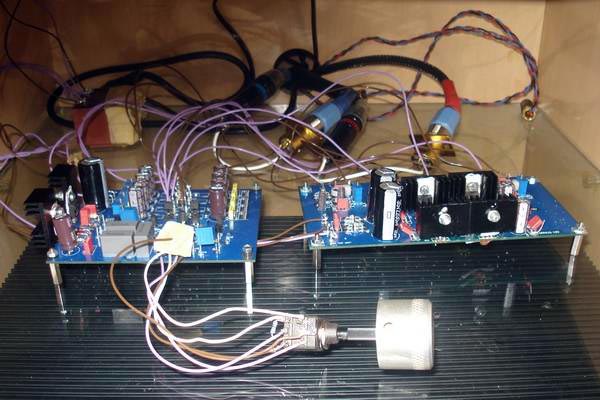

package in action ;



[Zen Mod]

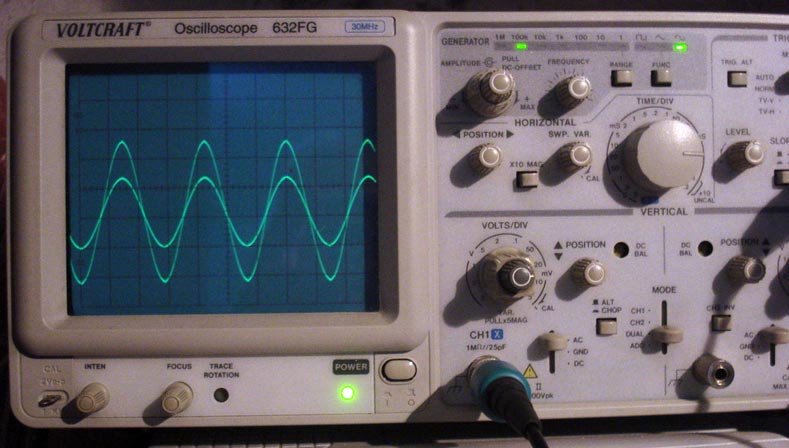

random scope pic
I think that this one is for 100K ...... and that spavleski just gave up waaaaay above that
anyway - bandwith is broad ...... enough
on rectangles , too .....



[GuidoR]

Fugly!😀
Repeating Apassgear's words, ZM, are you planning a GB over here? Think of a semi-complete kit with PCB and main parts.
Please....

P.S.: (stands for Post Scriptum, not Power Supply ): my works on shunt regs are in progress (PCB's etching): I'll let you know

Guido



[Zen Mod]

Fugly!😀
Repeating Apassgear's words, ZM, are you planning a GB over here? Think of a semi-complete kit with PCB and main parts.
Please....

P.S.: (stands for Post Scriptum, not Power Supply ): my works on shunt regs are in progress (PCB's etching): I'll let you know

Guido

as I wrote as answer for same asking , over at Hifigeorge's thread :

dunno yet ;
main goal is achieved - constructed gadget and covered local forum GB .

if someone else is interested , I can calc prices for small batch , but I already know that prices can't be so popular , counting on shipping , customs (outgoing Customs - from Serbia), money withdrawal expenses ( because Serbia is still sort of on wrong side of Iron Curtain and I must collect funds form Hungary based paypal account ) etc .

hardly that these two pcbs (balanced PSMLS and balanced jfet buffer ) can go for less of 45E - 50E , counting from top of my head

anyway - for balanced operation - we need two matched quartets of LDRs , and they can't be bellow 20E for these 8 pieces . I must import them in quantity , to have enough for matching purposes

any other part isn't critical in any way or meaning , and it doesn't need any matching or selecting , so they can be found in drawers or bought cheaper locally .

so - is price (for set of 2 pcbs + 2 matched quartets) of some 70 Euro acceptable ?

that - semi from top of my head ; 5E down or up ....



hehe - tnx for Fugly!



[Valeriano]

Great job Choky!

very nice very nice..or if you prefer fugly 😀

Vale



[Zen Mod]

Great job Choky!

very nice very nice..or if you prefer fugly 😀

Vale

Forza Vale !



[peterhenk]

I am interested!!

Hi Zenmod

Let me know if you going to make a small batch. I am interested

(Nice job (is this serbian for Fugly??)

By the way I still have some Serbian money (have been there a few times for business) rest was spend on RAKI!!

Cheers

Peter



[Zen Mod]

Re: I am interested!!

Hi Zenmod

Let me know if you going to make a small batch. I am interested

(Nice job (is this serbian for Fugly??)

By the way I still have some Serbian money (have been there a few times for business) rest was spend on RAKI!!

Cheers

Peter

well ..... just watch this thread and you'll know .....

send those Dinari to poor Jaccovitty



[GuidoR]

ZM, you're right, I think I'll follow my usual way...
with your (j310 based) version of Papa's B1.

Anyway, thanks



[Zen Mod]

ZM, you're right, I think I'll follow my usual way...
with your (j310 based) version of Papa's B1.

Anyway, thanks

that's usually best and most enjoyable way ........

😉
