Pictures of your diy Pass amplifier

[tonywong]

What is the value of the enormous choke? Also, what is it's measured DC resistance?

The value of the inductor is 300 mH and the resistance is 5.7 ohms.
The spool of wire (inductor) is 29.5Kg gauge 12.



[PsykoK]

Hi,

here some pics from my UGS - XOno

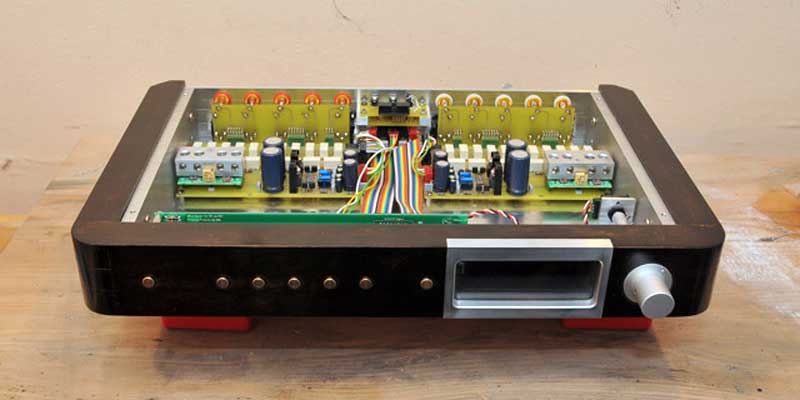

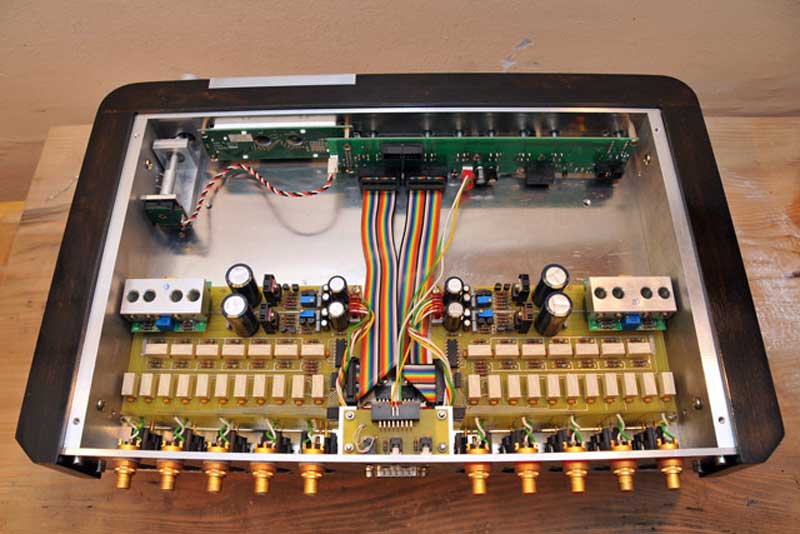

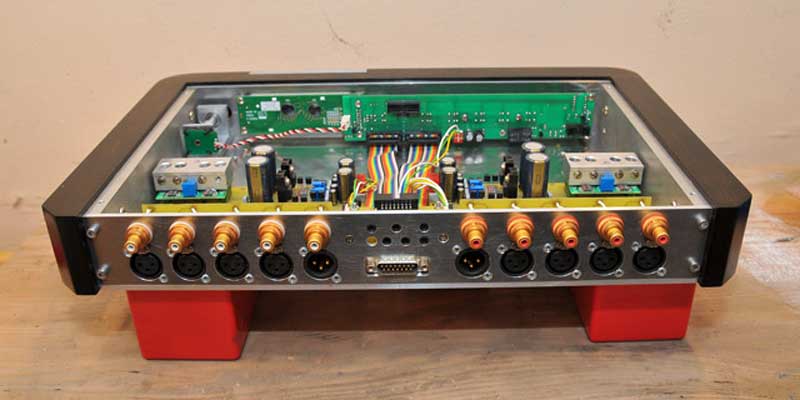

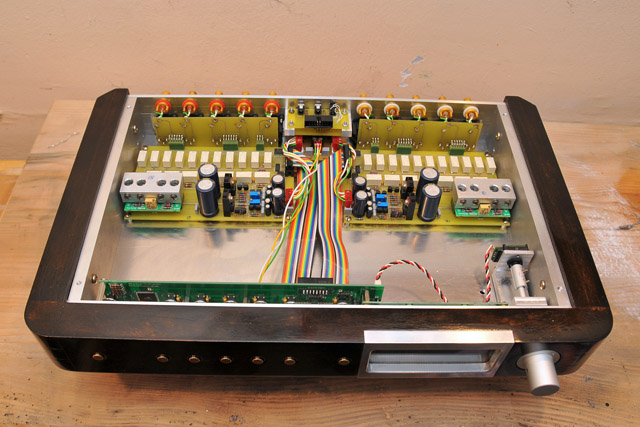

UGS:

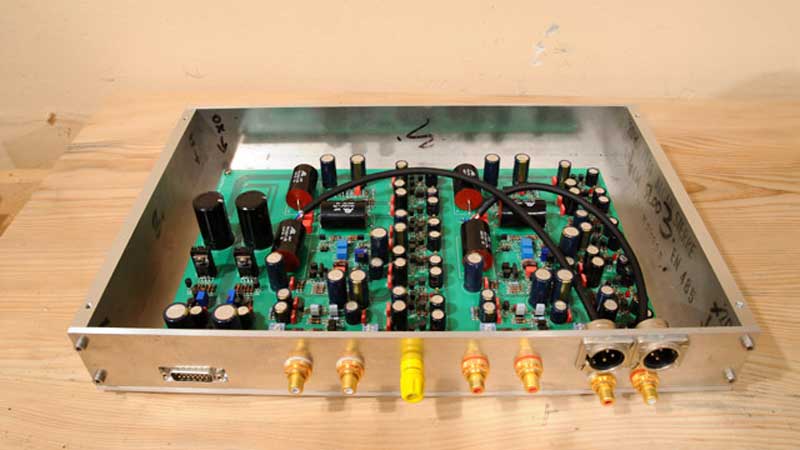

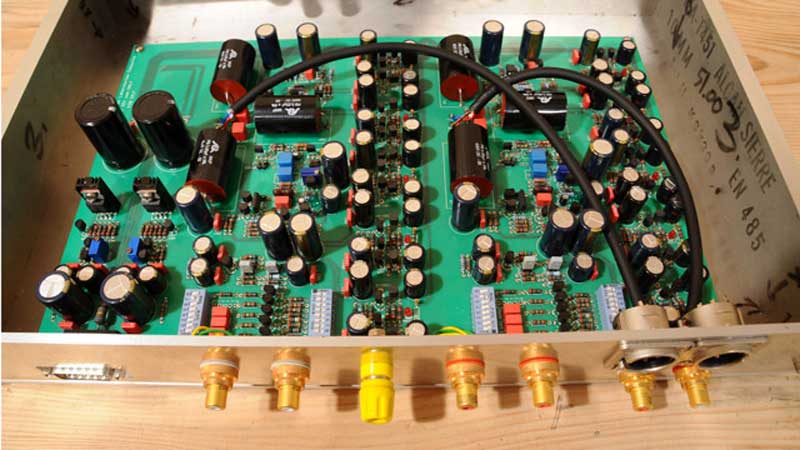

Xono inside:

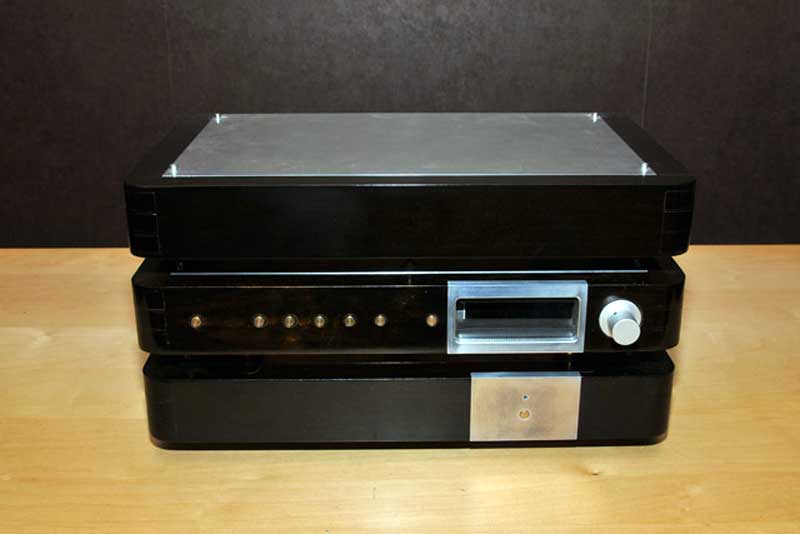

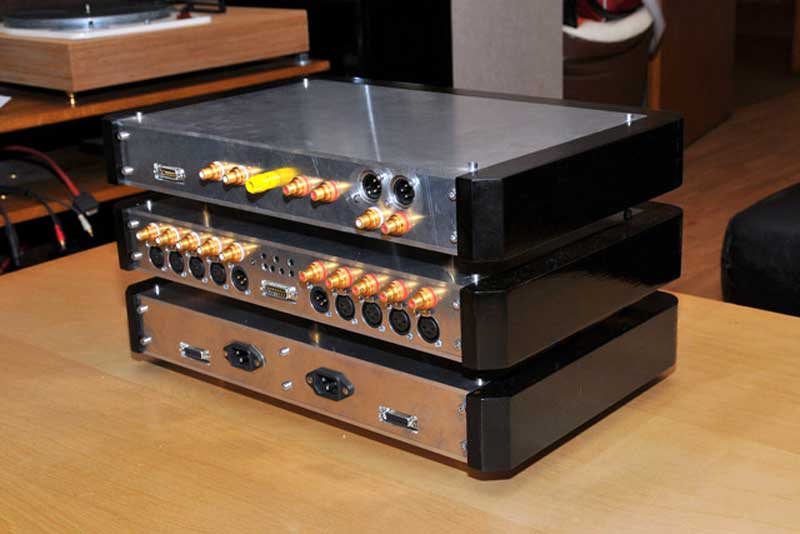

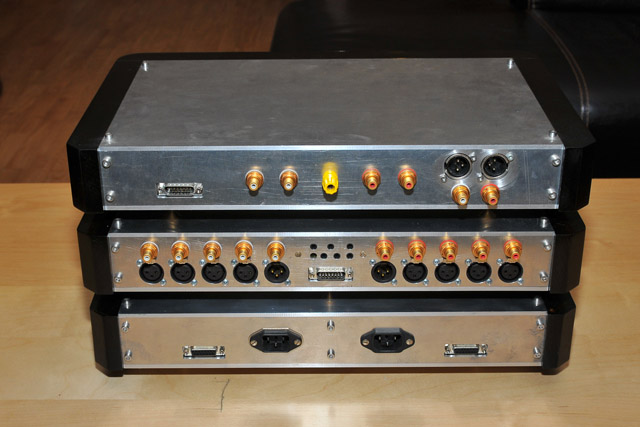

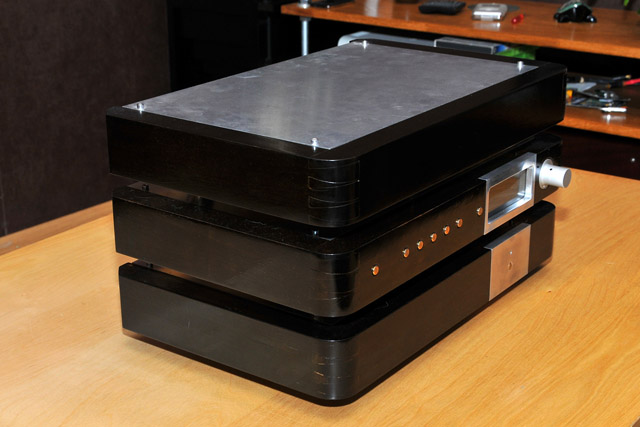

from the top: XOno, UGS and the PSU for the both preamp

Alex



[Zen Mod]

Fugly!



[HIPCHECK]

Nice!!!
😱😱

That is some great work!



[Marra]

Lovely workmanship.



[CeeVee]

I'm jealous....your UGS is beautifulll

François i'm sure is proud !!!

😀😀

Hi,

here some pics from my UGS - XOno

Alex



[PsykoK]

Hi,

You can see more details on my website:
KA XOno Build
KA UGS : Building process

I haven asked François about his fillings but all this UGS you see around the world are somehow he’s babies.



[AndrewT]

I just "blocked" 3 remote servers from automatically downloading pics to my PC when I log into this page.
That has reduced the page load time from about 20seconds to less than half a second.
Why do we still allow remote servers to auto download in this Forum?



[Zen Mod]

you're whining and being rude

each image is completely decent - under 100K , linked to/from OP's personal web page

do you ever think before typing ?

fact that I know how to make each of these images smaller than 35K , with same quality , doesn't giving me right to yakyak without proper reason



[carpenter]

Hi Choky. I've never seen you so stern.... still love you, though.

(back on topic)

My, what a beautiful assembly of components. Beautiful, and rare! Those dovetail joints are special.



[buzzforb]

Wakoo ZM. Puttin the foot down. Luv it.



[fdlsys]

Alex, that is outstanding. Speechless. 😱



[Zen Mod]

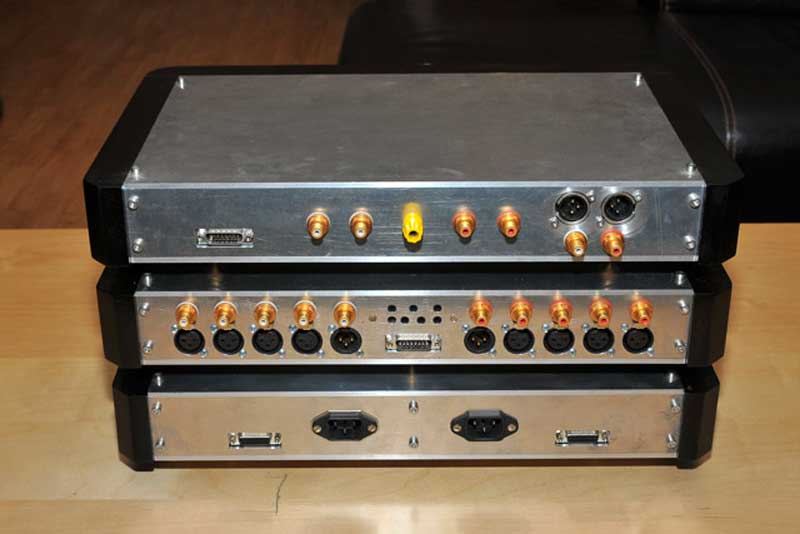

here they are ; shrinked to 1/3 , while sized up

still beautiful and work for kudos , whatever size it is

passion and patience



[Bksabath]

Wakoo ZM. Puttin the foot down. Luv it.

YEAH BY BLIPPING TIME LOVE HIM TO I DO I DO 😀

Got picture of ZM Look alike on top of my next to play things (same > ' < thing)

Not realy but what the Fluf its Friday....

By the way this shuld be in Pub and pictures are realy super duper (full stop).



[PsykoK]

Hi,

Thanks for all your messages.

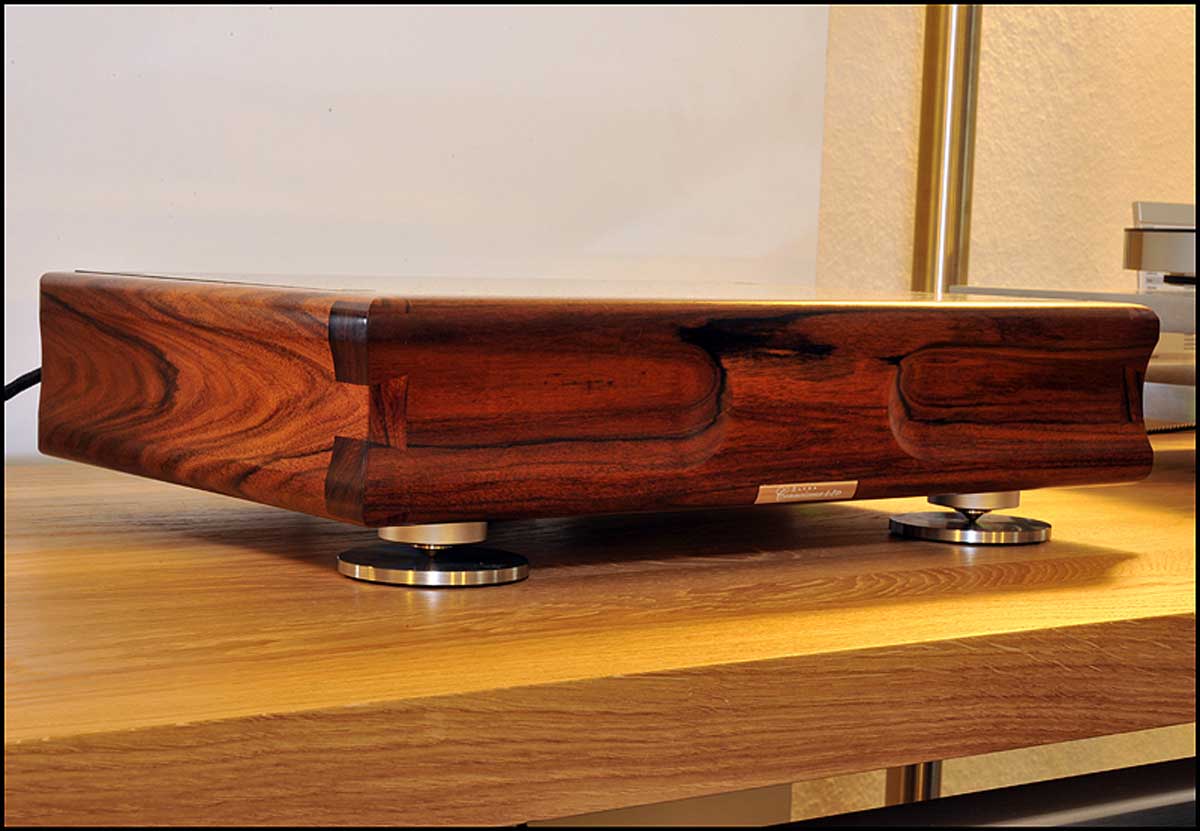

My inspiration for this project was the beautiful preamp produced by Lyra Connoisseur ... my reference:

Alex



[Mr. dB]

That's a beautiful preamp!



[Marra]

I wish I had such good woodworking skills.



[Zen Mod]

Hi,

Thanks for all your messages.

My inspiration for this project was the beautiful preamp produced by Lyra Connoisseur ... my reference:
..........

Alex

that one can be and must be smaller

original link , being 400+K in size , while just 800pix , is even in era of broadband web , just waste of resources

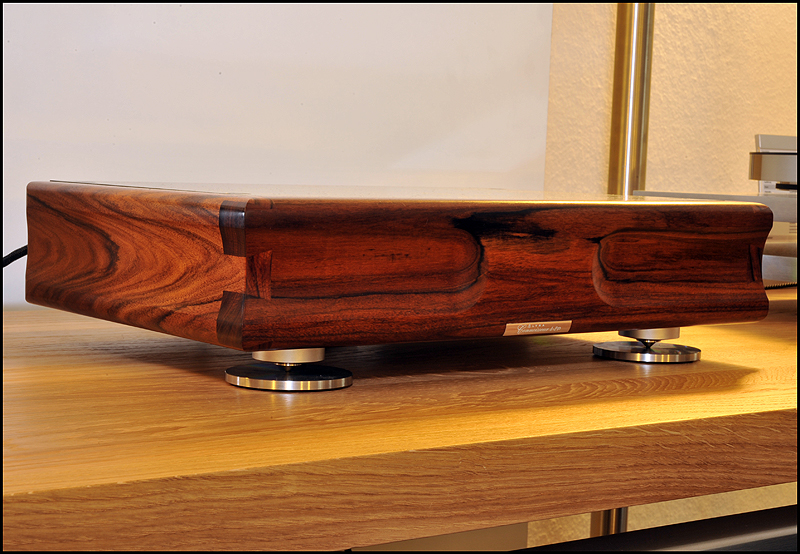

here it is ,as example of 15sec work - much smaller , while sized up



[AndrewT]

ZenM,
thanks for copying those pics to DIYaudio and for compressing them.

Your effort just confirms that there is no need to use remote servers that automatically download.

I would support a campaign to persuade the Forum to adopt the rule that remote servers that auto download are "banned" from this Forum.

That "rule" was proposed for when the new Forum software came on line. But the new Forum software is still awaited. And I still await the promised "rule".



[Zen Mod]

it's easy to implement same size [KB] restrictions for both attached and linked pictures , when polishing forum software ; in that case bigger pic files can be automatically just shown as active text links , instead as pics shown inline in post's body

not easy for me , but certainly for guys doing the job 😉

anyway - I always prefer attached pics , or at least linked to place which I'm directly controlling

which was exactly the case with PsykoK's pics (own web site) , except last one (euphonia forum)
