[JeffYoung]

Thanks, everyone!

There are indeed a *lot* of hours in that casework.

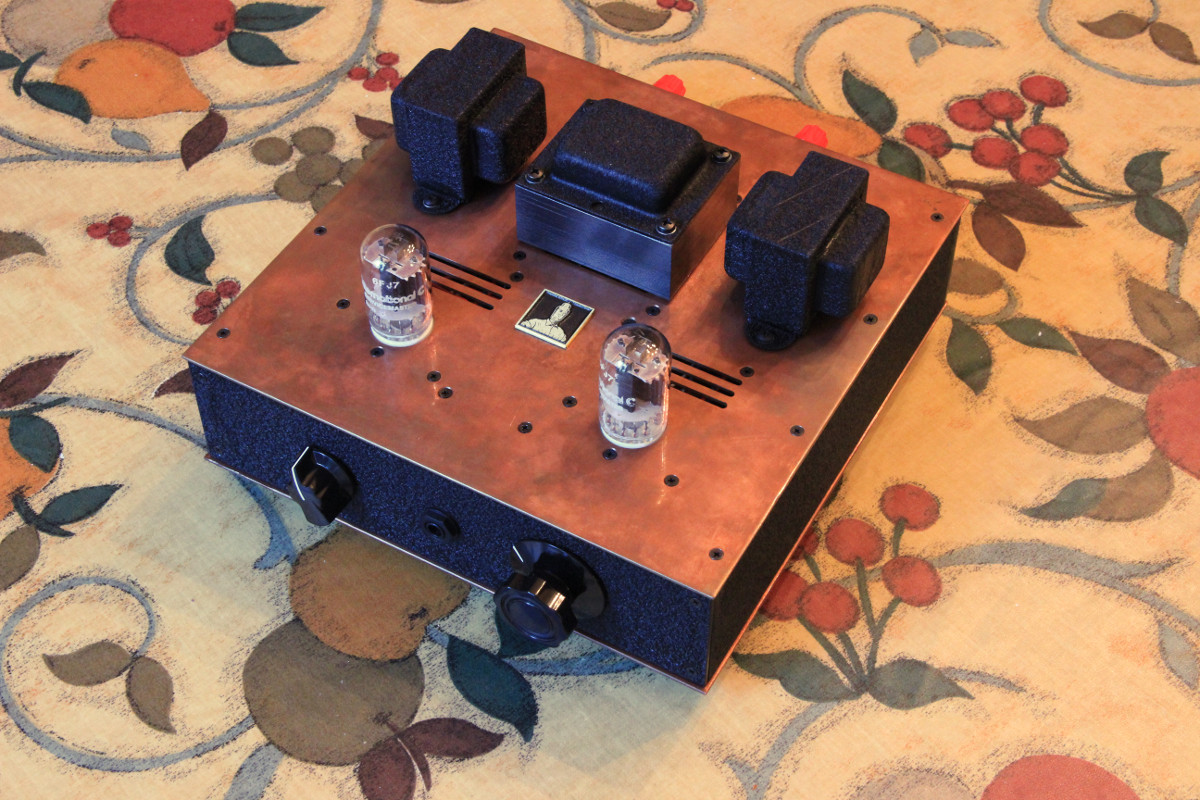

Pardon the non-Pass content, but here's another custom case I did for my Bottlehead S.E.X.:



[Carlp]

Wow!



[Marra]

Proper DIY. Wish I had such skills and access to lathes etc.



[thompsontechs]

That's nice work Jeff... two things, is that copper plated steel and who's picture?



[JeffYoung]

.... two things, is that copper plated steel and who's picture?

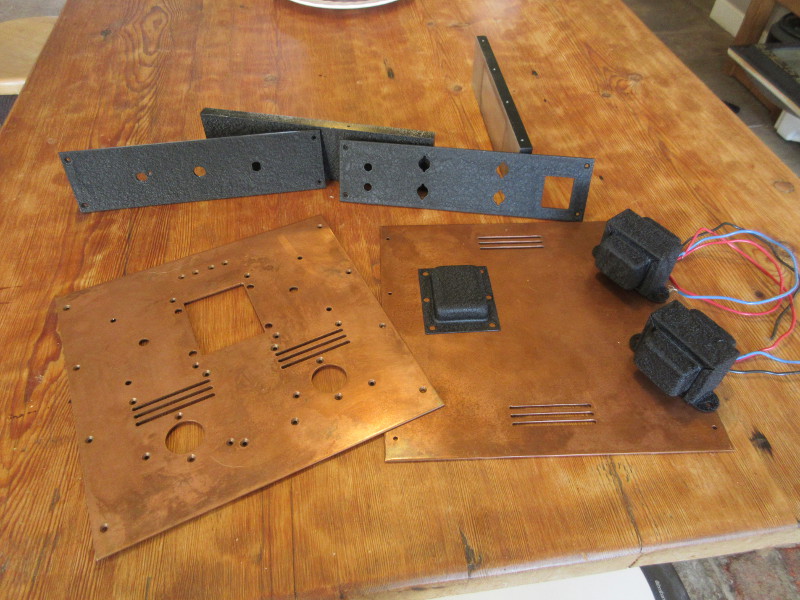

3mm copper sheet: 3.0mm thick Copper Sheet | Free Delivery PS70+Vat

The picture is the Bottlehead logo badge: Bottlehead Badge | Bottlehead

Cheers,
Jeff.



[thompsontechs]

Very nice Jeff, I love the real deal on the copper...



[dBel84]

Another great build Jeff. You set a high standard for us mere mortals.



[cubicincher]

BA-1 Monoblocks build

This evening I started up my BA-1 monoblocks first time.


No smoke! 😀


Did some offset adjustment on the BA-1 input boards and the biasboards. They
were heating up for an hour.


Some pictures / impressions of my build.


Greets

Dirk



[cubicincher]

BA-1 Monoblocks

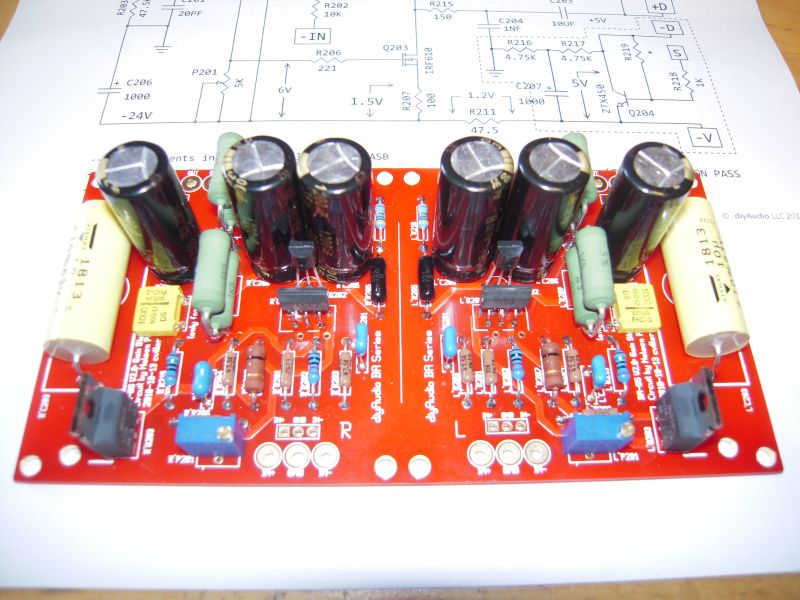

The BA-1 frontend.


I found original (new old stock) TOSHIBA 2SJ109 and decided to build a BA-1 frontend.
Starting point of an amplifier build.....



[cubicincher]

BA-1 Monoblocks

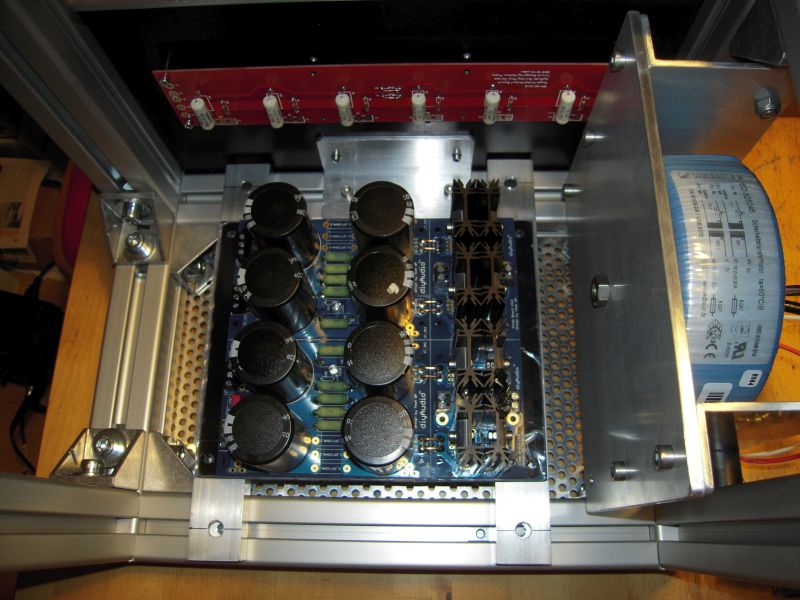

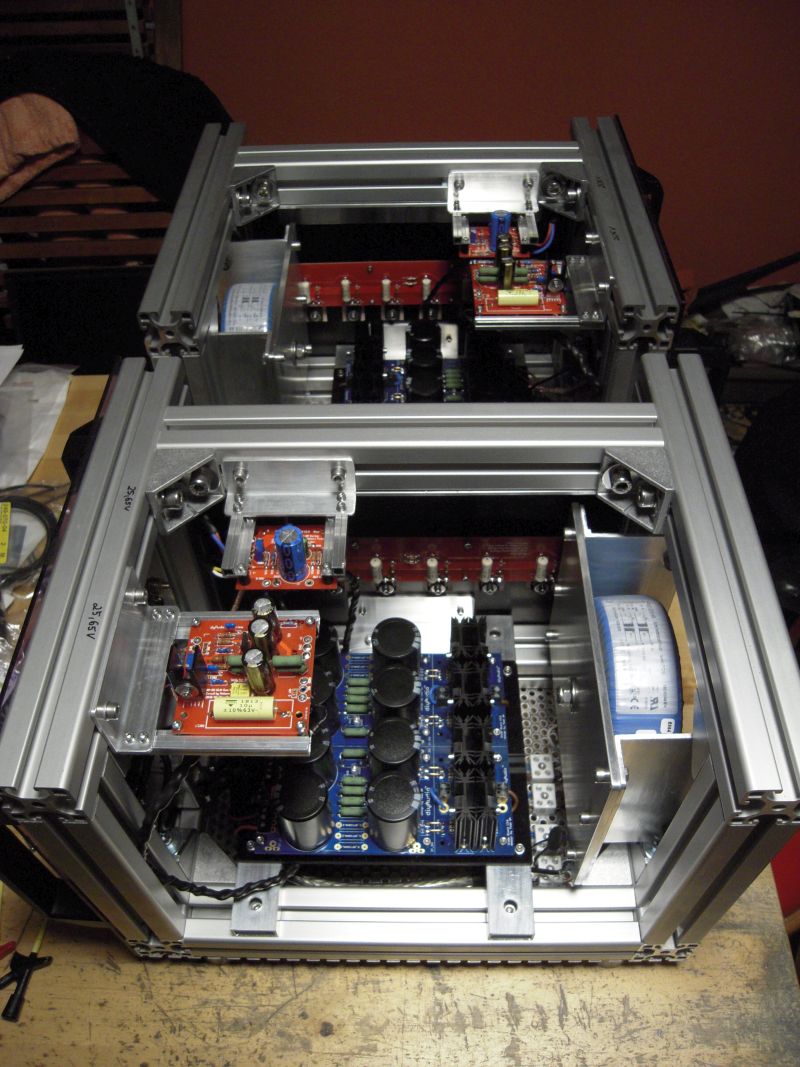

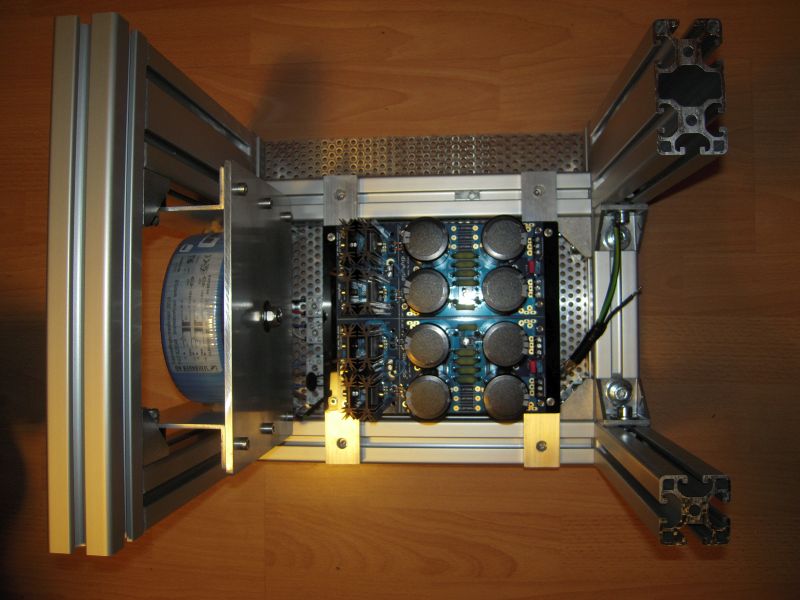

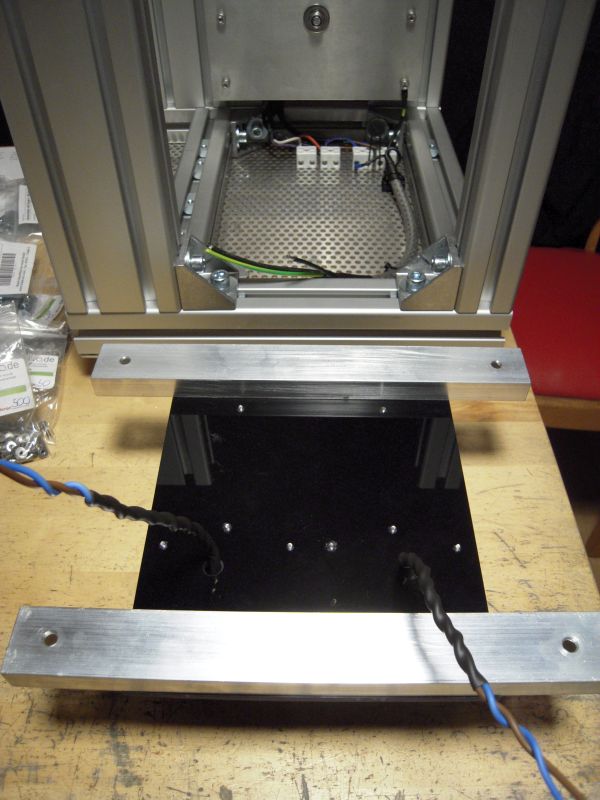

As with most of my amplifier builds - I started with an aluminum frame consruction and the PSU.



[cubicincher]

BA-1 Monoblocks

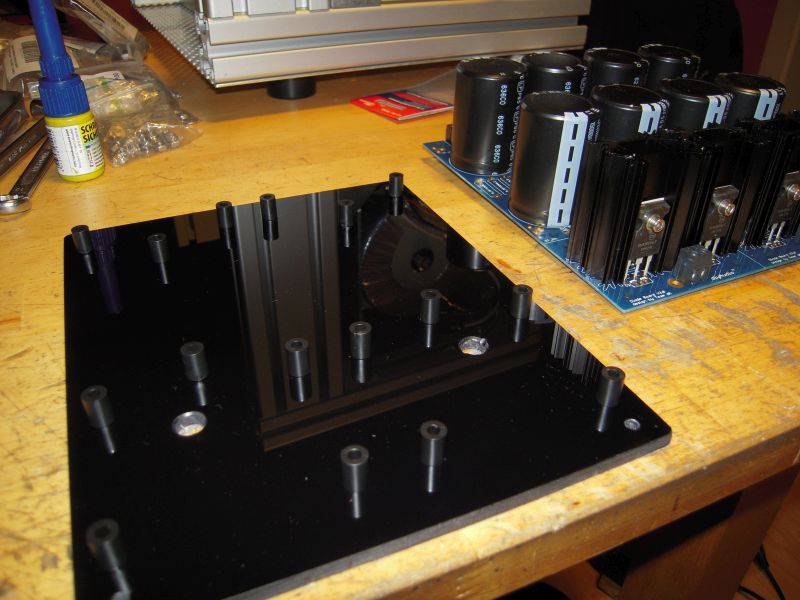

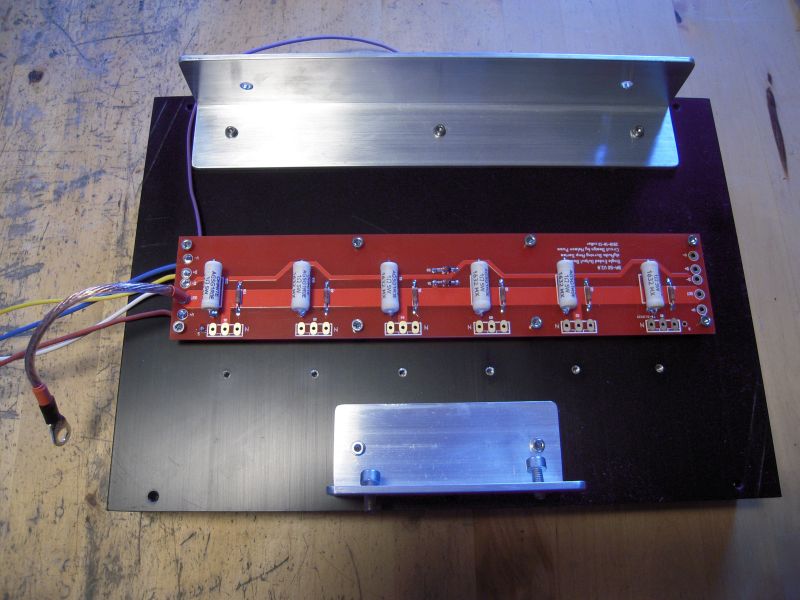

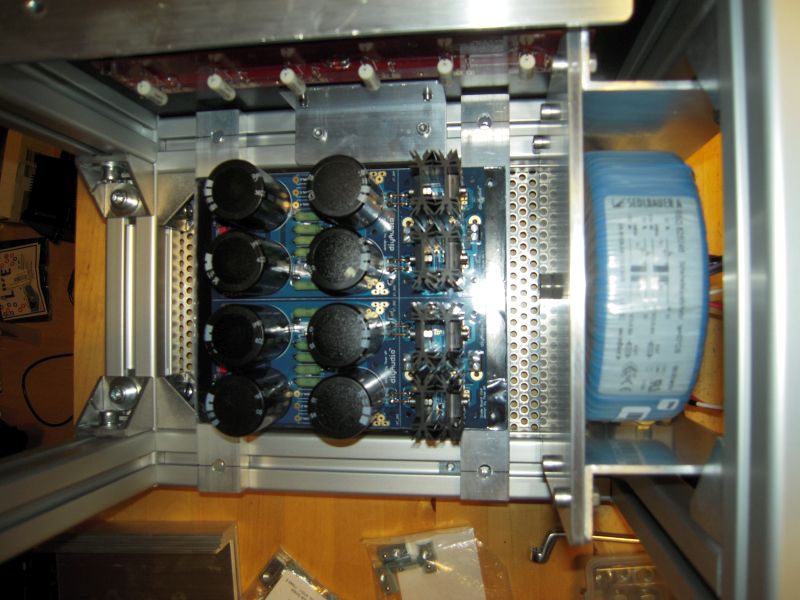

Prepairing the heatsinks - a lot of drilling and cutting lots of M3 threads.

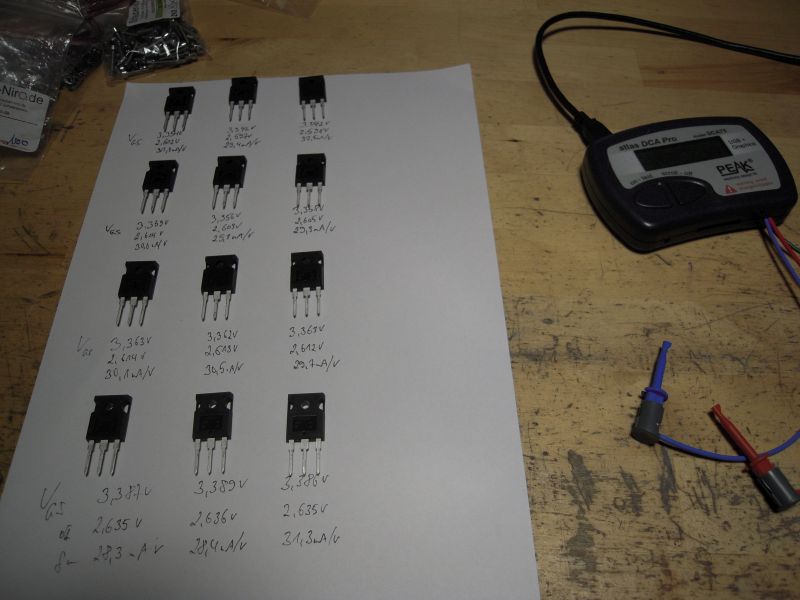

Matching the MOSFETS.....



[mbrennwa]

Is that a Kanya chassis!?



[cubicincher]

BA-1 Monoblocks

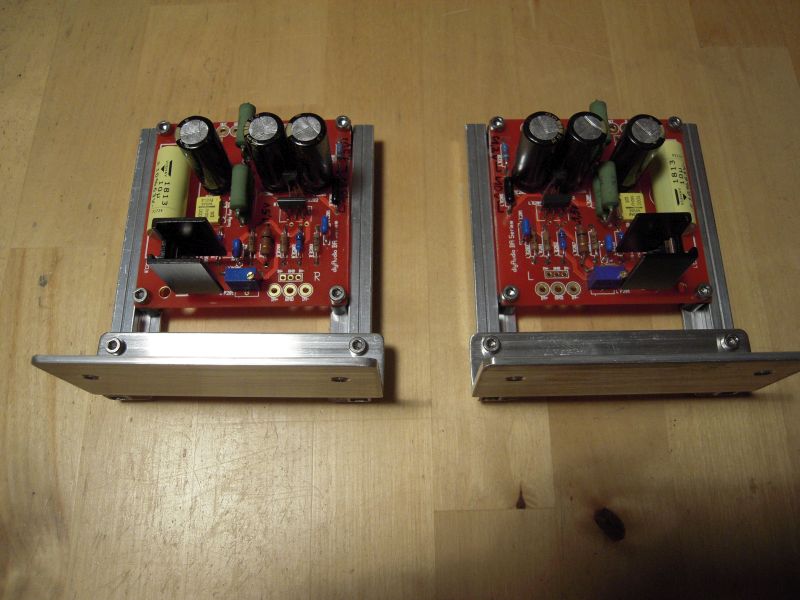

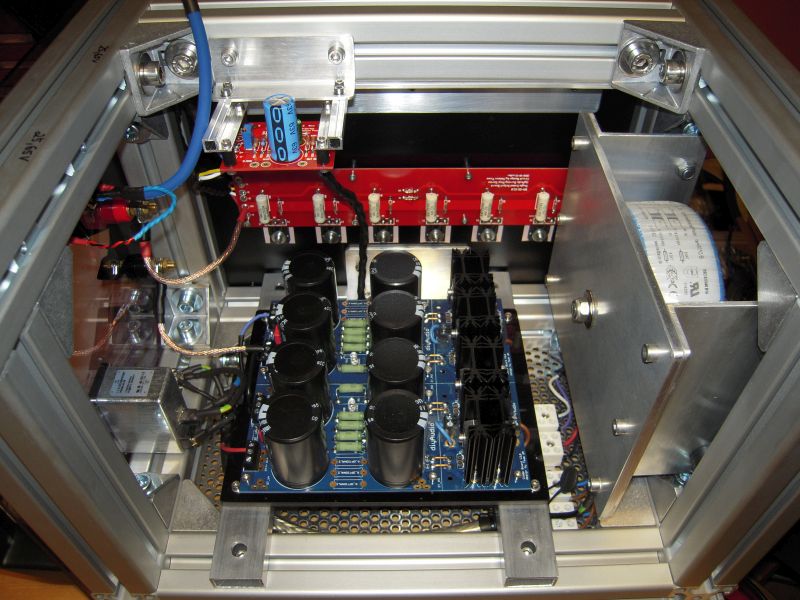

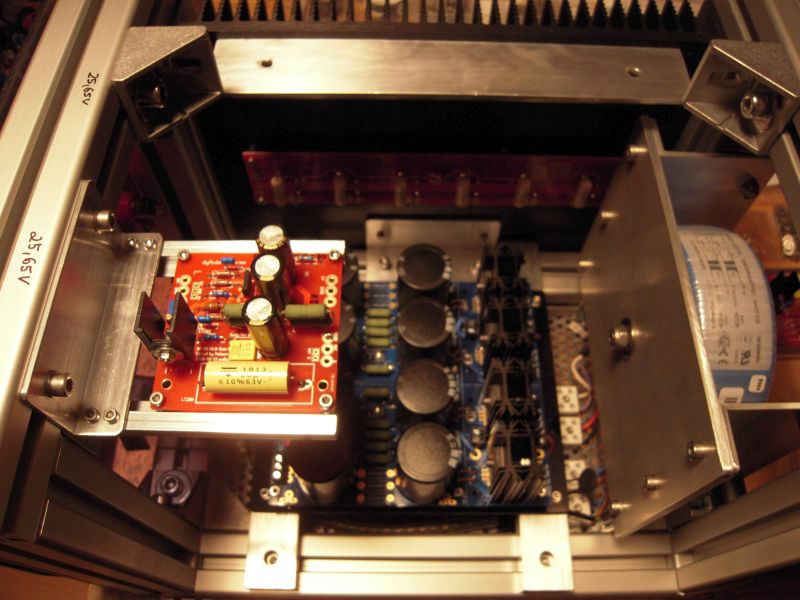

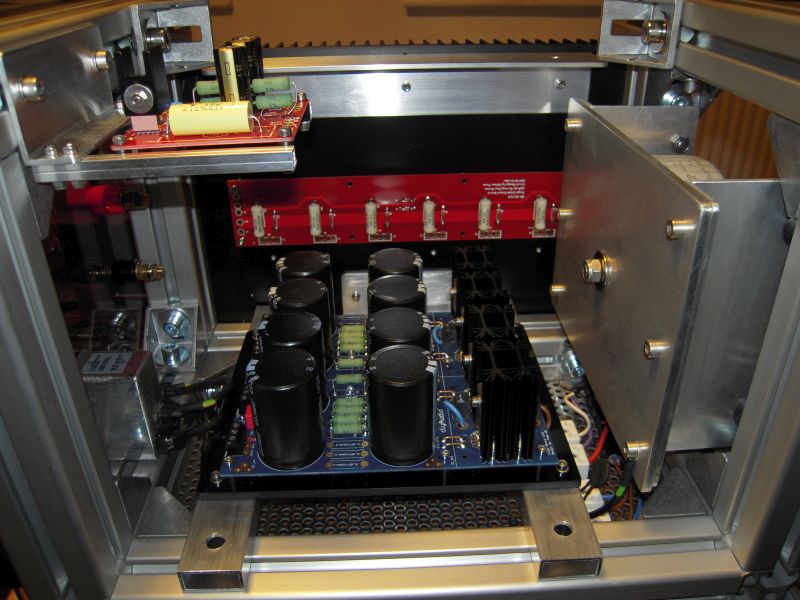

Then I mounted the frontend-pcb and bias-pcb.



[cubicincher]

BA-1 Monoblocks

Some more mounting....



[cubicincher]

BA-1 Monoblocks

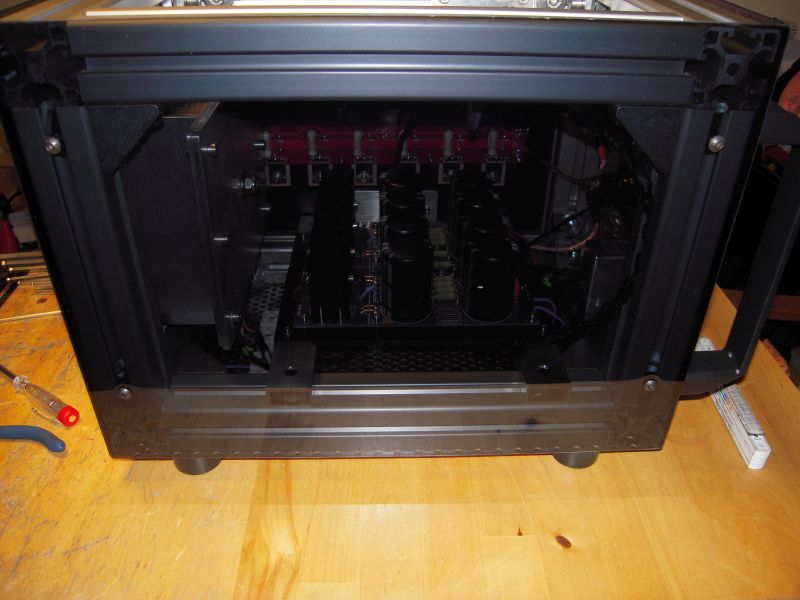

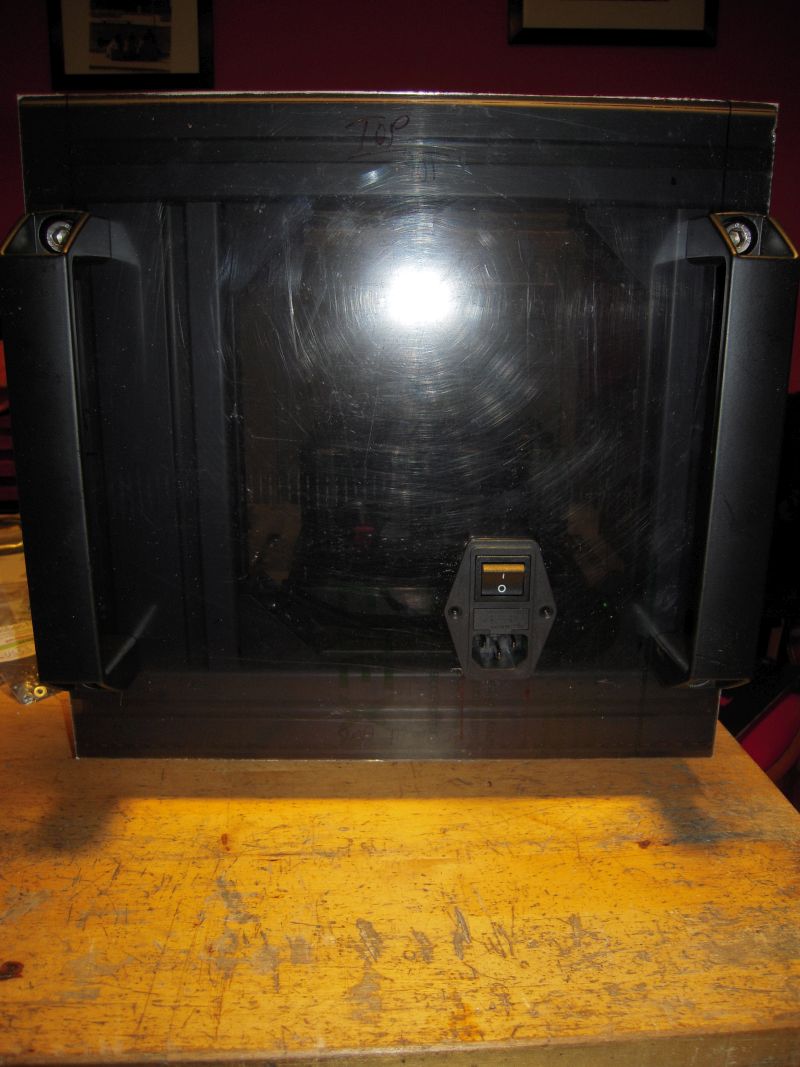

Added some plexiglas/acrylicglass in translucent dark grey.
Perhaps I will change some covers to aluminum?
Acrylglass doesn't shield...
I like the look. But this is a question of taste...



[cubicincher]

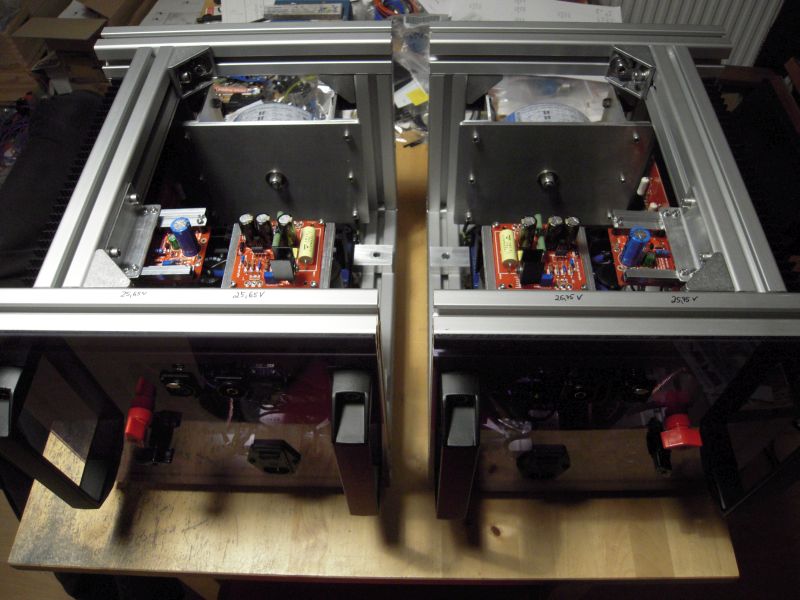

BA-1 Monoblocks

and it continues....



[cubicincher]

BA-1 Monoblocks

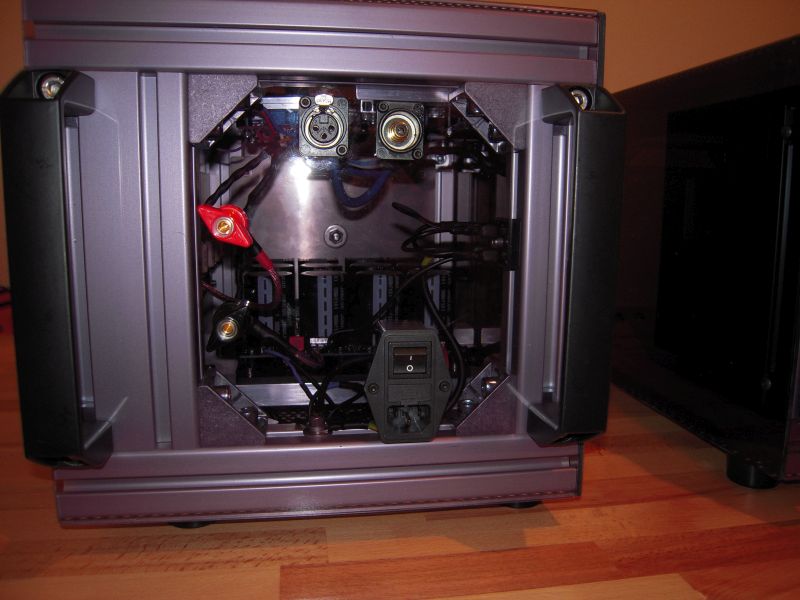

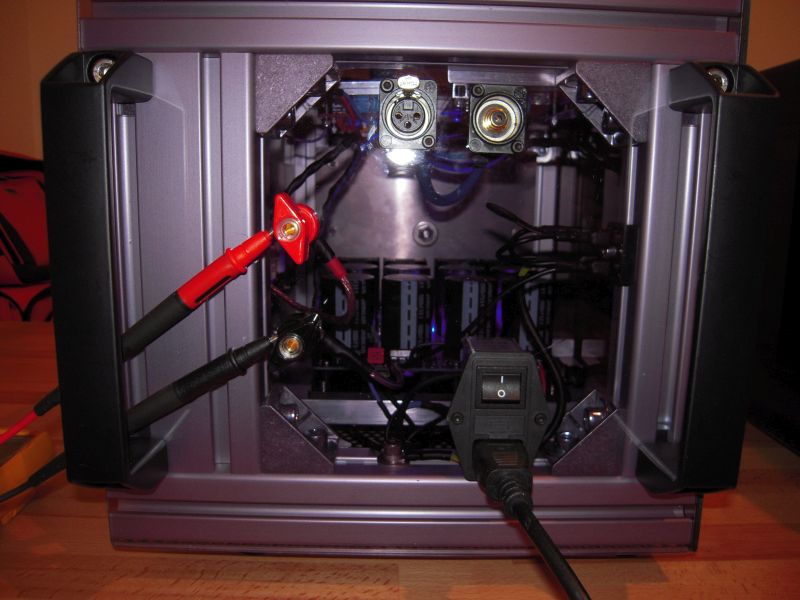

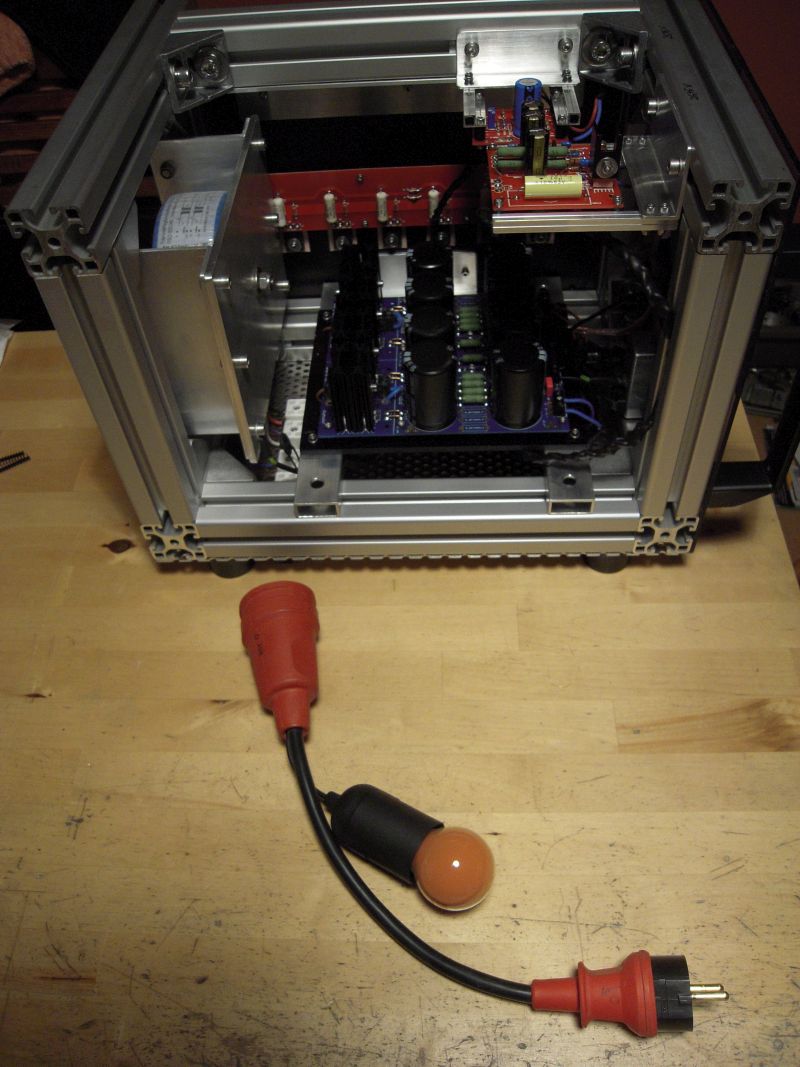

The first start up.


And the most important tool - the light bulb tester.

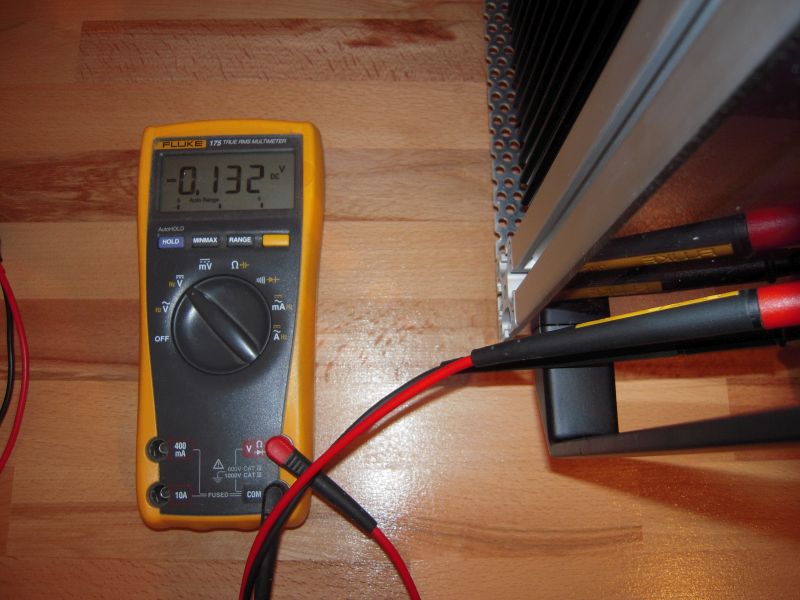

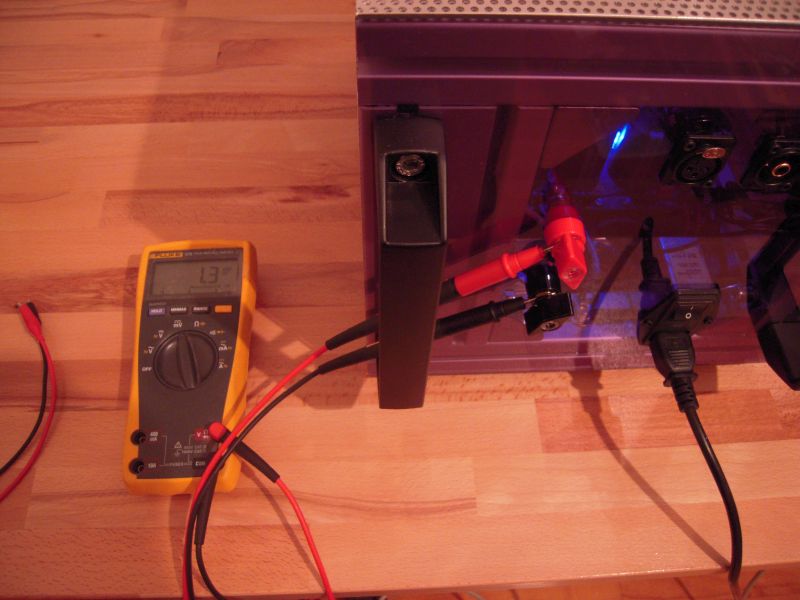

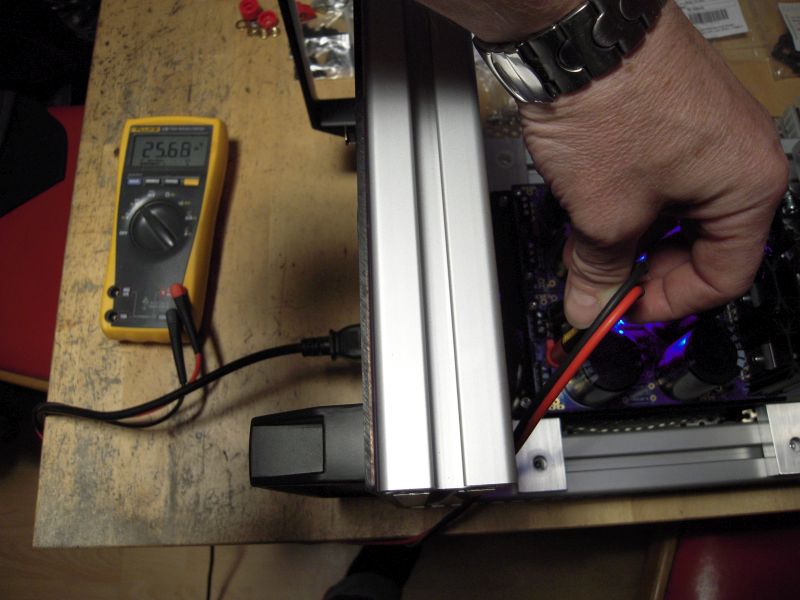

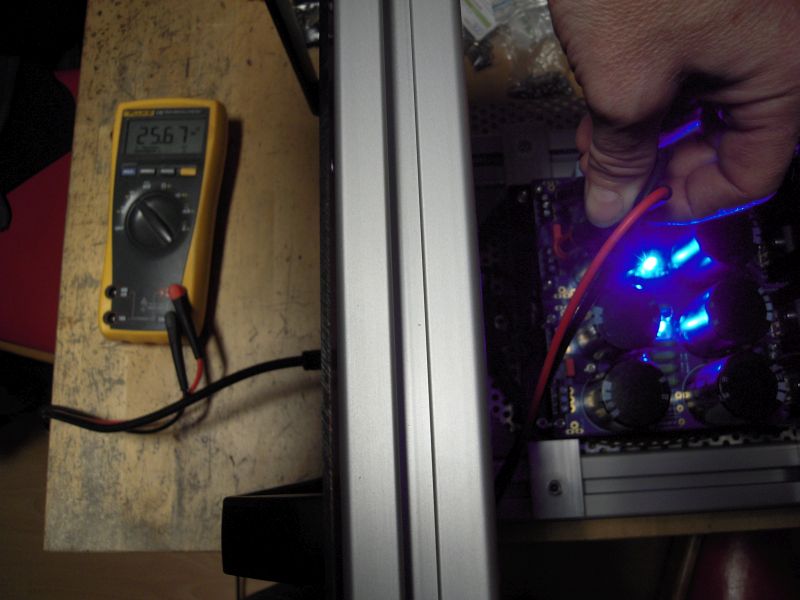

Some first measurements.



[cubicincher]

BA-1 Monoblocks

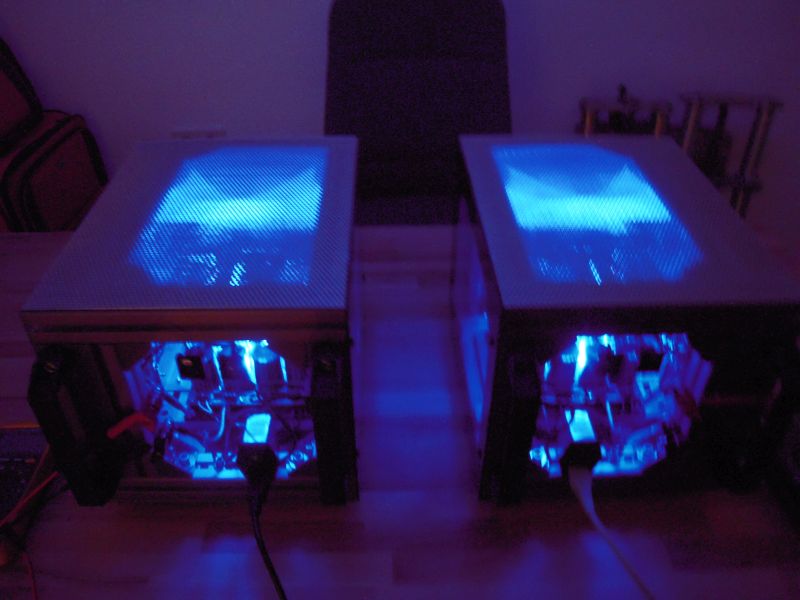

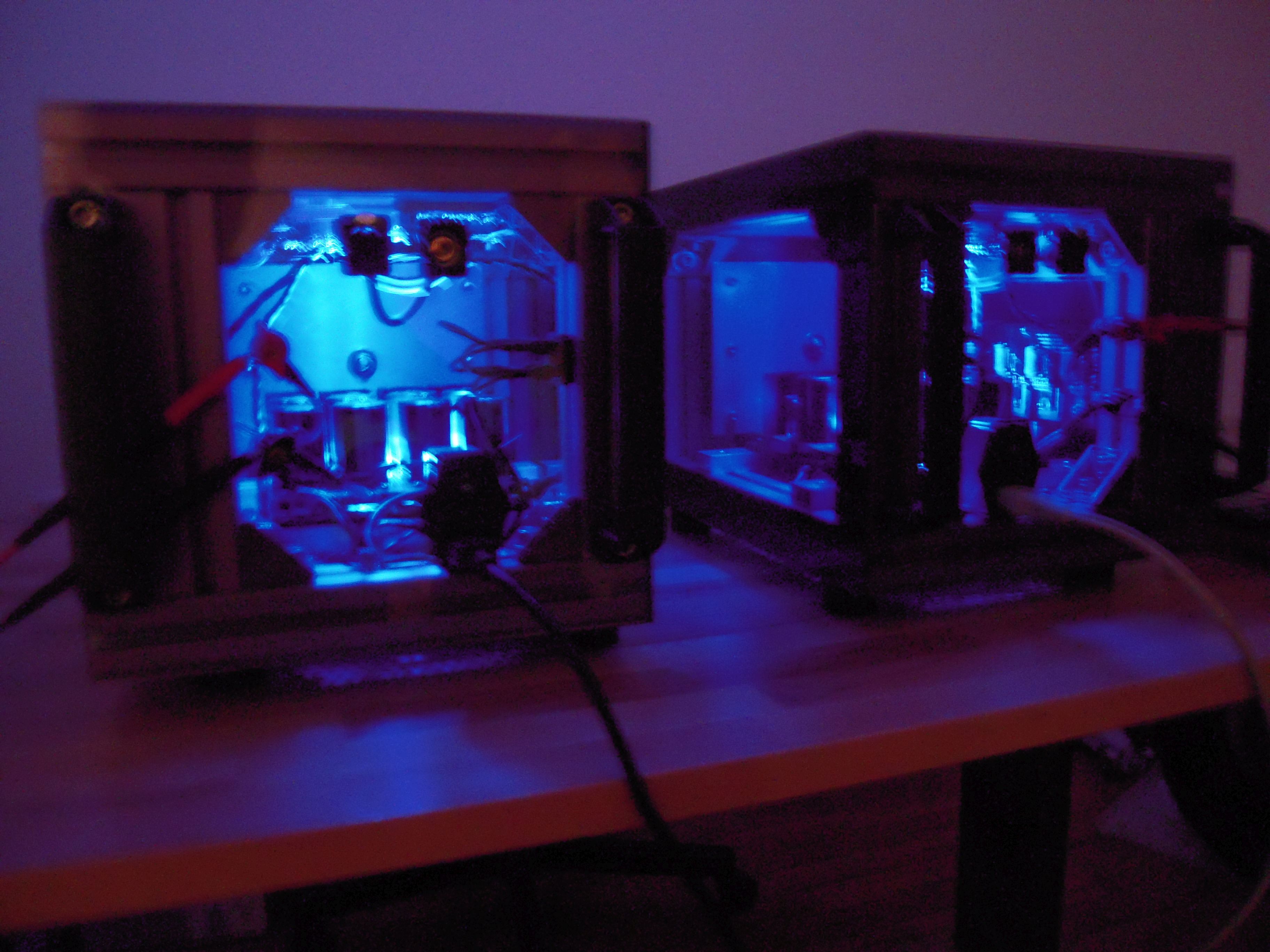

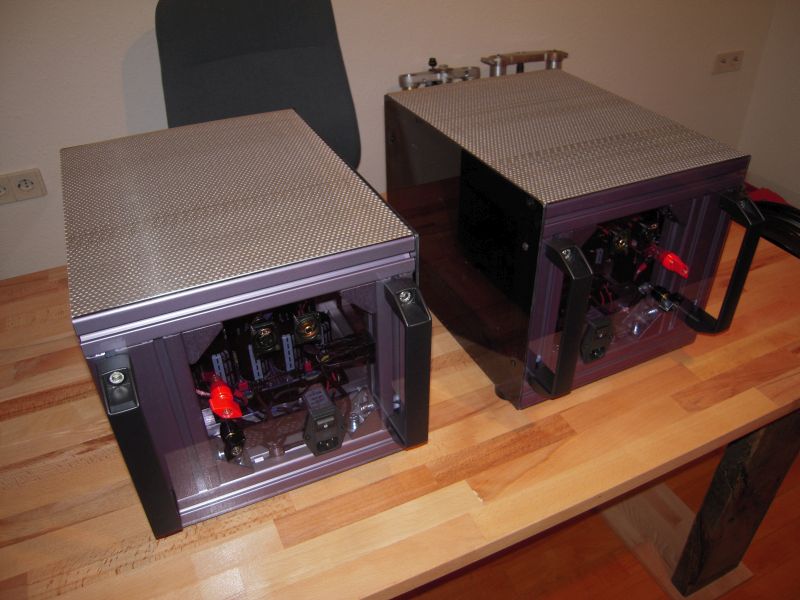

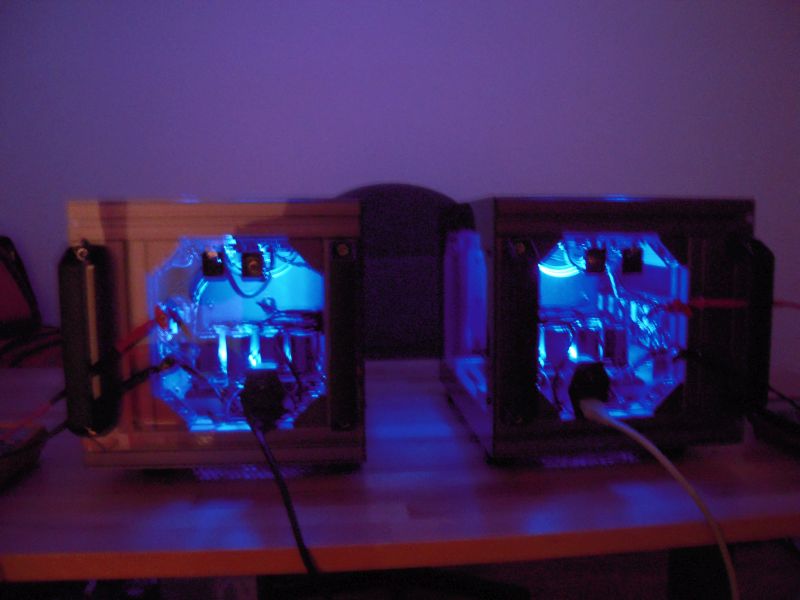

And if you like the colour 'blue'.


Should I listen to a recording from blue note records?...🙄


Greets
Dirk


BA-1 is a hot amp!


- heatsinks after 60 minutes at 54 C temp...



[cubicincher]

to brennwa #4892

The chassis is a selfmade construction from me.


Made out of 40mm x 40mm ALU-clip-tec-profiles.


Greets

Dirk



[zman01]

Nicely done Dirk!
