Photo Gallery

[democles]

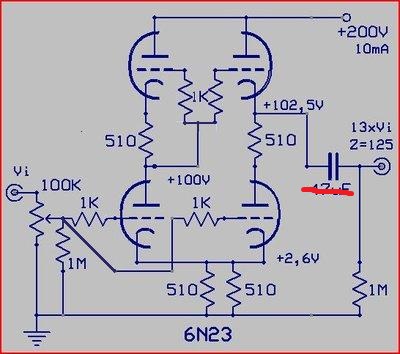

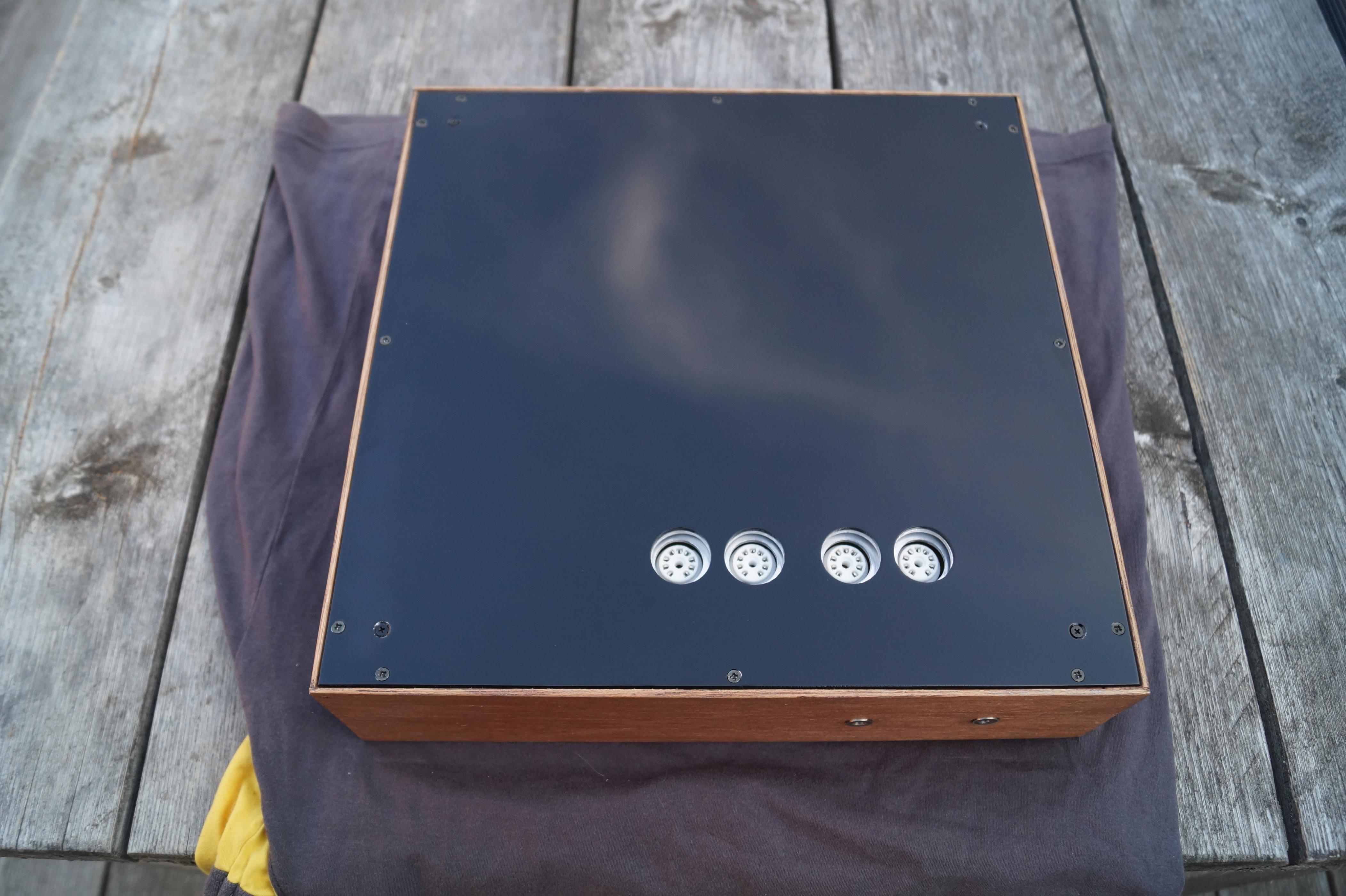

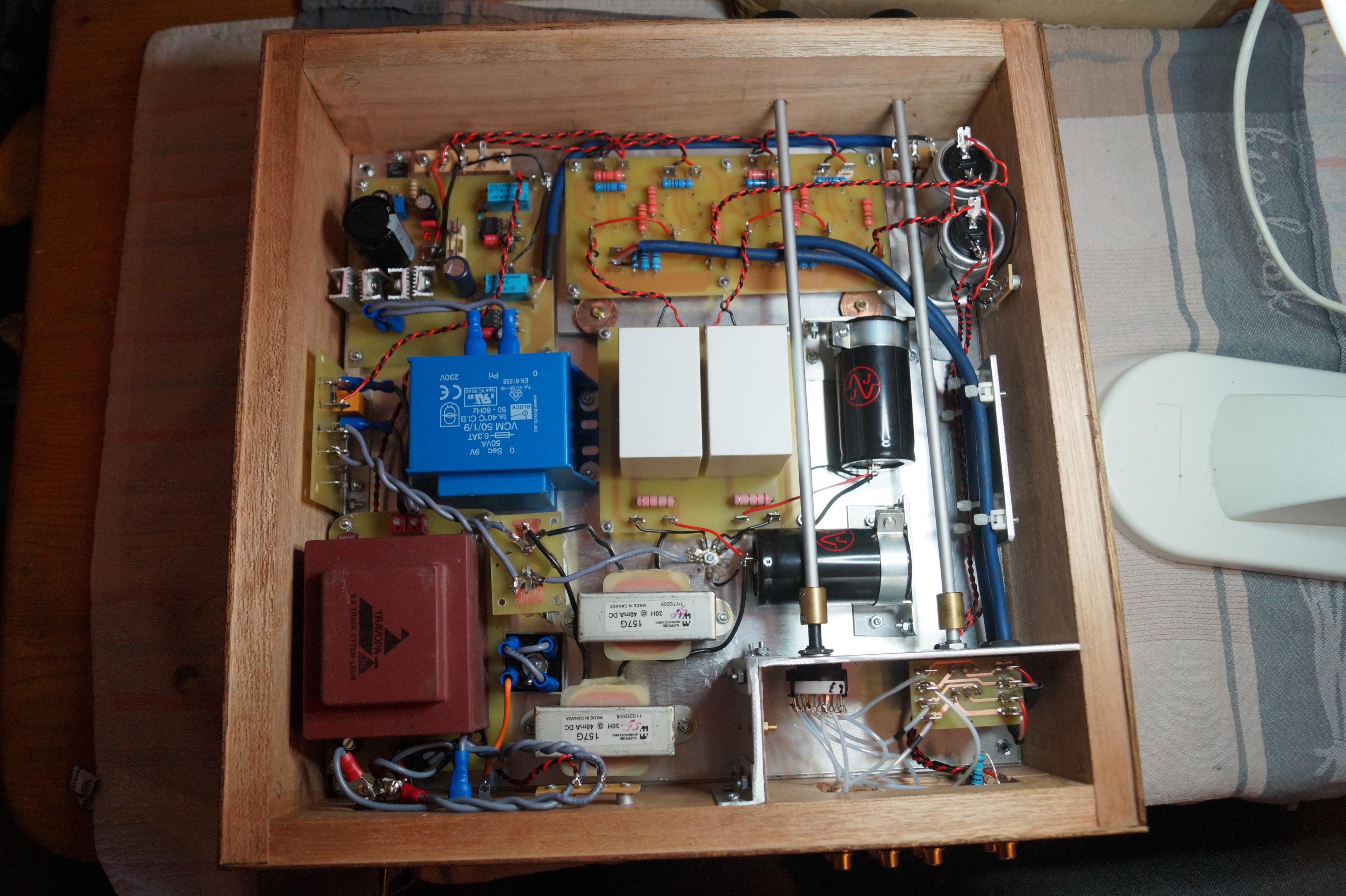

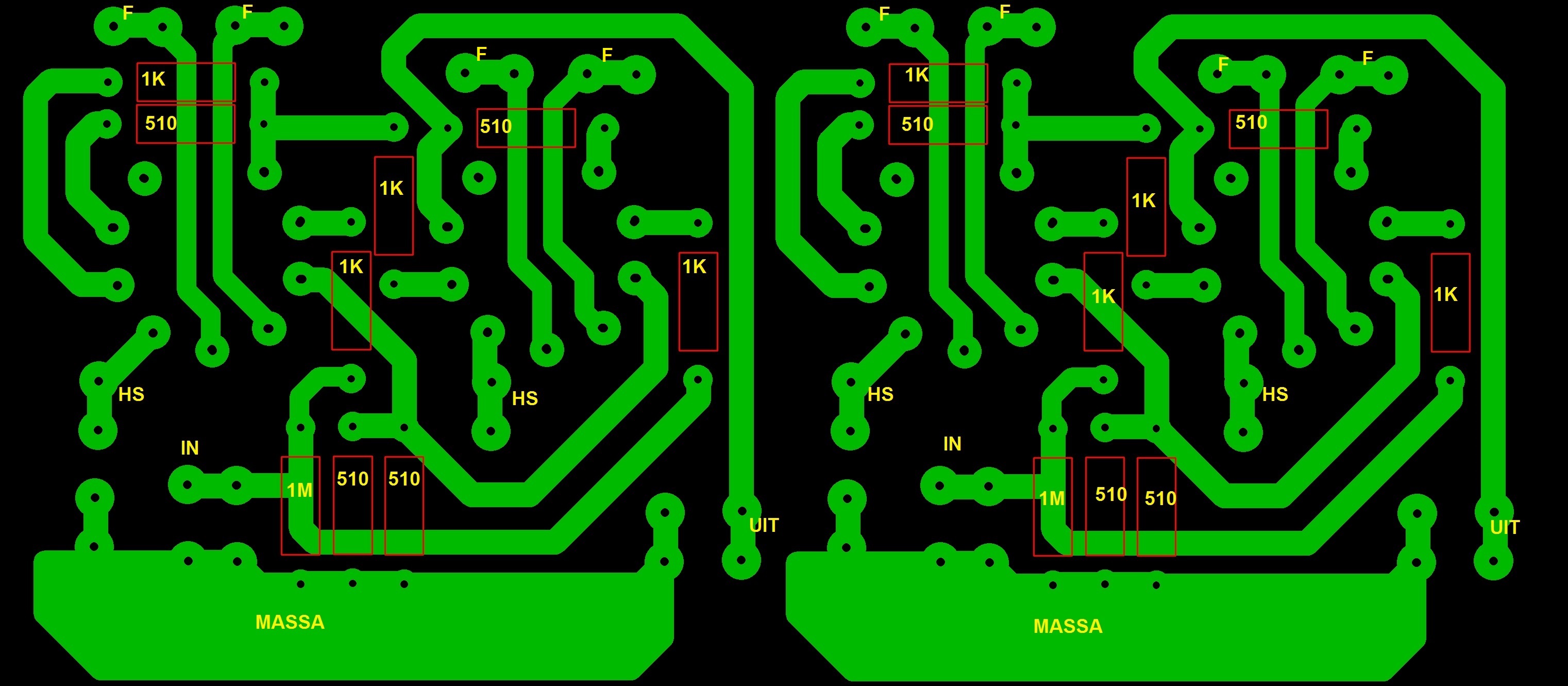

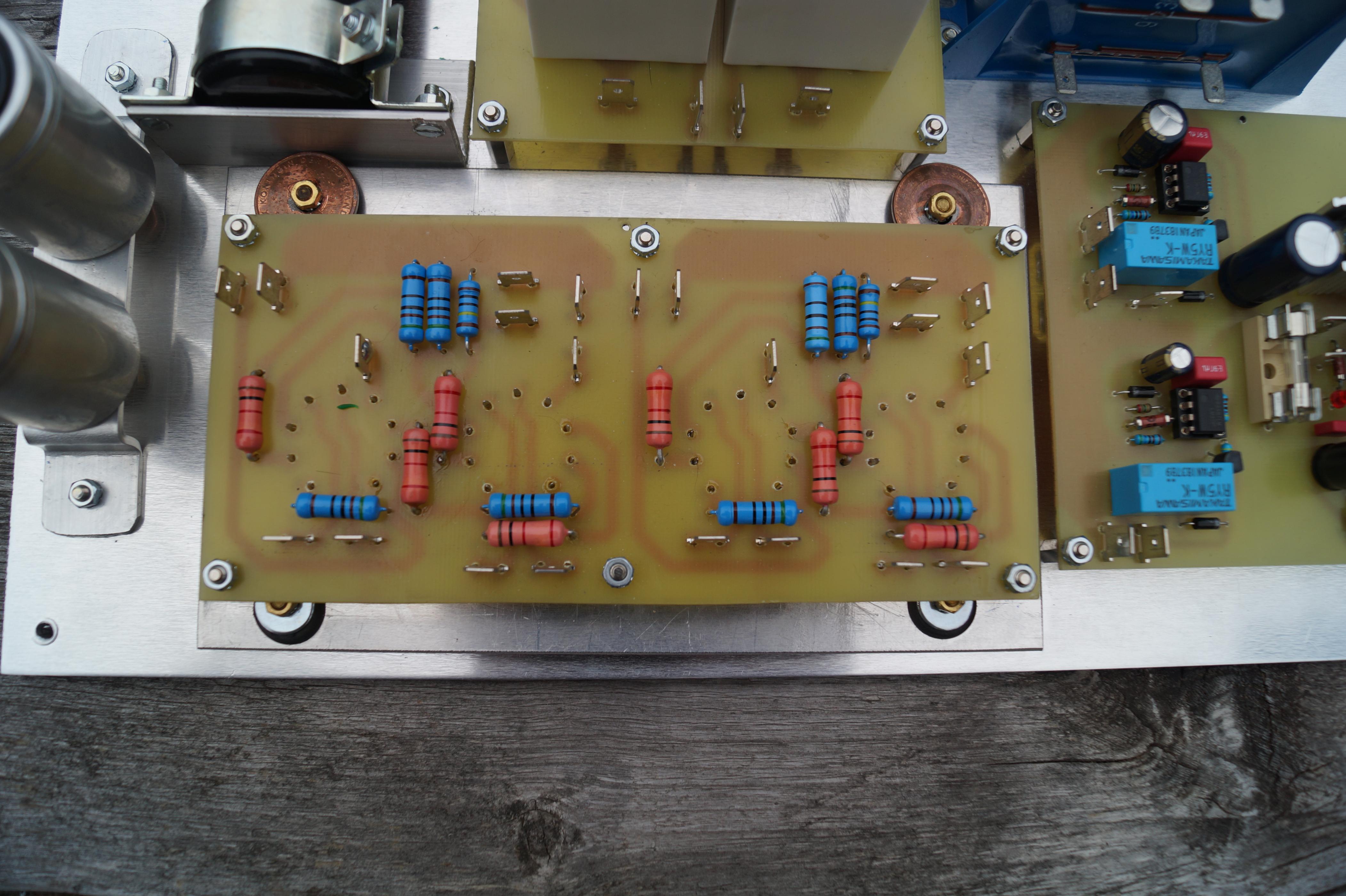

6N23P preamp


PCB hanging in rubber,DC filament heating,HS delay,mute,all components mounted on subframe.



[jdg123]

Nice clean build! Well thought out. How do you like the sound? Is this your circuit?



[democles]

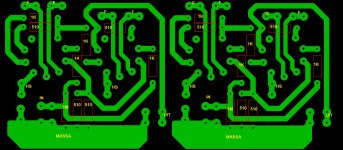

Not mine circuit,but i made the pcb for it.
Sounds big and warm.
It depends on witch 6N23P jou put in there.



[potepuh]

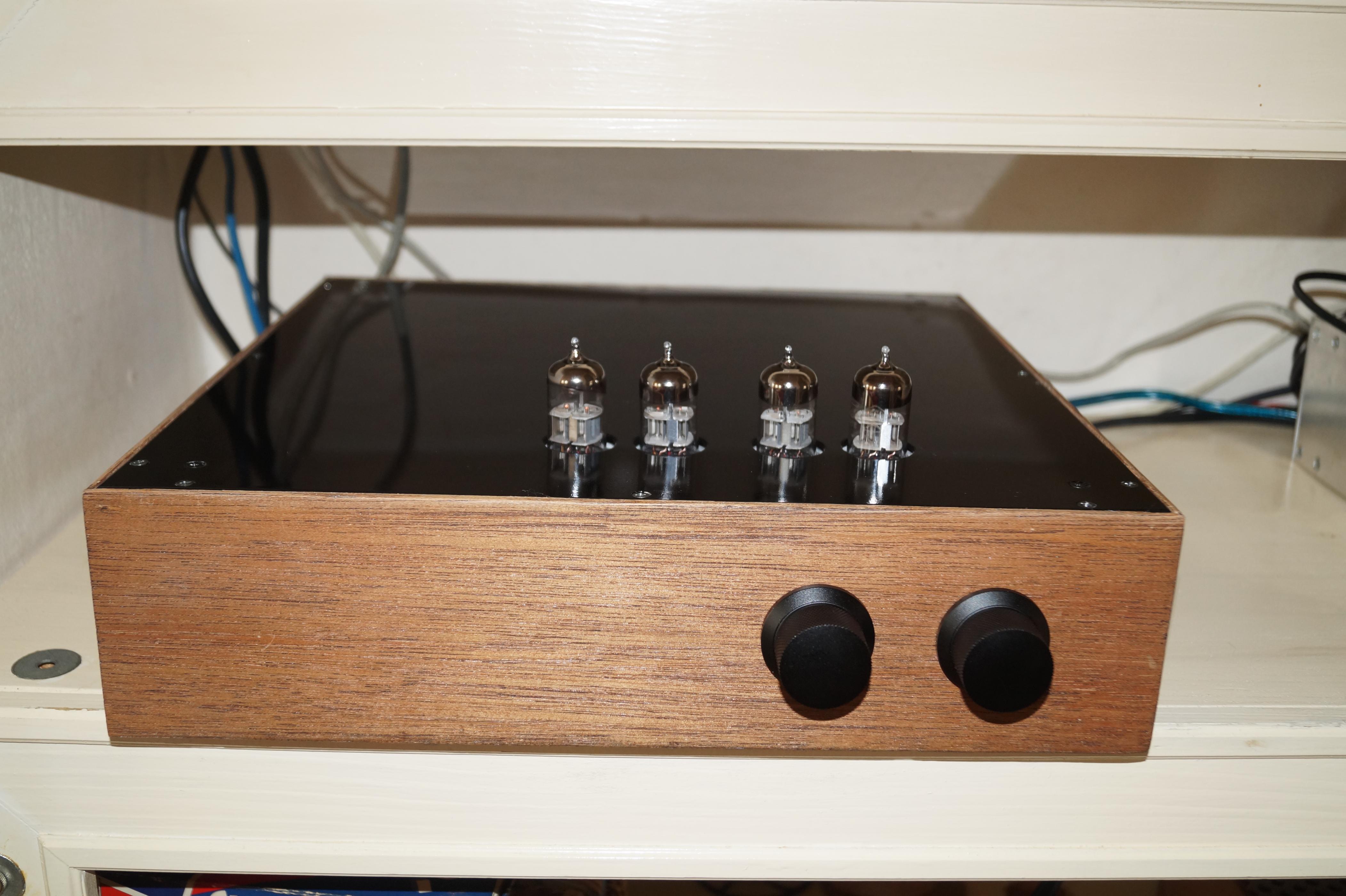

BH 6550

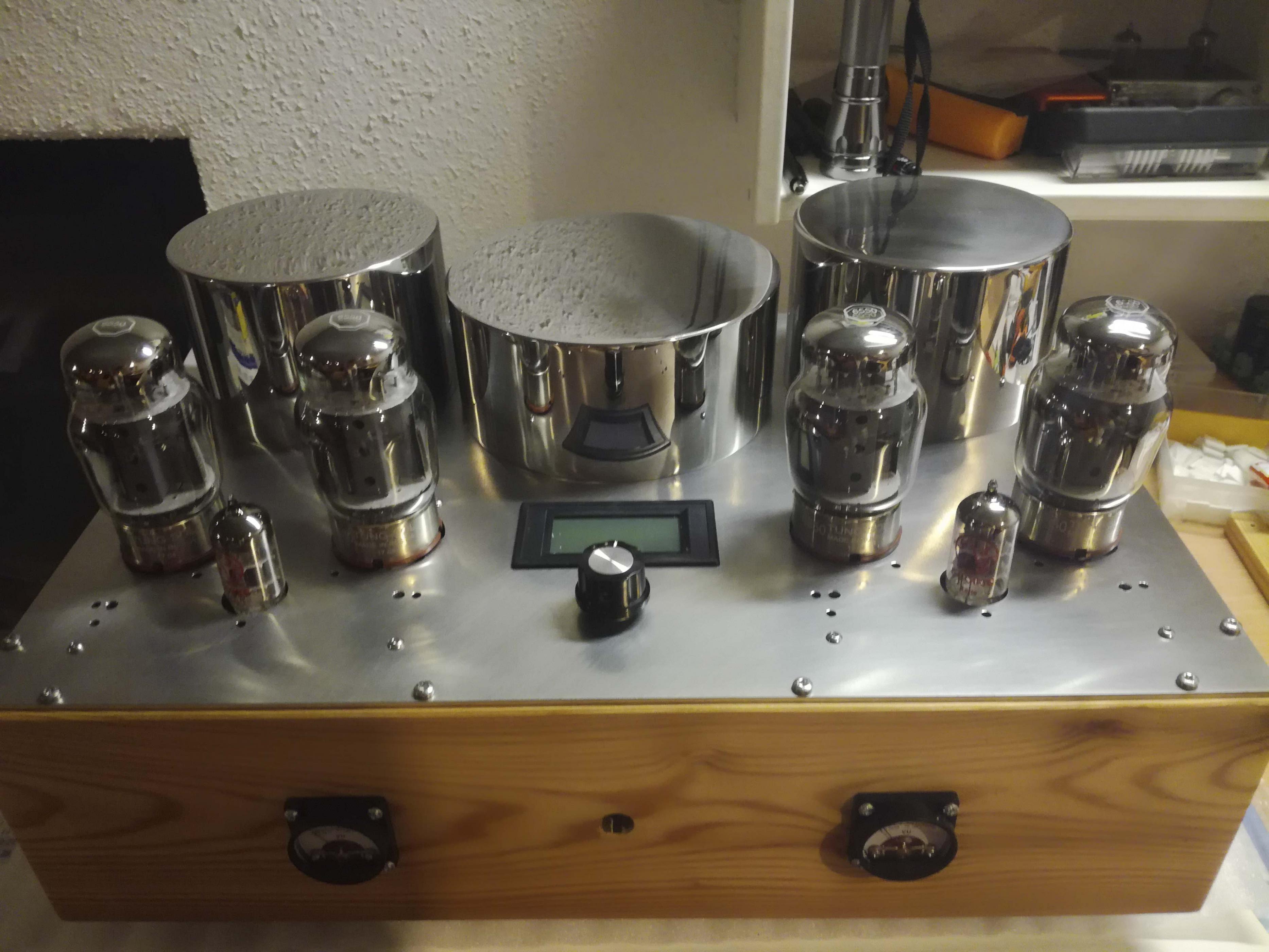

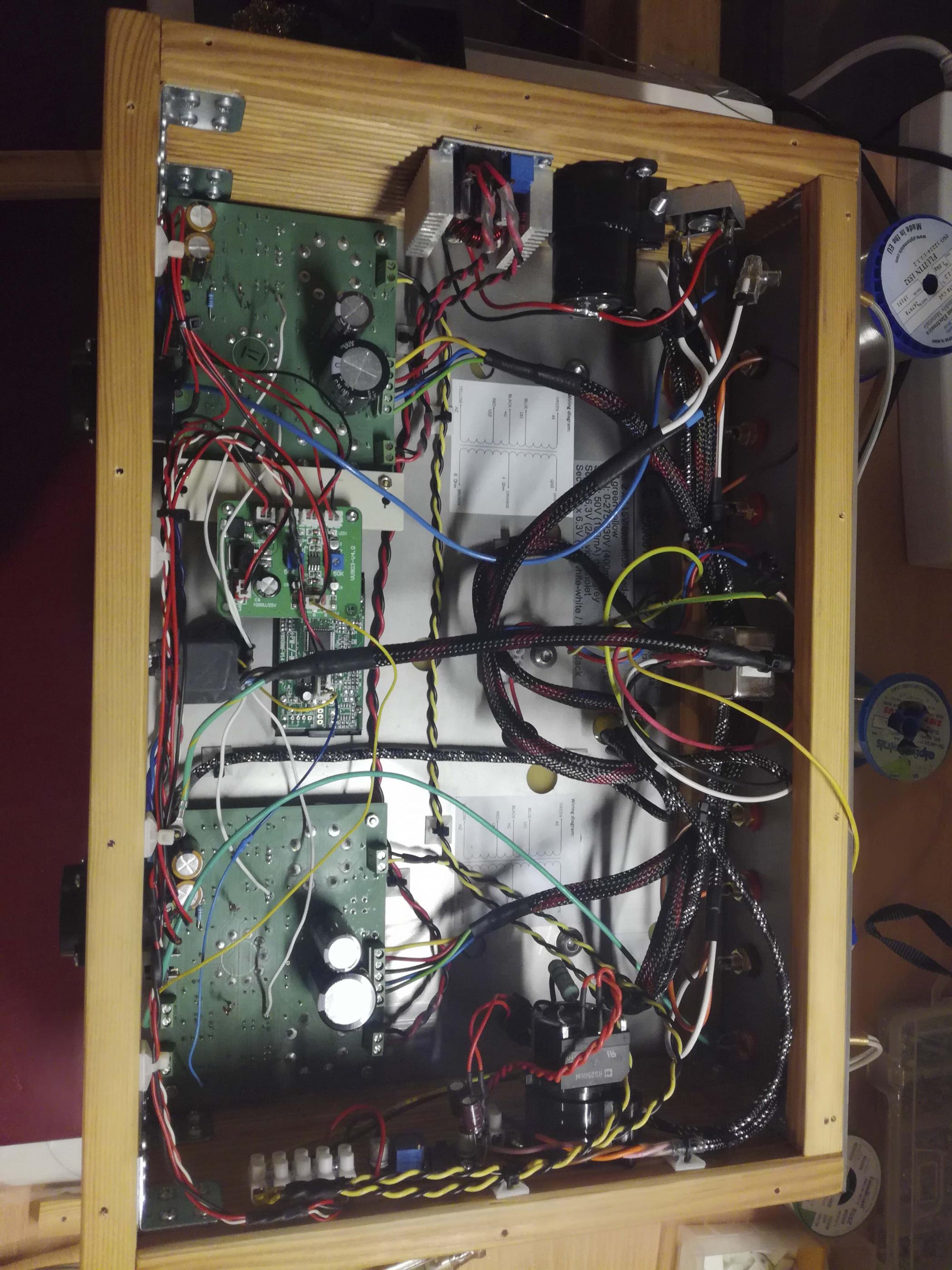

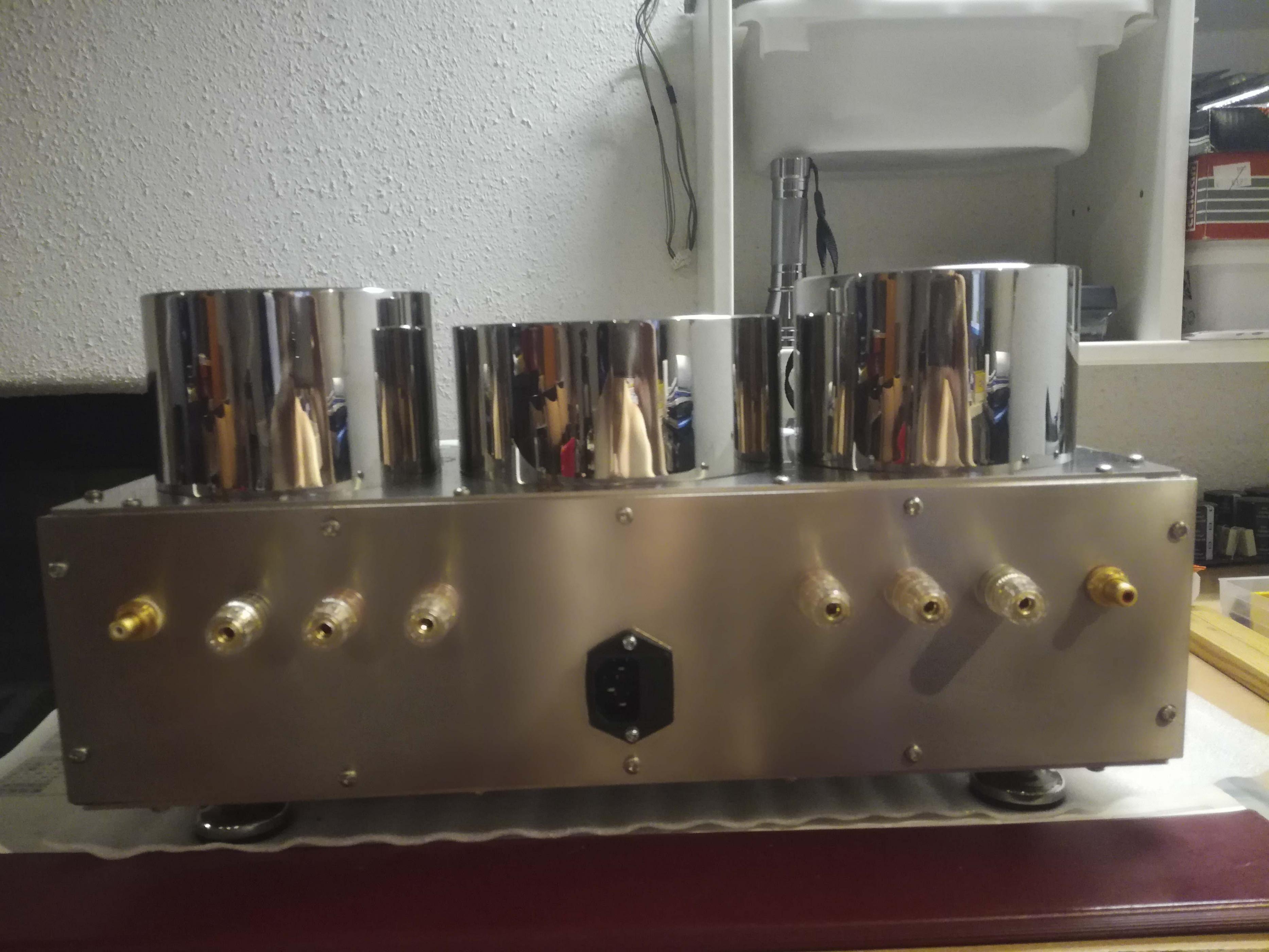

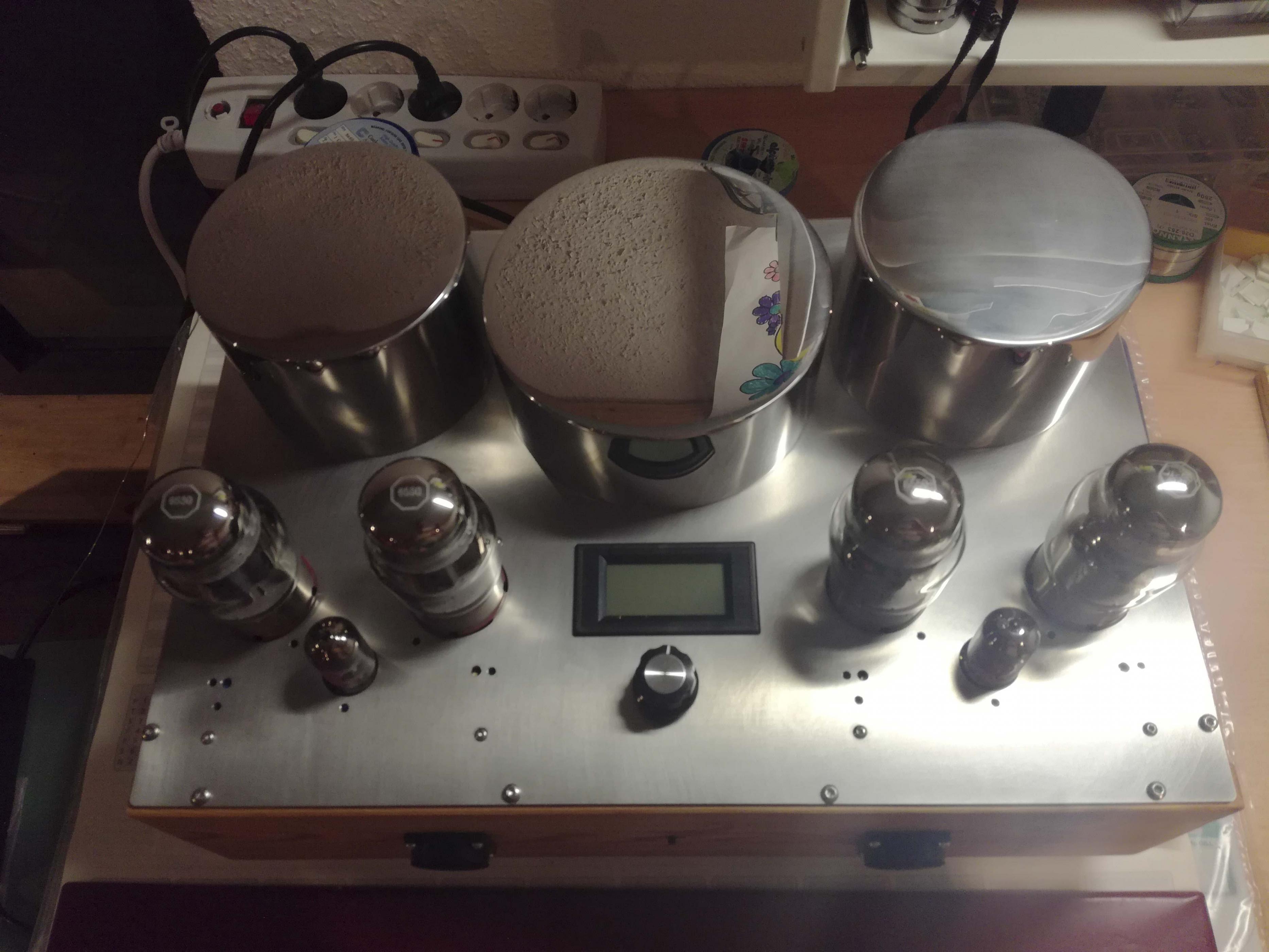

This is my first tube amp ever and I love it.🙂 Need to finish some minor details... Many thanks to Bandol83, gingertube, prasi...for their work and devotion 🙂🙂



[Bas Horneman]

Congratulations! Great looking amp. What PCB's did you use?



[potepuh]

From the first GB conducted by bandol83, pcb ver 2,0.



[Sodacose]

This is my first tube amp ever and I love it.🙂 Need to finish some minor details... Many thanks to Bandol83, gingertube, prasi...for their work and devotion 🙂🙂

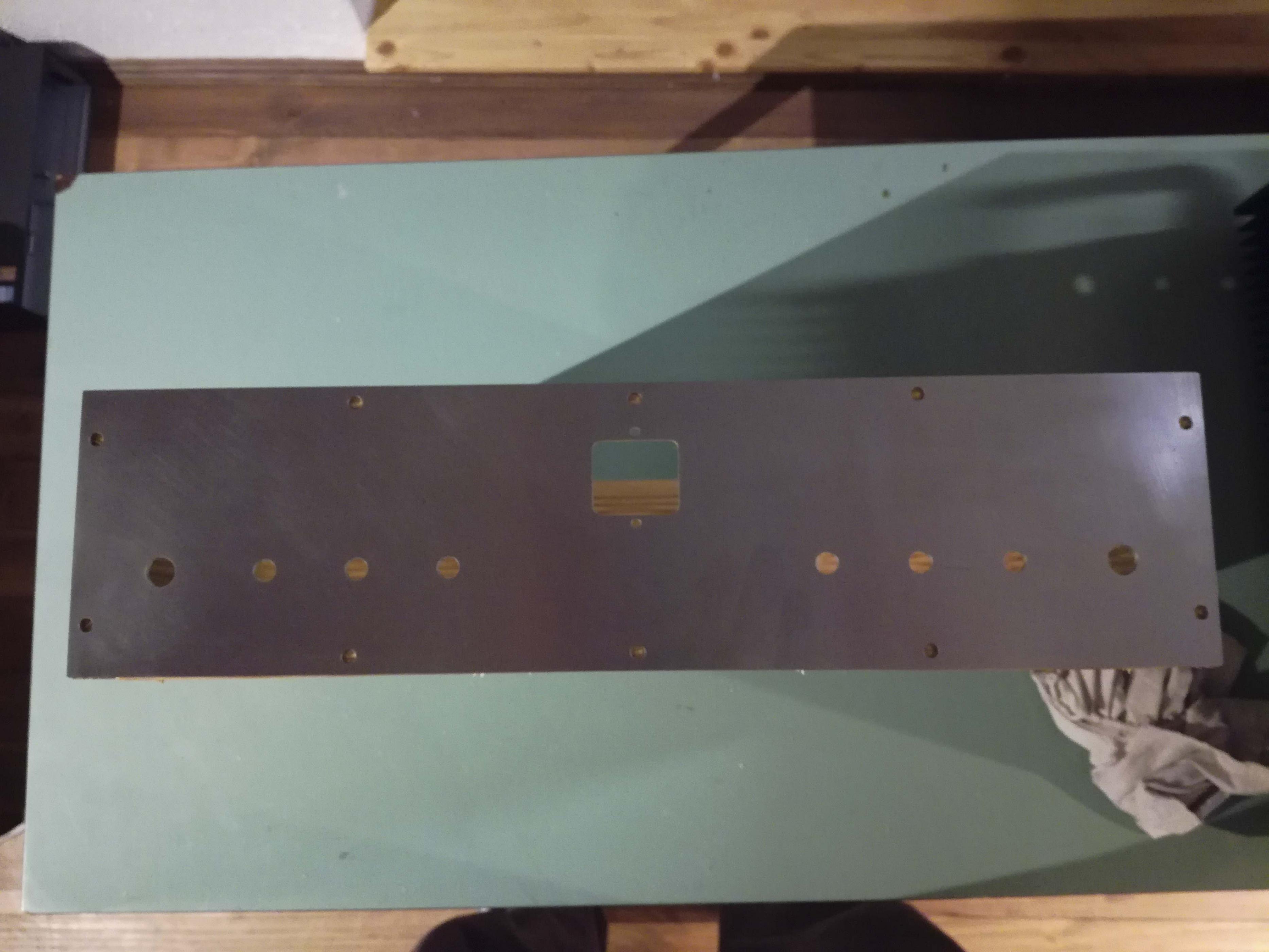

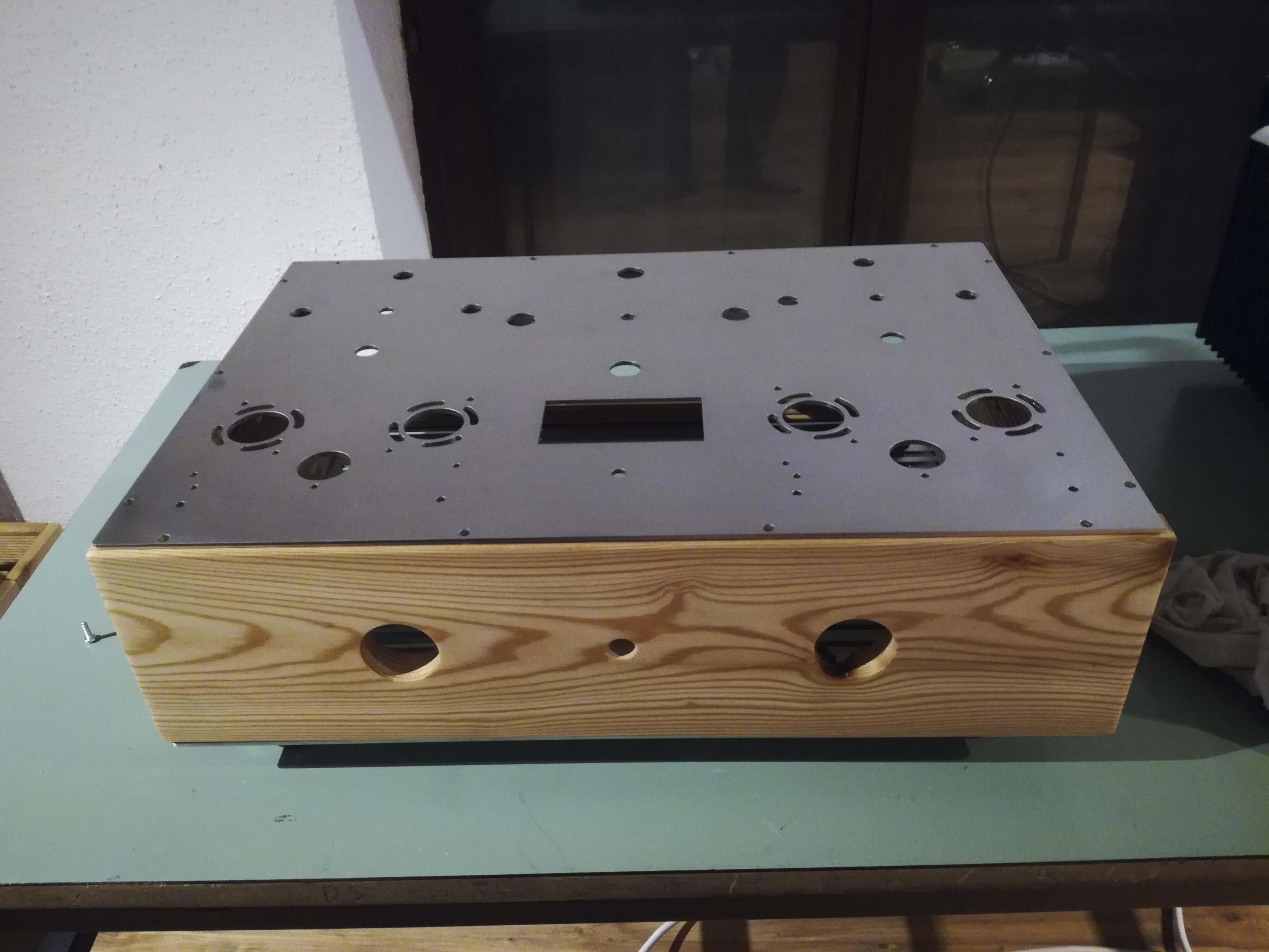

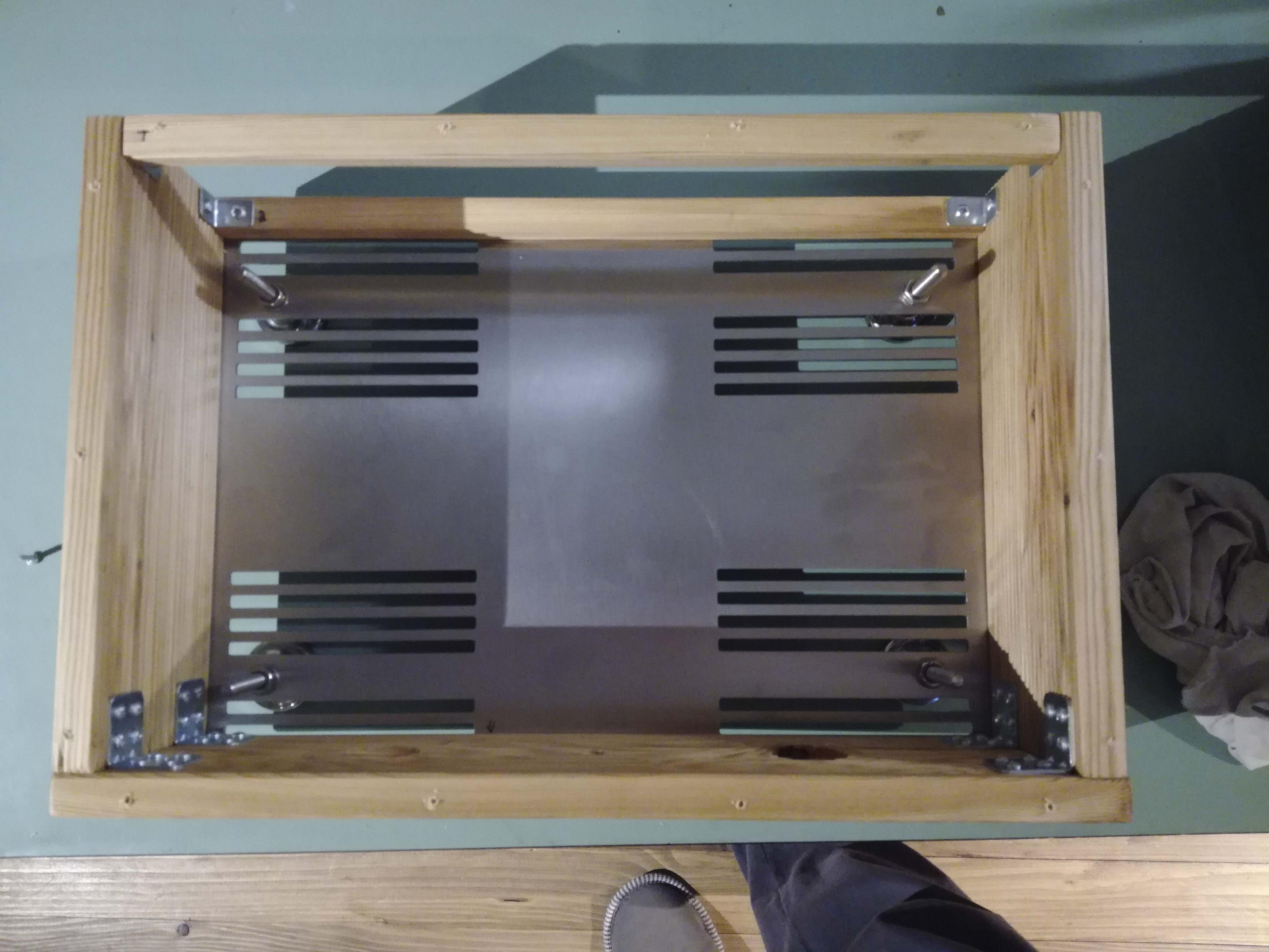

That looks fantastic. Can I ask how you managed the machining of the top plate?



[potepuh]

Laser cute on plans made by me.



[Nikos]

6N23P preamp


PCB hanging in rubber,DC filament heating,HS delay,mute,all components mounted on subframe.

COOOOL🙂



[kodabmx]

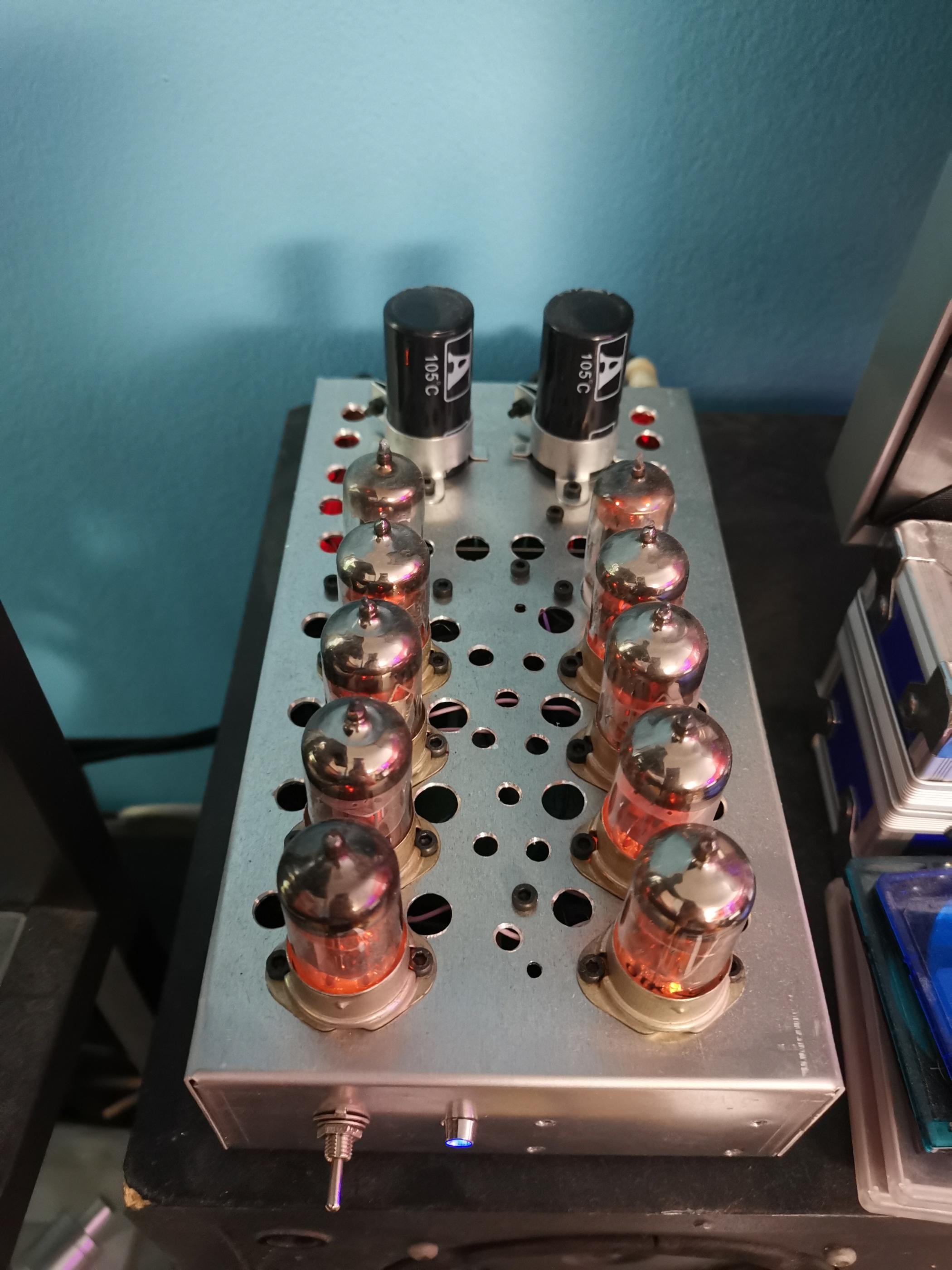

A view of my phono amp.



[jdg123]

All business, I like it!



[JoeAlders]

A view of my phono amp.

5 tubes for each channel or....?



[democles]

COOOOL🙂

Thanks🙂
Al weer een 6N23P voorversterker - forum.zelfbouwaudio.nl



[kodabmx]

5 tubes for each channel or....?

Four tubes per channel, the other 2 tubes are in the power supply 🙂 I use a 12AX7 and a 12AU7 instead of two 12DW7...



[dady]

6N23P preamp


PCB hanging in rubber,DC filament heating,HS delay,mute,all components mounted on subframe.

Very ingenious circuit and aspect



[hellotron]

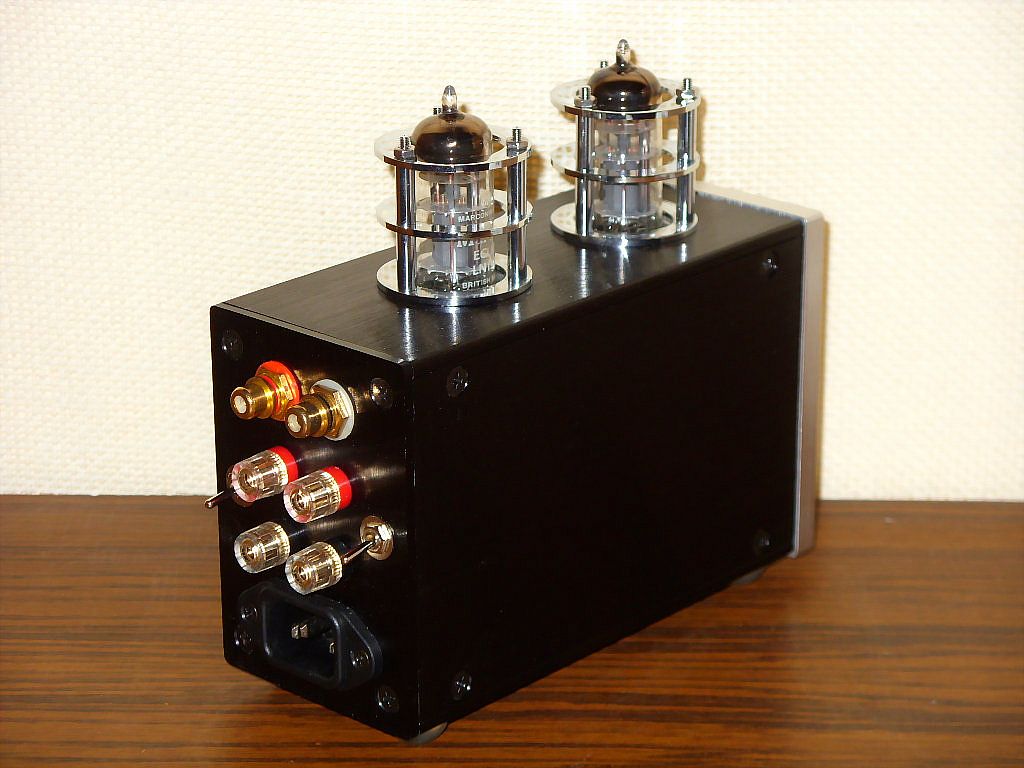

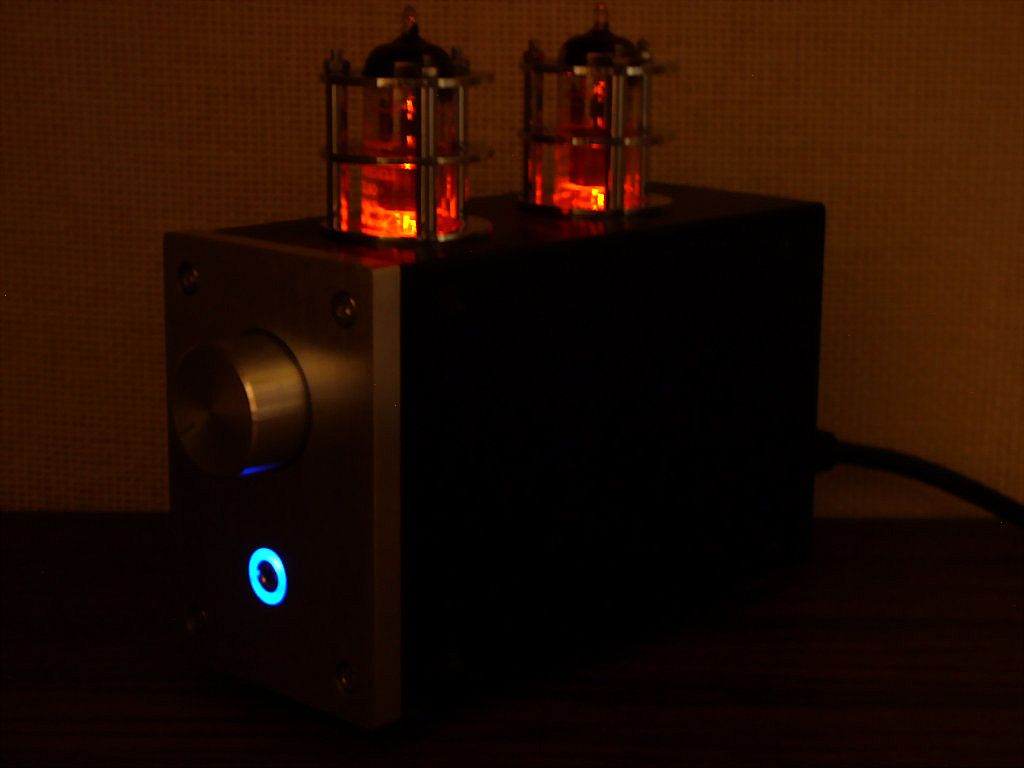

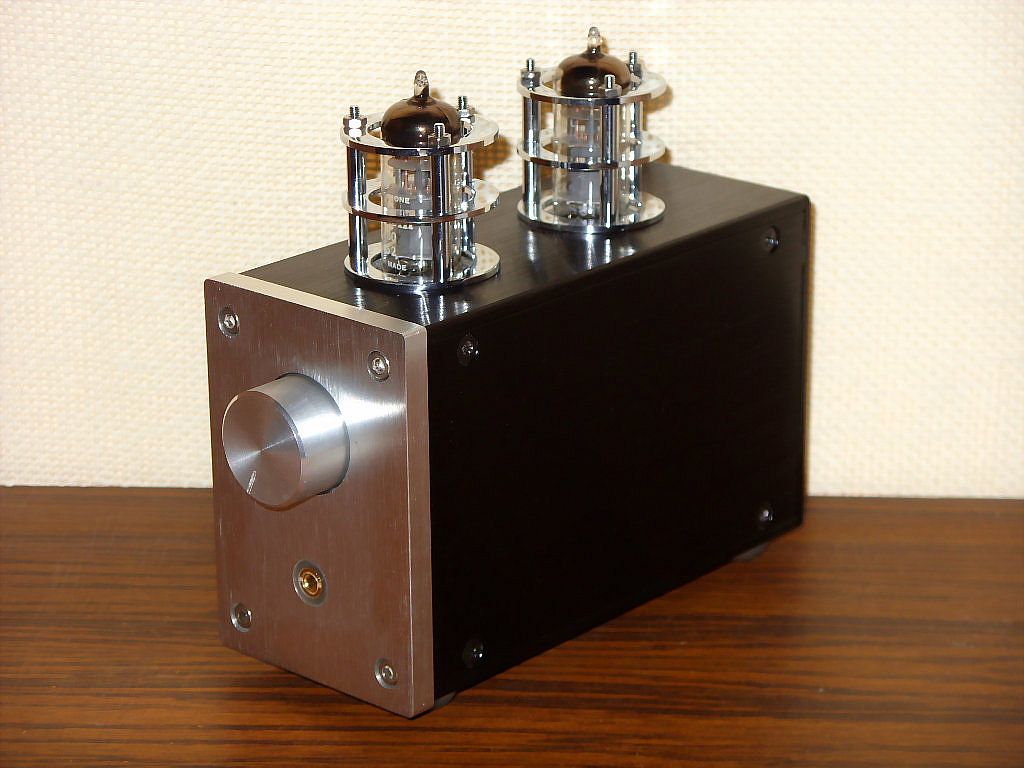

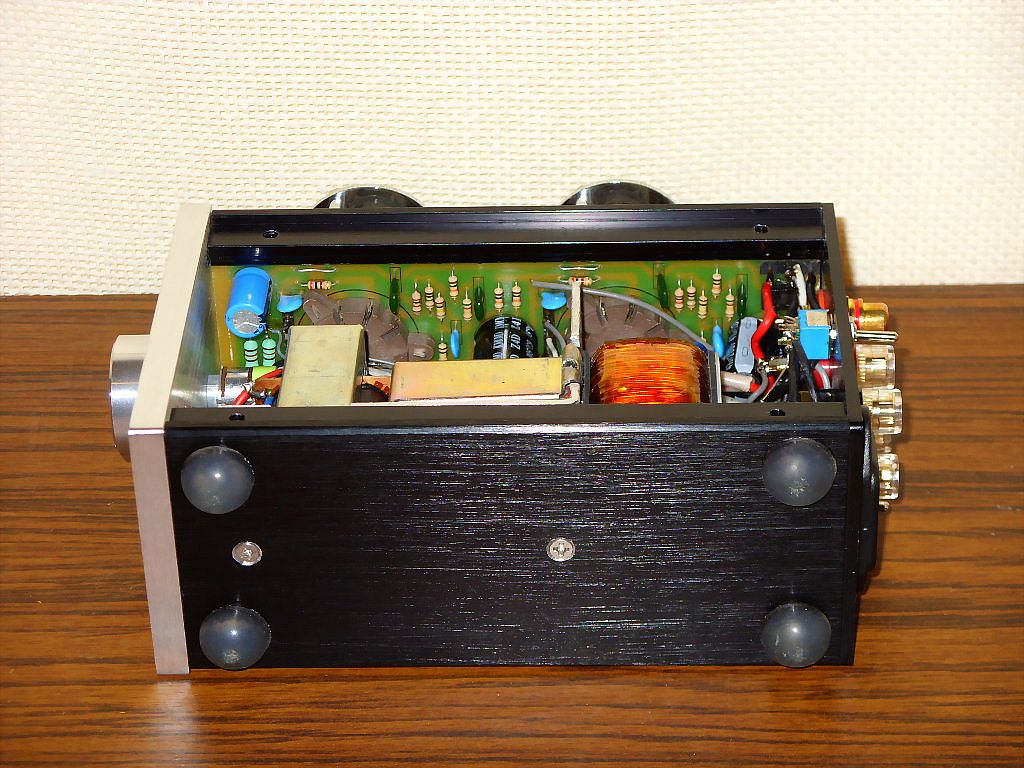

This is my project on two tubes ECL80... mini amplifier for headphones and speakers, power out 2 x 1.5W.



[Bas Horneman]

Wow! Small is beautiful!



[JoeAlders]

This is my project on two tubes ECL80... mini amplifier for headphones and speakers, power out 2 x 1.5W.

Beautiful!
Did you make the enclosure yourself or ......
BTW : What is the headphone impedance?



[hellotron]

Thank you all🙂
The housing is available on eBay under the slogan "A0609 mini amplifier". Supports headphones from 32 - 600 ohms, columns 4 or 8 ohms. It is currently for sale.



[soundbrigade]

Nice and compact build. I love this kind of constructions.

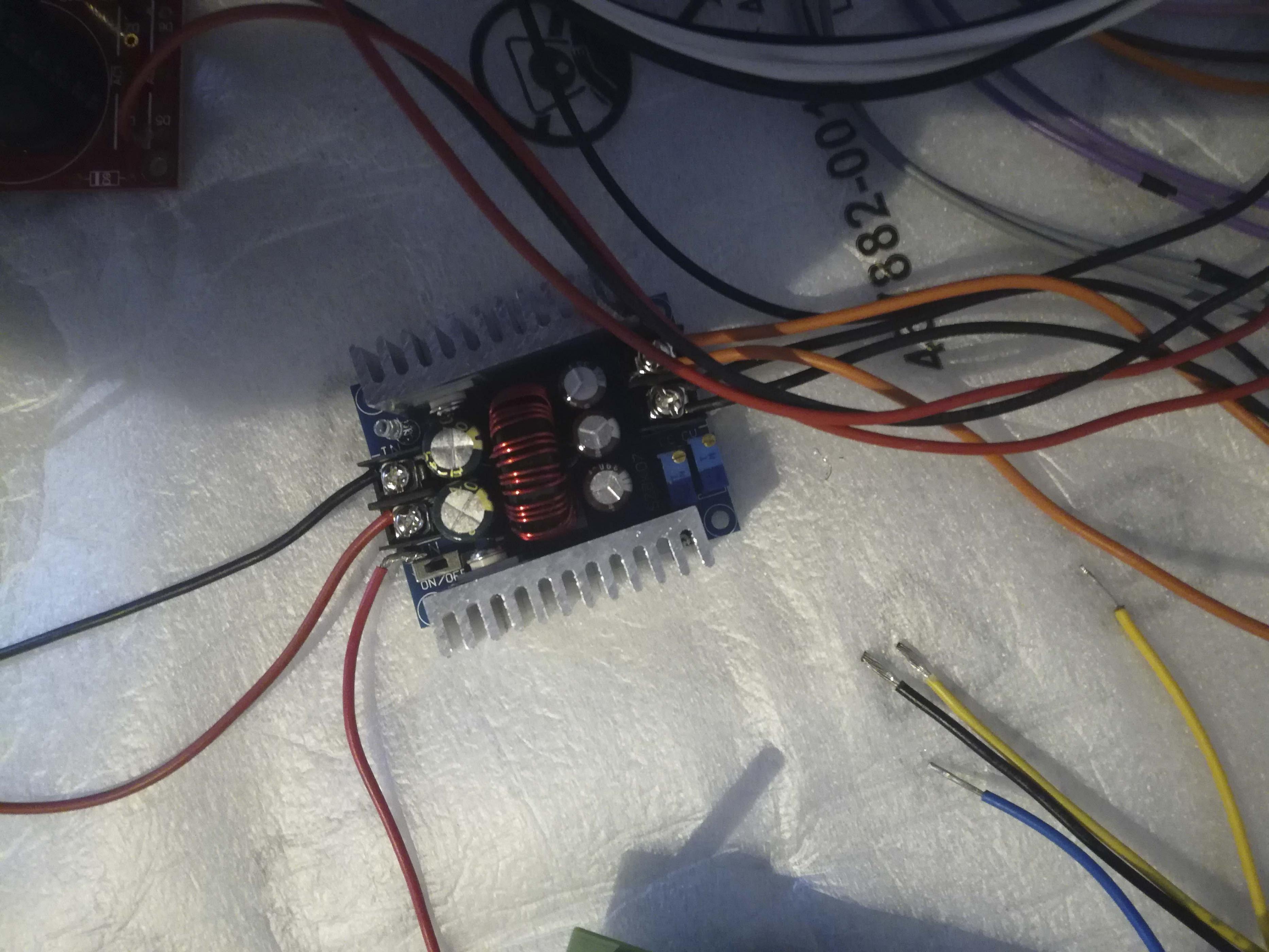

When things cool down a bit I will try to finish some projects of about this size and I am looking to power them with a smaller DC/DC-converter module - two on the way. Planning to use a 12V MC battery.
