Photo Gallery

[Educaco]

My Amp Single Ended

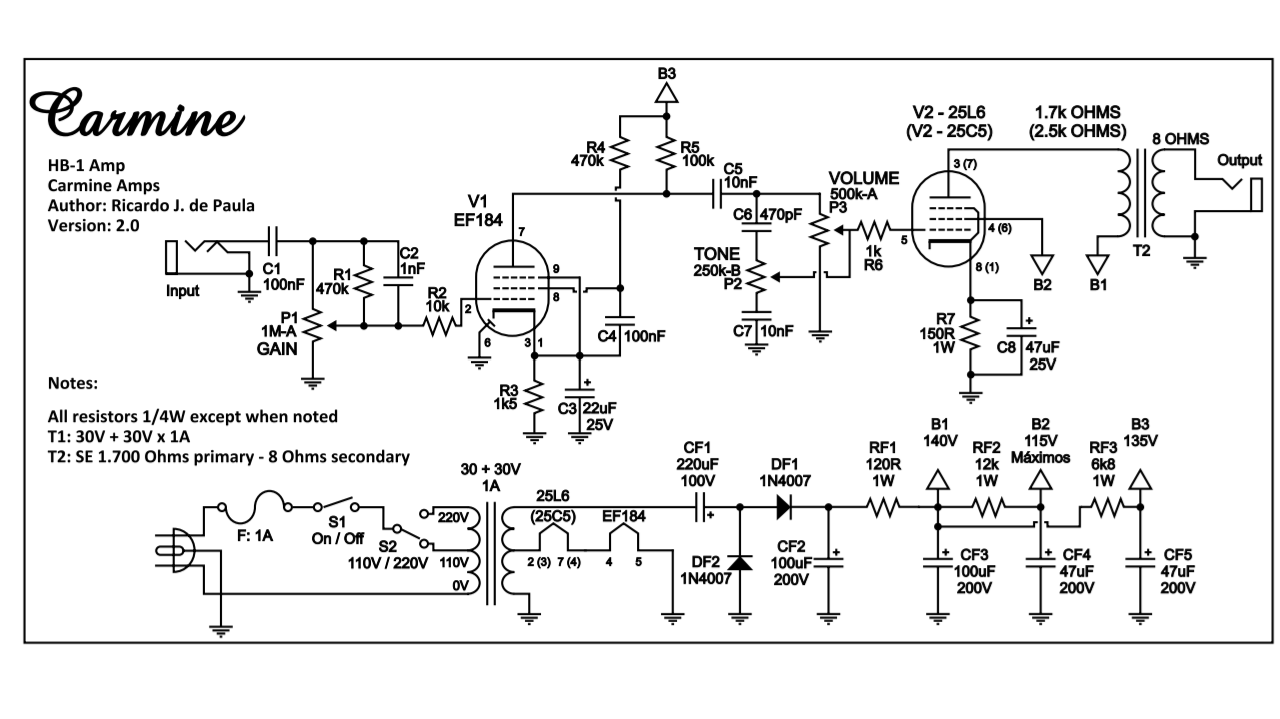

Model Carmine HB-1 "Hundred Buck 1"

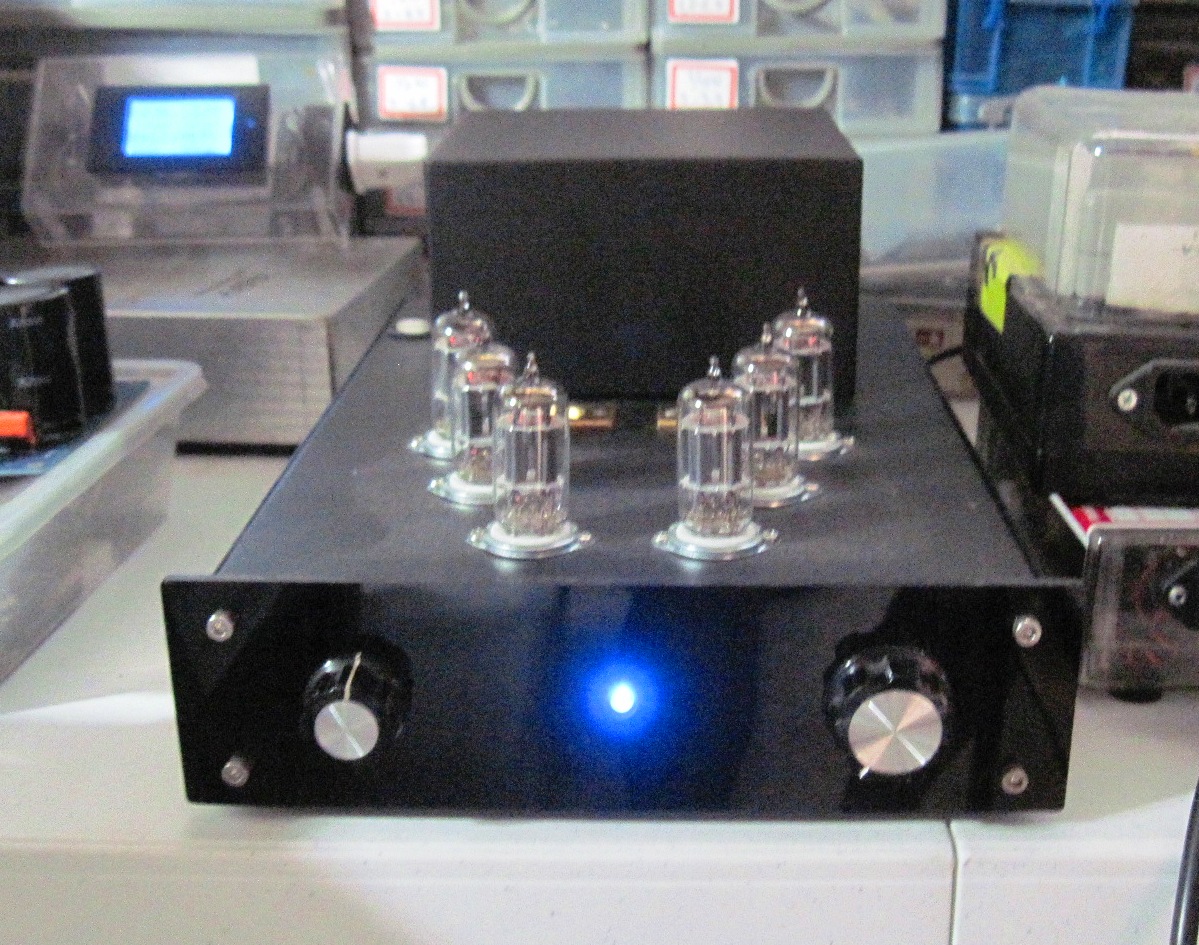

Tubes 25L EF184



[Educaco]

Chassi diagrama



[diy1995]

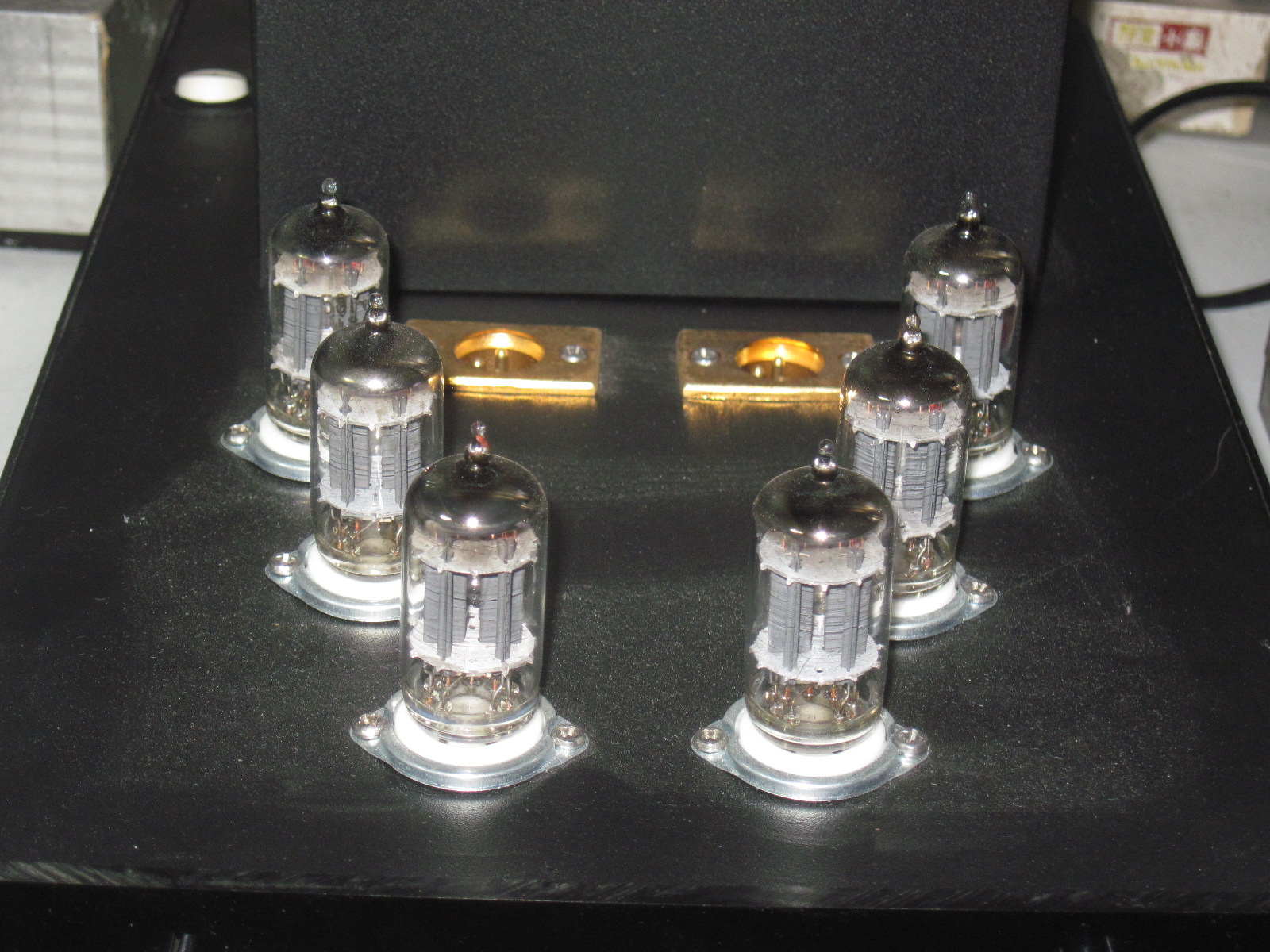

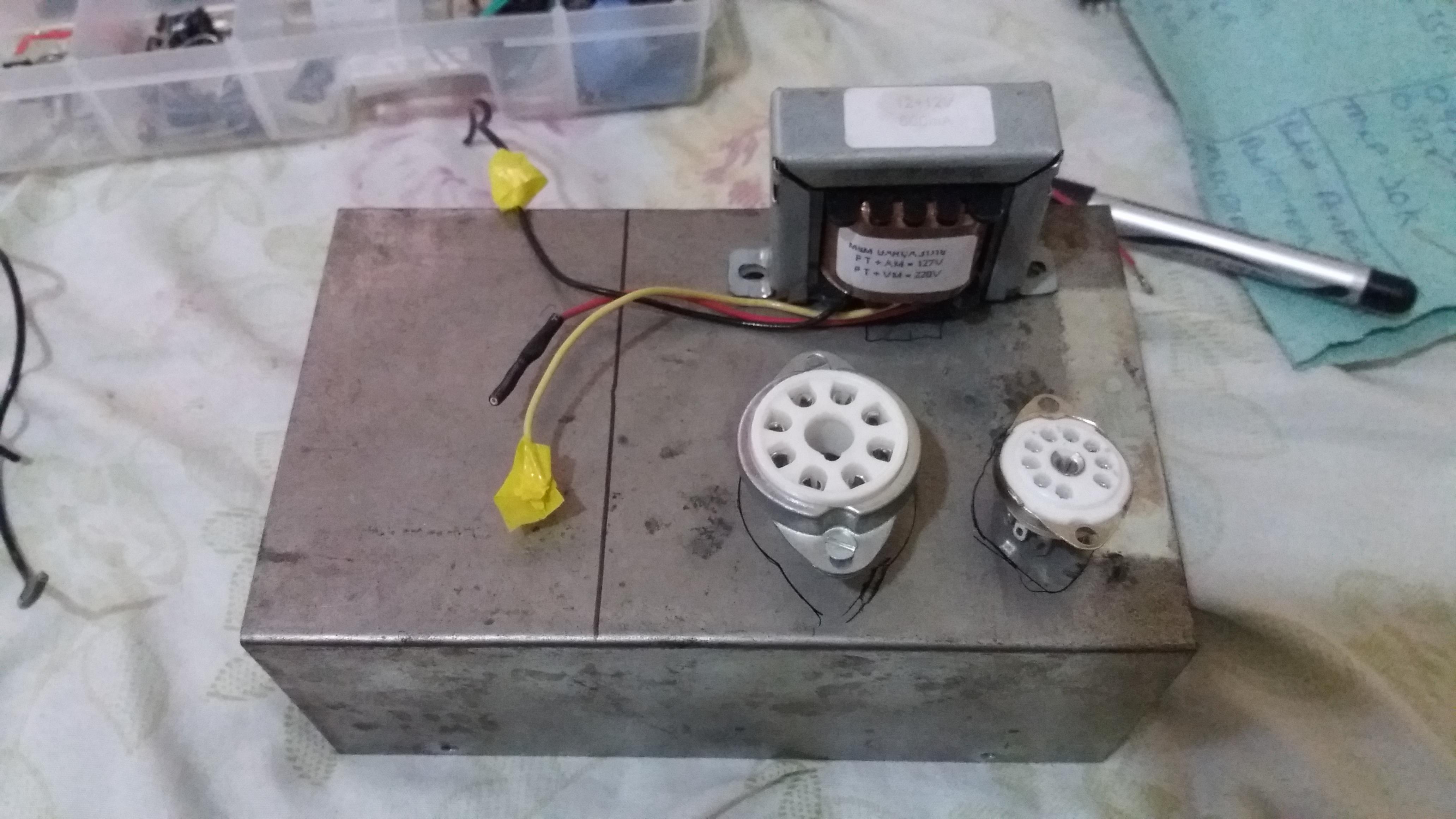

Unfinished simple single tube EL84 amp from "EL84 amp" thread.
analog vu meter with RGB led strip as backlight.



[soulmerchant]

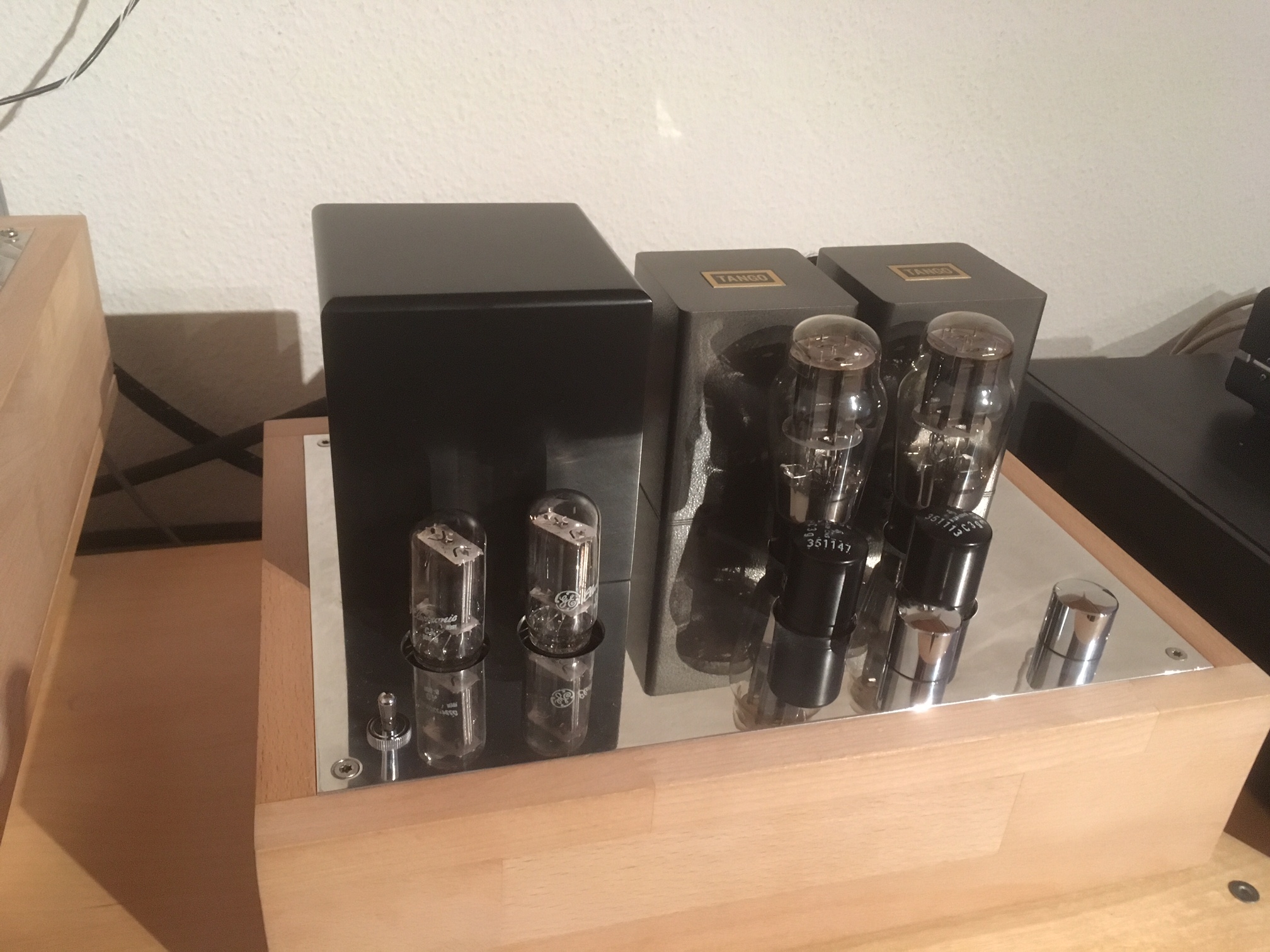

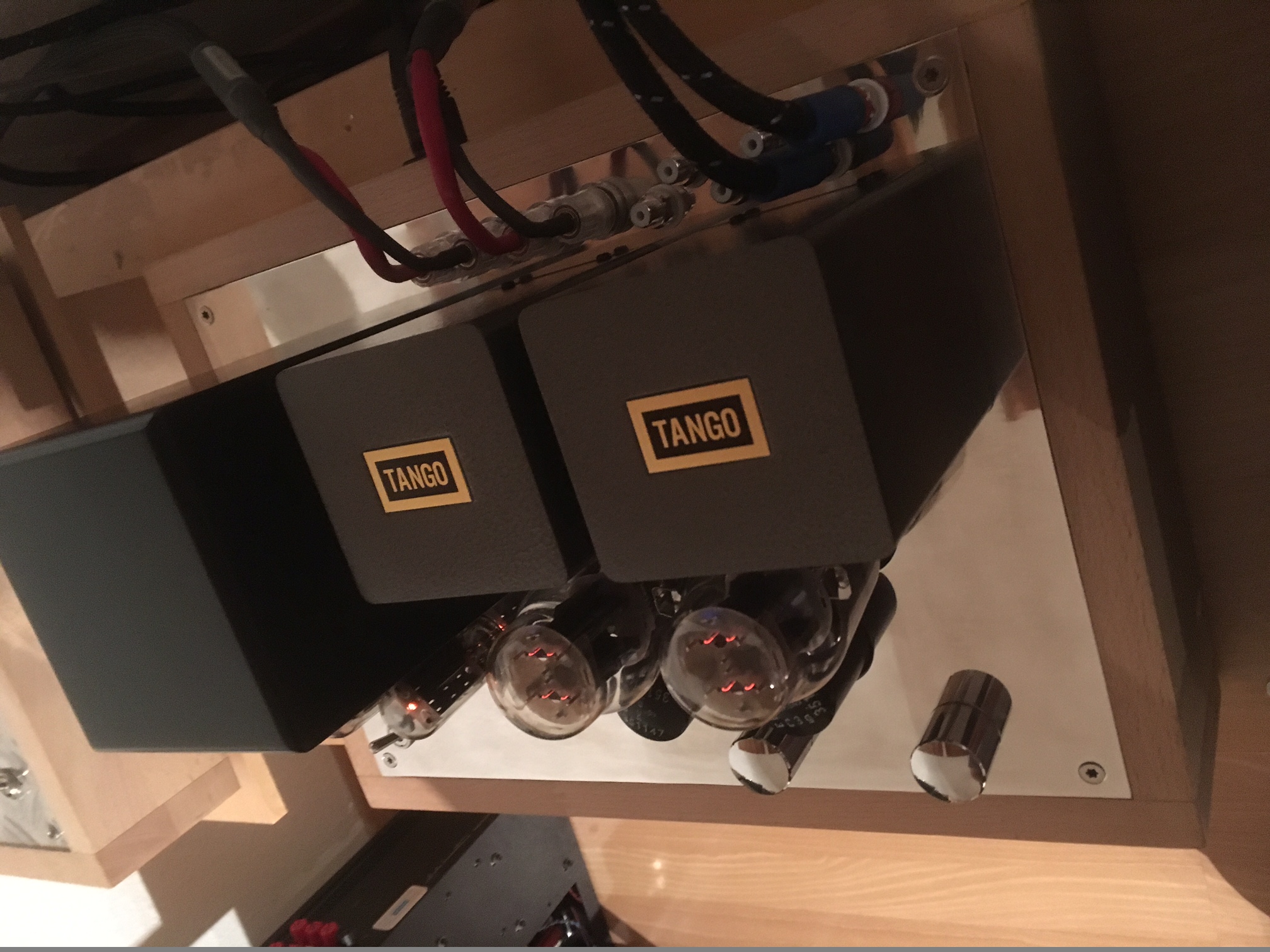

Just another single ended 2a3

All in one chassis.



[felixx]

Soulmerchant....simply beautiful...
I wonder what speaker will drive.....



[Sodacose]

Very nice, soulmerchant. Can you give us any tips on how you cut the holes for the panels? It's a great result.



[azazello]

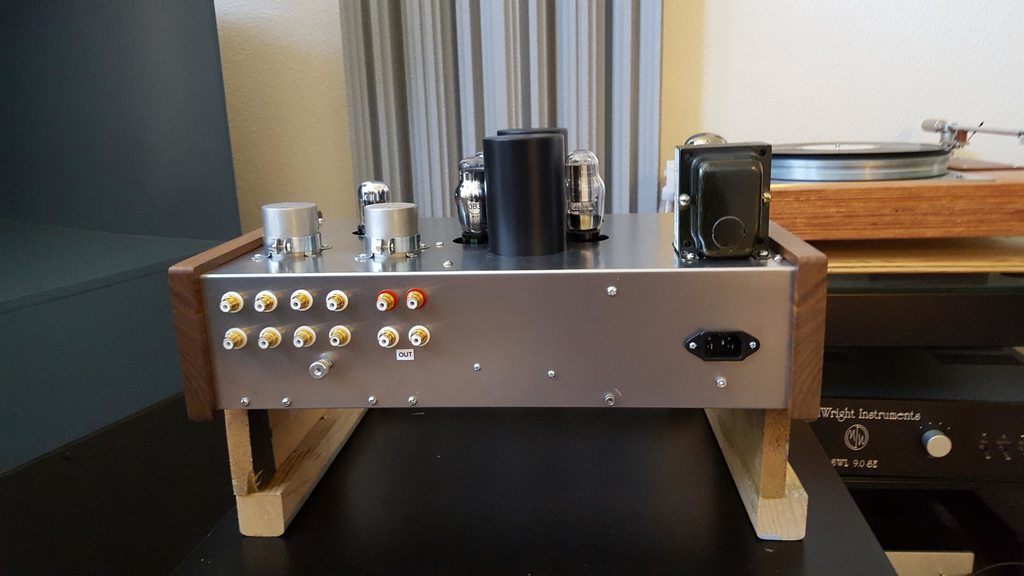

Very small tube amp with big sound /SE 6F5P - Russian/



[dady]

All in one chassis.

Such a professional work!



[soulmerchant]

Very nice, soulmerchant. Can you give us any tips on how you cut the holes for the panels? It's a great result.

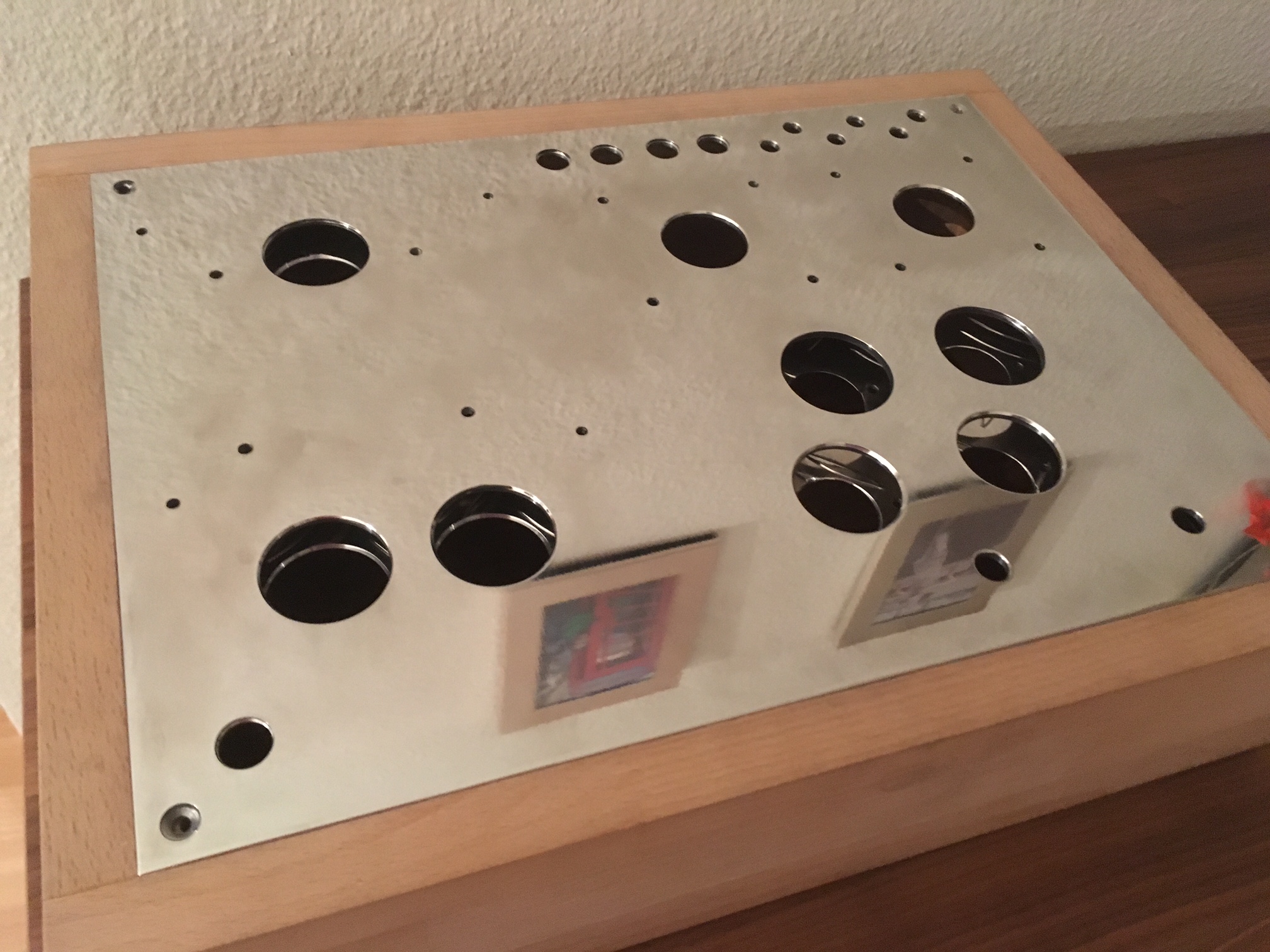

First marked them on the plate (print-out on thin paper carfefully taped to the plate before tapping the drill points.

Then with a very small bit as exactly as possible I drilled pilot holes.

Then I used a stepped drill bit, making sure it was well lubricated.

You might notice that the only visible screws are in the corners. All tubes are counter-sunk to the underlying plate, which need not be so pretty



[soulmerchant]

btw I cheated on the knobs. they're audio-note or something..

Mains transformer cover is from Thomas Mayer as well...

I used front panel designer to create the top plate file and printed it out to actual size.



[Sodacose]

Thank you for the info! I might have to try this on a future amp to hide screws. Not that I can afford Tangos



[mr ed]

I looked at this thread a lot for visual ideas and inspiration for this project

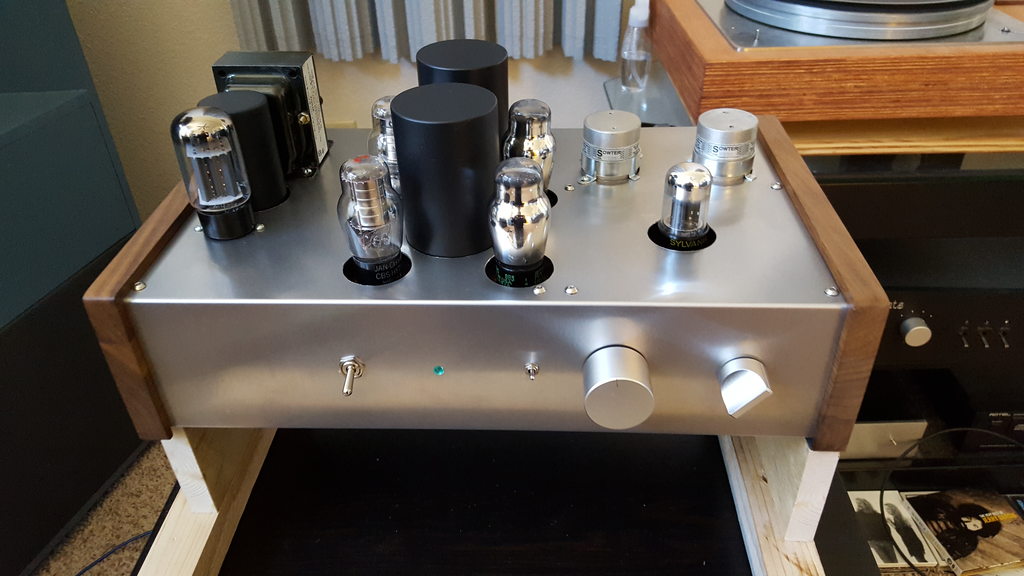

It's a 6sn7 cathode follower line stage.
Sorry, can't get pics to upload from my phone..... to be continued )



[JoeAlders]

Wow, that is a very good looking design mr ed!
Browsed through this site to search for the schematics but
was not successful. Where is your thread please?



[mhouston]

Are you using motor start or motor run caps?



[gingertube]

Are you using motor start or motor run caps?

Motor Start Capacitors are rated for intermittent duty ONLY. Always use Motor Run Caps.
Cheers,
Ian



[mr ed]

Sorry no thread here on this build.
I don't post much, but read on an almost daily basis.

Yes motor run caps are GE 97 type.



[TonyTecson]

12au7 line amp with balanced outputs....



[gideon1990]

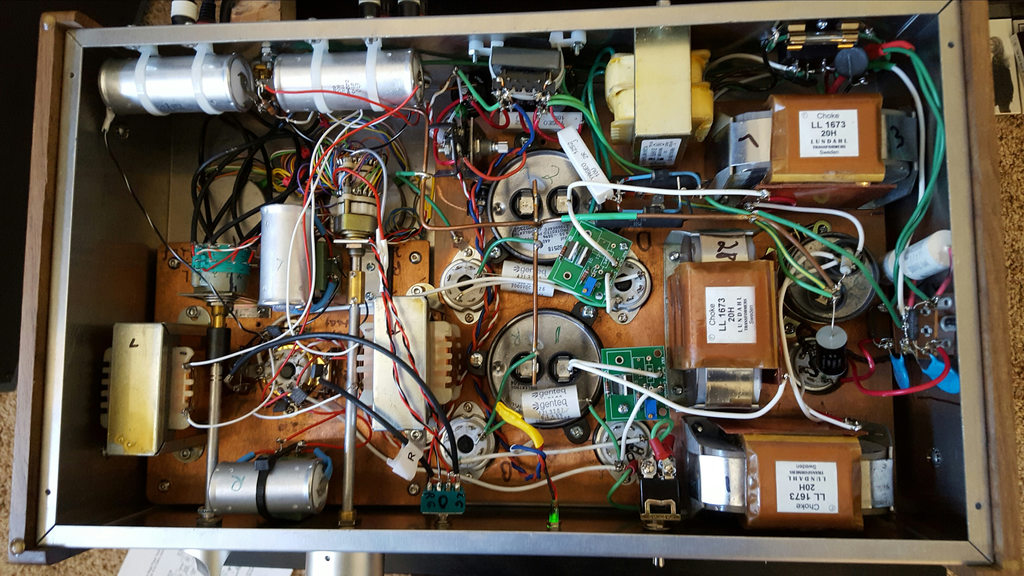

Mr Ed, do I spot OD3 regulators there? got any more info on that?



[Vortex]

No. OPT:s are inside.

Toroidy TTG-6AS7PP from poland.

Omg, such a nice parts shop.. glad I read this forum.. how do the toroid OPTs perform from this company ?



[mr ed]

Mr Ed, do I spot OD3 regulators there? got any more info on that?

It is a CLCLC supply split after the first choke , there is a CCS, OD3 and OB3 then out to the 6SN7.
