PeeCeeBee V4H GB

[Sadik]

I have received the PCB's and Mosfets. Thanks a lot Shaan



[ckwong99]

Hi Shaan this is my single channel completion and sound tested. Just say it is very stable with best sound imaging , power and have good sound detail with all bands in balance o/p.



[ckwong99]

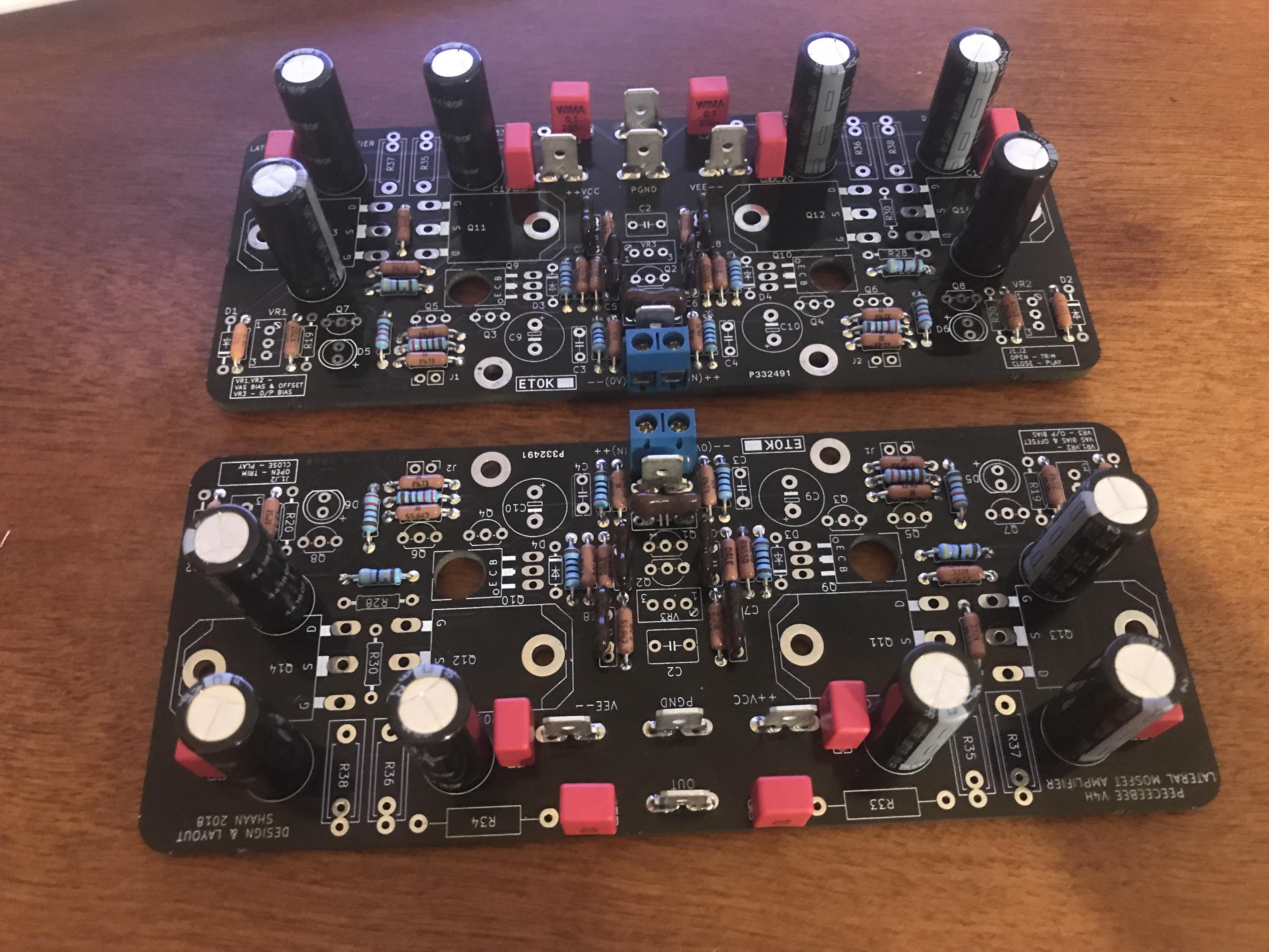

This is v4h construction



[shaan]



[smartx21]

This is v4h construction

I've got some cupper adhesive strip, and I'd like to learn about lytics covering. Thank you.



[pinnocchio]

If you cover your caps with copper adhesive, wouldn't it be a good thing to ground the shielding in a star pattern?



[Oracle1]

Instead of 220uf isn't better to put 1000uf?



[ckwong99]

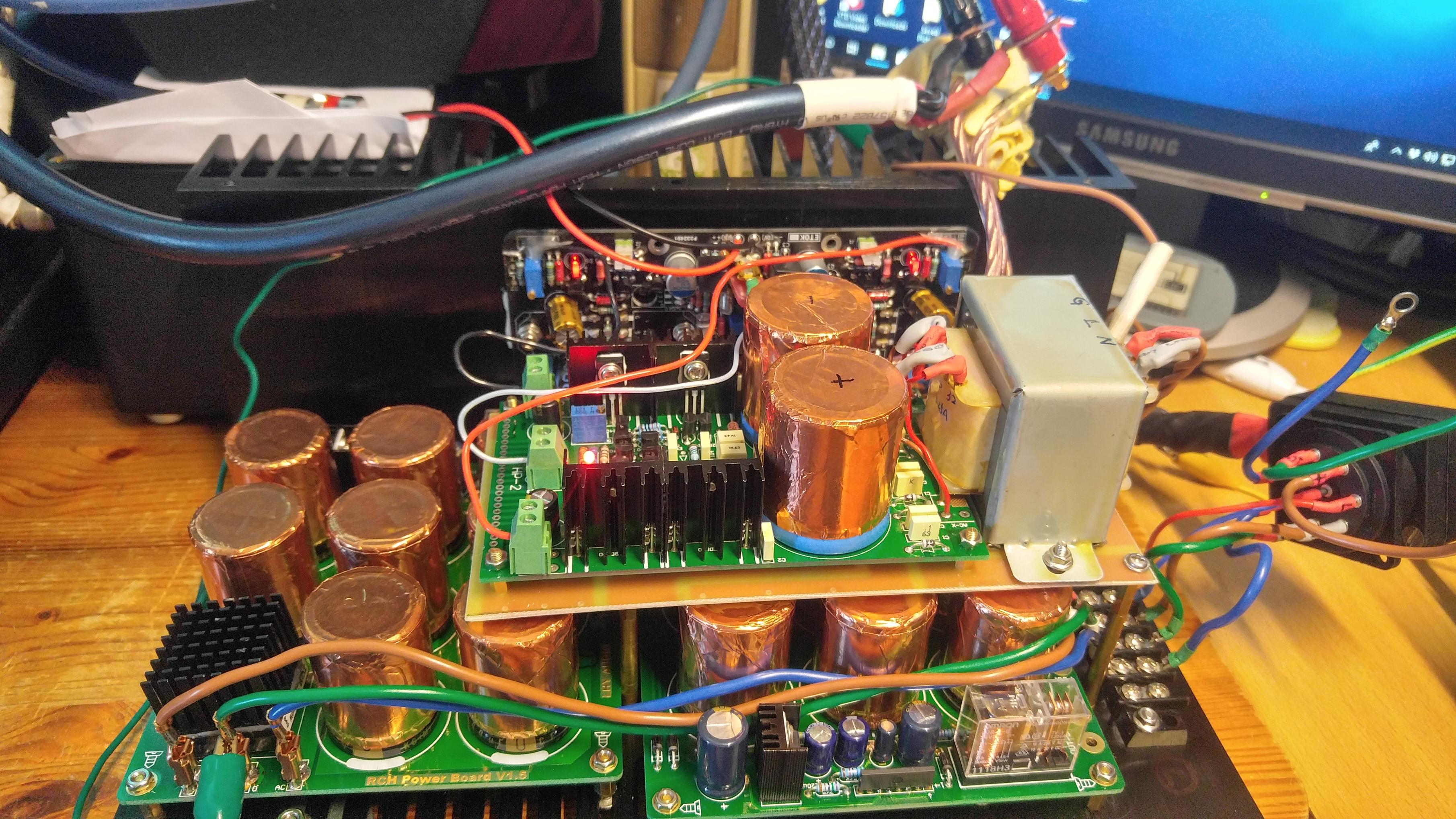

My copper adhesive on cap w/o ground it , so it just a radio HF guarding but not a shielding. My friend told me that he have the experience to compare both w/ and w/o copper guard. Actually, the HF from tweeter is smoother a little bit when he use the copper. Also I tried in power transformer, it is really sound better than before w/o copper.
All above just for your reference :>



[outtek]

Hi Shaan, any more pcb's shipped?



[shaan]

GB Update:

Sadik - 2 PCBs + 4 PAIR MOSFET - SHIPPED
Oracle1 - 2 PCBs + 4 PAIR MOSFET - SHIPPED
J.M.K - 4 PCBS + 4 PAIR MOSFET - SHIPPED
vvs07 - 4 PCBs - SHIPPED
Vunce - 4 PCBs + 4 PAIR MOSFET ( + 4 V4 PCBs ) - SHIPPED
steefdebruijn - 2 PCBS - SHIPPED
Kheon - 4 PCB's - SHIPPED
Neurotica - 2 PCBs - SHIPPED
Arthur -6 PCBS - SHIPPED
craydive - 4 PCBS - SHIPPED
PinkPink - 4 PCBs - SHIPPED
CitizenKane - 4 PCBs - SHIPPED
outtek - 2 PCBs + 4 PAIR MOSFET - SHIPPED
The Prof - 2 PRE-ASSEMBLED MODULES - SHIPPING PAID (ASSEMBLING)
Ajit - 2 PRE-ASSEMBLED MODULES - SHIPPING PAID (ASSEMBLING)
amitskamal - 2 PRE-ASSEMBLED MODULES - SHIPPING PAID (ASSEMBLING)
gtose - 2 PCBs - SHIPPING PAID
gaborbela - 2 PCBs - SHIPPING PAID
ejno - 2 PCBS - SHIPPING PAID
abanico - 2 PCBs + 4 PAIR MOSFETs - SHIPPING PAID
hallcon83 - 4 PCBs - SHIPPING PAID
Malvin - 2 PCBs + 4 PAIR MOSFET - SHIPPING INVOICE SENT

I have been sick for a few days so packing got delayed. All the pending shipments will be done this week. Thanks everyone for your patience.

If there is a mistake in the list then please let me know.
Thanks.



[Vunce]

Hi Shaan,
I received all my goodies today, the boards look great! Very solid feel.
Thank you



[ckwong99]

Hi Shaan. Can i modify c9 & 10 to 4700u value. If do so , how the sound would be changed ?



[shaan]

Hi Shaan,
I received all my goodies today, the boards look great! Very solid feel.
Thank you



[shaan]

Hi Shaan. Can i modify c9 & 10 to 4700u value. If do so , how the sound would be changed ?

Their value primarily controls the low-frequency response of the amplifier. Above 2200uF there seems to be no change other than allowance for sub-1Hz frequencies which is useless (and potentially dangerous for the speakers).



[ckwong99]

Thanks Shaan your conclusion



[asuslover]

v4 turbo

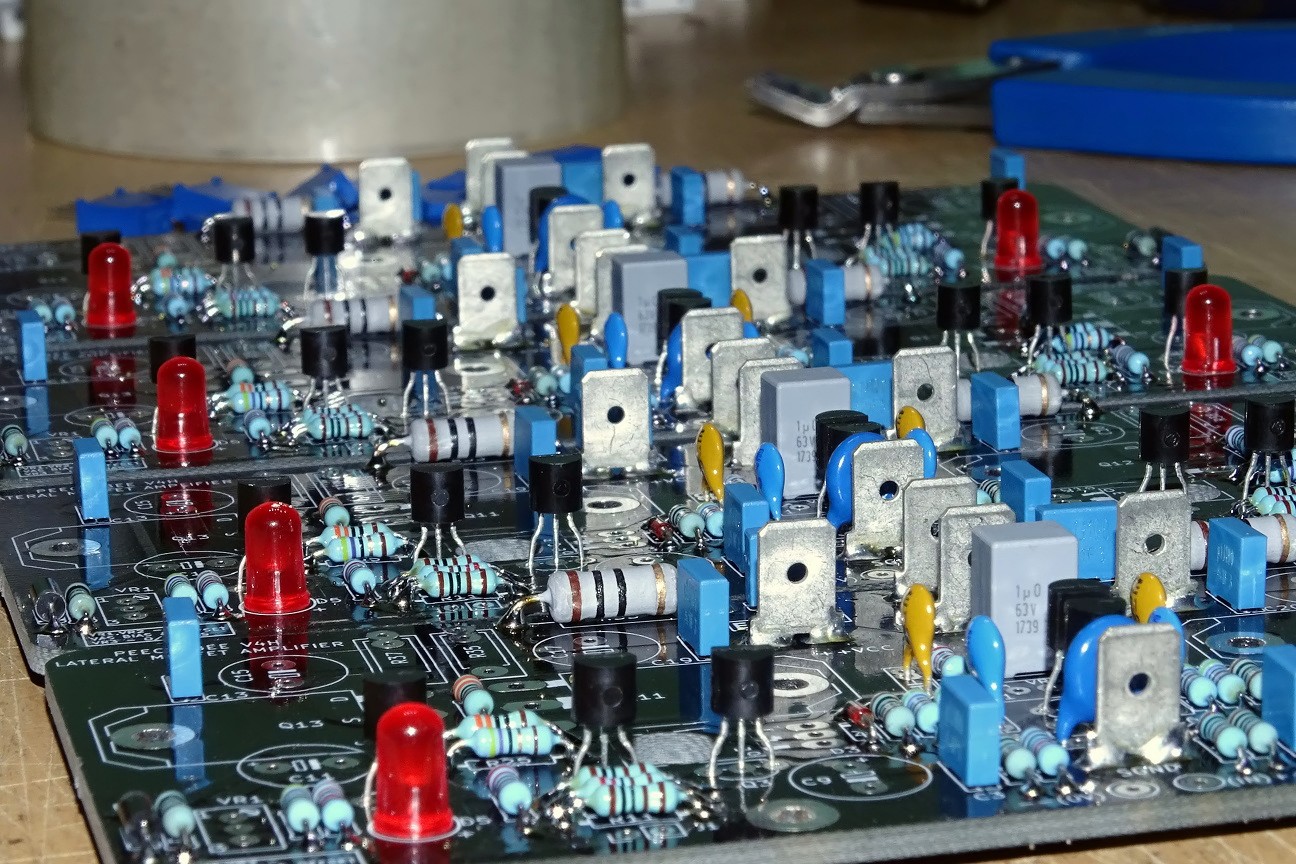

I started populating my boards, but only with " in the house already" components, this is my progress ,
I need to order the rest of them. I am very picky about the electrolytic caps, for amps I am always using 105C rated , those 6 (for each board) ugly looking caps are 270uf/63v panasonic FR, for c9/c10 I will probably use nichicon KA or panasonic FM. Any other suggestions ?



[shaan]

I started populating my boards, but only with " in the house already" components, this is my progress ,
I need to order the rest of them. I am very picky about the electrolytic caps, for amps I am always using 105C rated , those 6 (for each board) ugly looking caps are 270uf/63v panasonic FR, for c9/c10 I will probably use nichicon KA or panasonic FM. Any other suggestions ?

Looking good! Get Panasonic FM for 2200uF and FC for 220uF. This combo has been giving me great sonics.

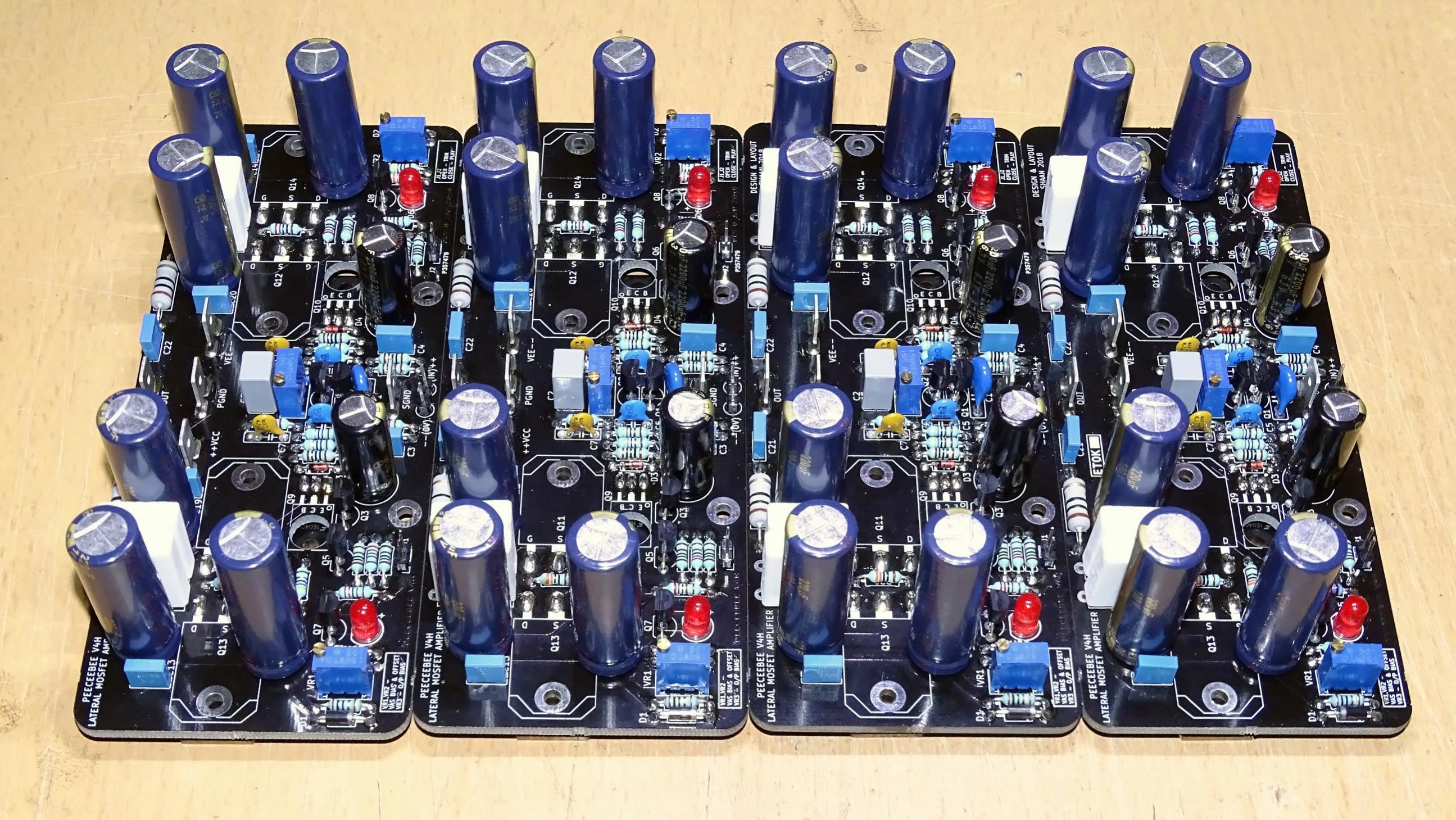

Attached a couple pic of the four channels just been readied for testing. Another couple V4H and V4 channels are being assembled now.



[shaan]

Hi Members.

I am trying to make a video series showing assembly of the V4H. These are timelapse videos and just depict the usual route I follow to solder the parts on the board and might help someone. So far I have uploaded 6 videos and there's more coming (along with a couple on V4 and PSU and their setup). I will also upload one showing how to bias and set-up the amplifier. If you don't understand any part feel free to ask.

Here is the channel link: Youtube - PeeCeeBee

(p.s. please don't hate on the ugly board holder... it has stayed with me for 18 years now and still kind of works so I use it instead of a proper honding mechanism although you will see that it often wants to turn when big boards are held. )



[gaborbela]

Thank you!



[bhrt]

Hi Members.

I am trying to make a video series showing assembly of the V4H. These are timelapse videos and just depict the usual route I follow to solder the parts on the board and might help someone. So far I have uploaded 6 videos and there's more coming (along with a couple on V4 and PSU and their setup). I will also upload one showing how to bias and set-up the amplifier. If you don't understand any part feel free to ask.

Here is the channel link: Youtube - PeeCeeBee

(p.s. please don't hate on the ugly board holder... it has stayed with me for 18 years now and still kind of works so I use it instead of a proper honding mechanism although you will see that it often wants to turn when big boards are held. )

thanks for all your Hard work.
