Noob question here regarding mounting PCBs...
For standoffs with the base plate, it looks like M3 standoffs cold work, but the holes may allow for M4, is that right?
And mounting the amplifier PCBs to the side plates with the UMS system --- is UMS M3?
Just want to make sure I have all the right sizes when placing my parts order!
For standoffs with the base plate, it looks like M3 standoffs cold work, but the holes may allow for M4, is that right?
And mounting the amplifier PCBs to the side plates with the UMS system --- is UMS M3?
Just want to make sure I have all the right sizes when placing my parts order!

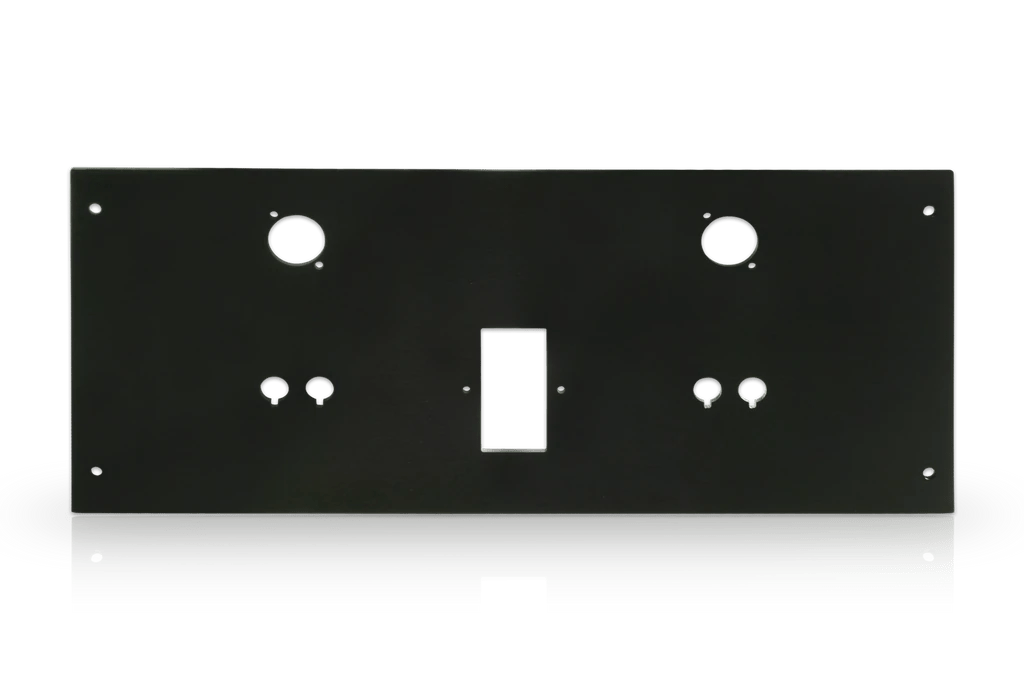

I'm in the same boat, ready to order a pair of Monoblocks but desire a slightly different set of cutouts on the backpanel:
2 input whole (1 to be used for XLR, the other for RCA),
4 Binding posts (for ease of bi-wiring)
1 Power socket
When you think about it, it's basically the same set of wholes on a stereo backpanel for the 4U Deluxe, but sized for the Monoblock.
I don't have the CAD skills (at all) for laying that out on the baseline .dxf Gianluca provided above.
Assist?
No worries, I got your back. We've already drilled a couple of MonoBlock rear panels with the "Deluxe" layout so it's not a problem to do more 🙂
You simply need to add 1x CNC work on a 2/3/4mm panel (up to 20 holes) for every panel we have to drill and write in the notes it's for this special panel
You simply need to add 1x CNC work on a 2/3/4mm panel (up to 20 holes) for every panel we have to drill and write in the notes it's for this special panel
I ended up placing my order for a pair with ums through the diyaudio store page. It looks like the page is now down and I forgot to note the estimated ETA for these. Do we have an idea when they might be shipping?
That's odd, I'll tell Jason about this so maybe he can get the page back up. Anyway we should start shipping these around the end of next week/beginning of the one after

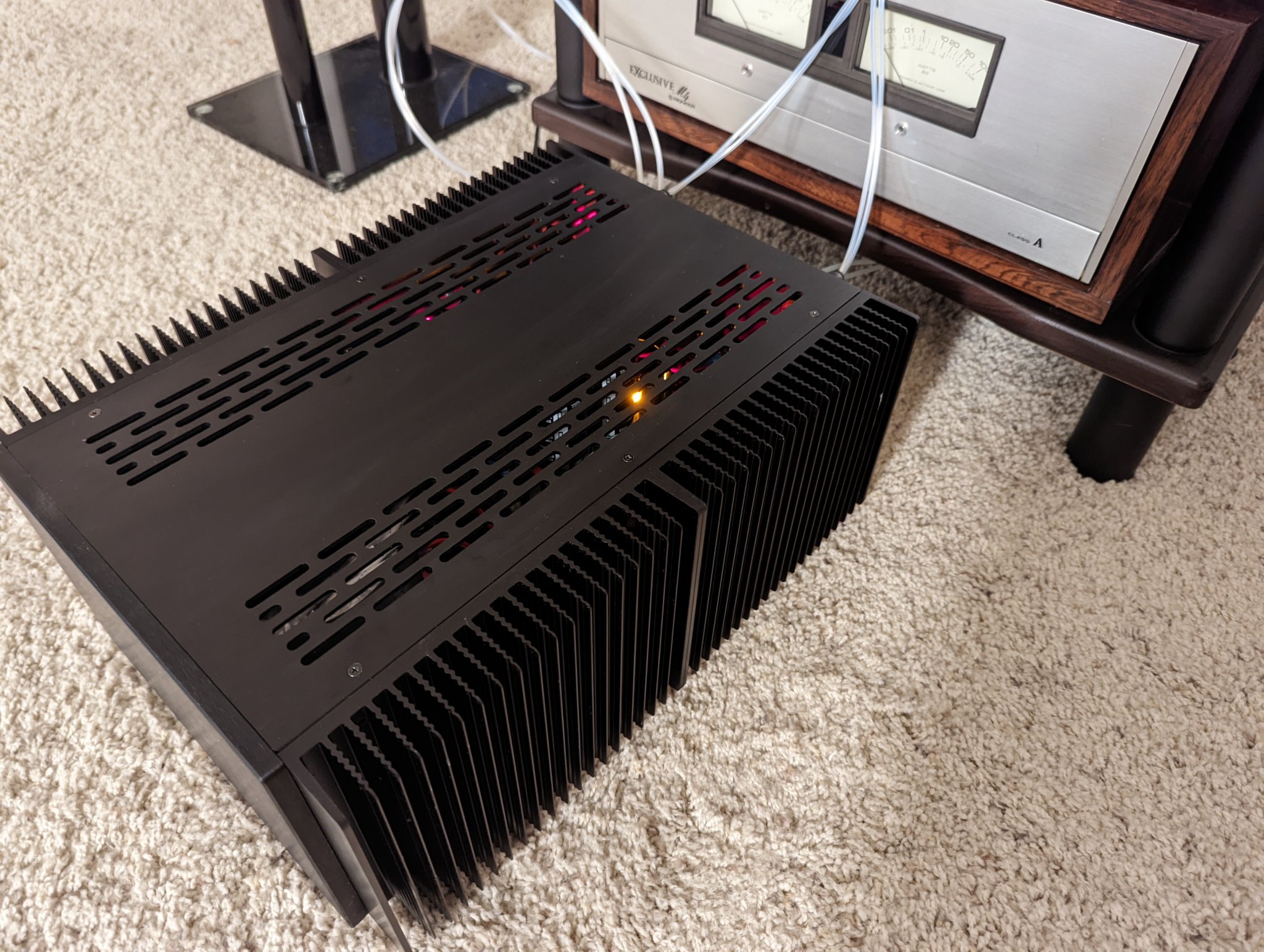

Great build! I was actually expecting the model with only 2 heatsinks per side to be more popular but it seems like the one with 4 heatsinks got the better of it
At the moment these are only purchaseable directly through our website
Last edited:
Hi folks,

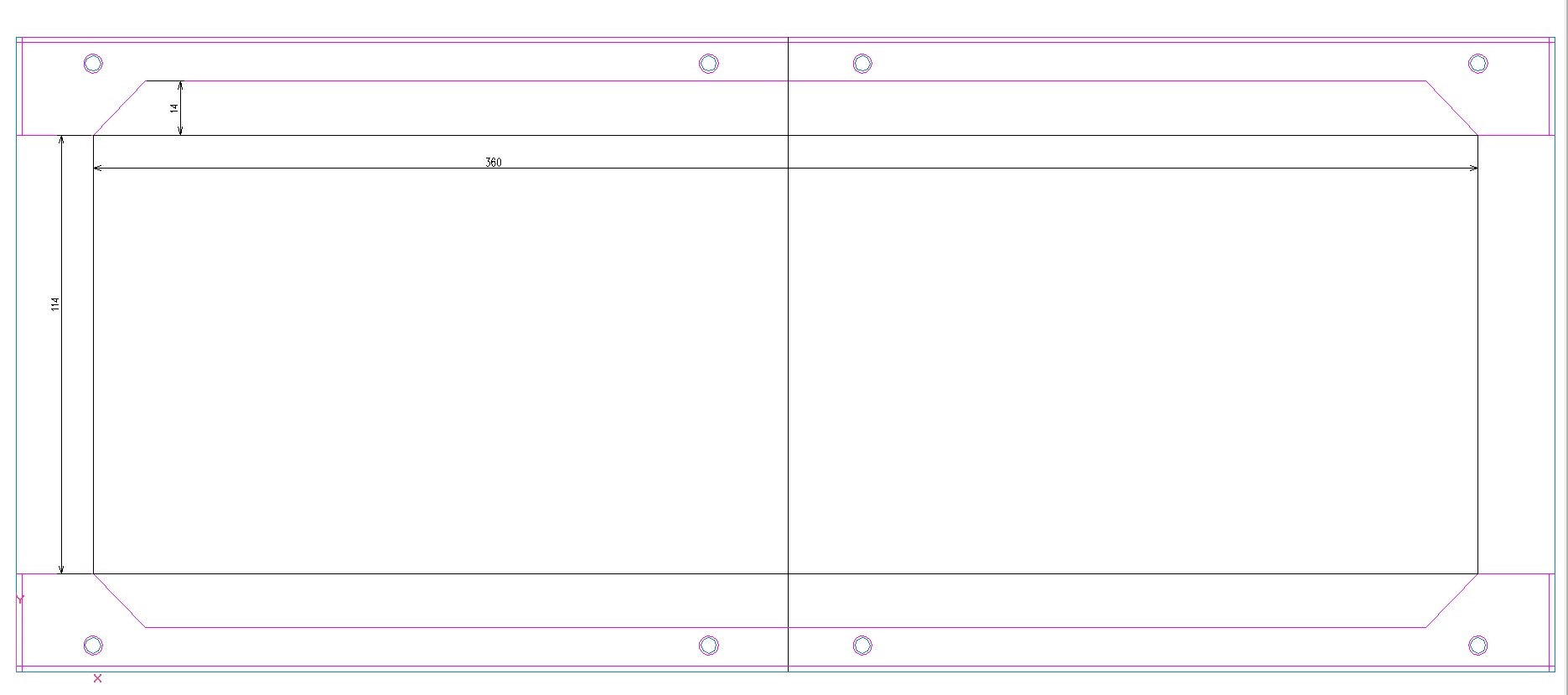

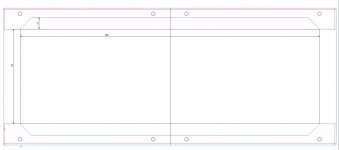

Can someone give me the dimensions of the remaining space left on the heatsinks (width and height in mm) after the steel mounting bracket is installed? This would be the ‘workable’ space that one can use on the heatsinks for mounting our amp boards.
Thank you!
Anand.
Can someone give me the dimensions of the remaining space left on the heatsinks (width and height in mm) after the steel mounting bracket is installed? This would be the ‘workable’ space that one can use on the heatsinks for mounting our amp boards.
Thank you!
Anand.
