My "audiophile" LM3886 approach

[doggy]

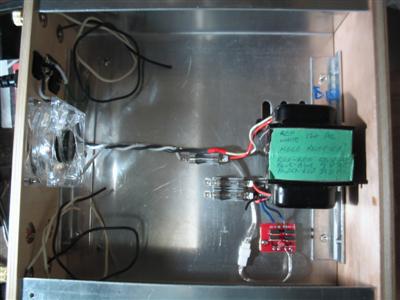

interior view, fan runs on 12 v dc, may add an on-off switch later.



[troystg]

I'm honoring Mauro by ordering another set.

This beta sounds so good I have decided to use a regular set in MY reference system.

Brian-

Give me a couple of weeks to finish my speakers and I will place the order.

Thank you so much Russ and Mauro!



[doggy]

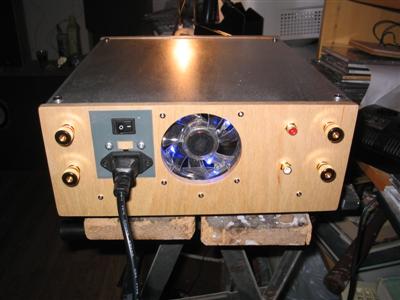

back view, output posts can be expensive; these were $10. /four. The output posts are drilled and the wires fed directly into the binding post holes.

cheers doggy



[maf_au]

Looks good doggy,

How much noise does the fan make?



[doggy]

Very minimal noise; I can stop it easily with my finger, just a gentle flow; cooler master comp. fan. I tried laying the running fan on another chip amp I have and I could not produce any audible interference.

doggy



[Russ White]

Doggy, all I can say is wow! Great craftsmanship. Thats an amp to be proud of.

Cheers! And great work!





Troy,

You are very kind, I am so glad you like your amp.

Maruo really blessed us with this one.

Cheers!
Russ



[doggy]

thanks Russ; and it definitely took some time to do. Thanks also for the work you and Brian have done to make this amp possible.

cheers
doggy



[squalor]

WHOOHOO ! My kit arrived today. I've never done anything like this before so I'll be waiting for the tutorial and practicing my solder skilz on a dead VCR. My speakers are almost done too.
You guys rock, some really great looking chassis.



[doggy]

hi squalor;

are those fe206e? nice looking horns, who's horn design is that?

cheers
doggy



[maf_au]

Never mind the Horns, how do you stop that Dog from knocking over the fancy Goblets?

Michael



[sagarverma]

very long thread

continue,i m looking where it ends up and what all comes up



[squalor]

are those fe206e? nice looking horns, who's horn design is that?

Yes, what knowledgeable eyes you have doggy. They're Ron Clarke's Dallas II. Powered by RCA 50W See why I need a My_Ref.
Dog break goblet, dog go to Mongo. Dog CAREFUL !

a Twisted Pear question since the Kookaburra and Aracari are somewhat digital ..... is there a chance for a IR sensor ?



[Russ White]

Yes, what knowledgeable eyes you have doggy. They're Ron Clarke's Dallas II. Powered by RCA 50W See why I need a My_Ref.
Dog break goblet, dog go to Mongo. Dog CAREFUL !

a Twisted Pear question since the Kookaburra and Aracari are somewhat digital ..... is there a chance for a IR sensor ?

Yep, it's in the works.



[Nordic]

Hey Russ, quick question, how do you mail international pcb packages, I.e. 6 days, 6 weeks...

Secondly, can I get a partslist from somewhere in the meantime?
I would love to start hunting down components, its quite a mission here sometimes.



[Russ White]

Hey Russ, quick question, how do you mail international pcb packages, I.e. 6 days, 6 weeks...

Secondly, can I get a partslist from somewhere in the meantime?
I would love to start hunting down components, its quite a mission here sometimes.

Hi Nordic, your package should arive soon. It was sent USPS global priority.

The parts list is on the twisted pear site.
http://www.twistedpearaudio.com/revckitbom.html

Click on the appropriate link to see those parts.

Cheers!
Russ



[Russ White]

Here is the BOM exported from eagle which will give you the resistor values.



[BrianDonegan]

Here's a copy of the BOM spreadsheet. Similar to what can be found on the site, but lists all the individual resistors.



[troystg]

"The parts list is on the twisted pear site.
http://www.twistedpearaudio.com/revckitbom.html

Click on the appropriate link to see those parts.

Cheers!
Russ"

Dude that is so sweet!... To be able to see the parts so easily... Great web work...



[Russ White]

[B
Dude that is so sweet!... To be able to see the parts so easily... Great web work... [/B]

Thank Brian, He is the guy behind that work, and I agree he is doing a good job.



[BrianDonegan]

Thanks! I'm just not doing it often enough.

If I could figure out a way for my son to be excited about me working on the web page, I might be able to update it more often. Unfortunately, it's not as fun as playing with toy trains for him.
