Mini-Me phono preamp

[sebuschi]

What would be the power ratings for the resistors R22 and R23?



[Koifarm]

Current through R22, R23 is 12ma. Dissipated power is 68mW. So 1/4 W resistor should function. But I use in powersupply minimal 0,5W.



[Koifarm]

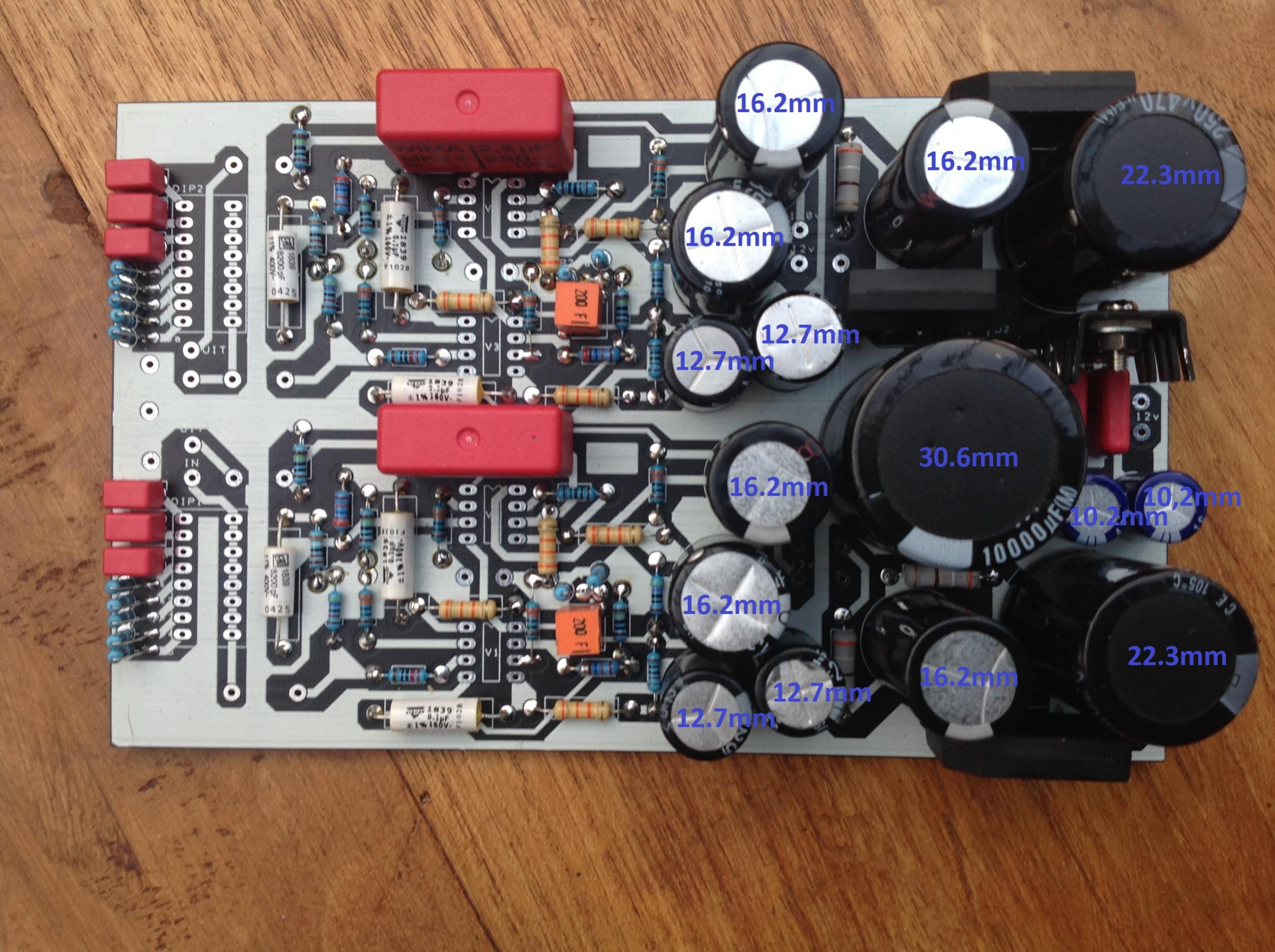

At the picture the diameter of the electrolytic capacitors.



[Koifarm]

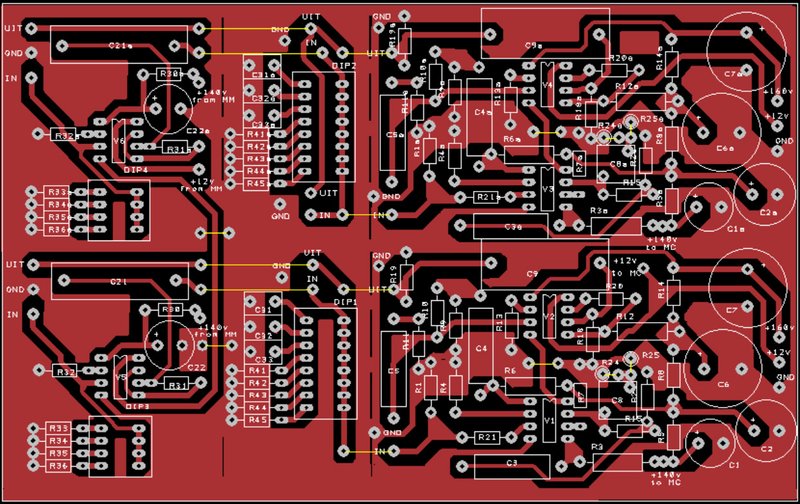

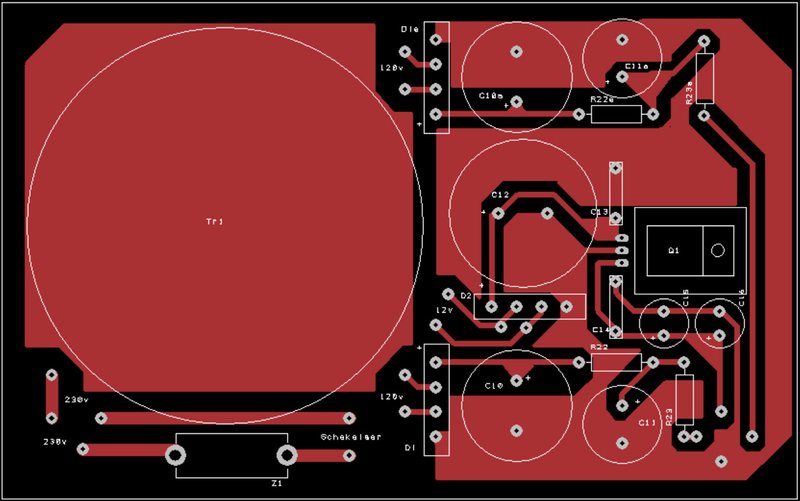

At some request the gerber files for the 2 PCB Minime.



[Koifarm]

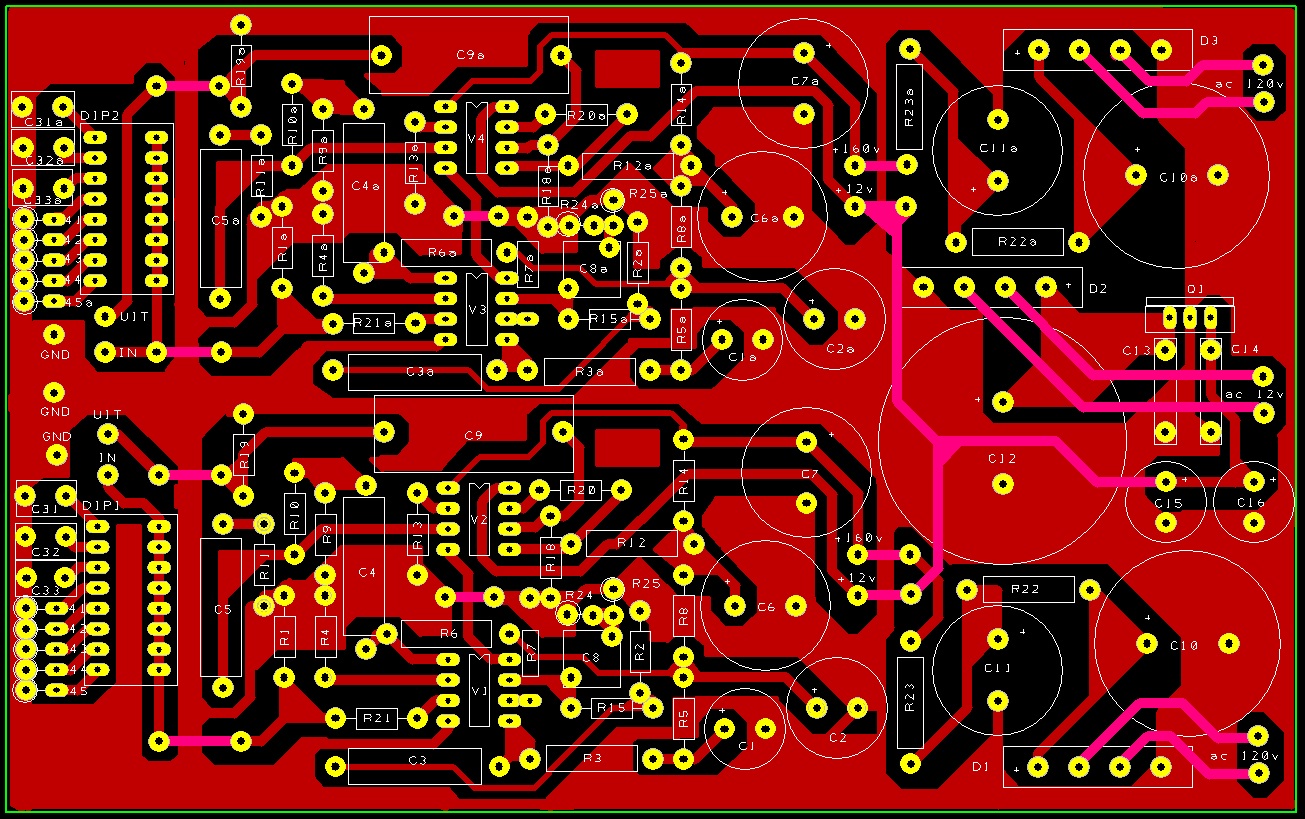

Below the gerber files for the latest Minime V1b one PCB.
With bigger holes were necessary and without the short in the first PCB.



[Ovitzi]

What is the size of the pcb? And is it two layers?



[Schmitz77]

Hello,
like your software for the RIAA curves.
Wonder what programm you use?



[Koifarm]

The pcb is eurocard size 100 x 160mm.
It is a double layer pcb. You get all the info when uploading the gerberfiles to JLCPCB.

I just calculated the riaa myself and optimized it with my spectrumanalyzer.



[Koifarm]

See post 1



[Koifarm]

Post 1 updated as-build
