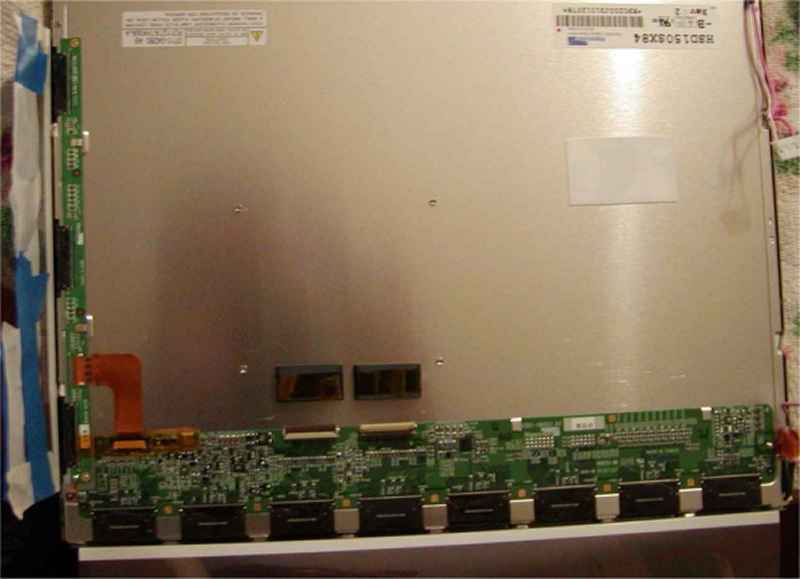

Here it is. Note the short flat cable on the lower left. The connector is a 20 pin subminiature that flips up. This prevents the boards being relocated out of the way so you can remove the backlight and replace it with an OHP. It would be nice if we had a source for extension cables, but I am sure if they were available someone would have posted it by now. If I can find the female connector, I may make an attempt to create my own.


It is now back together and working fine. I didn't look at the pictures until after it was back together, so I apologize for the quality and the shadow of my head and the camera.

Regards,
BigTinker



[bigtinker]

NEC 1555V Picture - final Try

For some reason I cant get the image to come up. I read the FAQ and it says to submit as an attachment. Am I missing something?

BT



[zardoz]

bigtinker

Down at the bottom of your post screen is the attach file Choose button.

zardoz



[bigtinker]

NEX 1555V BK Picture

I reduced the size, maybe this will help. Thanks for the help Zardoz, that is what I tried the first two times. it wont even show up when I do the post preview.



[bigtinker]

NEC 1555V Picture

The problem with posting turned out to be the browser. I was able to post this to the everything else group as a test.

Here it is:



[18wheeler]

It would be nice if we had a source for extension cables, but I am sure if they were available someone would have posted it by now. If I can find the female connector, I may make an attempt to create my own.

YWH had a post to extend cable a while ago.

An externally hosted image should be here but it was not working when we last tested it.



[karrock]

Has anyone used the Kogi GVision L5QX 15" LCD Monitor in a DIY setup yet? The model has been on the market at least six months and is generally around $250 or so (plus a $50 rebate!). Specs read out pretty well, but will most OHP fresnels handle the size?

Kogi GVision L5QX
15" TFT active matrix LCD
1024 x 768 native res
250 cd/m2 brightness
350:1 contrast
0.297 mm dot pitch (some dealers say 0.28, but the manufacturer's specs out squat -- http://www.4kogi.com)
140 degree horizontal and vertical viewing angles
Antiglare coating
15-pin VGA input only

I read about the rewiring hassles associated with its 14" L4BX sibling and was wondering if it had the same problems. A search on the model number brought up zero information.

Any feedback would be great! Thanks!



[ace3000_1]

lcd panels/laptop panel controller overveiw

well here are some links for people who dont know about laptop pannels and what u need to know to get one to work

http://www.eio.com/public/lcd/

http://www.eio.com/lcdconnect.htm

http://www.geocities.com/p9019/lcdpanel.html

Trev



[Neversaid]

Infocus 1600LC

Hello all...
yesterday i borrow an old lcd panel from school...
What a pitty i didnt find any results / tests on this panel..
so i'll make a review..

Name : Infocus 1600LC Panel
Year : 1993
Colors: 16 (Bad ! 2 Color Layers Green/Red)
Res. : 640x480 / 800x600
Inputs : special Cable / VGA /Mac on Cable

So.. the 16 colors really sucks.. thats bad..
It's impossible to watch a movie without getting eye-cancer
..
The reaction time is very fast.. one positive point but all in one the
panel is :
- very dark
- bad colors (yeah mixed red/green colors...)
+ points:
- up to 800x600
- fast reaction

but all in one not usefull for a DIY projector project..
I hope i could help...

Greetings
Bernhard



[vassarguy]

Has anybody tried to disassemble the panels from Earthlcd.com? Are they simple? I'm looking at a 12.1" NEC panel with XGA, an ok contrast ratio (150:1), and I'm not sure what the response time is. Any help would be great. This is my first post, so please go easy on me. Thanks.



[amarok]

vassarguy: you mean the Super Kit SK-2005R?

I sent a mail to earthlcd
>Hi,
>
>just a question concerning your lcd super kit SK-2005R:
>is it possible to separate the lcd modul from the controller?

...and they anserwed:
No, because of the connectors used and direct mating, why would you it does
not make the lcd any thinner to do so.

So it's not possible 🙁

For the specs of the NEC panel follow the link on their site.


cu



[vassarguy]

thanks amarok. I guess i'll just have to look elsewhere



[nzshy]

remote

I have an nView Z115 but I can't fine anywhere to get the remote or the power adaptor. I have read all of diy and still no links. HELP!
Also i just saw a bunch of these panels on ebay so keep checking.
Good luck



[verbose mustafa]

The center pin in the power outlet is positive. 1.5 volts/1500 miliamps should do the trick. These panels are pretty versatile as far as power input. Search your house for a dc adaptor with those specs. Unlike the viewframe series, the z series function are all controlled through the lcd display. No remote need for functionality. I believe the back of the nviews tell you the power ratings as well. I used to get matching power supplies from an electronics parts store for $20.



[nzshy]

Power Adapter

Sorry I'm late with my reply, got a darn cold and stayed in bed for awhile. Many thanks for the info i'll try your suggestion. I did try to read the back of the panel but it was unreadable. Again thanks for your expertise.😀 😀 😀



[verbose mustafa]

No prob, its hard to find info on a company that doesn't exist any more. Too bad I sold the last of my panels/ps's. Some guy randomly IMed me and sent me paypal that night lol. But I remember 1.5 volts worked.



[verbose mustafa]

woops... I must be getting old. Your panel is not 1.5 volts... its 12 volts 2.9 amps... my post from back in the day.

Sorry, this post is a little late , but i figure it may help someone. I just got an nview z series manual. What is says, is that the difference between the z110 and the z115 is only a composite/s-video add on card. The z110 can be upgraded with the option (though nview is out of business, if one were to come across a z115 with a dead lcd and had a z110, they could put the video card add on from the z115 in the z110 . The same is with the nview z210 Vs. the z215. What is the difference between the z11X an and the z21X panels? the z11X is 1.2 million colors, while the z21X is 16.7 million colors. Both panels are VGA (640x480) resolution. If anyone needs the manual, I would be glad to scan it . Hell, I even have an unfilled out nview registration card . On another note, these panels use regular barral style power jacks that are 12 volts 2.9 amps (and the inside of the jack is positive). The Z3XX panels use a different type of power jack that is hard to come by, so if you see a z3XX series panel with no power cord, and your not savy with a volt meter and soldering iron, do not buy it
