Home Built Pass 3 and 5 (design stage)

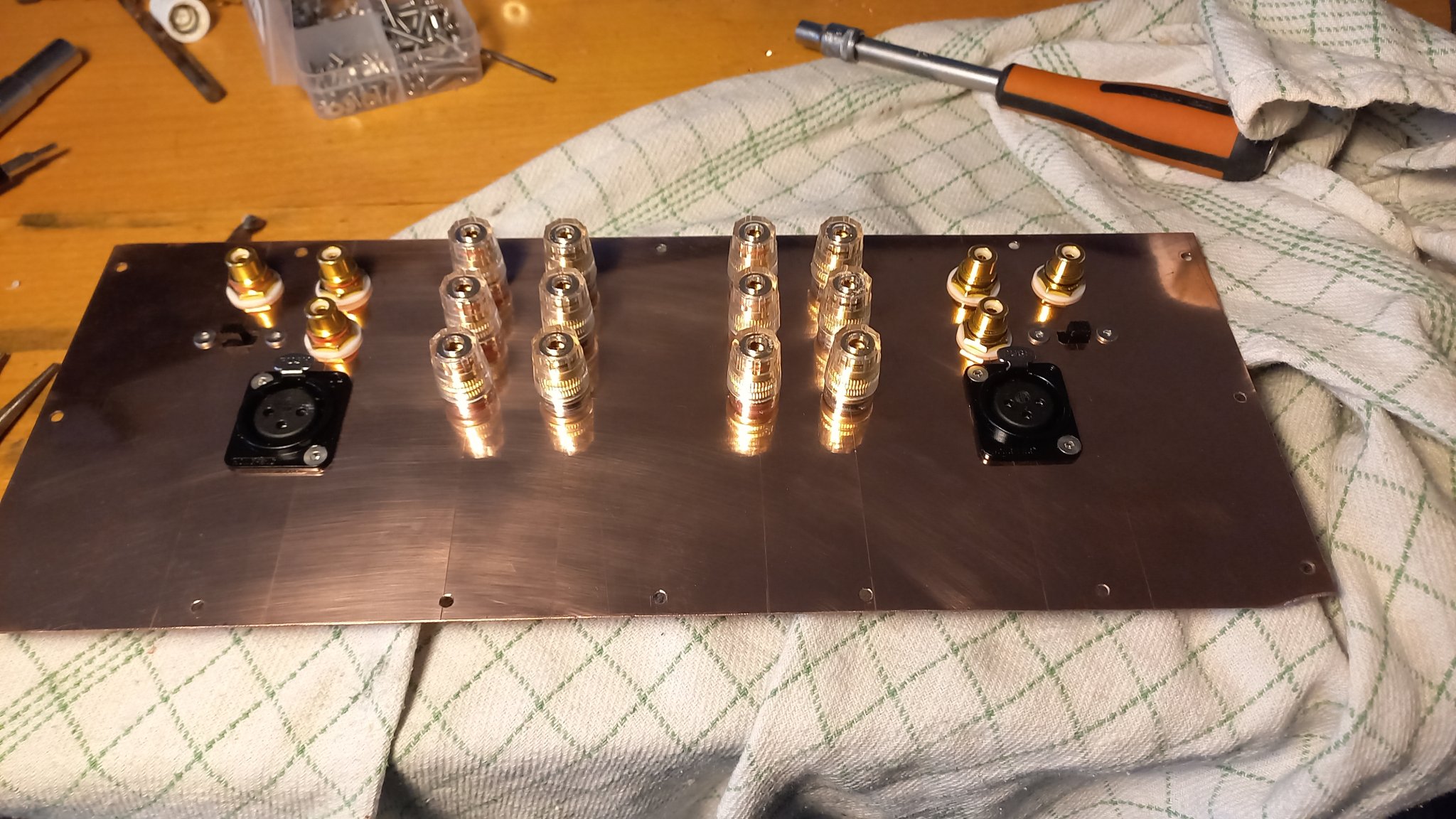

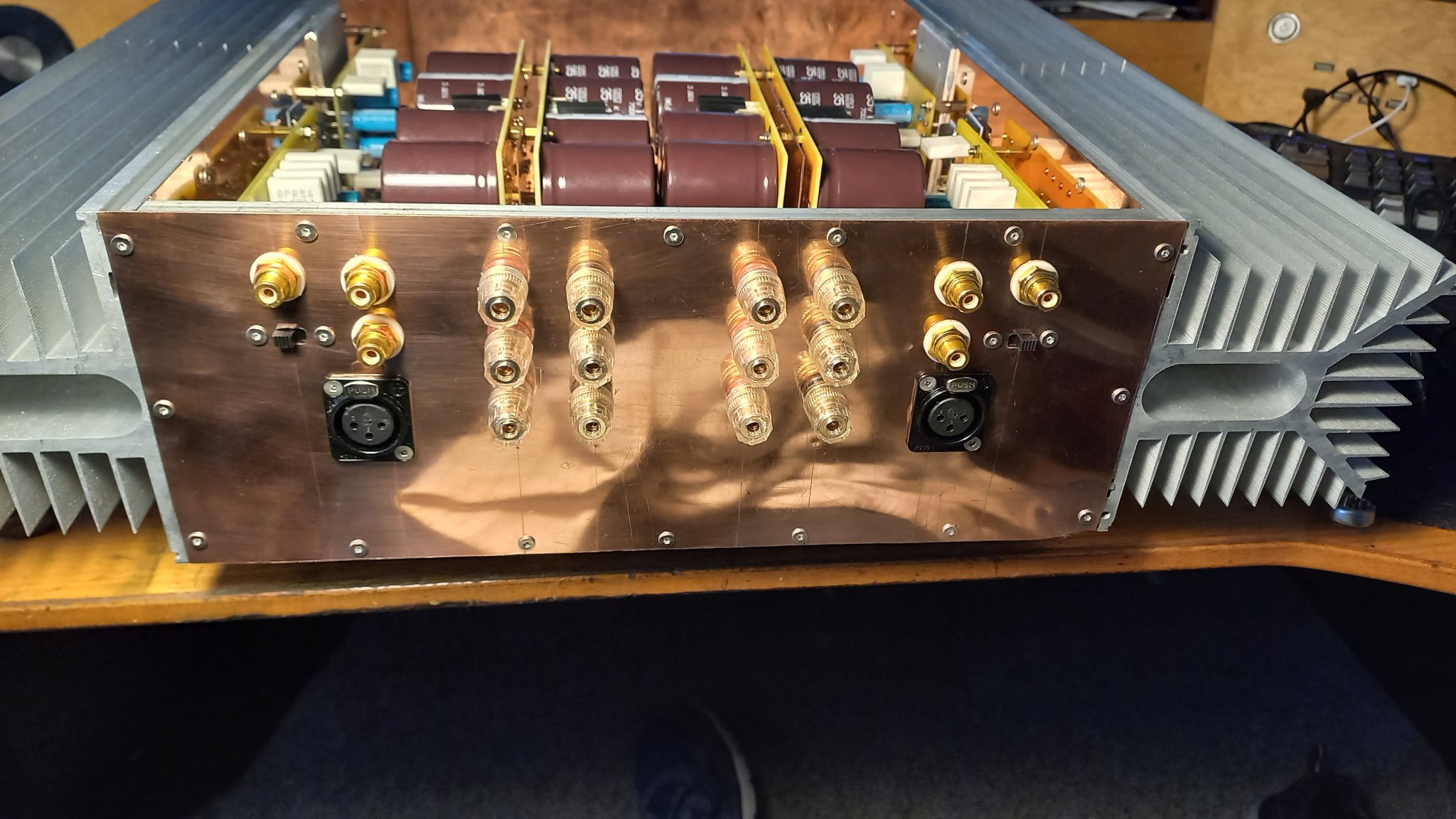

Rear done. Just need 220v in but srill missing the plug.


Attachments

  • 20240131_144747.jpg
    319.5 KB · Views: 133
  • 20240131_143644.jpg
    379.4 KB · Views: 131
Yes, it was also just to show some "crazy fun".
I found a shop selling up to 5mm copper. I dialed in 10 x 10 cm (5mm thick) and the price incl. tax was about 70 Euro.
DAD products are also a bit pricey but this new speaker they have developed has an ok price tag and it is even incl. tax:
https://dadbluecat.com/shop/8-loudspeakers/40-the-miracle/
I should not "pollute" the thread with this.......but 96 dB and 8 ohm......a nice speaker for the amps we build in this thread.
The name "Miracle" is also a good choice thinking of the price.

21" woofer - any - represents significant load to any amplifier, due to unavoidable high moving mass

so, not necessarily extremely potent amp, but one with loads of current at disposal

call it damping factor, call it dynamic potential, call it Berserking

and all that, relatively low power allowed only if speaker designed to all drivers being awake on relatively low SPL

plenty of efficient speakers around, but not sensitive enough, demanding higher SPL to get all drivers in line

  • Like
Reactions: MEPER
Yes, it was also just to show some "crazy fun".
I found a shop selling up to 5mm copper. I dialed in 10 x 10 cm (5mm thick) and the price incl. tax was about 70 Euro.
DAD products are also a bit pricey but this new speaker they have developed has an ok price tag and it is even incl. tax:
https://dadbluecat.com/shop/8-loudspeakers/40-the-miracle/
I should not "pollute" the thread with this.......but 96 dB and 8 ohm......a nice speaker for the amps we build in this thread.
The name "Miracle" is also a good choice thinking of the price.
i have dali helicon 400 mk2s and theres no way i will ever replace them for those 😀 they look terrible.

I think I would volunteer to give them a try......especially for the price 🙂
But I have to admit that bas response is too "boomy" for me. Then my OBL15 has much better and "drier" bas response 🙂
Probably the Youtube sound is not representative for a live experience with the speakers.
Or maybe they just need a Pass or ZM amp design to drive them.
But ZM says we have too little current 😕

Papa's XA25 will have all the current needed for any 21" ....... heck, maybe even Babelfish M25 will have

but, as far as I know, 21" drivers I would listen with my amps are rare as hen's tits

don't need that power, don't need that SPL for which majority of these are made

heck, rather would build something with old Hartley 24" ........... or was it in Yore maybe Diatone, by memory having cone of 10 feet :rofl:

It must be for another thread some day (not to hi-jack this too much) but it seems the speaker impedance curve is not enough to look at when pairing an amp to a speaker. E.g. if the above speaker is a straight 8 ohm line without any major dips how can you know it will need a lot of current?
Now I don't know the above speakers curve so it could have some major dips at the low frequencies.
SPL curve is of course also needed.

Last edited:
I didn't said anything about these speakers, just wrote my thoughts about speakers compatibility with amps of smaller power

moral of the story - my layman logic - I would rather see Mms figure than impedance graph and ...... don't forget - issue of low level sensitivity ( not efficiency!) is really important in same context

one thing is having 2 or 3 way speaker intended for home use and another intended for PA, power levels are completely different
