Hi Randy,
A quick question I have a couple of the Talema 70063 transformer's left from a previous GB.

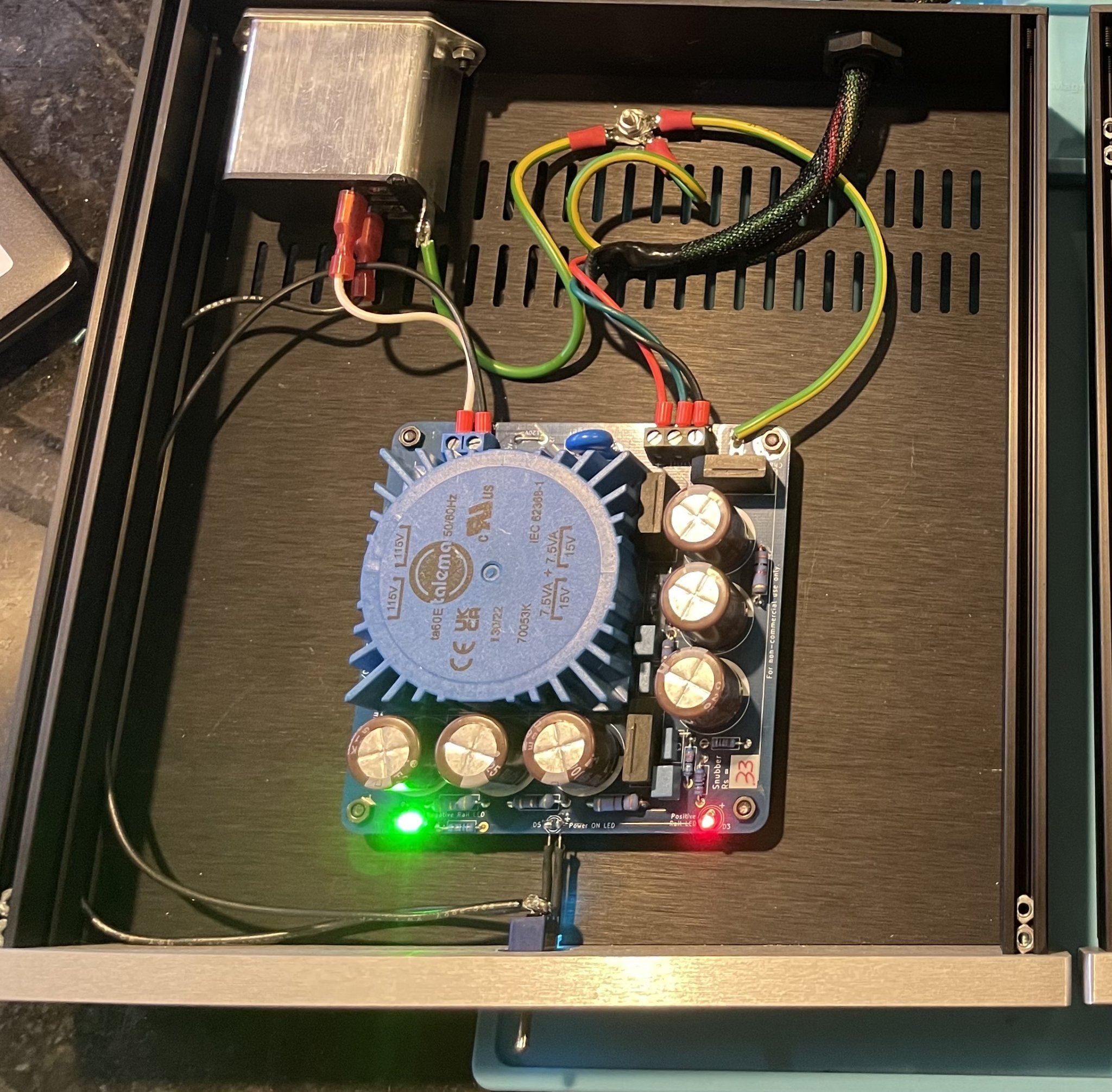

The height of them is approx 38mm and as I understand, a 1U (rack unit) height is 44mm. They should fit the 1U enclosure being advertised by Gianluca, Correct!. Unless 1U is a different measurement in this case. See the pic attached of the trans...
Thanks.
MM
A quick question I have a couple of the Talema 70063 transformer's left from a previous GB.
The height of them is approx 38mm and as I understand, a 1U (rack unit) height is 44mm. They should fit the 1U enclosure being advertised by Gianluca, Correct!. Unless 1U is a different measurement in this case. See the pic attached of the trans...
Thanks.
MM
The 25VA version will be too tall. I think the 1U is 40mm inside. 37.5mm height Transformer + PCB + standoffs = too tall.
Wow, I can't believe that pic in post #242 ended up so dark. Yeah, it would be to tall for the 1U case. Need to ponder a bit to decide the best way forward. Thanks
MM
MM
GB#3
Debk - 1 kit
mordikai - 1 kit
skunark - 1 kit
billc - 1 kit
ranshdow - 1 kit
rogster - 1 kit
ehagerty - 1 kit
ugly woofer
xt0rted - 1 kit
audiosteve - 3 kits
Kokanee - 1 kit
Debk - 1 kit
mordikai - 1 kit
skunark - 1 kit
billc - 1 kit
ranshdow - 1 kit
rogster - 1 kit
ehagerty - 1 kit
ugly woofer
xt0rted - 1 kit
audiosteve - 3 kits
Kokanee - 1 kit
End of May 2024 Updates
- GB3 Shipped
- I have approximately 45-50 kits built up and ready to ship. Simply send me a PM with your shipping info and qty of kits you need. I'll let you know shipping price and how to pay.
@rhthatcher - Disregard my kit request. I just searched my parts bin and have a bunch of the caps and resistors so I don't need a full kit. Apologies.
Are there any precautionary tales to tell about the assembly of this Pearl 3 power supply kit?
Things to avoid or things to do first?
Things to avoid or things to do first?
@DualTriode - a few tips:
Get the Pearl 3 build doc on the P3 thread post #1
See the step by step build guide here.
https://guides.diyaudio.com/Guide/Pearl+3/28
And then the usual wisdom - measure component values before stuffing them
Pay particular attention to the 120/240 jumper wiring instructions
Fire it up and test the output before connecting the umbilical to the P3 RIAA boards
Get the Pearl 3 build doc on the P3 thread post #1
Here is a PDF of of the Pearl 3 from Burning amp 2023 for those of you whom already have circuit boards.
EDIT: Video presentation on Pearl 3 for BAF '23 can be found here - https://burningampfestival.com/videos/
EDIT: Build documentation "Pearl 3 Phono Build Doc-1.0d" is attached below. Version 1.0d is the most current. Download and print.
EDIT: Interview with Wayne about Pearl 3 - #881
EDIT: Modushop/ HiFi200 Chassis set available here -...
EDIT: Video presentation on Pearl 3 for BAF '23 can be found here - https://burningampfestival.com/videos/
EDIT: Build documentation "Pearl 3 Phono Build Doc-1.0d" is attached below. Version 1.0d is the most current. Download and print.
EDIT: Interview with Wayne about Pearl 3 - #881
EDIT: Modushop/ HiFi200 Chassis set available here -...
See the step by step build guide here.
https://guides.diyaudio.com/Guide/Pearl+3/28
And then the usual wisdom - measure component values before stuffing them
Pay particular attention to the 120/240 jumper wiring instructions
Fire it up and test the output before connecting the umbilical to the P3 RIAA boards
Small to large, just like any PCB. I don’t think anybody has had any issues with it at all.
