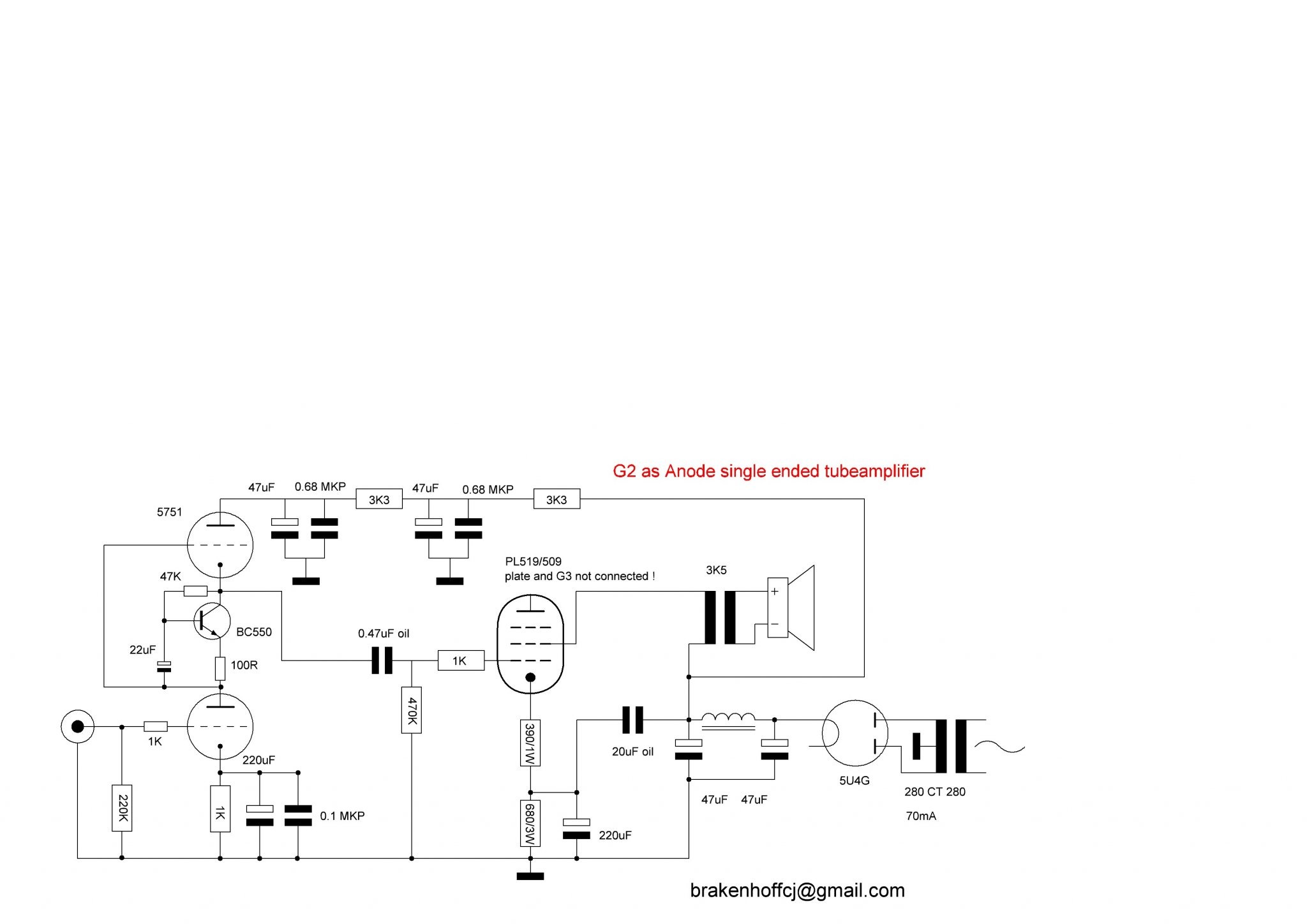

G2 as anode PL519 power amplifier

[KeesB]

The schematic diagram published 22-10 - '24 contains an error (thanks Hans P for alerting me). The grid leak of the 519's is 475K and not 475 ohms.



[jan.didden]

475 Kelvin? You sure it's not 475 k ohms?
Just pulling your leg.

jan



[KeesB]

For those of you who want to use the PL504 Rk becomes 1k4 which means 40ma with 250V across the tube (G2 diss.= 10W) Vb thus becomes 300V . I prefer to leave a portion of Rk non-decoupled for slightly less distortion but that's a matter of taste. For more power just increase the number of 504's, each its own Rk (PL 500's can be used as well).
