The drivers free air resonance goes up when placed in a box, the TC9 went from 124Hz to somewhere between 140 and 170Hz.
It is hard to say exactly what will happen for another driver. The closer the tolerance of the drivers the less likely things will change too much.

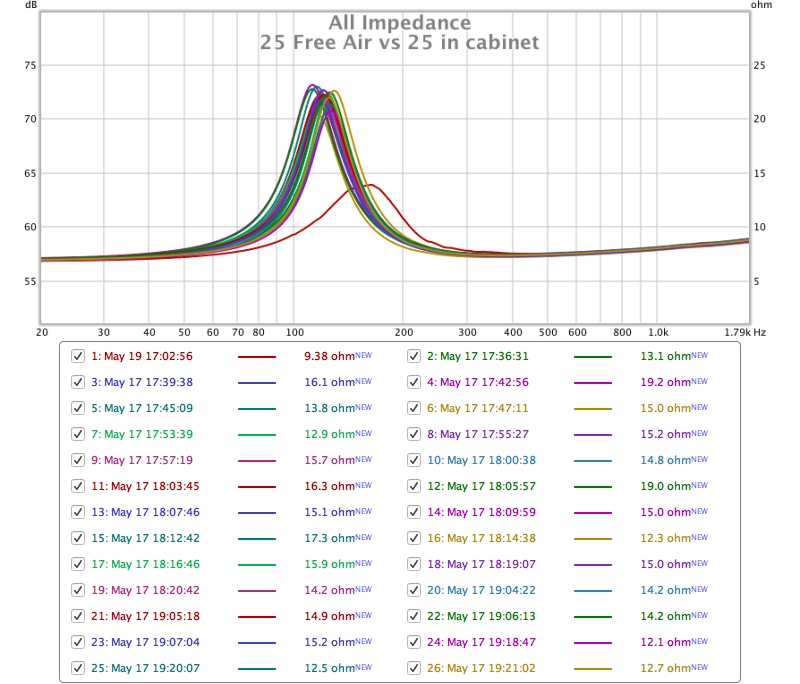

Here is an image of the individual impedances along with the combined in box impedance
It is hard to say exactly what will happen for another driver. The closer the tolerance of the drivers the less likely things will change too much.
Here is an image of the individual impedances along with the combined in box impedance
Attachments
Thnks. So it look like you're showing that even with 25 drivers together the impedance bump still went higher in a cabinet. It looks like multiple drivers has little to no effect on fs, unless the cabient was very small. The red curve is 25 together right?
Last edited:
Yes the red curve is 25 together in a cabinet. The effect of multiple drivers is to spread or flat top the impedance peak in comparison to a single driver. The only reason there is a difference is due to the drivers not being exactly the same. Theoretically if they were perfect there would be no difference.
Restarting
I have recently decided to get my arrays back in service in their new home with some additions
I sold my Linkwitz Orion system and most of the money burned through my pocket quickly 🙂
Here is large piece of printed fabric to be used in a panel on the back wall as it is very close, part of a significant attempt to reduce early reflections

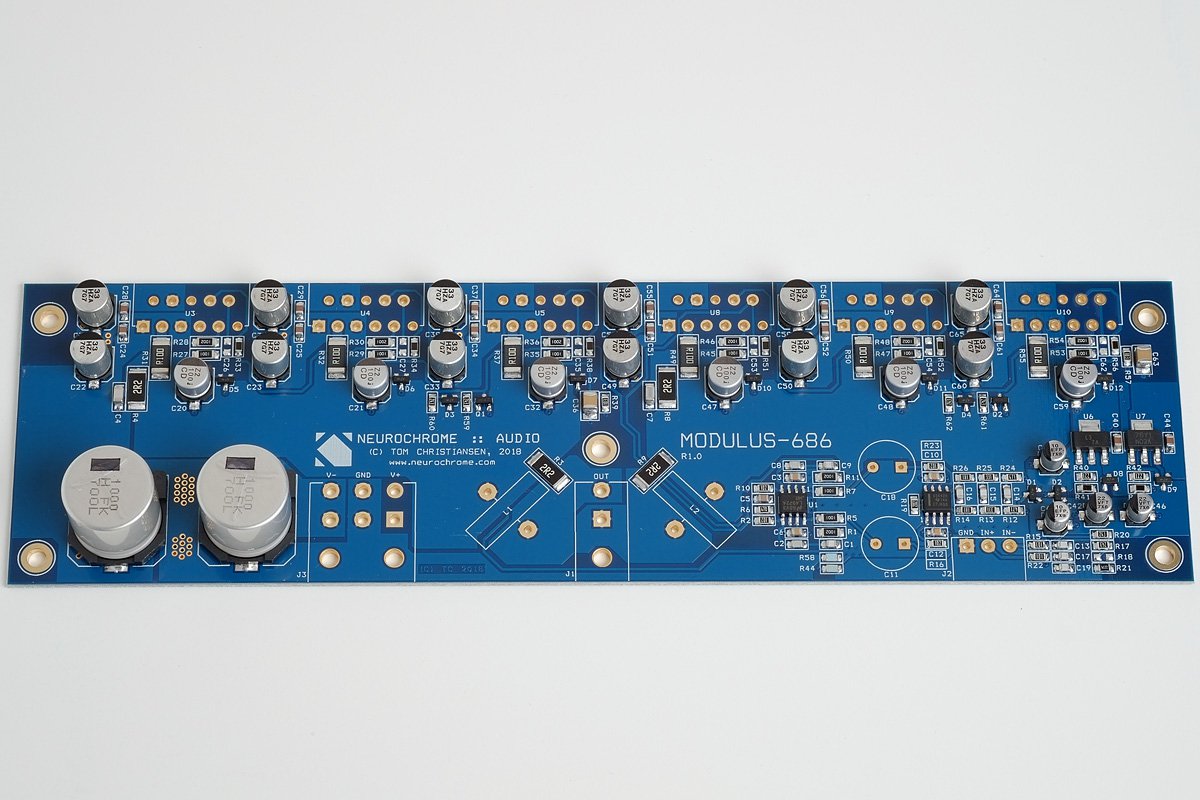

A pair of MOD686 boards from Tom Chr

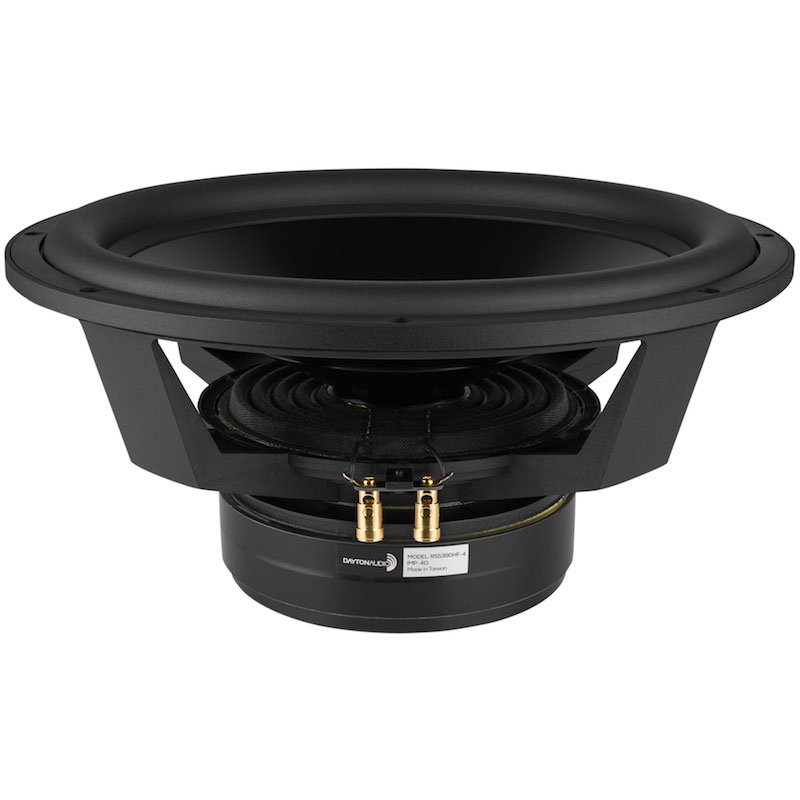

And a pair of Dayton RSS390HF-4 subs, I have procrastinated about these for ages and a 10% offer tipped me over the edge, Vd of 1161cm3, each about 4 to five times what a single array can do
I have recently decided to get my arrays back in service in their new home with some additions
I sold my Linkwitz Orion system and most of the money burned through my pocket quickly 🙂
Here is large piece of printed fabric to be used in a panel on the back wall as it is very close, part of a significant attempt to reduce early reflections
A pair of MOD686 boards from Tom Chr
And a pair of Dayton RSS390HF-4 subs, I have procrastinated about these for ages and a 10% offer tipped me over the edge, Vd of 1161cm3, each about 4 to five times what a single array can do
Attachments
That looks exciting plan : )
Are those nice mod686 power amps intended to drive arrays or subs or is it for both ?
Are those nice mod686 power amps intended to drive arrays or subs or is it for both ?
I hope they are for the arrays. If I didn't have the Goldmund clone, these would have been on my wish list.
I sold my Linkwitz Orion system and most of the money burned through my pocket quickly 🙂
Now, why does that happen to us all? Can't pockets be made stronger 🙂
Here is large piece of printed fabric to be used in a panel on the back wall as it is very close, part of a significant attempt to reduce early reflections
Hope the money was not spent mostly on the fabric! 😀
Jokes aside, Tom's Mod-686 should be a good addition to your system. And that 15" Dayton sub looks like it means business... your house is about to get a mighty wallop... that is when you've done some building and ready to rock and roll.
Good to see you back at the game!
Thanks it is exciting to divert my attention away from renovations for awhile 🙂That looks exciting plan : )
Are those nice mod686 power amps intended to drive arrays or subs or is it for both ?
MOD686 is for the arrays
Yep arrays, they might resemble the Goldmund clone a little from the outside as they will be in a 5U chassis that I already have.I hope they are for the arrays. If I didn't have the Goldmund clone, these would have been on my wish list.
Ha Ha! The printed fabric was not expensive as they had a free shipping offer on, if only Parts Express had the same offer!Now, why does that happen to us all? Can't pockets be made stronger 🙂
Hope the money was not spent mostly on the fabric! 😀
Jokes aside, Tom's Mod-686 should be a good addition to your system. And that 15" Dayton sub looks like it means business... your house is about to get a mighty wallop... that is when you've done some building and ready to rock and roll.
Good to see you back at the game!
The sub drivers should be here soon so I have trying out a design

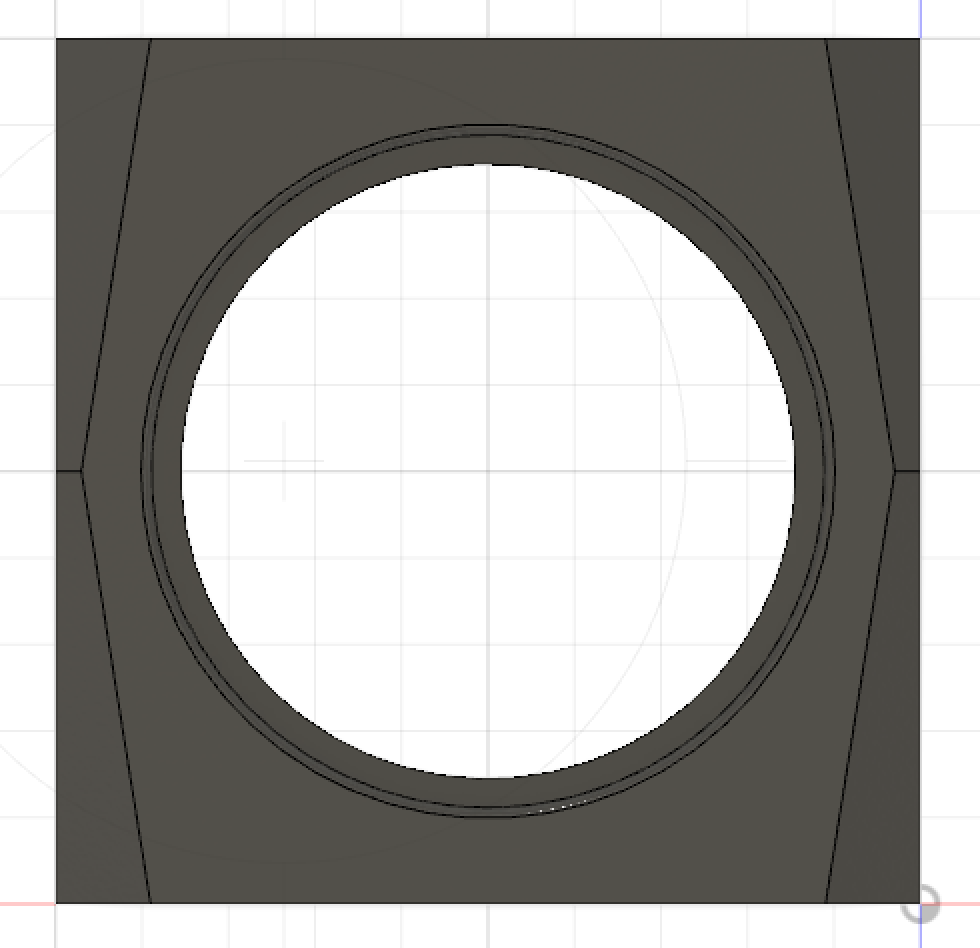

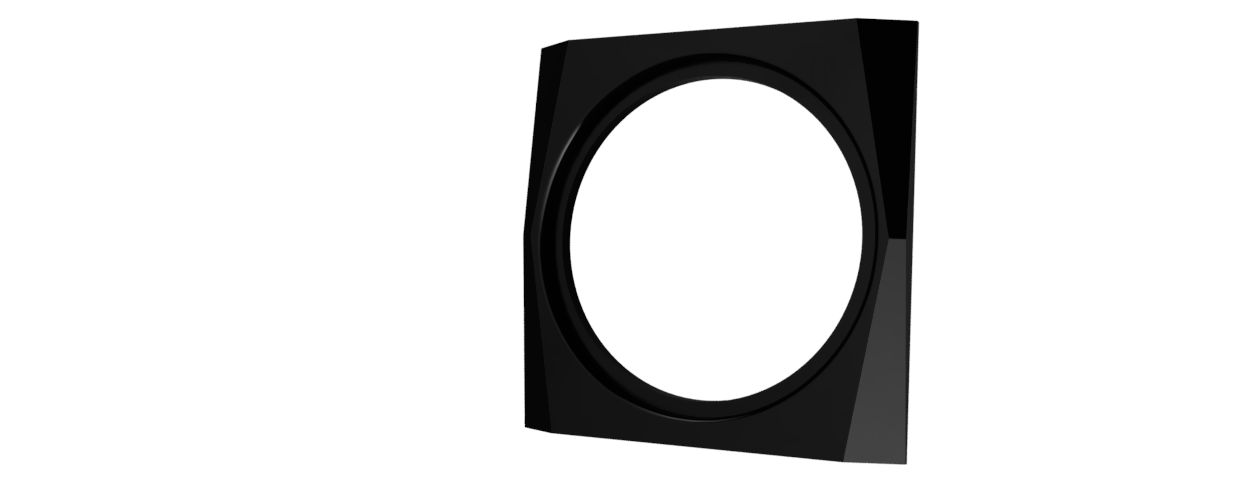

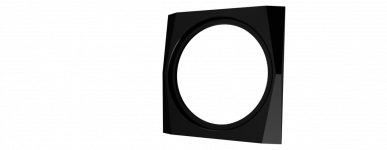

I am thinking of this for the front panel

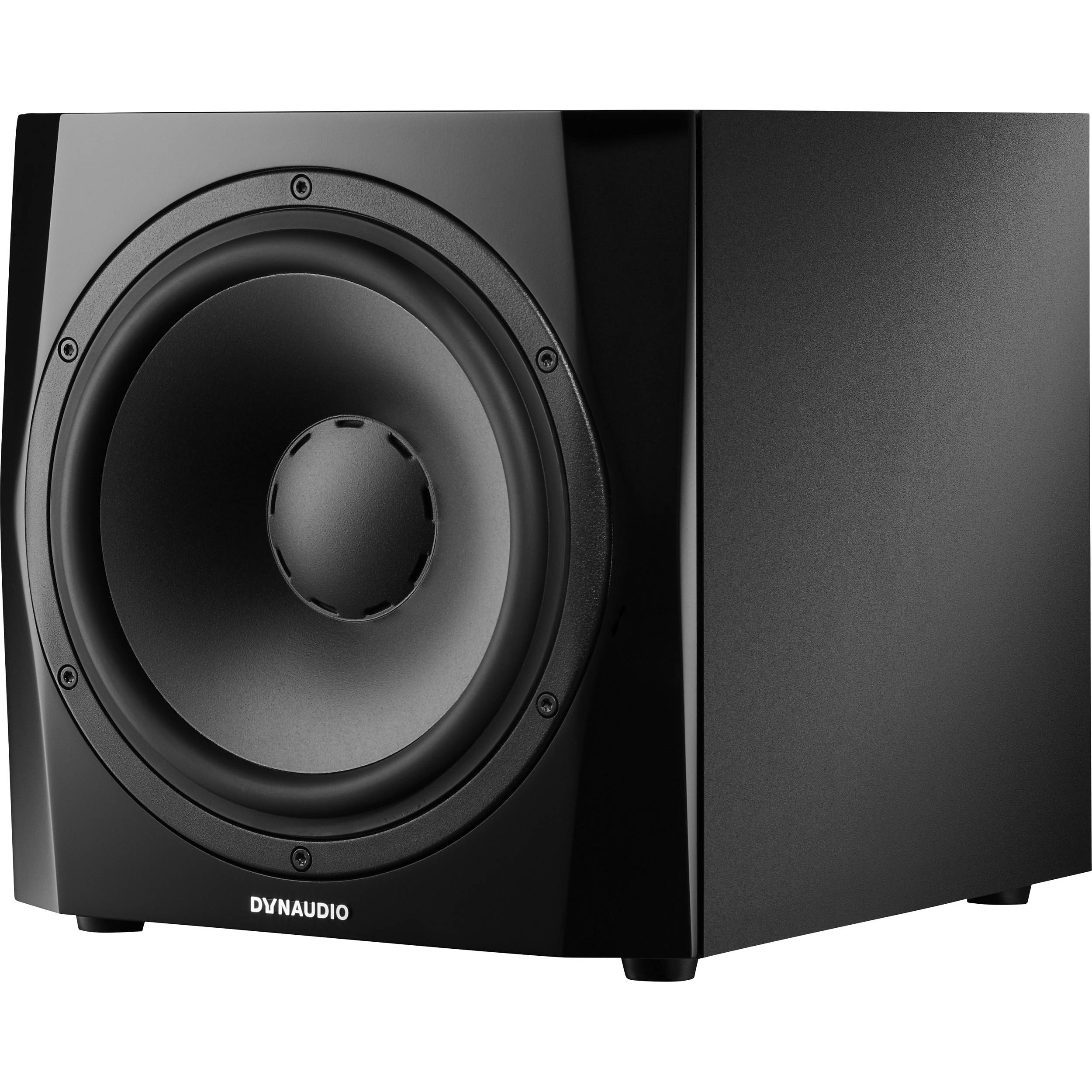

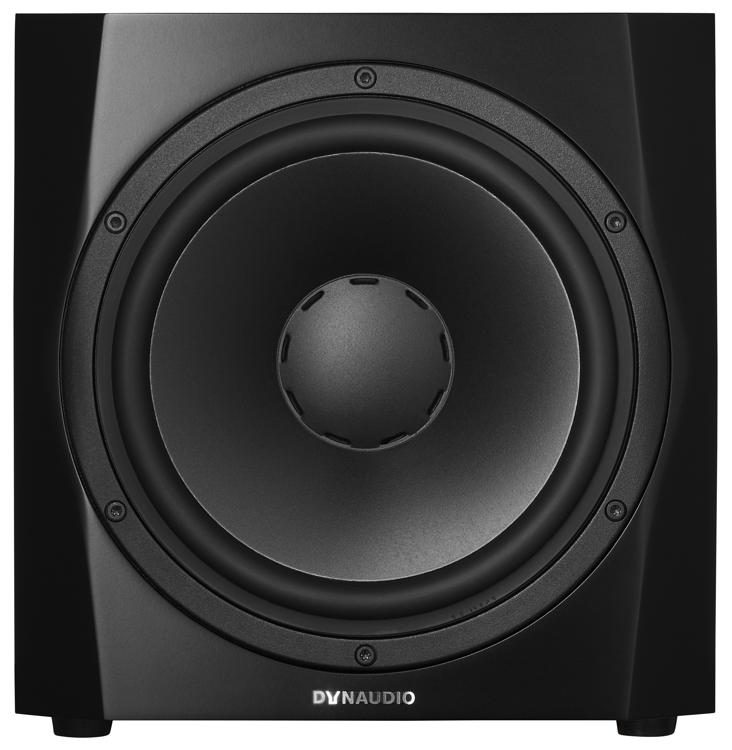

Inspired by this Dynaudio sub, mine will be much bigger though 😀
I am thinking of this for the front panel
Inspired by this Dynaudio sub, mine will be much bigger though 😀
Attachments
Two laminated pieces of 18mm MDF for the front baffle. Everything else works out to be too expensive.
fluid,
Should look nice with the chamfered/faceted design you've done.
How about the amps - any progress?
Should look nice with the chamfered/faceted design you've done.
How about the amps - any progress?
Thanks Zia I am trying to build something that doesn't just look like a big square box! Which is hard when it is big and square 🙂

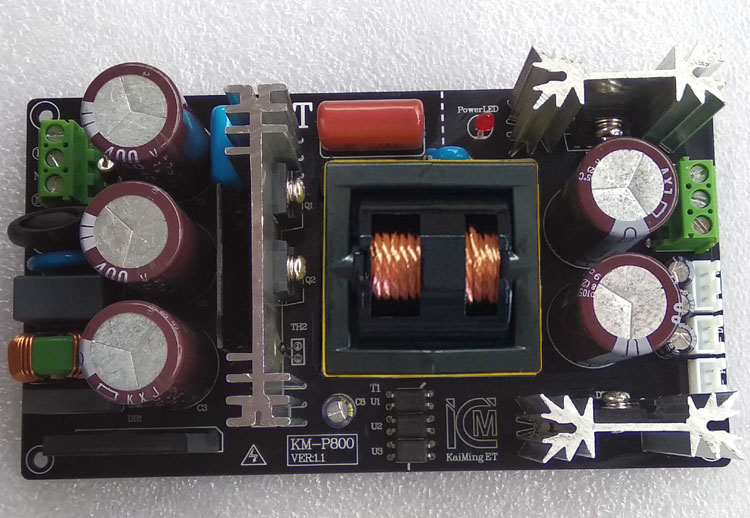

Amp modules are in transit, power supplies ordered, in two weeks I am taking some time off to make a dent in setting this all up so should be more happening then.
Amp modules are in transit, power supplies ordered, in two weeks I am taking some time off to make a dent in setting this all up so should be more happening then.
Well said... let's see how you pull off the disguise for the subwoofer. 🙂
Good to know that the ingredients are on the way, and chef has set the dates! You have a chassis for the amps? I think that one is not gonna be too small. 🙂
Good to know that the ingredients are on the way, and chef has set the dates! You have a chassis for the amps? I think that one is not gonna be too small. 🙂
You have a chassis for the amps? I think that one is not gonna be too small. 🙂
Yep, I already had a 5U 400 Deep modushop chassis that I had other plans for but changed my mind, it is not small at all 😀
It was that change of plans that made me think of the mod686, what could I do with this monster chassis?

Subs and MOD686 boards have arrived, just waiting on the rest of the parts
Managed to sell my LX521 system, so I don't feel too bad about buying the extras for the line array, I want to give wesayso's ambient speakers a try. The JBL actives are less useful now so I think they will find a new home behind the couch 🙂
Managed to sell my LX521 system, so I don't feel too bad about buying the extras for the line array, I want to give wesayso's ambient speakers a try. The JBL actives are less useful now so I think they will find a new home behind the couch 🙂
Last edited:
