What blue cap ?Post #12 - blue cap is banished. Now all 100% black.
Yes i did buy it like that, as you noticed i have since replaced it with the correct split foil one 👍🏻
QUOTING FROM THE MANURFACTURERS TEXT :
" ... and make the feedback loop path short and fast. The loop is so fast that the output stage will not go into feedback clipping.
That means that the amplifier can be driven at full power with as little distortion as there is at low levels"
--------------------------------------------------------------------------------------------------------------------------------------------
I think that this text means > low Transient Intermodulation Distortion > AKA. TIM 😉
PS.
It could also mean that "Anti-clip" circuitry is incorporated.
" ... and make the feedback loop path short and fast. The loop is so fast that the output stage will not go into feedback clipping.
That means that the amplifier can be driven at full power with as little distortion as there is at low levels"
--------------------------------------------------------------------------------------------------------------------------------------------
I think that this text means > low Transient Intermodulation Distortion > AKA. TIM 😉
PS.
It could also mean that "Anti-clip" circuitry is incorporated.

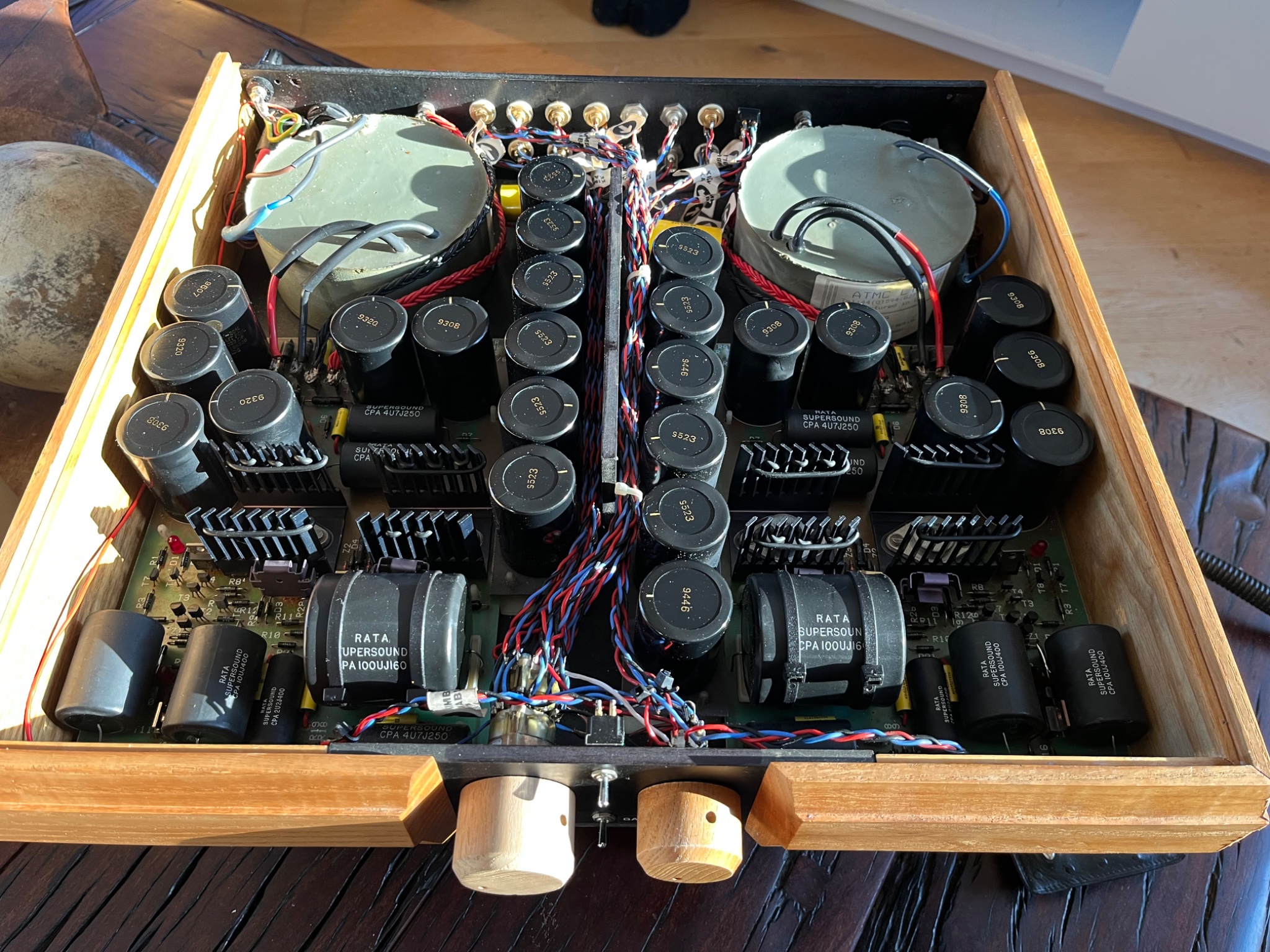

I thought it was large diameter solder wrapped around them. Probably a means of avoiding vibrations...Why the silicone O-rings on the heat sink fins?
I see TO-3’s with the old thick non-polished base. Who was still using those in 1994 (cap date codes)? Not any of the usual suspects, except for the Exicon or Hitachi lateral FETs. Everyone else who used that version of the TO-3 at all were only using it for TV horizontal output transistors, which, by then, were on the way out.
The leftmost fins are not damped, they can vibrate on the rhythm of music. What a negligence!I thought it was large diameter solder wrapped around them. Probably a means of avoiding vibrations...
Have you ever heard one of the old QSC USA series amps when you drop the unit? They ring like bells. And they just have very large versions of that type of heat sink. You know it’s to avoid vibration, and sounding “cheap” when given the thump test. The thing is full of overpriced capacitors, and the last thing a manufacturer wants is a defect that someone looking at aesthetics could easily spot.I thought it was large diameter solder wrapped around them. Probably a means of avoiding vibrations...
Not damping the last fin won’t really hurt by much. You’re still absorbing most of the stored energy and that last undamped fin won’t make as much noise as it would have.
Have you ever heard one of the old QSC USA series amps when you drop the unit? They ring like bells. And they just have very large versions of that type of heat sink. You know it’s to avoid vibration, and sounding “cheap” when given the thump test. The thing is full of overpriced capacitors, and the last thing a manufacturer wants is a defect that someone looking at aesthetics could easily spot.
I do my best not to drop amps 😉
Ok then, just setting it down hard after carrying it. Or giving it the “knock test”. People will do that with amplifiers. It is a valid test for loudpeakers, as stray mechanical resonances are real problems.
it has 32 times the number of output transistor fins of another 60 w/ch amp, the dynakit ST-120. This has 64 fins, ST-120 had 2.So what is it?
Judging by size of the heat sinks of TO3 transistors, the maximum power output is about 10W per channel.
OTOH it has 5.9 times as many big capacitors. 23 instead of 4.
Transformer about the same. RATA 600 va, ST-120 575 va. I've always liked the bass response of my ST-120 with only one 3300 uf rail cap for 2 channels. RATA apparently similar.
Enjoy your treasure hunt find. The OEM price was outrageous, but I doubt you paid 1/20th of that.
BTW just thumped the heat sink of my US made QSC CS302 with a finger. Lots of 17 cm x 1.4 cm fins, but no bell like tone. Worst thing I don't like about it, fan is too noisy. Will be banished to a room behind the podium with the mixer and speakers on the podium.
Last edited:
I was thinking it was a JLH1969 style amp. In class B, it can push more.it has 32 times the number of output transistor fins of another 60 w/ch amp, the dynakit ST-120. This has 64 fins, ST-120 had 2.
OTOH it has 5.9 times as many big capacitors. 23 instead of 4.
It looks weird, that it has so many caps but the designer decided to cut the corner on the heatsink.
Totally agree ( £5.5k ) in 1993 , no wonder they are rarely seen . This is one of my favourite finds for sure , paired with the imf tls80 mkII which were paired with the amp for many years it’s a match made for me 😁Enjoy your treasure hunt find. The OEM price was outrageous, but I doubt you paid 1/20th of that.
It has 2SJ50 / SK133 Hitachi Lateral FETs. It was advertised at £450 on Ebay: https://www.ebay.co.uk/itm/156441990437
Russ Andrews has earned unique distinction amongst the UK audio industry for incurring the wrath of the Advertising Standards Authority
https://www.audiosciencereview.com/...dards-authority-vs-chord-company-ruling.3581/
Does this amp have a CE mark? I wonder if it meets UL standards (interesting soldering in the Ebay link)?
The film caps are made by Ansar - they are made in the UK and are decent value.
Where's the copper tape on the inside for EMI prevention?
I wonder just how much it deviates from the classic Hitachi apps topology (sold by Maplin, inc. pair of Hitachi FETs for around £20 a channel - a far cry from the £5.5K this allegedly sold for)?
One suspects that the amp maker has gone onto more profitable ventures since this was made. It'd be really interesting to find out how much it shares with the Maplin (UK version of Radio Shack, defunct as of about 8 years back) design... The Maplin / Hitachi design sounds lovely (I have several), but I prefer mine with EM shielding TBH.
edit - check the glue in the corners on the Ebay link. Dovetail, schmovetail.
Russ Andrews has earned unique distinction amongst the UK audio industry for incurring the wrath of the Advertising Standards Authority
https://www.audiosciencereview.com/...dards-authority-vs-chord-company-ruling.3581/
Does this amp have a CE mark? I wonder if it meets UL standards (interesting soldering in the Ebay link)?
The film caps are made by Ansar - they are made in the UK and are decent value.
Where's the copper tape on the inside for EMI prevention?
I wonder just how much it deviates from the classic Hitachi apps topology (sold by Maplin, inc. pair of Hitachi FETs for around £20 a channel - a far cry from the £5.5K this allegedly sold for)?
One suspects that the amp maker has gone onto more profitable ventures since this was made. It'd be really interesting to find out how much it shares with the Maplin (UK version of Radio Shack, defunct as of about 8 years back) design... The Maplin / Hitachi design sounds lovely (I have several), but I prefer mine with EM shielding TBH.
edit - check the glue in the corners on the Ebay link. Dovetail, schmovetail.
Last edited:
Did the Maplin circuit have a proper set of drivers? This one has two little TO-220 heat sinks next to the power devices. I assume those are EFs biased in class A at several 10’s of mA, and should be able to do proper charge suckout, as well as push out the pole frequency caused by input capacitance (even boot strapped it is still a limiting factor).

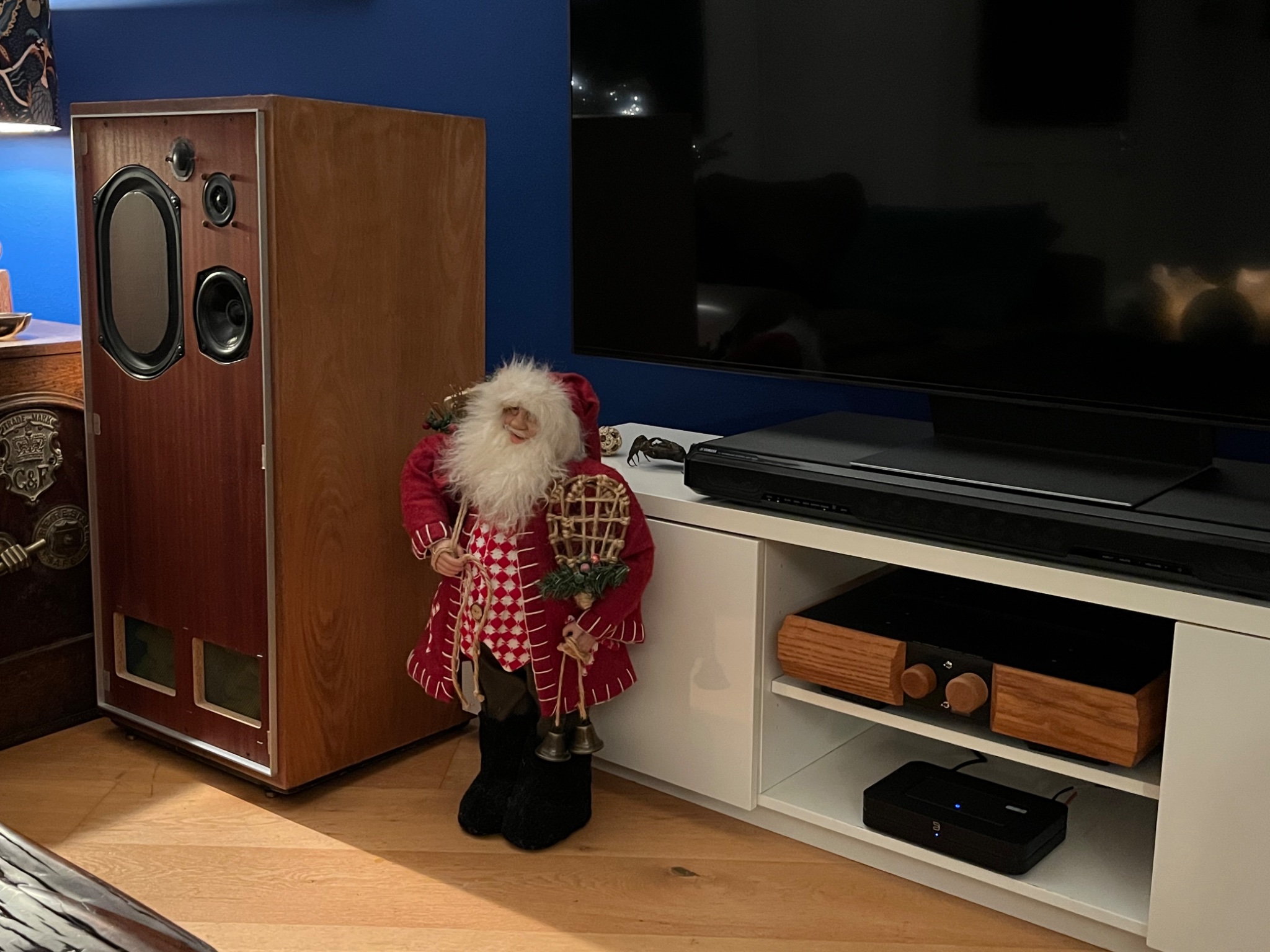

Those IMF speakers are probably the best transmission line speakers ever built - you should have good deep strong bass. I am surprised that the RATA amp drives them better than the Stasis2 though.
I can’t figure that out either Gary , the highs are sweeter and the soundstage is amazing with the Rata 🤷♂️
Could the Stasis be too powerful for the IMF’s perhaps? I know they don’t like going loud ( I think the kef bass drivers are only 50watts )
Oh yes the bass is just lovely, I prefer the sound of these over the Troels Gravesen ( not their looks though 😁)
Could the Stasis be too powerful for the IMF’s perhaps? I know they don’t like going loud ( I think the kef bass drivers are only 50watts )
Oh yes the bass is just lovely, I prefer the sound of these over the Troels Gravesen ( not their looks though 😁)
Last edited:
