DIY PA Speakers Setup (Line Array)

[apexaudio]

Rotate angles are 5deg and 10deg.



[apexaudio]

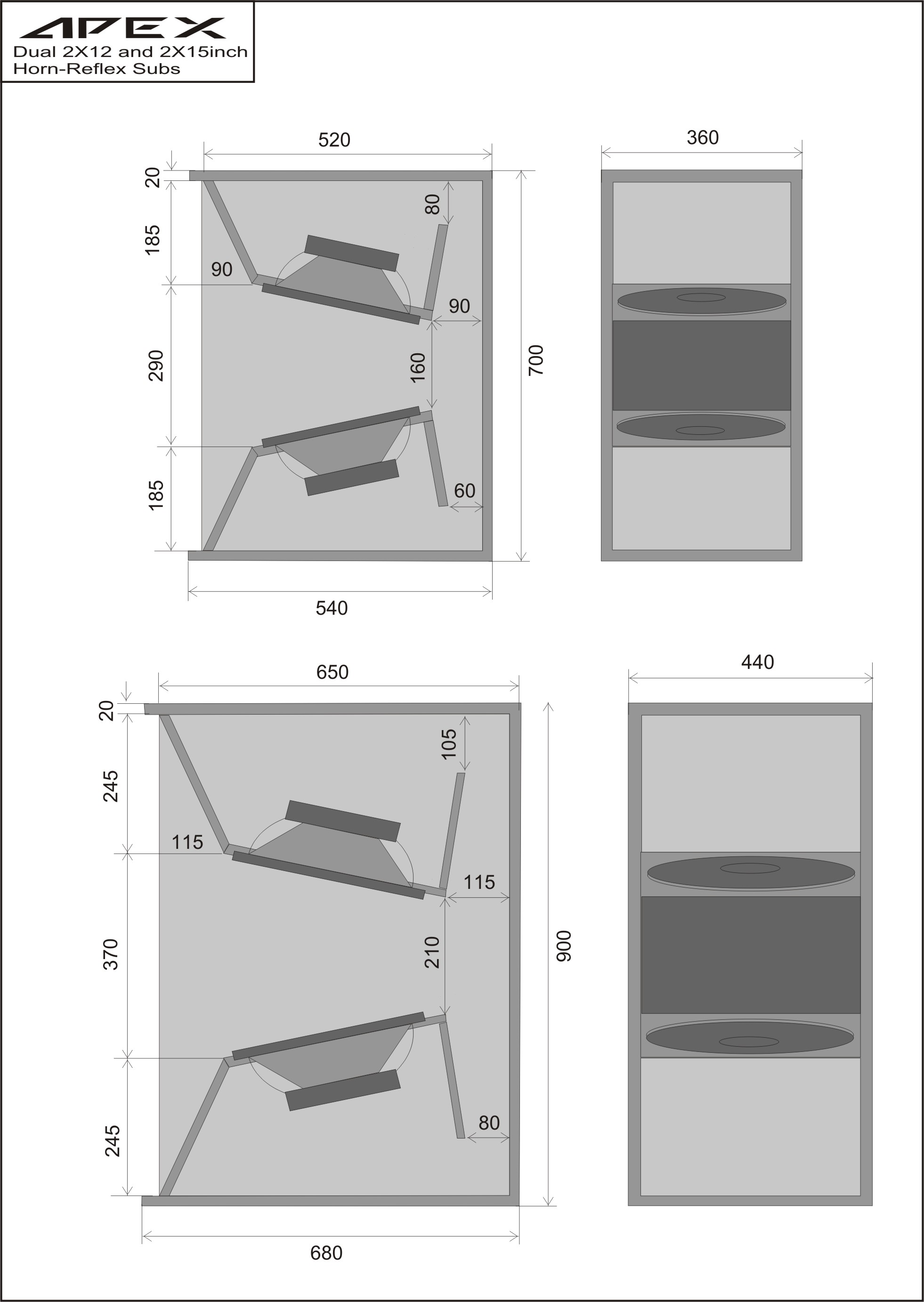

PA Subs



[apexaudio]

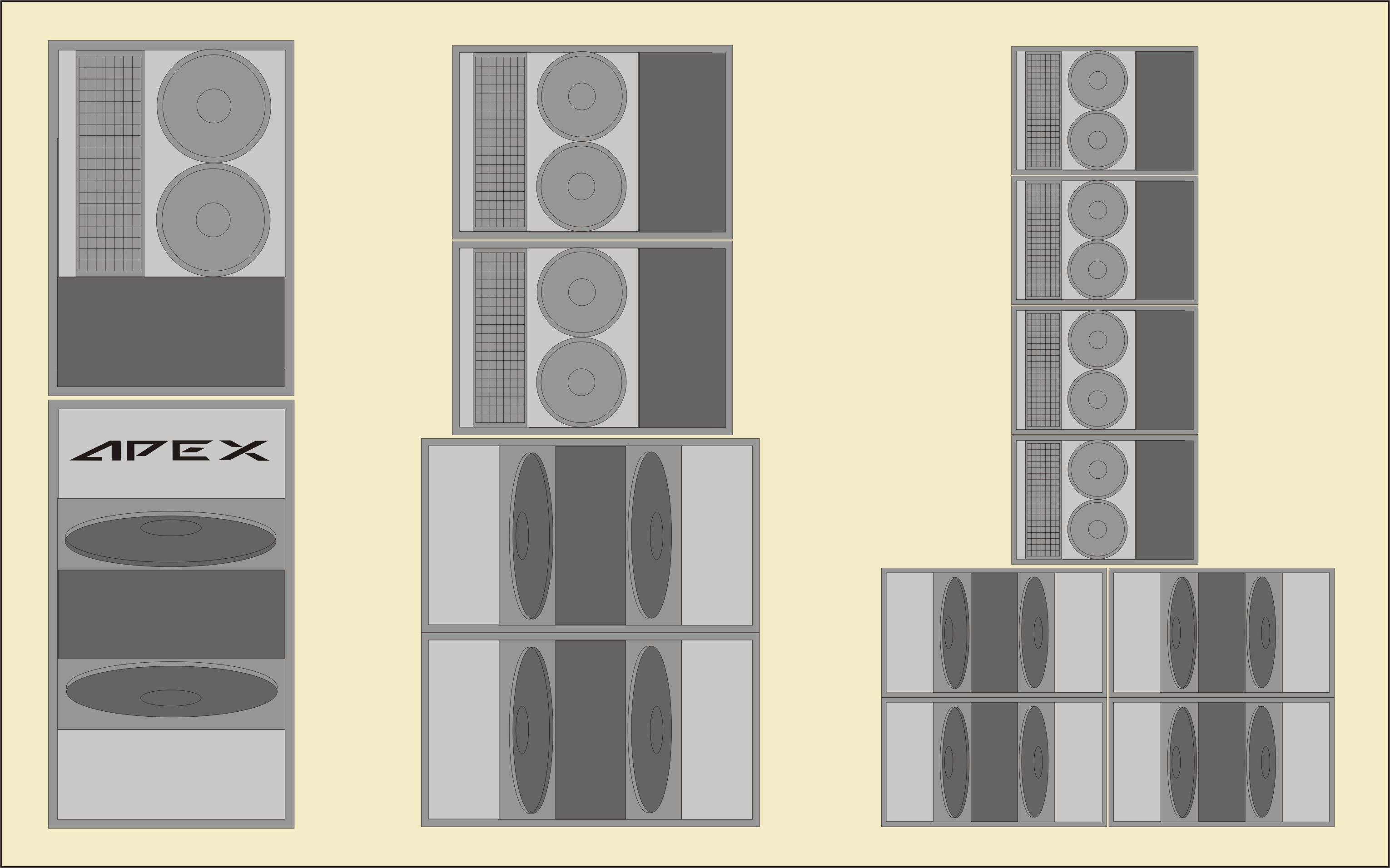

PA Setups with modified top speakers (mids 2x10", line-array CD horn)



[apexaudio]

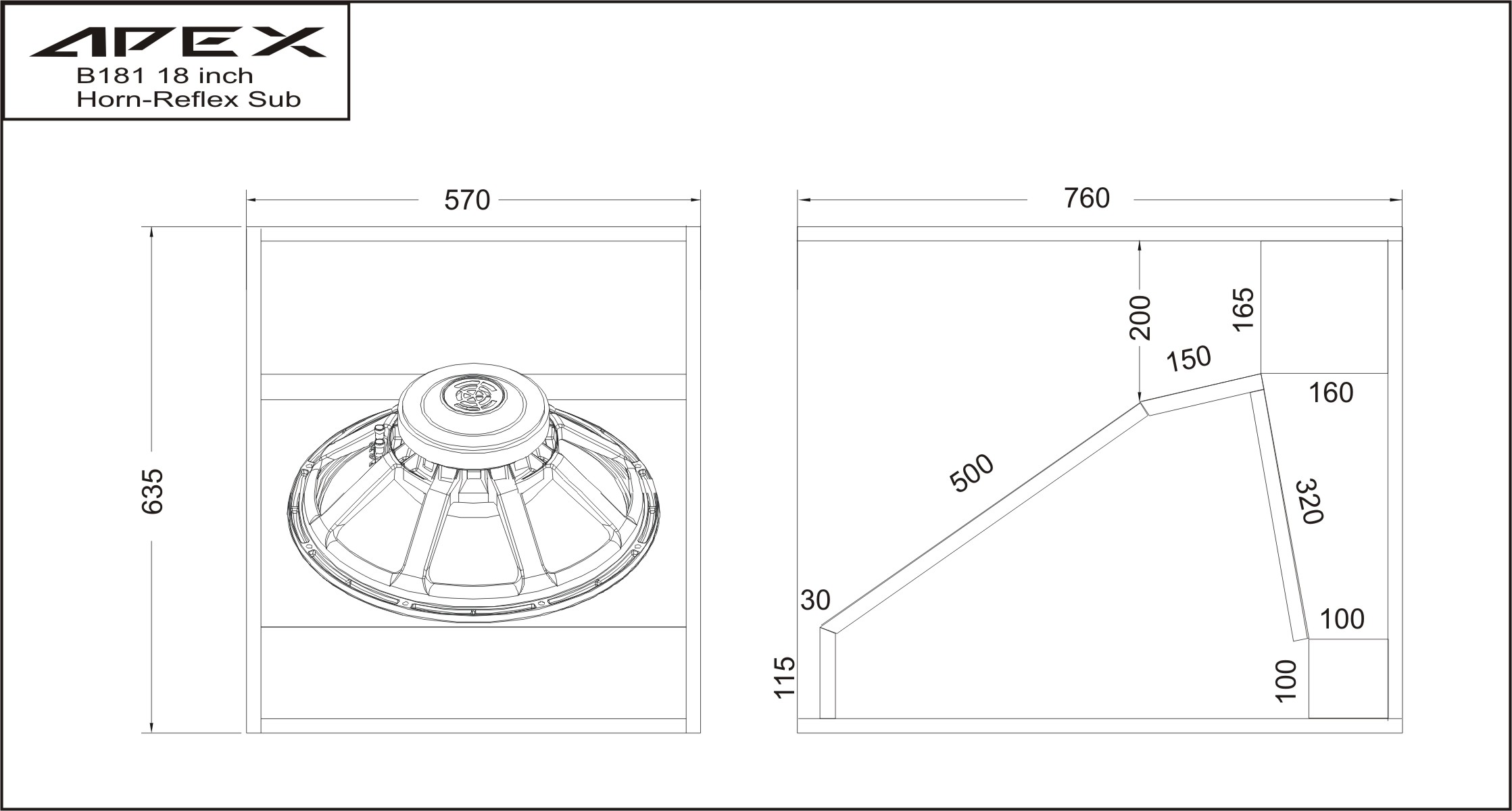

APEX B181

18 inch horn-reflex sub.



[apexaudio]

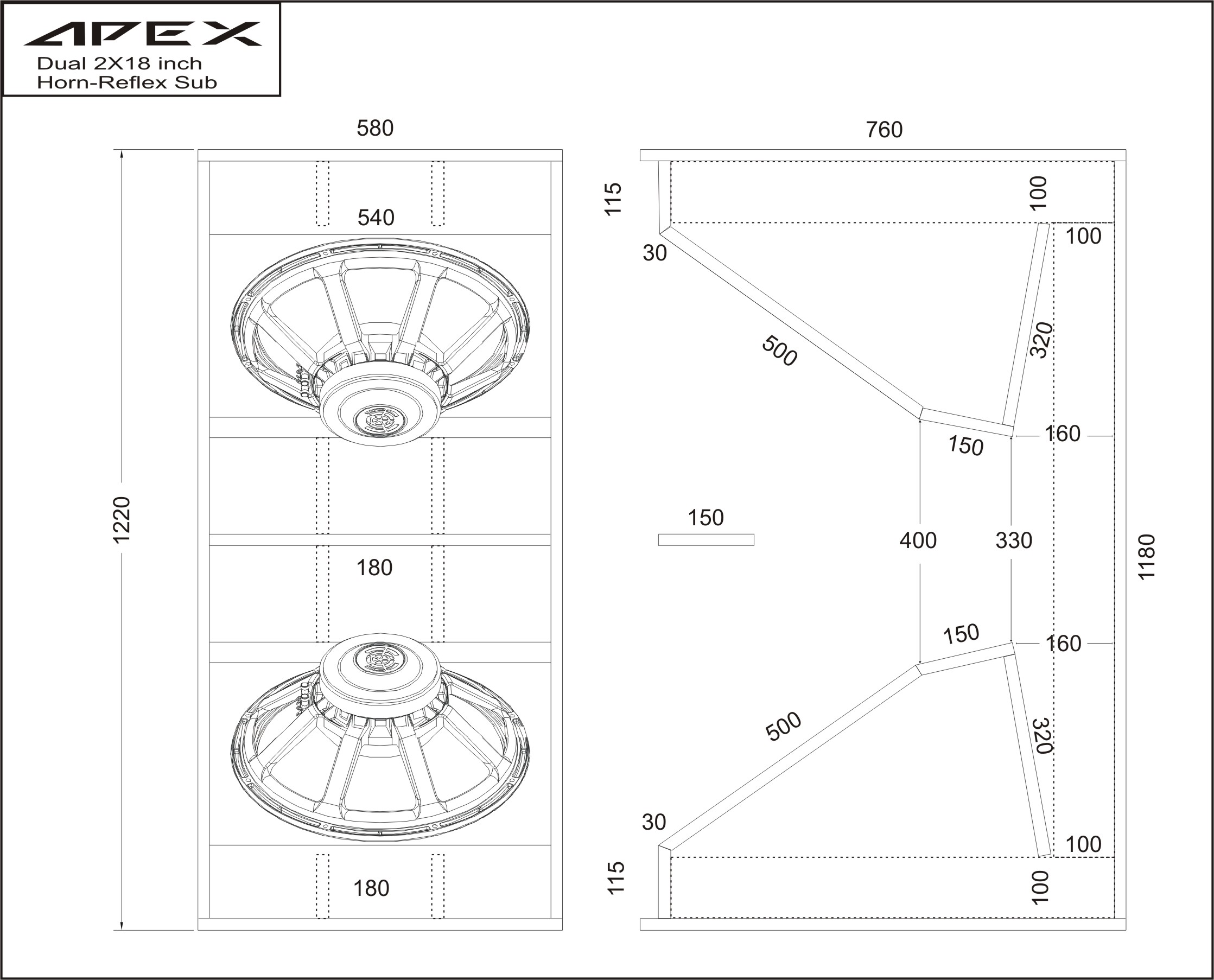

APEX B2181



[sudhir kumar]

hi apex,
can i use local drivers available at my place with your suggested designs or these are intended for use with brand specific drivers ?



[apexaudio]

hi apex,
can i use local drivers available at my place with your suggested designs or these are intended for use with brand specific drivers ?

Suggested designs will work OK with most of local PA drivers.



[engel dela pena]

apex,
please explain the out of phase system speaker system like jbl you mention in another thread.
is b500,h900 already out of phase amp?
thanks



[apexaudio]

apex,
please explain the out of phase system speaker system like jbl you mention in another thread.
is b500,h900 already out of phase amp?
thanks

Yes, phase is important for low frequency, and most active x-overs have phase invert switch for subwoofer out.



[apexaudio]

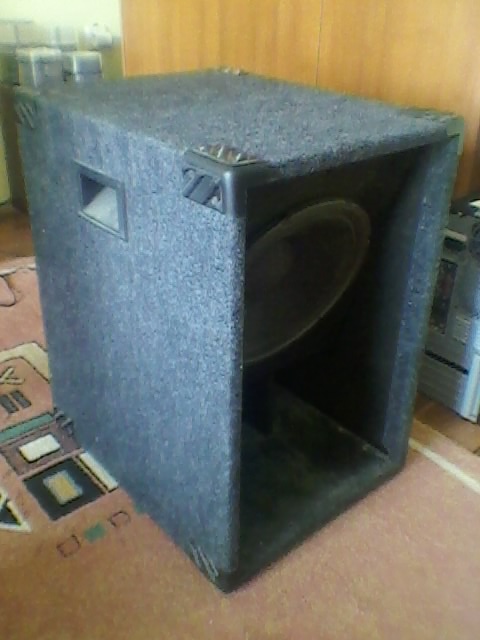

Bass-reflex 18inch subwoofer for indoor use.



[apexaudio]

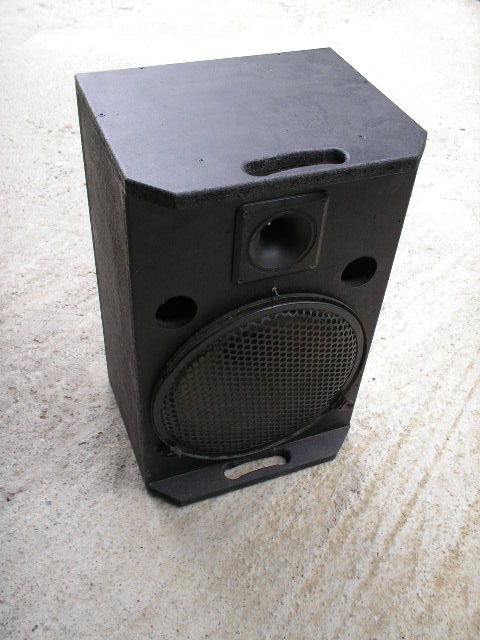

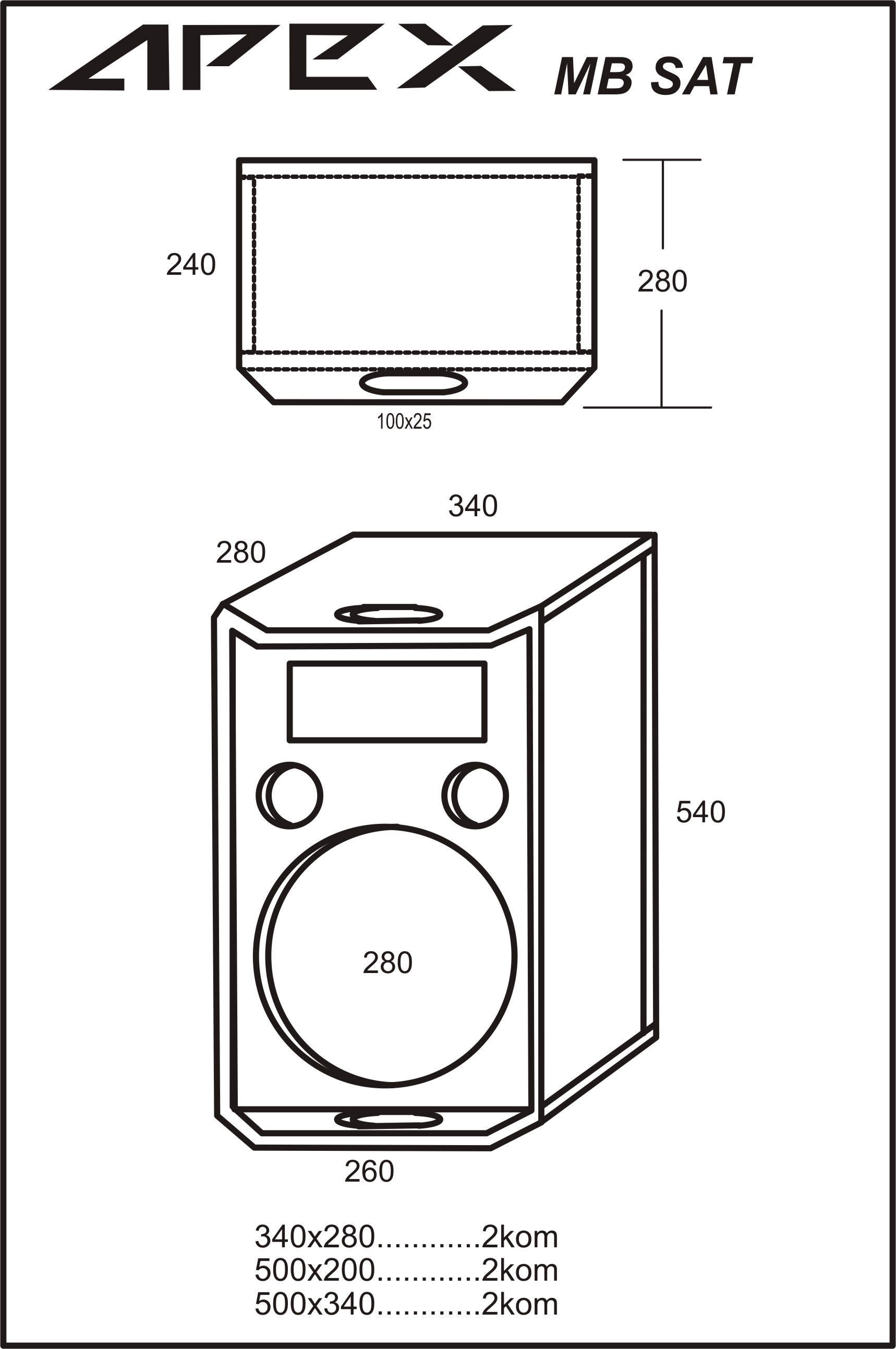

Simple 12inch two way speaker box, can be use with 18inch sub.



[apexaudio]

Very low cost, and easy for diy.



[mihailo]

Very nice speaker project.
What is the diameter of holes for air circulation? How deep must be tubes?
Can you please post some tweeter protection or crossover?
Thanks.
Regards



[apexaudio]

Very nice speaker project.
What is the diameter of holes for air circulation? How deep must be tubes?
Can you please post some tweeter protection or crossover?
Thanks.
Regards

Thats all depend of uses driver...



[mihailo]

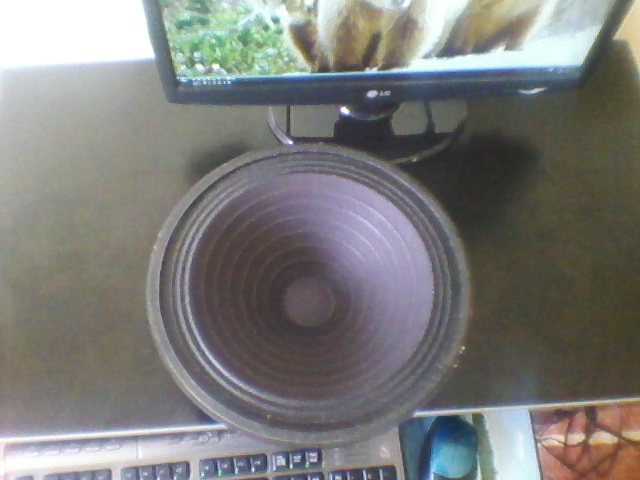

Drivers are:
1. Ei nis AZ1201 80W/8ohm 45-6000Hz
2. Eminence Delta 12 LF 500W/8ohm 44-3000Hz

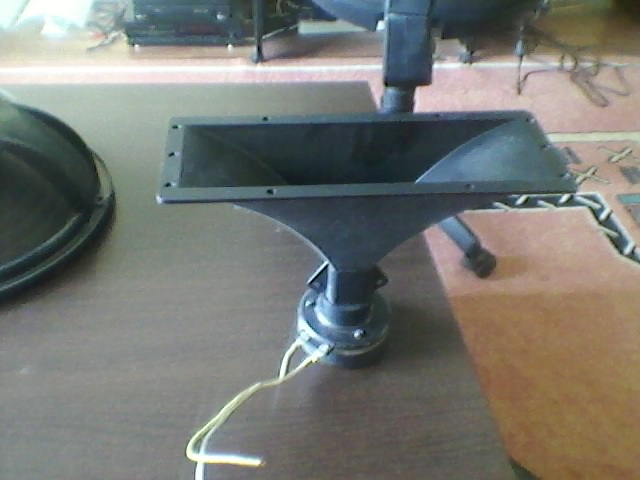

3. RTO horn 50W/8ohm 2000-21000Hz



[mihailo]

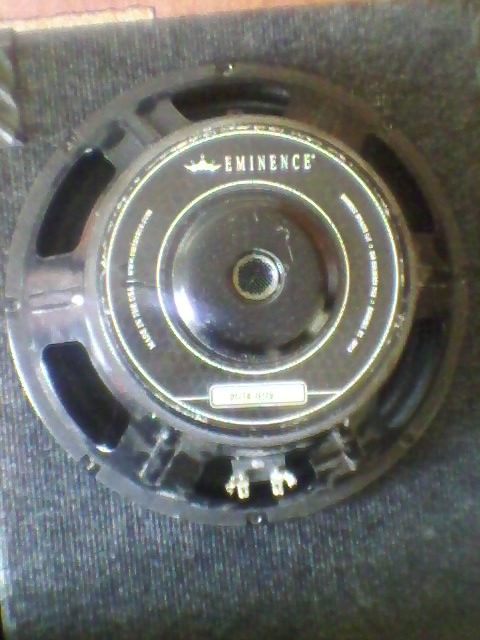

I am currently using Eminence 12LF in some subs, but I would hear them also in 2 way box, so can you now tell me what diameter for tube and how long should I use in your project? For Ei and Eminence.
Regards



[mihailo]

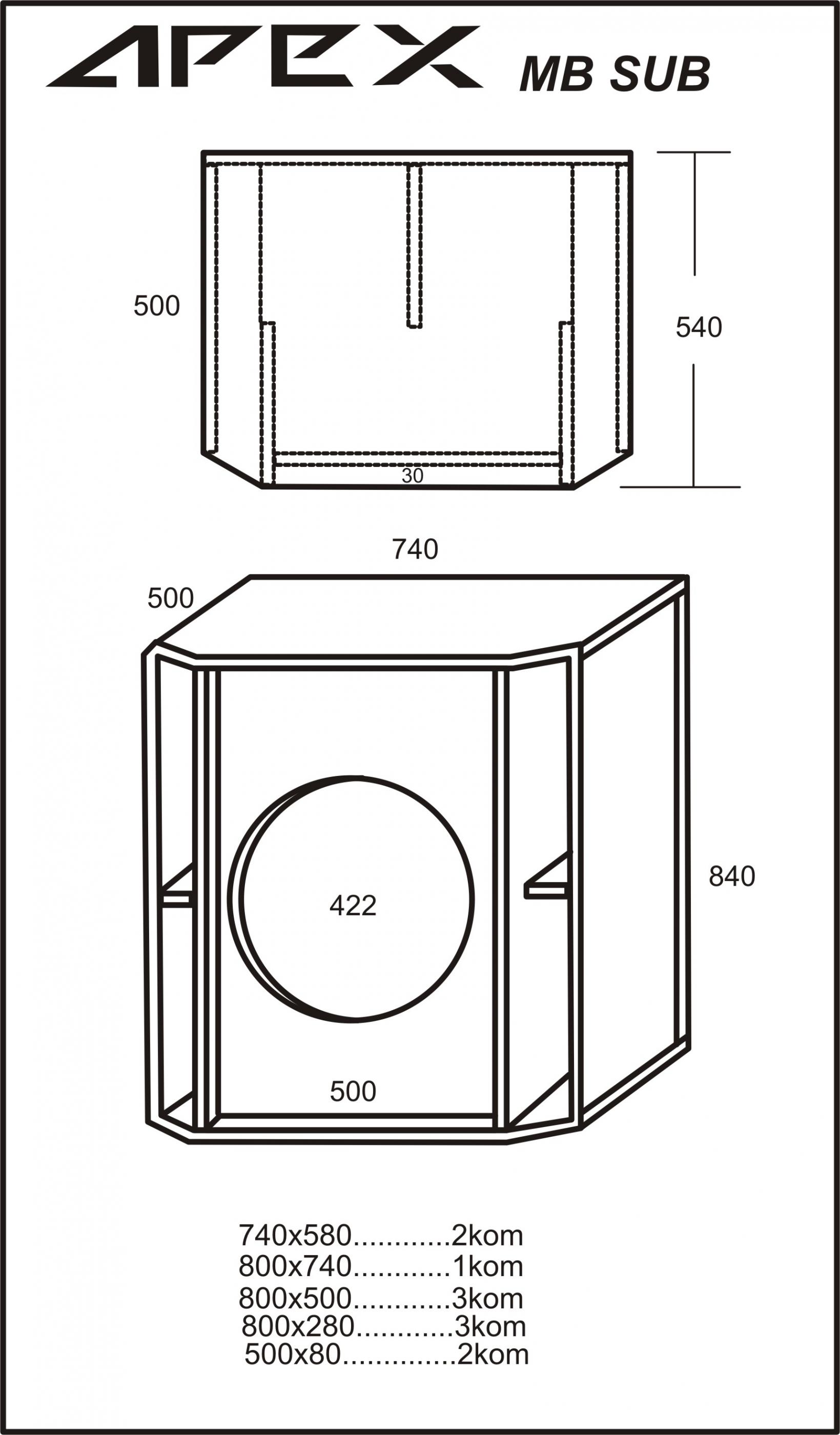

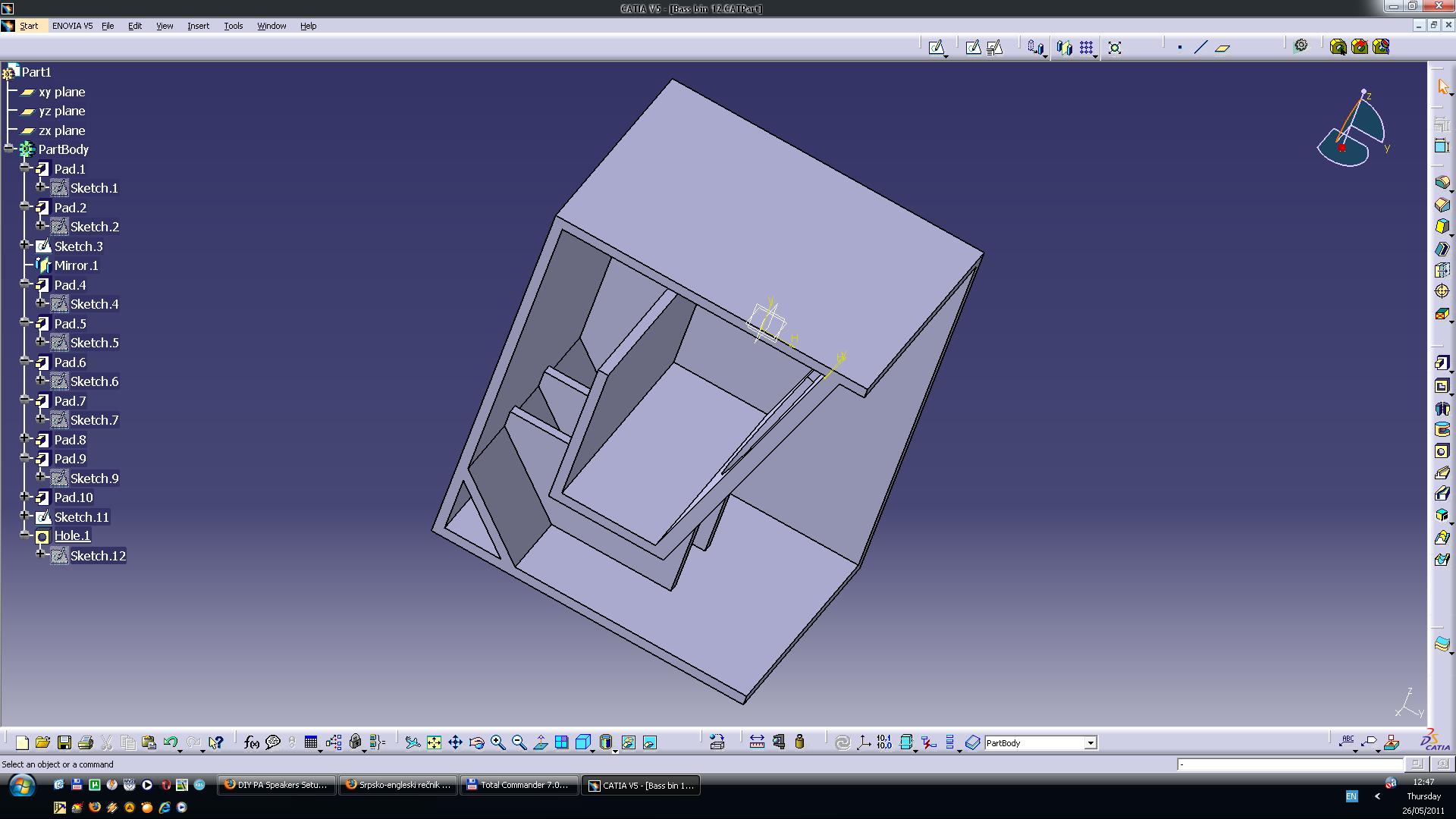

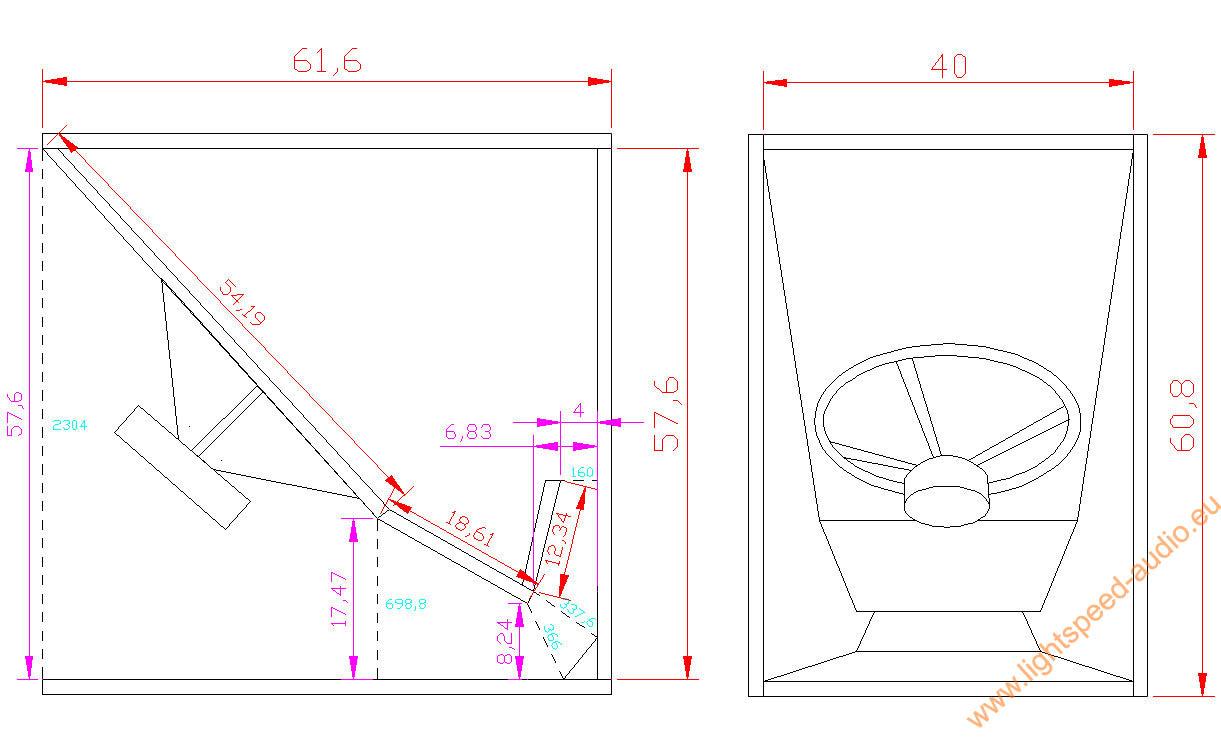

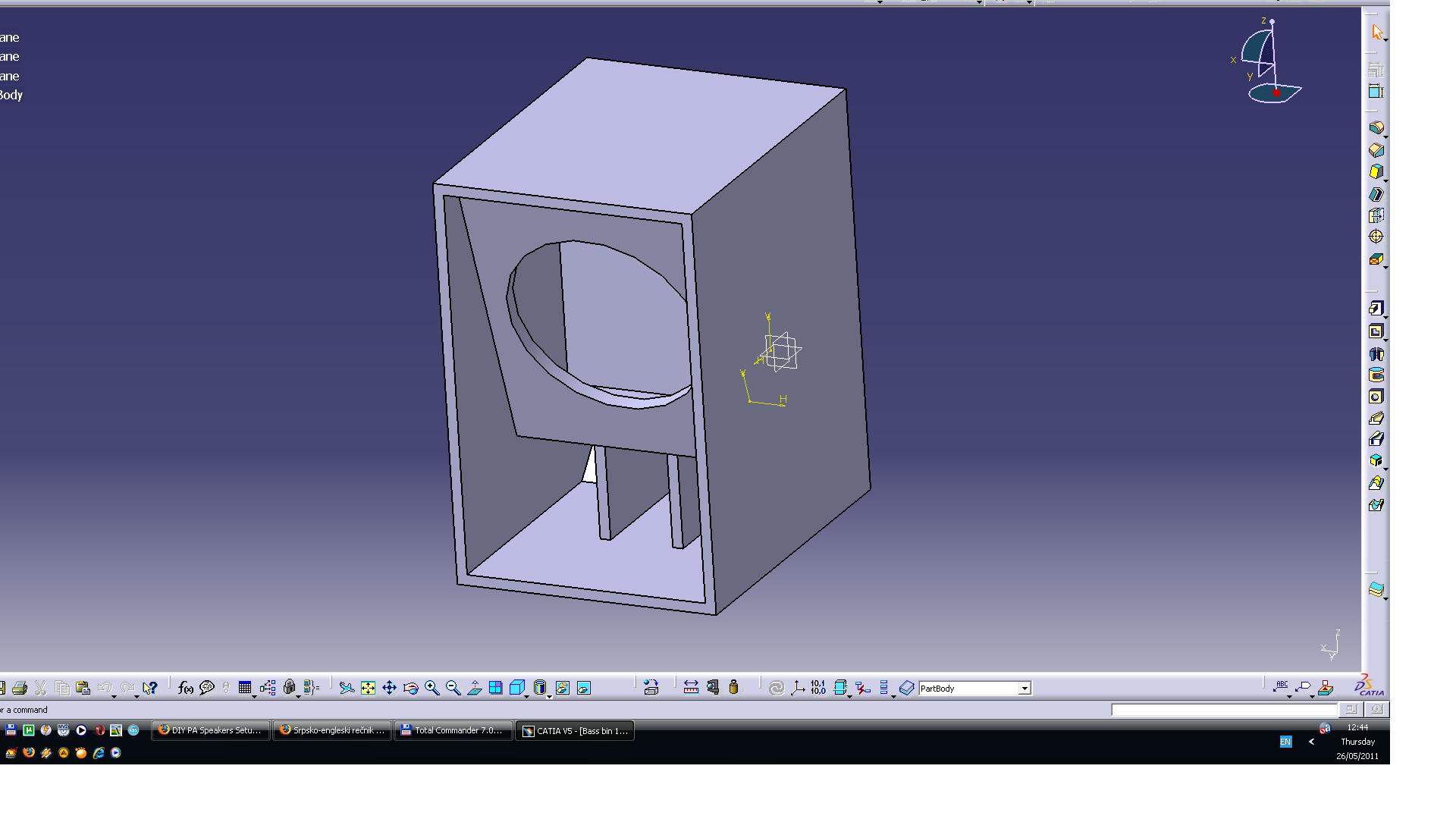

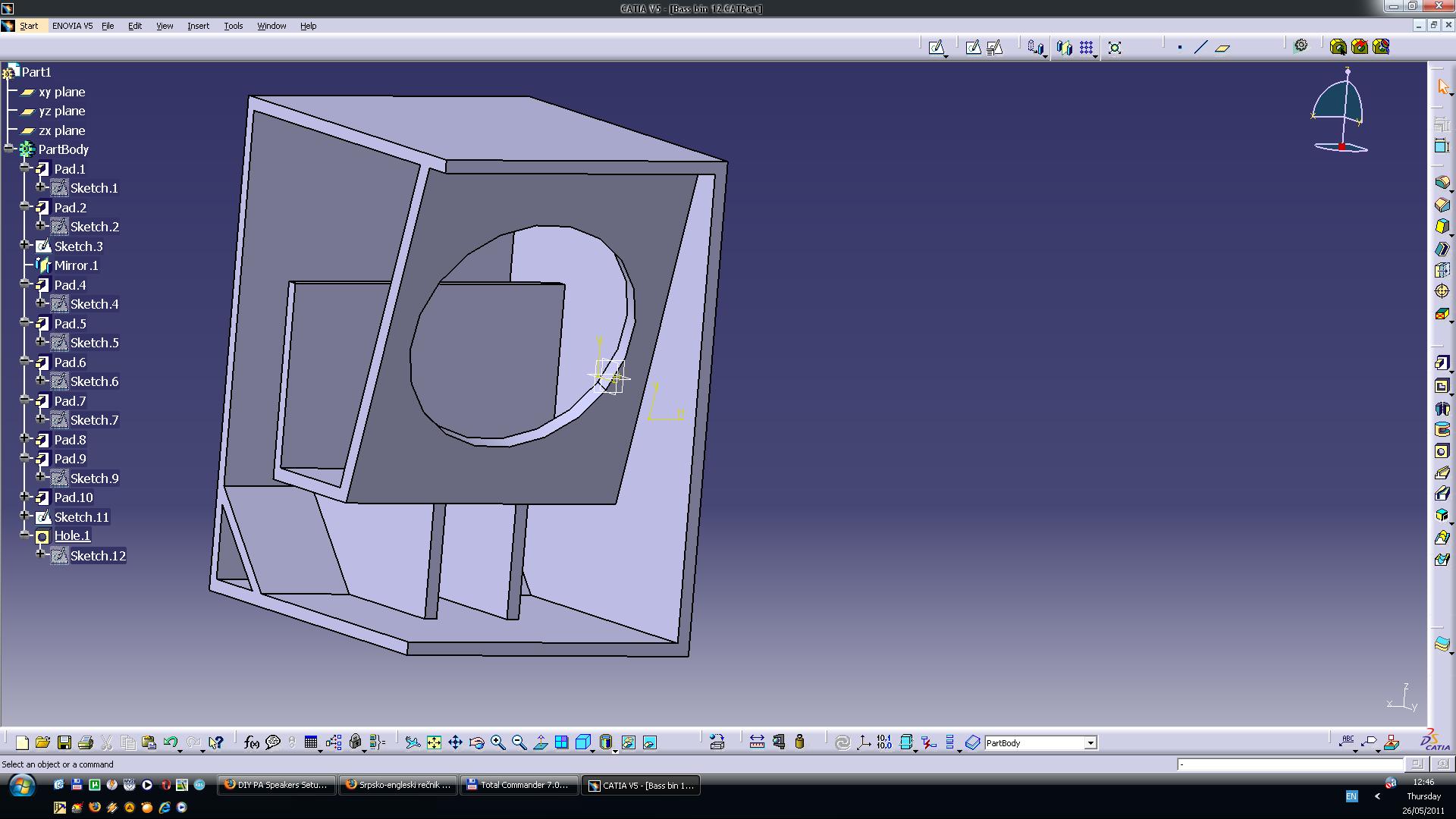

If you do not mind Apex , would like to add plans for 12" sub that I am using.
It is not difficult to build, and bass is very powerful. 😎



[mihailo]

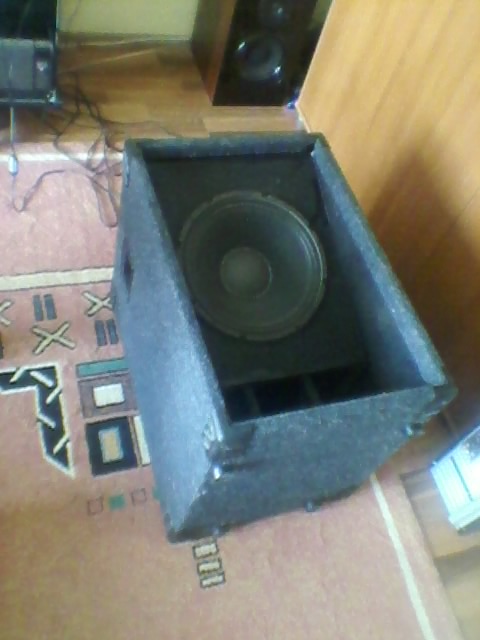

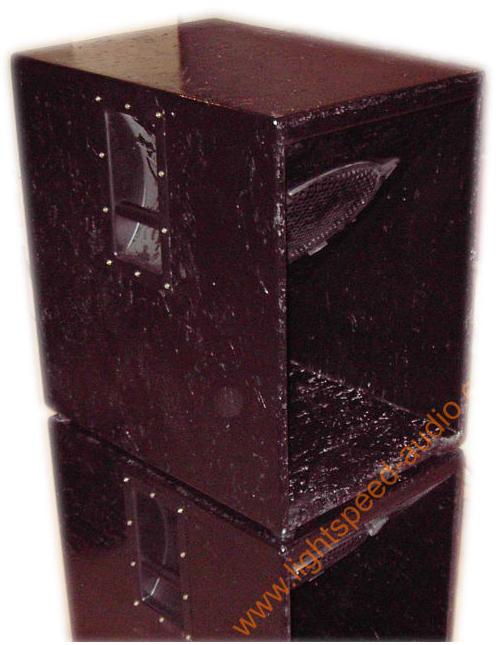

I had shanged original design a little bit...



[engel dela pena]

sir apex,
a little bit off topic,
can you please share something about h900 issues by gitsa
how to fix his problem,
and please share your waveform



[A square]

nice sub sir....
