The next problem I have been finding is what LM317 or LM337 model to use to provide reliable results, or more shall we say repeatable. And I'm talking about importing the AD Pspice model to LTS, for instance. If you go to the LTSpice community, where they have a library, there's a lot of 3X7 models you can use.
So in the end you have look for a model you can use that gives similar results to the simulations on actual measurements. So which models have proven to do so?
None, they all have their specific shortcomings. The true acid-test is the reality
Tell me about it! Reality for someone that does not live in the USA or Europe is fake electronic parts! Hard to buy legit ones!

That's why I'm simulating Denoiser options with other transistors that I have here, bought some time ago from Mouser.

In simulations now I returned to the LT317 model that comes with the program, and pray that the transistor models included are good.

Now that I seemed to have got things right, I'm making comparison tables with simulation results at different frequencies, for psrr, noise and impedance. Jung/Didden superregulators with different ICs, LT1963, LT3042, Mosfet discrete, Denoiser (with different transistors), NoNoiser, and some Trilerus designs. I wonder if readers would be interested on these results. I may provide the .asc files where those results were taken from. Publishing the curves might be an option too, but it would be too much perhaps. Let me know if you are interested.
  • Like
Reactions: 1 user
Chinese "second sources" (let's avoid the F.. word) can be quite decent: there is some cost-cutting regarding the quantity and quality of materials (TO220 tabs are thinner for example), but otherwise they tend to behave rather well.
I didn't test the denoiser on cheap 317's from Banggood, but that's something I can do: I have all that is needed to make the test.
IIRC, the LT317 model doesn't include noise, which is a problem in this case.

People are always interested in raw data, comparisons, etc., so feel free to publish them, on this thread or on a dedicated thread of your own.
If there are masses of graphics, it would be a good idea to make them easily accessible, with index(es) for example, to avoid drowning would-be users in an ocean of irrelevant data (for them anyway)
  • Like
Reactions: 1 user
Joined 2014
Paid Member
Some preliminary measurements made of the CCS Nonoiser with ZTX x51 transistors installed in the denoiser position. All measurements were taken with 20V battery power.

LM317 Nonoiser with ZTX transistor, 15Vout, 83mA load
LM317 Nonoiser with ZTX battery power.jpg

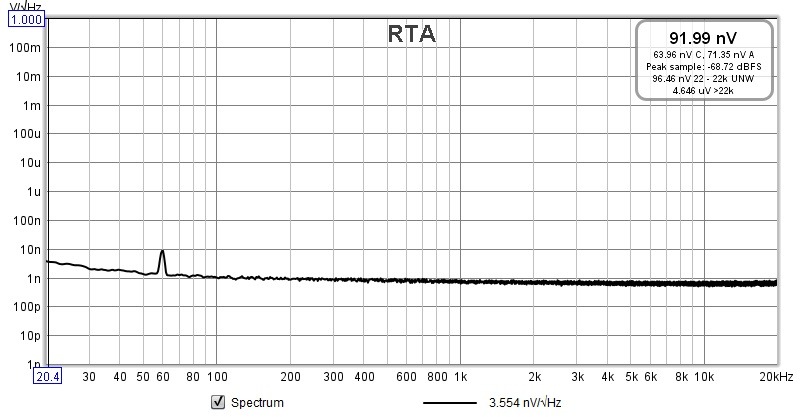

LM337 Nonoiser with ZTX trnasistor, 15Vout, 83mA load
LM337 Nonoiser with ZTX battery power.jpg

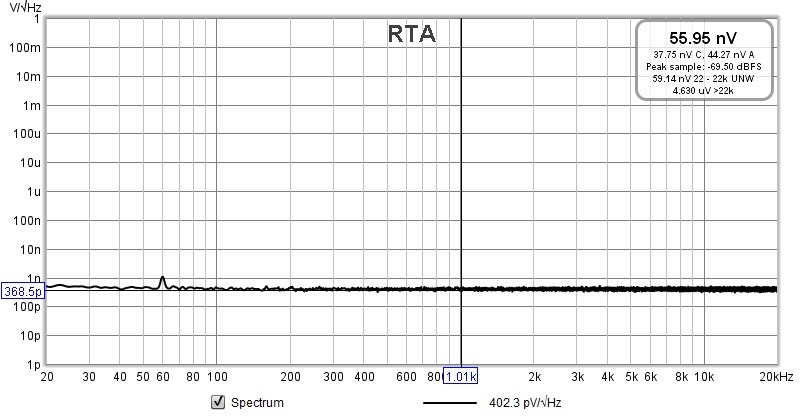

LNA + ADC with shorted input
Shorted LNA + ADC.jpg

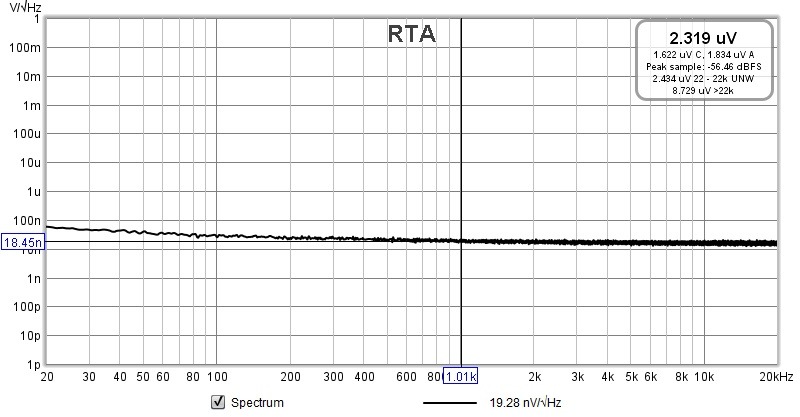

For comparison Super Regulator positive side, 15Vout, 83mA load, AD825 opamp, LM329 voltage reference
Super Regulator pos 15V LM329 83mA load.jpg
