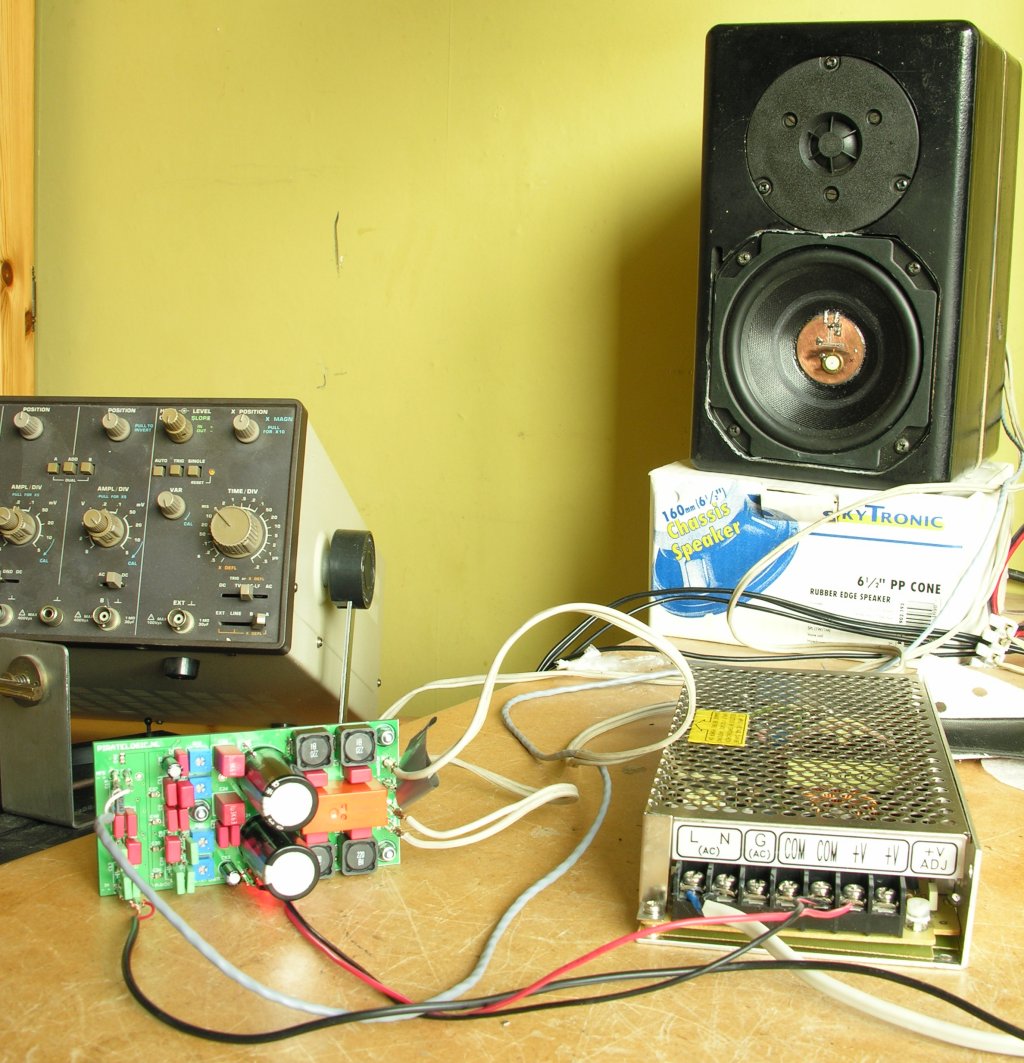

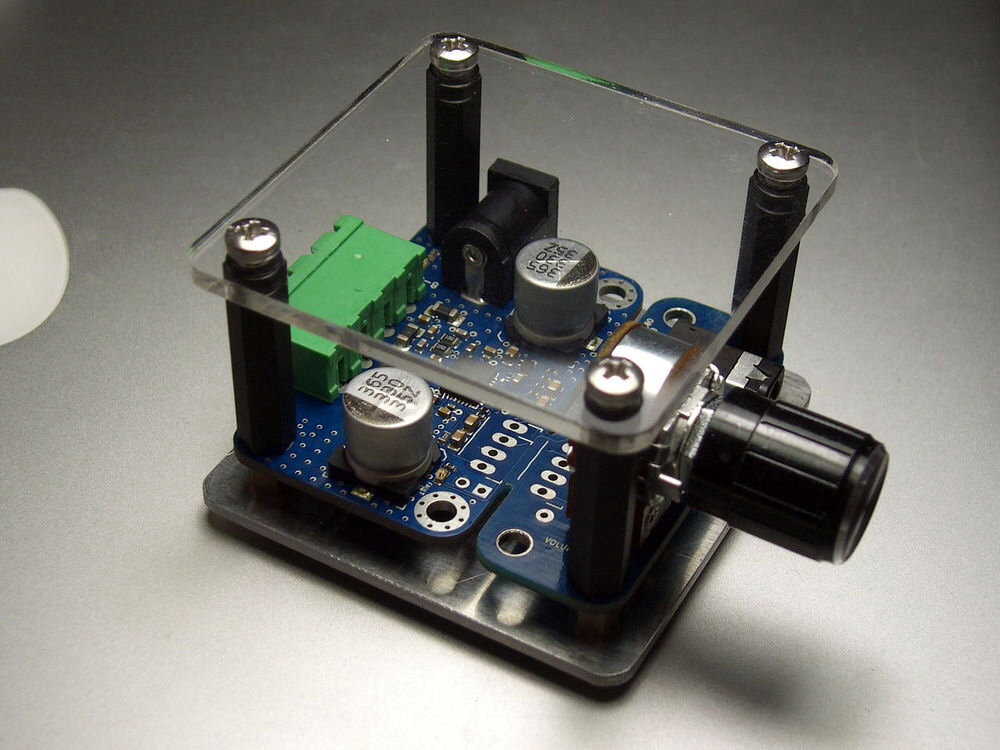

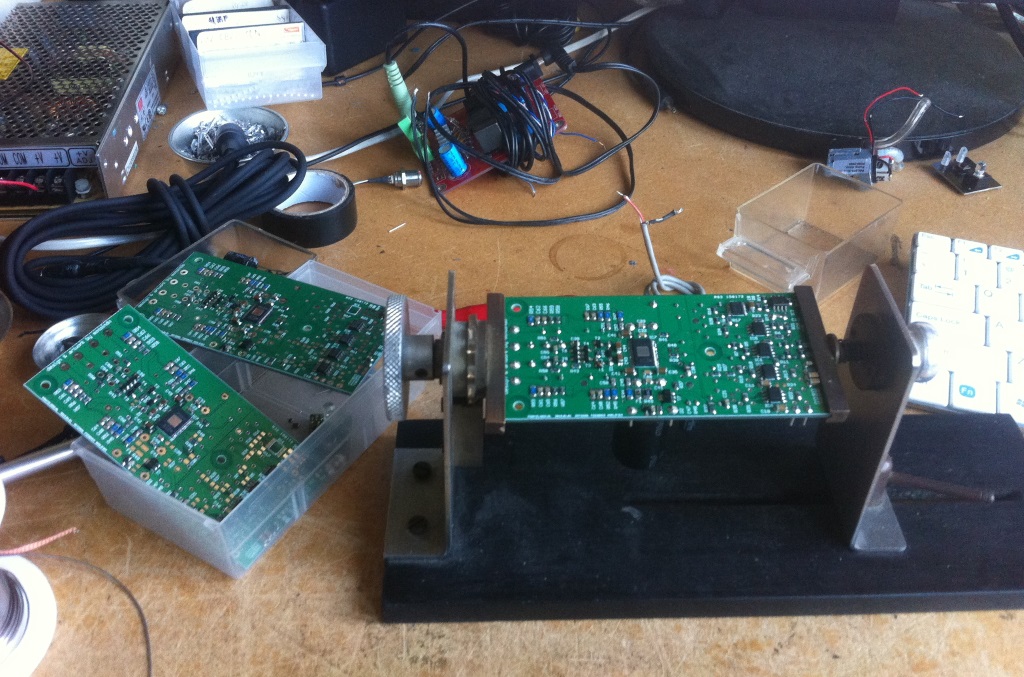

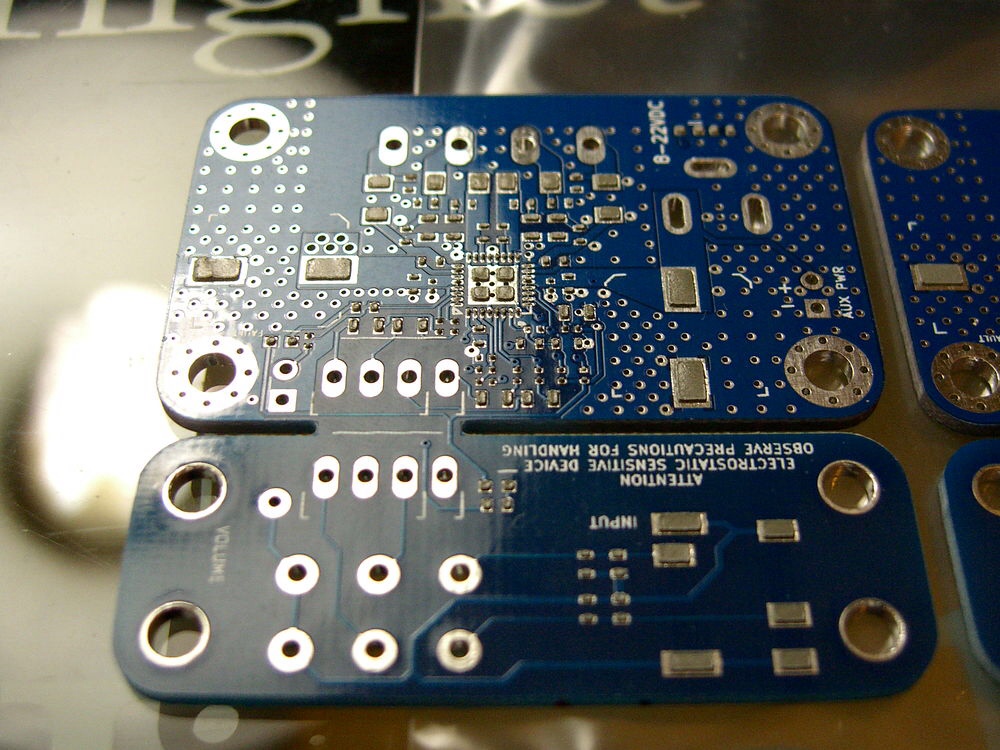

Not yet. Am still busy building the first prototypes & optimizing the design. It features a standard Sallen-Key 4th order lpf/hpf setup, a vcf subsonic filter, a BTL dc protection, anti plop circuit and a standard motional feedback mixer. The 3116 is moved to the pcb bottom where it is thermically coupled to the aluminium mounting plate. Like the ti eval module mlcc is used for the output filters & bootstraps. For scale ref a yuanjing is visible in the background.
Attachments
Thanks
fell in love with mfb 40 years ago and it has never left me since
An externally hosted image should be here but it was not working when we last tested it.

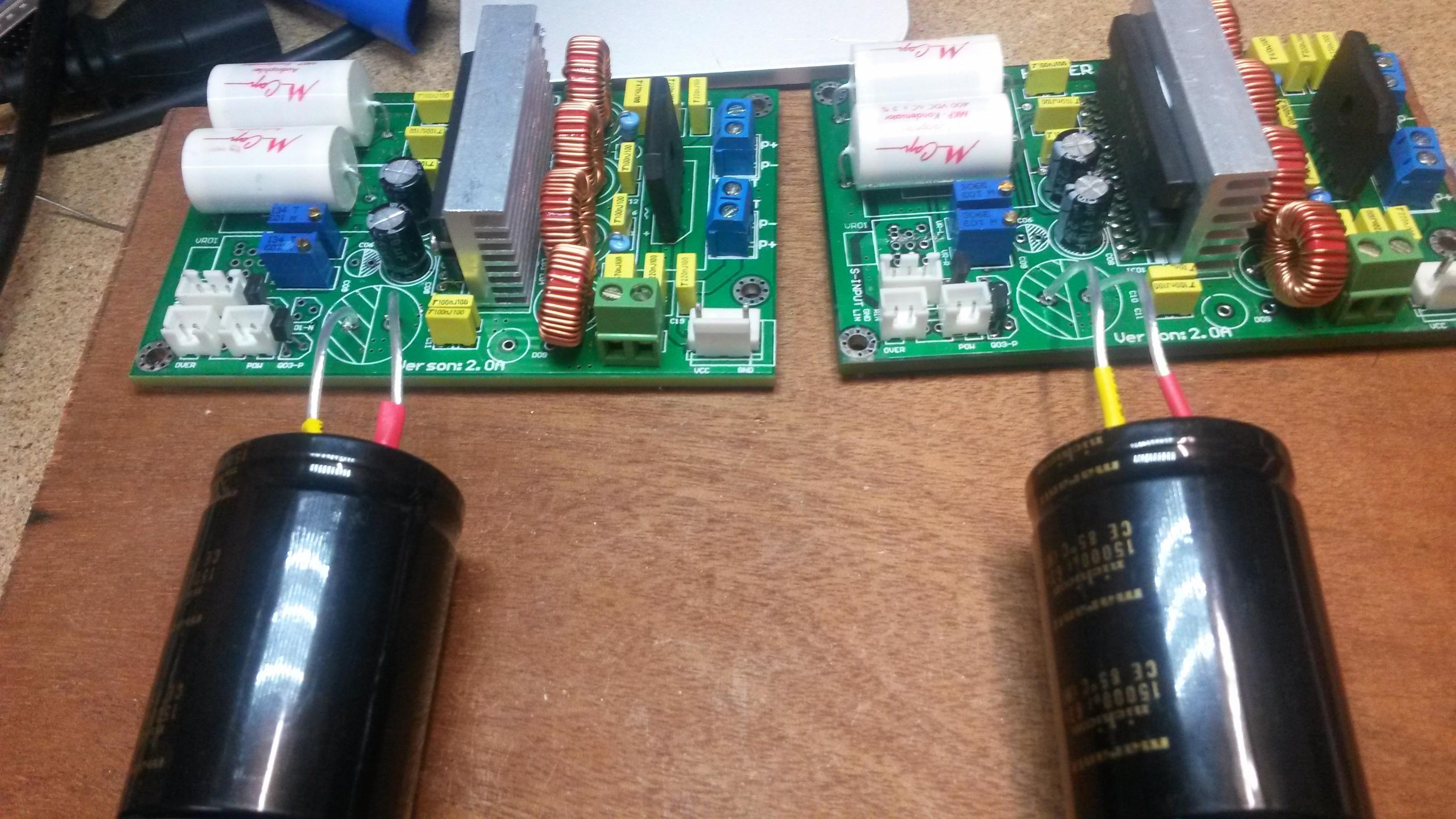

Just build two mono sure tpa3116's. It was my first proper build after messing around with ta2021's and stereo tpa3116 for a while.

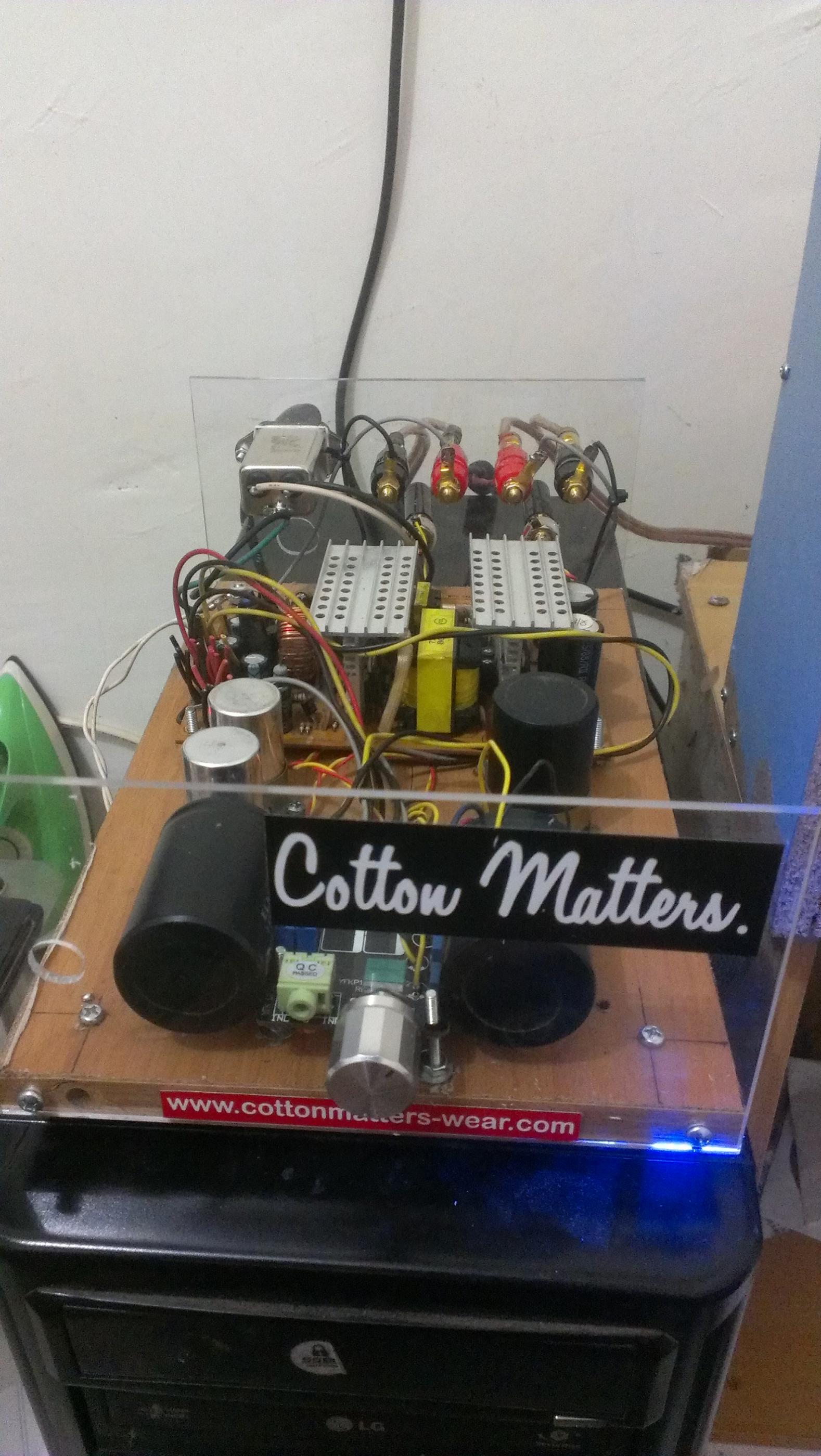

Yes, I switched output l/r after taking the pictures. I tried to pay attention to the layout and keep cables as short as possible. Amps are dead silent and don't really need the ventilation. I plan on getting the power cables fixed inside the case soon. Any other hints and / or tips to improve?
Yes, I switched output l/r after taking the pictures
. I tried to pay attention to the layout and keep cables as short as possible. Amps are dead silent and don't really need the ventilation. I plan on getting the power cables fixed inside the case soon. Any other hints and / or tips to improve?
Last edited:
Just build two mono sure tpa3116's. It was my first proper build after messing around with ta2021's and stereo tpa3116 for a while.
Yes, I switched output l/r after taking the pictures
How does it sound compare with the stereo version?
