Nice enclosures apoopoo999. How are they made? I assume the front is custom laser cut, but what about the sides? Are they some sort of box section aluminium?
The sides are made from 3" x 3/4" thick aluminum made by 8020
8020 T Slot Aluminum Extrusion 15 S 3034 L x 48 N - eBay (item 370155124158 end time Aug-24-11 08:18:41 PDT)
Hacked It!!!
For the second time in about 30 years, working with the LM383 / TDA2003 line of "car radio" amplifier chip amps, I came up with one that was stable, no oscillation!!! The first time I had a stable amp and did not know why and also didn't document that circuit, in the early 90's. Raymond Haigh's explanations and circuit board art gave me all the insight I needed to identify and correct all of my grounding issues. I ended up using 3 grounding systems in my amp, one for the DC power and speaker RC network grounds, one for the feedback components grounding, and one for the input ground on each chip, when I translated to perf-board!
Raymond Haigh on chip amps: http://www.transkommunikation.ch/da.../audio_circuits/Diverse%20NF-Verst%E4rker.pdf

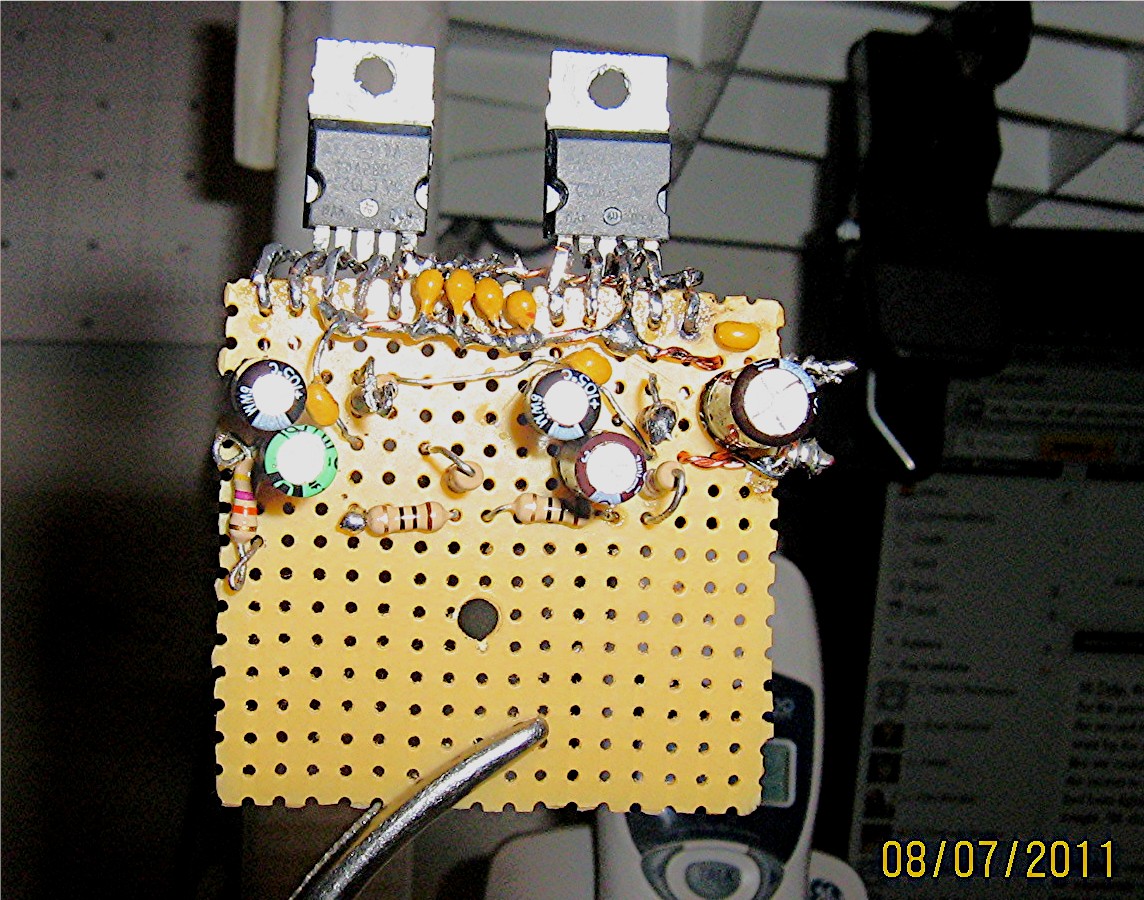

2 X TDA2003 amp, about 10 Watts RMS, onset of clipping
into 4 ohms, 13.8 VDC powered.
For the second time in about 30 years, working with the LM383 / TDA2003 line of "car radio" amplifier chip amps, I came up with one that was stable, no oscillation!!! The first time I had a stable amp and did not know why and also didn't document that circuit, in the early 90's. Raymond Haigh's explanations and circuit board art gave me all the insight I needed to identify and correct all of my grounding issues. I ended up using 3 grounding systems in my amp, one for the DC power and speaker RC network grounds, one for the feedback components grounding, and one for the input ground on each chip, when I translated to perf-board!
Raymond Haigh on chip amps: http://www.transkommunikation.ch/da.../audio_circuits/Diverse%20NF-Verst%E4rker.pdf
2 X TDA2003 amp, about 10 Watts RMS, onset of clipping
into 4 ohms, 13.8 VDC powered.
Attachments
Last edited:
Congratulations Edgar!
I used to destroy speakers using TDAs 🙂 lots of fun around 18years ago... when I was 16... then I discovered LM1875 and fell inlove with it... 🙂
Great PDF as well... thank you for sharing.
I used to destroy speakers using TDAs 🙂 lots of fun around 18years ago... when I was 16... then I discovered LM1875 and fell inlove with it... 🙂
Great PDF as well... thank you for sharing.
Now They Tell Me!!!
Ha! I went to the datasheet for the LM1875 and it also gives all that great information on grounding and stability concerns. Too bad NS didn't include the info in the LM383 datasheet! It would have been great to know that stuff 30 years ago!!!
Ha! I went to the datasheet for the LM1875 and it also gives all that great information on grounding and stability concerns. Too bad NS didn't include the info in the LM383 datasheet! It would have been great to know that stuff 30 years ago!!!

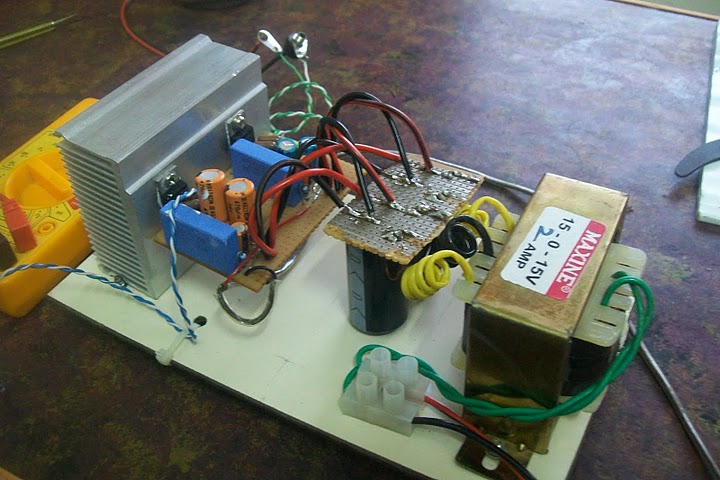

My first LM1875 for my PC system
More pics at - https://picasaweb.google.com/103346623669691743811/LM1875#

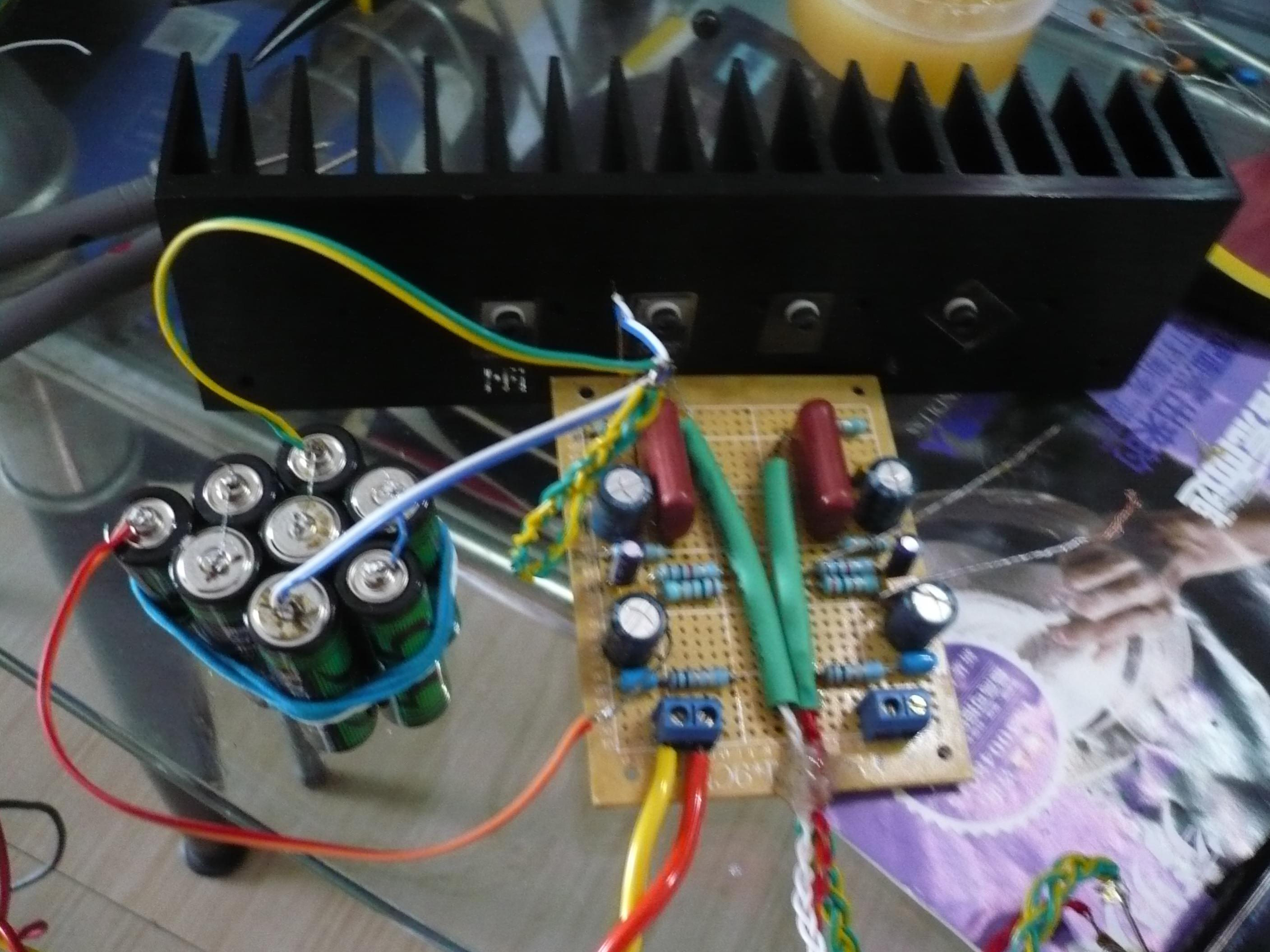

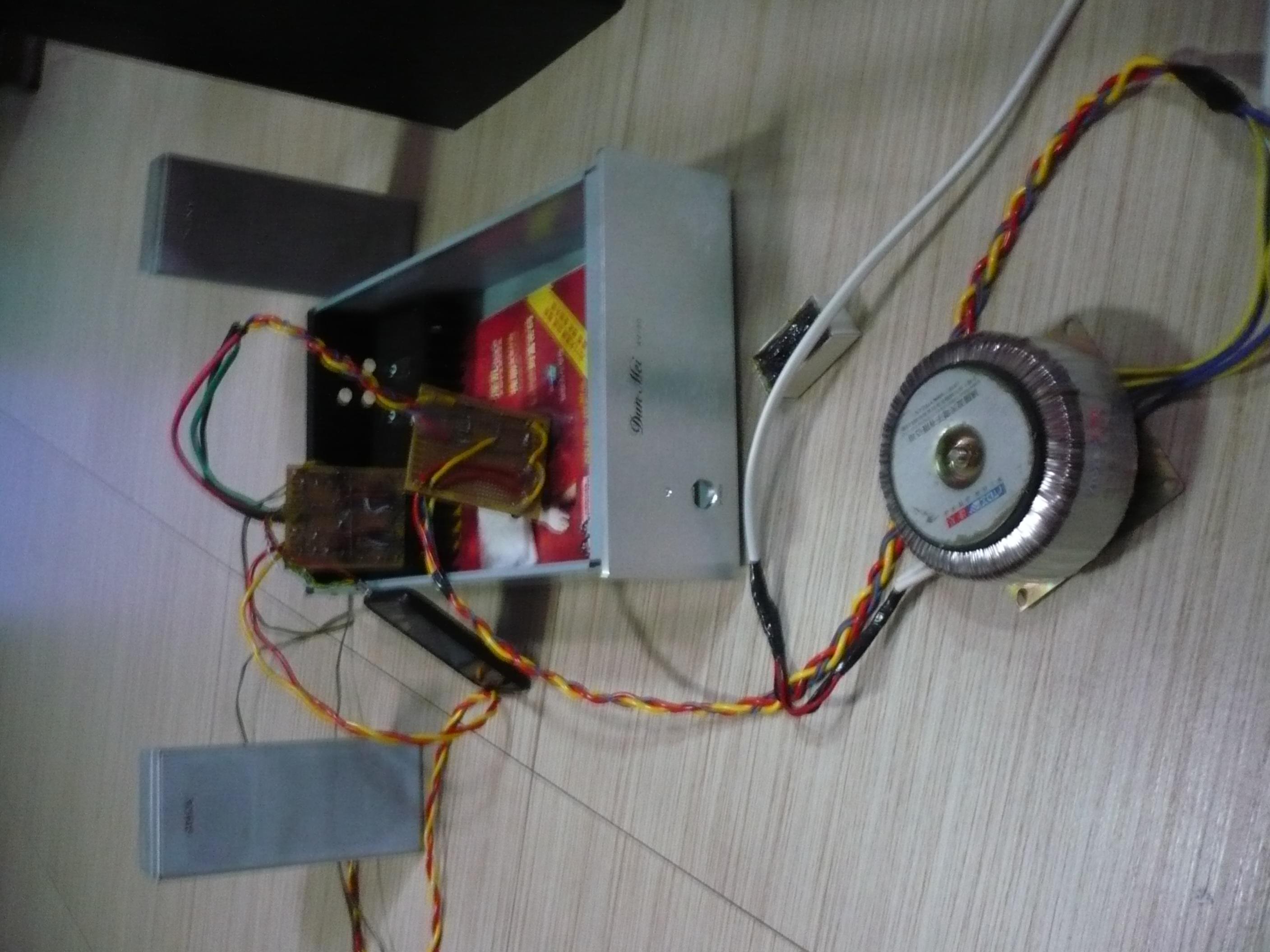

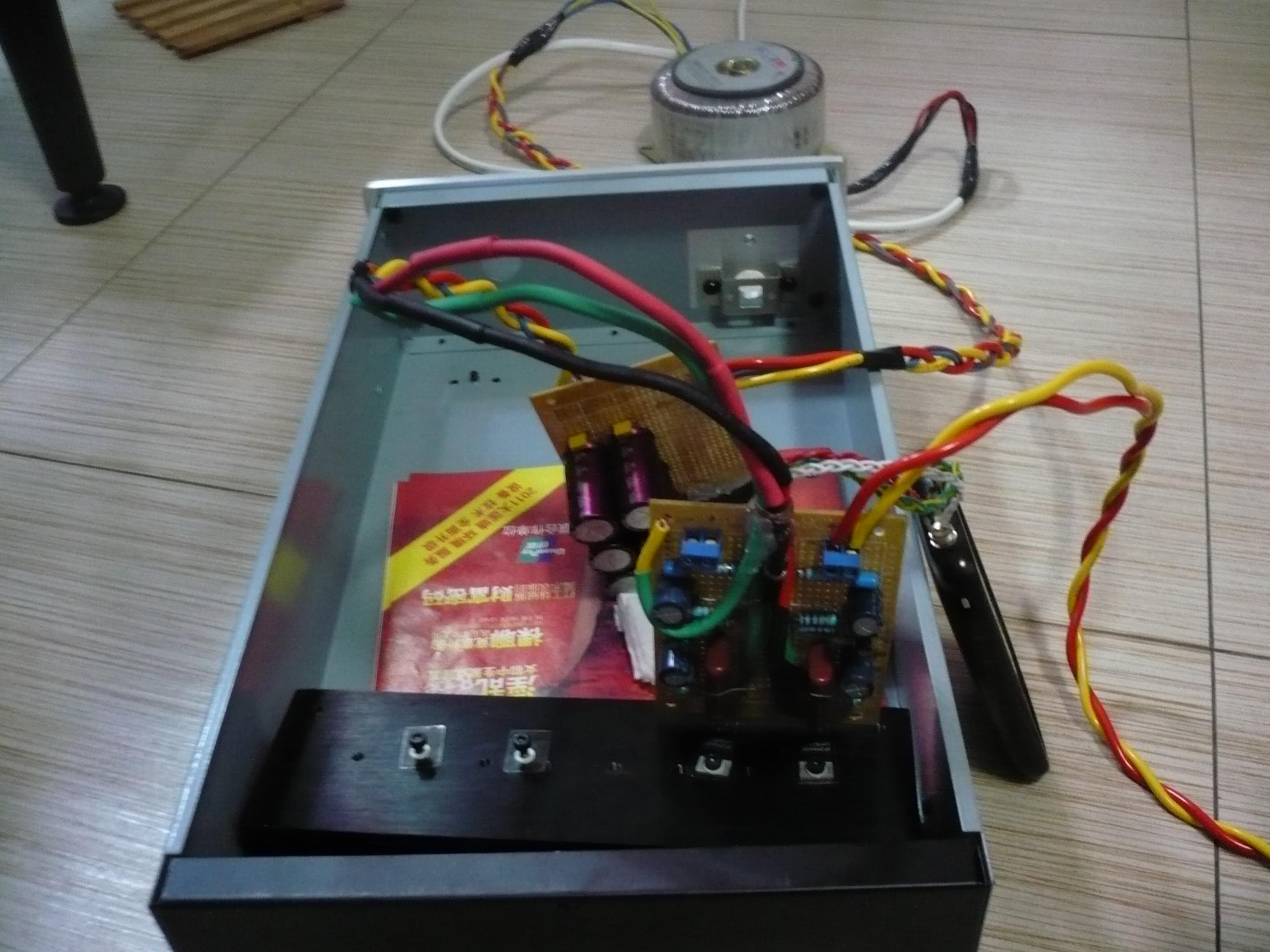

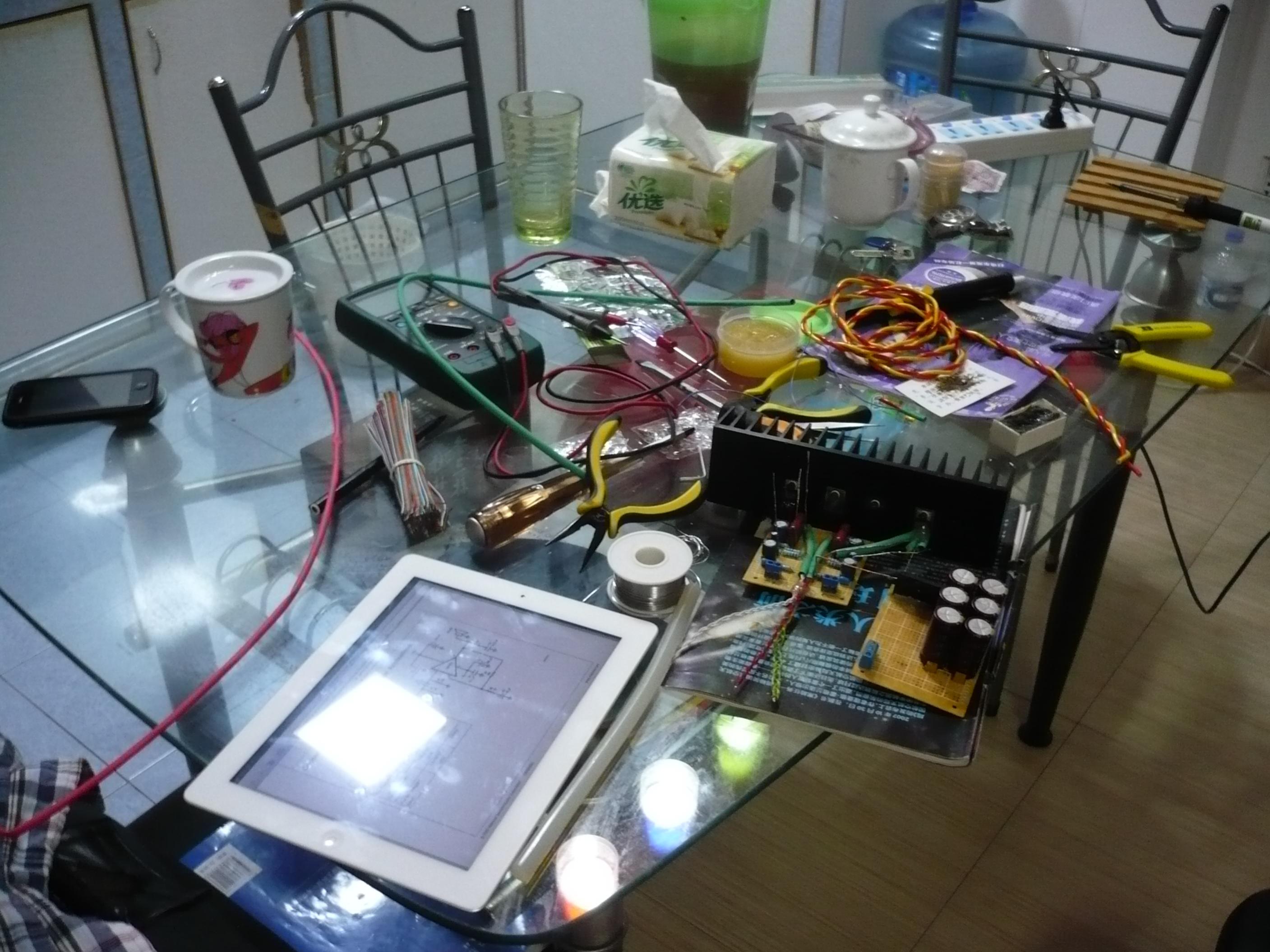

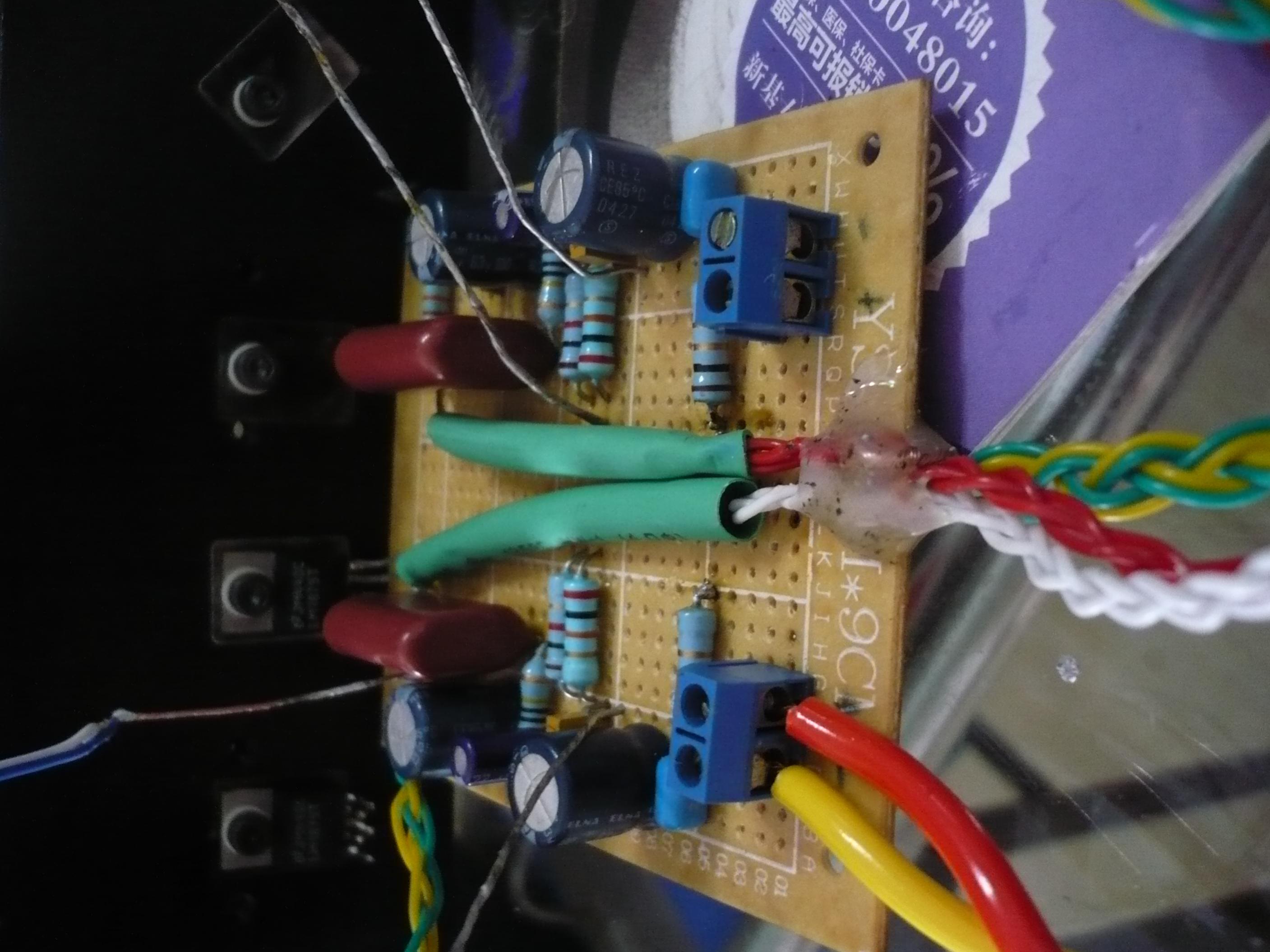

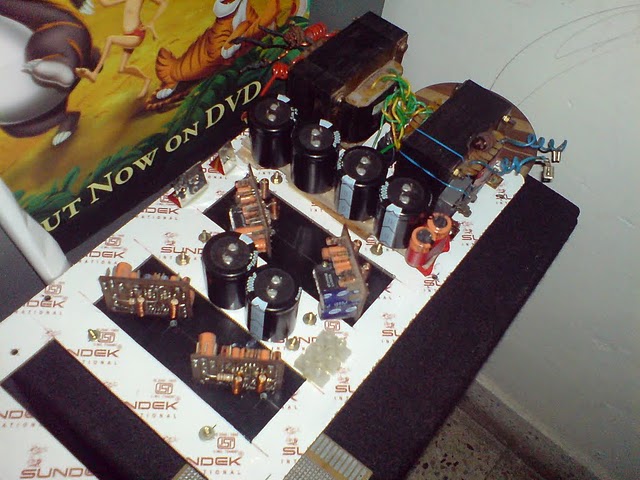

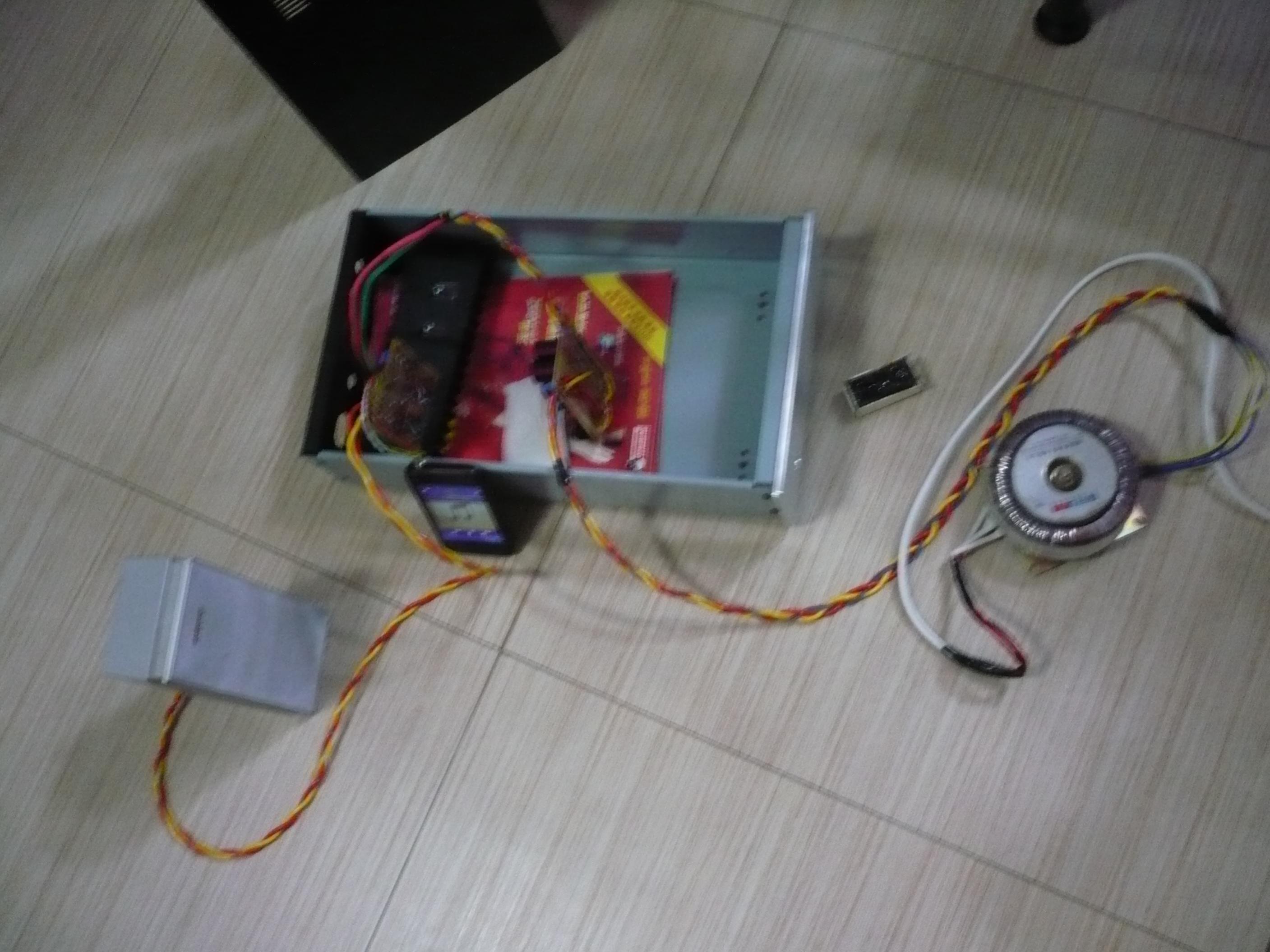

And my LM4780 based 5.1 setup in progress...
More pics -> https://picasaweb.google.com/103346623669691743811/Sub#
Will update the complete build shortly. 🙂
More pics at - https://picasaweb.google.com/103346623669691743811/LM1875#
And my LM4780 based 5.1 setup in progress...
More pics -> https://picasaweb.google.com/103346623669691743811/Sub#
Will update the complete build shortly. 🙂
Attachments
Last edited:
A PC heat sink without a fan is less efficient than just a 8"x4" square of heavy gauge aluminum plate.
The fins are too dense to allow for efficient convection.
The sink should also be turned 90 degrees so that the fins are vertical to have any hope of convection...
Ya definatly, i'll be used cooling fan also once installed in PC cabinet 🙂
The heatsink is meant for force cooling.
(I don't want to hijack the picture thread, but my question is hardly worth starting a new thread for.)
How much heatsinking does LM3886 actually need? I've just received a pair of LM3886 kits from Analog Metric Limited - DIY Audio Kit & am thinking about enclosures for them. Do they actually need heatsinks, or can I just bolt them to a suitably thick metal enclosure? The amp in this auction simply bolts them to a (thin) steel enclosure ;
NE5532 + LM3886 Audio Amplifier Home Audio AMP 68W+68W | eBay
How much heatsinking does LM3886 actually need? I've just received a pair of LM3886 kits from Analog Metric Limited - DIY Audio Kit & am thinking about enclosures for them. Do they actually need heatsinks, or can I just bolt them to a suitably thick metal enclosure? The amp in this auction simply bolts them to a (thin) steel enclosure ;
NE5532 + LM3886 Audio Amplifier Home Audio AMP 68W+68W | eBay
Steel is an extremely poor conductor of heat so the poor chips would have virtually no heat-sink at all!
Frank
Scrap yards are a good source of heatsinks and enclosures, take a pic of one with you. They'll sell them to you at weight value, they might add a bit though 🙂
I've got no problems with sourcing heatsinks, I'm just trying to ascertain how much heatsinking is actually required & how much I see in many of the builds is more just for show. I'm trying to keep my builds as simple as possible, so if I can get away with bolting the chips to a thicker enclosure rather than working heatsinks into the design, all the better!
How about a fairly thick aluminium enclosure? Something like Hammond's 1550Z Series? Hammond Mfg. - Watertight - Thick Wall - Diecast Aluminum (1550Z Series)frank1 said:
lost eden -
I have no idea of your technical resources, but if you download the spec PDF (Data Sheet) of something like the LM3886 there are exact formulas and clear descriptions of heat sink requirements.
I have no idea of your technical resources, but if you download the spec PDF (Data Sheet) of something like the LM3886 there are exact formulas and clear descriptions of heat sink requirements.
Hardware stores usually have aluminum bars for sale. If you get a piece taller that the LM3886 chip and 4 times as wide, mount it inbetween the chip and the chassis, it will act as a heat "spreader" and move more heat to a wider area of a metal enclosure.
