900W H-class PA Amp with Limiter

[waylene]

Thanks My friend I will do this rite now.



[gantex]

Thanks My friend I will do this rite now.

good luck my friends. U can check component layout too on pic i give to meansure any error.



[gantex]

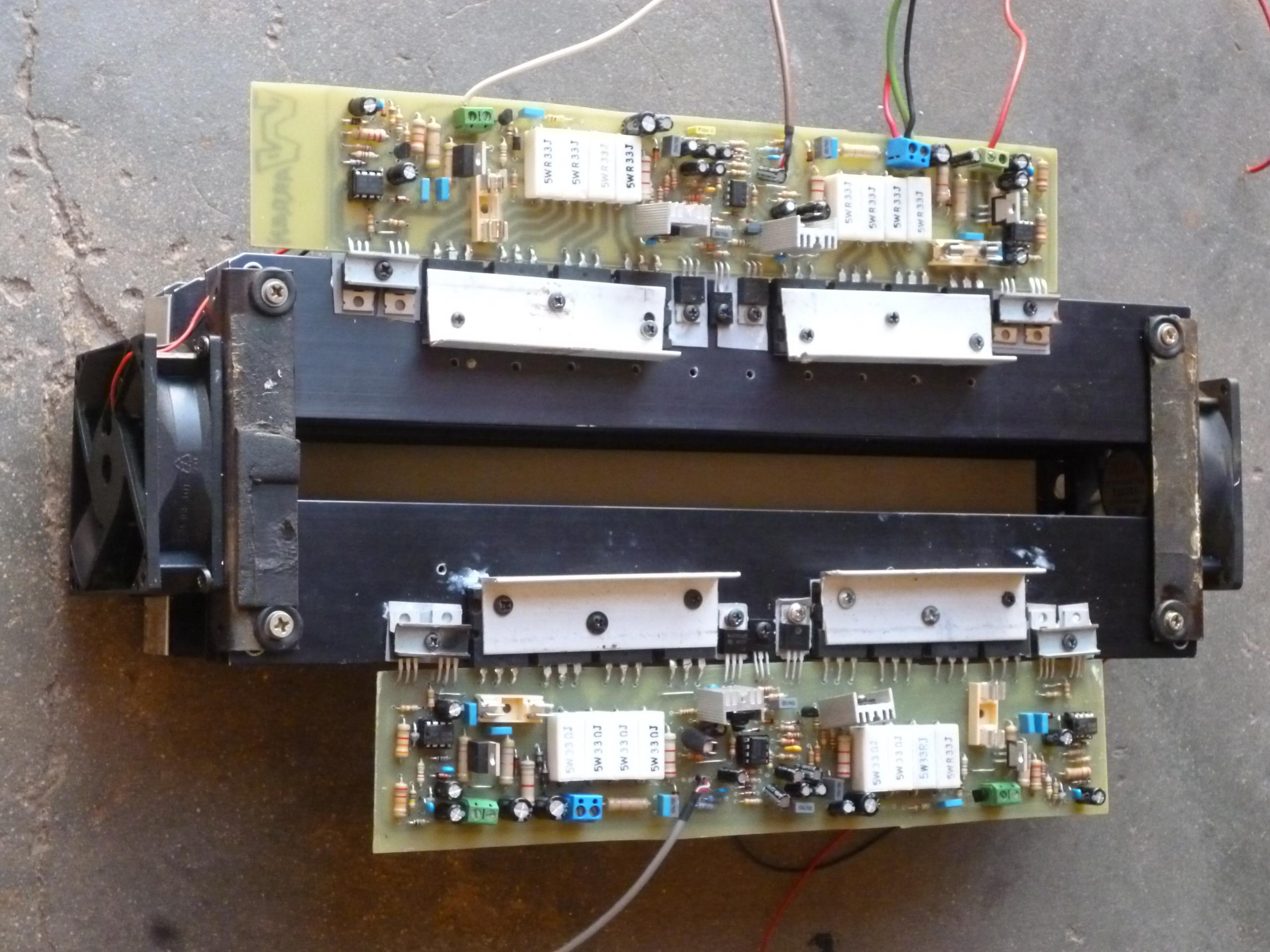

Any ting wrong here on my H900?

hey waylene, i check ur b900 again and i see many wrong here, please check ur ic NE, u put wrong position. Be aware any transistor on main headsink may have isolator. Check it. I see mje 340 biases tr on middle position miss isolator. Be carefull sir.



[waylene]

Hello my friend!!! Thanks for all your help! I appreciated much Highly. The mje 340 transistor is a covert with it's own plastic, with out metal side at the back. I will check the ic Ne now to see what I do wrong there. But still Thanks a lot my friend.



[waylene]

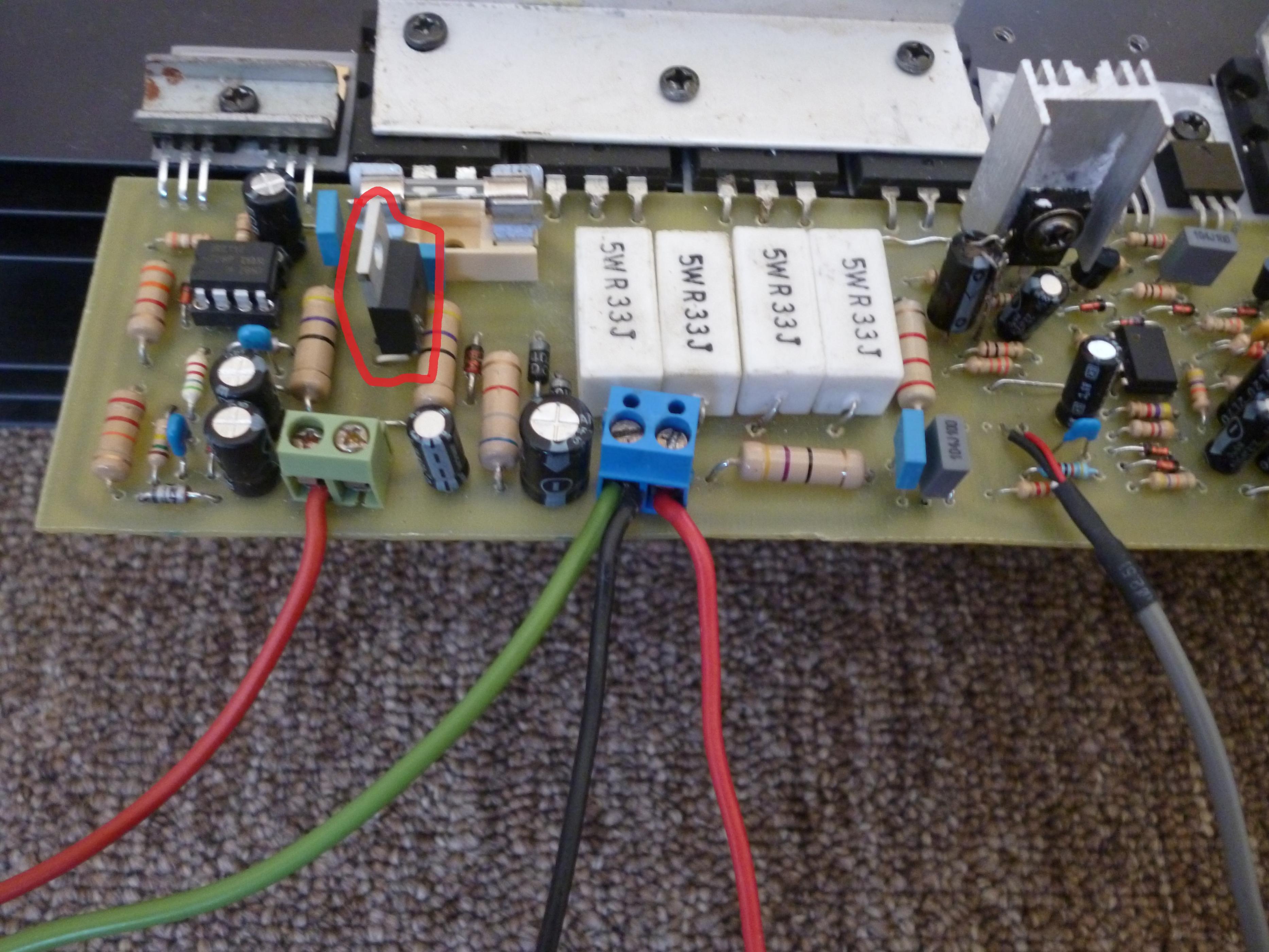

The MUR here that I mark with red here, is that the rite side I solder in pcb?



[jaagut]

MUR1620 is completely reversible.



[waylene]

What this that mean my friend?



[waylene]

Must it be like this here? Check Mur? Is that the rite way here my friend?



[jaagut]

What this that mean my friend?

it means you can install it without worry of mistake.

because the diode is twin. both legs 1 and 3 are the same.



[waylene]

OK! Thanks, Tell me are you on facebook my friend?



[waylene]

Sir are you on Face Book ?



[jaagut]

Sir are you on Face Book ?

no FB yet.



[waylene]

OK!



[waylene]

This is my email address: warren@stonethree.com Really a good and nice friend to me. I like to be in contact with you when I got problems like this. What kind of amps you build as I must ask Sir?



[gantex]

Hello my friend!!! Thanks for all your help! I appreciated much Highly. The mje 340 transistor is a covert with it's own plastic, with out metal side at the back. I will check the ic Ne now to see what I do wrong there. But still Thanks a lot my friend.

Ok sir, just to make sure that rite and no wrong there.
do you fix H900 now?



[wendipassundan]

h900 layout

Greetings, please help, is there a top and bottom layout of h900 as the pictures? I want to make pcb.

thanks a lot.



[Zinyx]

Send e-mail to wiljj78

wiljj78@gmail.com



[gantex]

Greetings, please help, is there a top and bottom layout of h900 as the pictures? I want to make pcb.

thanks a lot.

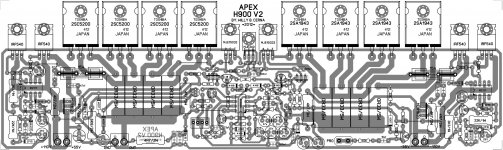

seem like pic i upload. See page 274. But, maybe little different.



[stewin]

Greetings, please help, is there a top and bottom layout of h900 as the pictures? I want to make pcb.

thanks a lot.

pls any one to post above pcb files / artwork



[waylene]

Hi there!

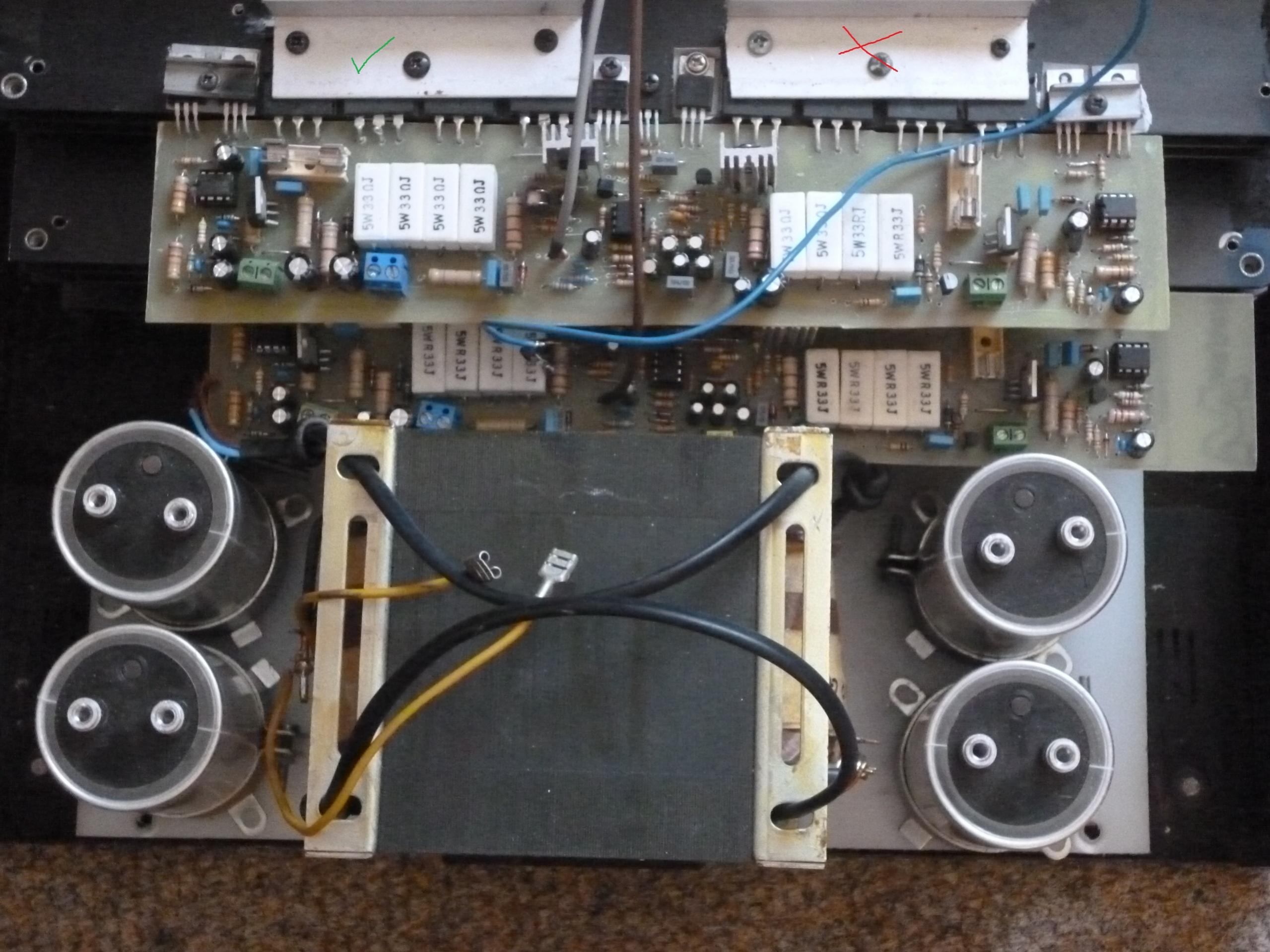

Amp play well, but only one side of transistors warm up. See where I mark with green, warm up, but there I mark with red, stay cold. Can you tell me what it can be.

Thanks.

Warren.
