4 caps Mr Evil's Capacitance Multiplier Power Supply PCB

[meanman1964]

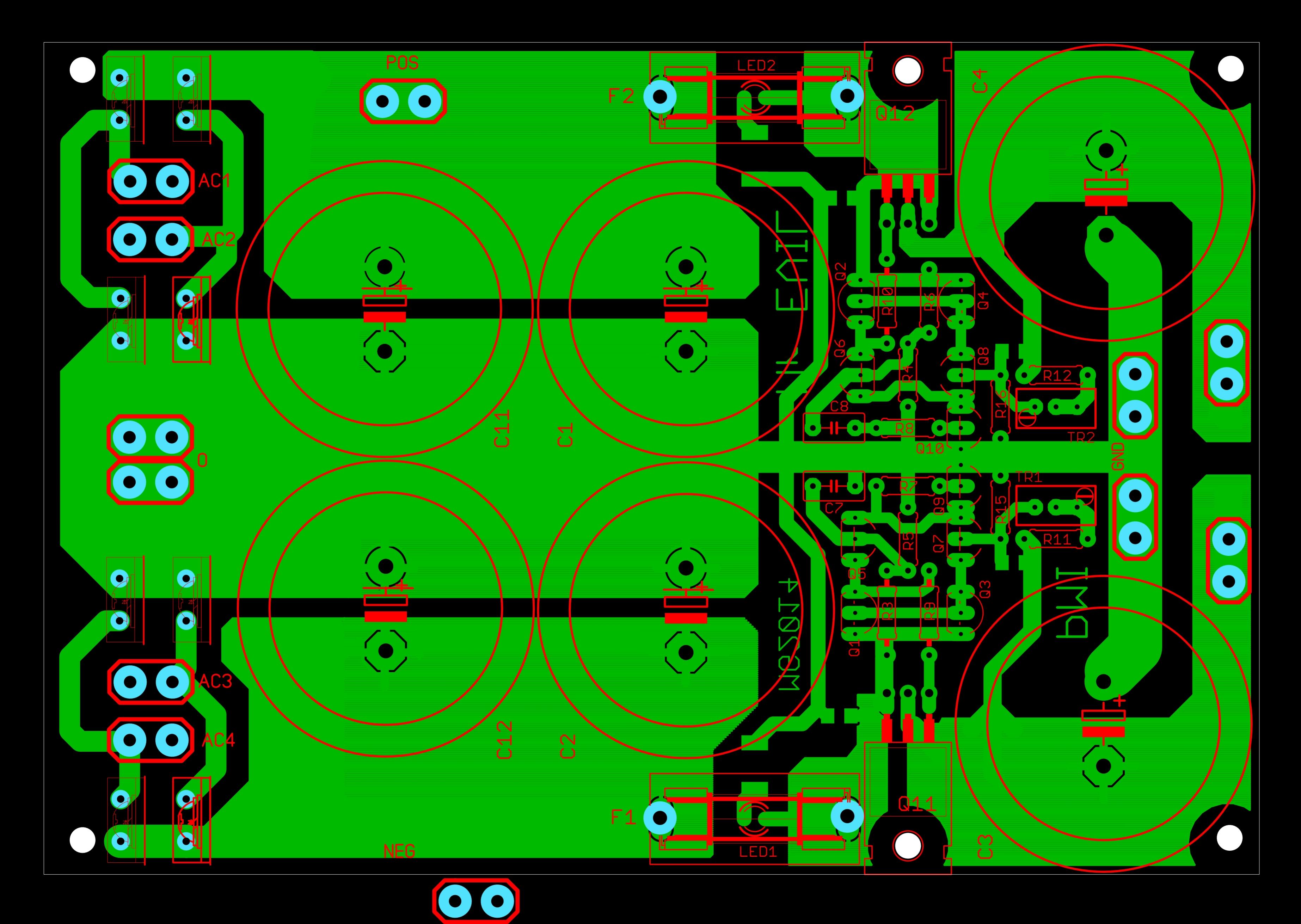

Made some changes and double the diodes .
Please comment on this , need some finetuning regarding the edges .Still learning the software .



[arthur]

soldering eyelets disappear around c1 11 2 and 12



[meanman1964]

Thanks for pointing this out , didn't notice mhselfy .



[Wot4Pilot]

Just to say I really appreciate you going to the trouble of doing this for us. Is it possible to make the mounting holes line up, as per your previous version. Many thanks.


Stephen.



[meanman1964]

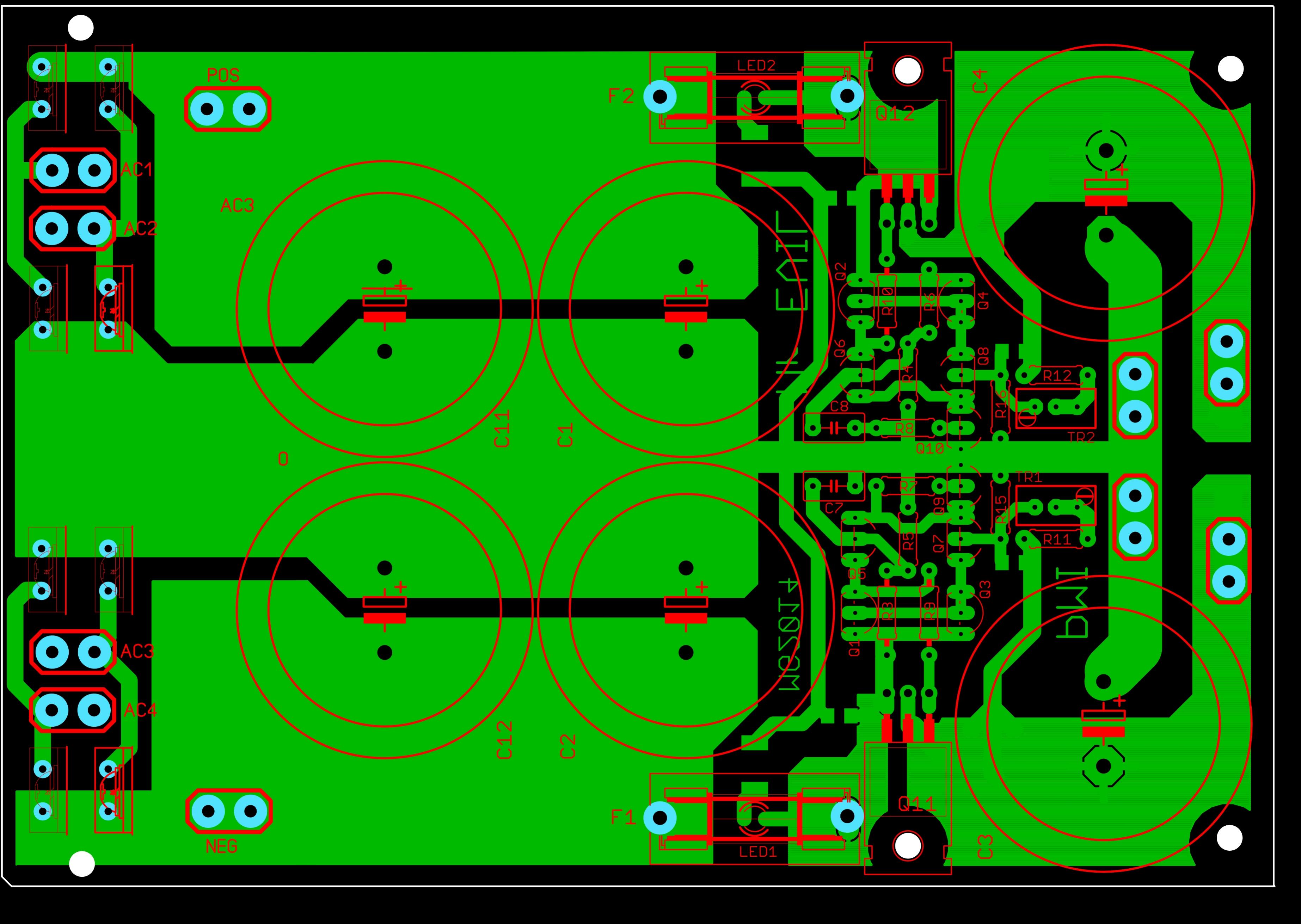

Latest



[Luke]

Hi Meanman, this is a really nice board, but I expect that the diodes may need heatsinking in some use cases. Is it possible to rearrange them?



[nautibuoy]

Earthquake /UK / 4 boards
arthur / HK / 8 boards
markus22ch /Swiss / 4 boards
KVP / Belgium / 4 boards
vasillis / Greece : 4 boards
odie1472 :Brunie / 4 boards
Mindfunk / Germany/ 4 boards
nautibuoy/UK/4 boards
Wot4Pilot/UK/2 boards
aspringv/Australia/2 boards
jacques antoine/France/2 boards
yoaudio/USA/6 boards
Johnny2Bad/ 2 boards

Total: 50



[meanman1964]

Hi Meanman, this is a really nice board, but I expect that the diodes may need heatsinking in some use cases. Is it possible to rearrange them?

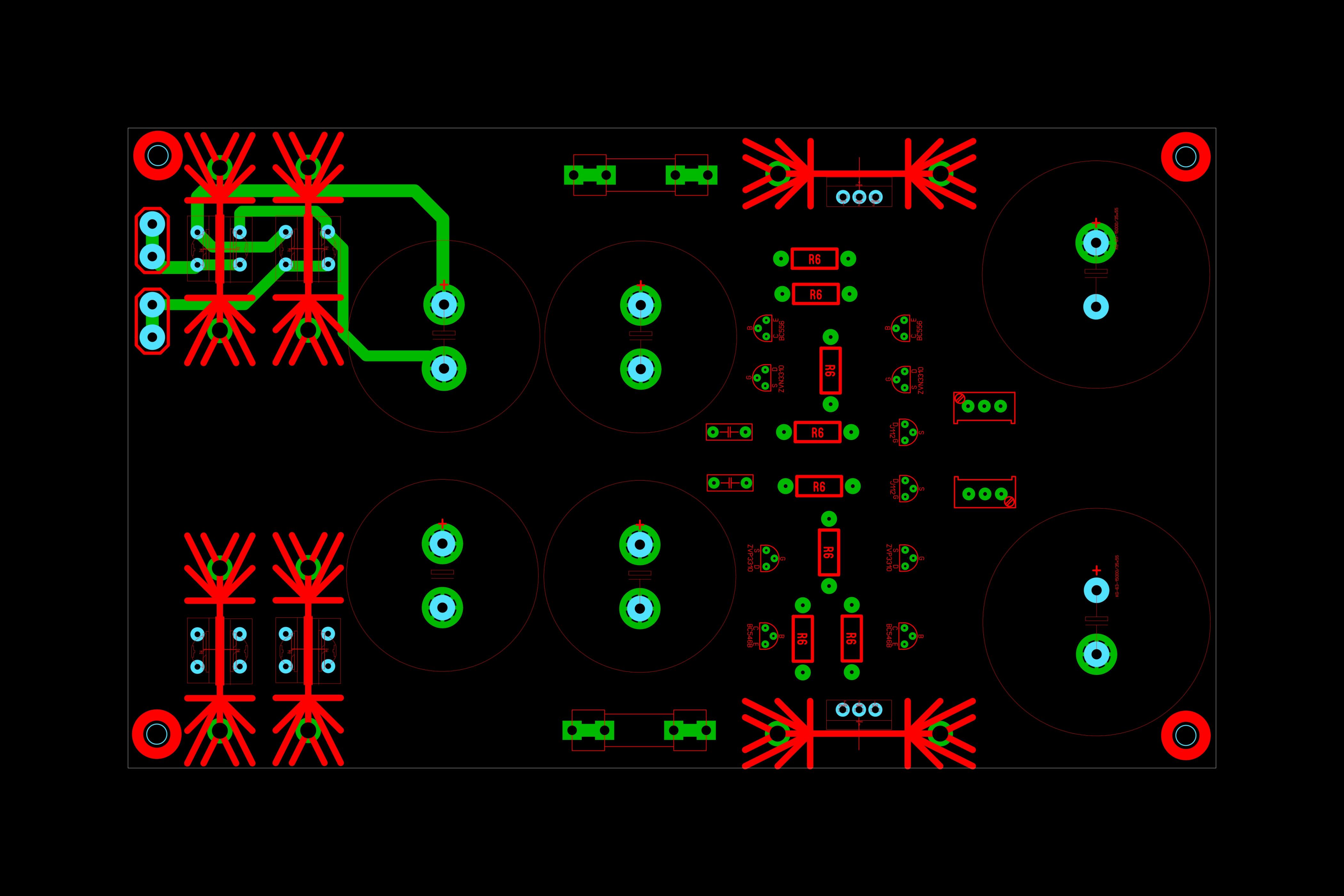

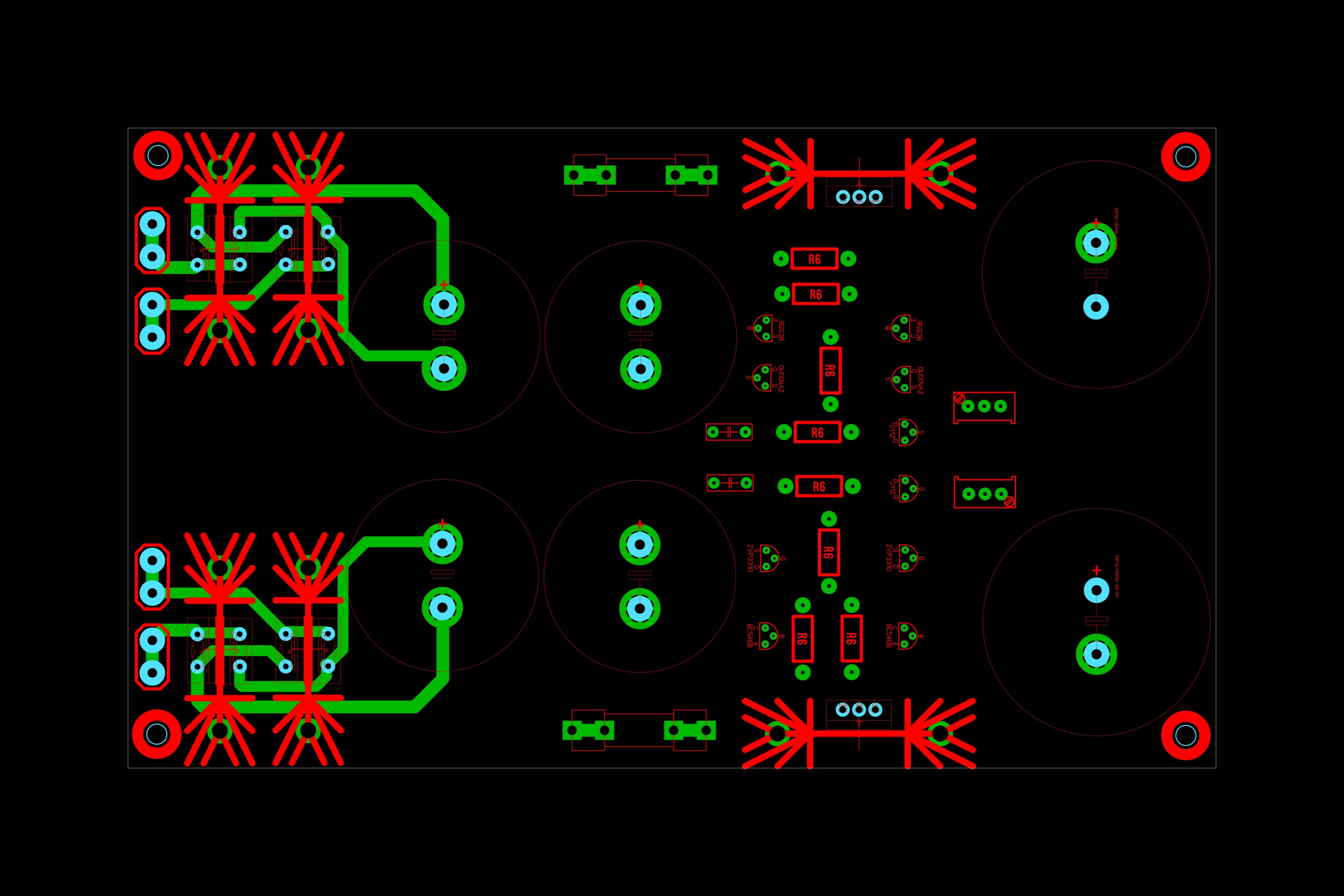

Like this ?



[Luke]

Like this ?

yes like that🙂



[meanman1964]

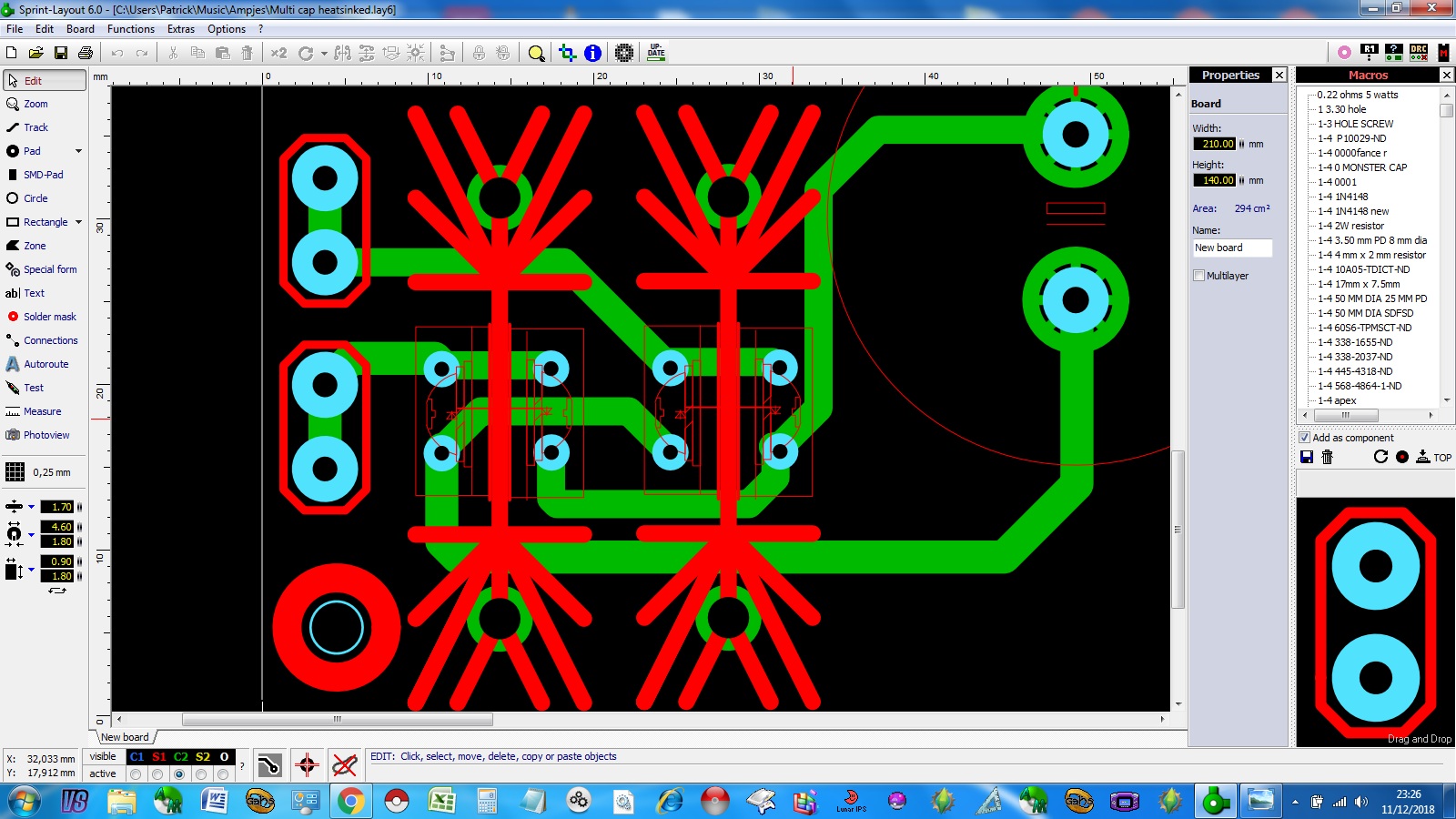

Not shure , are the connections right?



[kaliwraith]

Earthquake /UK / 4 boards
arthur / HK / 8 boards
markus22ch /Swiss / 4 boards
KVP / Belgium / 4 boards
vasillis / Greece : 4 boards
odie1472 :Brunie / 4 boards
Mindfunk / Germany/ 4 boards
nautibuoy/UK/4 boards
Wot4Pilot/UK/2 boards
aspringv/Australia/2 boards
jacques antoine/France/2 boards
yoaudio/USA/6 boards
Johnny2Bad/ 2 boards
kaliwraith/USA/2 boards


Total: 52



[shattered_dream]

Earthquake /UK / 4 boards
arthur / HK / 8 boards
markus22ch /Swiss / 4 boards
KVP / Belgium / 4 boards
vasillis / Greece : 4 boards
odie1472 :Brunie / 4 boards
Mindfunk / Germany/ 4 boards
nautibuoy/UK/4 boards
Wot4Pilot/UK/2 boards
aspringv/Australia/2 boards
jacques antoine/France/2 boards
yoaudio/USA/6 boards
Johnny2Bad/ 2 boards
kaliwraith/USA/2 boards
shattered_dream /germany/2 boards

Total: 54



[ferret]

I'll take 2 boards please. Many thanks.
Kevin



[Heretik HiFi]

Looking nice been looking for a nice psu board Ill take 2 please! if still possible.



Thanks.



[jims]

Earthquake /UK / 4 boards
arthur / HK / 8 boards
markus22ch /Swiss / 4 boards
KVP / Belgium / 4 boards
vasillis / Greece : 4 boards
odie1472 :Brunie / 4 boards
Mindfunk / Germany/ 4 boards
nautibuoy/UK/4 boards
Wot4Pilot/UK/2 boards
aspringv/Australia/2 boards
jacques antoine/France/2 boards
yoaudio/USA/6 boards
Johnny2Bad/ 2 boards
kaliwraith/USA/2 boards
shattered_dream /germany/2 boards
JimS/USA/ 3 boards

Total: 59
Report Post



[Luke]

Not shure , are the connections right?

the track work looks right to me. I think the Vf is something like a volt for the MUR1620, so with a class A amp running 3A for example, its going to be 6 Watts per heatsink, or will it be half as they are conducting half cycle each? Either way, I think you would need much bigger sinks.



[meanman1964]

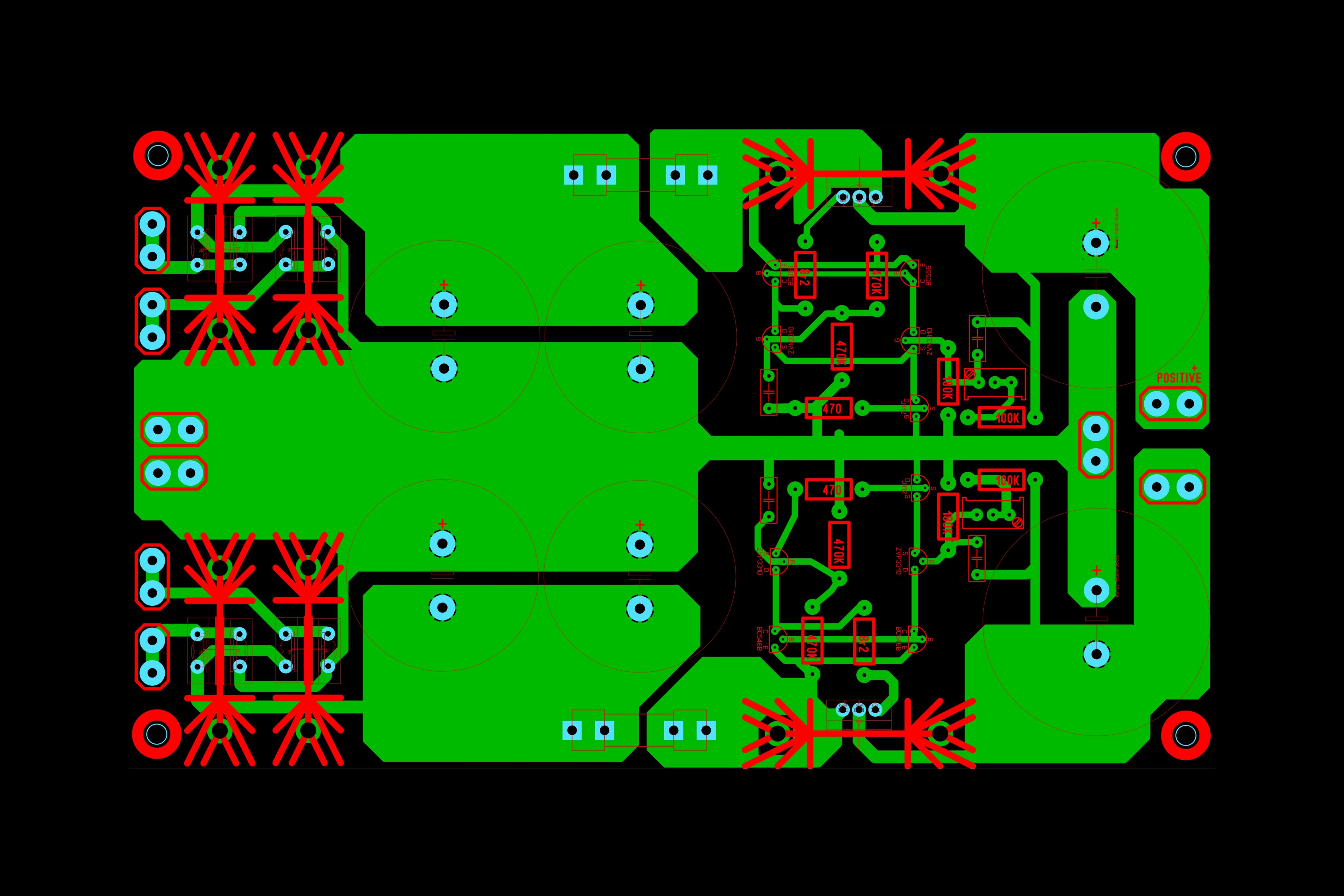

Latest layout
Try to attache the LAY file but always keep getting invalid file .



[meanman1964]

Here you've the LAY file
If you find it's needed to tweak please do



[Juntuin]

Will this one work with usual FW amp? Last one I tried heated up more than actual amp.

If it works with class-A, 8pcs for me please. Fin/EU



[meanman1964]

FW ?
