Hi All,

any suggestion for improving quality

Regards
MANOJ



[44250]

Love it!

Wow! very nice build.

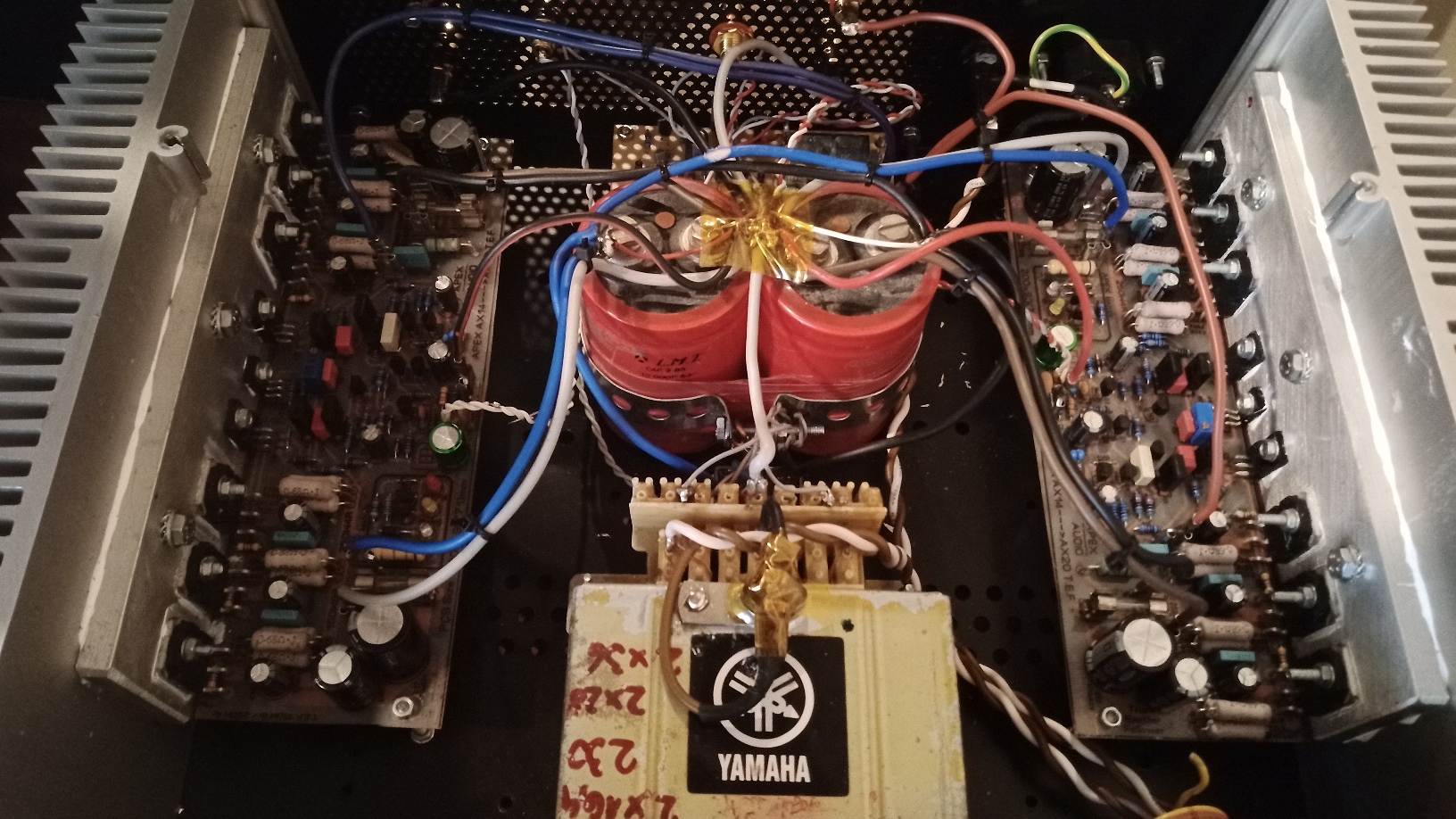

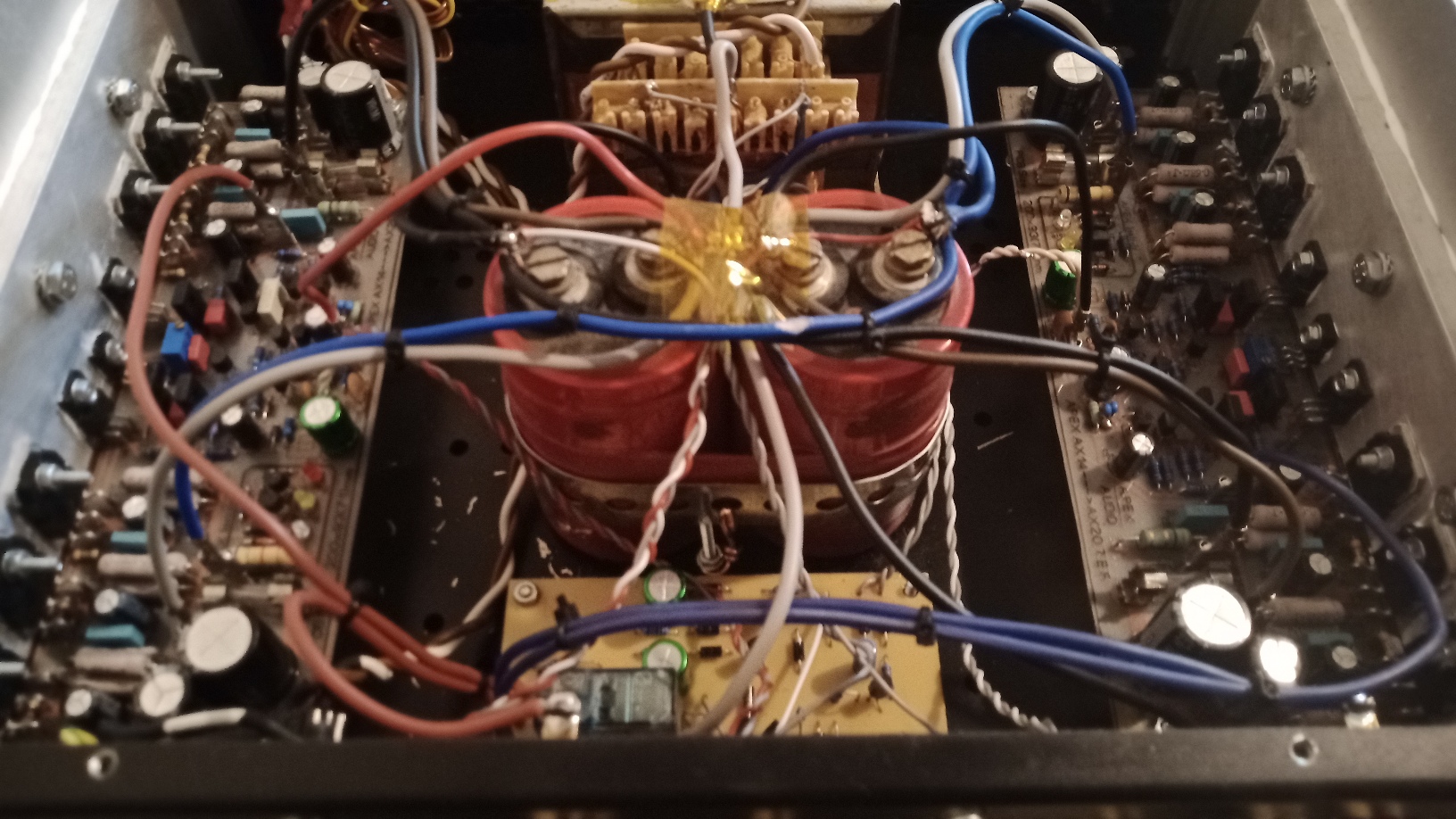

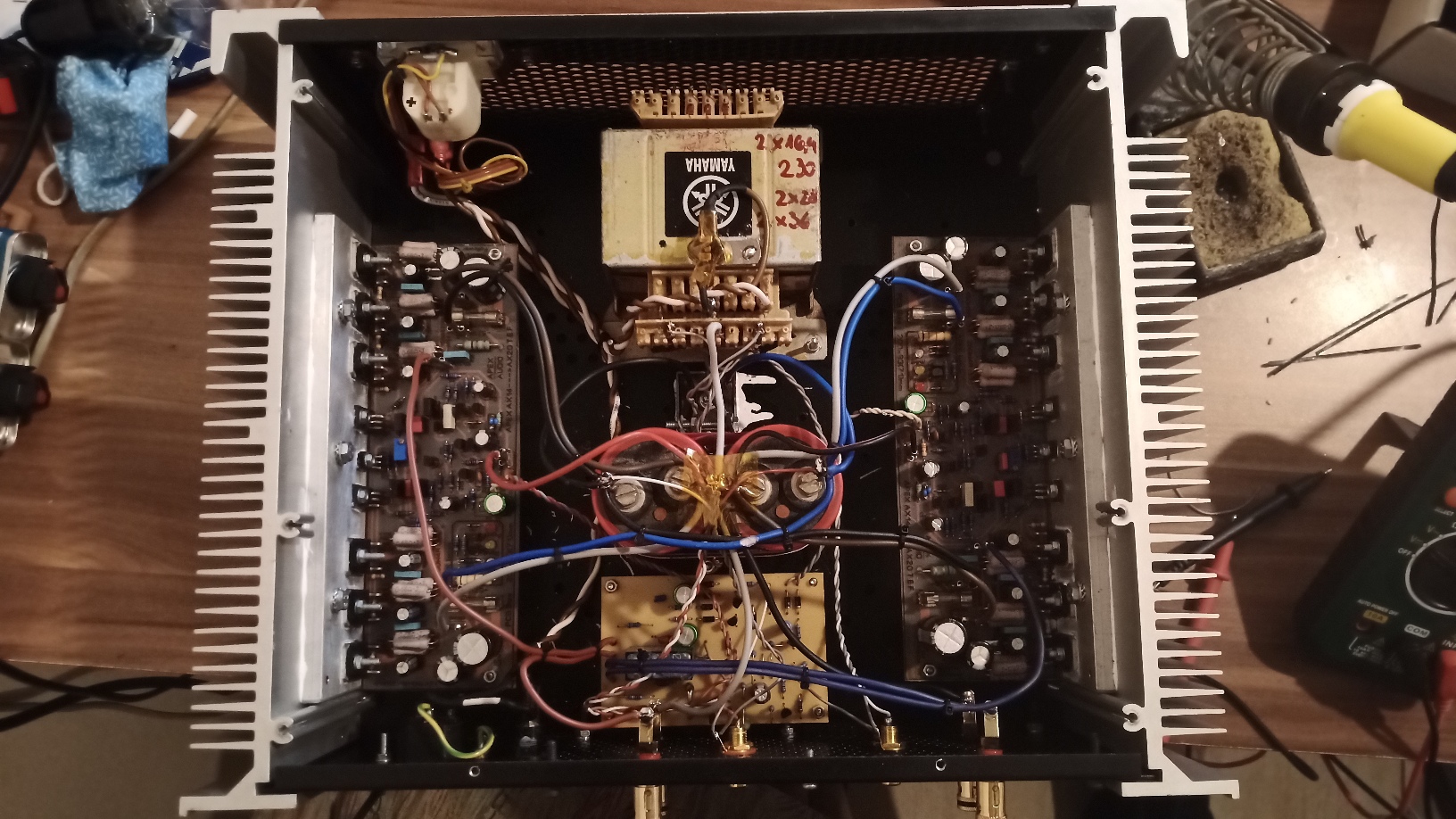

thank you friends �� there are many wires left to be used �� i am at halftime now...



[viki_v2]

I dont remember the exact post but some one had mentioned that bjt's have dynamic sound and fets having more tuble like sound, also one of apex fets amps was mentioned. which one would you guys recommend.



[prasi]

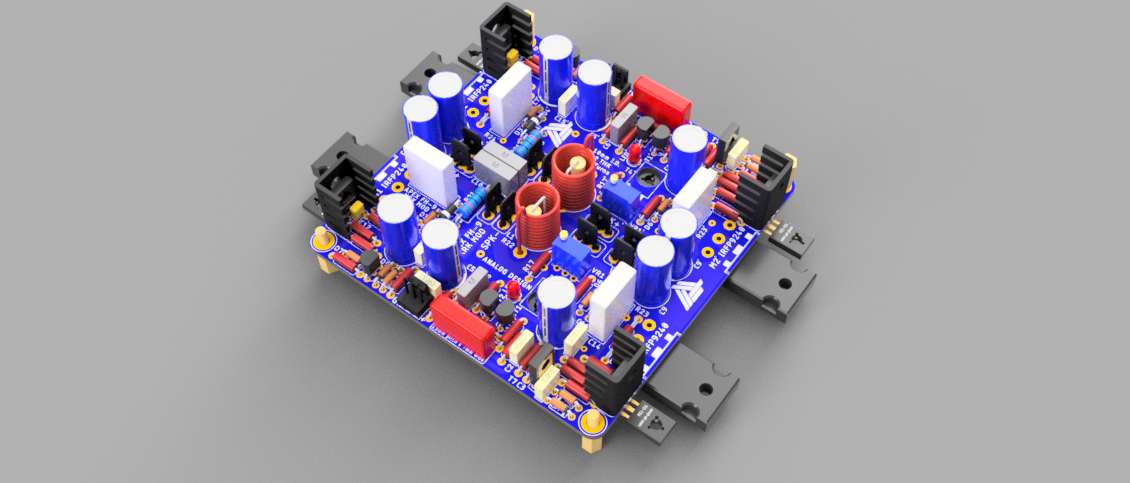

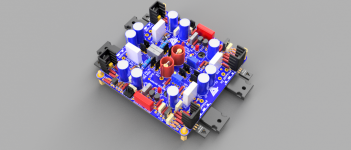

regarding APEX-XRK FH-9 stereo amp pcb, Since I didn't get many responses, I went ahead and ordered 10 protos from pcbway, they are all booked, strawa 2 pcbs, inyashd 2pcbs, viki_v2 4 pcbs, me 2 pcbs.
if anyone wants to place order , they can do so below.

APEX-XRK971 FH9HVX AUDIO AMPLIFIER-STEREO - Share Project - PCBWay



[smartx21]

Hi All,

any suggestion for improving quality

Regards
MANOJ

It would be nice if you started a new thread.



[khalsa]

drawing

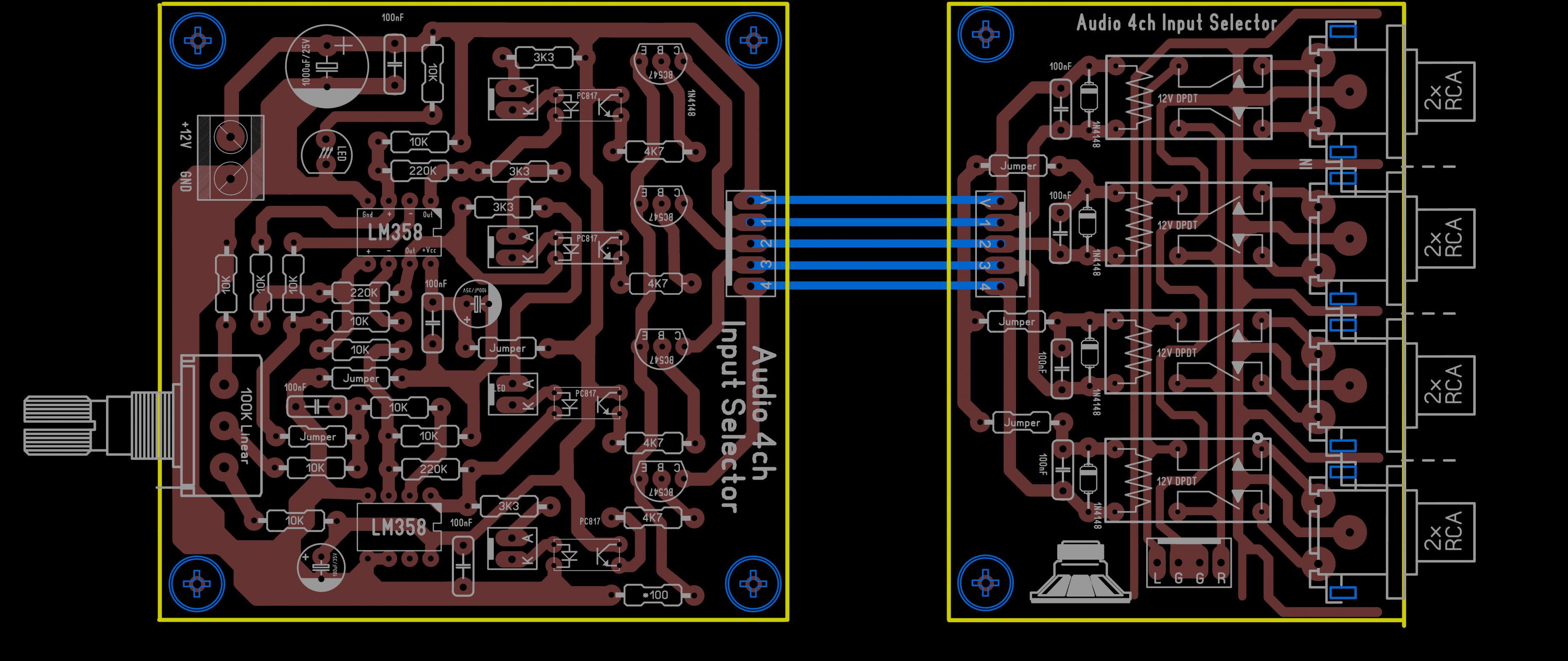

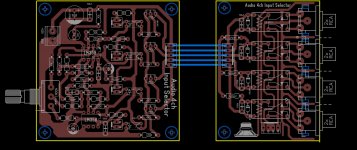

any one share layout audio innput selecter



[manojtm]

It would be nice if you started a new thread.

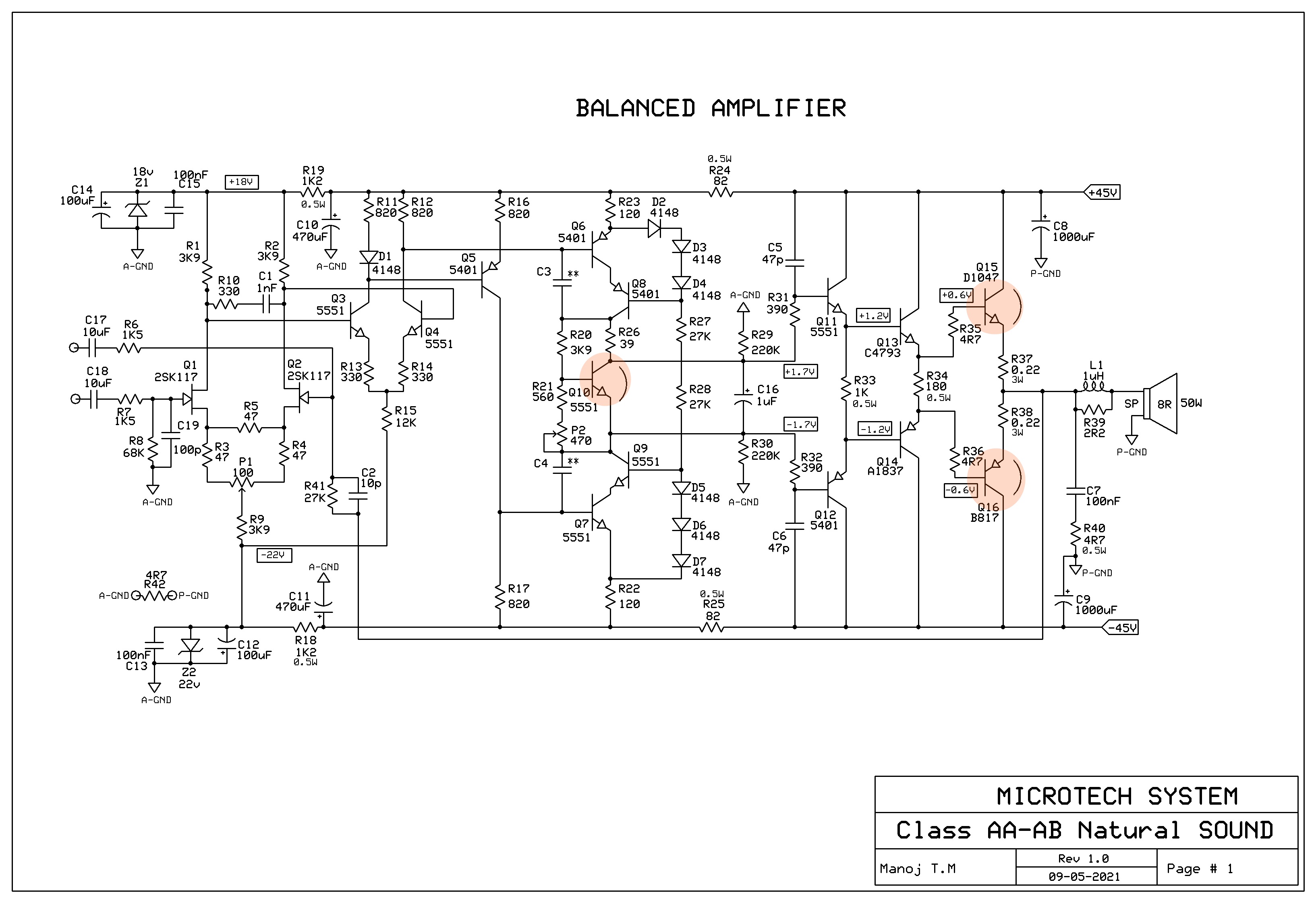

OK. started new MY Class AA/AB

Regards
MANOJ



[r_jik45]

any one share layout audio innput selecter

What about Salas' I-Select board?
GB For Salas I-Select Mesmerize Type input selector and volume control



[apexaudio]

Hi All,

any suggestion for improving quality

Regards
MANOJ

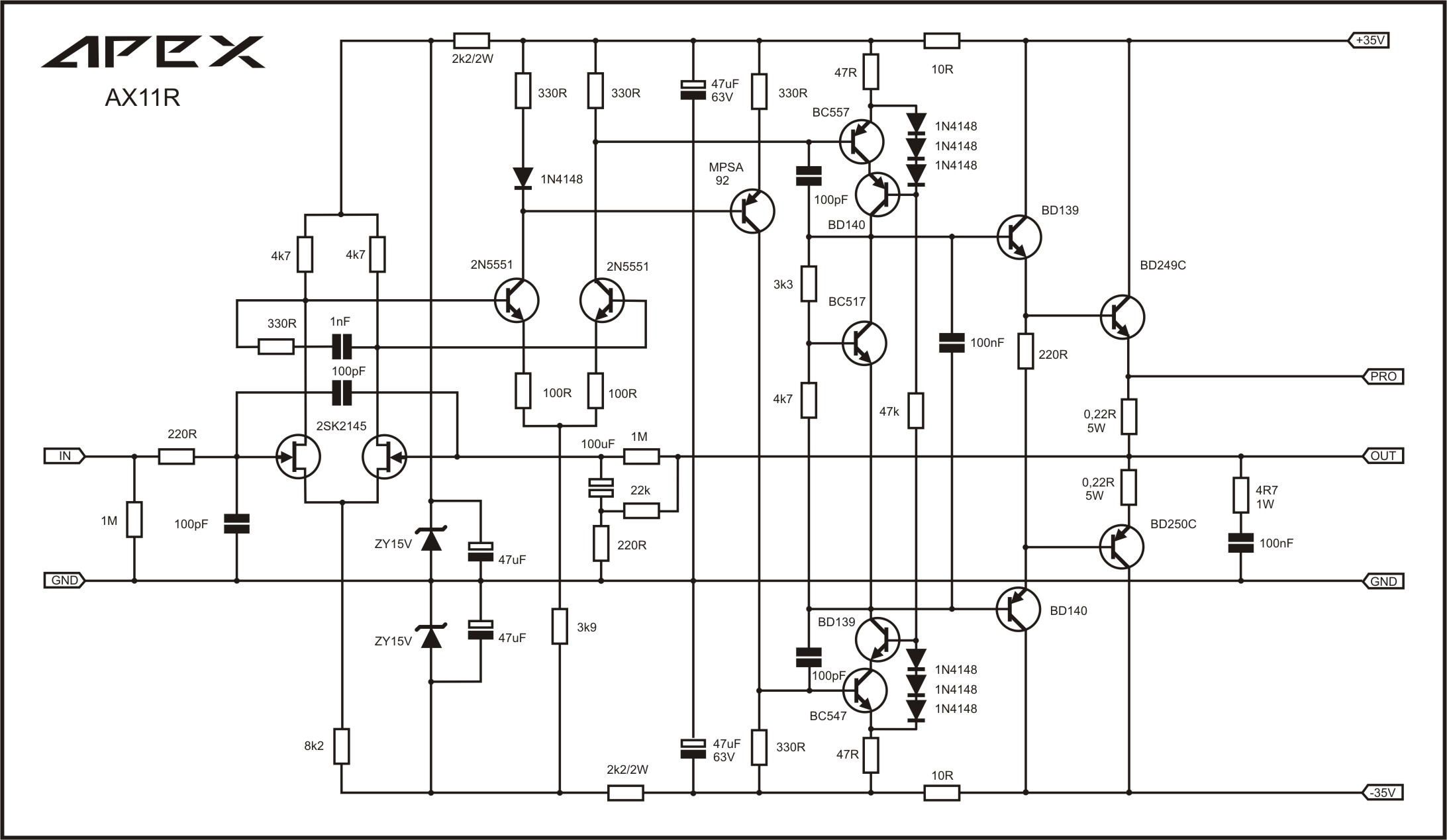

Look like AX11R
https://www.diyaudio.com/forums/sol...imate-fidelity-amplifier-915.html#post4918632



[44250]

regarding APEX-XRK FH-9 stereo amp pcb, Since I didn't get many responses, I went ahead and ordered 10 protos from pcbway, they are all booked, strawa 2 pcbs, inyashd 2pcbs, viki_v2 4 pcbs, me 2 pcbs.
if anyone wants to place order , they can do so below.

APEX-XRK971 FH9HVX AUDIO AMPLIFIER-STEREO - Share Project - PCBWay

is there any option to get pdf of top and bottom pdf of cooper traces and layout here,or any other way? i could try to do this amp board diy. (my personal best way)



[prasi]

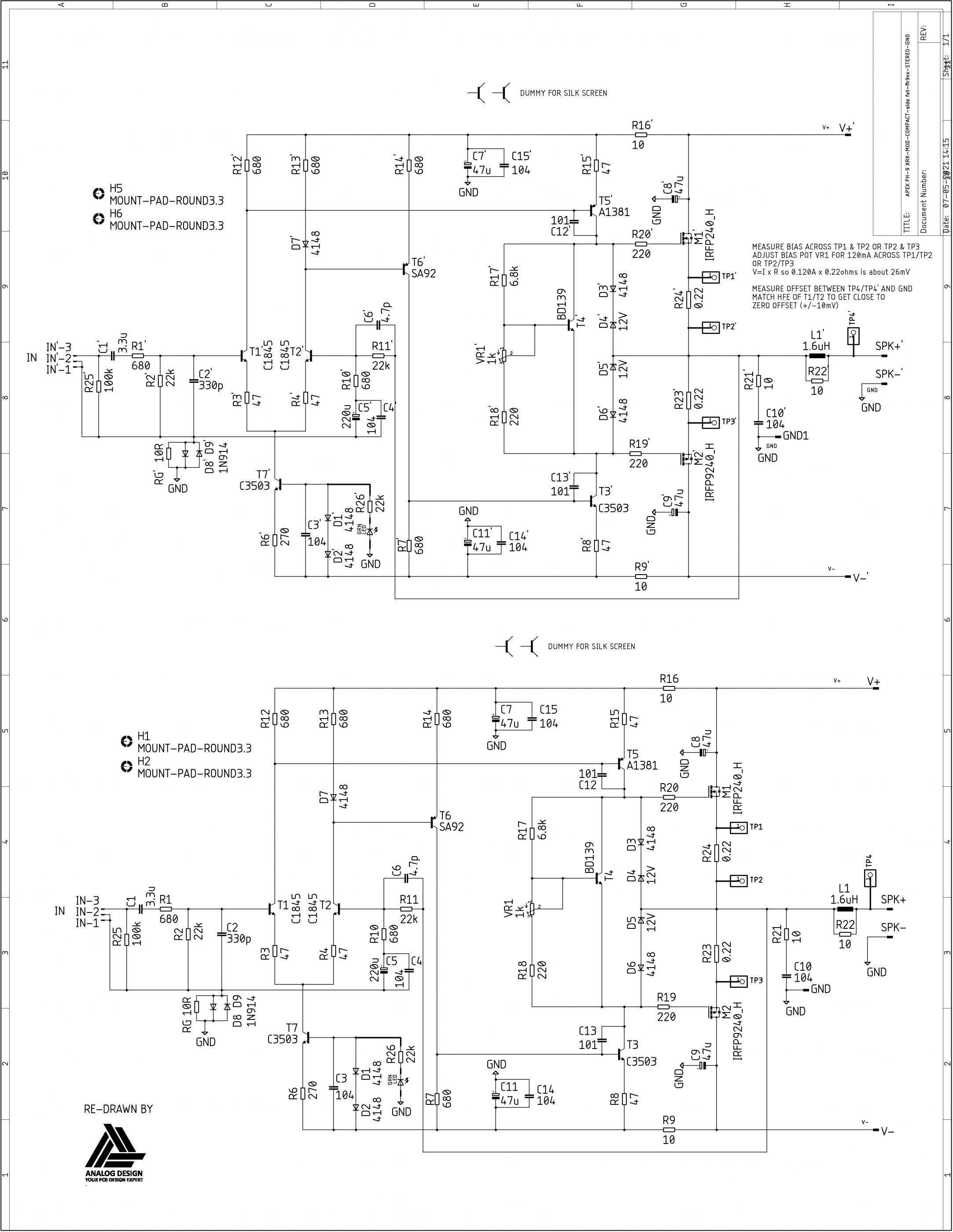

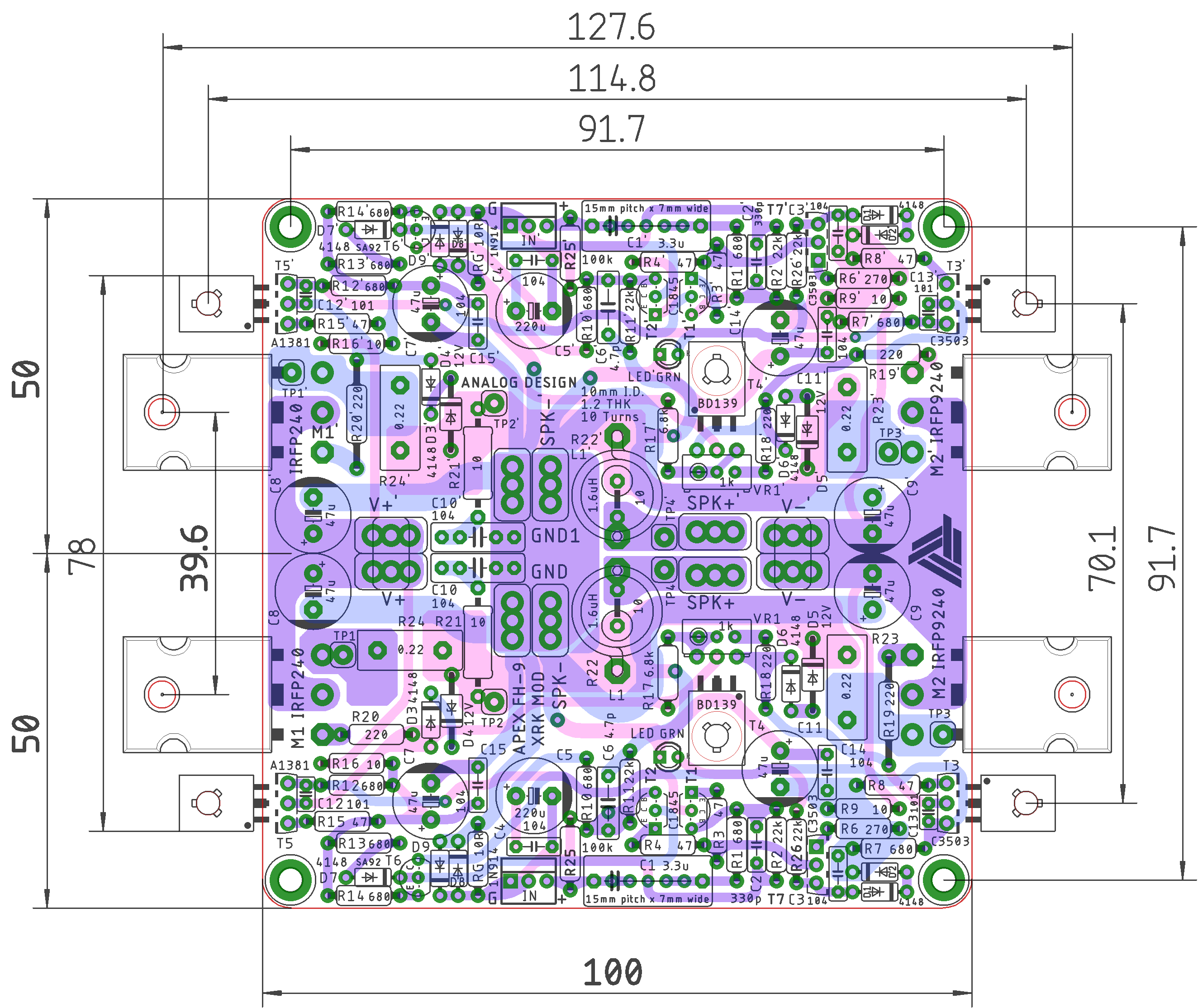

here are all files, pdfs , stuffing guide and sch and gerbers.
I will send you pcb if there are any remaining.



[44250]

no pressure,thanks a lot for the files!



[prasi]

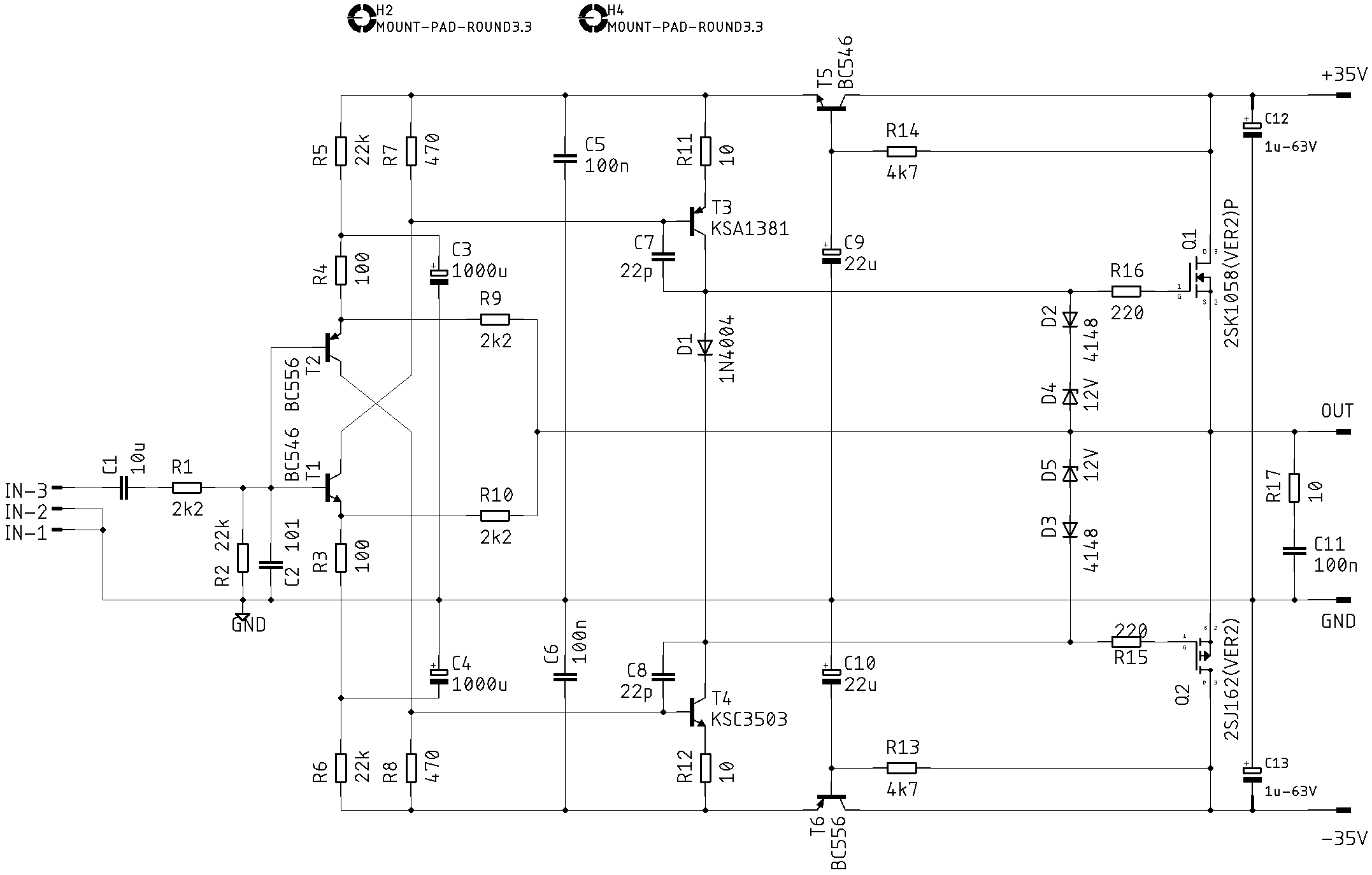

F8R

I think I had missed this one.



[DaveFred]

here are all files, pdfs , stuffing guide and sch and gerbers.
I will send you pcb if there are any remaining.

I didn't do any comparisons yet between the schematics, but will these BOM's work?

https://www.diyaudio.com/forums/gro...-100w-class-ab-lean-times-10.html#post6198185



[shabusf]

Thanks a lot Prasi for the files I would like to get it done from PcbWay.
How much shipping it cost for you to India?

Thanks
Sha

here are all files, pdfs , stuffing guide and sch and gerbers.
I will send you pcb if there are any remaining.



[prasi]

If you want order from pcbway, order from the link provided, that way i will get some commission . You can also change pcb specification of pcb if you so desire. pcbway charged me 15 usd shipping. + 5usd for pcb + there will be some customs duty of about 1100-1200 INR by our overzealous customs.

The link for placing order is in below post.

100W Ultimate Fidelity Amplifier



[prasi]

I didn't do any comparisons yet between the schematics, but will these BOM's work?

https://www.diyaudio.com/forums/gro...-100w-class-ab-lean-times-10.html#post6198185

Schematics almost same, but bom may not be valid for this design as I have used some other packages for some resistors and caps, (e.g. input caps , electrolytic caps, ceramic caps, etc). Also inductor is hand made in this design. I can give you parts list with dimensions.

regards
Prasi

PS attached.



[shabusf]

Thanks for the link

If you want order from pcbway, order from the link provided, that way i will get some commission . You can also change pcb specification of pcb if you so desire. pcbway charged me 15 usd shipping. + 5usd for pcb + there will be some customs duty of about 1100-1200 INR by our overzealous customs.

The link for placing order is in below post.

100W Ultimate Fidelity Amplifier



[44250]

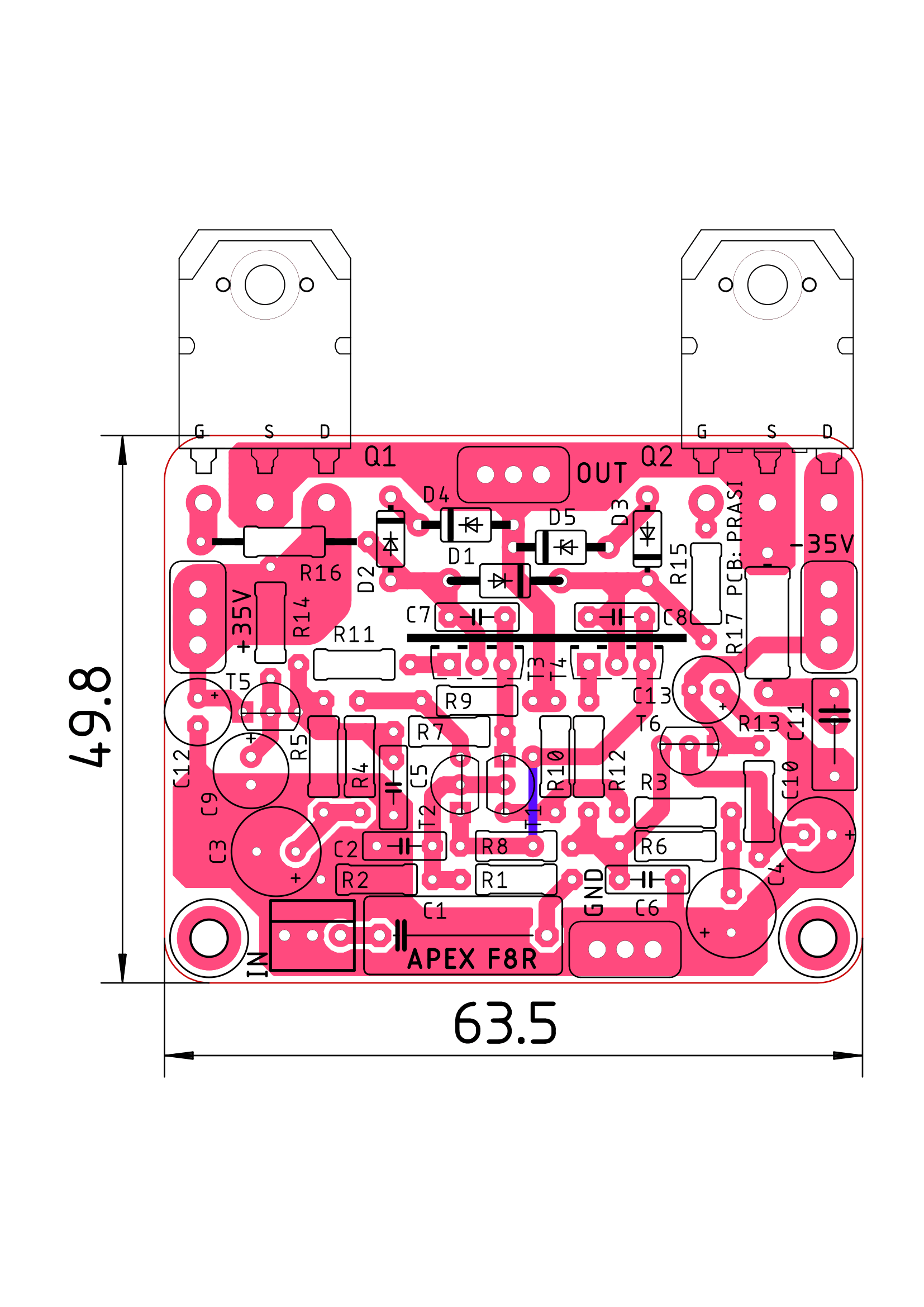

APEX AX20P with three pairs of output transistors:
