100W Ultimate Fidelity Amplifier

[desertstorm]

Hello guys here is the files again I just detailed a bit more and I include here the heat sink guide for the punch the marks for the drilling of the heat sink,

the negative of the speaker connection is there on the board but is better to take it from the power supply GND star, that is just for quick test 😛, I did the simulation with 65V rails and it can give about 300W to a 4 ohms load so I think is plenty of juice for those Jazz drum moments 😀 ok here are the files please is some one see something let me know "we are not perfect" I will appreciate 🙂

Regards
Juan

Sir Juan thank you so much for sharing of this file...god loves you always....



[SoundsGreat]

Hello guys here is the files again I just detailed a bit more and I include here the heat sink guide for the punch the marks for the drilling of the heat sink,

the negative of the speaker connection is there on the board but is better to take it from the power supply GND star, that is just for quick test 😛, I did the simulation with 65V rails and it can give about 300W to a 4 ohms load so I think is plenty of juice for those Jazz drum moments 😀 ok here are the files please is some one see something let me know "we are not perfect" I will appreciate 🙂

Regards
Juan

Thanks a lot for the same,been waiting for something like this from quite some time.Cannot wait to start the project 🙂!!

Regards.



[maxwell007]

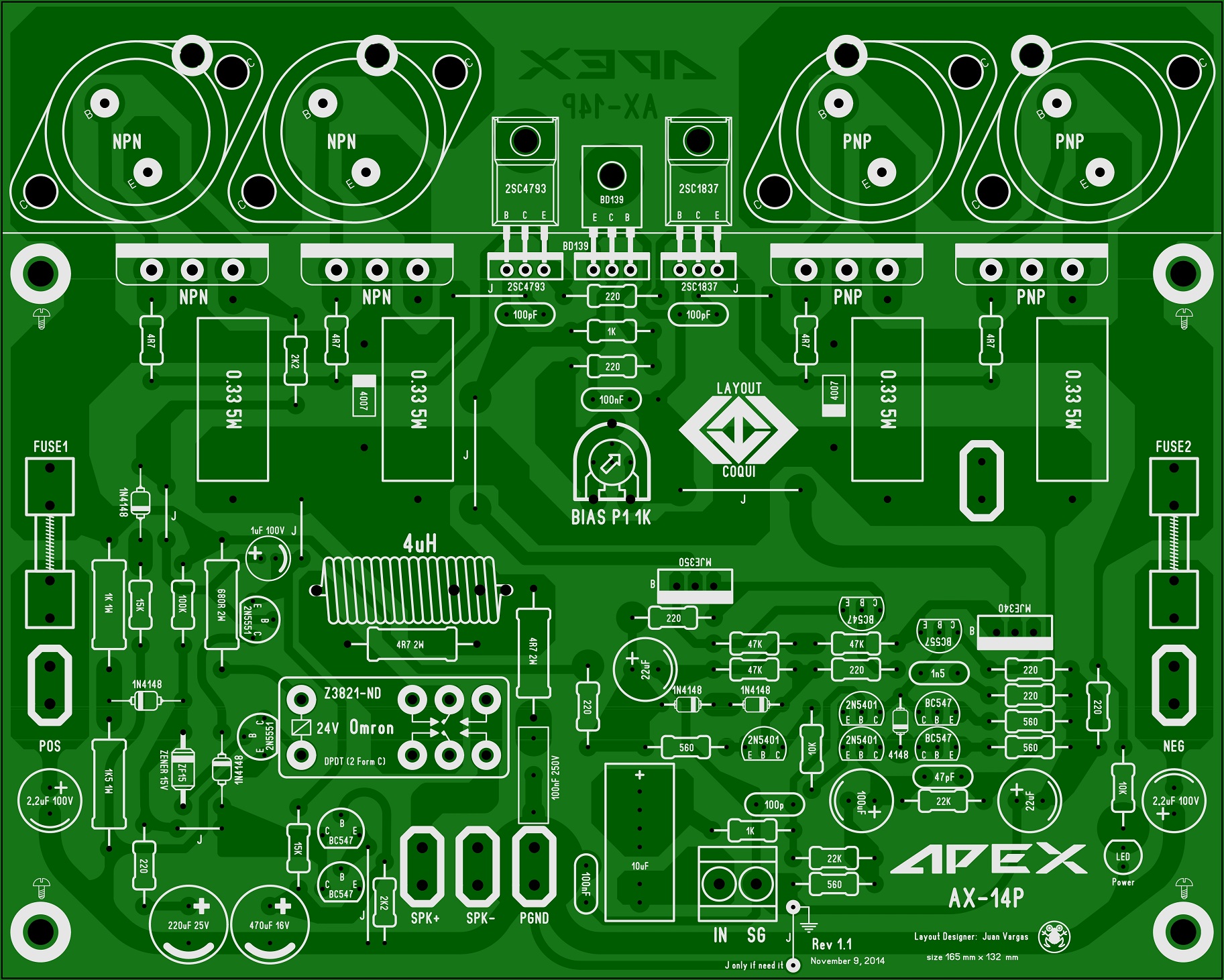

Juan, please can you check dimension of AX14TP board ? is it 165x185? thanx Marcel



[maxwell007]

It is from #3444 😀



[vargasmongo3435]

It is from #3444 😀

Yes you are right 😱 I don't know why I call it AX-14TP ? my bad I was wrong any way perhaps I decide to change the name later on I apologize guys
the size is about size 165 mm x 132 mm man I think I'm getting old 😀

Regards
Juan



[maxwell007]

I wasn't able to get right dimensions 🙂 Pls, can you share bottom view, for both version..thx Marcel



[vargasmongo3435]

Ok here are both files 🙂


Regards
Juan



[maxwell007]

many thanks Juan.... good job



[maxwell007]

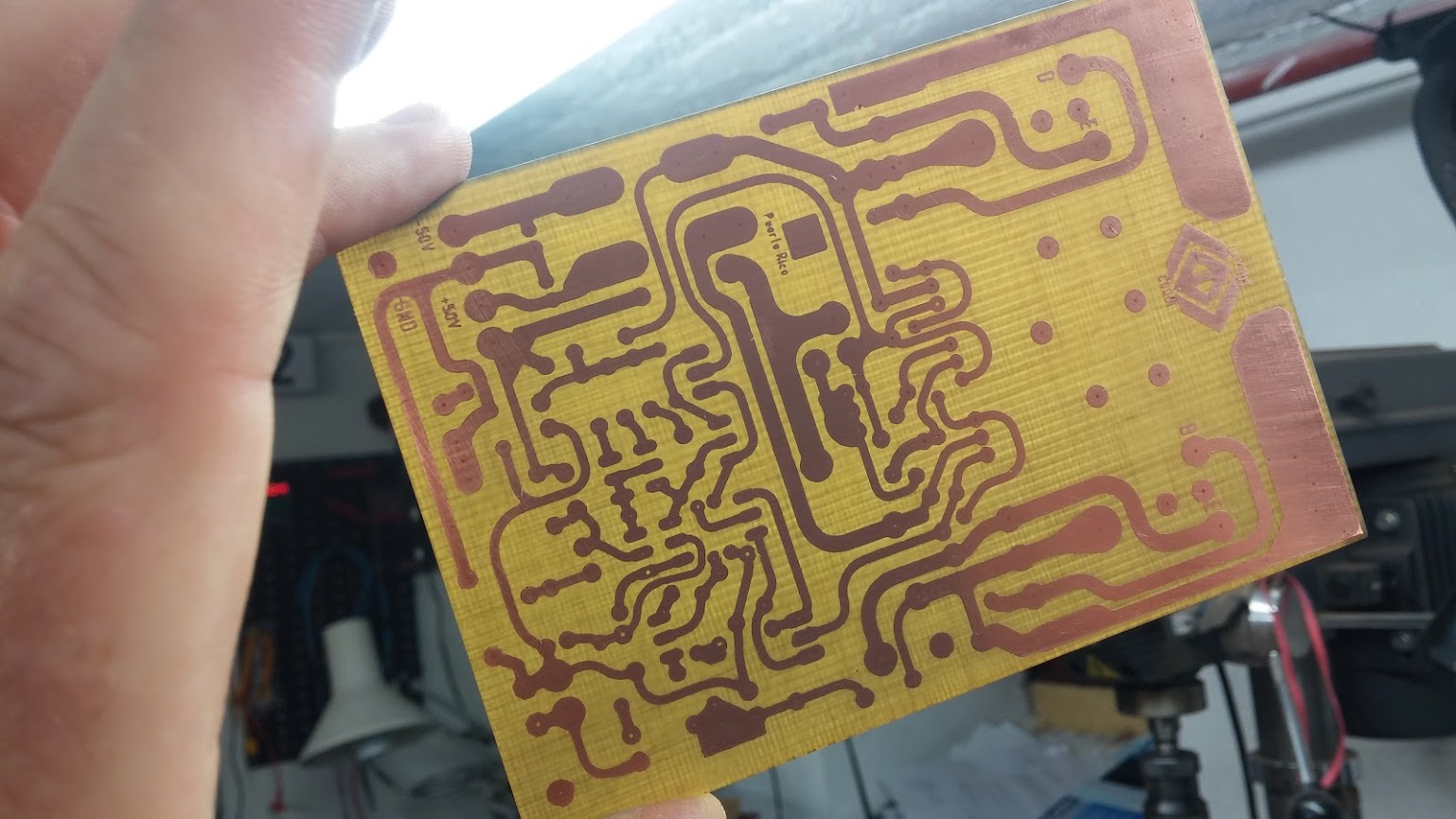

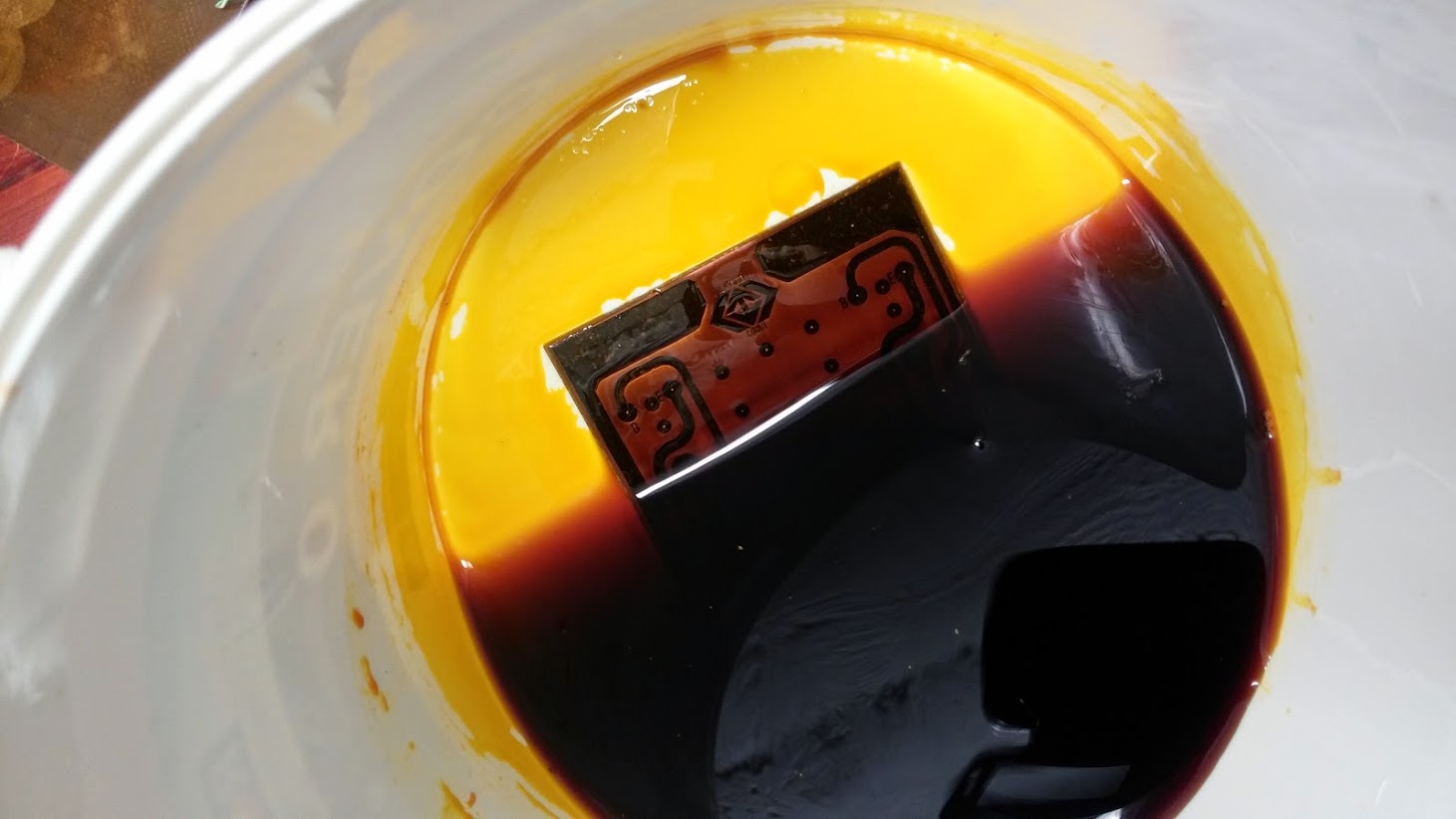

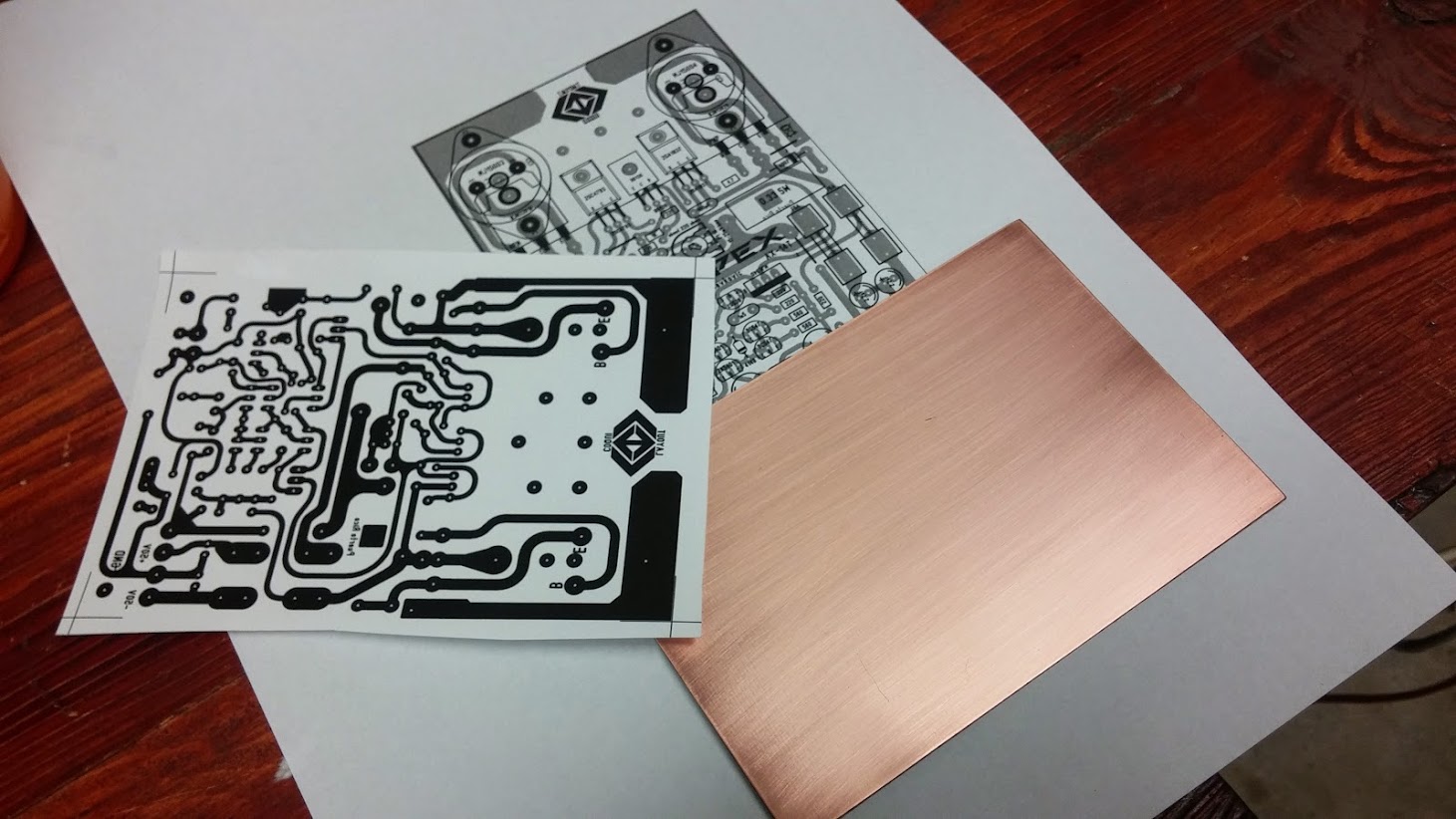

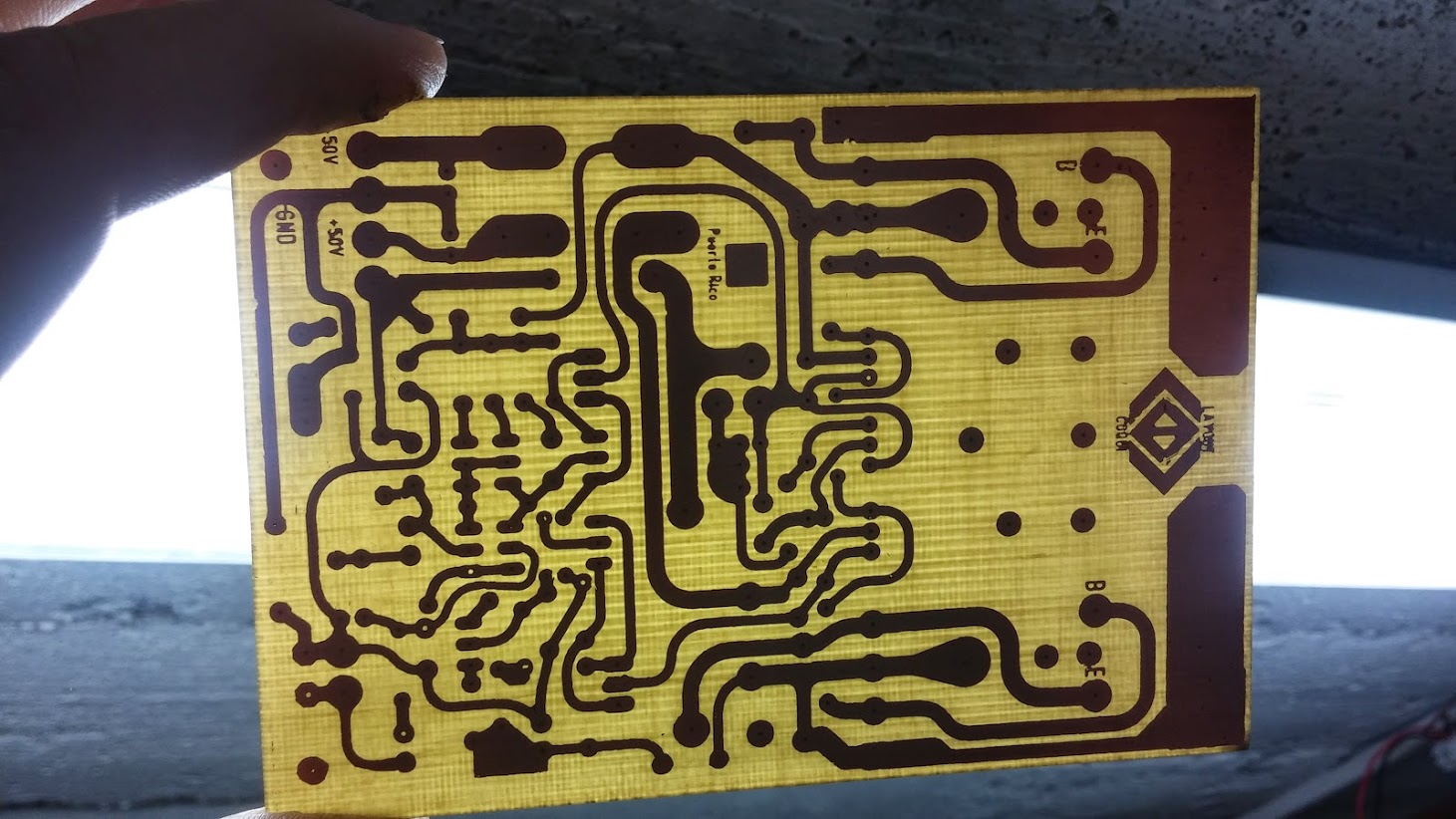

Thank you Juan for PCB sharing.. Today i tried simple method PCB making-toner transfer.... I am very happy with result, isn't so good like photo sensitive method, but still usable...



[still4given]

Very nice!
I wish I could get my toner to stick that well. I always have some things to fill it with a pen.

Nice job!



[maxwell007]

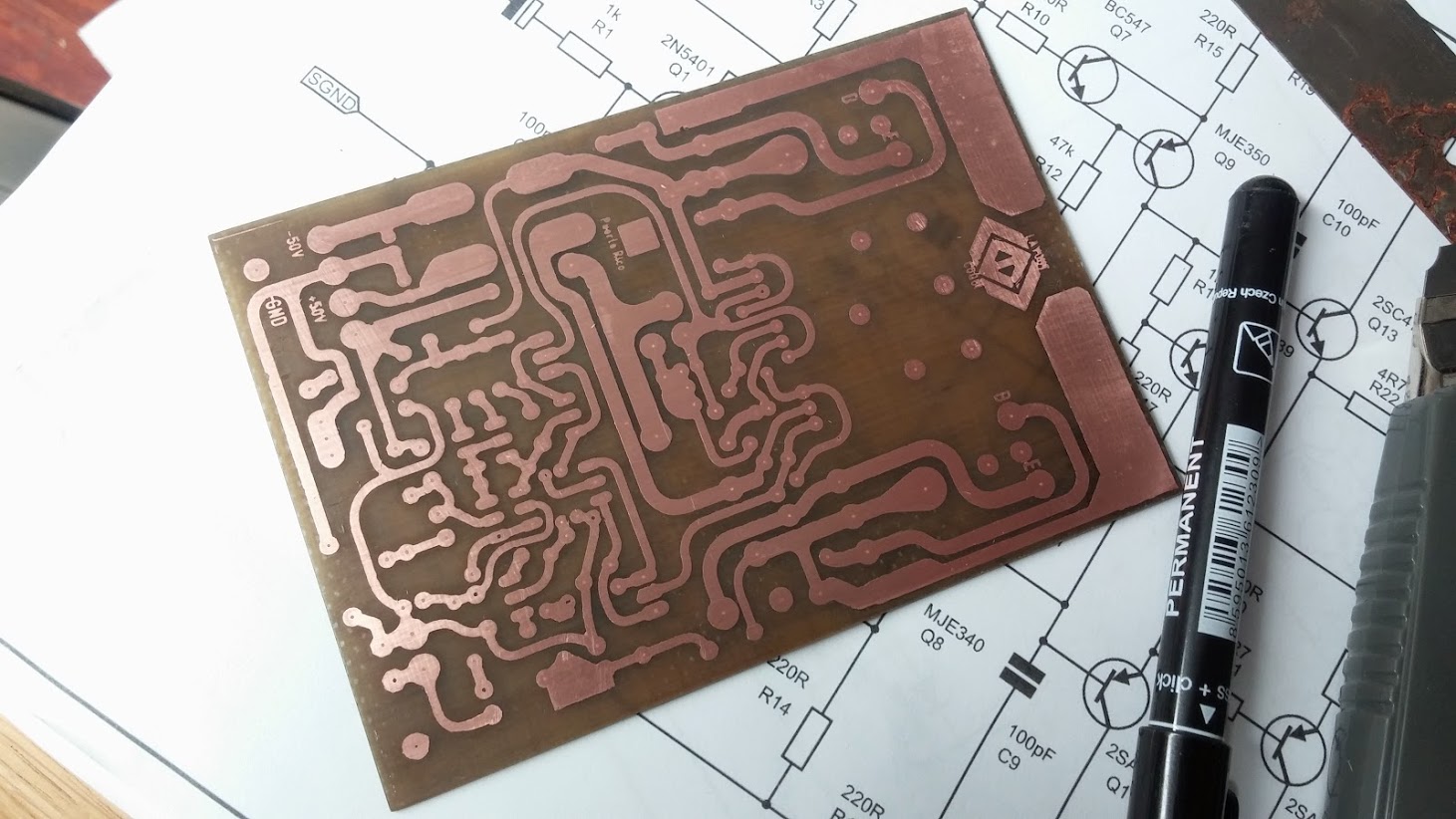

I also did some little correction 😀



[vargasmongo3435]

oh wow maxwell007 that came out really nice 😀

Regards
Juan



[MATSAZILIN]

Thank you Sir. I will make this amp.



[maxwell007]

Dear Mile,
pls, can you share lastest version schematic of your amps? Also I am not clear about rails voltages for many variants your amps...



[vargasmongo3435]

Hey maxwell007 what paper did you use for the AX-14T etching ?

Regards
Juan



[maxwell007]

Inkjet glossy photo paper.. I think better should be glossy laser , but i have inkjet only at home...
