1000W Simple PA Amplifier

[pose pro elc]

Okay, when compared with the apex H900 with voltage 120VAC 60 & BA 1200 .. with apex 60VAC bridge mode .. thanks in advance .. 🙂



[student II]

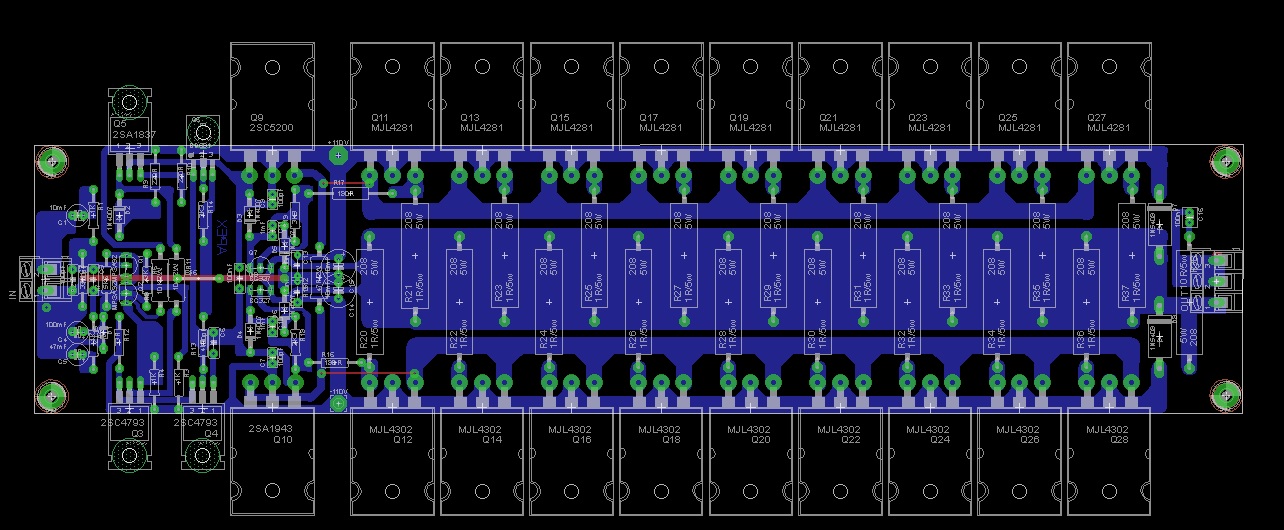

View attachment PA1200 BRD.pdf

Test Only



[AndrewT]

Is that the feedback tapping on the opposite end from the speaker output tapping?



[student II]

thks



[apexaudio]

View attachment 375479

Test Only

There is some mistakes on your pcb.



[shravanth]

soft ware

Regards,

Wiljj what software you us for pcb desing



[wiljj78]

Wiljj what software you us for pcb desing

Sprint Layout...



[student II]

Test Only-2



View attachment PA1200 BRD-2.pdf

View attachment PA1200 BRD-3.pdf

View attachment PA1200 BRD-4.pdf

thks



[khalsa]

very nice pcb student II



[sajti]

Looks nice, but it will not work unfortunately.

Sajti



[student II]

Looks nice, but it will not work unfortunately.

Sajti

Why? tell.. is there any mistakes? on pcb

I'am Student



[tinitus]

Why? tell.. is there any mistakes? on pcb

I'am Student

sounds like you do not read what is posted to you 😕

There is some mistakes on your pcb.

when it comes to his own designs, Mile have a very sharp eye 😉



[sajti]

Why? tell.. is there any mistakes? on pcb

I'am Student

The narrow tracks for the PSU. It will burn.

Sajti



[tinitus]

moving slowly 😛



[tinitus]

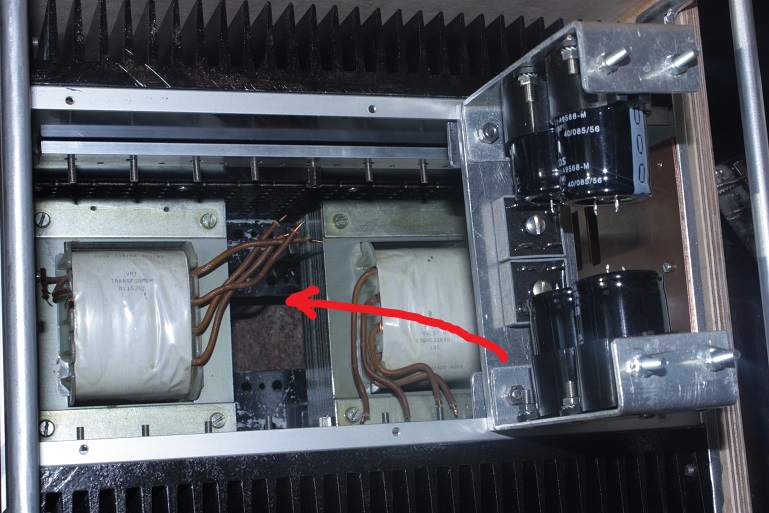

pin bolts mounted in heatsinks
and they make it difficult to get bridge and 1. smoothing caps mounted



[tinitus]

but not impossible
somehow I knew something like this might happen



[apexaudio]

moving slowly 😛

Like glacier 🙂



[Ricdelros]

Did I read it right Mr.Mile that somewhere here in the post that you made actually
a 5 pair output?..How many volts that you made it?



[apexaudio]

Did I read it right Mr.Mile that somewhere here in the post that you made actually
a 5 pair output?..How many volts that you made it?

Amp can use different rail voltage and numbers of outputs:
+/-40V................1 pair 100W/4R
+/-50V................2 pairs 150W/4R
+/-60V................3 pairs 200W/4R
+/-70V................4 pairs 250W/4R
+/-75V................5 pairs 300W/4R
+/-80V................6 pairs 400W/4R
+/-90V................7 pairs 550W/4R
+/-100V..............8 pairs 700W/4R
+/-110V..............9 pairs 900W/4R



[rafsky]

These performance data are much more than conservative... +/- 110 are over than 1.2-1.3 KW @ 4 ohm
