Can someone point me to the PC board layout.
I need to know the size of the boards.
Greetings
I'm not sure this is the final layout but I think the board size is set.
post #7279.
3"x10" if I'm not mistaken.
I am starting a new buy of the latest 5 pair output stage...The Arc Welder.
Cost is still to be determined.
If interested add your name to the list here.
1).....
Thanks Terry
I look up the mentioned layout and that is with 4 pair power transistors.
The GB is for 5 pair.... or I'm wrong
I need to know the size to see if it feet my amp case (enclosure)
Thanks once more
Greetings
Thanks Terry
I look up the mentioned layout and that is with 4 pair power transistors.
The GB is for 5 pair.... or I'm wrong
I need to know the size to see if it feet my amp case (enclosure)
Thanks once more
Greetings
Sorry, I messed up that post. I thought I included a link Let me try again.
post 7629
If you look closely you will see that there are 5 pair. One is snuggled in with the front end of it.
1) Terry - x2
2) kindhornman - x2
3) tjencks - x2
4) carcass - X2
5) Cambe - x2
6) Arthur - x4
7) zrxshack -x2
8) mlloyd1 - x2
9) Carl_Huff - x4
10) Jim Hamley - x2
11) mrsavage - x8
12) gaborbela - x2
Lets keep it a list..easier for me to count how many pieces are needed.
As soon as I hear from the board house I'll let everyone know whats up for price and ETA for delivery.
Thanks, Evan
2) kindhornman - x2
3) tjencks - x2
4) carcass - X2
5) Cambe - x2
6) Arthur - x4
7) zrxshack -x2
8) mlloyd1 - x2
9) Carl_Huff - x4
10) Jim Hamley - x2
11) mrsavage - x8
12) gaborbela - x2
Lets keep it a list..easier for me to count how many pieces are needed.
As soon as I hear from the board house I'll let everyone know whats up for price and ETA for delivery.
Thanks, Evan
and remember we all owe OS a big THANK YOU for all his work.
E
Is OS making a few bucks off the board sales? I'll take a couple if he is.
Eight (Four Pairs) of arc welders for me. How about adding some of the new
IPS to this group buy?
Yes, would be interested in this too, like kypton ( supose one of the cfa finest )...
Count me in for 2 more boards.
Many thanks
1) Terry - x2
2) kindhornman - x2
3) tjencks - x2
4) carcass - X2
5) Cambe - x2
6) Arthur - x4
7) zrxshack -x2
8) mlloyd1 - x2
9) Carl_Huff - x4
10) Jim Hamley - x2
11) mrsavage - x8
12) gaborbela - x2
13) gwrskien - x4
14) jwilhelm - x2
15) touchdown - x2
Many thanks
1) Terry - x2
2) kindhornman - x2
3) tjencks - x2
4) carcass - X2
5) Cambe - x2
6) Arthur - x4
7) zrxshack -x2
8) mlloyd1 - x2
9) Carl_Huff - x4
10) Jim Hamley - x2
11) mrsavage - x8
12) gaborbela - x2
13) gwrskien - x4
14) jwilhelm - x2
15) touchdown - x2
jwilhelm has offered the kypton-c file for production...Still a preliminary discussion.
Evan

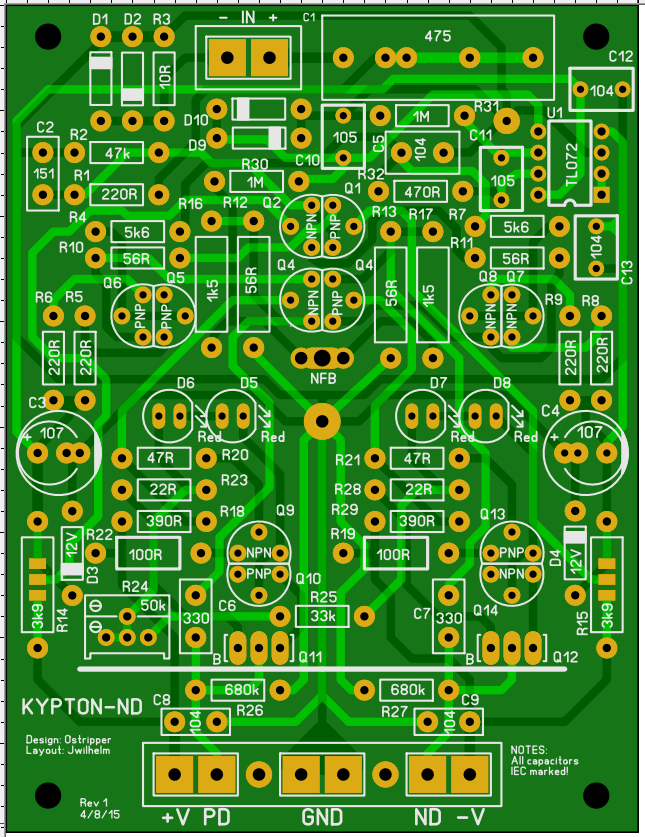

I've got Kypton-ND laid out as well but I haven't had any produced yet. I've been holding out for Jason's version. His art is prettier. I can get a test batch done and debug the design if everyone would want to build it now instead of waiting for Jason to work his magic.
