Pavel Dudek's super Gainclone group buy

Colour of the pcb

  • Black

    Votes: 31 37.8%

  • White

    Votes: 12 14.6%

  • Red

    Votes: 14 17.1%

  • Blue

    Votes: 13 15.9%

  • Yellow

    Votes: 3 3.7%

  • Green

    Votes: 13 15.9%
  • Total voters
    82
Jump to Latest
Vunce

Vunce

Member
Joined 2014
Paid Member

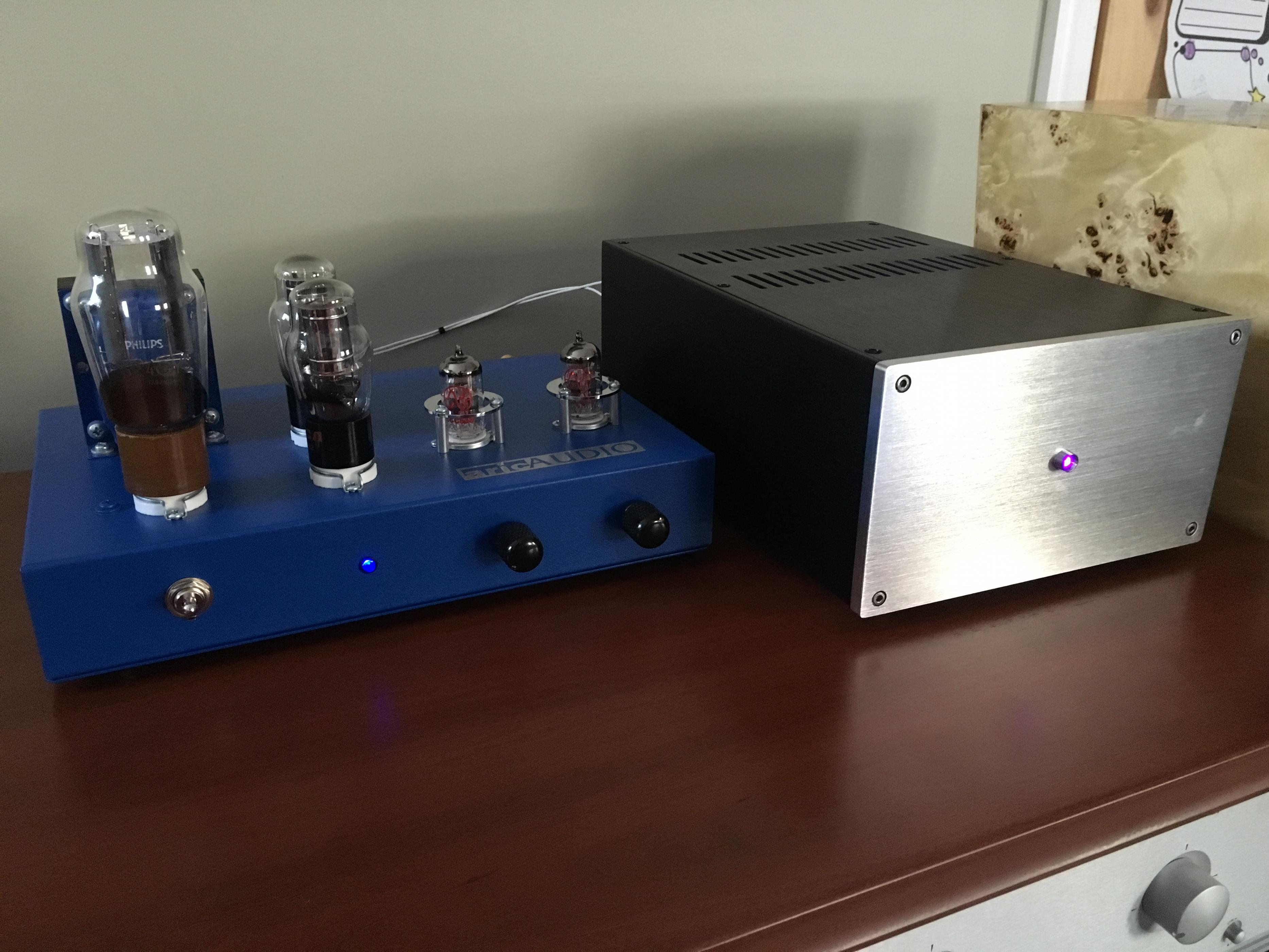

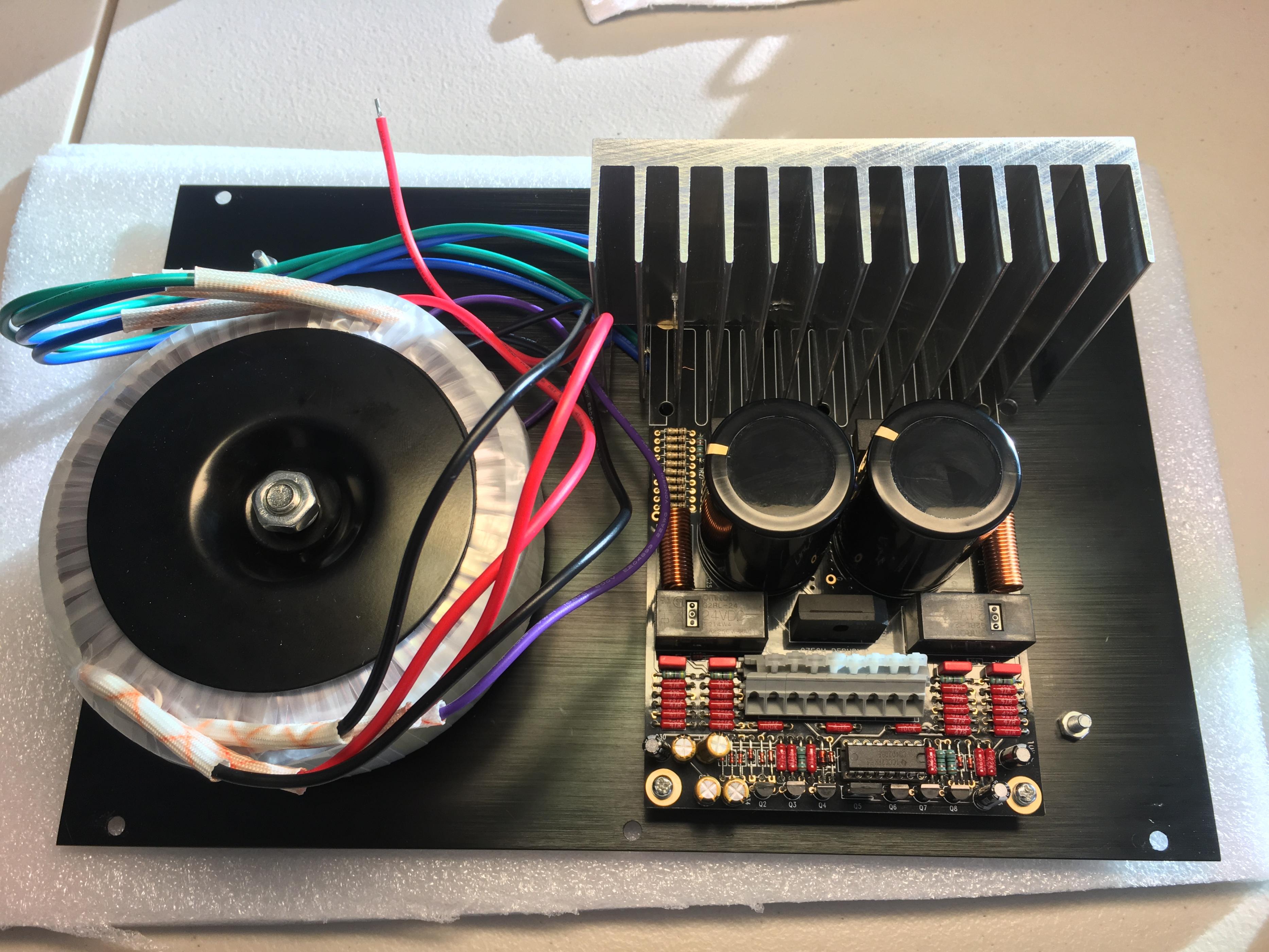

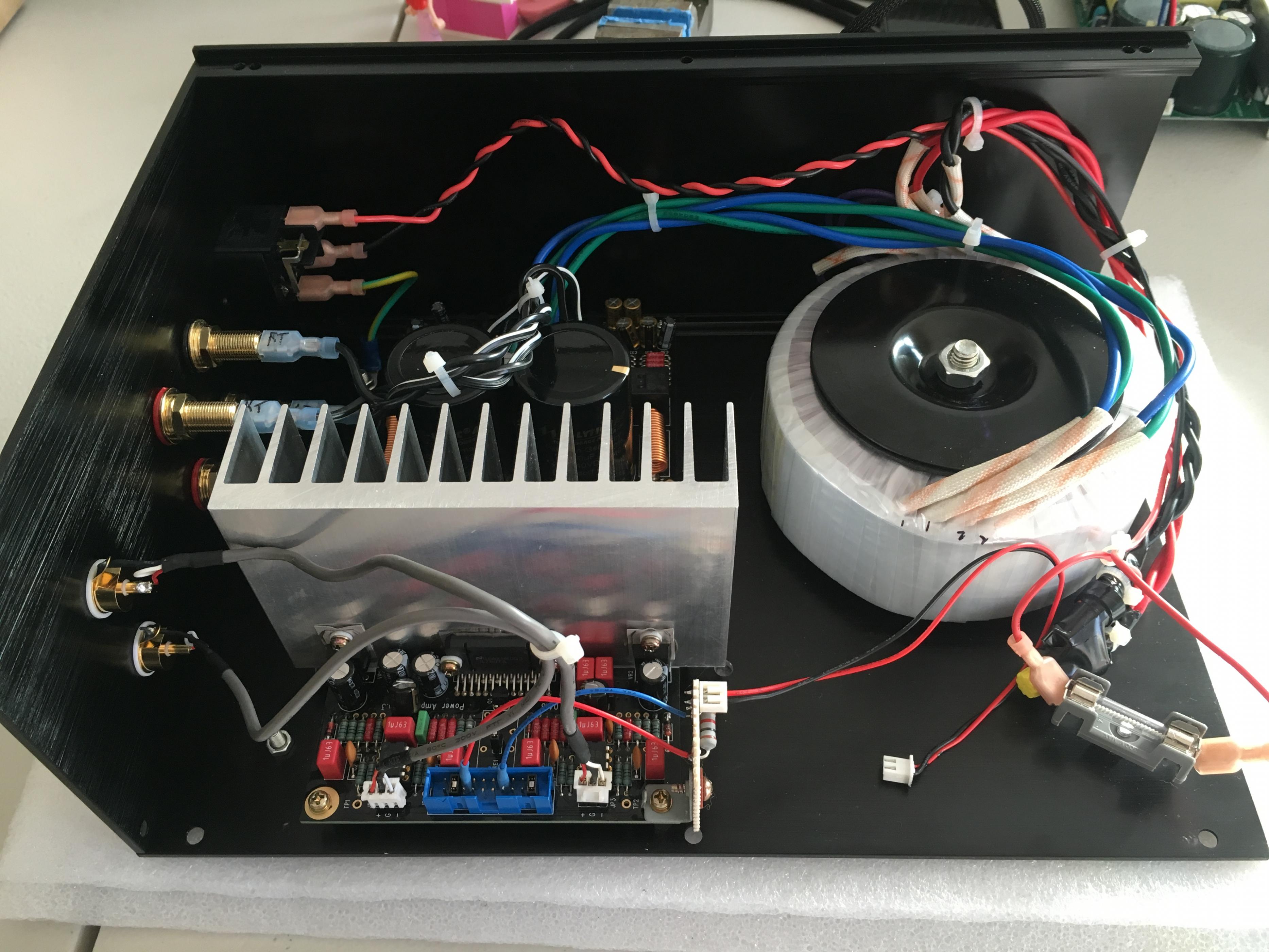

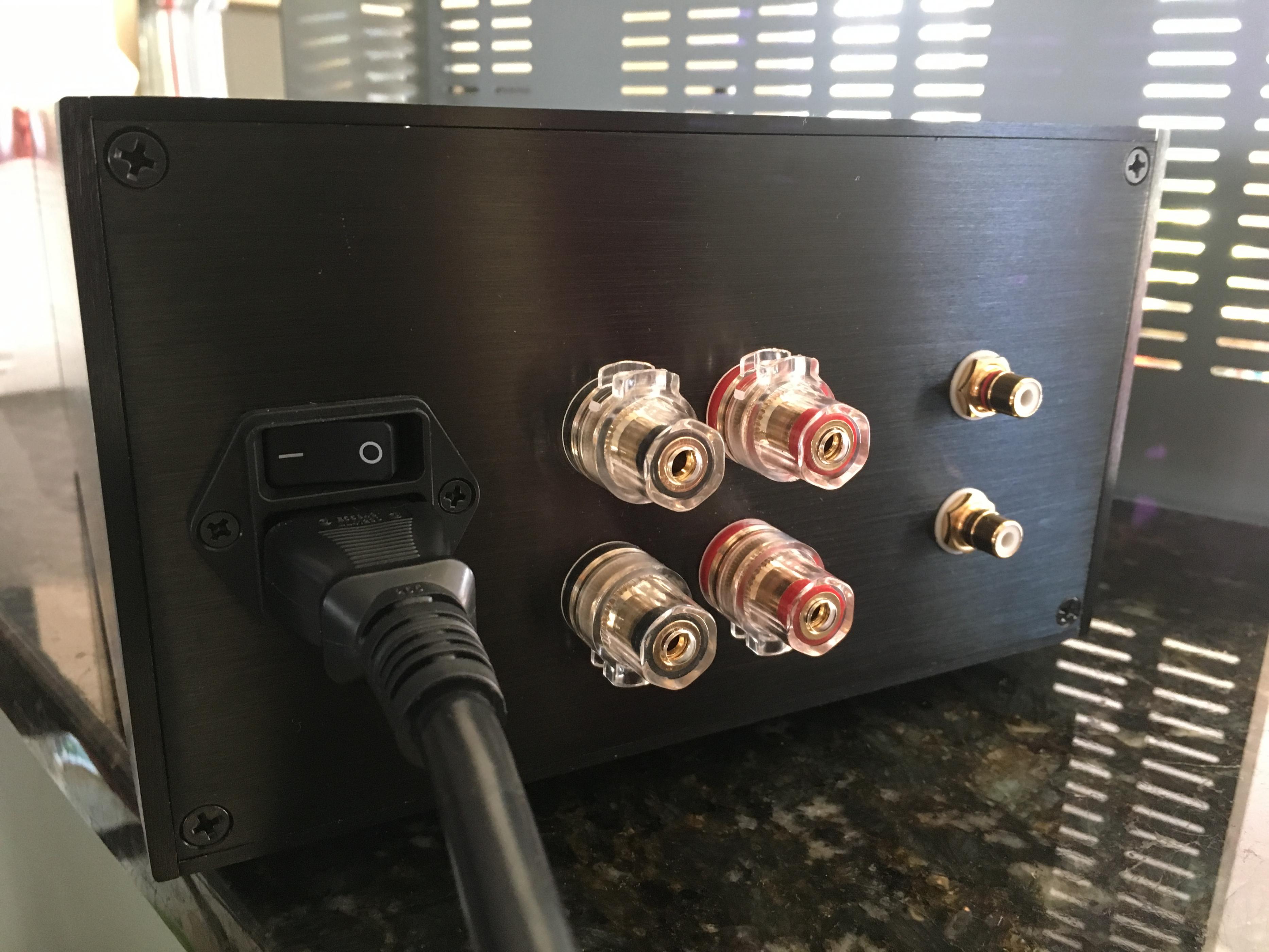

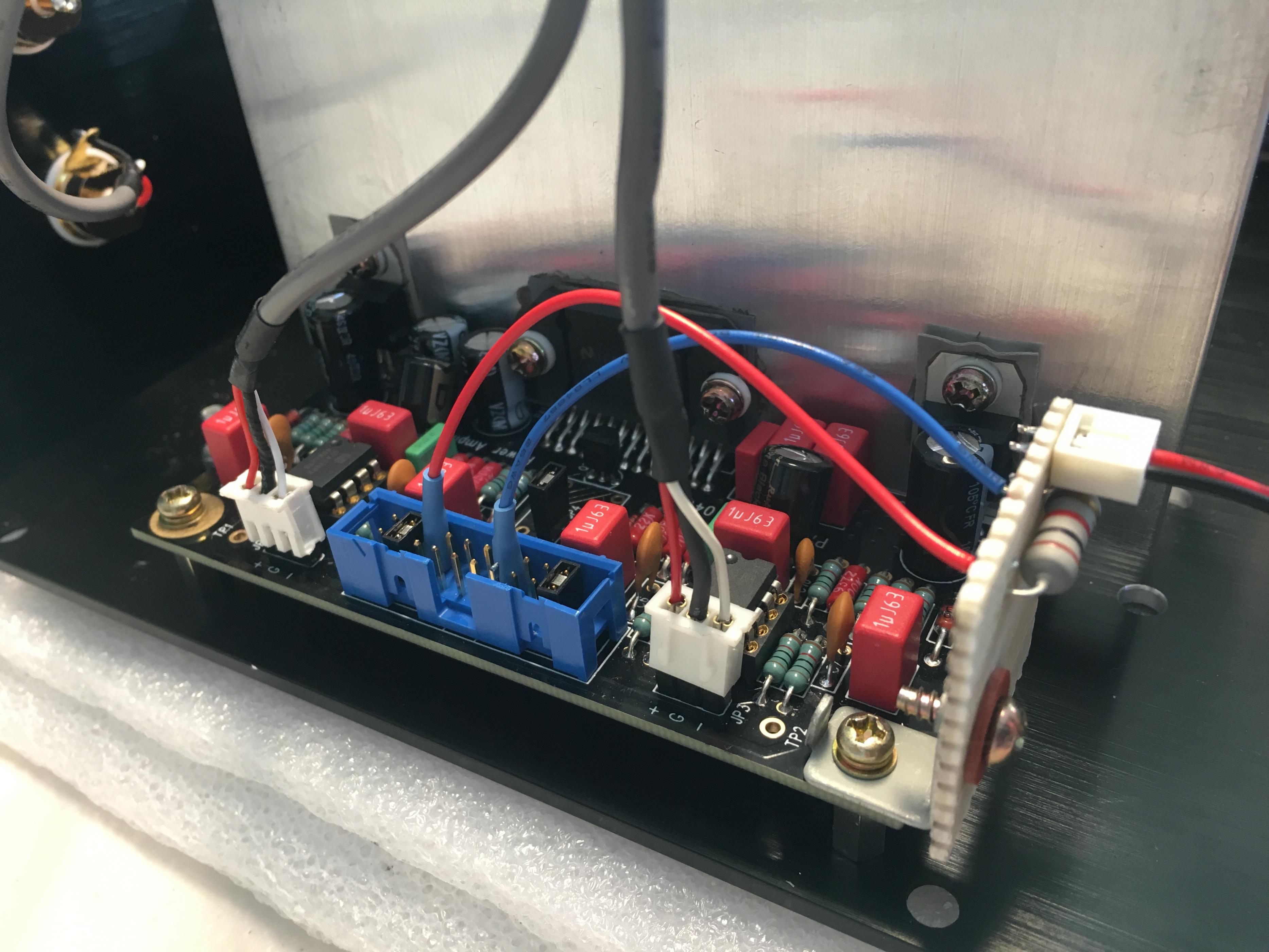

These are some pics of my completed Super Gainclone build, hopefully I can load the pictures correctly:)


Attachments

  • IMG_0473[1].jpg
    936.8 KB · Views: 341
  • IMG_0483[1].jpg
    813.7 KB · Views: 335
  • IMG_0485[1].jpg
    712.3 KB · Views: 329
  • IMG_0487[1].jpg
    812.5 KB · Views: 324
  • IMG_0489[1].jpg
    798.4 KB · Views: 315
Vunce

Vunce

Member
Joined 2014
Paid Member
Thanks for the kind words Redjr. It's a very young amp but it think it might surpass my favorite chip amp that I built (lm3886 Mauro Penasa myRef C). This one definitely is the best lm4780 I've put together. I can't believe how quiet it is!! Even with a tube preamp!!

Vinny

H

hfxrzw

Member
Joined 2006
Hi PA, I can only agree with that :)

In the documentation there's quite a bit of documentation on possible connections/jumper settings except for the one I'm contemplating. I'd like to use them as balanced monoblocks. Hot to one channel and cold to the other? Could you advise how to do so with the jumpers etc. Thanks!

H

hfxrzw

Member
Joined 2006
I was indeed looking for jumper settings etc. On the site there is information for a balanced stereo amp, not for a balanced mono, which is what I'm after. So 1 balanced input, using both sides of the amp (one side + & other - or 2 x +/- and summing after?). I'll have a look in your link, but was hoping PA could advise as I'll need to know the jumper settings as well :)

N

nthall

Member
Joined 2015
If you used the transformers, the jumper should be set like a bridged mono. If you put the balanced input into stereo mode, I would think other components on the board would need to be changed as well to equalize resistance between the two channels. I think you would need two amps to run balanced inputs at bridged power levels.

I might be completely wrong though.

H

hfxrzw

Member
Joined 2006
I don't need the transformers as I'll connect balanced (I don't need to convert the input). I also don't think you need to combine two amps as the board already holds two channels of amplification. Getting them the same is important, but that's clarified in the build instructions.

N

nthall

Member
Joined 2015
hfxrzw said:
I don't need the transformers as I'll connect balanced (I don't need to convert the input). I also don't think you need to combine two amps as the board already holds two channels of amplification. Getting them the same is important, but that's clarified in the build instructions.
Click to expand...

Wouldn't you just need to bridge the two stereo channels at the output then? If the two channels are equalized that shouldn't cause any issues with your speakers, like running mismatched voltages would.
