Burning Amp BA-3b (Balanced)

[noSmoking]

O I hate it but I found what I had not found earlier ALL Is Good !!!!!!



[Melon Head]

You need 2 x ba3 boards to do BA-3b



[Variac]

You need 2 x ba3 boards to do BA-3b

Truer words were never spoken...



[noSmoking]

Hi,
I though I looked everywhere for that answer but Nope,lol.
But Thanks I found it on PAPA nelson site!
I'll get to the store and get them,
Have a good day!



[tinitus]

Hi,
I though I looked everywhere

look in articles, right next to store

but its quite a project
takes some experience not to blow a small fortune



[noSmoking]

Hi tinitus,
I looked through the boards offered at the store I need ba-1 front end and Ba-1 output stage,lol. I didn't see them ? Where did you get your boards from?
Thanks,
Well that small fortune I understand ,but ,why didn't you tell me about that 40 years ago???? Just Kidding you ,It's too late to stop now ,Music and fine wine,lol.



[tinitus]

Hi tinitus,
I looked ......

maybe take a look around the Pass Labs Forum

Pass Labs - diyAudio



[Variac]

here:
Boards

Hi tinitus,
I looked through the boards offered at the store I need ba-1 front end and Ba-1 output stage,lol. I didn't see them ? Where did you get your boards from?
Thanks,
Well that small fortune I understand ,but ,why didn't you tell me about that 40 years ago???? Just Kidding you ,It's too late to stop now ,Music and fine wine,lol.



[Jason]

And please view the burning amplifier configuration guide, which is at the top of the boards page.

Here is a direct link : http://www.diyaudio.com/forums/imag...mplifier/burning-amplifier-configurations.pdf



[noSmoking]

I like it ^5

naah

that's for sissies

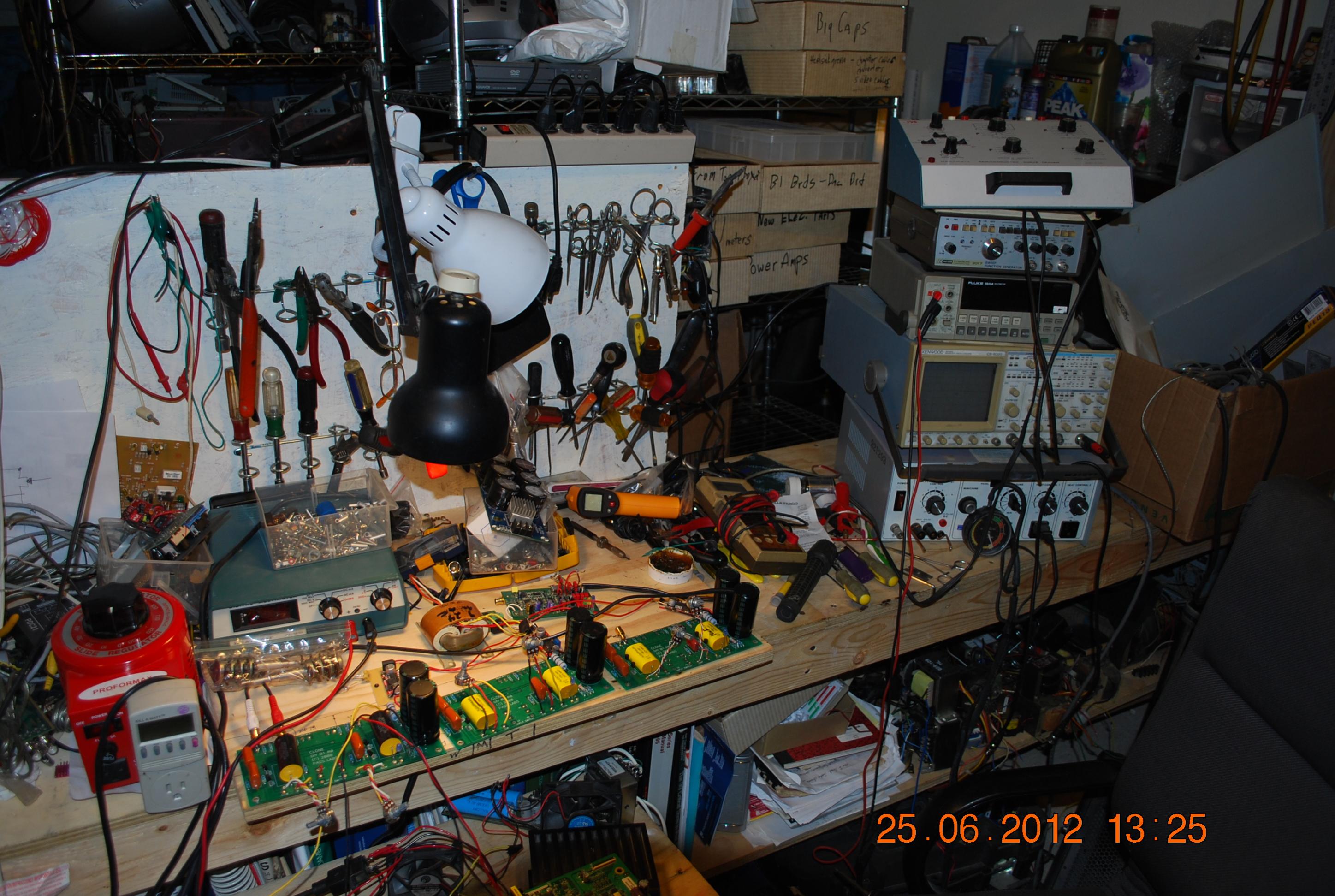

real man must use buckets for support of their xformers

Did you throw the flowers away out of your wife's buckets,lol.
Just kidding you,I couldn't resist,lol.

Looks like some fun stuff you got there !!!!!!



[Zen Mod]

........... man's cave !



[noSmoking]

hey gotta live right,lol

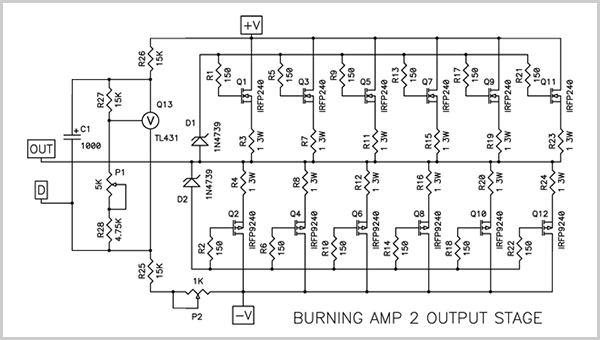

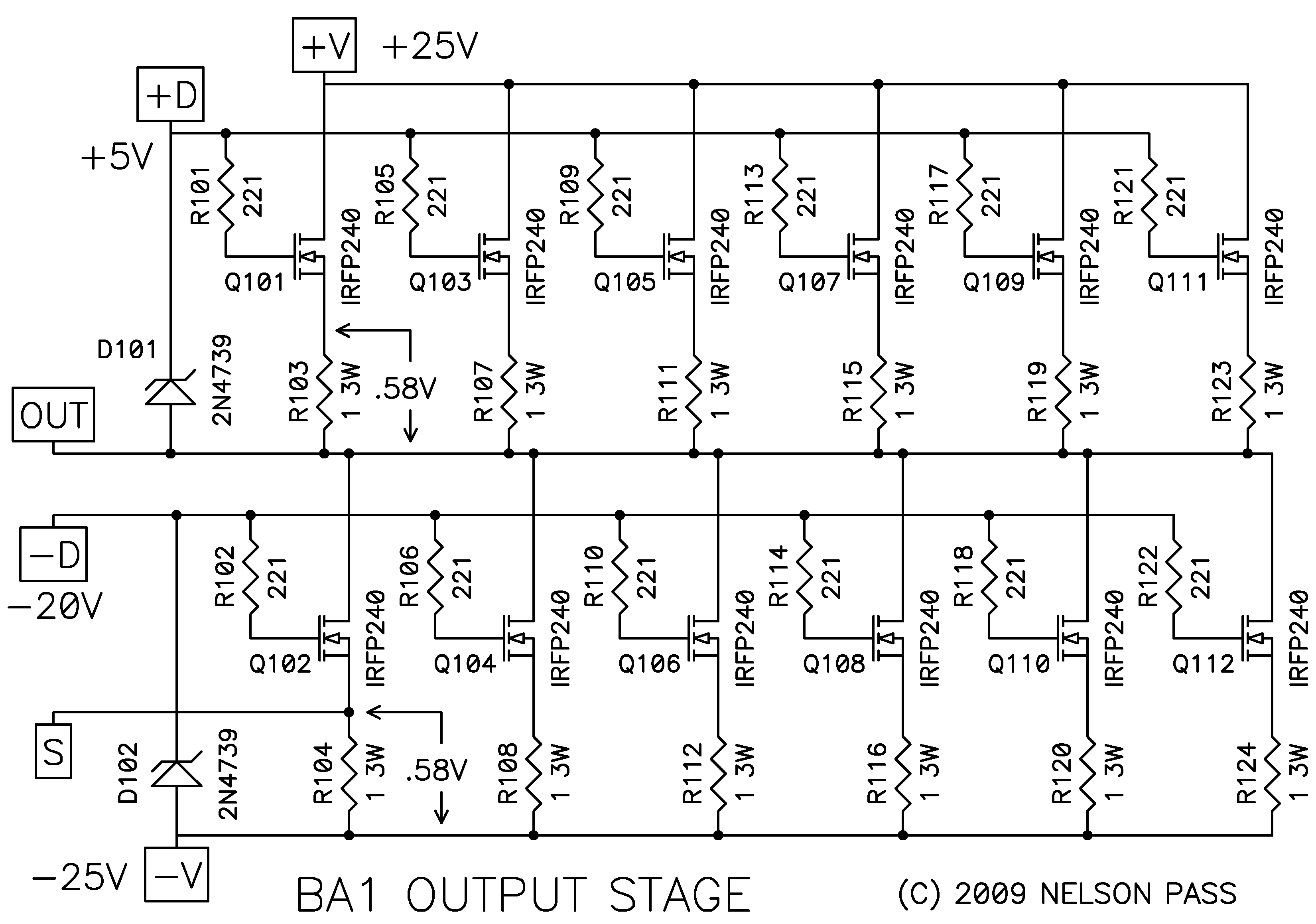

Is the D connected at the right place I would think it would connect to the gates?

Thanks!!!!!!



[Zen Mod]

D means Drive , and it's drawn on exactly right place



(don't try Truck-drive there )



[Botte]

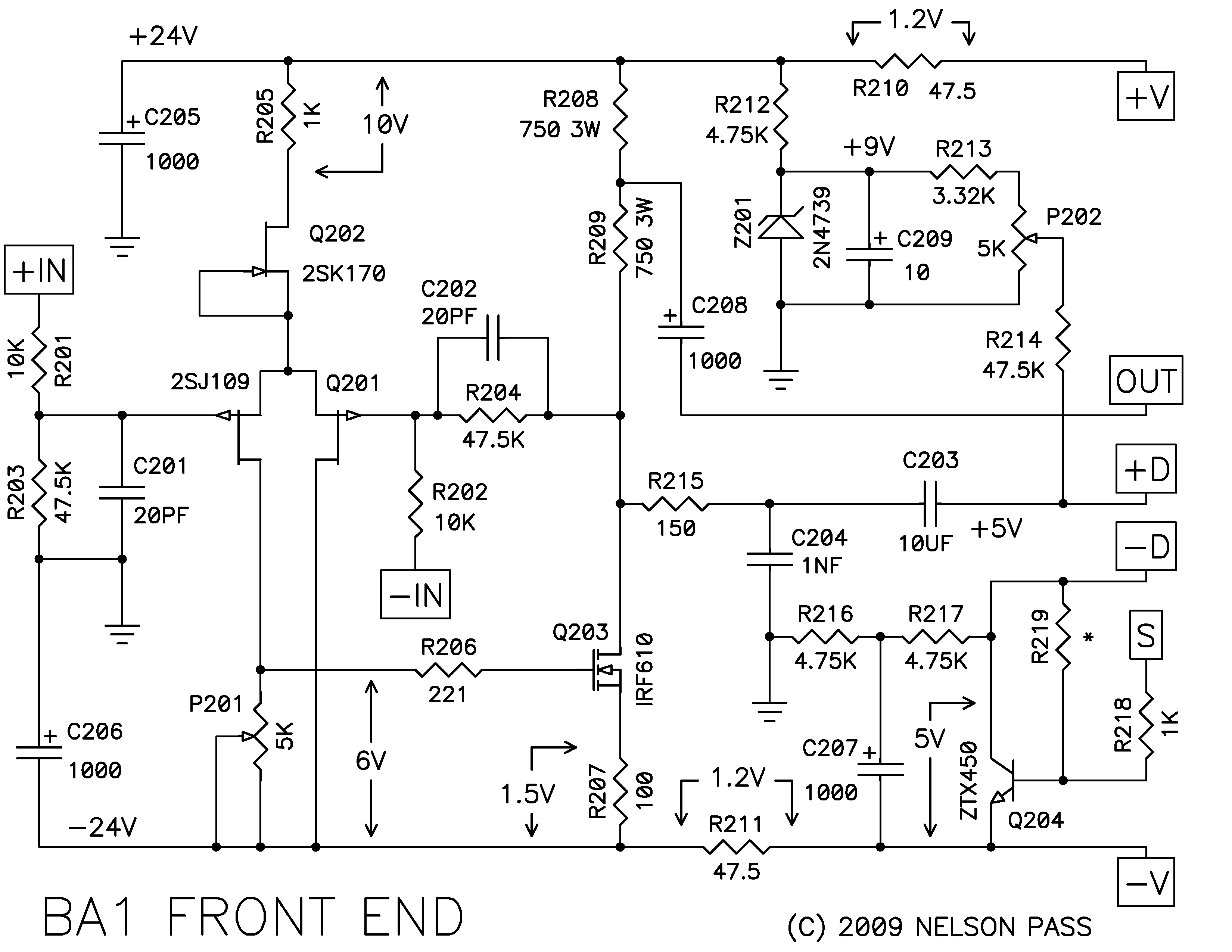

That drawing is wrong. It's missing the connections from the gates. See



[flg]

What he said!



[gl]

There is a direct connection from D to the gate of Q102, and there is an AC coupled connection from D to the gate of Q101 through C101. Remember that there is a fixed DC voltage across Q113.

Am I missing something?

gl



[flg]

...direct connection from D to the gate of Q102, and there is an AC coupled connection from D to the gate of Q101 through C101...
Am I missing something?
gl

In the DWG of post #312 these connections were mistakenly omitted



[gl]

Aha! Thank you.

gl



[noSmoking]

Gee I have found so many different drawings ,boms and boards, I ordered the boards from the store,got 2 BA-GS v2.0 and 4 P-BASO-2V220,parts on the schematic in dashed boxes aren't on the board so I'll make a pref board for them,and 4 power supplies and it should be a go!



[lhquam]

Here it is.

What is the THD plot in post #225? http://www.diyaudio.com/forums/pass-labs/201281-burning-amp-ba-3b-balanced-23.html#post3045779
