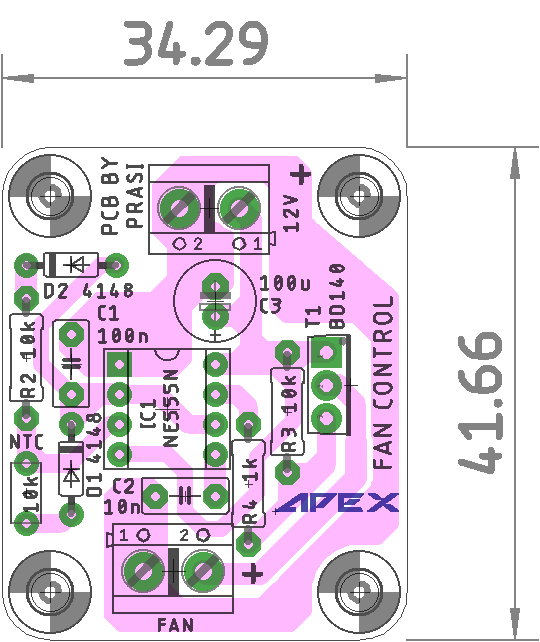

I am not sure,but I believe that bd140 works in ON/OFF regime (fully opened or fully closed) as a switch,so it doesn't need heatsink. without heatsink pcb could be a bit smaller. at least one cm wich is pretty much in this case... nicely done, by the way!



[apexaudio]

I am not sure,but I believe that bd140 works in ON/OFF regime (fully opened or fully closed) as a switch,so it doesn't need heatsink. without heatsink pcb could be a bit smaller. at least one cm wich is pretty much in this case... nicely done, by the way!

Yes it is PWM speed regulator like in cordless drils.



[prasi]

I am not sure,but I believe that bd140 works in ON/OFF regime (fully opened or fully closed) as a switch,so it doesn't need heatsink. without heatsink pcb could be a bit smaller. at least one cm wich is pretty much in this case... nicely done, by the way!

hello 44250,
thanks!. Without putting too much efforts, here is heatsink removed. I was able to shave off 5mm on one side and 3 mm on the other.
regards
Prasi



[surjitsharmaph]

I would like to know apex amplifier A5,A9,A14,A15,A23 stand for?



[surjitsharmaph]

And how A5,A9,A14,A15,A23 differ from AX series



[surjitsharmaph]

Dear apex sir, and the moderator please help me to understand the meaning about the apex amplifier prefix added symbol (A) before an amplifier like A5,A9,A14,A15 etc



[prasi]

its a bit complicated....
the number probably represents the total number of transistors in a single channel of amp.
The prefix A represents amp that contains an opamp ,
AX represents a pure bjt design.

its just a guess...



[44250]

hello 44250,
thanks!. Without putting too much efforts, here is heatsink removed. I was able to shave off 5mm on one side and 3 mm on the other.
regards
Prasi

nice again!



[surjitsharmaph]

its a bit complicated....
the number probably represents the total number of transistors in a single channel of amp.
The prefix A represents amp that contains an opamp ,
AX represents a pure bjt design.

its just a guess...

But no opamp on prefixes added symbol (A) on A16 but any anyway thanx for your response



[shabusf]

Dear apex sir, and the moderator please help me to understand the meaning about the apex amplifier prefix added symbol (A) before an amplifier like A5,A9,A14,A15 etc

My guess is like 'A' series stands for CFA amp (A- Current/Ampere), and 'AX' stands for VFA amp models. As Prasi commented, when I counted the number of transistors in A40 and A33, it is 40 and 33 respectievely. I might be wrong

Thanks.
Sha



[smartx21]

"A" stands for "Apex".



[surjitsharmaph]

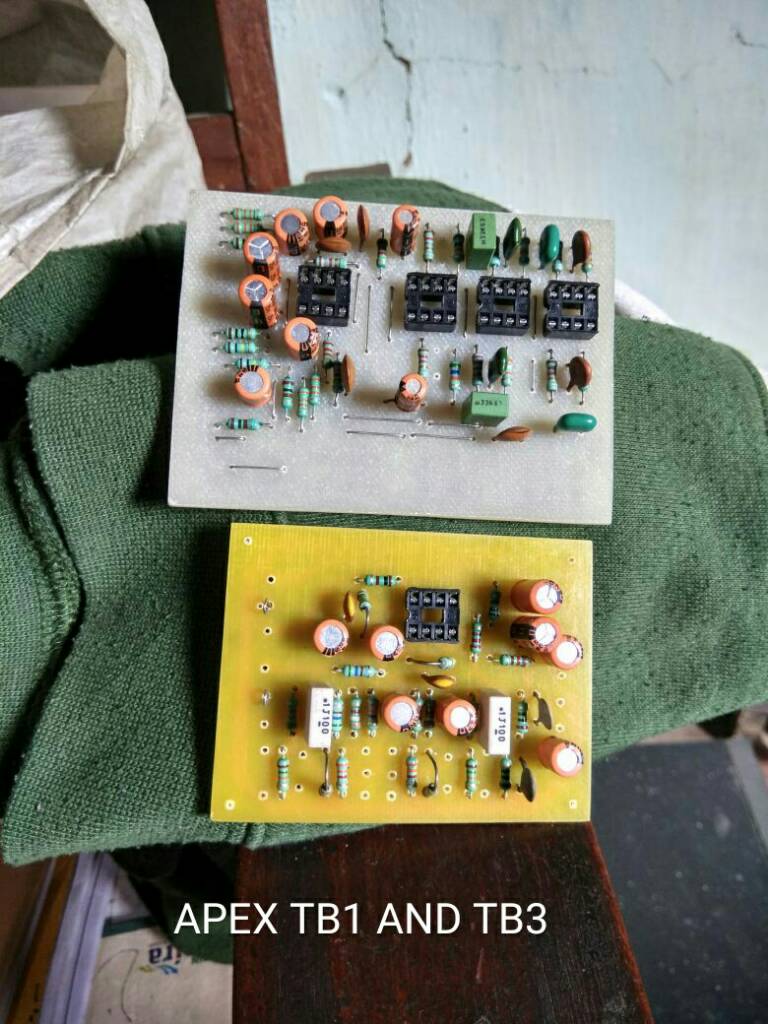

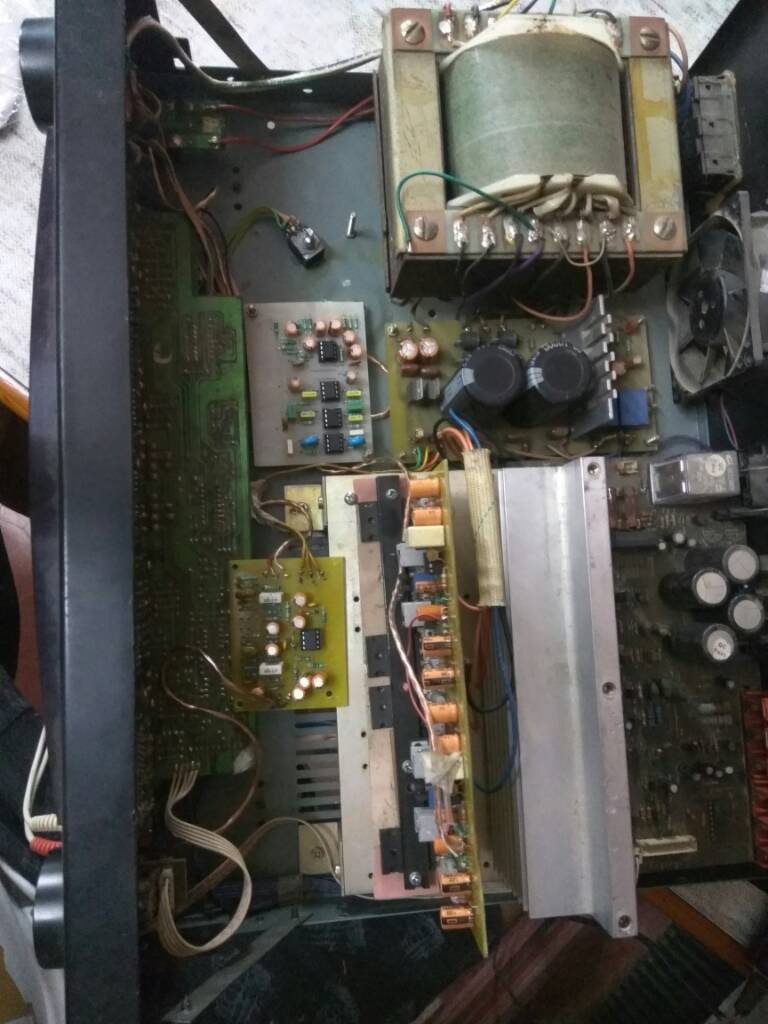

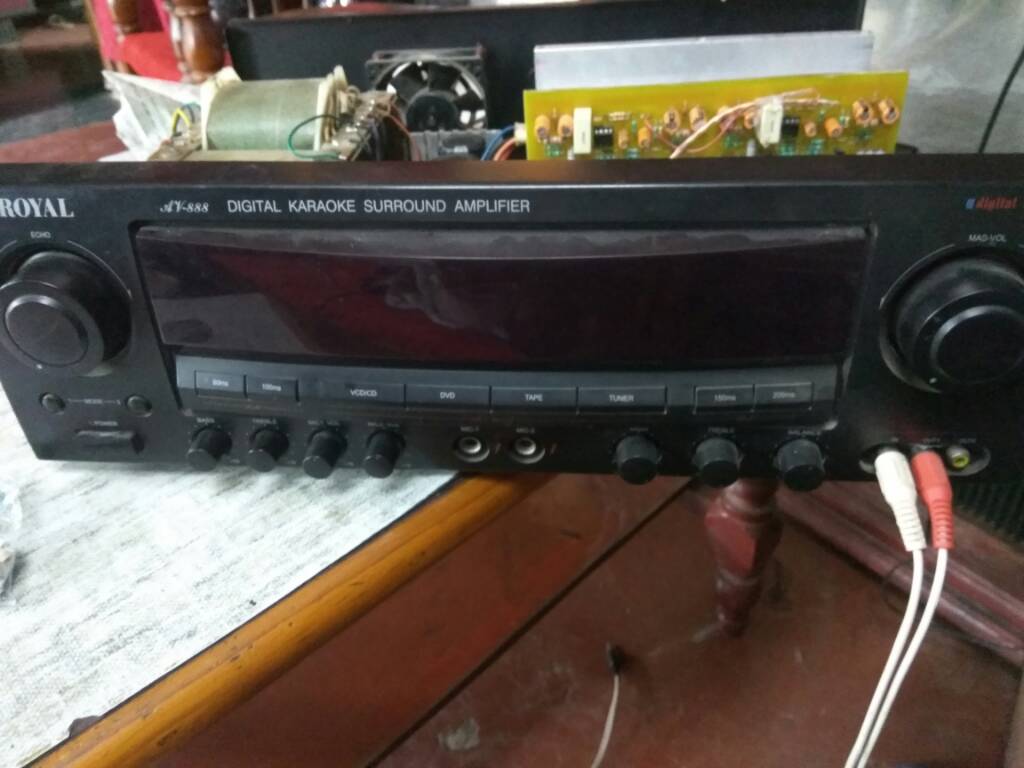

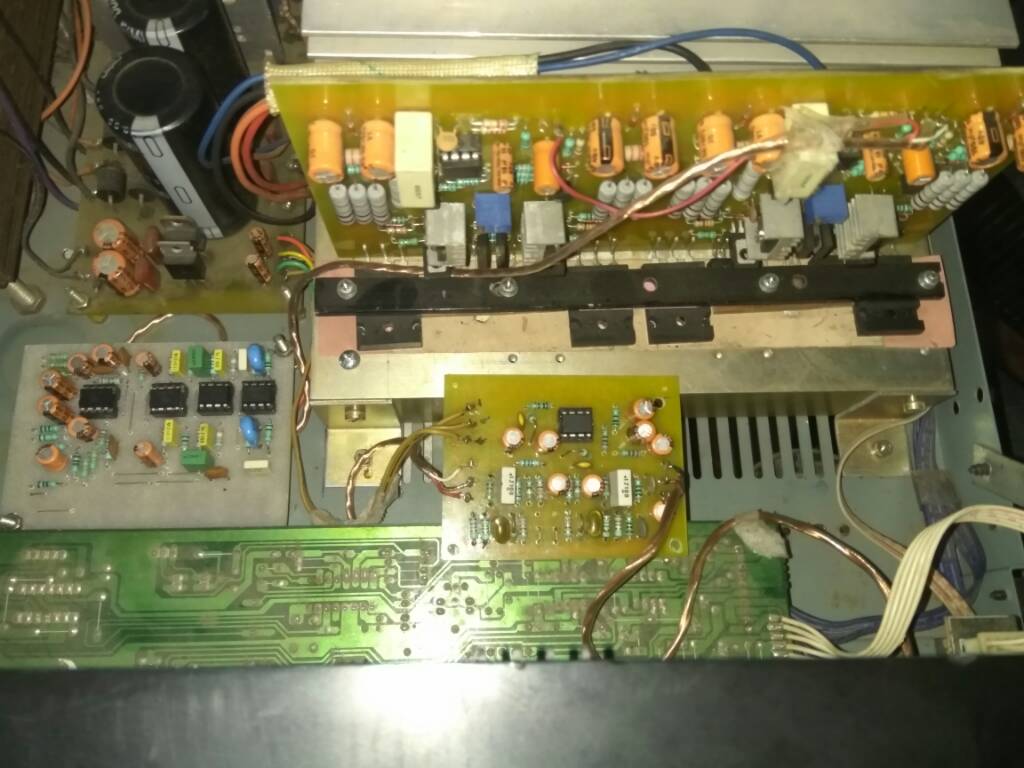

Finally i made apex amplifier A14 ,TB1and TB3 and put inside my Royal amplifier sound amazing woww thanks to dear sir MILE SLAKOVIC



[surjitsharmaph]

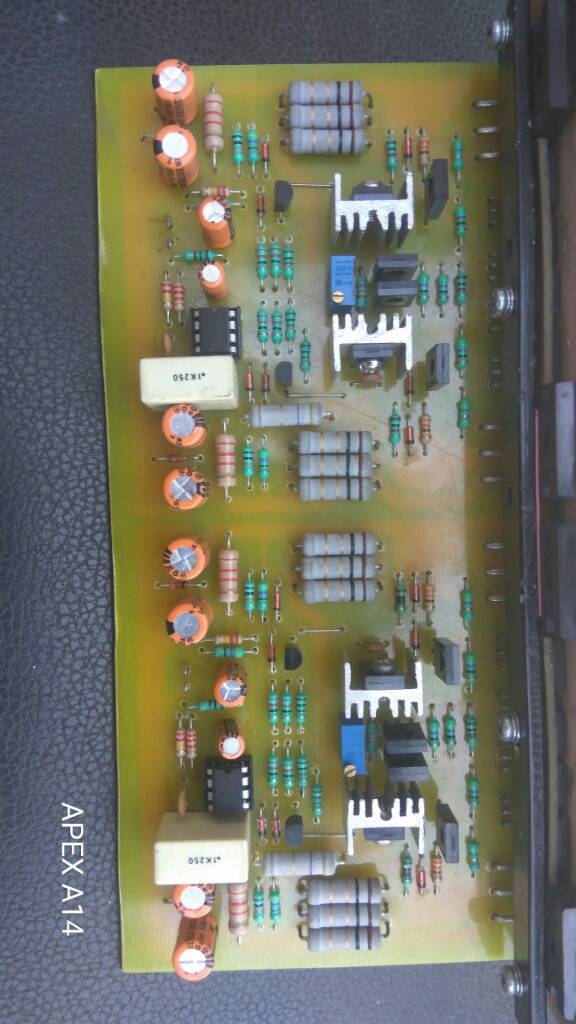

A14



[surjitsharmaph]

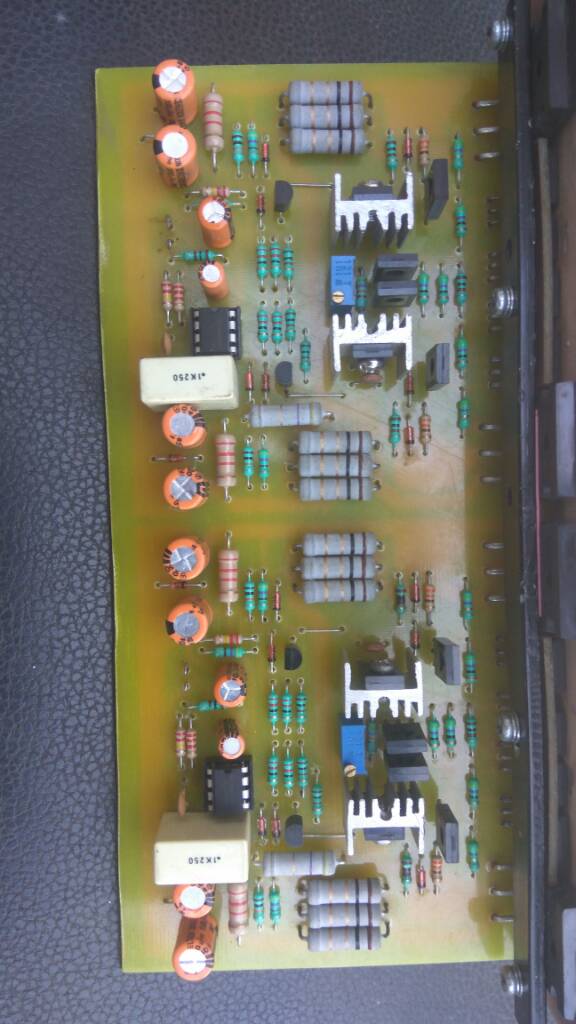

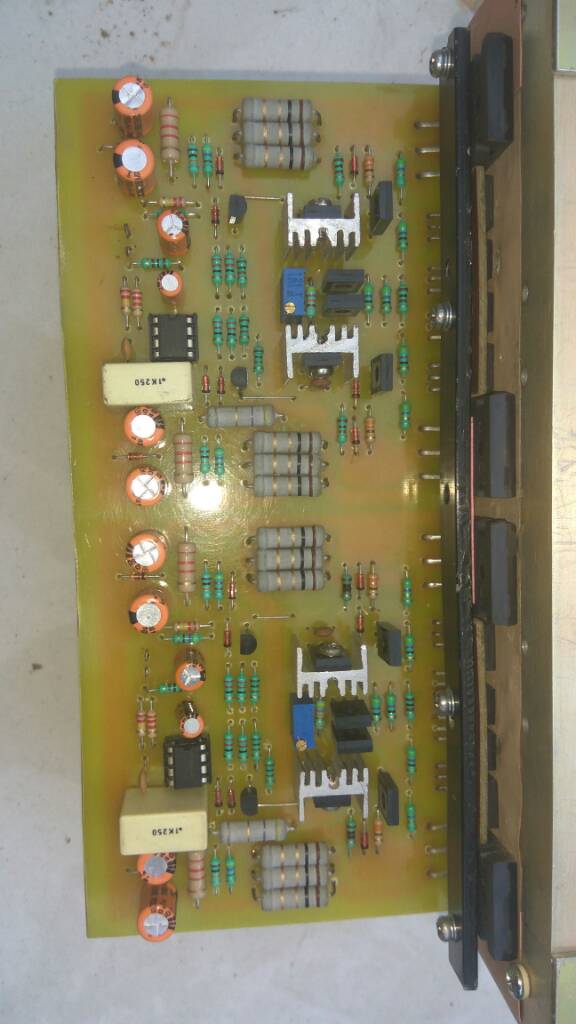

I have somehow builted and tested some of the Apex amplifiers wow nice awesome sound superb and i might be wrong or right for choosing apex A14 as thought of good sound quality may be there might be a very good and appropriate amplifiers for me if someone in this diy forum senior or experts help me to find out but anyway thanks to have such APEX AMPLIFIERS



[surjitsharmaph]

I heard about apex sr30 but i haven't found any relevant schematic diagrams or pdf file about this. Can someone who is senior or experts provide me for Apex SR 30



[shabusf]

I heard about apex sr30 but i haven't found any relevant schematic diagrams or pdf file about this. Can someone who is senior or experts provide me for Apex SR 30

You may find the shema shared by Apex here
Studio Reference Amplifier

Regards
Sha



[surjitsharmaph]

Thnks shabusf



[surjitsharmaph]

Sir do you have sr30 PCB design

You may find the shema shared by Apex here
Studio Reference Amplifier

Regards
Sha



[surjitsharmaph]

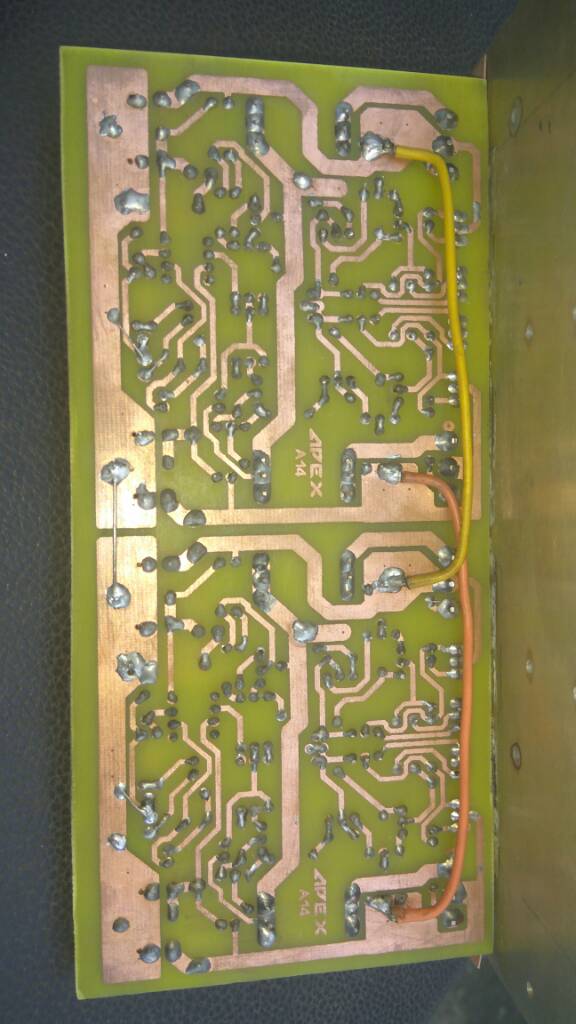

Apex 14 [emoji7][emoji7][emoji7][emoji7][emoji7][emoji7][emoji7]



[44250]

someone was busy lately... very very nice!
