bimo's comment is correct.

You should try screwing the BD139 to one output transistor or at least to the heatsink. Then listen to it.

I'm not sure which was the recommended bias for this amp model.



[prasi]

I'm not sure which was the recommended bias for this amp model.

I think 50mA.



[desertstorm]

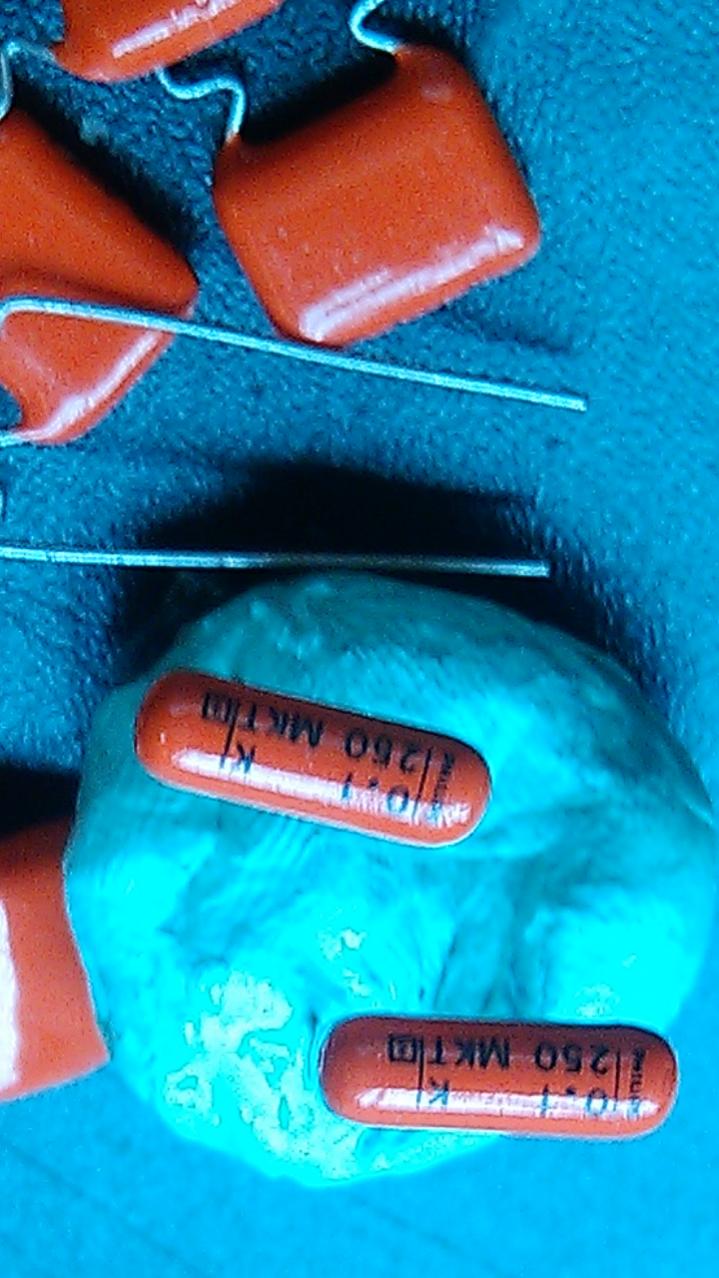

Can i ask someone what is the right value of this cap marking ( 0.1 K ) is this 100n or 100p thanks in advance..



[sajti]

Can i ask someone what is the right value of this cap marking ( 0.1 K ) is this 100n or 100p thanks in advance..

100nF

Sajti



[desertstorm]

Can i ask someone what is the right value of this cap marking ( 0.1 K ) is this 100n or 100p thanks in advance..

there is two similar codes with orange mark



[2904095]

please upload preamp tb1 lay6 file



[surjitsharmaph]

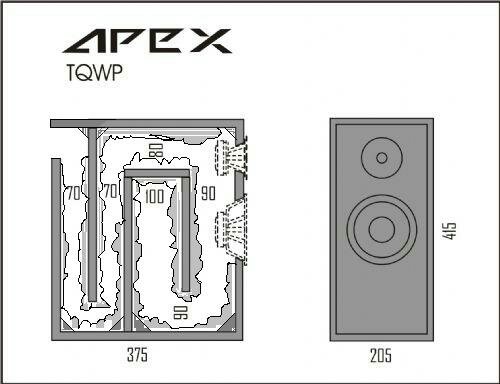

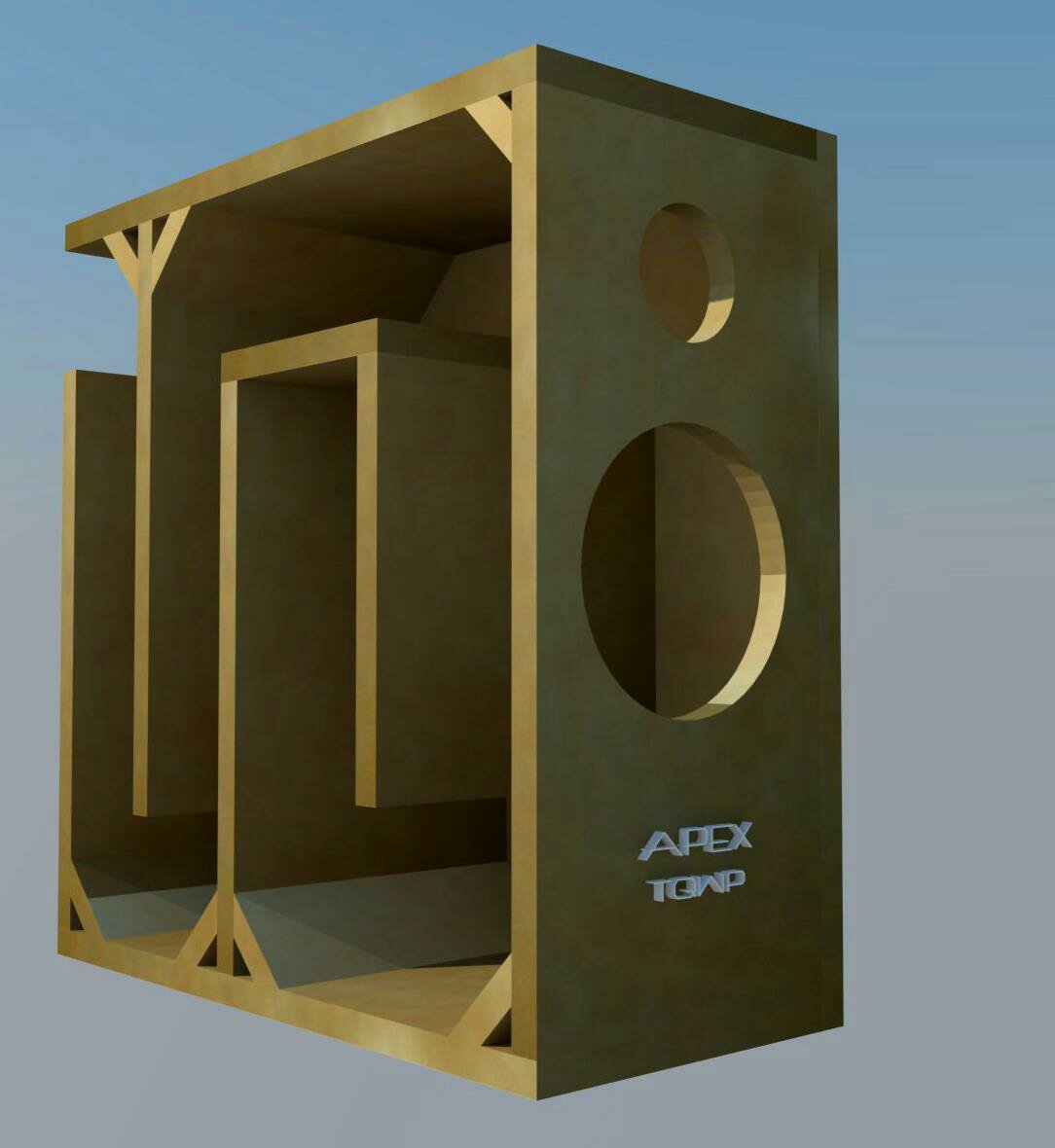

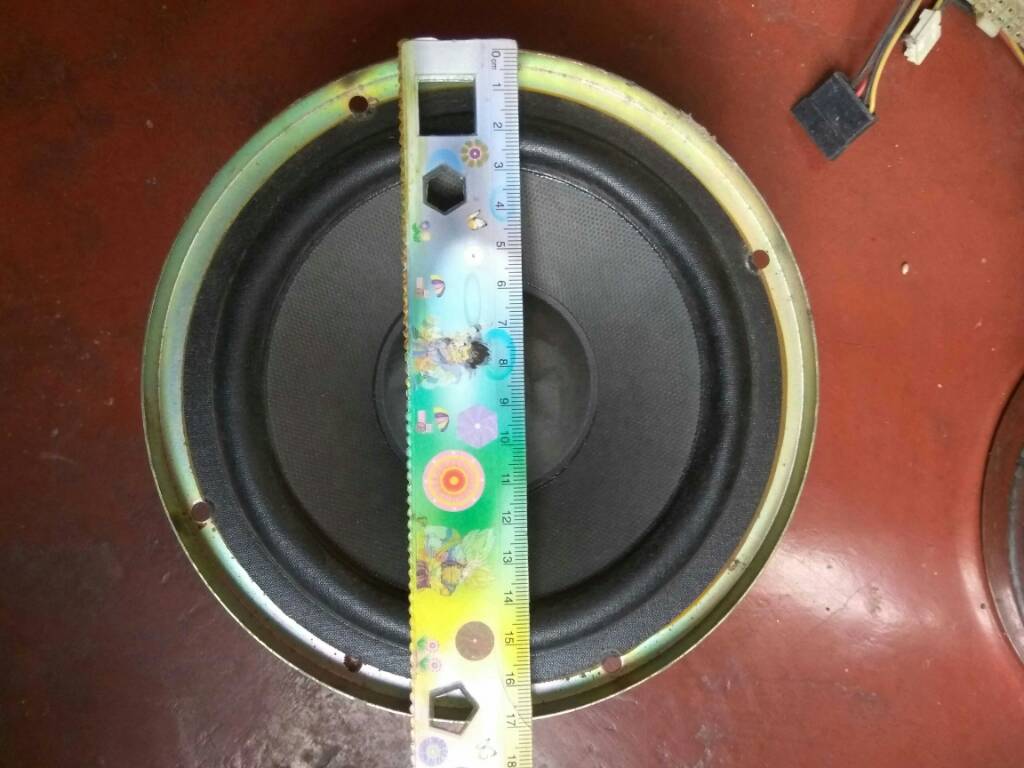

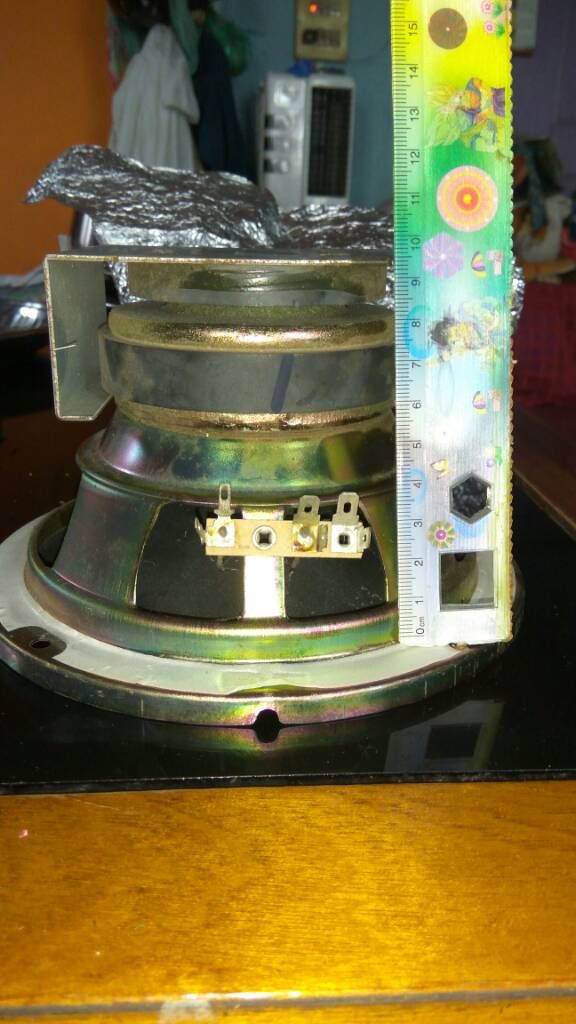

Dear sir, mile i would like to build your t line speaker box but my speaker can't sit on the baffle of the box as my speaker depth is almost 95 mm so pleased suggest me for this speaker for TQWP design



[surjitsharmaph]

Speaker size



[wiljj78]

there is two similar codes with orange mark

Hi Jhun,

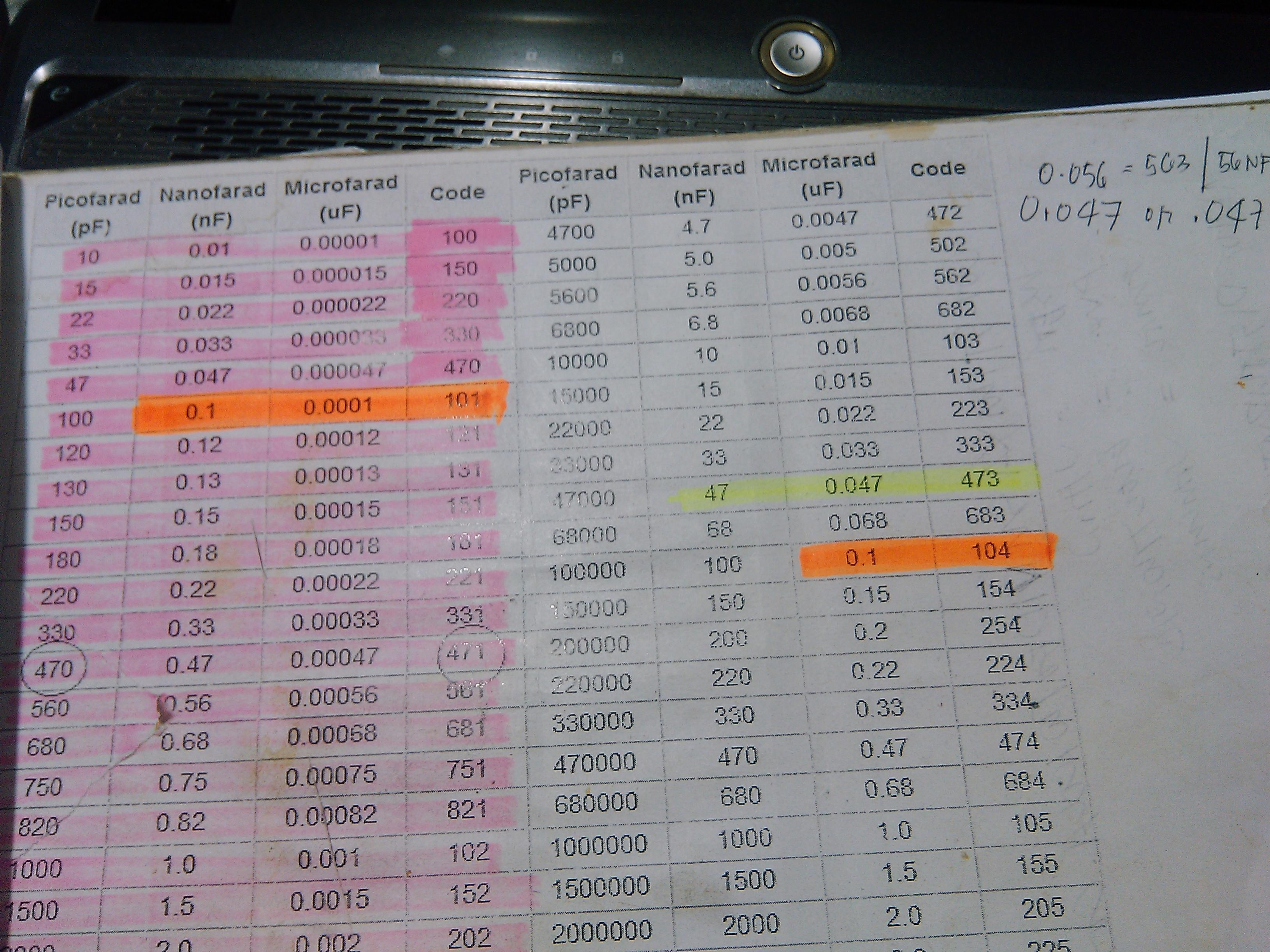

Normally maylar/polyester film Caps the code printed is 0.1 means it's (100nf) like the one picture you have, 0.1nf is printed in code 101 or (100pf).


Regards,



[desertstorm]

Hi Jhun,


Normally maylar/polyester film Caps the code printed is 0.1 means it's (100nf) like the one picture you have, 0.1nf is printed in code 101 or (100pf).


Regards,

thank you so much sir Willy Cerna for your clarification god bless sir



[Gurpreet Turna]

Need help for AX11

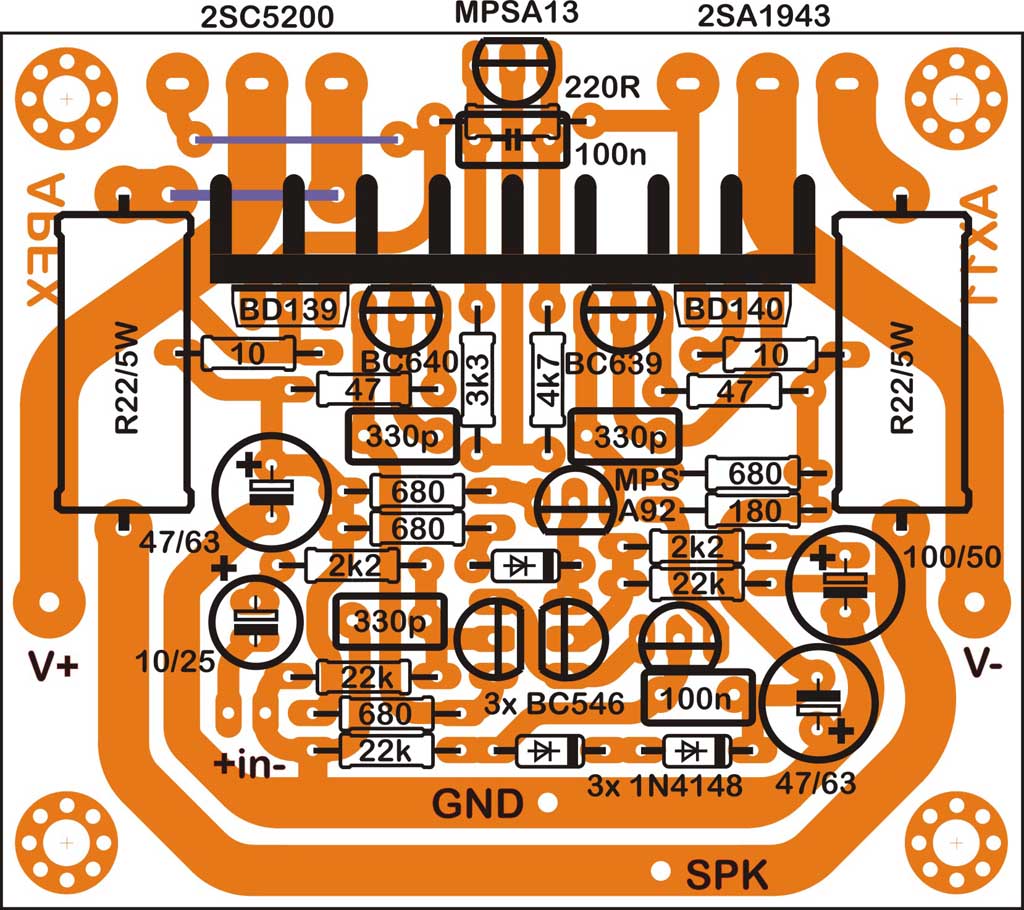

+/-42 is safe for AX11.If not please help because i have +/-42 power supply



[kandimba]

+/-42 is safe for AX11.If not please help because i have +/-42 power supply

Yes, it is safe.



[Gurpreet Turna]

Yes, it is safe.

Thanks Kandimba.
One more Question can i use njw281/njw302 place of 2sc5200/2sa1943.



[kandimba]

Thanks Kandimba.
One more Question can i use njw281/njw302 place of
2sc5200/2sa1943.

Yes you can NJW0281 / NJW0302



[viki_v2]

Can anyone guide with Fx100 Psu. I have 24-0-24 psu and 30-0-30 transformer. Is there any specific formula to calculate parts value.
Kindly answer. I have not been able to power up my amp because of psu.



[IKOL1230]

Excuse me, the PCB of the APEX FX8 of Mr. SK kachhap is sold or available to all, since I searched for it but without success of finding it. Thank you in advance and sorry for breaking the issue.



[AdeS]

You can find it here.



[chat72]

I am in the process of building ax14 with Prasi PCB.
Due to space limit, only cap at hand that can fit into c4 c5 and c6 is 150uf/63v. Is there a problem using this value instead of 100uf and 22uf?



[prasi]

Hello chat72,
Yes, you can use.

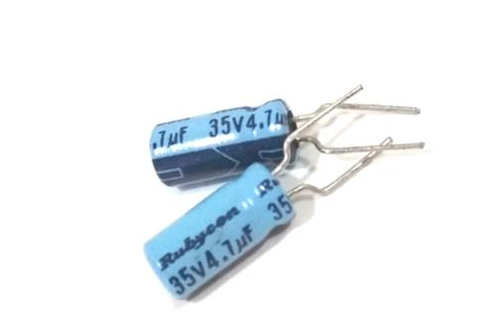

However dont go by the lead spacing for C4/C5. You may slightly kink the leads and make 22 uf wth 2.5mm pitch fit. example attached.

regards
prasi



[chat72]

Hello chat72,
Yes, you can use.
However dont go by the lead spacing for C4/C5. You may slightly kink the leads and make 22 uf wth 2.5mm pitch fit. example attached.

regards
prasi

Thank you Prasi, see if I can make them sing tonight.
