Ok let’s make a list. I think I can do this for $62 ea fully assembled SMT and only TH parts need to be soldered on by user. I’ll need at least 8 people to indicate interest. Shipping will be circa $5 in USA and about $20 everywhere else (actual ship cost and taxes etc, TBD by Etsy interface when placing order). If you have ordered stuff from my shop before, you will have an idea.

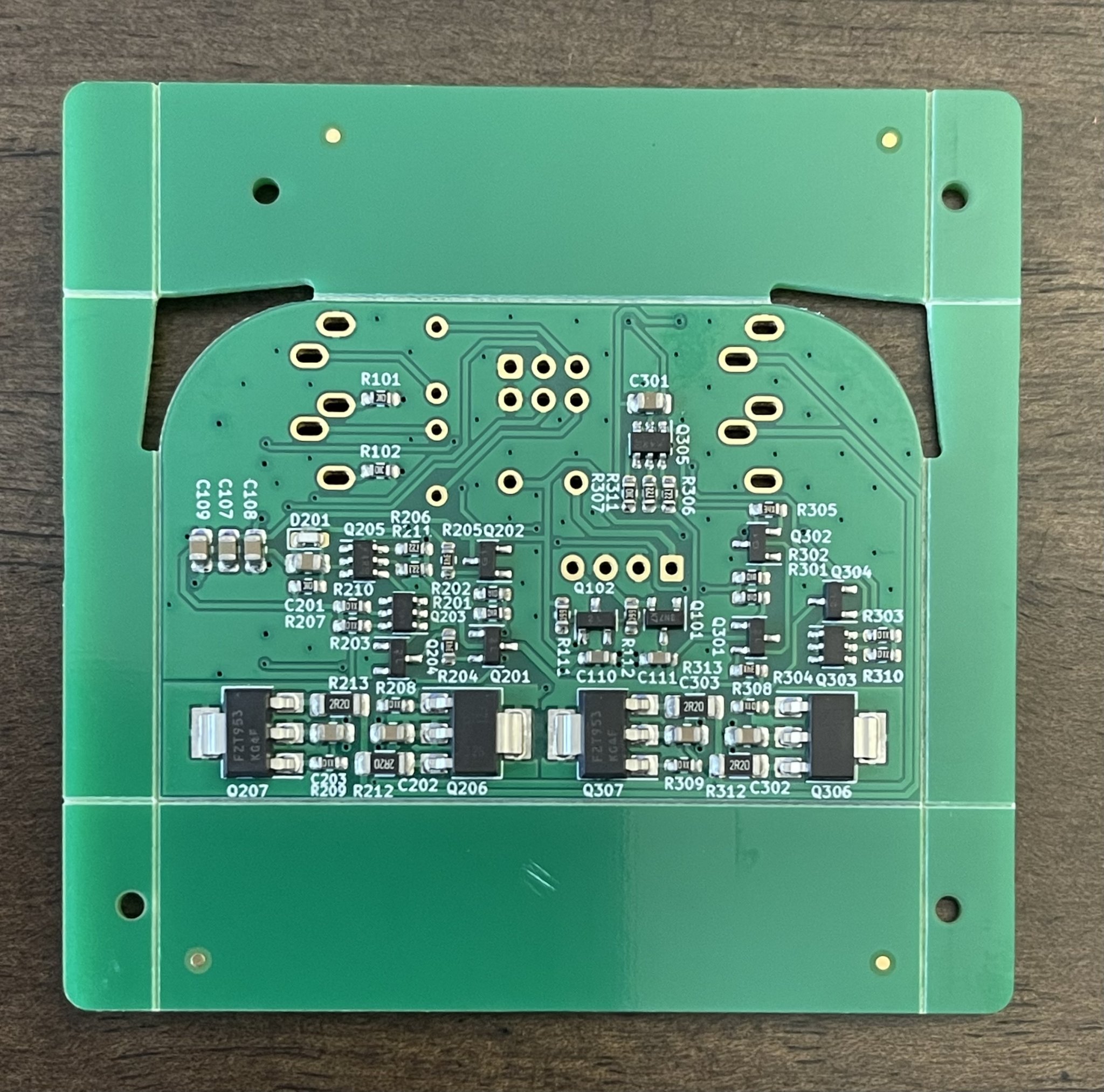

You will get 1 board like this:
You need to supply RK09 (or equivalent) volume pot with switch, 3.5mm jacks (CUI or Switchcraft compatible), 2x 3.3uF film box caps or 10uF Silmic II caps, 4x 100uF 15v power rail caps, and JST 4 pin header
Pocket Diamond Buffer HPA PCBA GB
Name / Qnty / Country
————————————
Funch / 1 / USA
UncleMud / 1 / USA
You will get 1 board like this:
You need to supply RK09 (or equivalent) volume pot with switch, 3.5mm jacks (CUI or Switchcraft compatible), 2x 3.3uF film box caps or 10uF Silmic II caps, 4x 100uF 15v power rail caps, and JST 4 pin header
Pocket Diamond Buffer HPA PCBA GB
Name / Qnty / Country
————————————
Funch / 1 / USA
UncleMud / 1 / USA
Last edited:
|
You need to provide RV101, J101, J102, J103, C101, C102, C112, C113, C114, C115. Feel free to swap NE5532 with OPA1642 for the ultimate in sound quality.
Feel free to increase C112/C113/C114/C115 from 47uF up to 100uF or even 220uF. This will help improve stereo separation. Bend the legs 90 deg sideways and solder from same side as the holes are covered by SOT223 BJTs on other side. This gets the caps away from the PCB anyway to reduce exposure to heat.

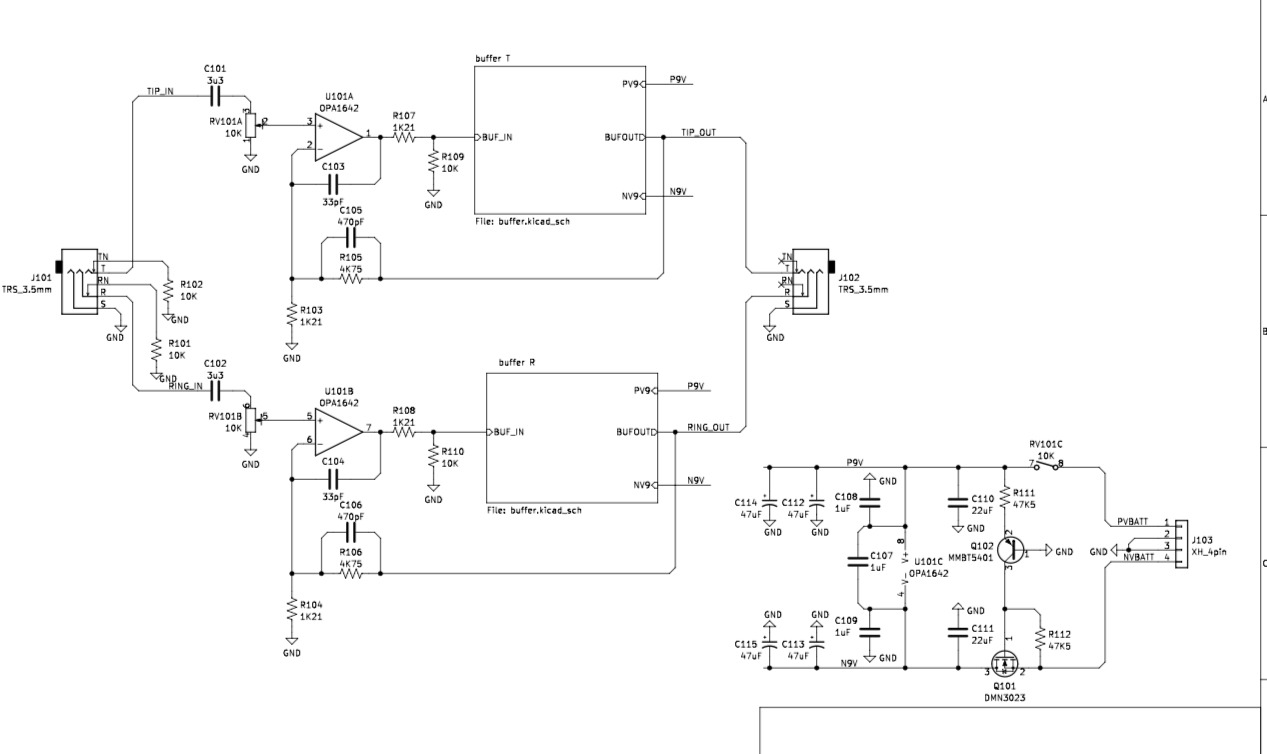

Here is overall connections to power input, 3.5mm TRS jacks, and +/-9v power supply. Please note that the volume pot and TRS jacks do not have the same hole spacing as the Pocket Class A. So you will need to cut holes on a new tin. It is ever so slightly different by a few mm. Sorry about that. Also, the headphone out and audio input are now swapped from the PCA. There is no turn on issue (with batteries cutting out) as with PCA as the current inrush is manageable with 100uF power rail caps.
Last edited:
I'd probably be down for at least 3 boards. I'll be taking my current amp to the AZ meet this Saturday. I may need more than 3.
Pocket Diamond Buffer HPA PCBA GB
Name / Qnty / Country
————————————
Funch / 3 / USA
UncleMud / 1 / USA
## updated Funch board number ##
Name / Qnty / Country
————————————
Funch / 3 / USA
UncleMud / 1 / USA
## updated Funch board number ##
Posted before I saw your last post, assuming it would just be bare boards. Just 2 boards please.
I’m selling prepopulated SMT boards. I wasn’t planning on selling bare PCBs because most people are not able to assemble something like this easily. I can get some bare boards if you are really into that.
Yah, I like 'em nekkid! The last pocket class A I did I used solder paste and a hot skillet for the first time; it was fun. Better than hand soldering.
I think I should start a new GB thread for the Pocket Diamond Buffer HPA.
Is this thread still the right place to express interest in the Pocket Diamond Buffer? I know I'm late to the party - just found the notification buried in my email.
Yes, after I get a chance to test it out and make sure everything is working well. The boards should be here in a week or so.

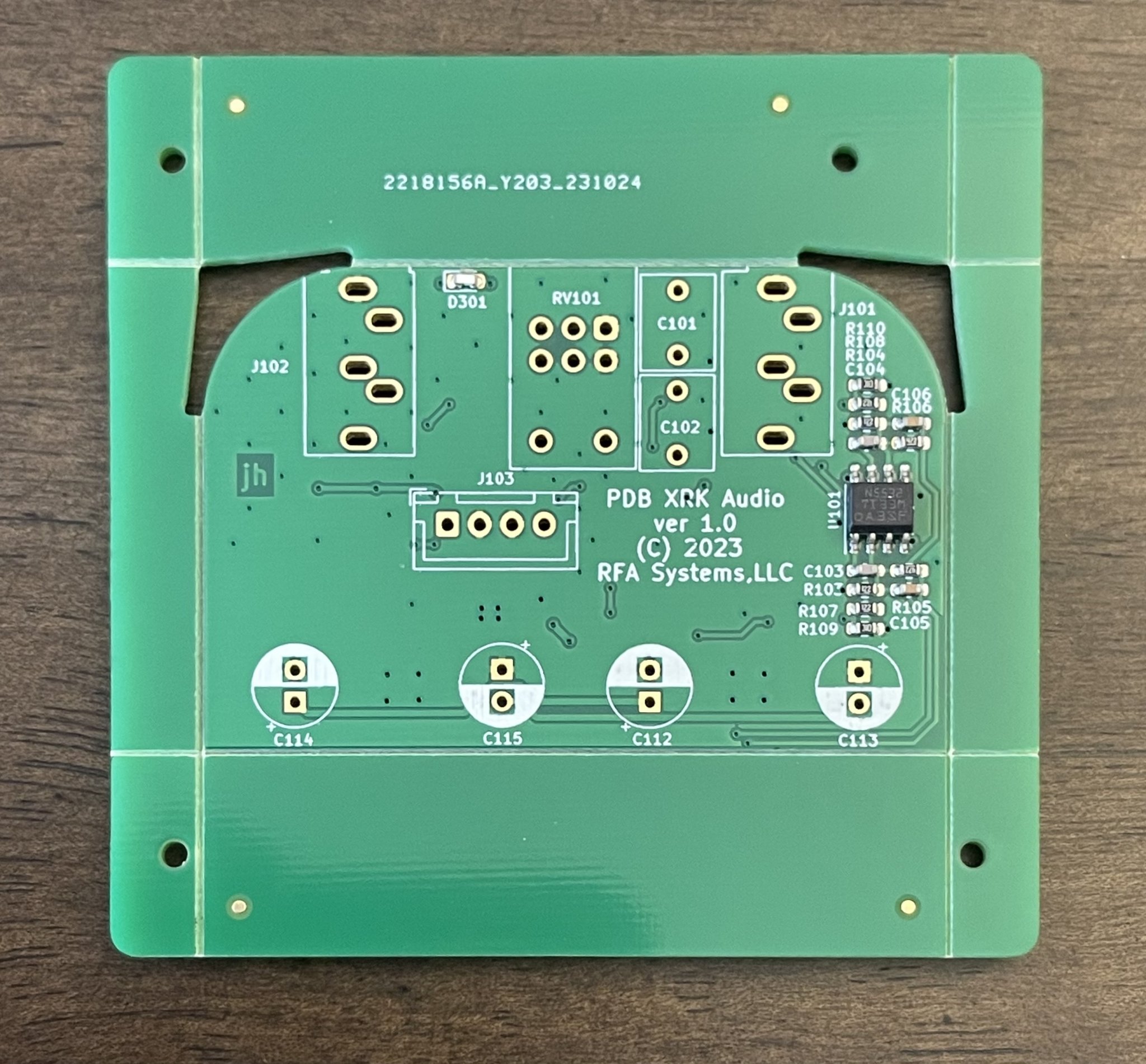

This is what the desktop board looks like:
Lots of room for cap rolling on the input coupling caps. There’s a small helper board for connecting an off board volume pot with Micromatch IDC cable.
A big thanks to Jhofland for the design.
This is what the desktop board looks like:
Lots of room for cap rolling on the input coupling caps. There’s a small helper board for connecting an off board volume pot with Micromatch IDC cable.
A big thanks to Jhofland for the design.
Neat. I’m interested in a tin version! Will keep my ears open for news about the desktop version.
The Pocket Diamond Buffer (PSB) is now on sale in my shop for $69. All SMT parts fully installed and all you need to do is to install through hole parts. Fully tested and verified to be working by me - hence 4 pin JST connector for power is pre installed.
https://xrkaudio.etsy.com/listing/1606375374
Only 7 units available in this first batch so get them while supplies last.
https://xrkaudio.etsy.com/listing/1606375374
Only 7 units available in this first batch so get them while supplies last.
A couple of orders have come through for the PDB already. Thanks!

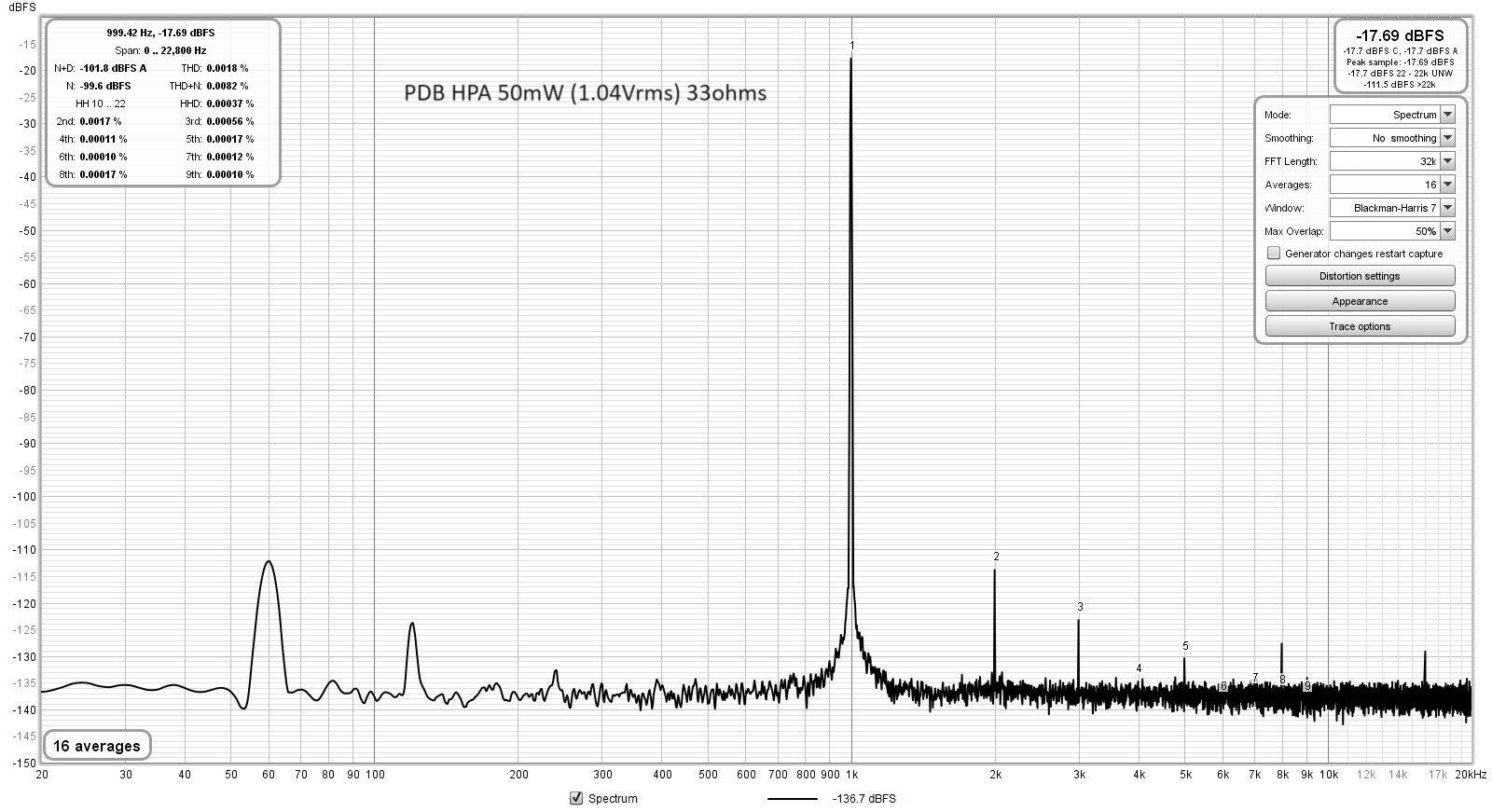

In case you haven’t seen the measurements. They look fantastic. Here is 50mW into 33ohms. About 0.0018% THD and perfect SE Class A harmonic profile.
Ignore the 60/120Hz/and > 3kHz peaks (air pickup in noisy lab).
Max power of about 270mW into 33ohms. Clips at 373mW into 33ohms with lithium ion 9v rechargeable batteries. Noise floor is about -120dB.
More info on measurements here:
https://www.diyaudio.com/community/threads/pocket-diamond-buffer-pdb-headphone-amp.401404/
In case you haven’t seen the measurements. They look fantastic. Here is 50mW into 33ohms. About 0.0018% THD and perfect SE Class A harmonic profile.
Ignore the 60/120Hz/and > 3kHz peaks (air pickup in noisy lab).
Max power of about 270mW into 33ohms. Clips at 373mW into 33ohms with lithium ion 9v rechargeable batteries. Noise floor is about -120dB.
More info on measurements here:
https://www.diyaudio.com/community/threads/pocket-diamond-buffer-pdb-headphone-amp.401404/
Last edited:
I think I'll just pick up one of your populated boards instead of the bare ones.

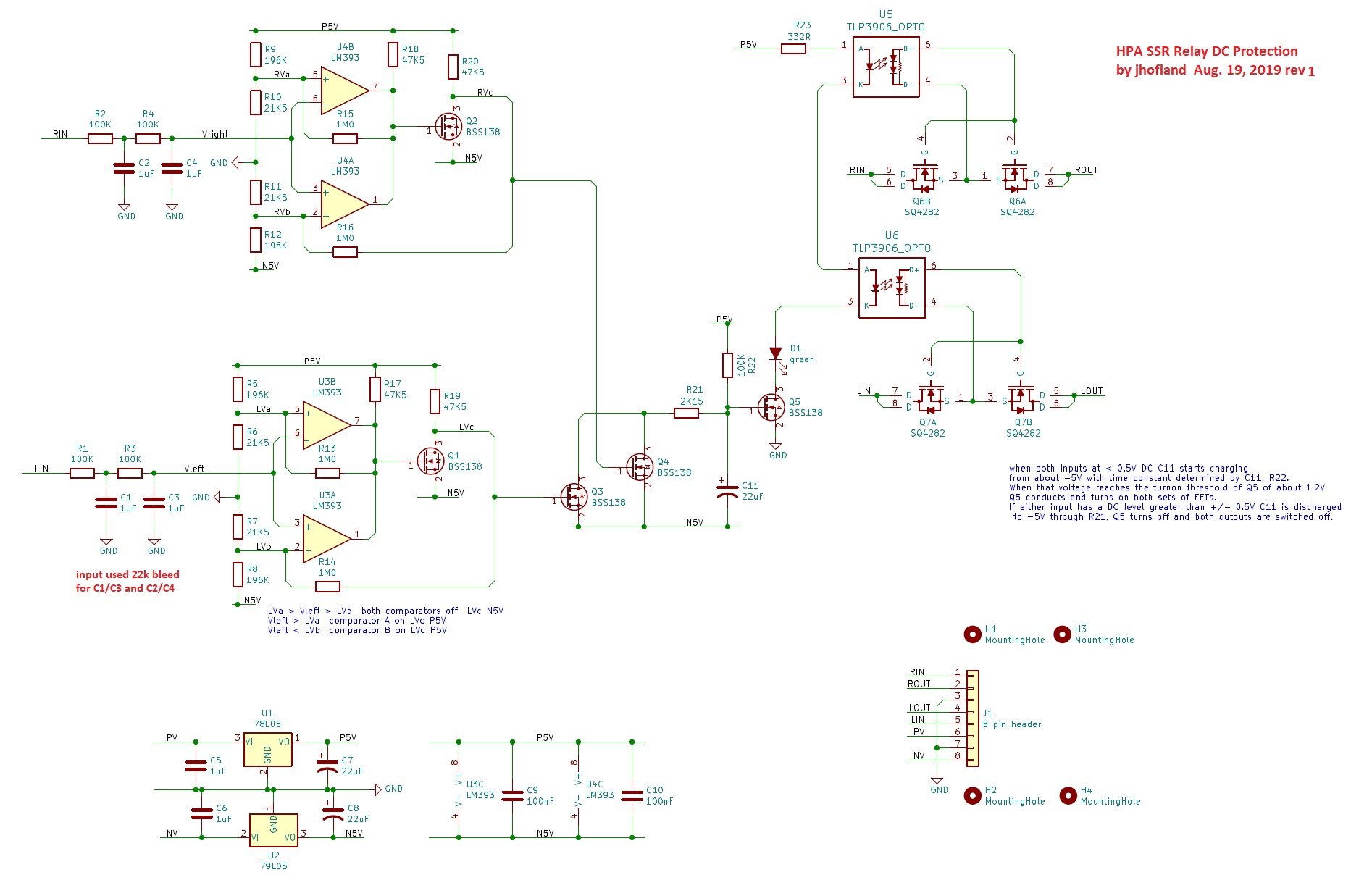

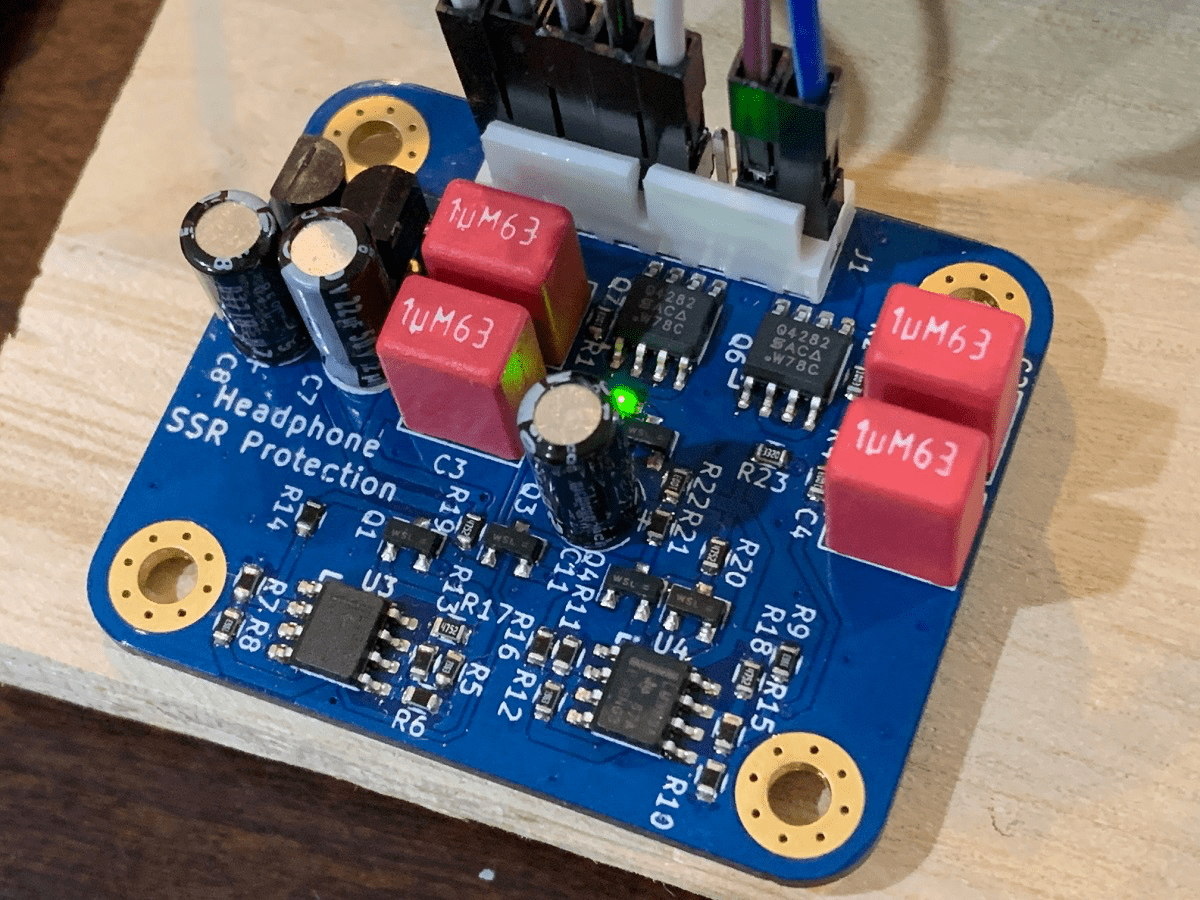

Thank you so much for responding to me. I have no choice, I will make a headphone amplifier like you have in the post. Because I don't have a delay circuit to turn on the headphones. I do not know how to design circuits. I can breed and solder)If you really want to make it great, add a DC output protection relay. I would use a solid state relay (SSR) scheme with a 2 second turn-on delay and instant-off at power off feature to prevent thump and protect from headphones from DC in case one rail collapses before the other. I ran out of room to implement the SSR on this small board though. You may want to tweak the bias current by increasing the 2.2R emitter resistors to 4.7R and this will let it run cooler without really affecting performance too much. But if you have good heatsinking, it’s fine as is. 🙂
But I'm still very grateful to you for responding to me.🙂
