KLA120
I've recently finished my latest amplifier, the KLA120.
It's extremely clear and transparent, produces amazing sound, I like it very much.

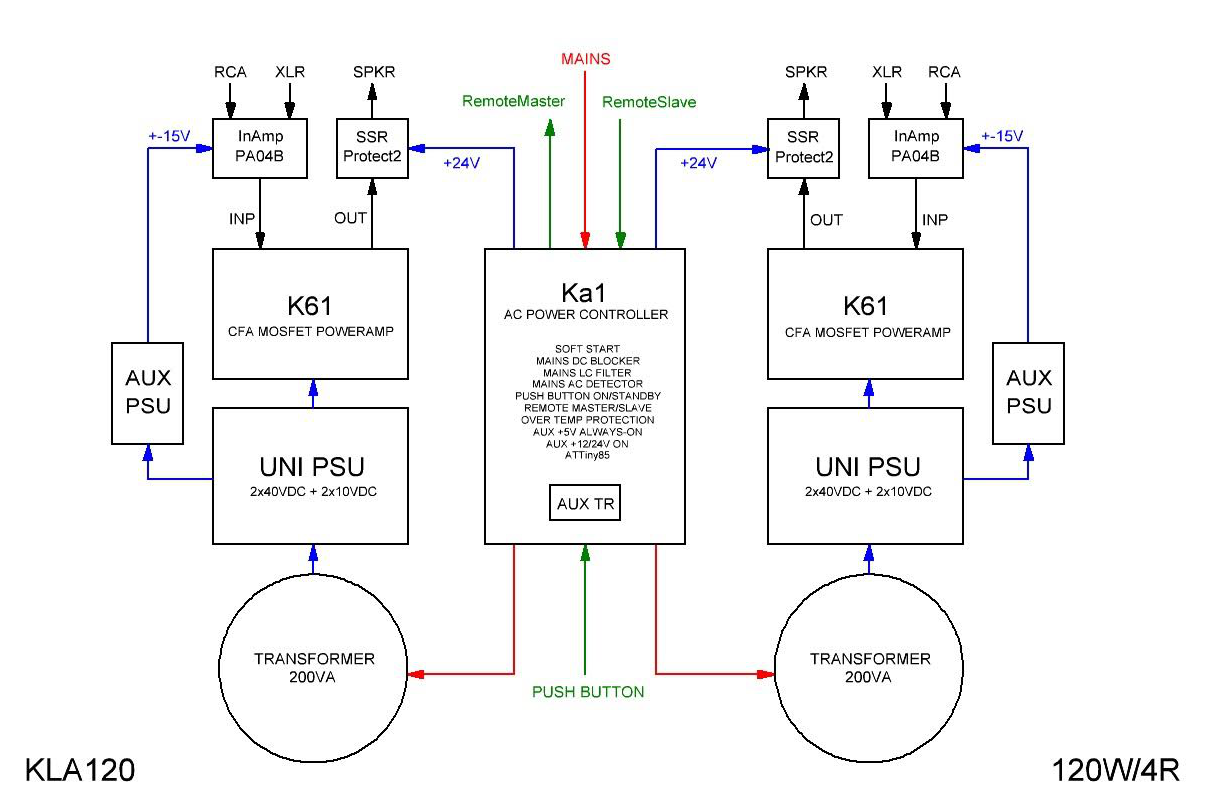

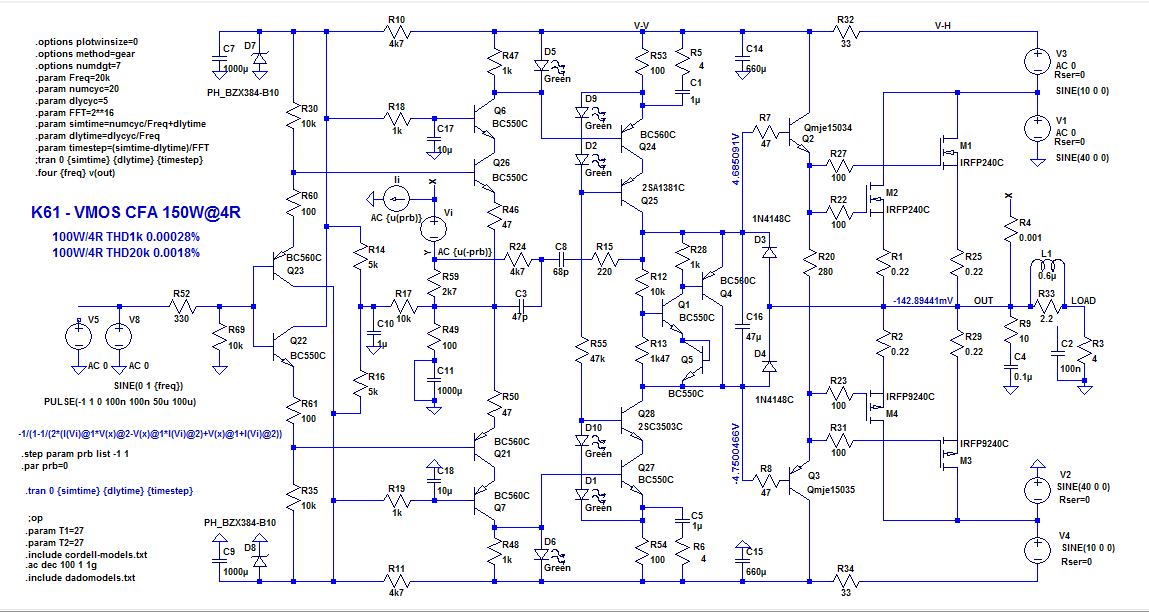

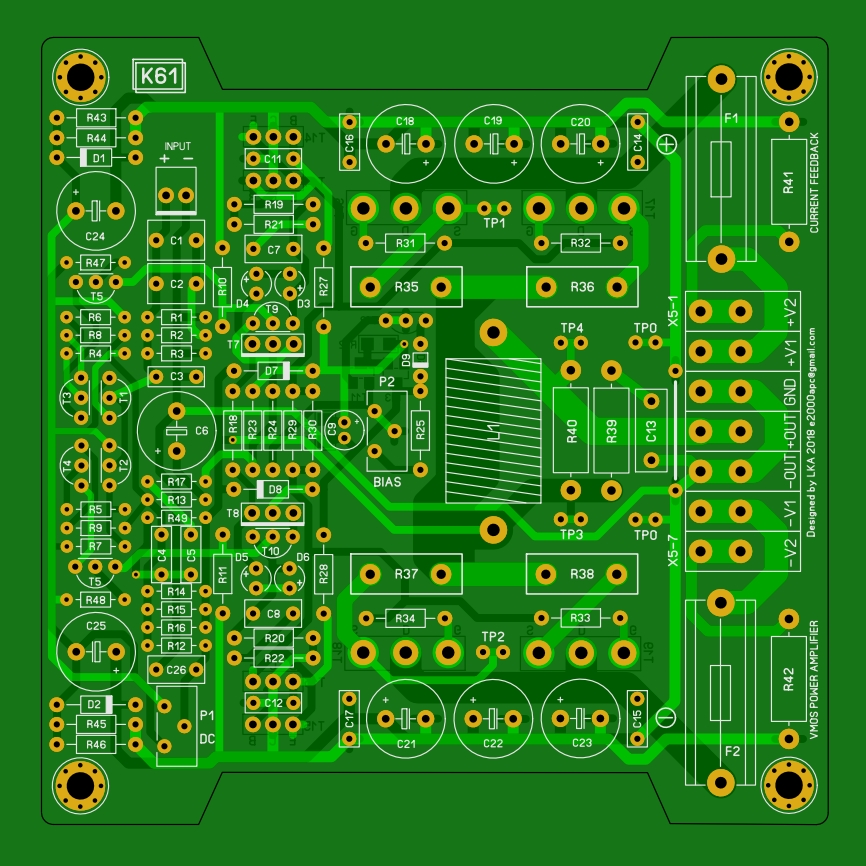

Pic1 - block diagram, components used and interconnects

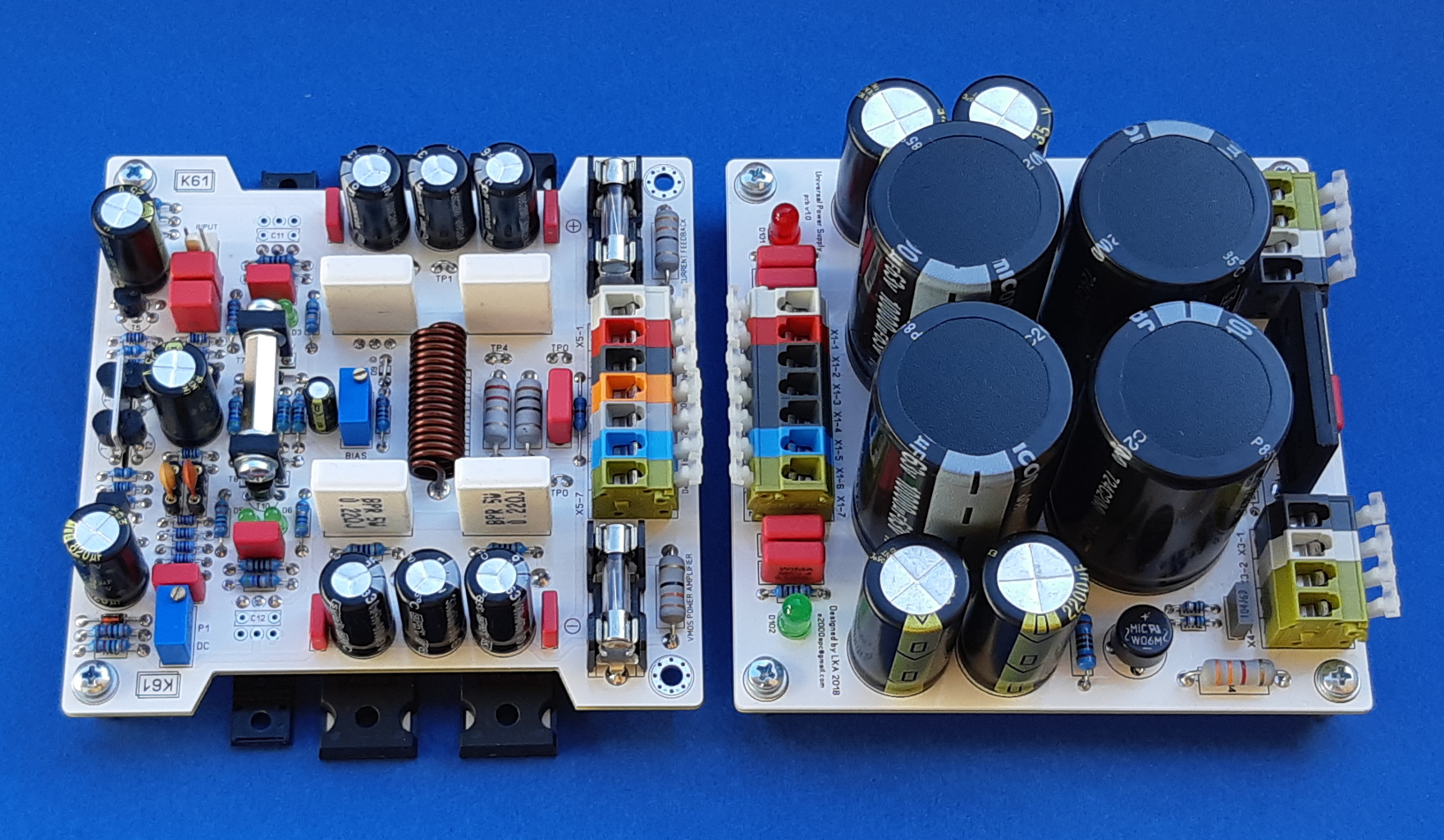

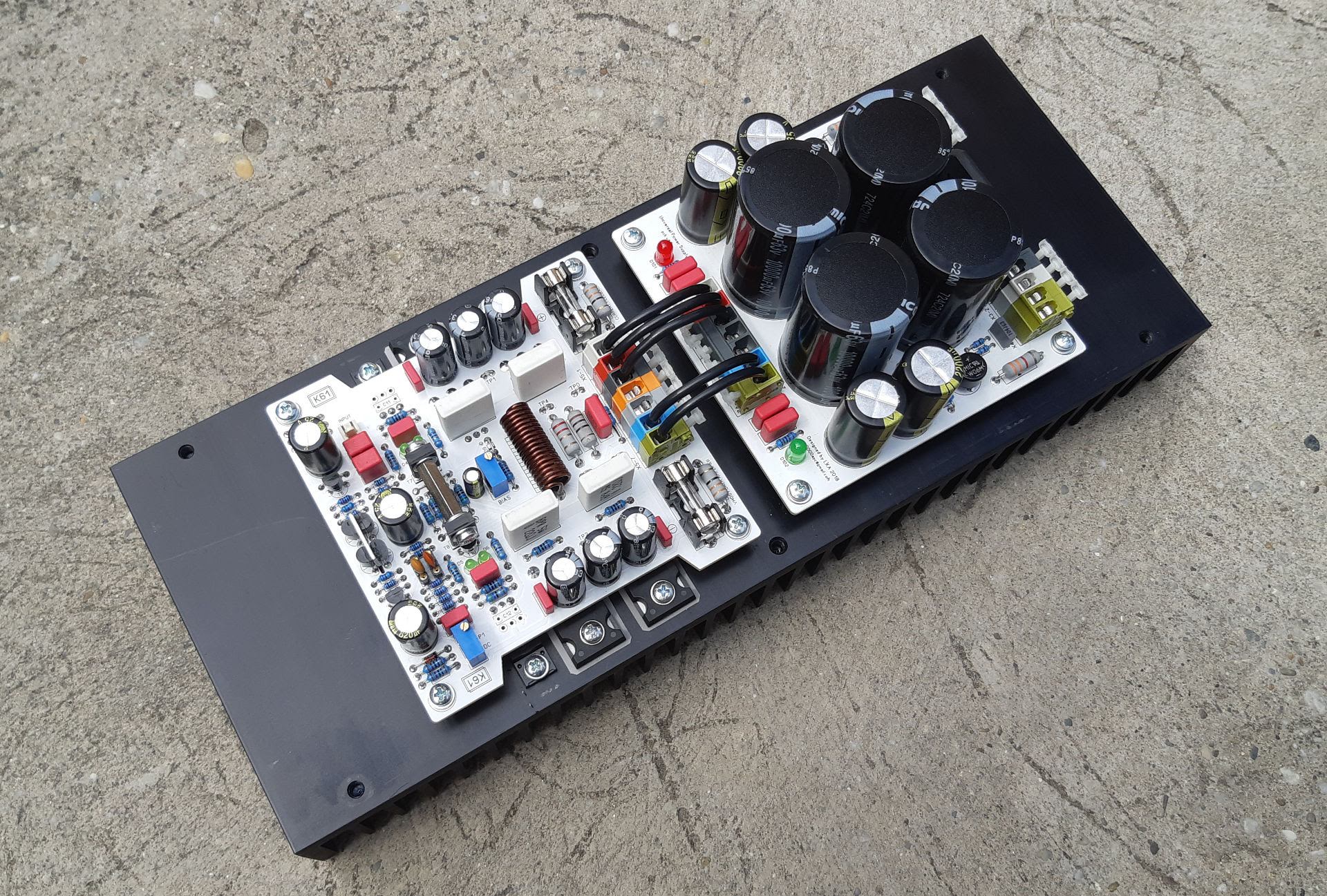

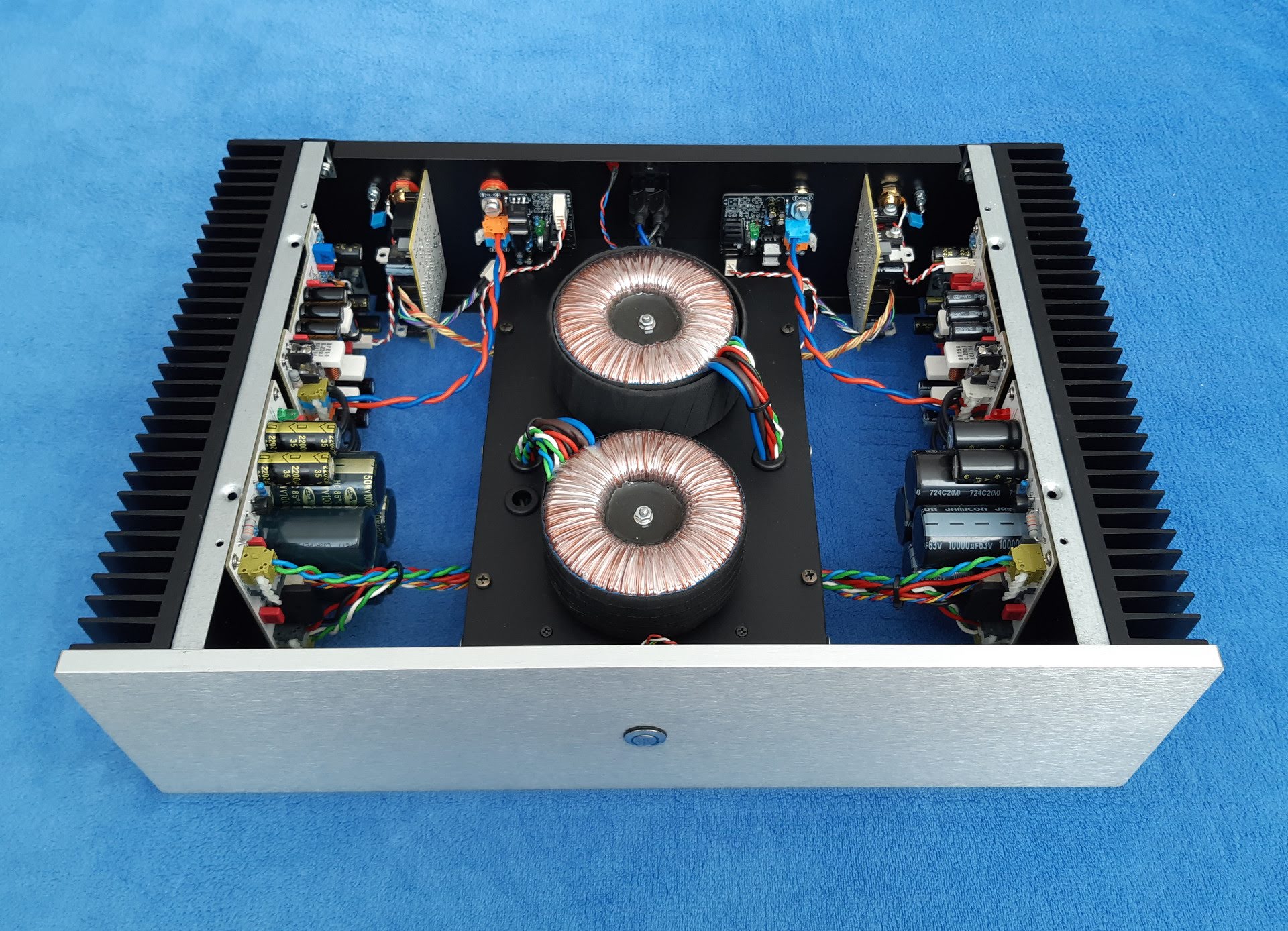

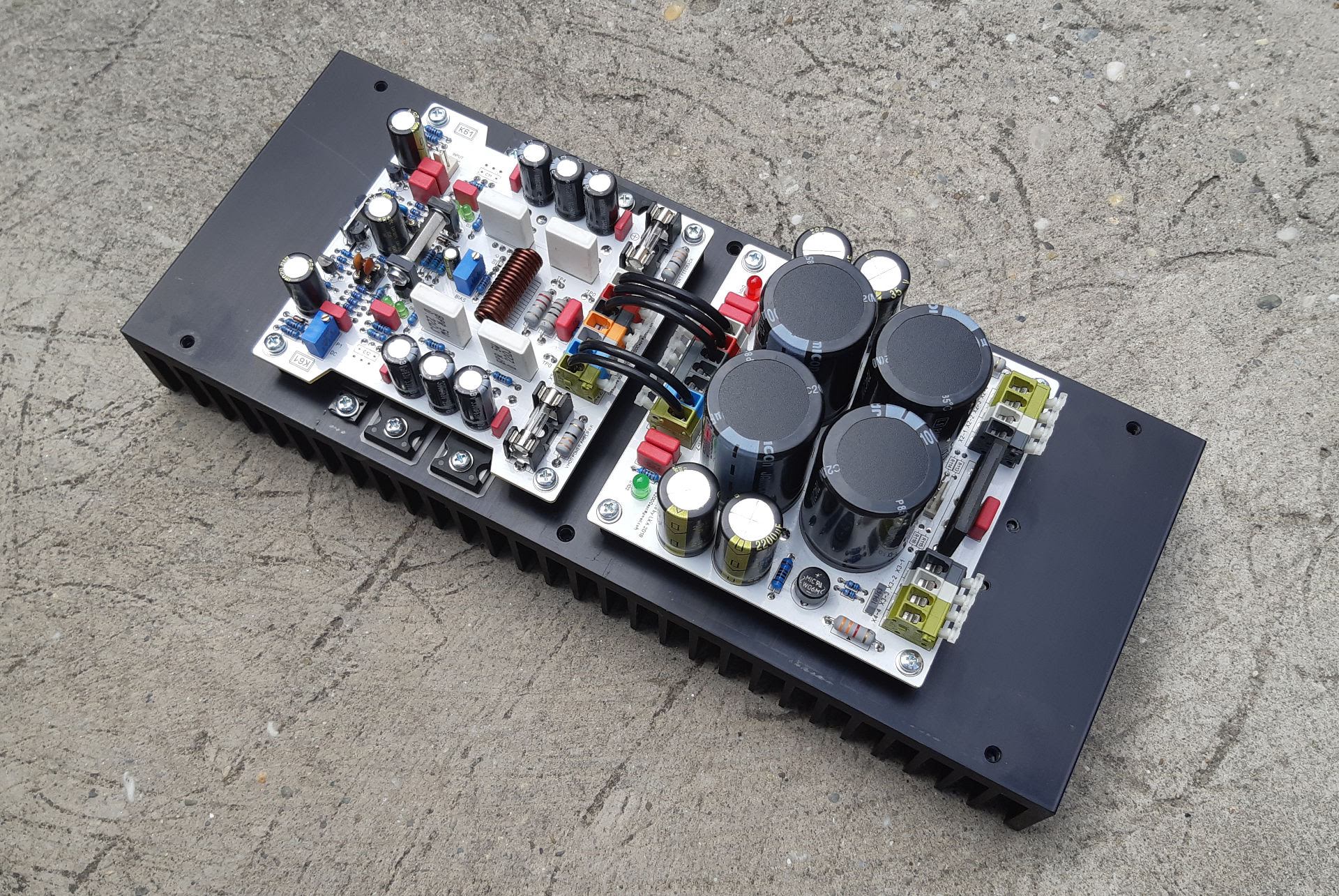

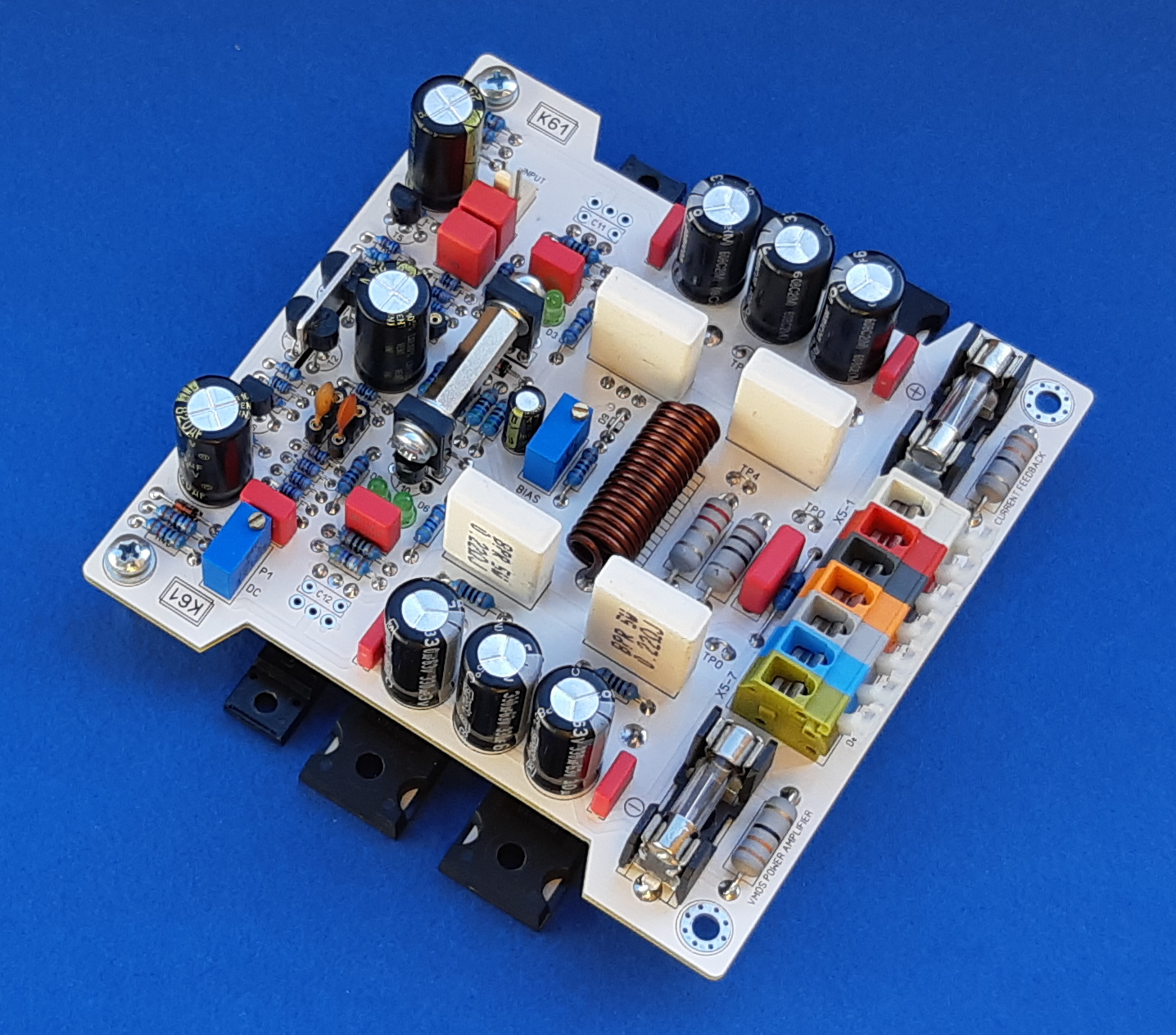

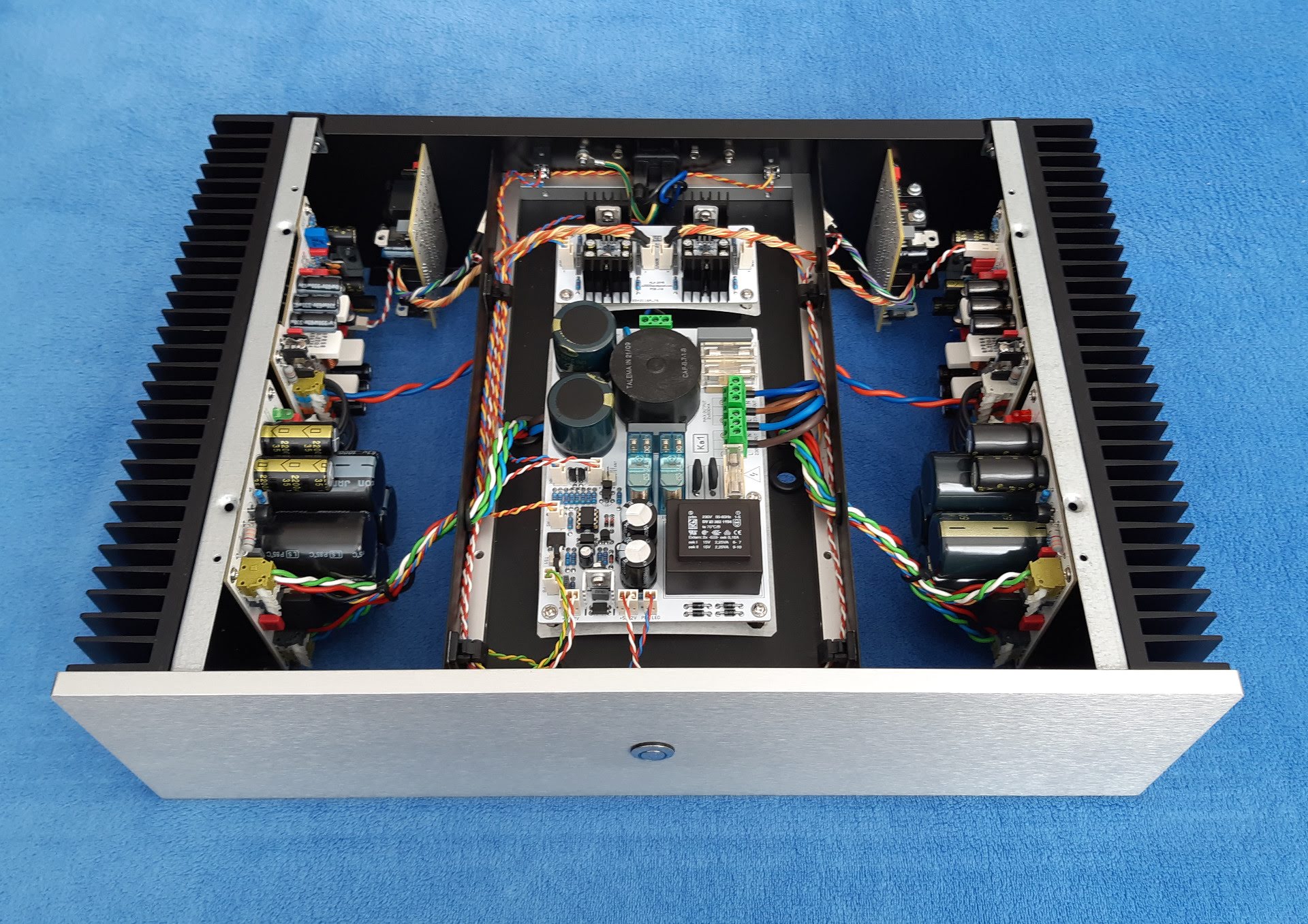

Pic2,3 - finished and uncovered amplifier

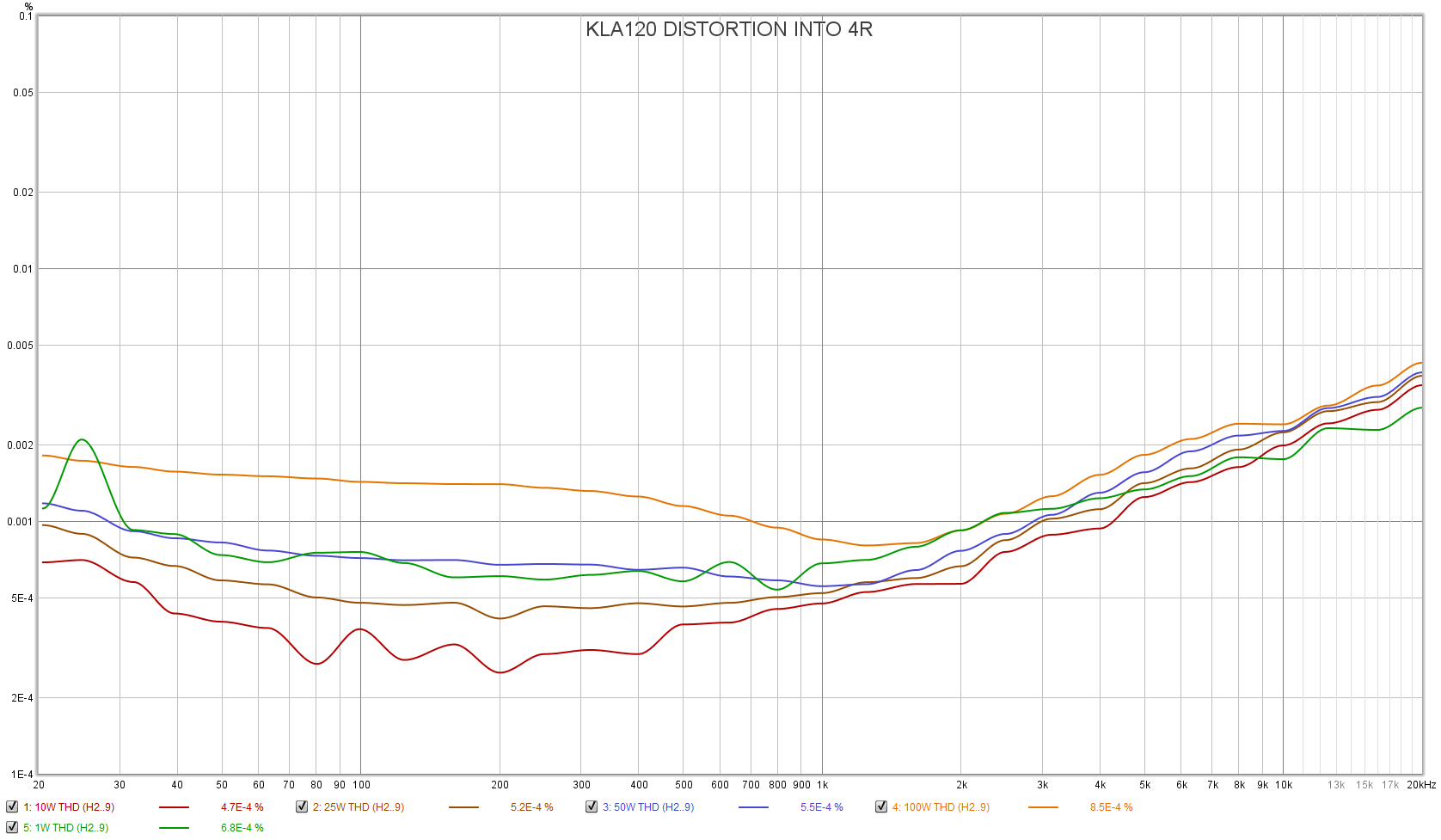

Pic4 - measured distortion vs frequency into load 4R

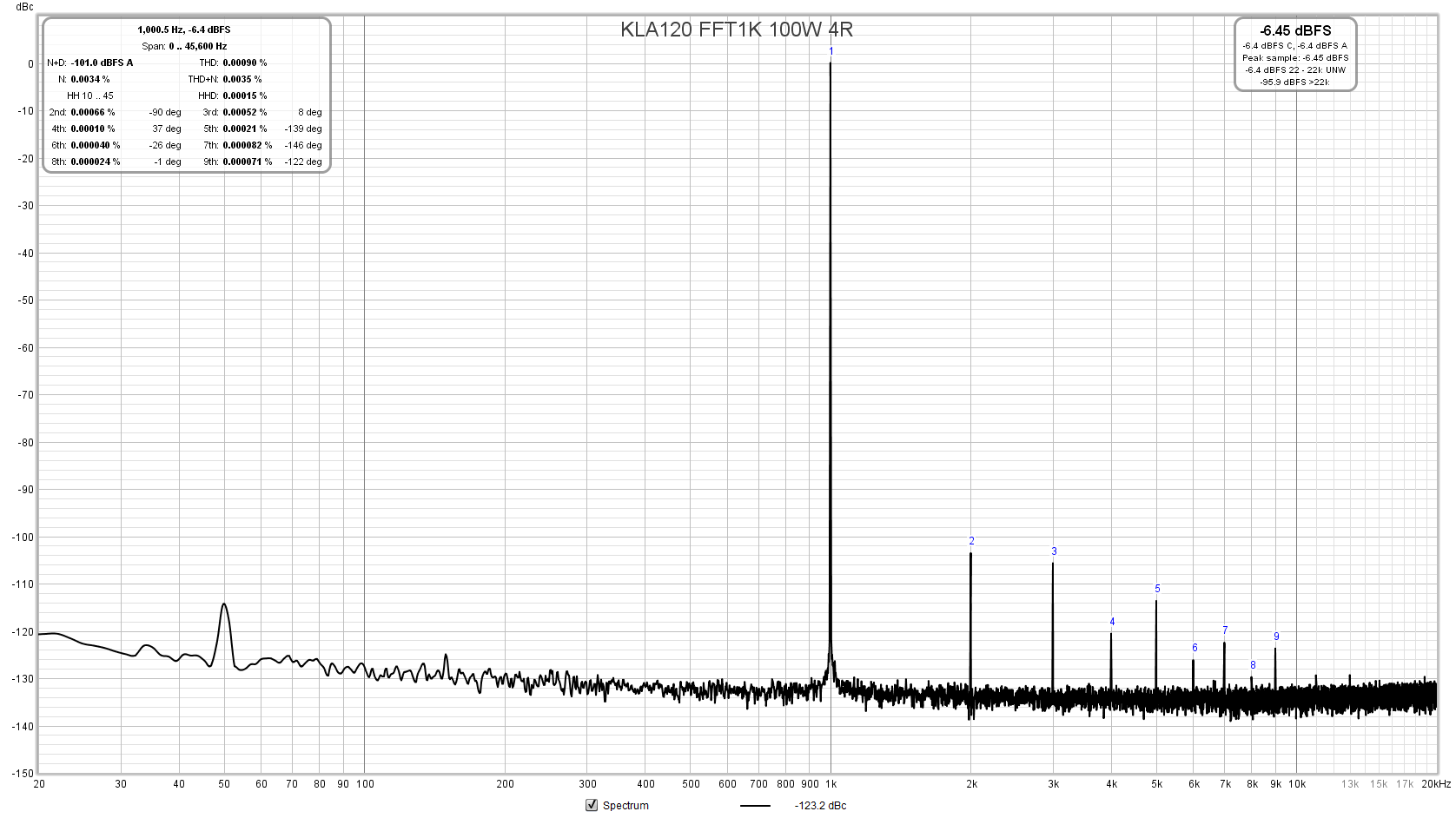

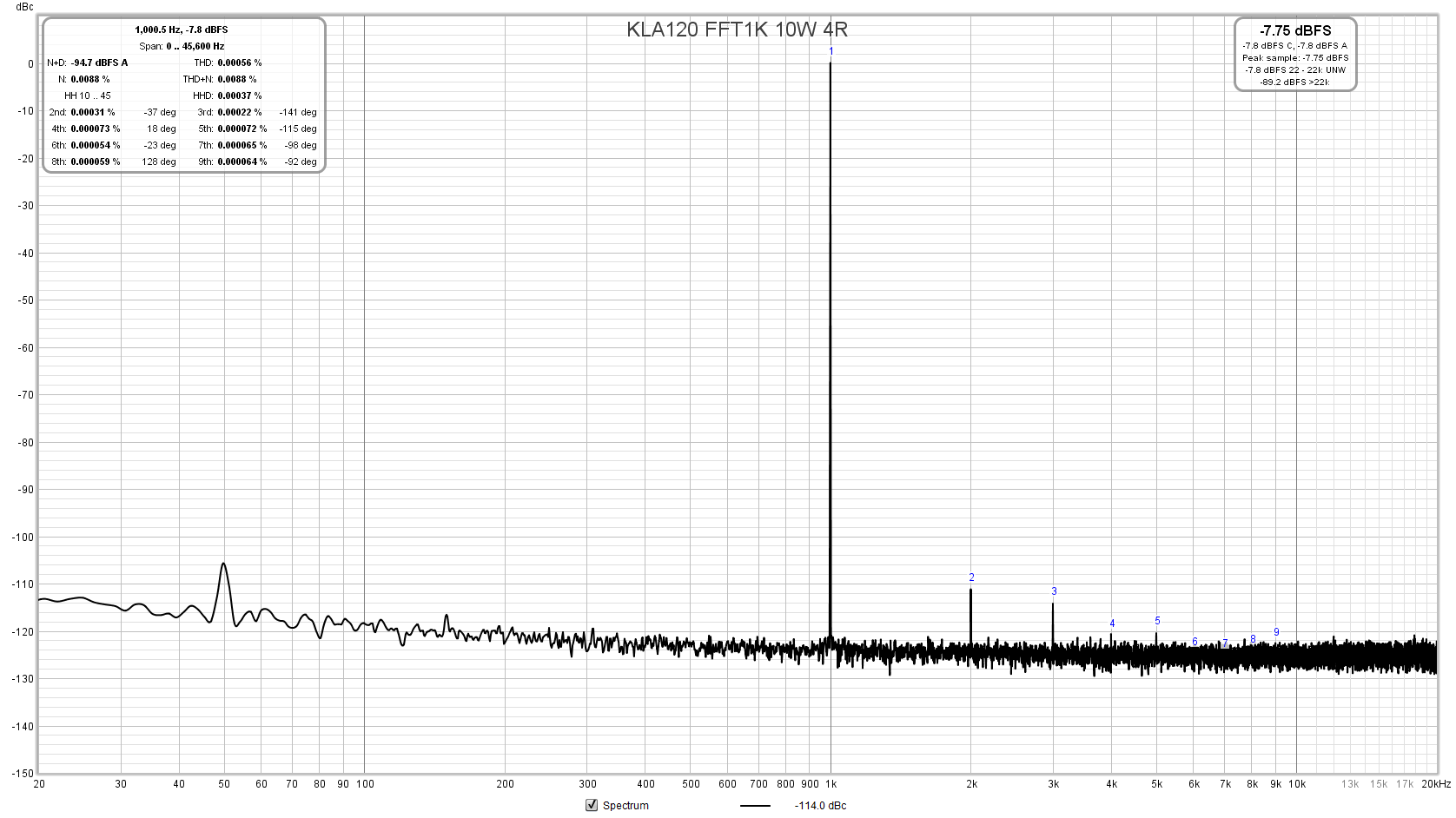

Pic5,6 - RTA at 10W/4R and 100W/4R, notice the exemplarly clear spectrum
more pics here
KLA120 - 120W/4R MOSFET POWER AMPLIFIER - Google Photos
I've recently finished my latest amplifier, the KLA120.
It's extremely clear and transparent, produces amazing sound, I like it very much.
Pic1 - block diagram, components used and interconnects
Pic2,3 - finished and uncovered amplifier
Pic4 - measured distortion vs frequency into load 4R
Pic5,6 - RTA at 10W/4R and 100W/4R, notice the exemplarly clear spectrum
more pics here
KLA120 - 120W/4R MOSFET POWER AMPLIFIER - Google Photos

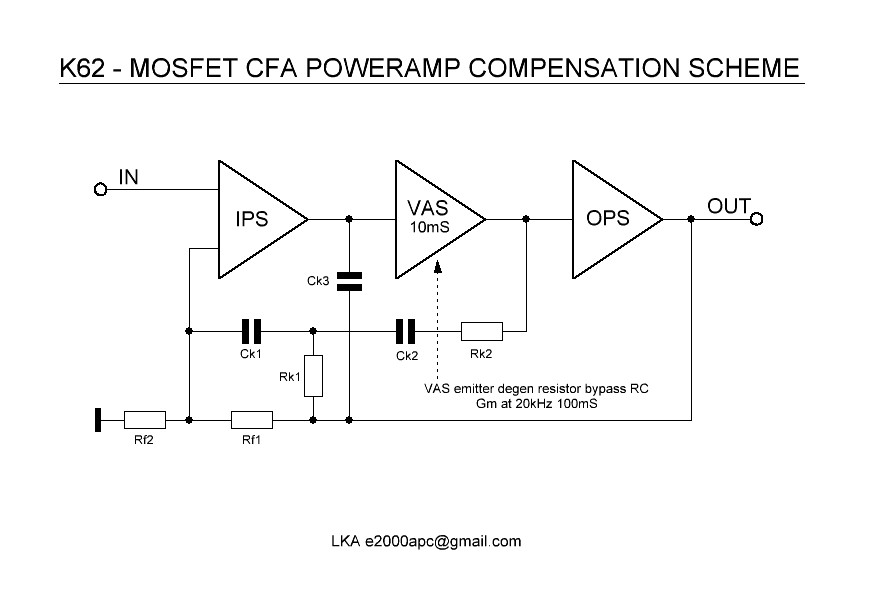

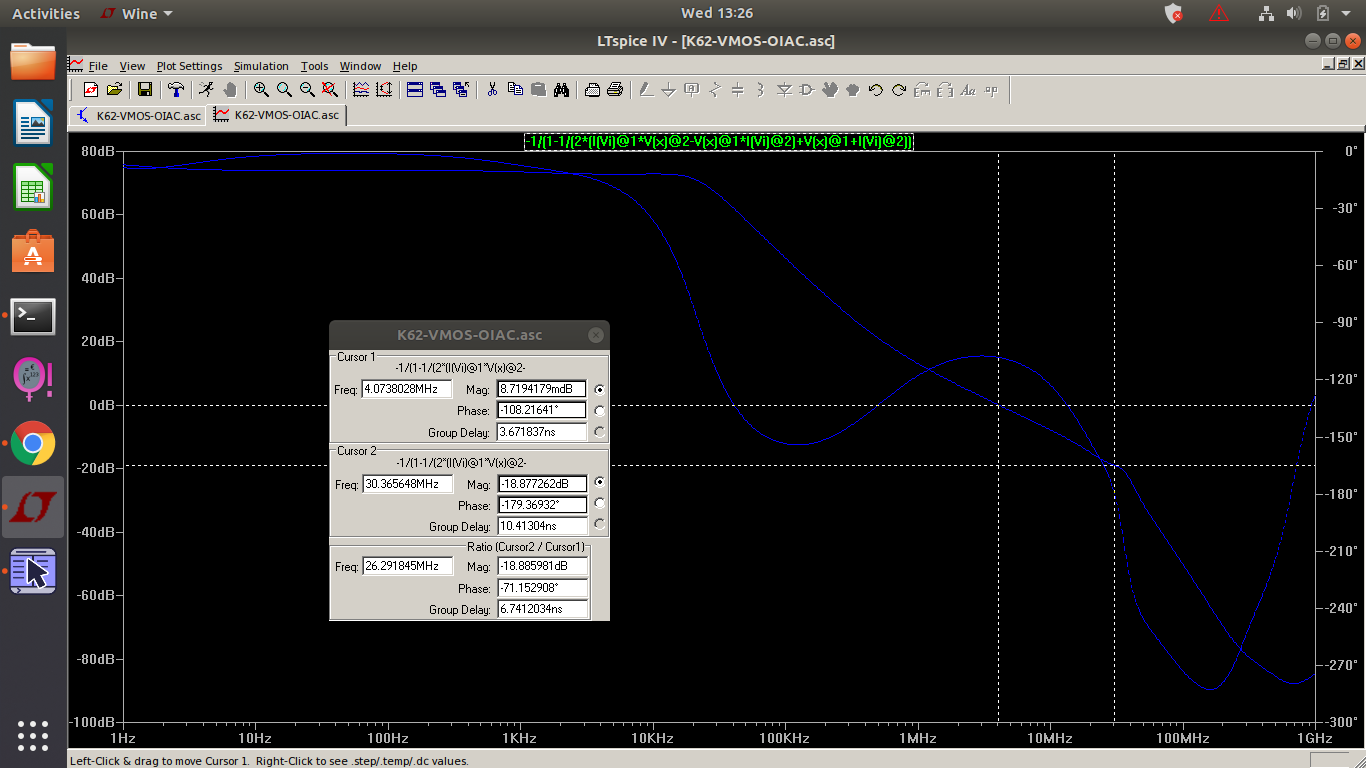

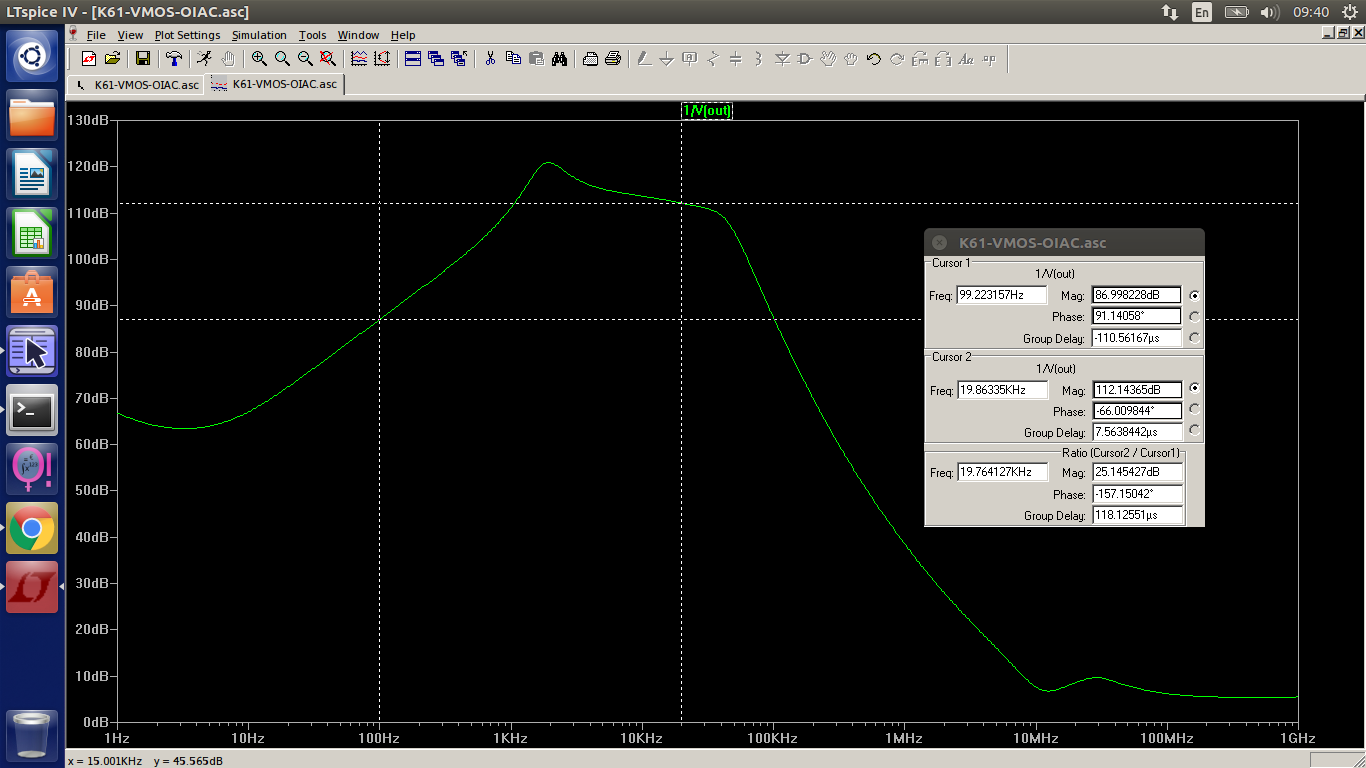

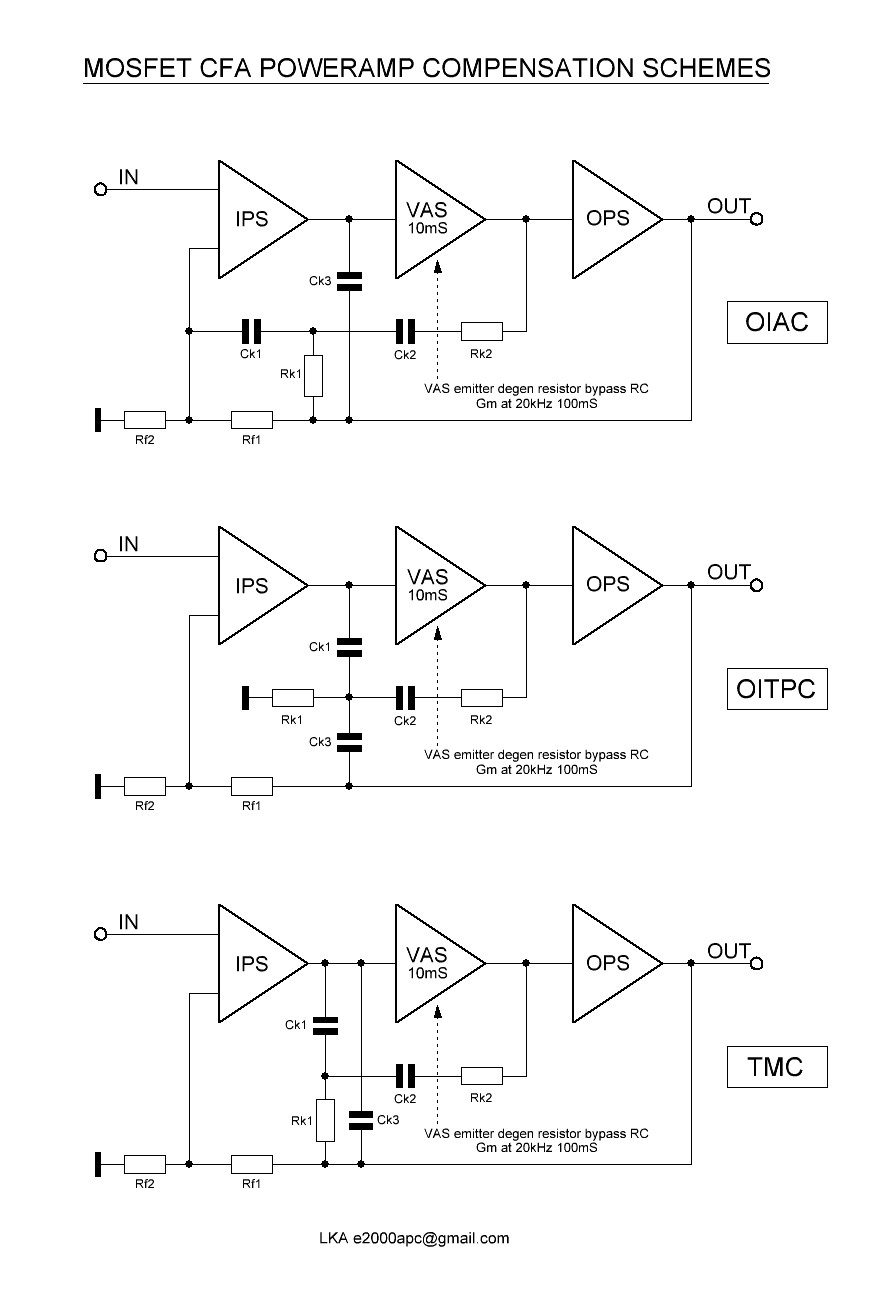

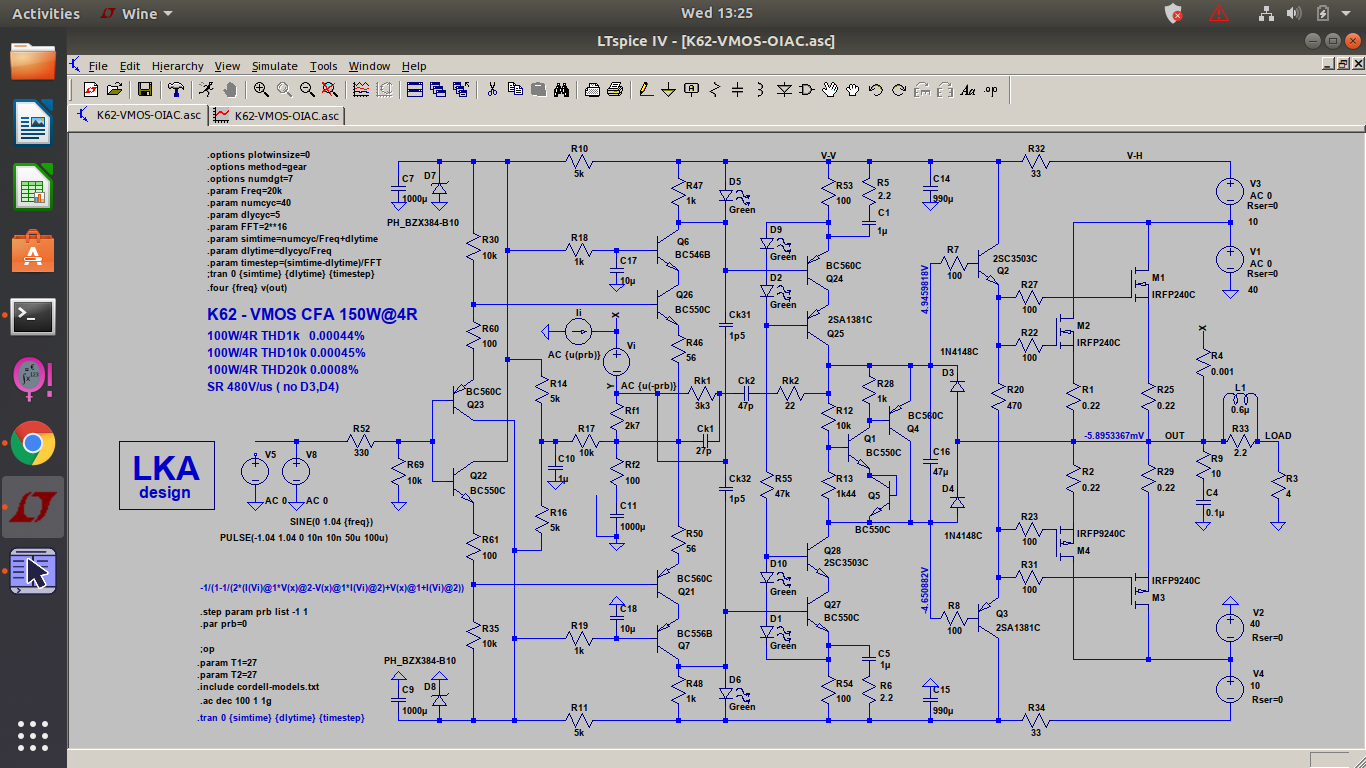

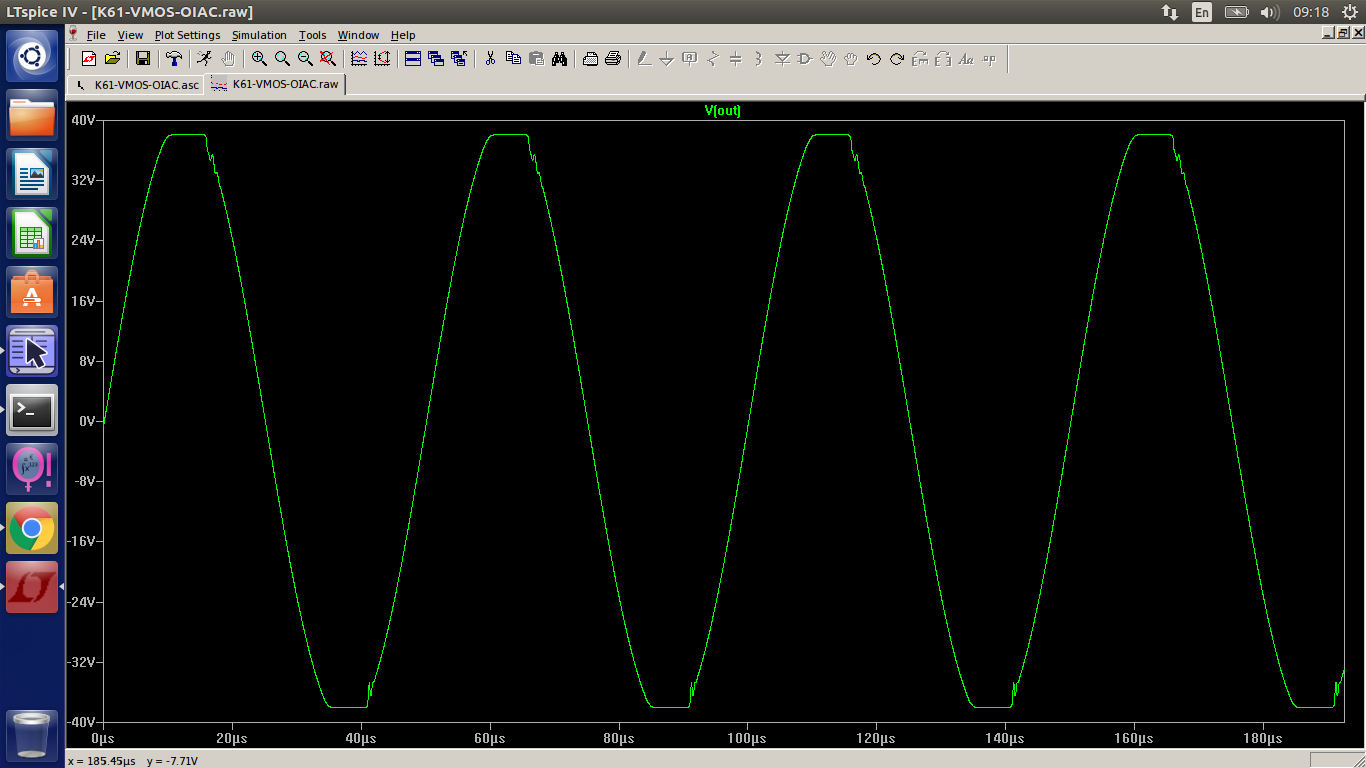

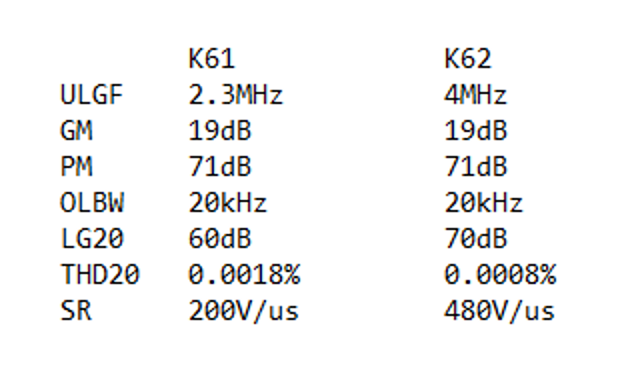

Attachments

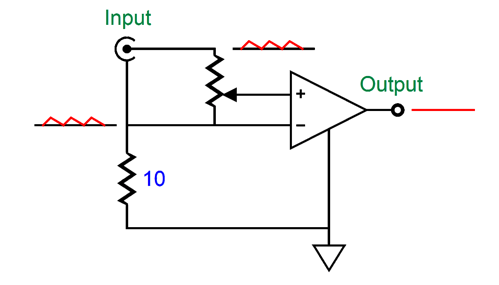

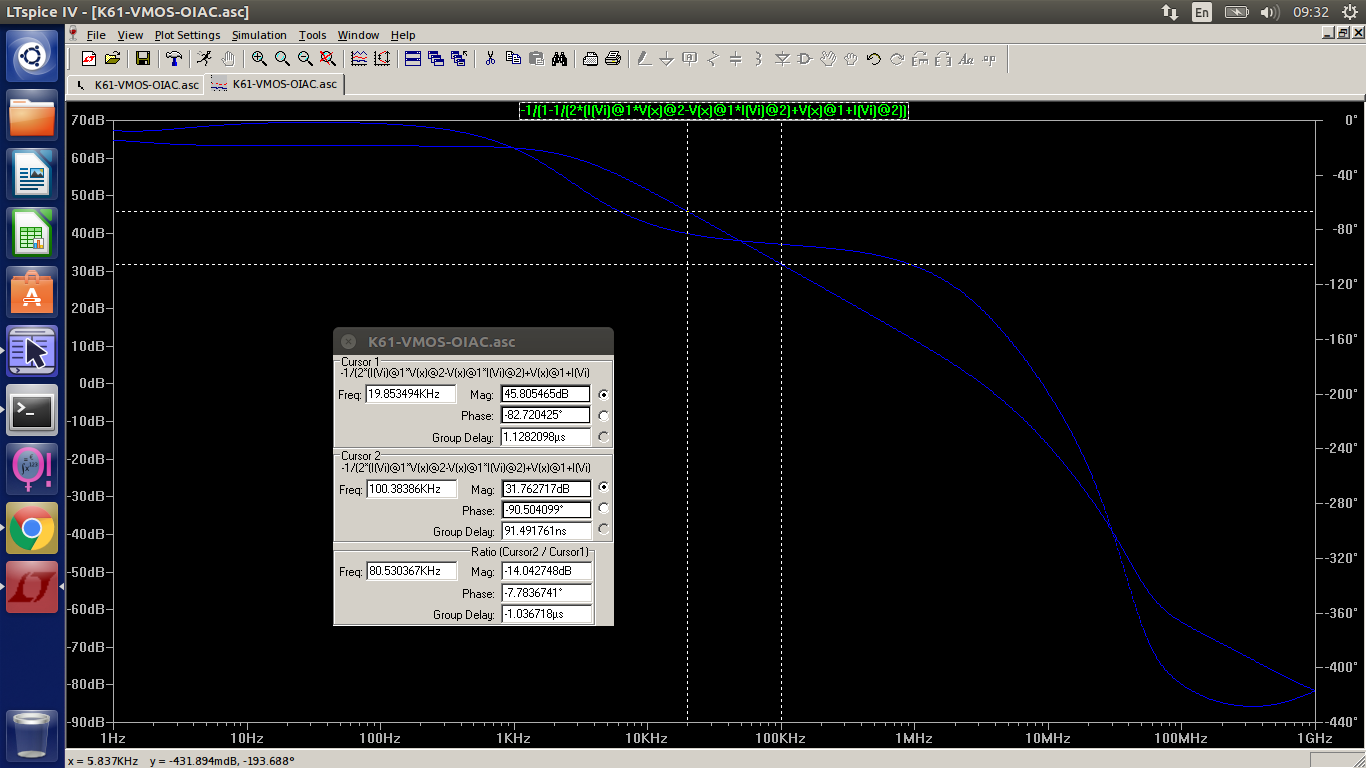

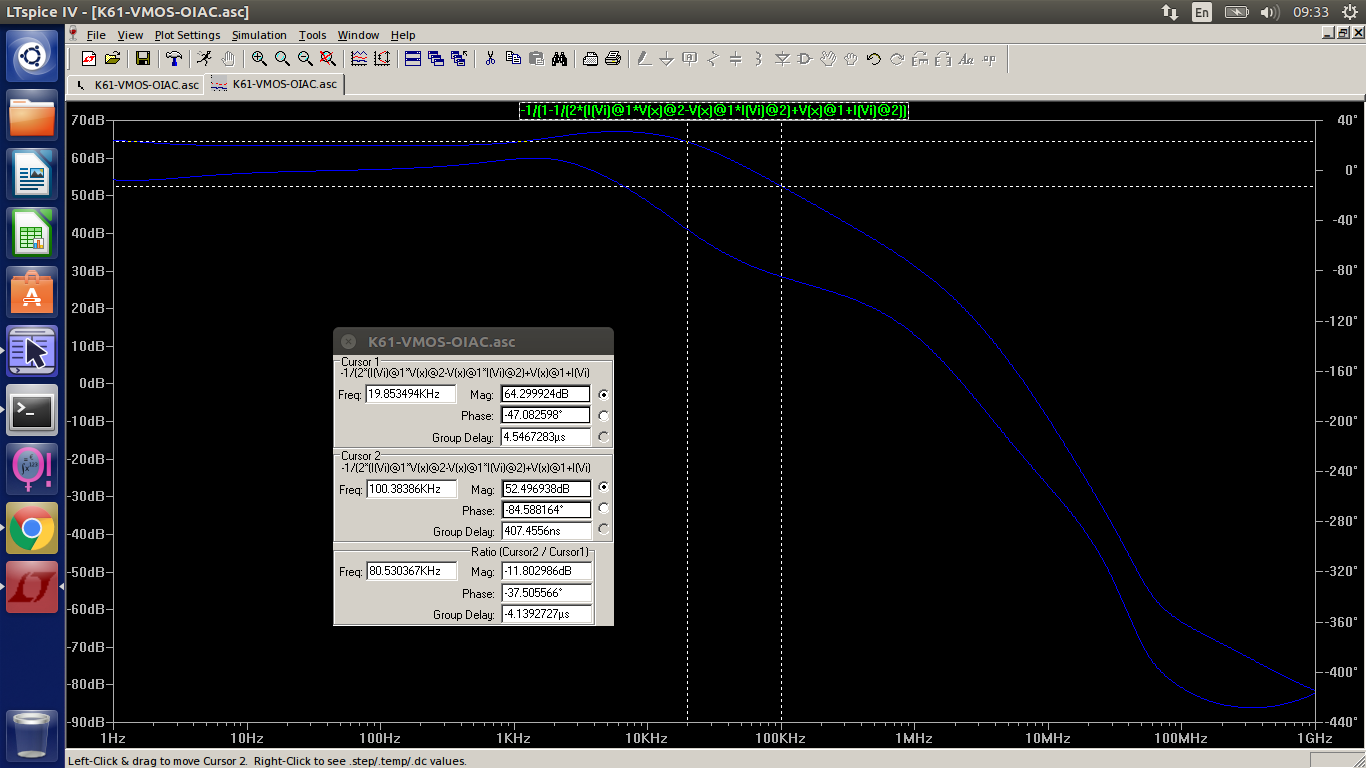

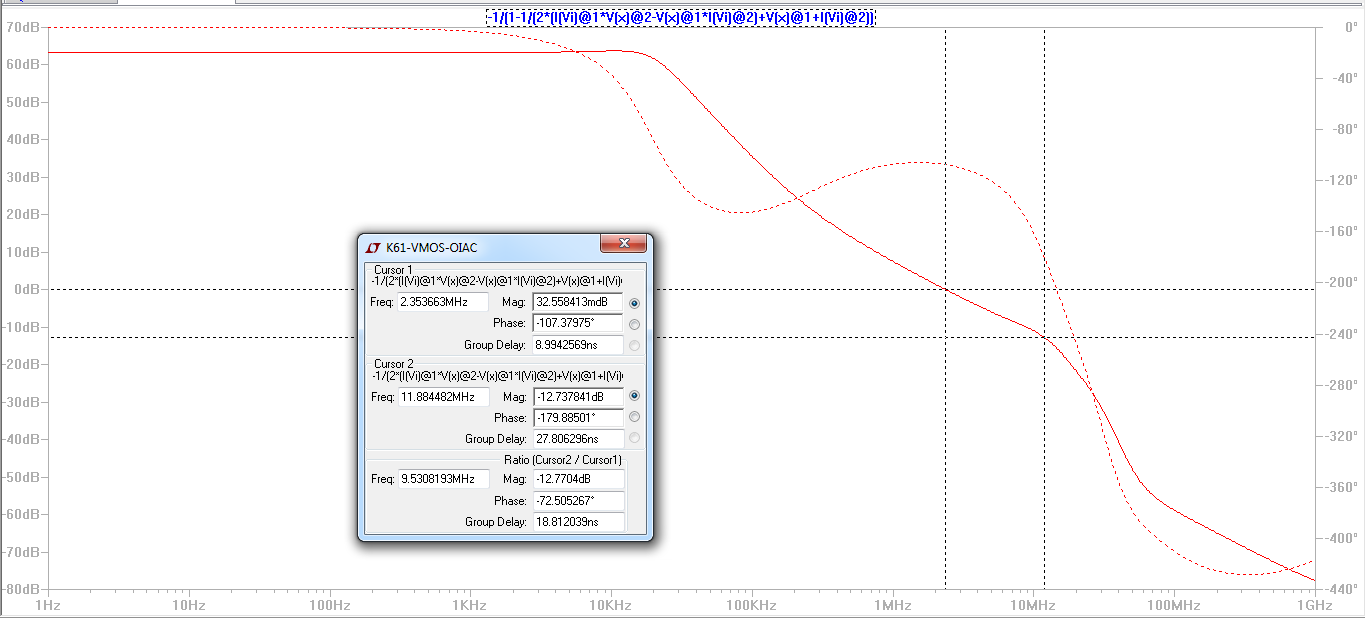

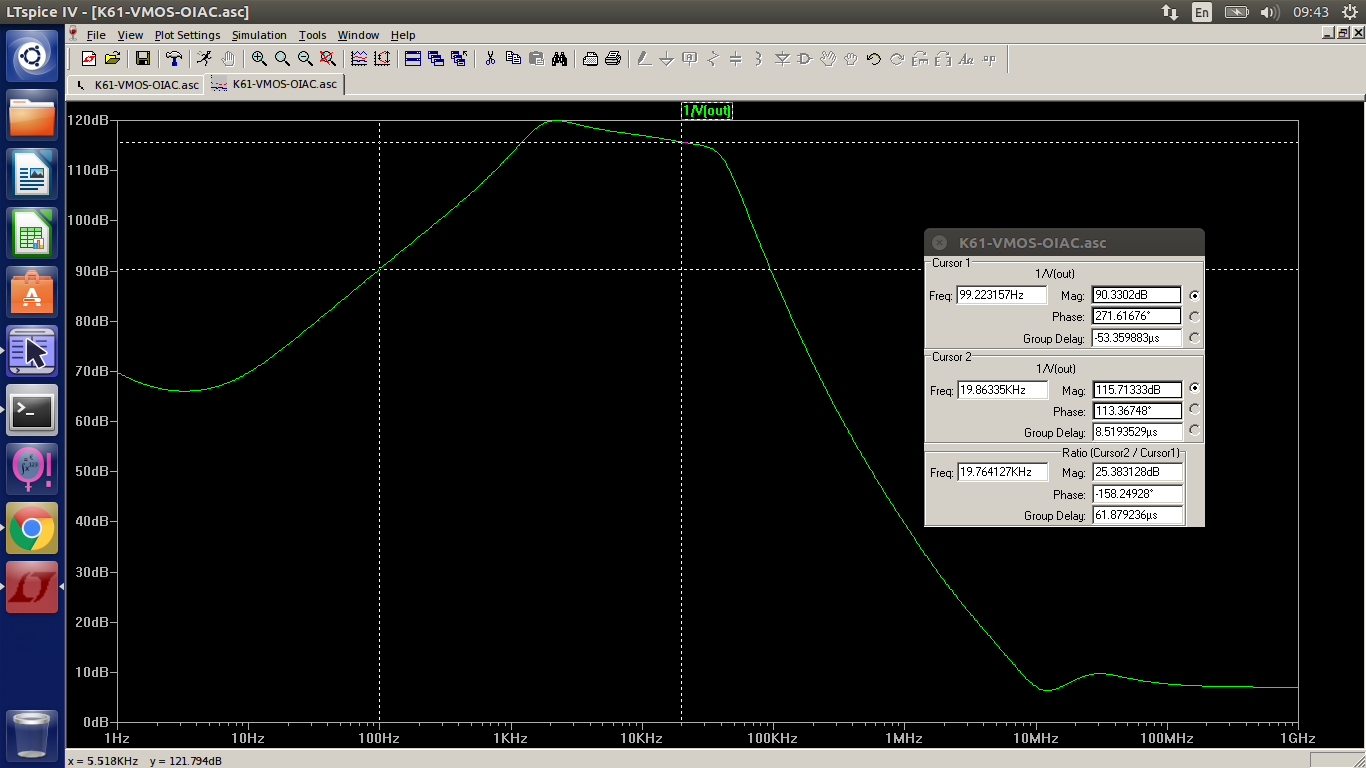

I am a novice. #8 Change the feedback current to double. The current noise is reduced by 22dB
