So: you all know, what you are talking about 😕 ?
The MIC5202 is smaller than an ant. The distance between 2 legs is 1mm 😱!
My old eyes start at 2.54mm.
I won't do this myself, but will politely ask somebody to solder the 5 SMD parts of the VCPre-PCB for me.
Best regards - Rudi_Ratlos
The MIC5202 is smaller than an ant. The distance between 2 legs is 1mm 😱!
My old eyes start at 2.54mm.
I won't do this myself, but will politely ask somebody to solder the 5 SMD parts of the VCPre-PCB for me.
Best regards - Rudi_Ratlos
Attachments
Rudi, if you are not using some magnifing lens and a good light is understandable. My eyes are also not so sharp but using this lens smd soldering is fun: http://www.4medshop.ro/files/produse/im_113_0.jpeg
It's pretty straight forward, magnification, lighting and flux is the key.
A bit fuzzy but you get the idea...
That's a PCM 2707 in a 32TQFP package.
A bit fuzzy but you get the idea...
That's a PCM 2707 in a 32TQFP package.
Last edited:
Gentlemen, I have already begun with the packet assembling of your letters.

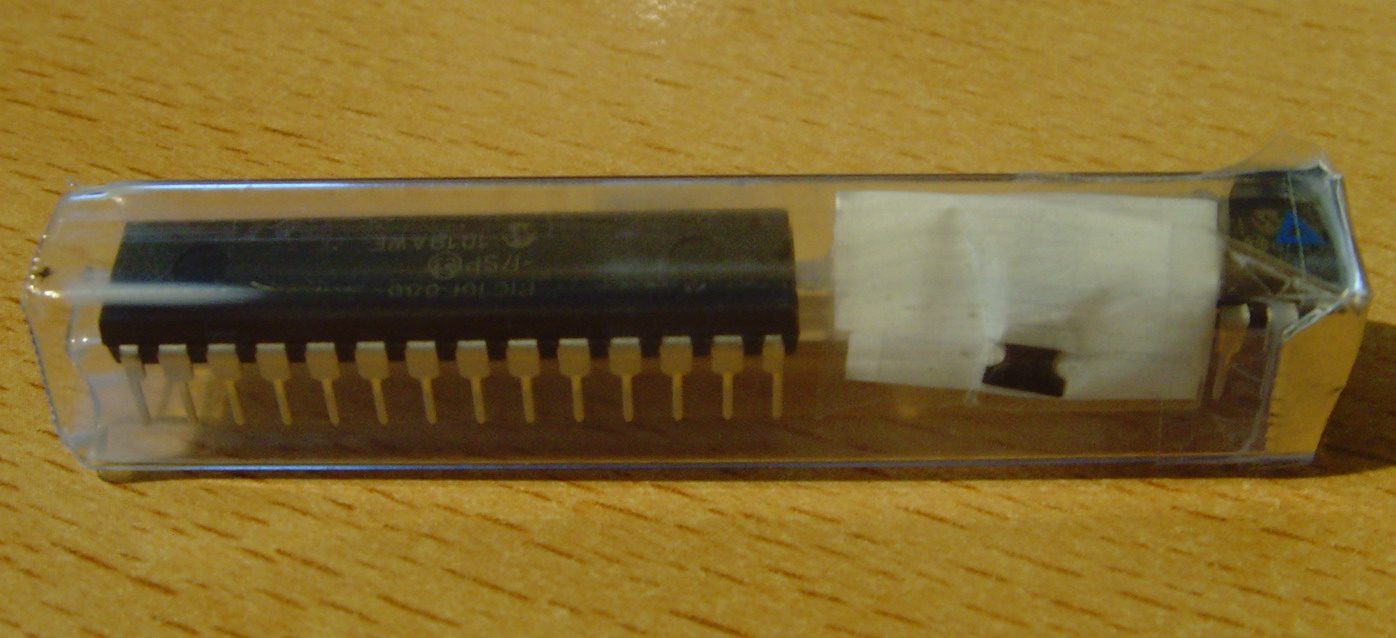

Be careful, when you unwrap the item wrapped in white RYO-cigarette-paper!

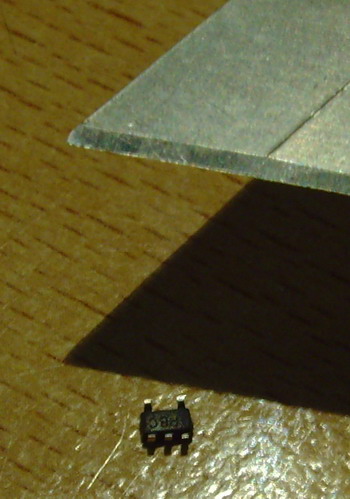

This is the "ANT-size-Voltage-Regulator MIC5205".
I do of course have to wait for the PCBs (they are on their way to me, somewhere between Hongkong and Frankfurt), METAL is working
on the software, "Mr. LDR (Uriah)" has ordered LDRs and will match them, and I myself am currently busy writing the building guideline.
Please wait with ordering the BoM, until you have received and read the builder's guide.
I will send it to you all via EMail.
@TUBO: I did not yet receive your money transfer. I will still wait for some days (will inform you per PM), but then - if not yet received -
I will substitute your name by somebody else's name.
Best regards - Rudi_Ratlos
Be careful, when you unwrap the item wrapped in white RYO-cigarette-paper!
This is the "ANT-size-Voltage-Regulator MIC5205".
I do of course have to wait for the PCBs (they are on their way to me, somewhere between Hongkong and Frankfurt), METAL is working
on the software, "Mr. LDR (Uriah)" has ordered LDRs and will match them, and I myself am currently busy writing the building guideline.
Please wait with ordering the BoM, until you have received and read the builder's guide.
I will send it to you all via EMail.
@TUBO: I did not yet receive your money transfer. I will still wait for some days (will inform you per PM), but then - if not yet received -
I will substitute your name by somebody else's name.
Best regards - Rudi_Ratlos
Attachments
Last edited:
Already ordered from Reichelt...
Hi Rudi,
I have already ordered the two lists you stated a few posts before. Is there any change? In fact the parts are coming from Reichelt...😕
Best Regards,
Jorge
Hi Rudi,
I have already ordered the two lists you stated a few posts before. Is there any change? In fact the parts are coming from Reichelt...😕
Best Regards,
Jorge
No, not at all, Jorge!
But: what I will tell you in my builder's guide: take care that REICHELT has all of the needed components on stock, when you order the BoM!
Maybe you have not noticed, when you clicked on "Take it All" , that some parts are not on stock! These parts will miss then!
But let me tell you some very slight differences though: if you do not plan to use the "front-panel LCD" but like to do it as my German DIY-friend
ANDREAS did it (see image attached): you need "brighter shining relay-LEDs" and reduce the 3K3 relay-resistors to 1K, even to 680 Ohm.
And: you may find it useful to use a socket for the VCPre's fuse?!

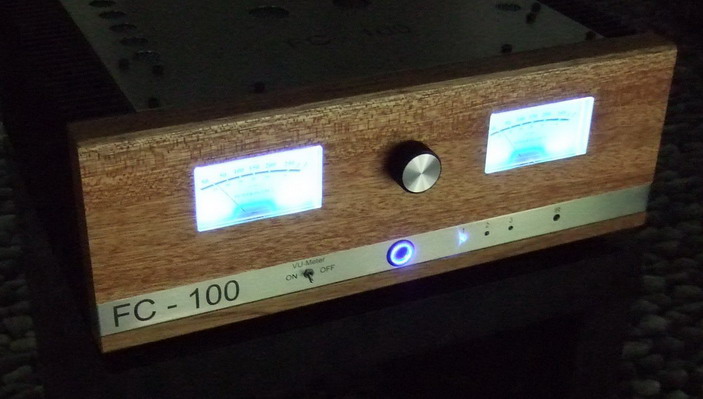

Find attached an image of the front-panel of Andreas_FC-100 using the VCPre (but you will need an additional PCB to use
a McIntosh-like VU-meter and look at the LEDs labelled "1,2 and 3" ! The rightmost-hole in his front is used for the infrared-receiver).
Best regards - Rudi-Ratlos
But: what I will tell you in my builder's guide: take care that REICHELT has all of the needed components on stock, when you order the BoM!
Maybe you have not noticed, when you clicked on "Take it All" , that some parts are not on stock! These parts will miss then!
But let me tell you some very slight differences though: if you do not plan to use the "front-panel LCD" but like to do it as my German DIY-friend
ANDREAS did it (see image attached): you need "brighter shining relay-LEDs" and reduce the 3K3 relay-resistors to 1K, even to 680 Ohm.
And: you may find it useful to use a socket for the VCPre's fuse?!
Find attached an image of the front-panel of Andreas_FC-100 using the VCPre (but you will need an additional PCB to use
a McIntosh-like VU-meter and look at the LEDs labelled "1,2 and 3" ! The rightmost-hole in his front is used for the infrared-receiver).
Best regards - Rudi-Ratlos
Attachments
Last edited:
As I have already told you some time before:

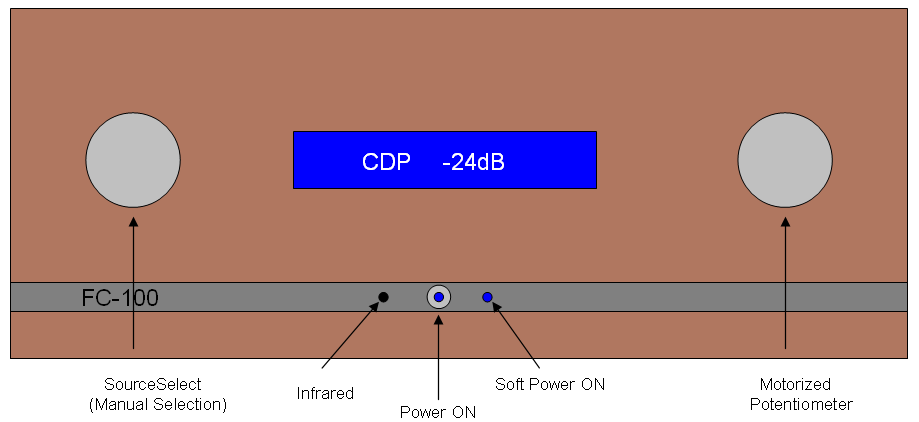

My front-panel, using the VCPre, shall eventually look like this.
Best regards - Rudi_Ratlos
P.S.: Do you notice the difference between "PowerOn" and "Soft-Power-On (Standby) - using the SPO- auxiliary PCB"?
My front-panel, using the VCPre, shall eventually look like this.
Best regards - Rudi_Ratlos
P.S.: Do you notice the difference between "PowerOn" and "Soft-Power-On (Standby) - using the SPO- auxiliary PCB"?
Attachments
Last edited:
I have started working on the firmware. There is something that I need to say here:
The LCD that I and Rudi are using is 1x16 LCD, the addressing scheme of this LCD is different from normal 1x16 LCDs. So, people who decide to use 1x16 LCD should pay attention to the difference among 1x16 LCDs because not all of them use the same addressing scheme. This will cause incompatibility problems later on.
2X16 LCDs are also supported, and will display the temperature and update it continuously every 60 seconds minimum.
Hence, I am writing two firmware versions, one for 1x16 LCD that I and Rudi are using. This will use a remote button to display the temperature. The other version supports 2x26 LCDs, and will have space to display temperature on the 2nd line.
You must tell Rudi which version you intend to have and ask him what the model of this LCD is, or at least contact me by PM and let me know what model for 1x16 LCD you are going to use, I can tell from its datasheet whether it will work or not. This is for your convenience.
The LCD that I and Rudi are using is 1x16 LCD, the addressing scheme of this LCD is different from normal 1x16 LCDs. So, people who decide to use 1x16 LCD should pay attention to the difference among 1x16 LCDs because not all of them use the same addressing scheme. This will cause incompatibility problems later on.
2X16 LCDs are also supported, and will display the temperature and update it continuously every 60 seconds minimum.
Hence, I am writing two firmware versions, one for 1x16 LCD that I and Rudi are using. This will use a remote button to display the temperature. The other version supports 2x26 LCDs, and will have space to display temperature on the 2nd line.
You must tell Rudi which version you intend to have and ask him what the model of this LCD is, or at least contact me by PM and let me know what model for 1x16 LCD you are going to use, I can tell from its datasheet whether it will work or not. This is for your convenience.
Good idea, Voxxonline!
What parts are you thinking about? The motorized potentiometer, LCD, ...?

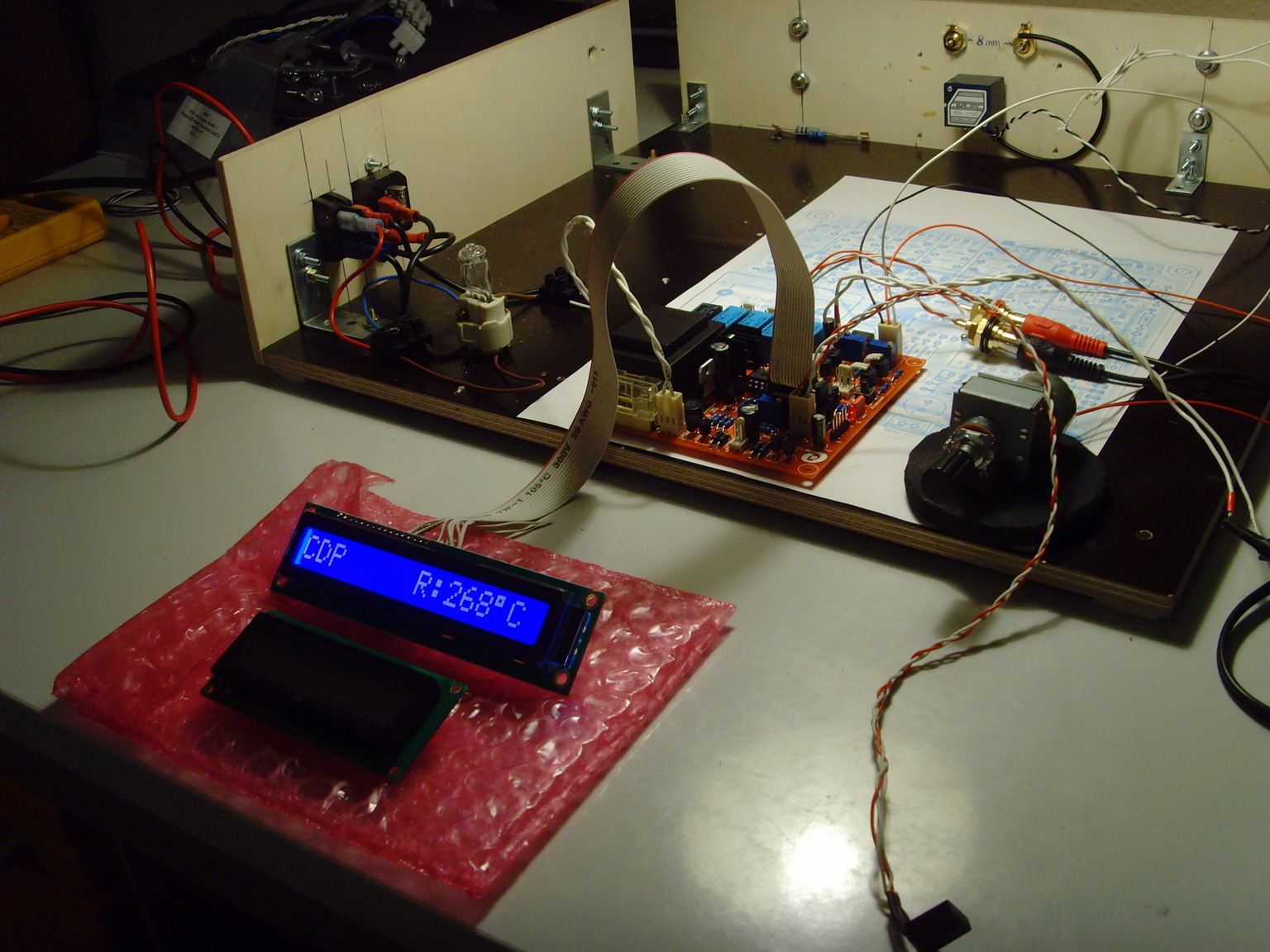

I did not know about the differences of 16x1 LCDs, until I connected the one I bought (Manufactor: Electronic Assembly, ID: EA W161B-ENLW)
to my current VCPre-PCB version.
Allthough being called: "16x1 LCD" and being HD44870-compatible, the display is internally organized as 8+8 chars, having a specific addressing
scheme that differs from the addressing scheme of a 16x2 standard LCD, for example.
But I like this display very much, because it has big (9.6mm as compared to 5.5mm of a standard 16x2 device) letters!
Best regards - Rudi_Ratlos
What parts are you thinking about? The motorized potentiometer, LCD, ...?
I did not know about the differences of 16x1 LCDs, until I connected the one I bought (Manufactor: Electronic Assembly, ID: EA W161B-ENLW)
to my current VCPre-PCB version.
Allthough being called: "16x1 LCD" and being HD44870-compatible, the display is internally organized as 8+8 chars, having a specific addressing
scheme that differs from the addressing scheme of a 16x2 standard LCD, for example.
But I like this display very much, because it has big (9.6mm as compared to 5.5mm of a standard 16x2 device) letters!
Best regards - Rudi_Ratlos
Attachments
Yep I d go for mot pot, lcd, basically full kit. But it is up to the builder what to Order, we just put money Into the pot and order things.
Lets wait till mouser bom is released
Lets wait till mouser bom is released
Good idea voxxonline
This is one of the displays I've http://www.newhavendisplay.com/m0216sd162sdar21-p-2076.html
This is one of the displays I've http://www.newhavendisplay.com/m0216sd162sdar21-p-2076.html
Last edited:
Rudy,
I like the size of the lettering on that display, my eyes are not what they used to be.
Bill
I like the size of the lettering on that display, my eyes are not what they used to be.
Bill

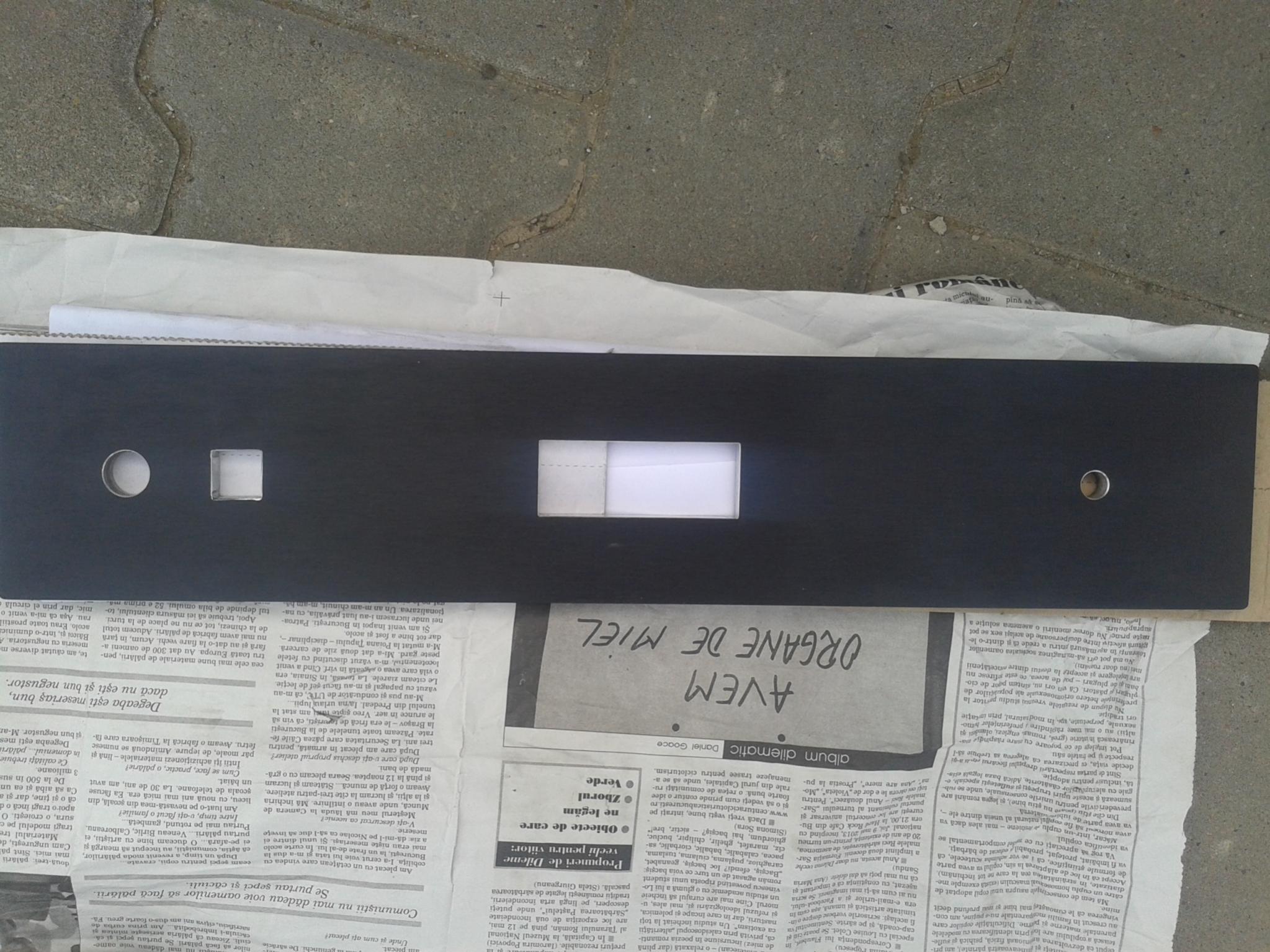

I like this 1x16 display but i already cut my preamp front panel for 2x16 display (HD44870).
Attachments
Last edited:
I will ask Billyk, if he likes and puts this LCD:
NHD-0116DZ-NSW-BBW Newhaven Display | Mouser
into his MOUSER BoM.
Best regards - Rudi_Ratlos
NHD-0116DZ-NSW-BBW Newhaven Display | Mouser
into his MOUSER BoM.
Best regards - Rudi_Ratlos
