Upper Gate Driver, discrete

Status
This old topic is closed. If you want to reopen this topic, contact a moderator using the "Report Post" button.
Jump to Latest
G

Goezzi

Member
Joined 2007

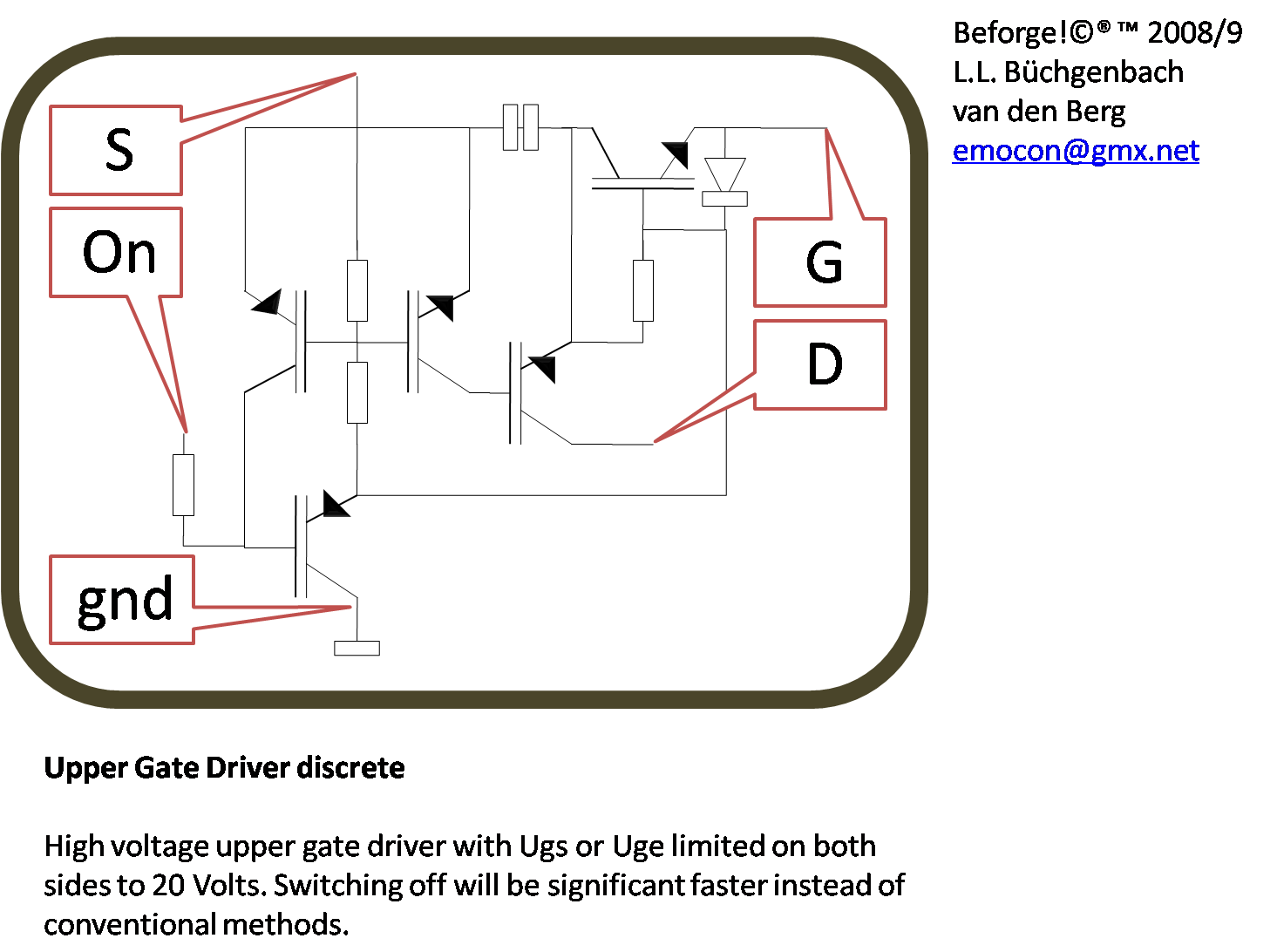

Designed to put +/-20v on the Ugs or Uge (substitute gds with gce for igbt), should result in nice off times.

Made in a public library, so don't say anything about the picture quality.
Start off values for the double transistor voltage regulator would be 10k/210k to get the wanted voltages.

Any suggestions and remarks are welcome, grtz Lleo
