UltraLite BAF21

[Monk55]

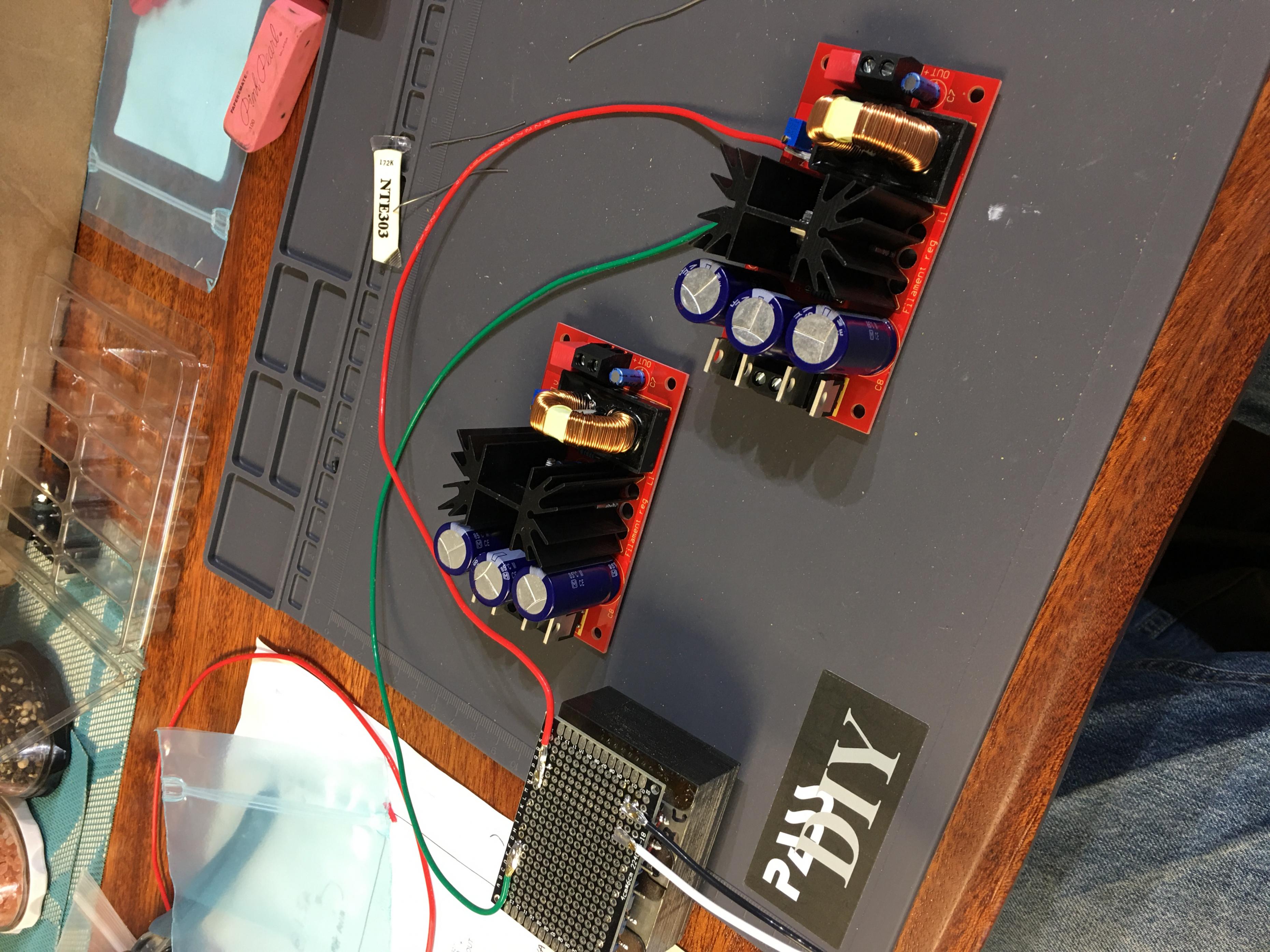

Filament regulators ready to go…boards by Pete Millett



[Monk55]

I had some left over xformers with 8vac taps @ 1.5A



[peppennino]

News, Brian?

Mr. MR, could you please share some details ot he amp?
What about this as output cap?
https://www.mouser.it/ProductDetail/Nichicon/UFW1J682MRD?qs=kArNe9LFxXliyMzWVyxaUg==

Good afternoon



[Monk55]

Should work fine. I’m using Nichicon LKG1H682MKNS which is pushing the voltage a bit.

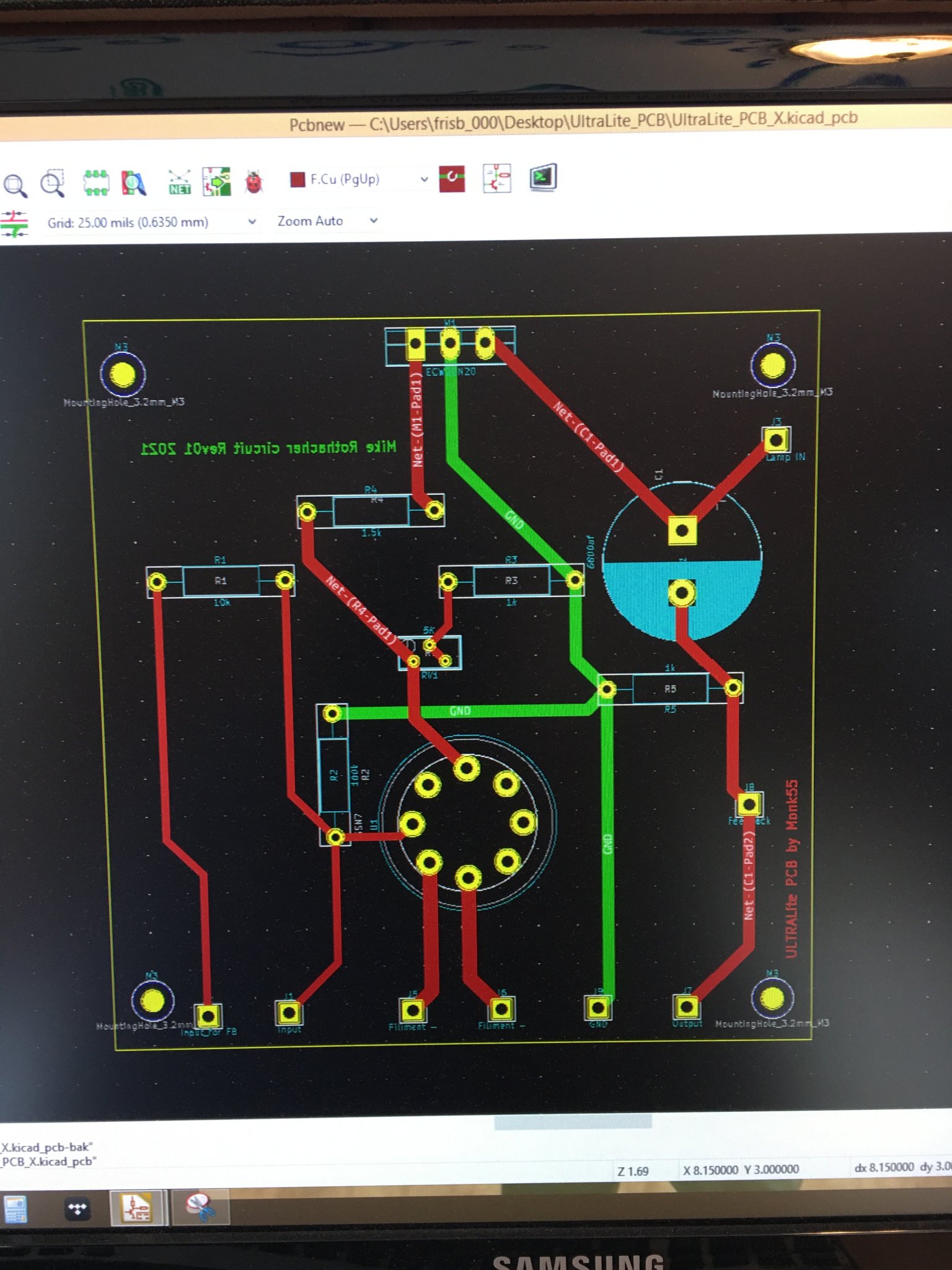

I’m trying to build a PCB for the tube & it’s a pretty good learning curve using Kicad for the first time.



[peppennino]

As heatsink, would this be enough for the lateral Mosfet?

Solid State Relay Heating Radiator 110X125X135MM be used for Three phase solid state relay 10A 25A 40A 60A 80A 100A 120A 150A|Relays| - AliExpress

Thanks



[Monk55]

That look just like mine but the price is way better. So it appears adequate



[peppennino]



[Monk55]

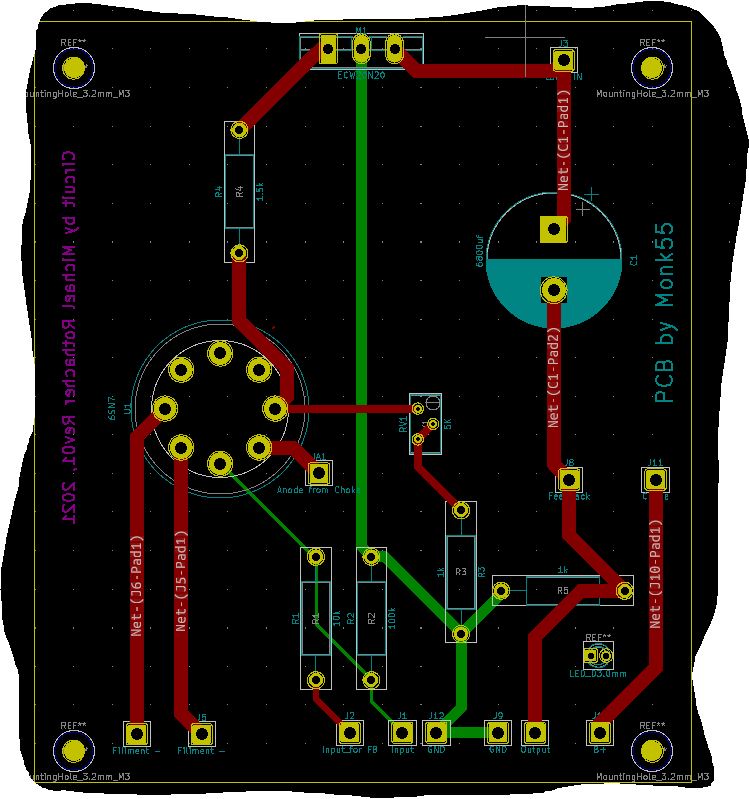

I think/hope this will work & it’s off to fab.



[peppennino]

Monk55, where are you buying Lateral MosFets?



[Monk55]

https://www.profusionplc.com/parts/ecw20n20



[peppennino]

That's Mr. MR on Ultralite:



[peppennino]

https://www.profusionplc.com/parts/ecw20n20

Thanks



[Monk55]

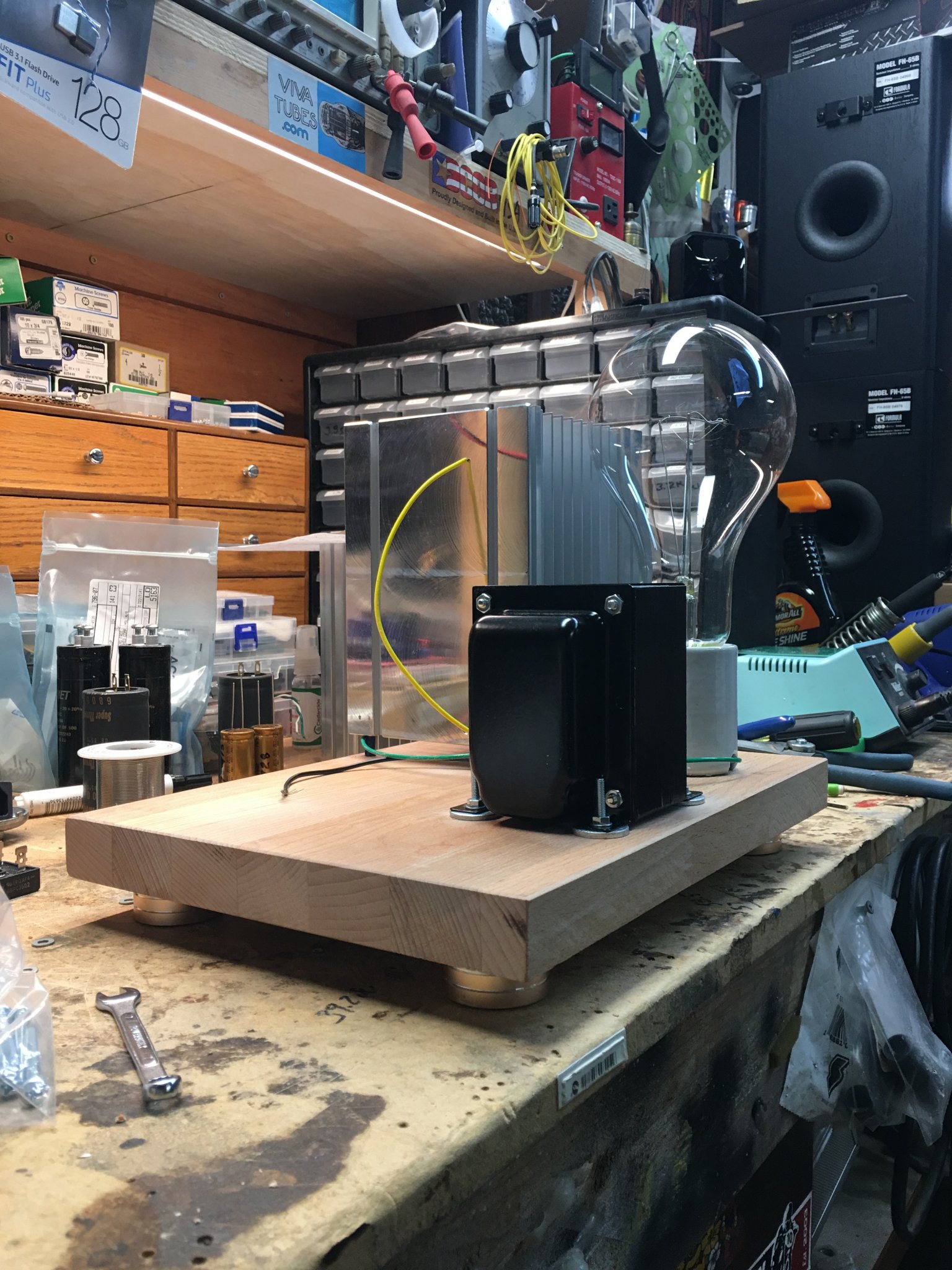

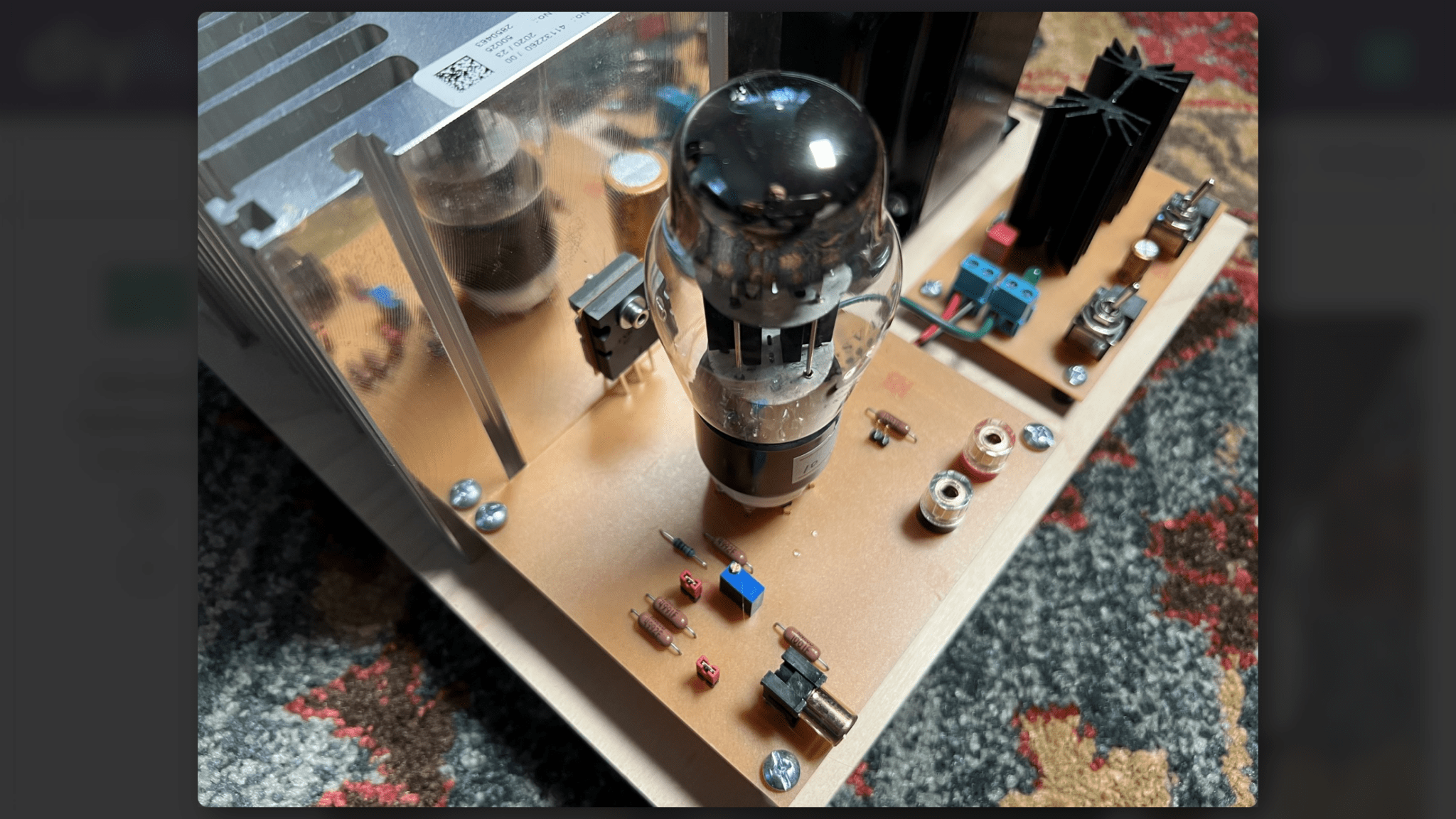

Progress.



[peppennino]

It does grow majestic 🤩



[Monk55]

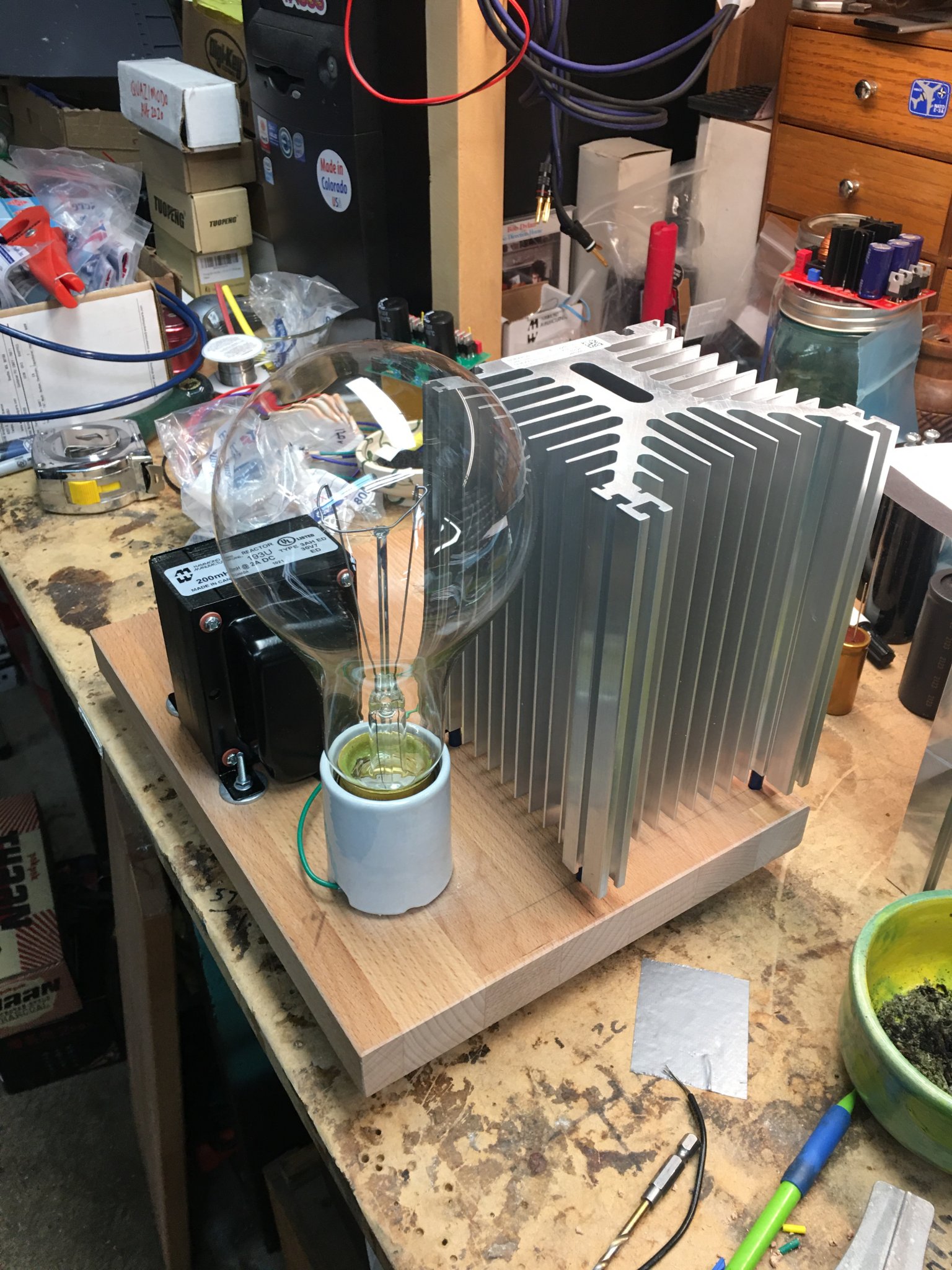

My 500 watt light measures 2.6 ohms. That may need help.



[Monk55]

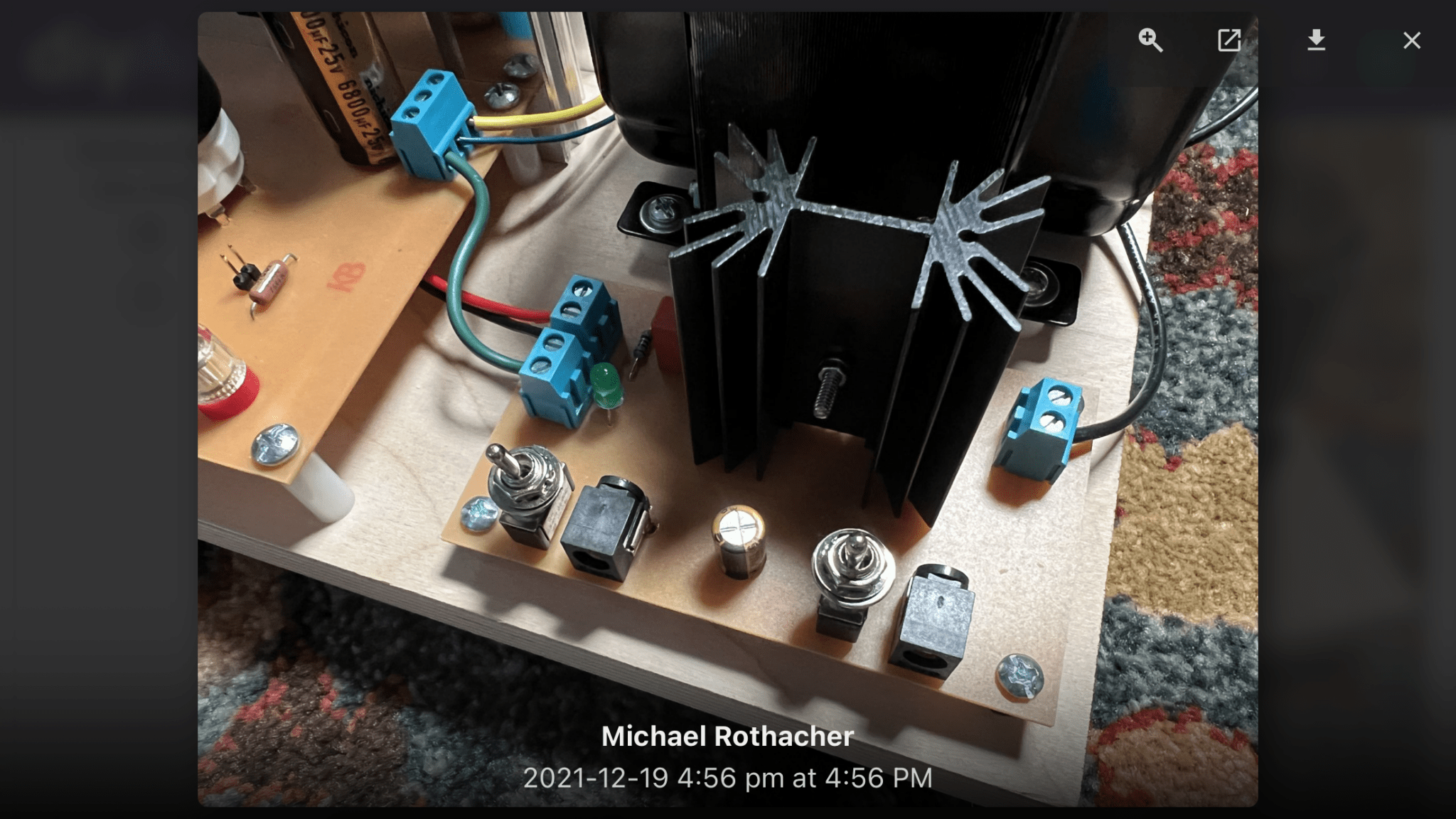

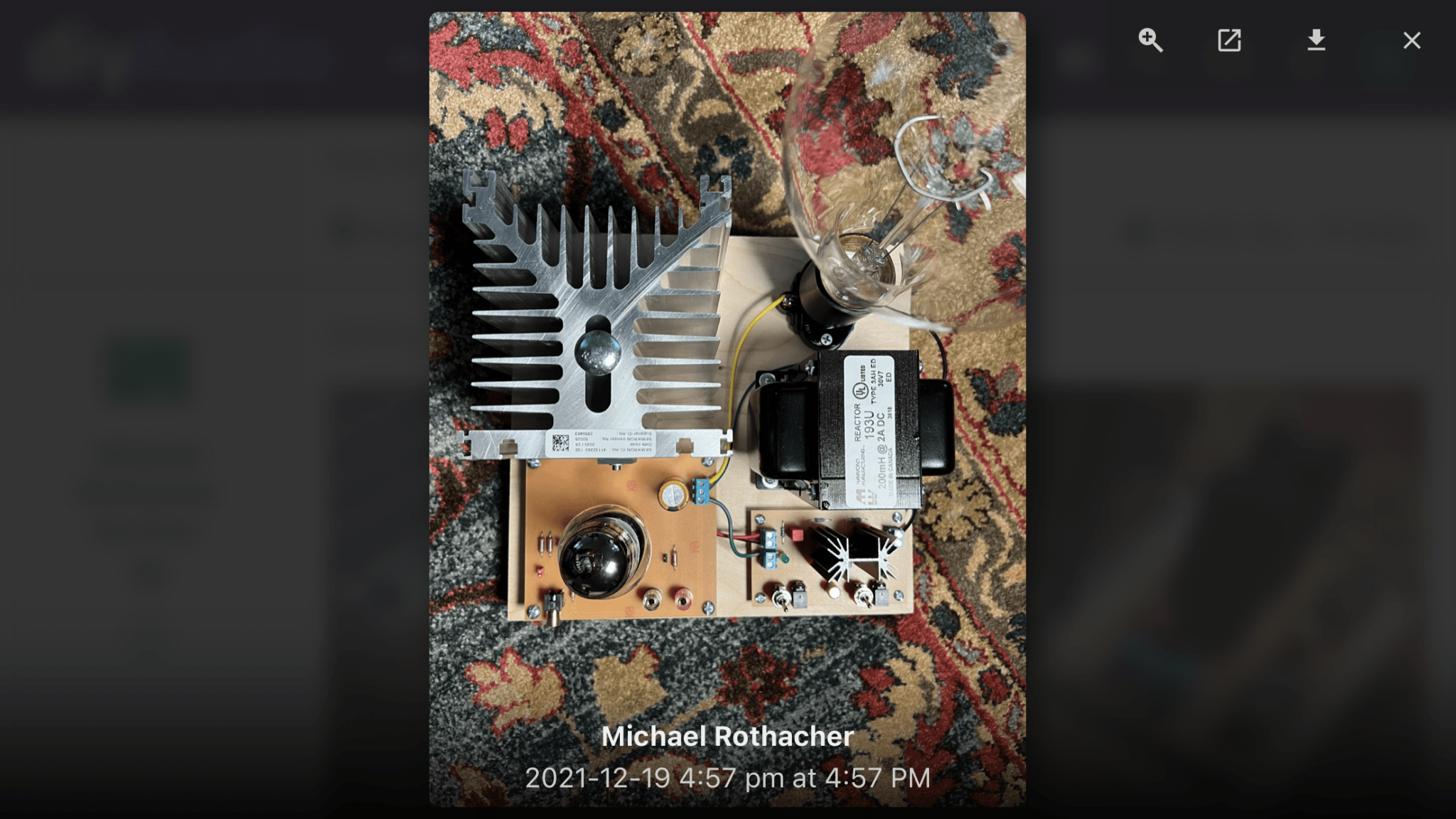

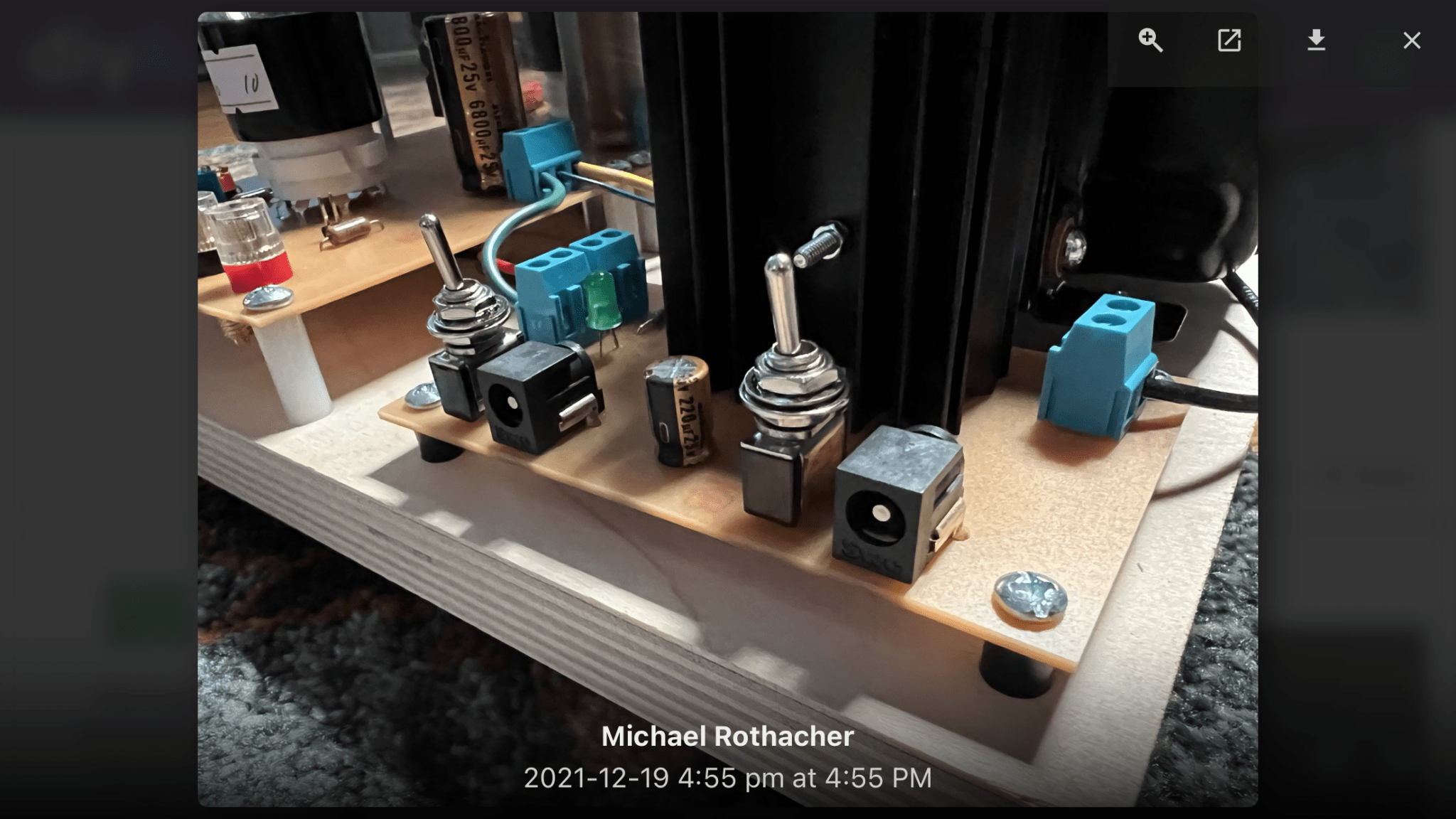

Thank you Michael R. For the pictures.



[Monk55]

Building PS this week...Had fun trying KiCad to make first PCB. Will mount mosfet today. Happy Holidays



[peppennino]



[Monk55]

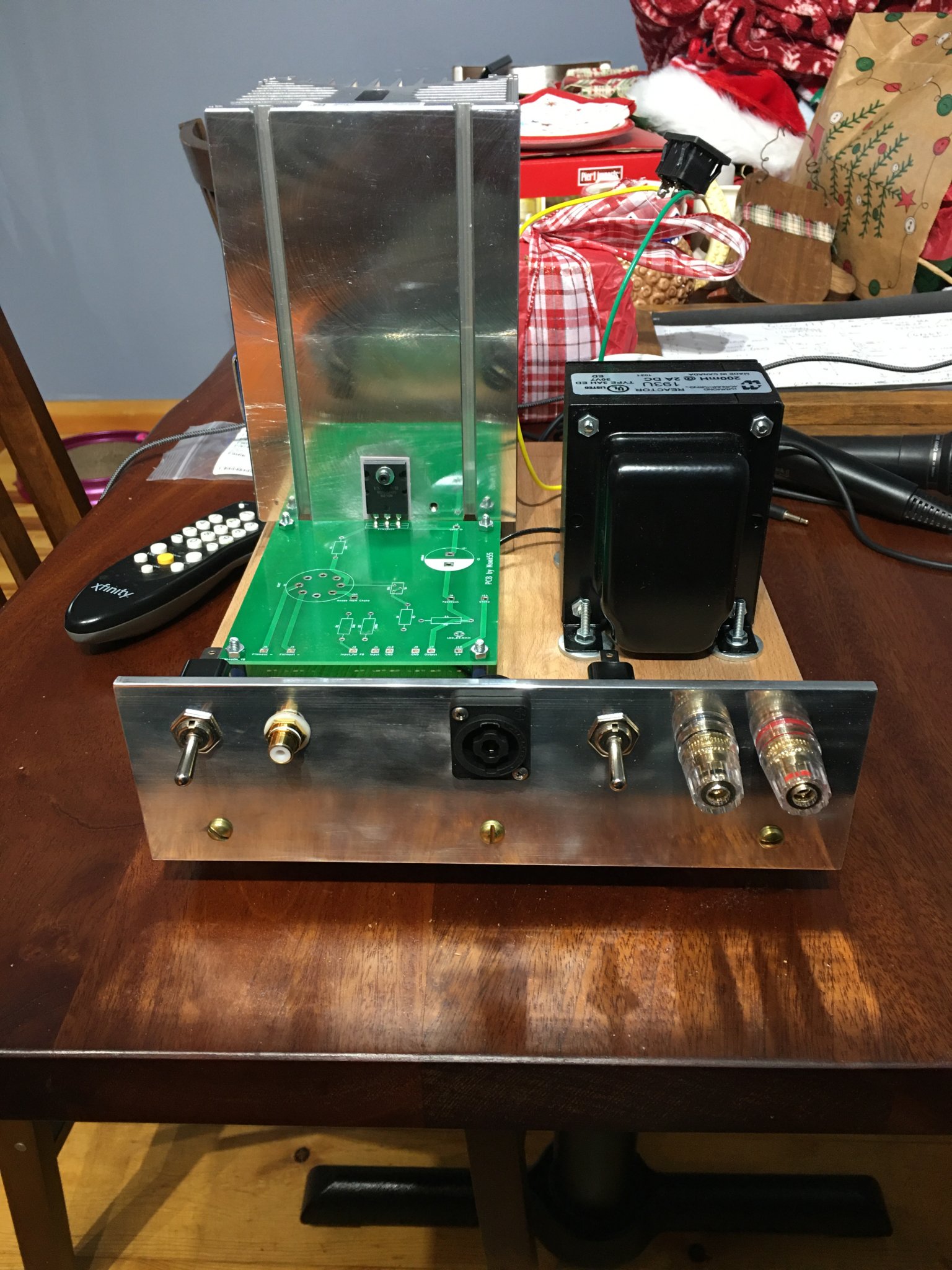

Progress



[peppennino]

Any news, Brian?
